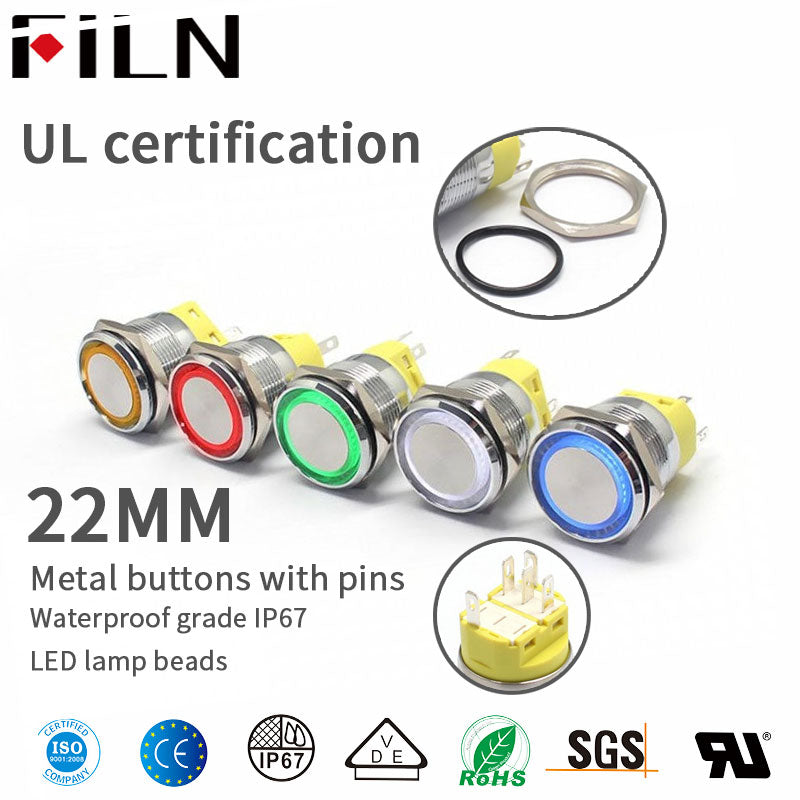

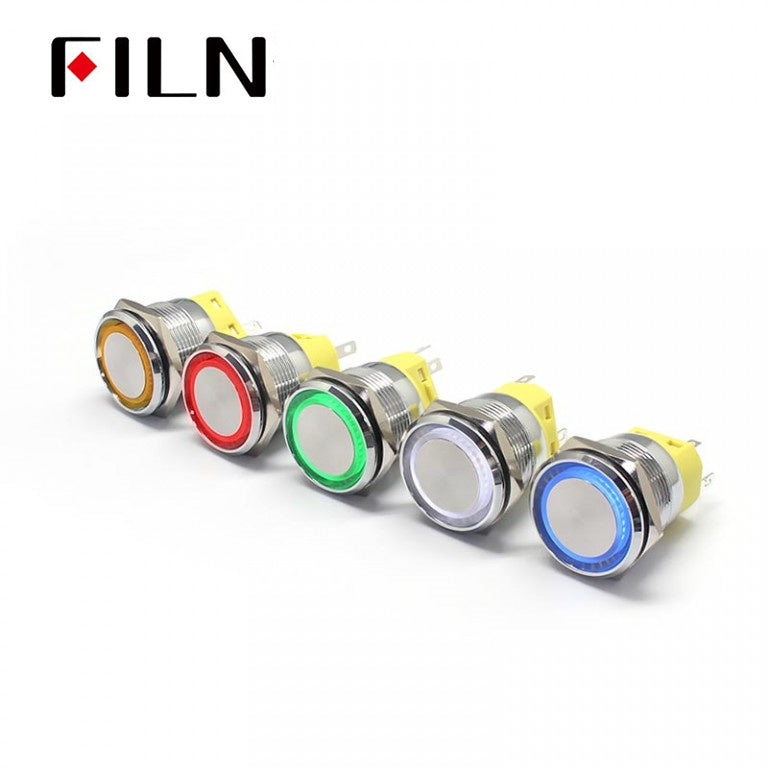

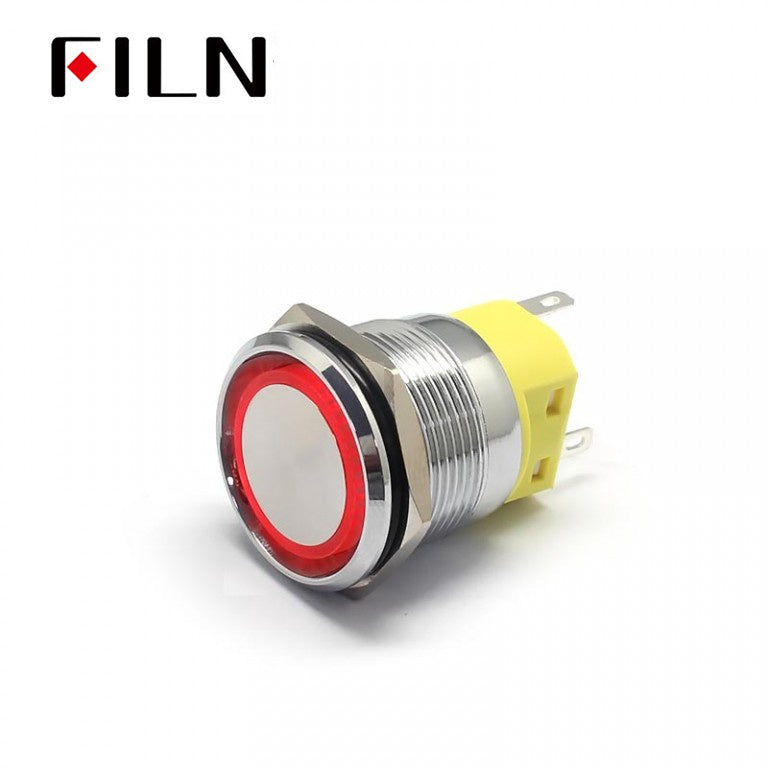

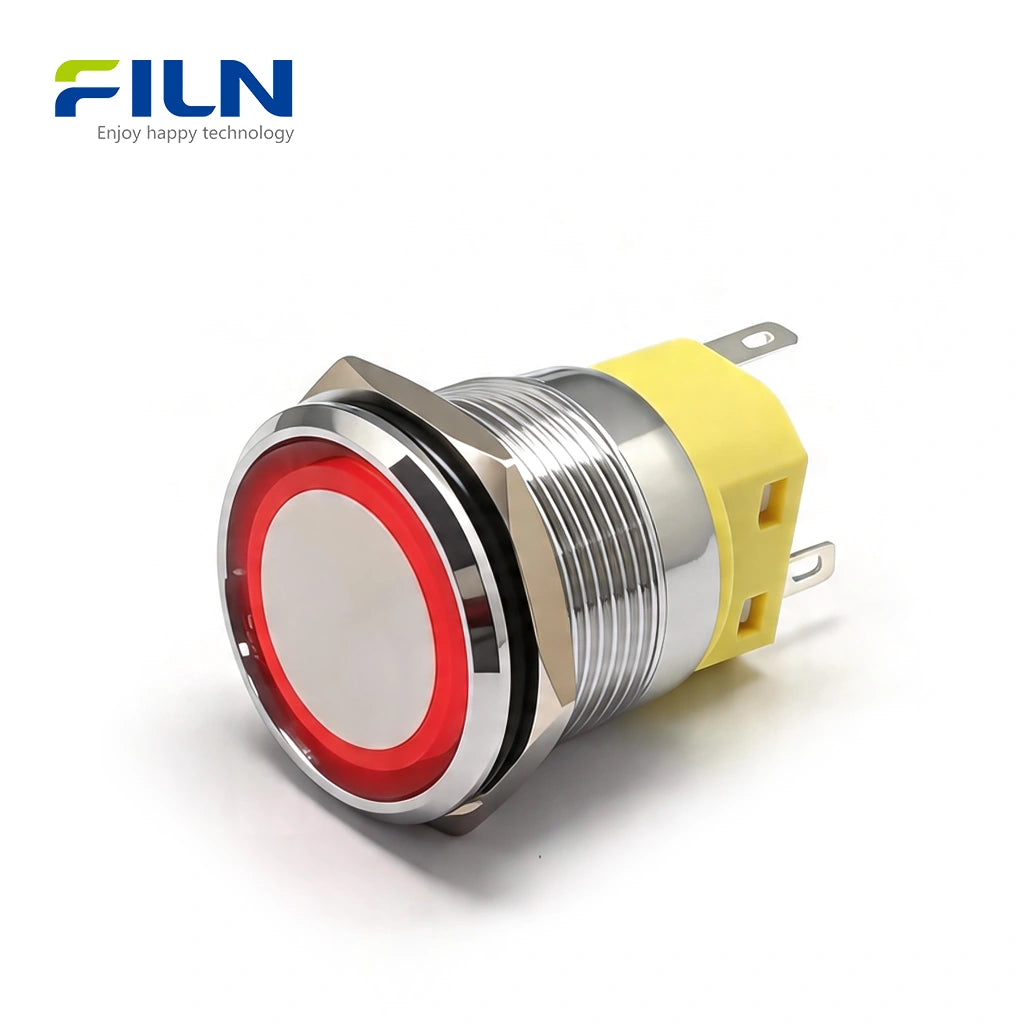

The FLM22-FJ-1-C series features premium 22mm push button switches designed for high-performance industrial applications. Manufactured by FILN, a leading factory specializing in customized metal switches, these components carry world-class certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you require a stainless steel industrial switch for marine environments or a black aluminum push button for sleek control panels, this 5-pin terminal switch provides unmatched reliability. Key advantages include ring-led illumination for status feedback and a choice between momentary and latching functions. These waterproof LED button switches are ideal for automation equipment, CNC machines, and medical devices.

1. Superior Protection & Durability: With an IP65 & IK08 rating, this 22mm metal push button switch is resistant to water, dust, and physical impact, making it perfect for outdoor or harsh industrial environments.

2. Optimized Electrical Load: Rated at 5A 250V AC/DC, it handles higher power than standard 2A switches, often eliminating the need for additional relays.

3. Premium Material Choices: Available in 304 Stainless Steel or Black Aluminum, utilizing Silver Alloy contacts to minimize contact resistance (<50mΩ).

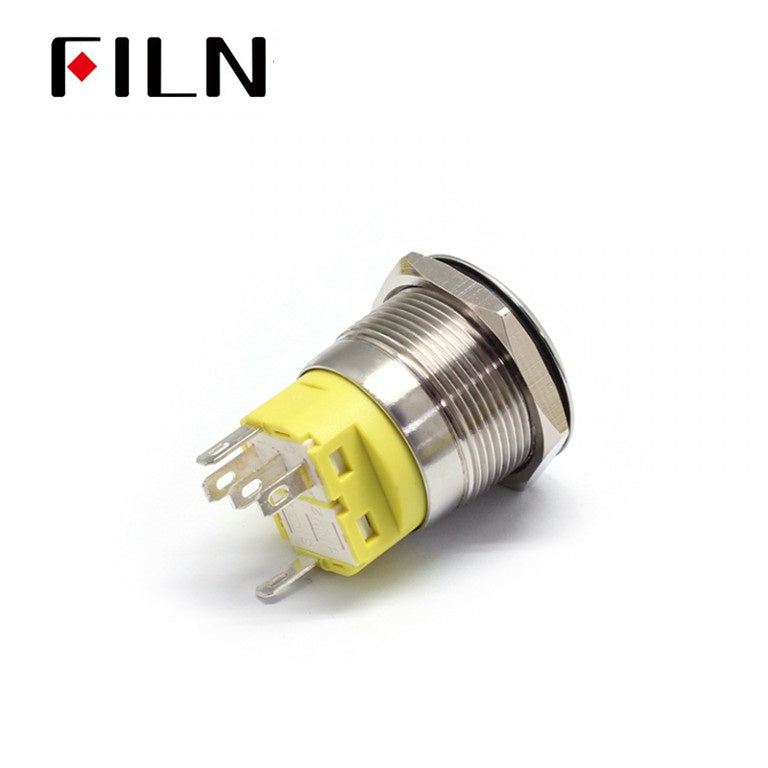

4. Wiring Convenience: The 5-pin terminal design supports both soldering and plug-in connectors. For rapid assembly, we recommend the FILN Push Button Wire Connector.

5. Ultra-Compact Design: A total length of ~26.5mm allows installation in shallow enclosures or handheld devices where space is at a premium.

These switches are used globally across various sectors:

• Industrial control panels
• CNC machines
• Automation equipment
• Electrical cabinets
• Marine & Naval systems
• Medical devices
• Access control systems
• Food processing machinery

1. Panel Cutout: Drill a 22mm diameter hole in your control panel.
2. Insert Switch: Place the button from the front of the panel through the hole.

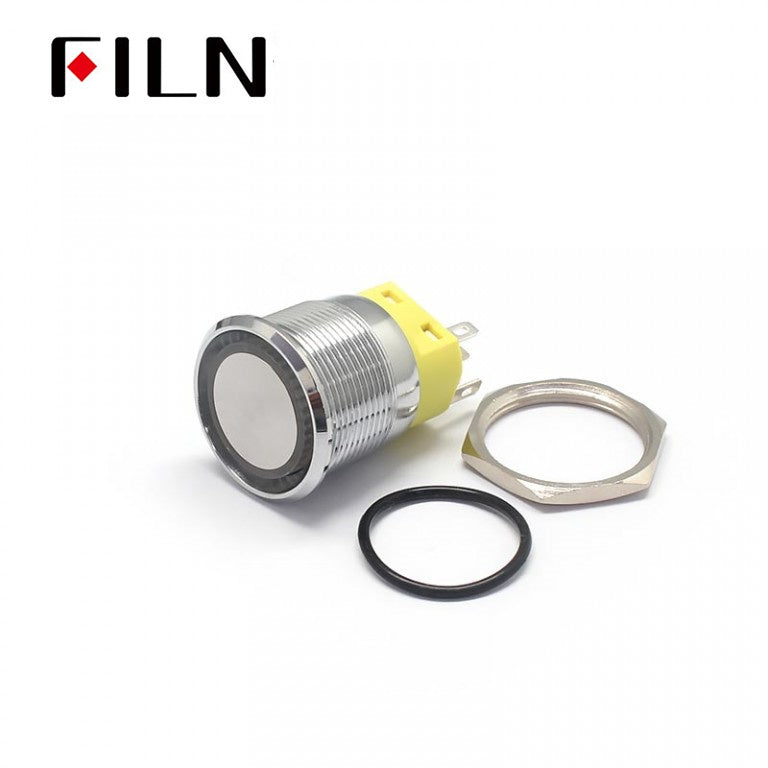

3. Secure Nut: Slide the O-ring onto the switch body and tighten the metal hex nut from the back to fix it.
4. Wiring: Connect wires to the 5-pin terminals via soldering or a quick-connect socket.

5 Pin Push Button Switch Wiring Diagram

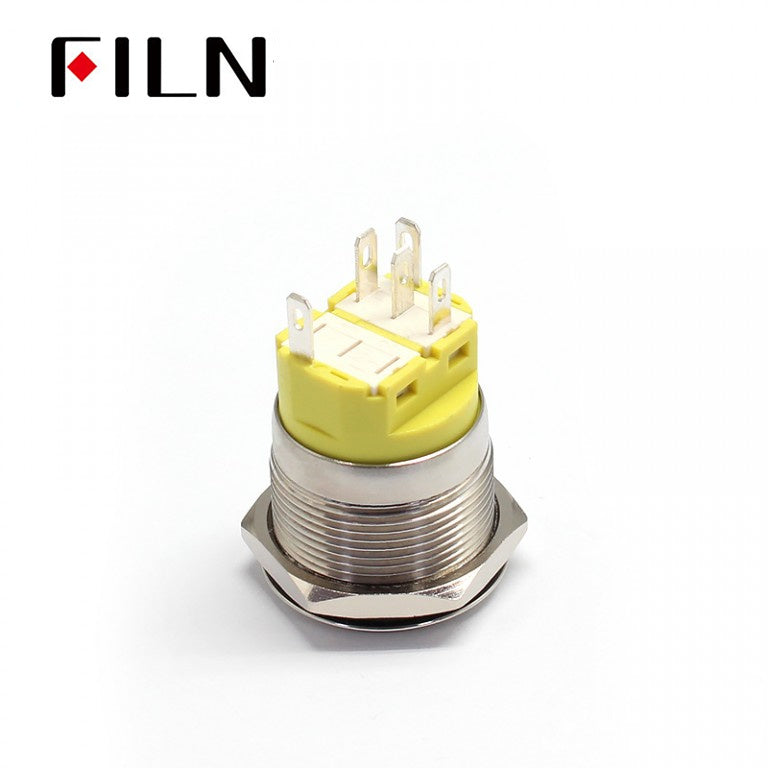

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

1. What are Push Button Switches?

A push button switch is a simple mechanism used to control some aspect of a machine or a process. In industrial settings, they act as the interface between the human operator and the machine's electrical logic, allowing for manual start/stop or mode selection.

2. Latching vs. Momentary: What is the difference?

FILN Factory Direct Supply

• ✅ No MOQ (1 piece order accepted)
• ✅ Fast Lead Time (Global Shipping)
• ✅ Customization: Voltage, Wire Length, Connectors
• ✅ Full Certifications: CE, RoHS, UL

REQUEST FREE SAMPLES

Official Website: www.filn.com
Contact Email: inquiry@cnylin.com.cn

Q1: Is this 22mm metal push button switch waterproof?
A: Yes, it is IP65 rated, making it waterproof and dustproof for industrial use.

Q2: Can I get a 110V LED version?
A: Absolutely. FILN supports custom voltages from 3V to 220V AC/DC.

Q3: What is the difference between a 5-pin and 4-pin switch?
A: 5-pin switches include both NO and NC contacts, whereas 4-pin usually only has NO or shared pins.

Q4: Do you offer the black aluminum finish?
A: Yes, we offer both 304 stainless steel and black anodized aluminum options.

Q5: How do I wire it so the LED is always ON?
A: Connect the LED (+) and (-) pins directly to your power source.

Q6: Is this switch momentary or latching?
A: We offer both. Model FLM22-FJ-1-C can be ordered as either momentary or latching.

Q7: Does it come with the wiring socket?
A: The socket is sold separately but highly recommended for fast installation.

Q8: What is the mechanical life of these waterproof LED button switches?
A: It has a mechanical life of over 500,000 cycles.

Q9: Can I use this for marine applications?
A: Yes, the 304 stainless steel version is excellent for resisting salt spray corrosion.

Q10: Are there other sizes available?
A: Yes, FILN manufactures 8mm to 40mm metal push buttons.
