Button Switch Drawing
Product Overview

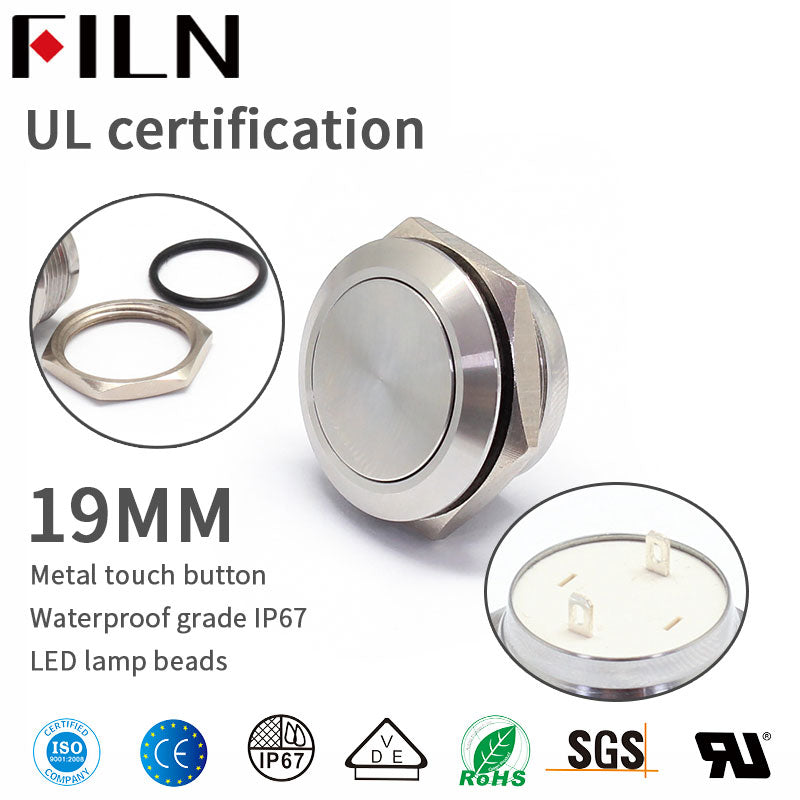

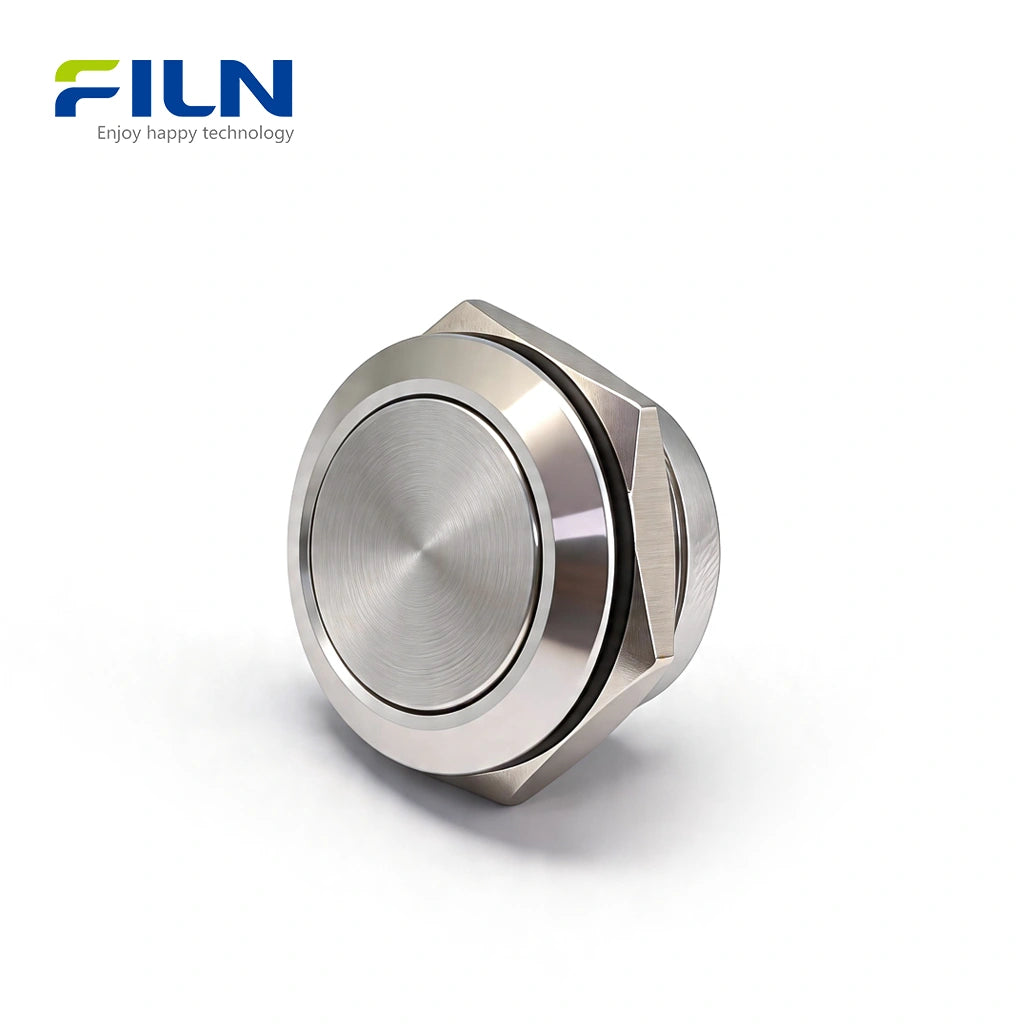

The 19mm push button momentary switches (Model: FLM19-F-4-X) are premium industrial-grade control components designed by FILN. These ultra-thin metal push buttons are specifically engineered for applications with limited back-panel space, offering a small space installation switch solution without compromising durability. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, these switches ensure global compliance and reliability. Constructed from stainless steel tactile switch materials or zinc-alloy black metal switch finishes, they provide a professional aesthetic for industrial panel mount switch needs in CNC machines, medical devices, and automation equipment.
Quick Specifications
| Feature | Details |
|---|---|
| Model Number | FLM19-F-4-X |
| Mounting Hole Size | 19mm (0.75 inch) |
| Switch Function | Momentary (Self-reset) |
| LED Illumination | Non-Illuminated (No Light) |
| Button Head Shape | Flat Head |

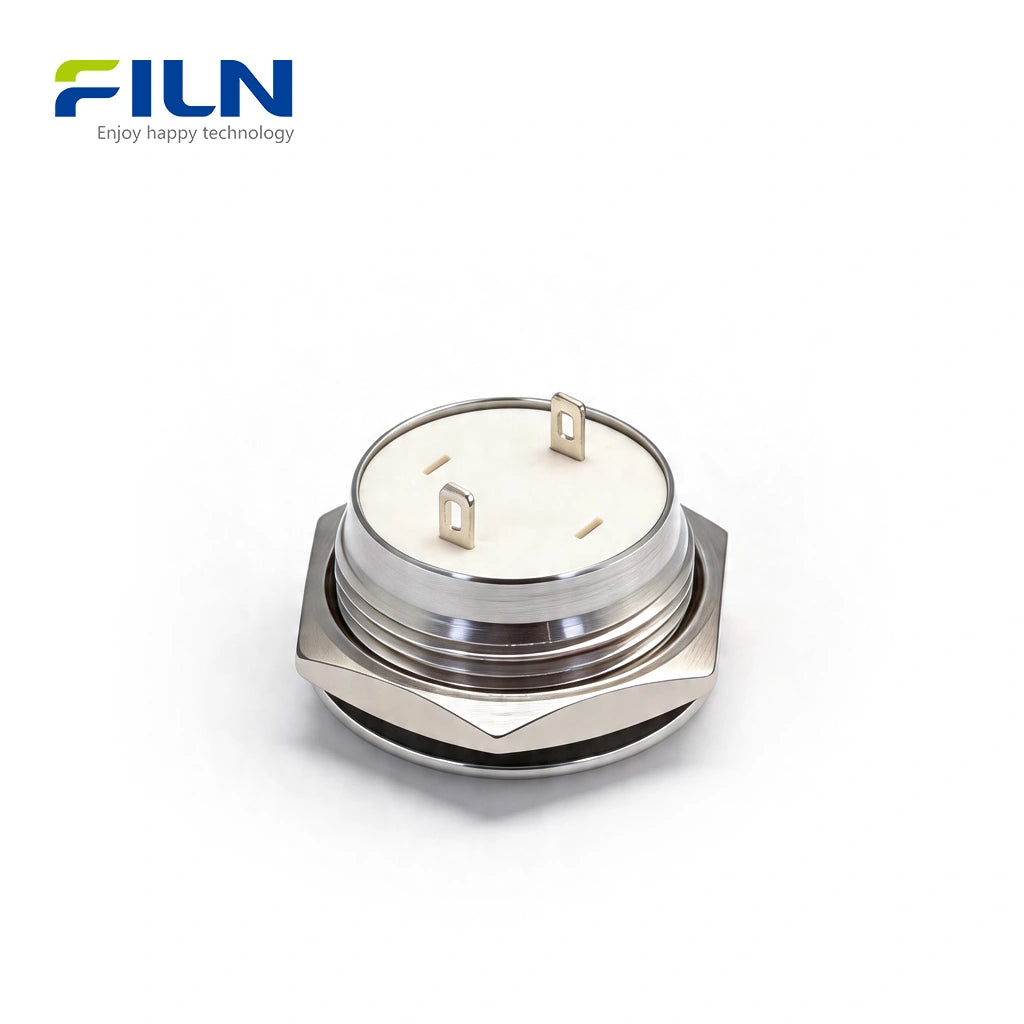

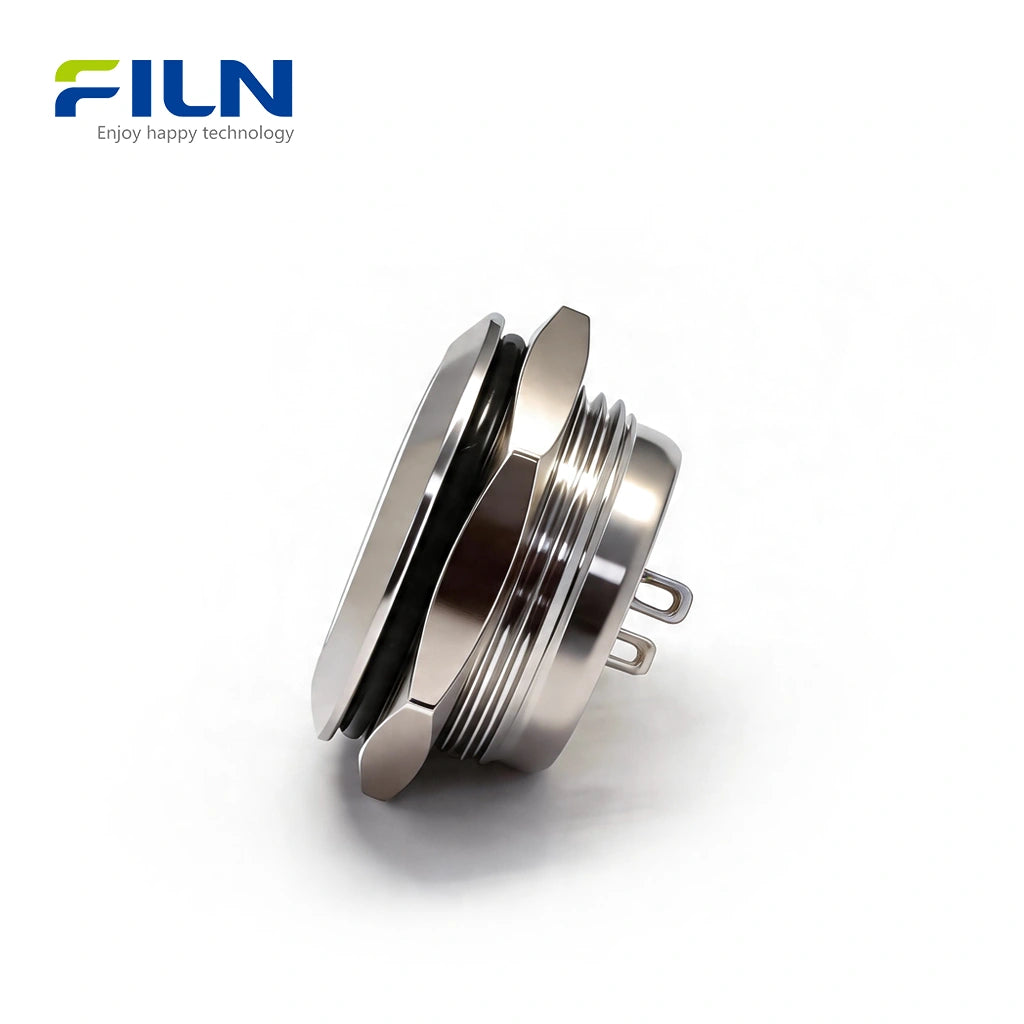

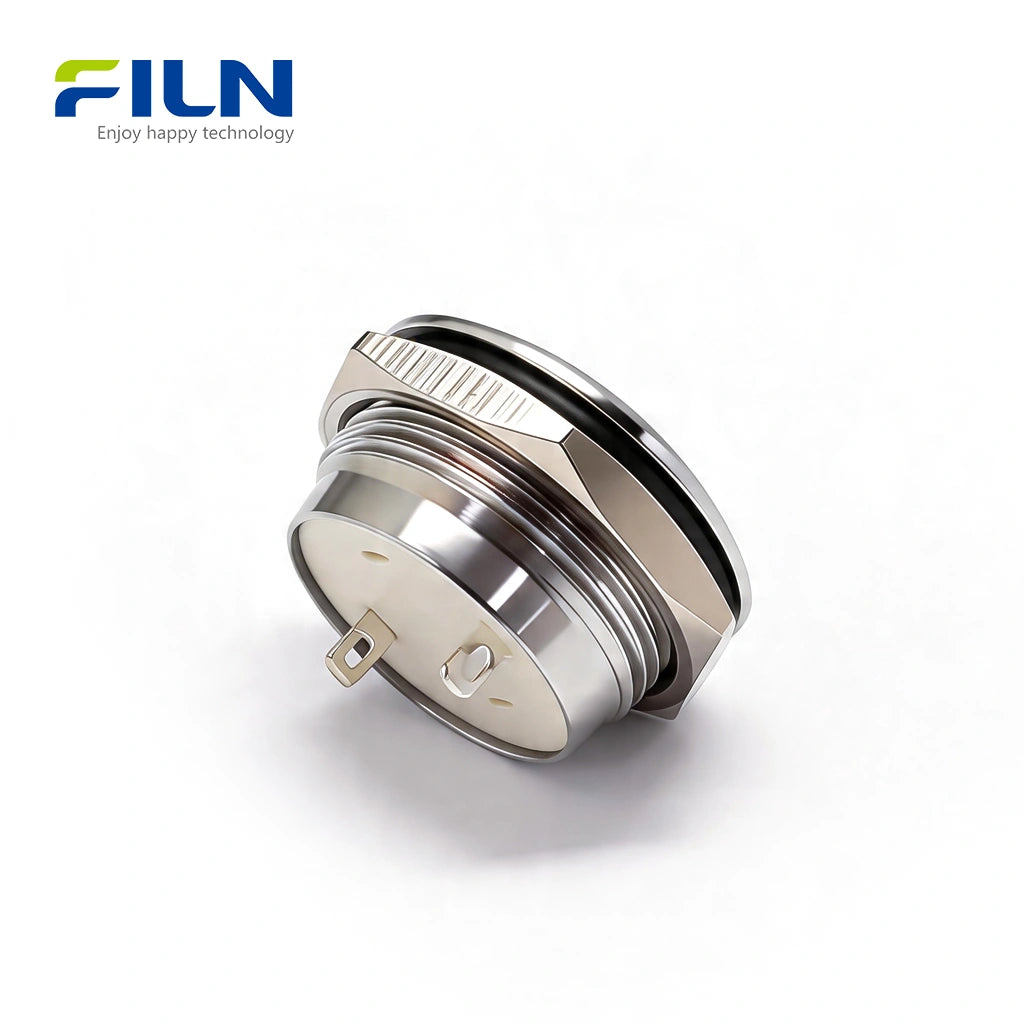

| Terminal Type | 2-Pin Solder/Plug-in Terminal |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC | Rated Current | 5A DC / 5A AC |
| Insulation Resistance | ≥ 1000MΩ | Contact Resistance | < 50mΩ |
| Dielectric Strength | 1800V | Product Certification | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Materials
| Component | Material Material |
|---|---|
| Button Head | 304 Stainless Steel / 6063 Aluminum Alloy |

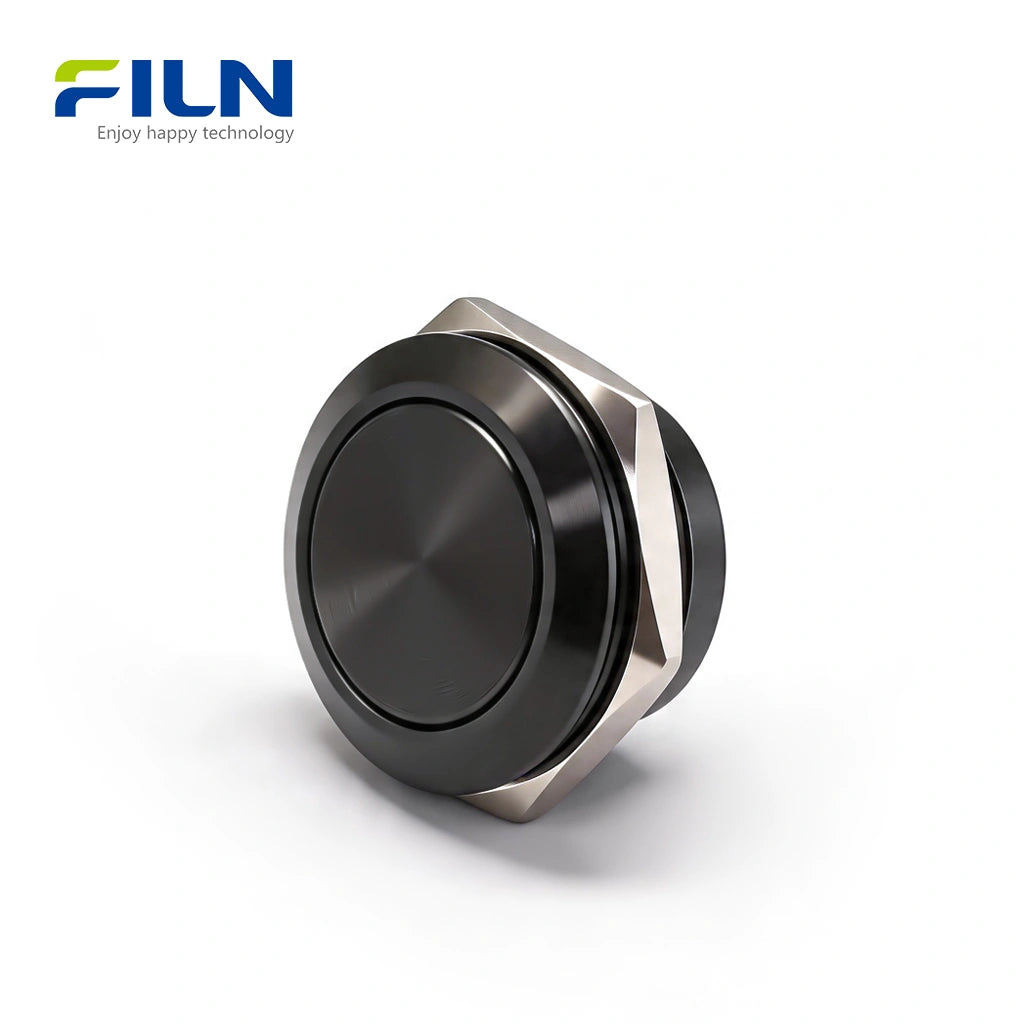

| Shell Sleeve | H59 Brass / 304 Stainless Steel / Zinc-Alloy Black |
| Terminals | H62 Copper Alloy |
| Base | PA66+GF20% Flame Retardant Nylon |
| Contacts | Silver Contacts (AgCdO12) |
| Waterproof Ring | SIL Silicone |
Environmental & Life Parameters
| Operating Temp | -25°C to +85°C |
| Protection Level | IP65 Waterproof, IK08 Impact Resistance |
| Mechanical Life | 500,000 cycles |
| Electrical Life | 100,000 cycles (250V/3A) / 50,000 cycles (250V/5A) |
Key Features
- Ultra-Thin Design: Total length is only about 26.5mm, perfect for small space installation switch applications.
- High Protection: IP65 and IK08 ratings ensure the waterproof 19mm momentary switch survives harsh industrial environments.
- Premium Contacts: Features Silver Contacts (AgCdO12) for superior conductivity and 5A high current 5a push button capacity.
- Versatile Materials: Choose between a stainless steel tactile switch for corrosion resistance or zinc-alloy black metal switch for aesthetics.
- Reliable Installation: Standard 2-pin terminal push button design supports quick soldering or wire harness connection.
Looking for more variations?
View All Push Button SwitchesProduct Applications
These switches are widely used in electrical equipment requiring circuit control. They serve as momentary reset button switches for:
- Industrial control panels
- CNC machines
- Automation equipment
- Electrical cabinets
- Marine systems
- Medical devices
Installation Guide
- Drill a 19mm mounting hole in the control panel.
- Insert the switch through the panel hole from the front.

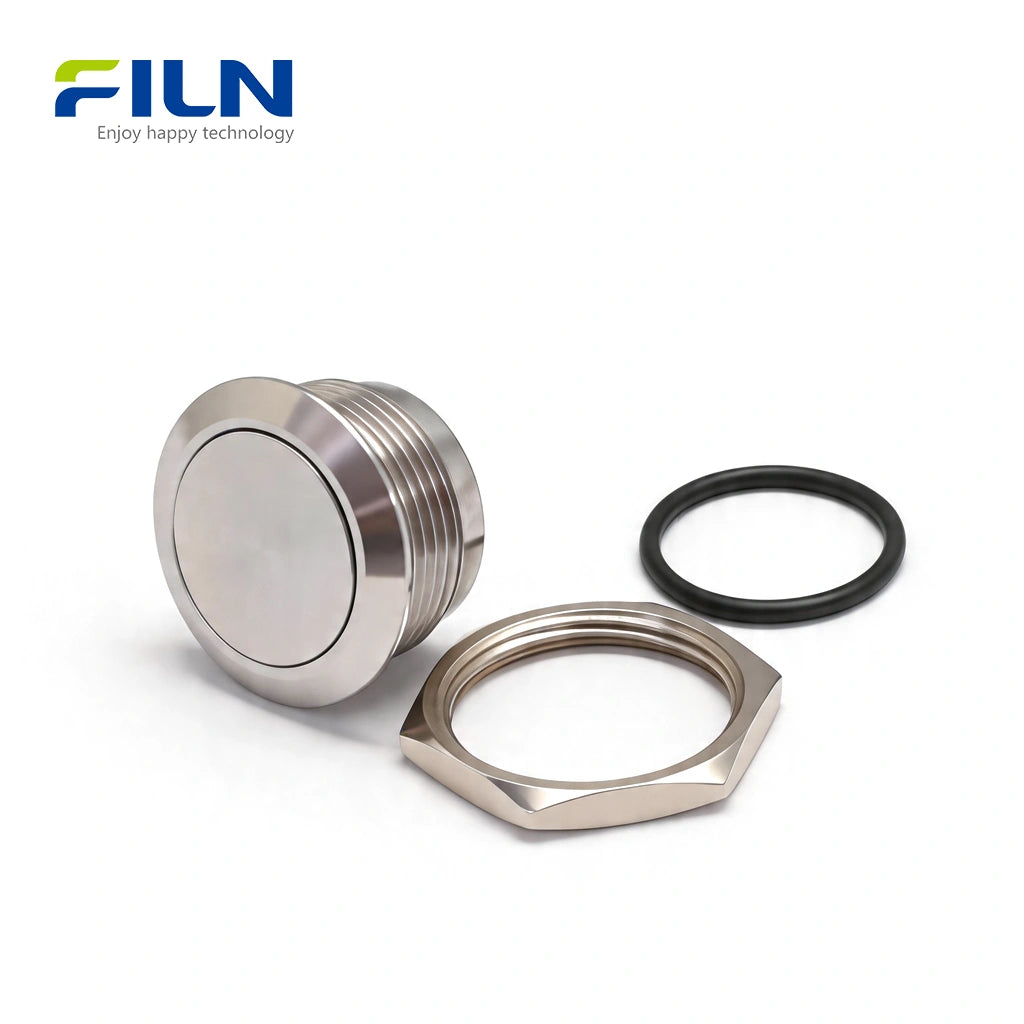

- Secure the switch by tightening the metal hex nut from the back of the panel.
- Connect the wires to the 2-pin terminals using solder or connectors.
Wiring Logic: Normally Open (NO)
The FLM19-F-4-X functions as a 2-pin Normally Open (NO) switch. When the button is idle, the circuit is broken. When pressed, the circuit is completed.
| Connection Mode | Default State | Action (Pressed) |
|---|---|---|
| Normally Open (NO) | Device OFF | Device ON |
Industry Knowledge
1. What are 19mm Push Button Momentary Switches?
These are electrical switches designed to mount in a 19mm hole. The term "momentary" means they only remain in their active state while being physically pressed, returning to their default position once released. In industrial settings, they act as "triggers" for signals or power starts.
2. Comparison of Switch Types
| Feature | Pin Terminal (This Model) | Screw Terminal | Pre-wired |
|---|---|---|---|
| Wiring Speed | Fast (Solder/Quick-connect) | Moderate | Immediate |
| Volume | Most Compact | Larger | Compact |
| Lifespan | Very Long | Long | Long |
FILN Factory Direct Supply
- ✅ No MOQ: Support for small orders.
- ✅ Fast Delivery: Global shipping available.
- ✅ Customization: Voltage, wire length, and connector customization.
- ✅ Free Samples: Contact us today!
Official Website: www.filn.com
Email: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Is this 19mm push button waterproof?
A: Yes, it is rated IP65 waterproof, making it a perfect waterproof 19mm momentary switch for outdoor and industrial use.
Q2: How many pins does the FLM19-F-4-X have?
A: This model is a 2-pin terminal push button, simplifying connection for standard momentary operations.
Q3: What is the difference between momentary and latching?
A: Momentary (Self-reset) means the button returns to its original position after you release it. Latching (Self-locking) stays in the pressed position until you press it again.
Q4: Can I use this in a car?
A: Yes, the 36V DC rating makes it ideal for 12V/24V automotive applications like horns or ignition triggers.
Q5: What material is the black version?
A: The black version is made of high-strength zinc-alloy black metal switch material with a corrosion-resistant coating.
Q6: Is it easy to install in tight spaces?
A: Absolutely. It features an ultra-thin metal push button design, specifically for small space installation switch needs.
Q7: Can I get this switch with a pre-wired harness?
A: Yes, FILN provides filn factory custom switch services, including wire length and connector assembly.
Q8: What do the different colors of buttons signify?
A: Red usually denotes stop/emergency; Green is for start; Blue/Yellow are for specific functions; White is a general-purpose indicator.
Q9: Does it support 220V?
A: The switch contacts support up to 250V AC at 5A, suitable for mains power control.
Q10: Are these switches certified?
A: Yes, they carry CE, VDE, RoHS, UL, and SGS certifications.
