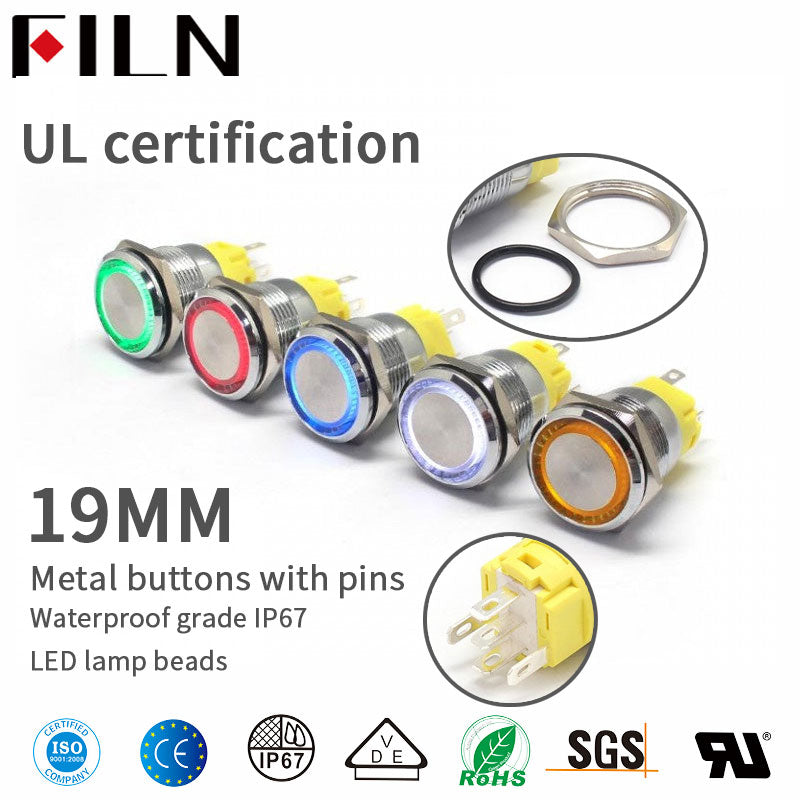

19MM Flat Head Terminal Pin Concave Momentary Push Button Switch
19MM Flat Head Terminal Pin Concave Momentary Push Button Switch Best Price
19MM Flat Head Terminal Pin Concave Momentary Push Button Switch Green
19MM Flat Head Terminal Pin Concave Momentary Push Button Switch Grey
19MM Flat Head Terminal Pin Concave Momentary Push Button Switch Details
19MM Flat Head Terminal Pin Concave Momentary Push Button Switch Parts
19MM Flat Head Terminal Pin Concave Momentary Push Button Switch Bottom
  • SKU:
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

19MM Flat Head Terminal Pin Concave Momentary Push Button Switch

$5.69
Shipping calculated at checkout.
Shipping Ask about this product
DESCRIPTION
Production Series FLM19-11FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED
Rated Power 180W（DC）1250W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12
ADDITIONAL INFORMATION
Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester
