Product Overview

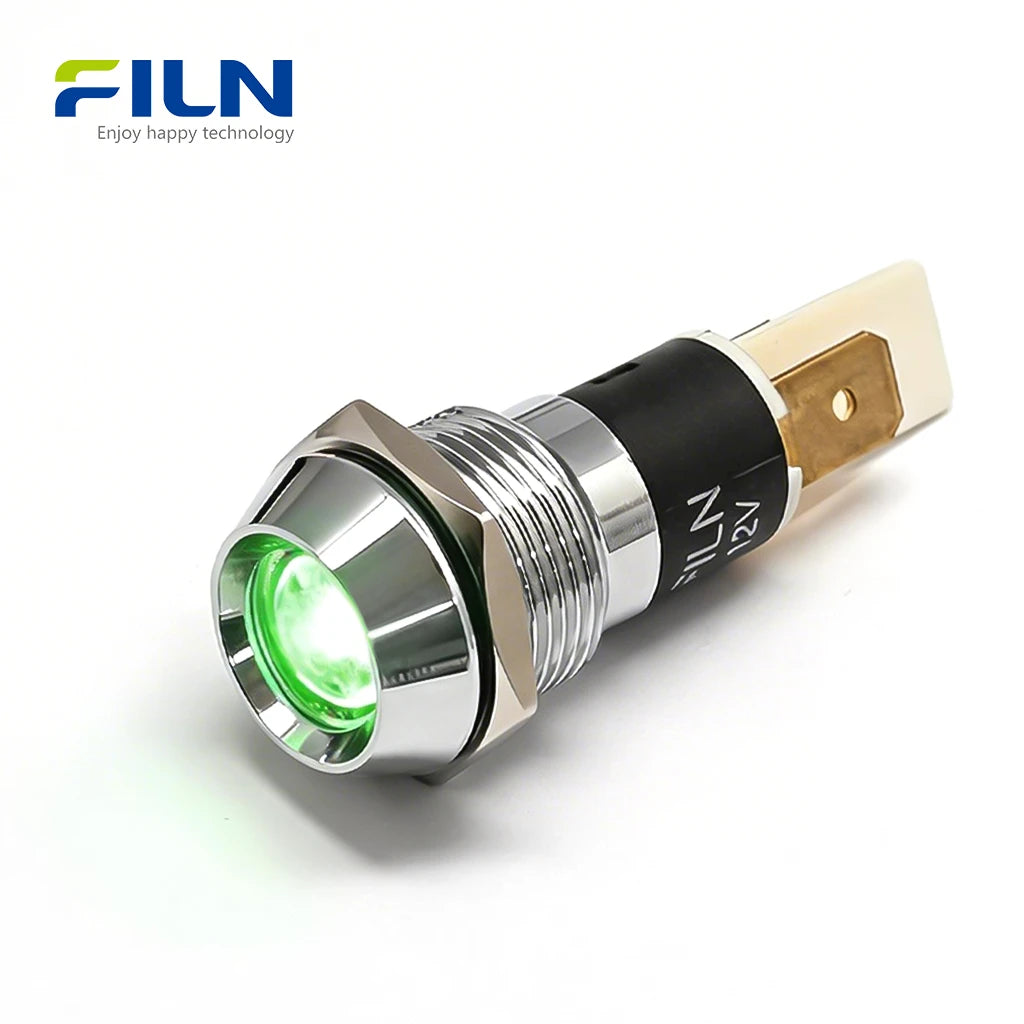

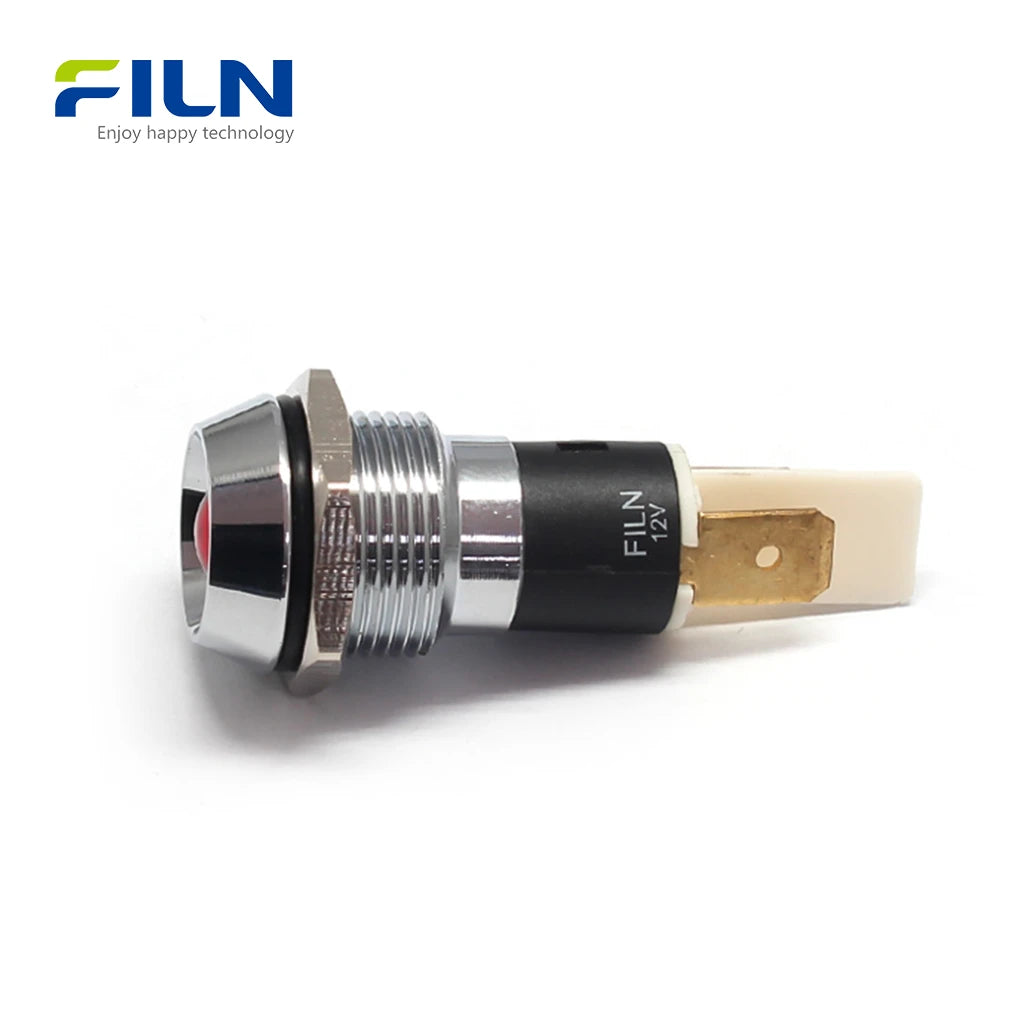

The FILN 240V indicator light (Model: FL1M-16CJ-1) is a premium 16mm metal signal lamp designed for high-performance industrial and commercial applications. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, this indicator ensures maximum safety and reliability. Featuring a sleek concave head design, it offers superior visual clarity and protection for the LED lens. Whether used in industrial control panels, CNC machines, marine systems, or medical devices, this industrial-grade LED provides exceptional durability. Its 2-pin terminal construction allows for rapid, secure wiring compared to traditional lead types, making it the ideal choice for automation equipment and electrical cabinets requiring long-term stability and IP67 waterproof protection.
Quick Specifications
| Mounting Hole | 16mm / 0.63 inch |
|---|---|
| Voltage | 12-24V, 110-220V, 240V (Customizable) |

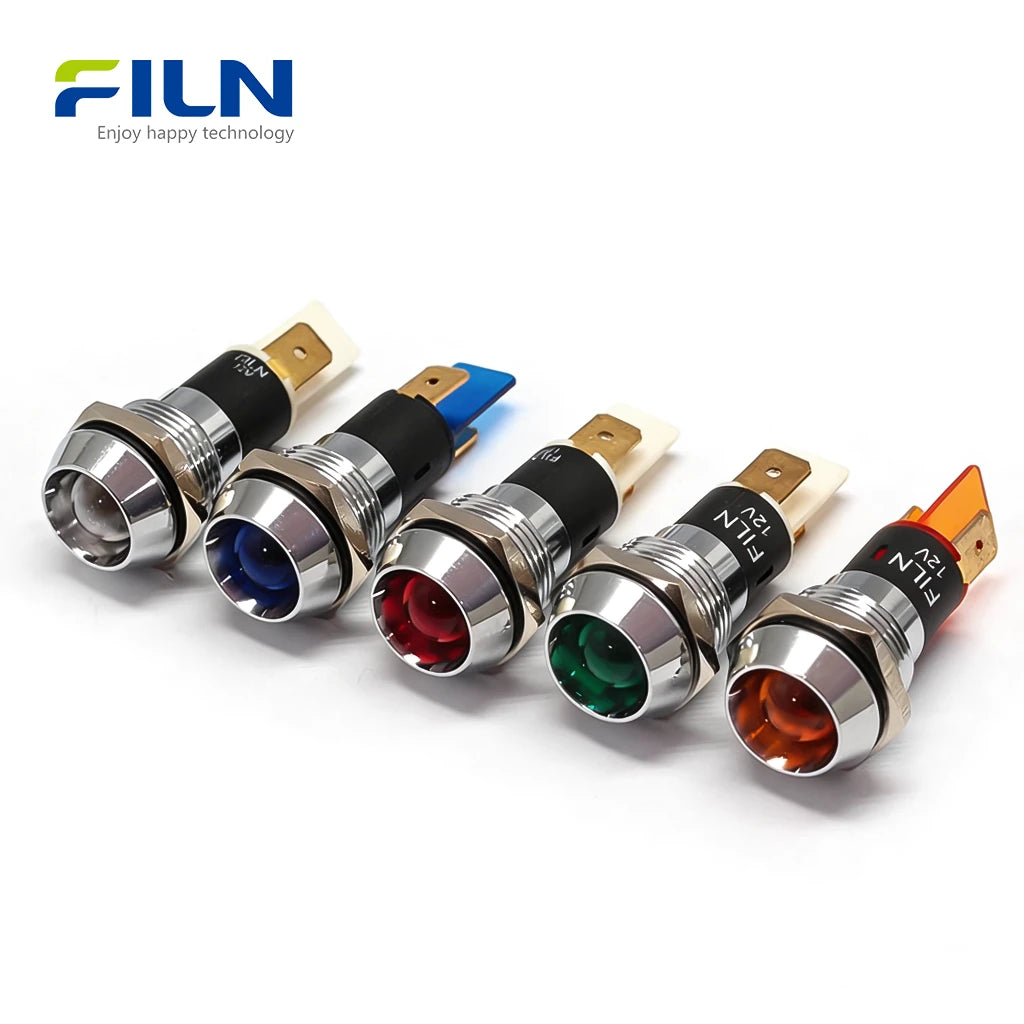

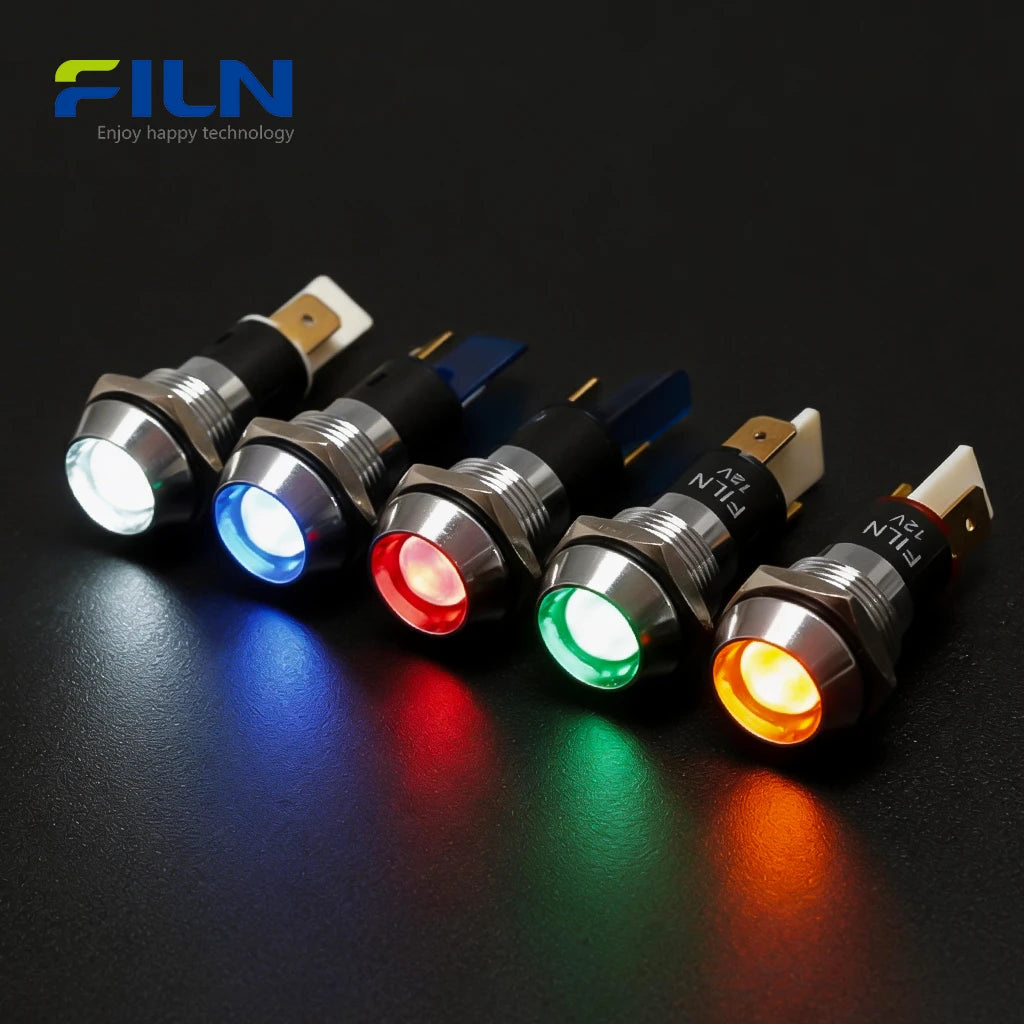

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | 2-Pin Plug-in Terminal |
| Certifications | UL, CE, RoHS, VDE, SGS, ISO9001 |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Nickel or Chrome plated (Available in Silver or Black) |
| Lamp Holder | PA66 Nylon | High temperature resistance |
| Lampshade | PC Polycarbonate | High light transmittance, impact resistant |
| Light Source | LED | Long life, low energy consumption |
| Resistor | Carbon Film Resistance | Stable current limiting protection |
| Pin | Brass | Excellent conductivity |
| O-ring | Silica Gel | IP67 waterproof sealing |
Rated Working Parameters
| Rated Voltage | Customized (up to 240V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
General Characteristics
| Operating Temperature | -40℃～80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ / 45-85% |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP65/IP67 |
Electric Property
| Parameter | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Reliability & Durability
| Test Item | Conditions | Performance |
|---|---|---|
| Continuous Working Life | 30mA 1000h | 50,000 hours |
| High/Low Temperature | 80℃ 96h / -40℃ 96h | No deformation/failure |
| Moisture Resistance | 40℃ 90-95%RH 96h | Stable insulation |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) | Pass |
Key Product Features
- Concave Head Design: Protects the LED surface from physical impact and provides a focused, high-visibility signal.

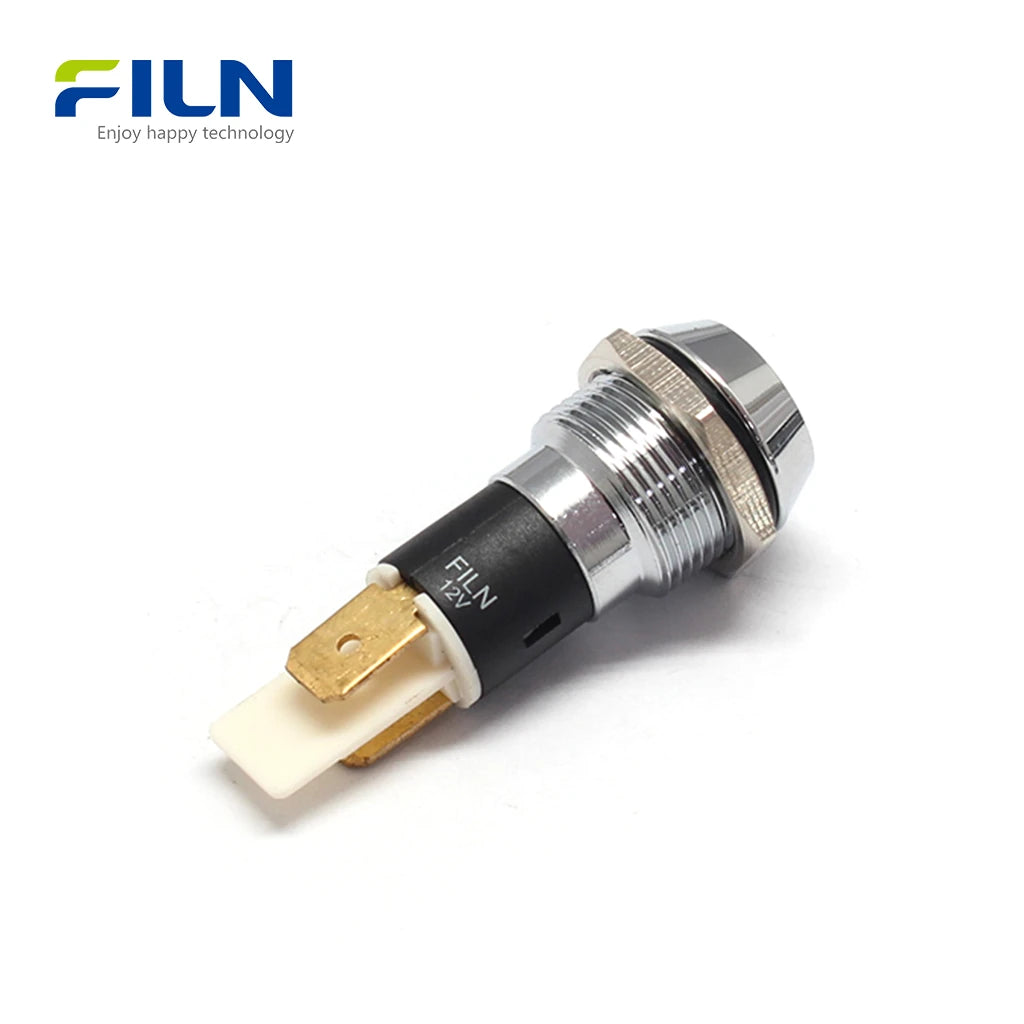

- 2-Pin Plug-in Terminal: Simplifies wiring compared to wire-lead types, allowing for easy replacement and more compact panel back-end management.

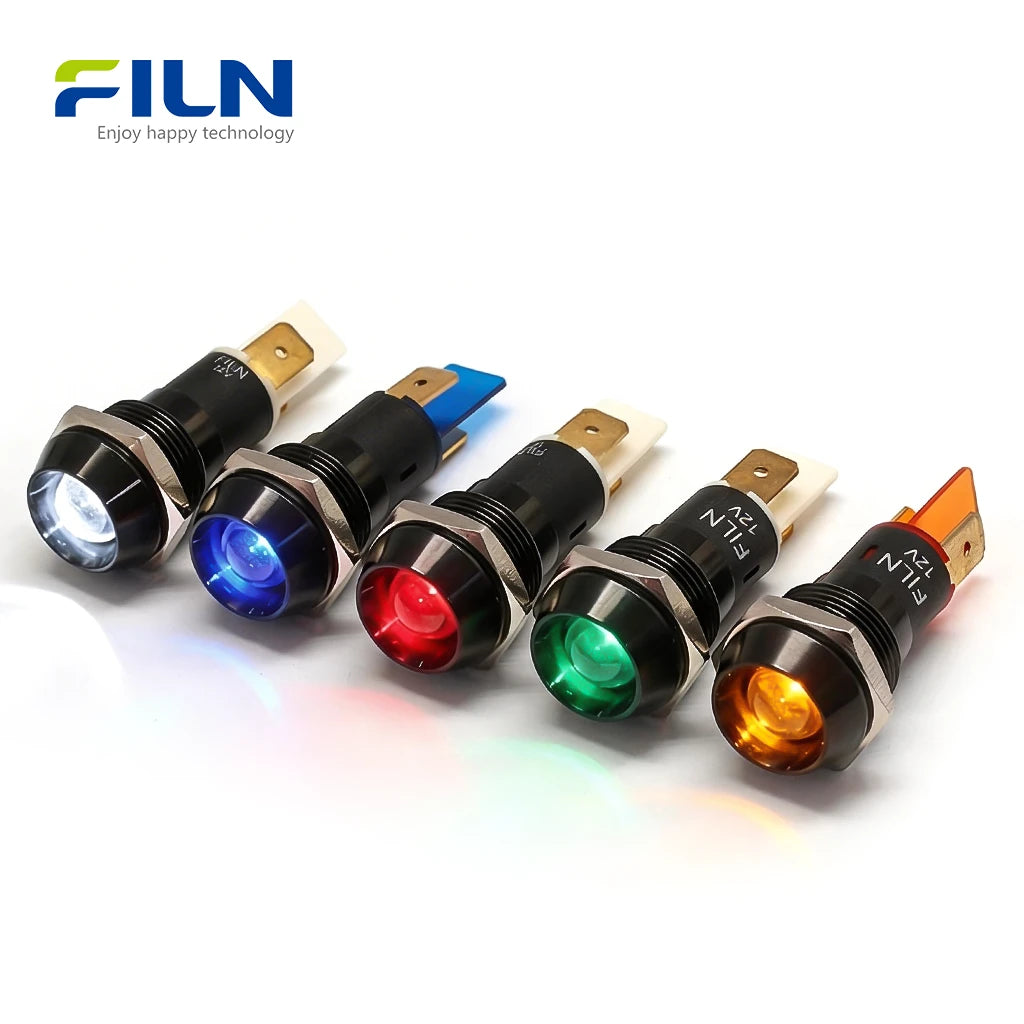

- Dual Shell Options: Available in classic Silver (Nickel-plated brass) or modern Black (Aluminum) finishes.

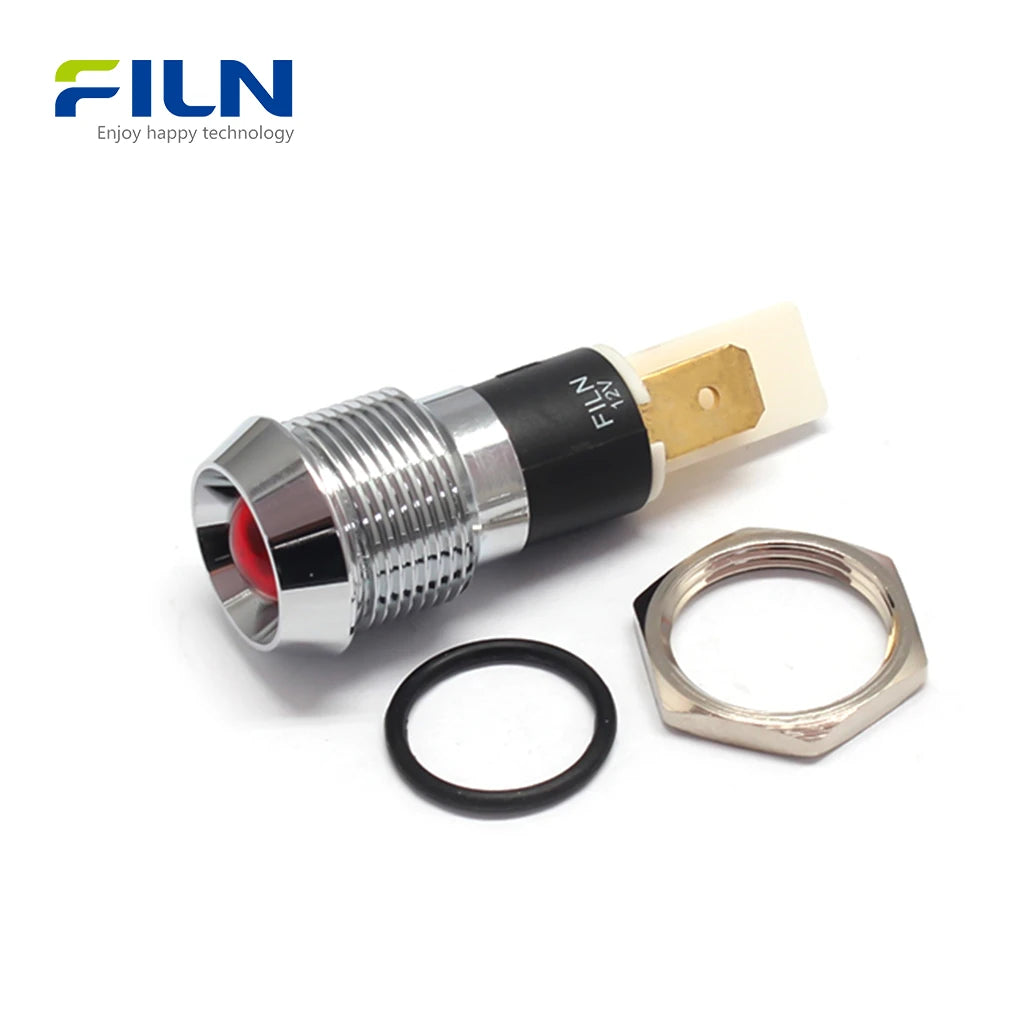

- Superior Sealing: Includes a 16mm O-ring and M16 nut, achieving IP67 waterproof protection against dust and water immersion.
- Industrial Grade Longevity: Built with high-brightness LEDs and premium PC lenses for over 50,000 hours of continuous use.
Versatile Applications
- Industrial control panels and CNC machinery.
- Automation equipment and electrical cabinets.
- Marine systems and yacht dashboards.
- Medical testing and diagnostic devices.
- New energy vehicle (NEV) charging piles and systems.
Installation Guide
- Drill a 16mm (M16) hole in the desired mounting panel.
- Insert the indicator light through the front of the panel.
- Place the silica gel O-ring on the backside for a waterproof seal.
- Secure the unit using the provided M16 nut; the smooth threading ensures easy tightening.
- Connect the electrical source to the 2-pin terminals.
What Is a 240V Indicator Light?
A 240V indicator light is a visual signaling device used to display the operational status of a circuit or machine. In industrial environments, these lamps serve as critical feedback mechanisms, notifying operators whether a system is powered, in standby, or experiencing a fault. The 16mm metal variant is particularly popular because it balances space-saving compactness with the ruggedness needed for harsh environments. Unlike standard plastic lights, the metal housing resists corrosion and mechanical wear, while the LED technology ensures minimal heat generation and long-term energy efficiency.
Factory Direct Supply & Customization
As a professional manufacturer, FILN offers direct wholesale pricing and full customization services:
- Voltage Customization (12V, 24V, 110V, 220V, 240V, etc.)
- Wire Length and Connector Customization
- Custom Shell Colors and Laser Engraved Icons
- Fast Global Shipping for B2B Orders
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Can this indicator light be used on a yacht or marine environment?
A1: Yes, the IP67 waterproof rating and chrome-plated brass shell make it highly resistant to moisture and salt spray.
Q2: What is the benefit of a concave head design?
A2: The concave head protects the LED lens from side impacts and reduces glare, making the signal easier to see from various angles.
Q3: How do the 2-pin terminals compare to pre-wired leads?
A3: Pins are ideal for quick-connect plug systems or PCB mounting, offering a cleaner installation and easier replacement than soldered wires.
Q4: Do you support custom voltages like 440V?
A4: Yes, FILN factory supports customized voltage production to meet specific industrial requirements.
Q5: Are these lights suitable for medical testing equipment?
A5: Absolutely. Their high reliability and professional finish meet the standards for medical-grade user interfaces.
Q6: Is the M16 nut included in the package?
A6: Yes, each indicator light comes with a high-quality M16 nut and a silicone O-ring for immediate installation.
Q7: Can I get this indicator with a black shell?
A7: Yes, we offer both silver (nickel-plated) and black (anodized aluminum) shell finishes.
Q8: What colors are available for the LED?
A8: We offer Red, Green, Yellow, Blue, and White as standard colors.
Q9: Is there a discount for bulk B2B orders?
A9: As a factory, we provide competitive tiered pricing for wholesale and bulk procurement.
Q10: Does this product carry UL certification?
A10: Yes, our indicator lights are UL certified, ensuring compliance with international safety standards.
