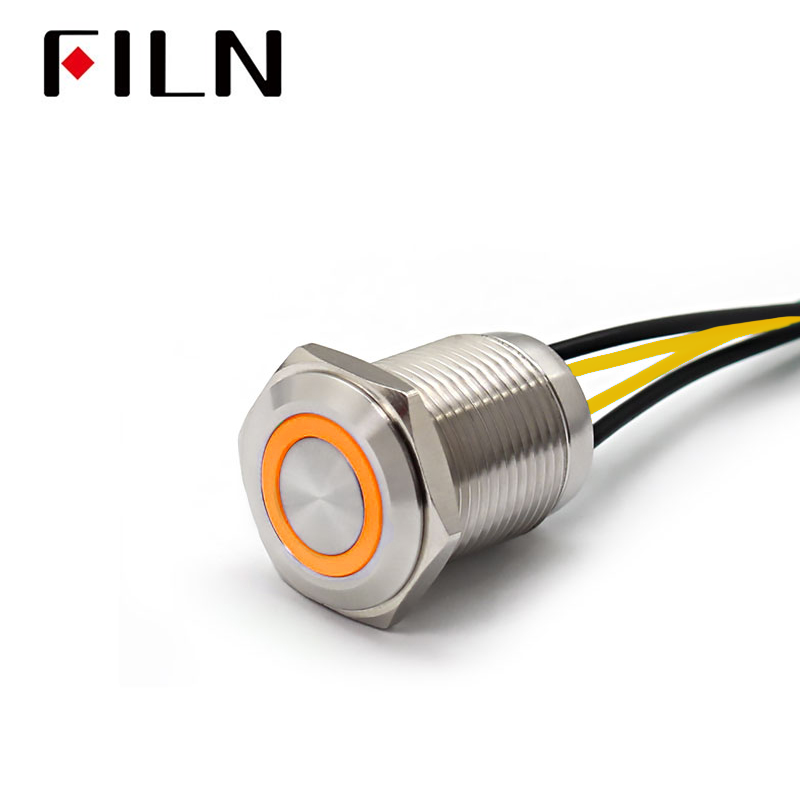

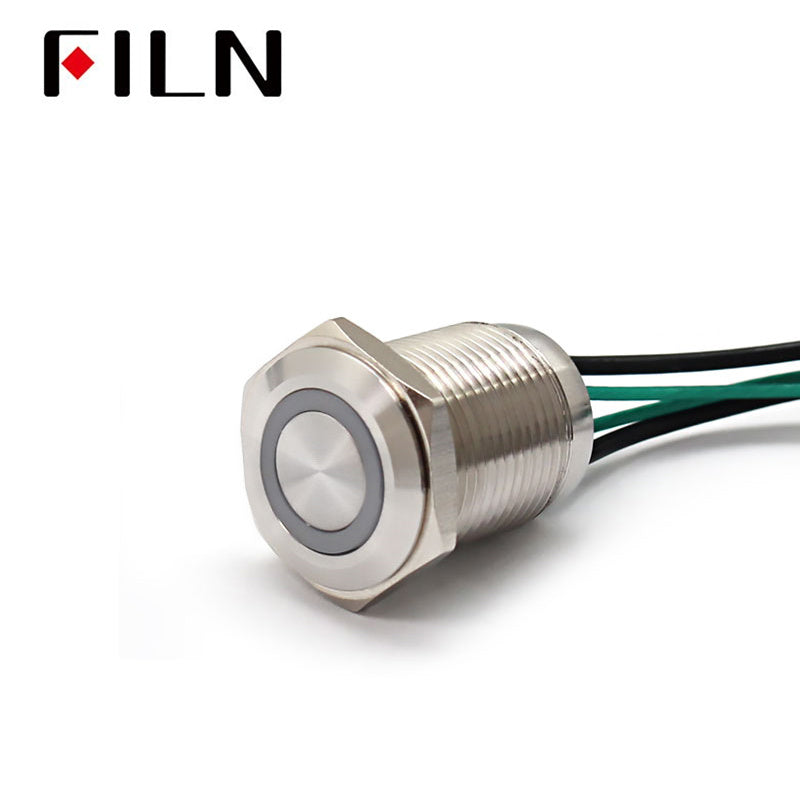

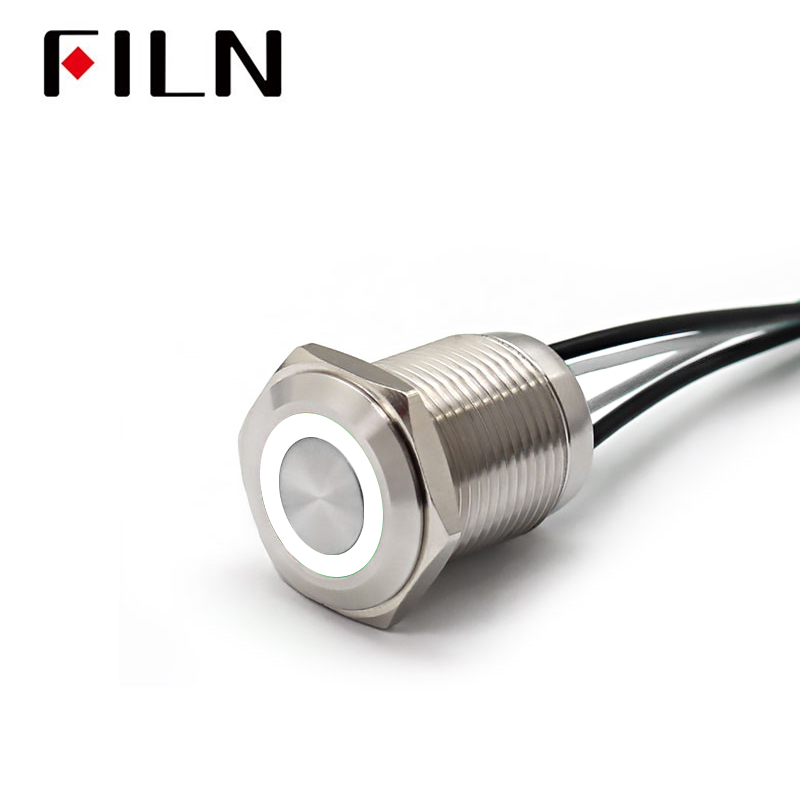

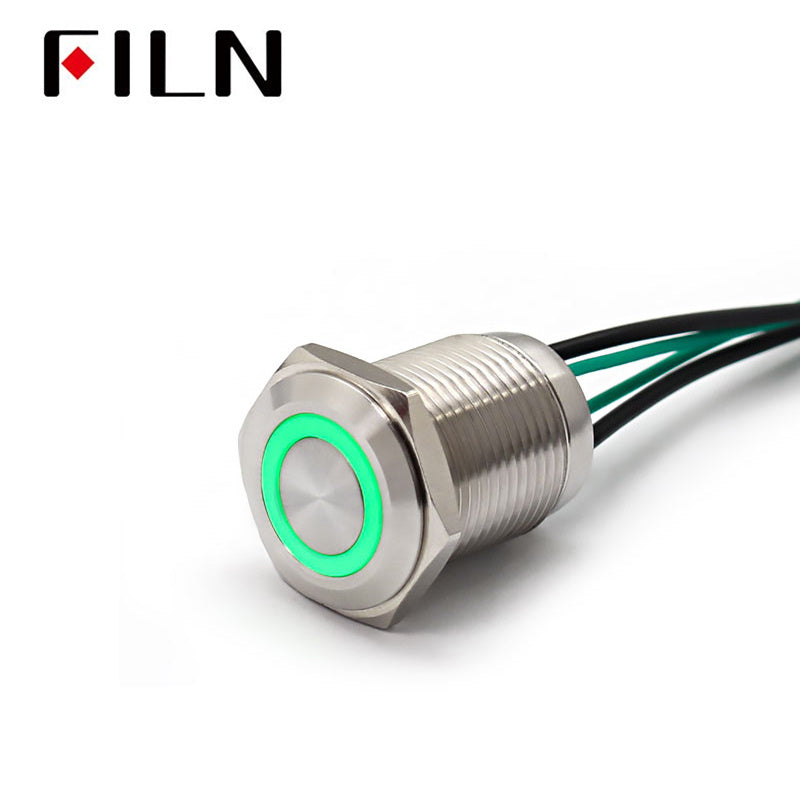

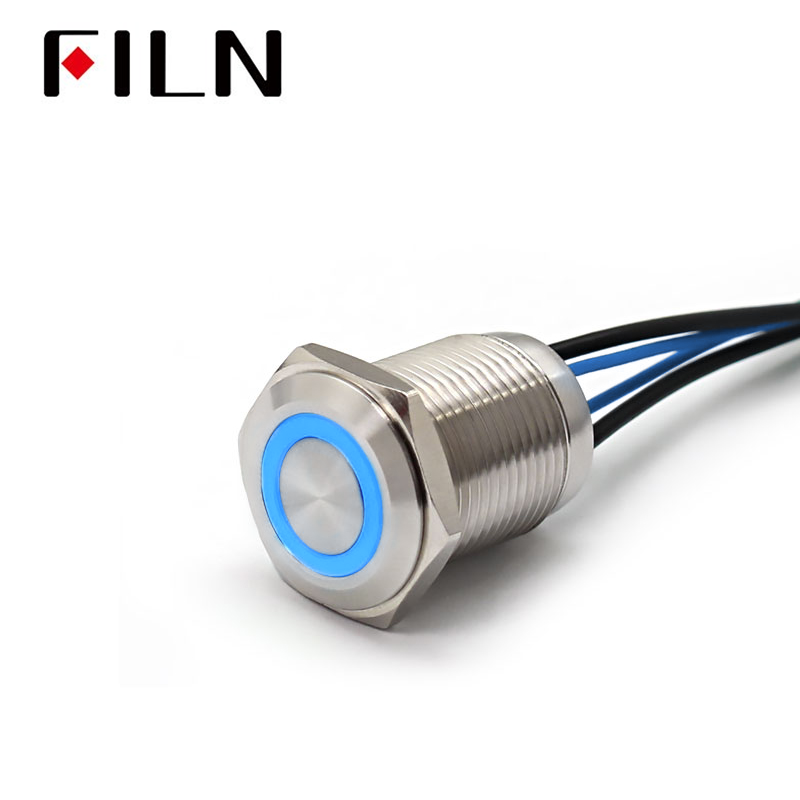

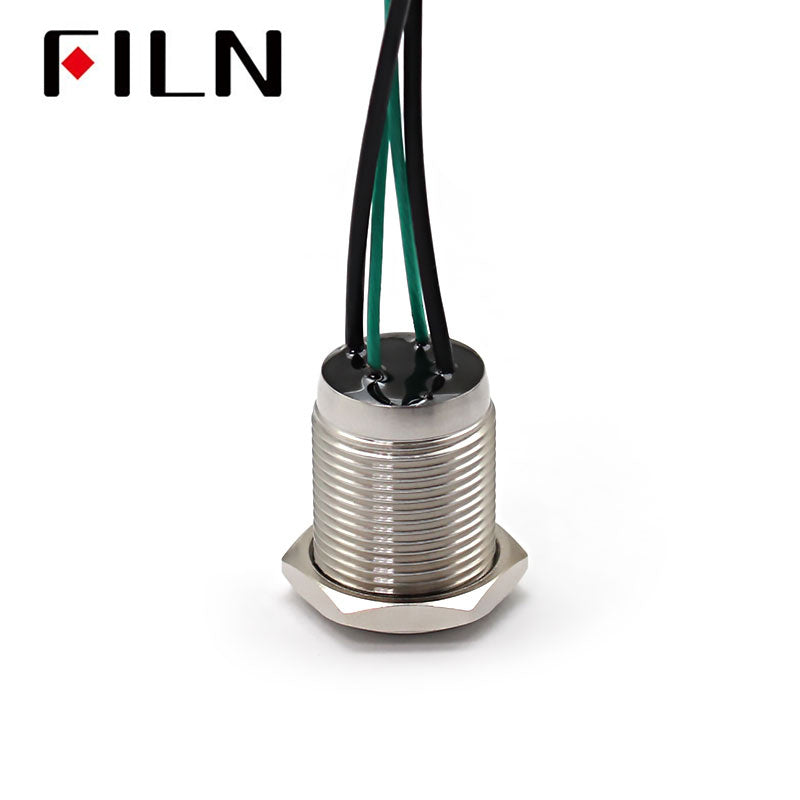

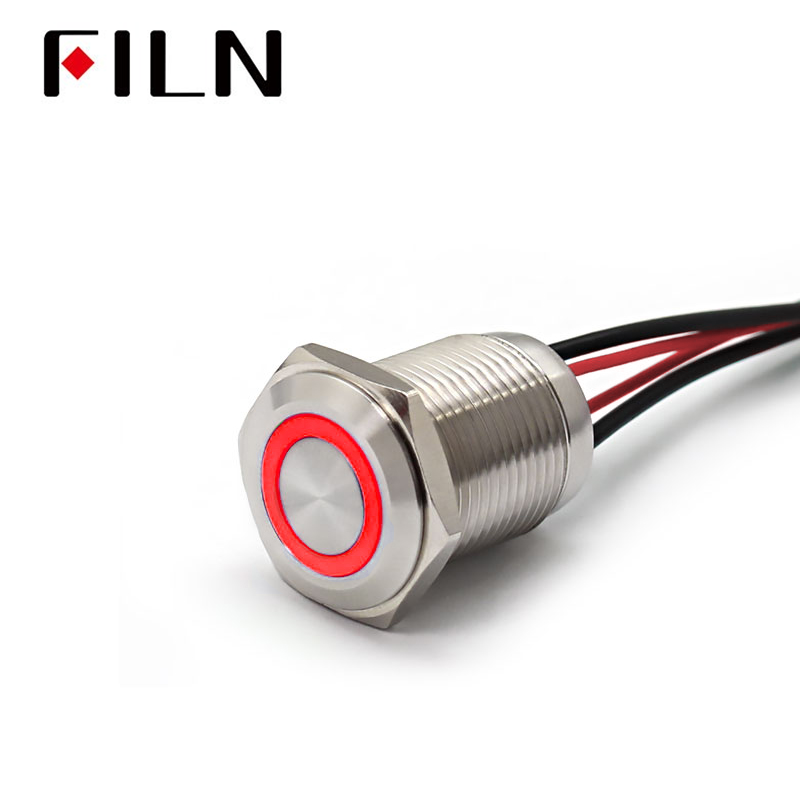

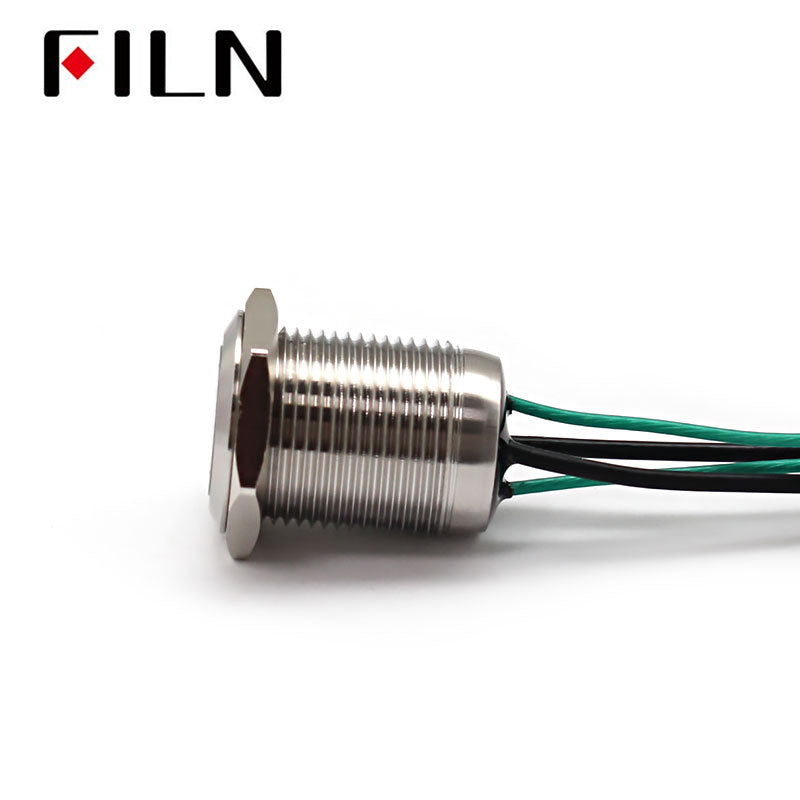

16MM 12V Green LED Metal Push Button Light Switch With Wire

Color
RED
YELLOW
BLUE
WHUTE
GREEN
Voltage
size

Description

16MM 12V Green LED Metal Push Button Light Switch With Wire
  • 100% money back guarantee
  • Quickly customize products in 21 days
  • Fast delivery

FLM16-10FEWM Push Button Switch Product Introduction

The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.

The indicator light used by the push button switch is non-polar LED, with a service life of 50000 hours.

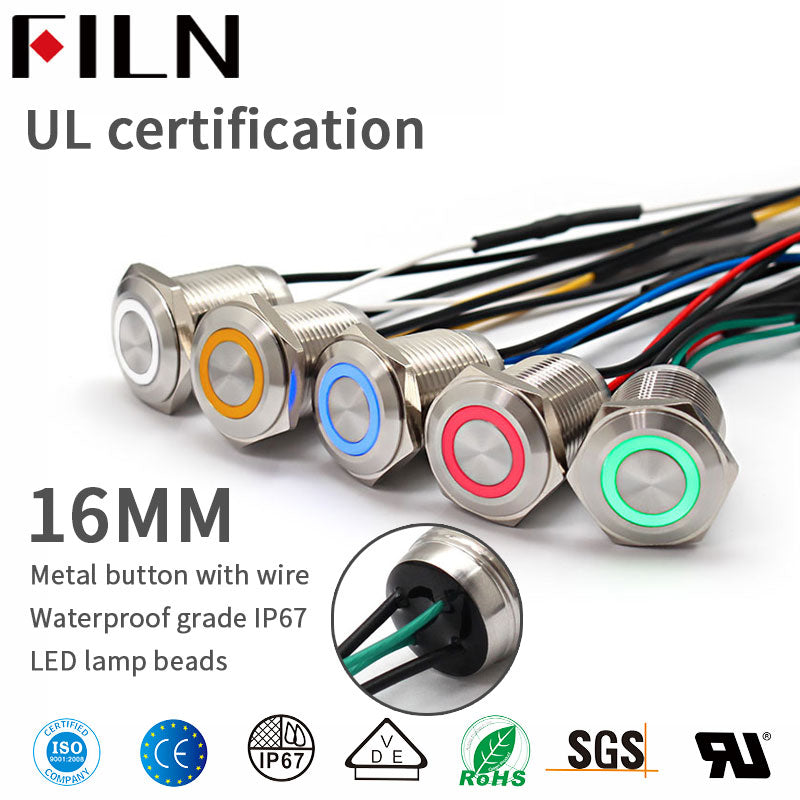

The waterproof rating of the push button switch is IP67, and the mounting hole size is 16MM.

The voltage of the push button switch can be  12V, 36V, 48V, etc.

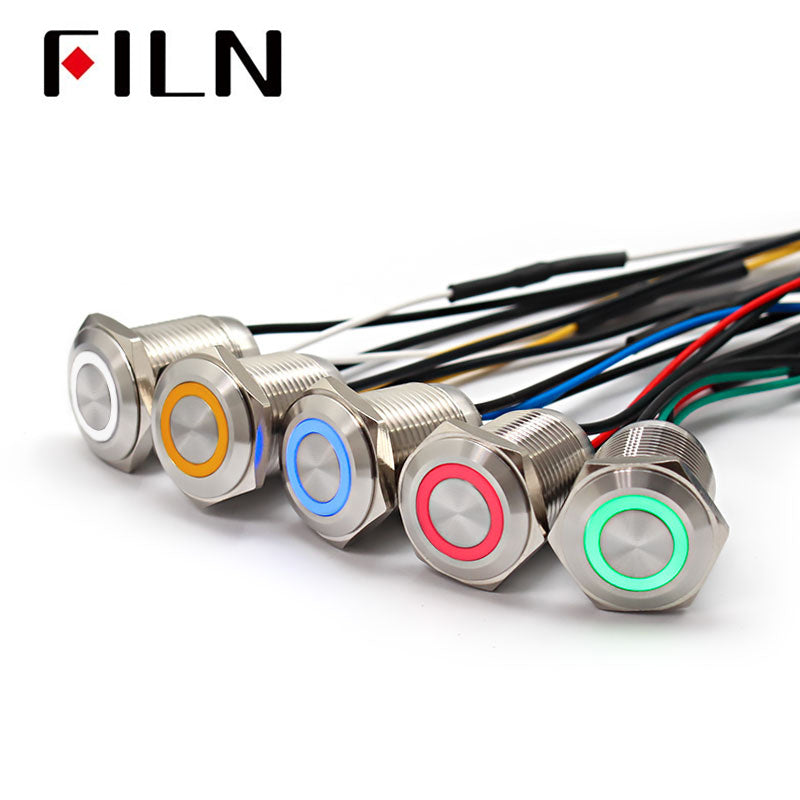

16MM metal push button switch can make five colors of light: red, yellow, blue, green, and white.

You can also customize the button switch for two-color lights and three-color lights.

Product specifications

Production series FLM16-10FEWM Light guide button PC plastic
Button shape Round actuator 304 Stainless steel
Button led color Red blue orange green white Housing sleeve H59 nickel plated brass/304Stainless steel

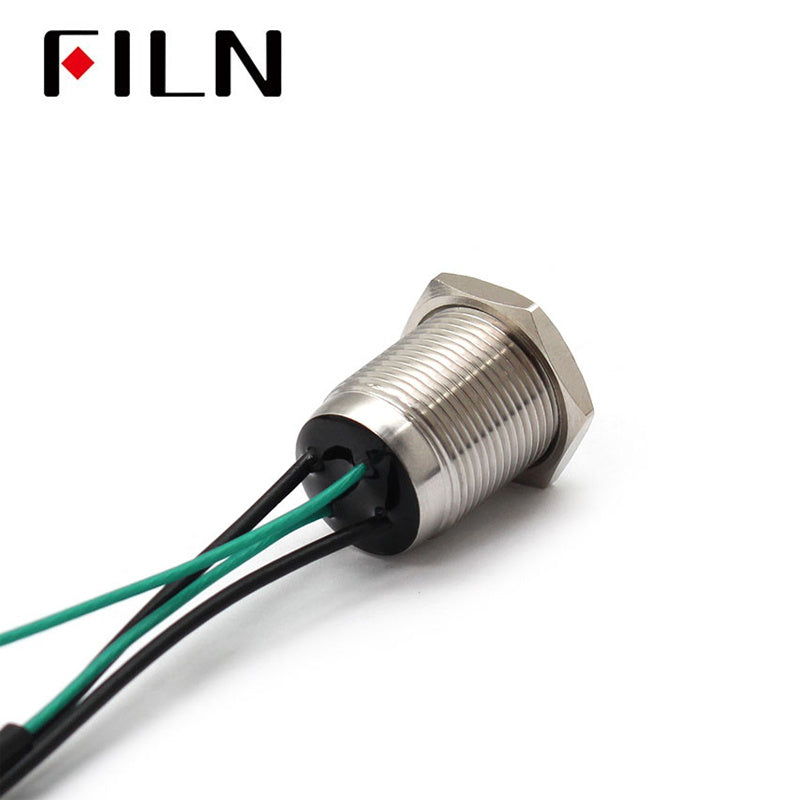

Mechanical life The 500 thousand time Button pin 22AWG PVC wire(0.3MM2)
Electrical life The 100 thousand time Rubber ring SIL silica gel
Protection level IP67 IK09 Nut H59 nickel plated brass
Rated voltage 36V(DC) 250(AC) housing PA66+GF20% nylon
rated current 5A(DC)5A(AC) Light source LED
rated power 36W(DC)125W(AC) Resistor Metal film
Operating temperature -25℃~+85℃ contact AgCdO12
