Button Switch Drawing
PRODUCT OVERVIEW

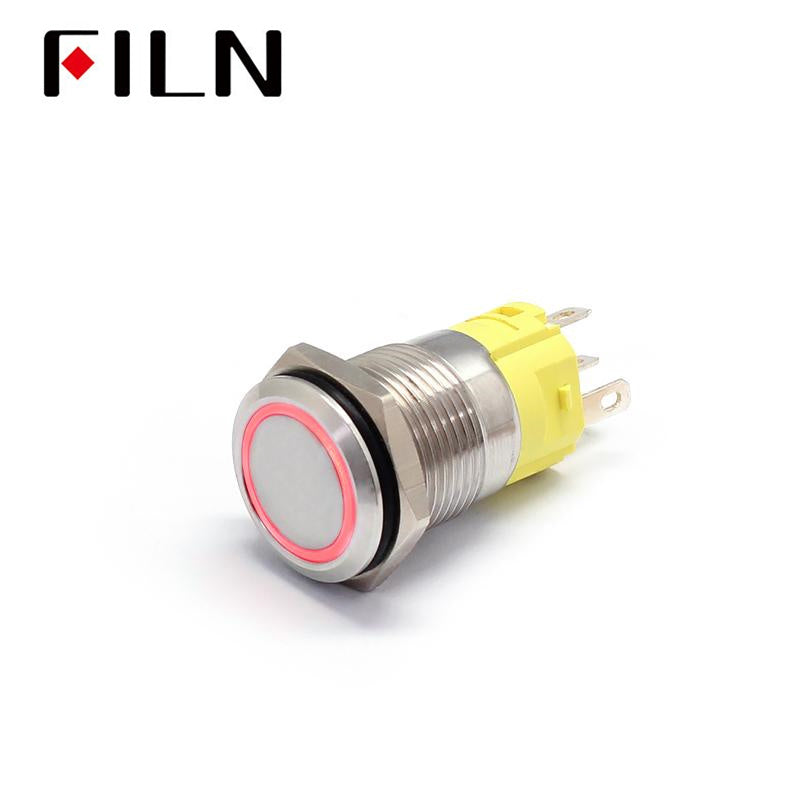

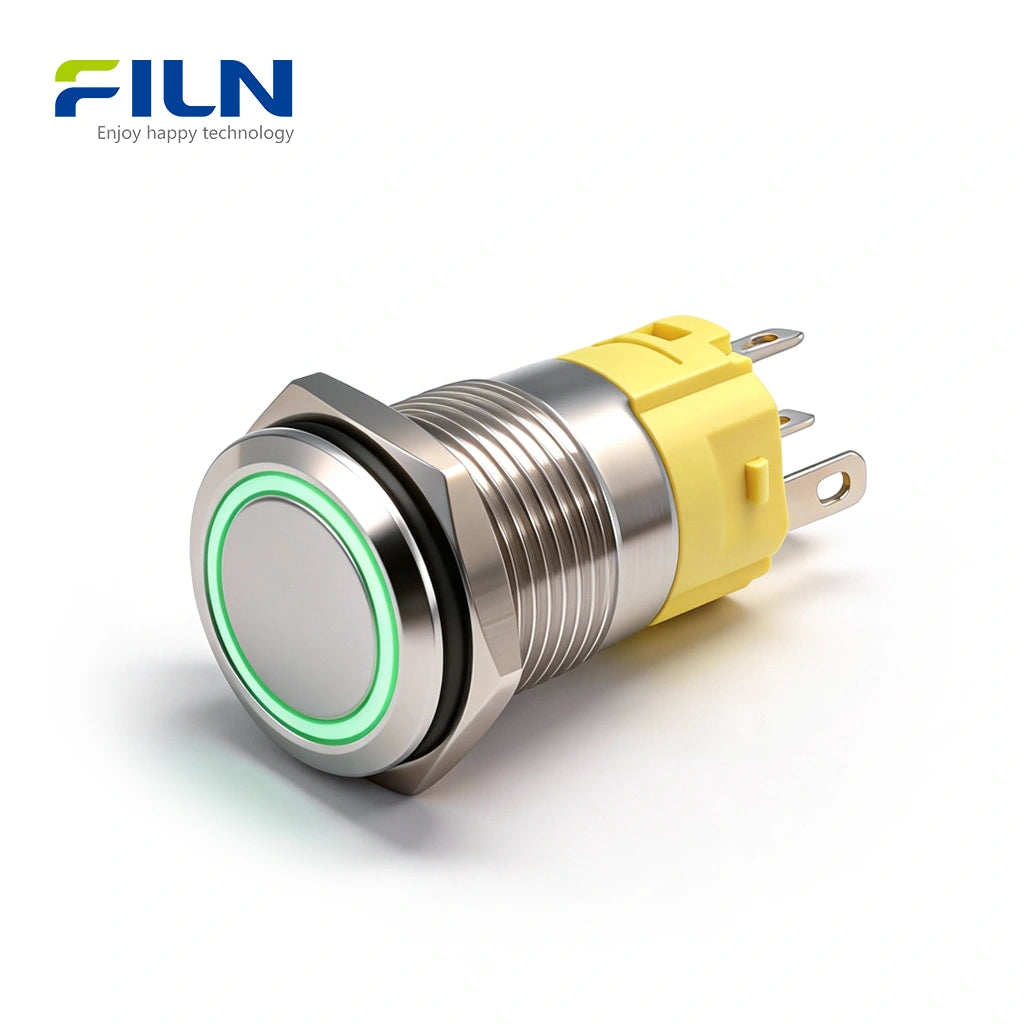

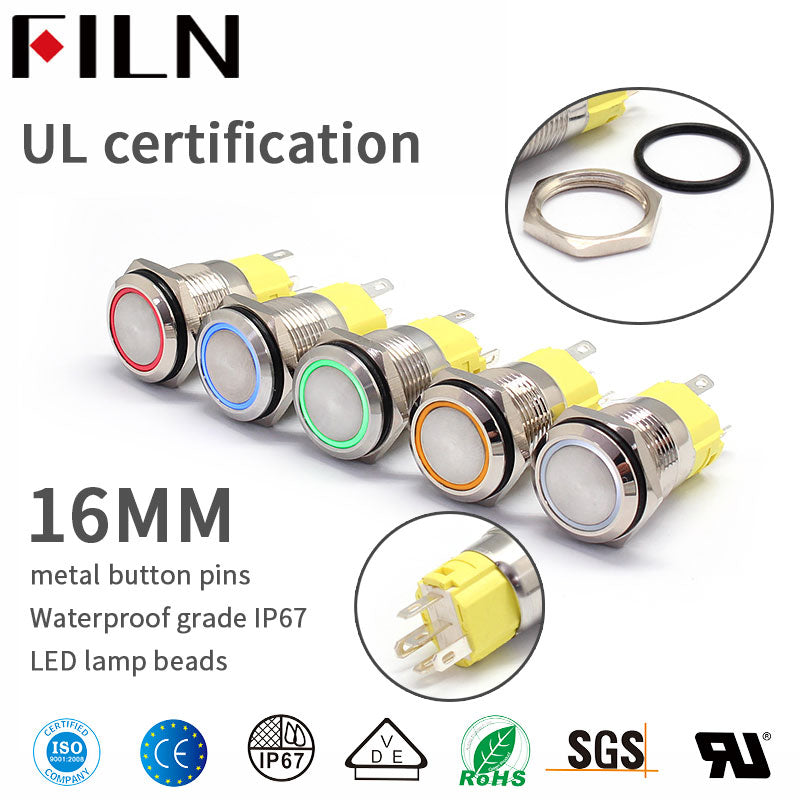

The 12v push button switch (Model: FLM16-FJ-1-E) is a high-performance 16mm metal push button switch designed for demanding industrial and commercial environments. Manufactured by FILN, this switch features a robust stainless steel push button 16mm body with an elegant LED ring light. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it ensures maximum safety and reliability. This waterproof 12v led switch is widely used in industrial control panels, automation equipment, and marine systems. Whether you need a momentary push button switch 16mm for a car horn or a latching push button switch 12v for power control, the 5-pin design provides ultimate wiring flexibility.
QUICK SPECIFICATIONS
| Model Number | FLM16-FJ-1-E |
|---|---|
| Mounting Hole Size | 16mm (0.63 inch) |
| Operation Function | Latching / Momentary |
| LED Color | Red / Green / Yellow / Blue / White / Bi-color |
| Button Head Type | Flat Head |
| Terminal Type | 5-Pin Solder/Plug Terminal |
| Housing Material | Stainless Steel / Black Anodized Aluminum |
PERFORMANCE PARAMETERS
| Rated Voltage | 36V DC / 250V AC | Rated Current | 5A |
|---|---|---|---|
| Rated Power | 180W (DC) / 1250W (AC) | Contact Resistance | < 50mΩ |
| Insulation Voltage | 1800V | Insulation Resistance | ≥ 1000MΩ |
| LED Voltage | 3V - 220V (Standard 12V-24V) | Certification | UL, CE, RoHS, VDE |
COMPONENT MATERIALS
| Component | Material Specification |
|---|---|
| Button / Shell | 304 Stainless Steel / 6063 Aluminum Alloy |
| Light Guide | PC Plastic (Polycarbonate) |
| Pins | H62 Copper Alloy (Silver Plated) |
| Base | PA66+GF20% Flame Retardant Nylon |
| Contacts | Silver Alloy AgCdO12 |
| Seal Ring | SIL Silicone Rubber |
GENERAL CHARACTERISTICS
| Operating Temp | -25°C to +85°C |
|---|---|
| Protection Level | IP65 Waterproof, IK08 Anti-vandal |
| Mechanical Life | 500,000 Cycles |
| Electrical Life | 50,000 to 100,000 Cycles |
KEY FEATURES
1. Superior Protection & Durability: With an IP65 & IK08 rating, this industrial panel mount switch 16mm is built for harsh environments, resisting water, dust, and physical impact.
2. Optimized Electrical Load: Unlike standard buttons rated at 2A, the FLM16-FJ-1-E supports up to 5A 250V AC/DC, allowing direct control of high-power devices.
3. Premium Silver Contacts: Equipped with AgCdO12 silver contacts, it ensures low resistance (<50mΩ) and exceptional conductivity for long-term use.
4. Versatile LED Ring: The illuminated push button switch ring light provides clear status feedback. Available in R/G/Y/B/W colors to indicate different system states (e.g., Red for Stop, Green for Go).
5. Compact Solder/Plug Terminals: Featuring a 5-pin design (2.8x0.5mm), it can be easily soldered or used with a filn 16mm push button harness for rapid installation. Click here to buy the matching wire harness.
APPLICATIONS
This 12v-24v led control switch is ideal for various industries:
- Industrial control panels: Powering machinery and status indication.
- Automotive & Marine: 12V car dashboards, fog lights, and boat instrument panels.
- Home Automation: Doorbell systems and lighting controls.
- Medical Devices: Precision equipment requiring high-durability switches.
INSTALLATION STEPS
- Drill the Hole: Create a precise 16mm diameter hole on your panel.
- Insert Switch: Place the 16mm metal push button switch through the hole from the front.
- Secure Nut: Tighten the metal hex nut from the back to fix the switch firmly.
- Connect Wires: Connect the 5-pin terminals according to the wiring logic (C/NO/NC/LED+/-).
- Test: Verify both the mechanical action and LED light function.
5-PIN LED Push Button Switch Wiring Guide
A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.
1. Normal OFF, Sync LED (NO Connection)
Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.
- Application: Standard start switches where the light indicates the system is running.
- State: Static (LED Out, Device Off) → Pressed (LED On, Device On).
2. Normal ON, Sync LED (NC Connection)
Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.
- Application: Stop buttons or emergency cut-off switches.
- State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).
3. Normal OFF, Constant LED (NO Connection)
Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.
- Application: Power switches in dark environments or access control buttons.
- State: Static (LED On, Device Off) → Pressed (LED On, Device On).
4. Normal ON, Constant LED (NC Connection)
Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.
- Application: Monitoring systems or security alarms that require constant power indication.
- State: Static (LED On, Device On) → Pressed (LED On, Device Stop).
| Mode | LED Behavior | Device (Idle) |
|---|---|---|
| NO Sync | Lights up when pressed | OFF |
| NC Sync | Turns off when pressed | ON |
| Constant | Always ON (Backlight) | User Choice |
INDUSTRY KNOWLEDGE
What is a 12V Push Button Switch?
A 12v push button switch is a control component used to close or open an electrical circuit. In industrial machinery, it serves as the human-machine interface (HMI). The 16mm size is the industrial standard for compact control panels, balancing space-saving design with durable mechanical performance.
Latching vs. Momentary: Which do you need?
| Feature | Momentary | Latching (Self-Locking) |
|---|---|---|
| Action | Springs back after release | Stays in place after press |
| Common Use | Horn, PC Start, Doorbell | Power Switch, Lighting, Lamp |
FACTORY DIRECT SUPPLY
FILN is a global leader in high-quality button switches. We offer:
- NO MOQ: Small orders and prototypes are welcome.
- Fast Delivery: Global shipping within 3-7 days.
- Customization: Voltage (3V-220V), Cable length, and Connector customization.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
FREQUENTLY ASKED QUESTIONS
Q1: What does the LED color mean on my push button switch?
A: Generally, Red signifies stop or danger, Green for start or safe, Blue/White for standby or backlight, and Yellow for warning.
Q2: Can I use this 12v switch on a 24v system?
A: Yes, our LEDs support 12V-24V wide voltage range. For 220V, we offer custom internal resistors.
Q3: Is the 16mm stainless steel push button corrosion-resistant?
A: Yes, the 304 stainless steel housing is ideal for marine and medical environments where corrosion is a concern.
Q4: How do I choose between solder pins and screw terminals?
A: Pin terminals are more compact and ideal for high-volume PCB or harness assembly, while screw terminals are better for quick field repairs.
Q5: What is the benefit of a 5-pin design?
A: 5 pins include C, NO, NC, and LED +/-. This allows you to choose between Normally Open (NO) or Normally Closed (NC) circuits while controlling the LED independently.
Q6: Is this switch waterproof?
A: Yes, it is rated IP65, meaning it is protected against dust and low-pressure water jets.
Q7: Can I get a pre-wired connector for this?
A: Yes, FILN provides matching wire harness adapters to simplify installation.
Q8: Does FILN support custom laser etching on the button?
A: Yes, we can laser engrave symbols like Power, Start, or custom logos.
Q9: What is the maximum current rating?
A: The FLM16 series is rated at 5A, much higher than standard 2A competitive products.
Q10: Are these switches UL certified?
A: Yes, our products carry UL, CE, and RoHS certifications for global export.
