Product Overview

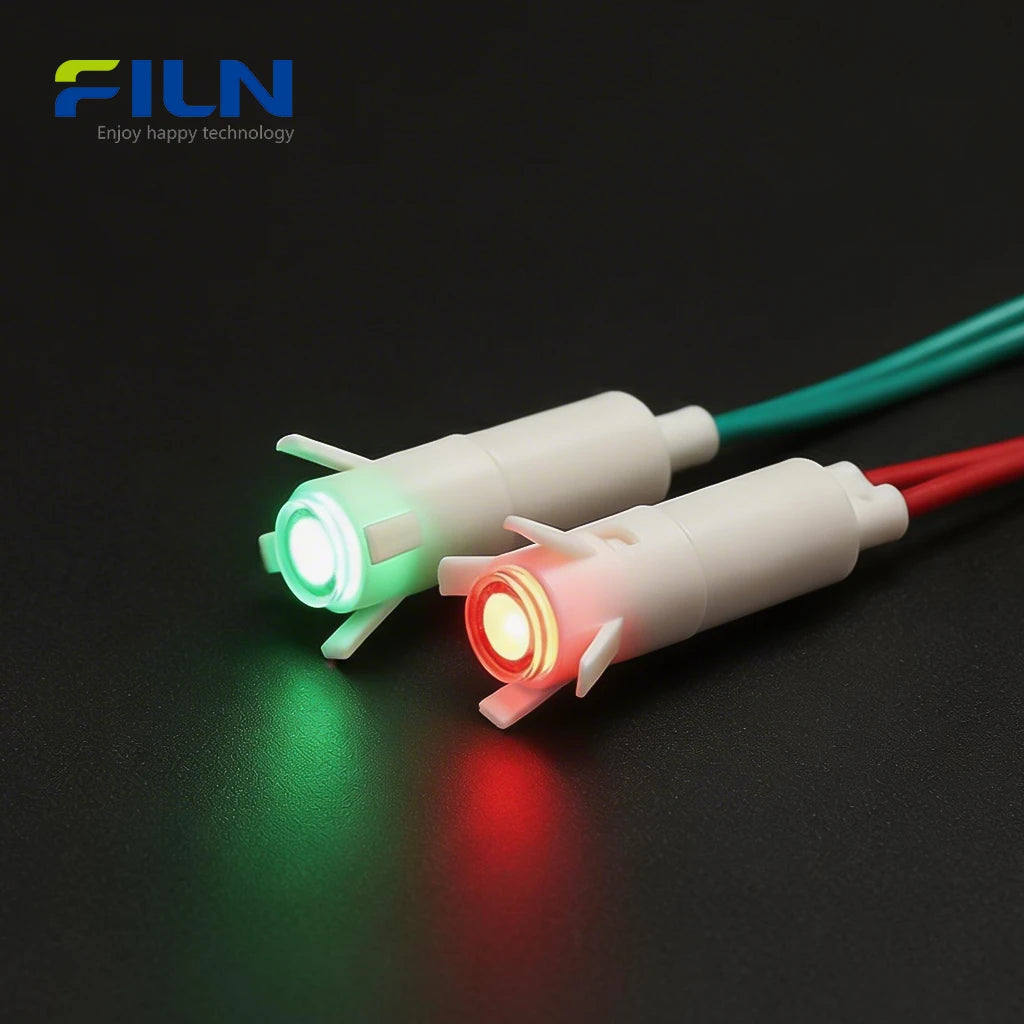

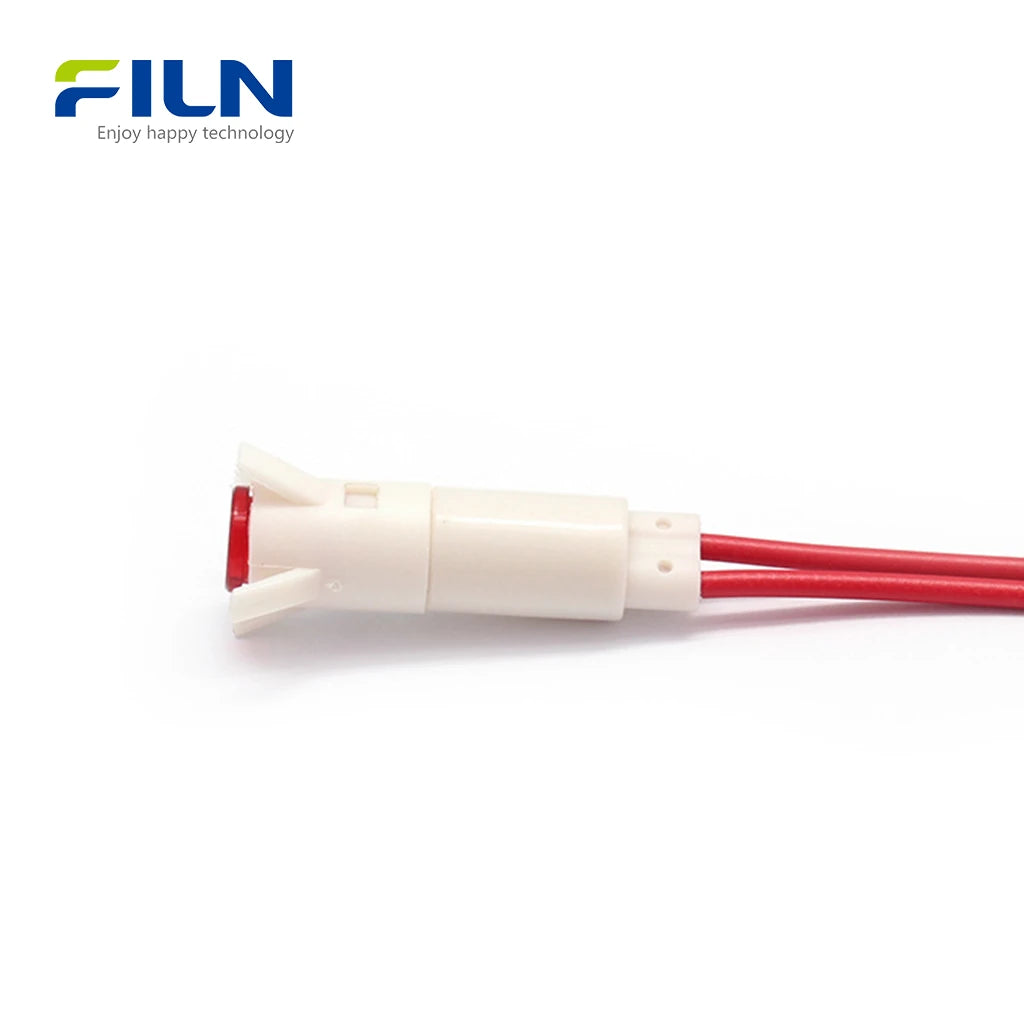

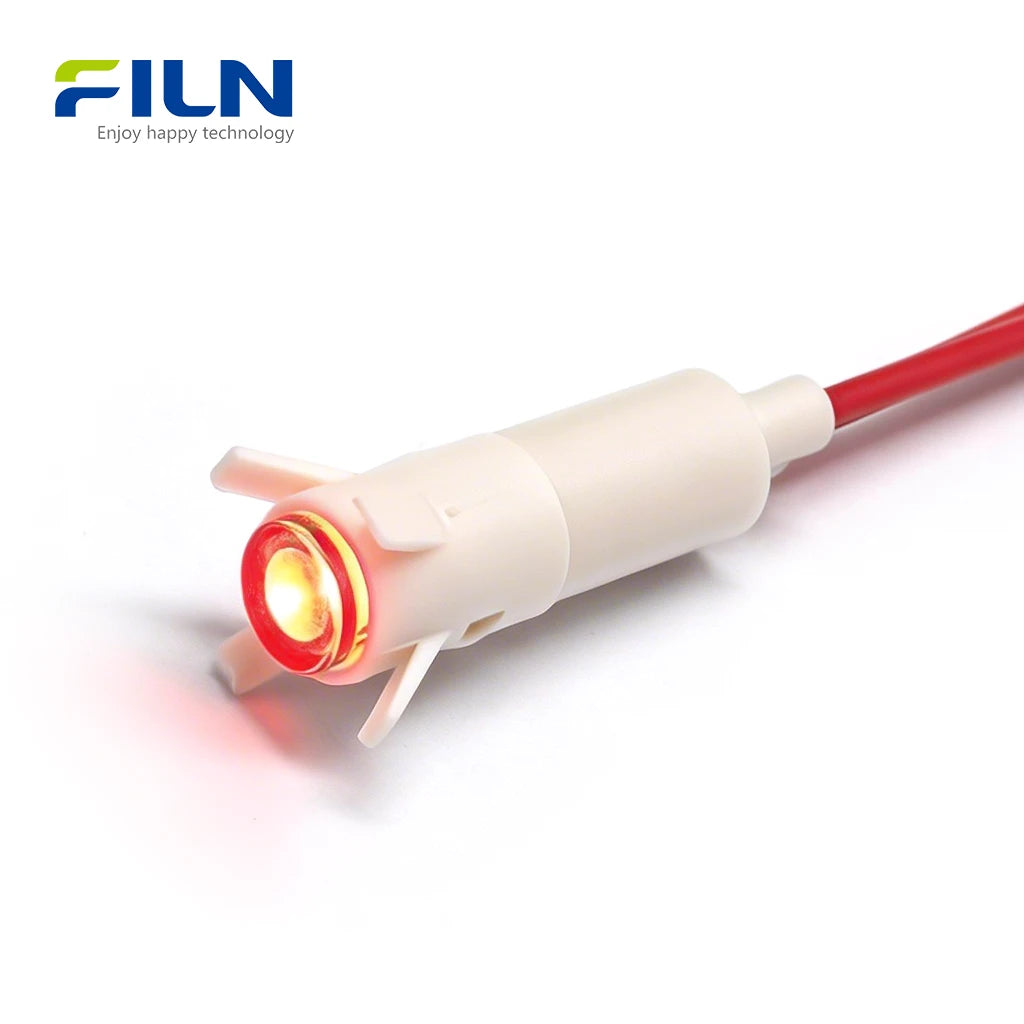

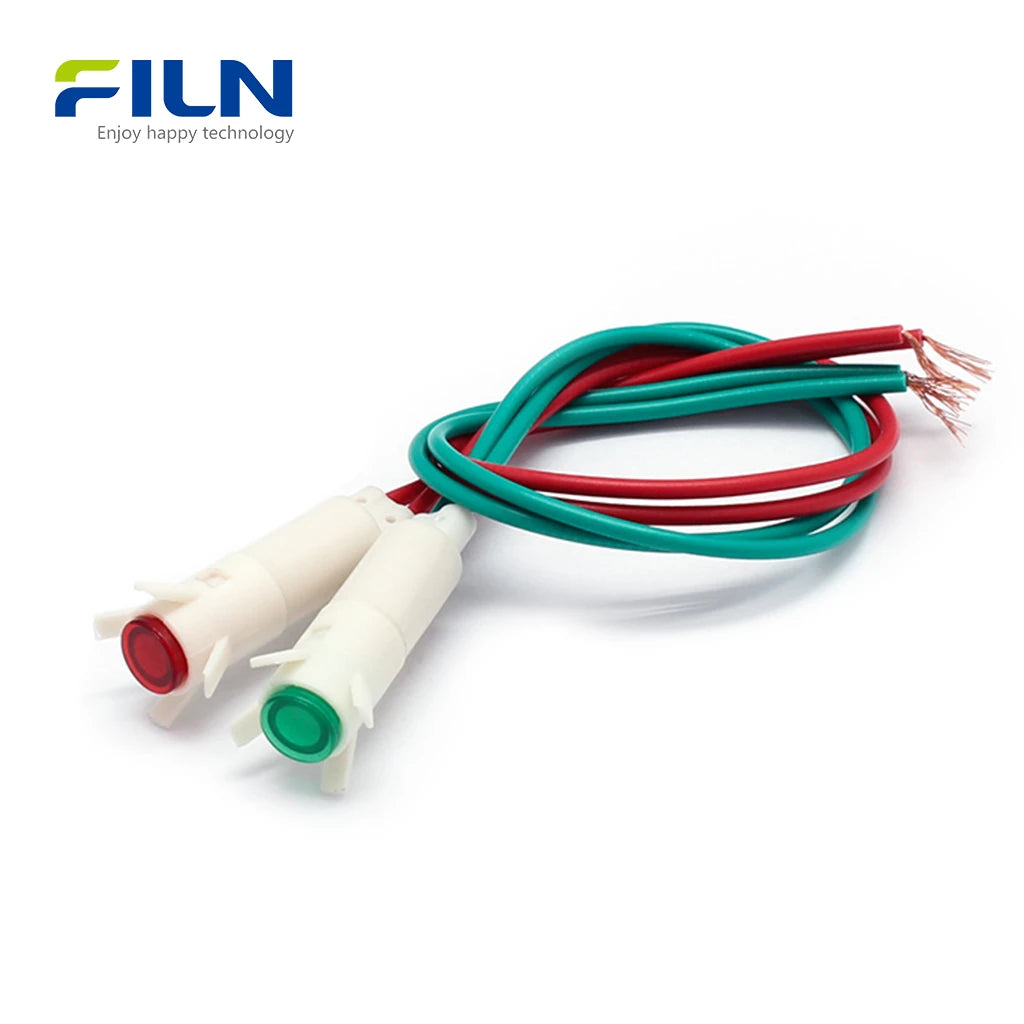

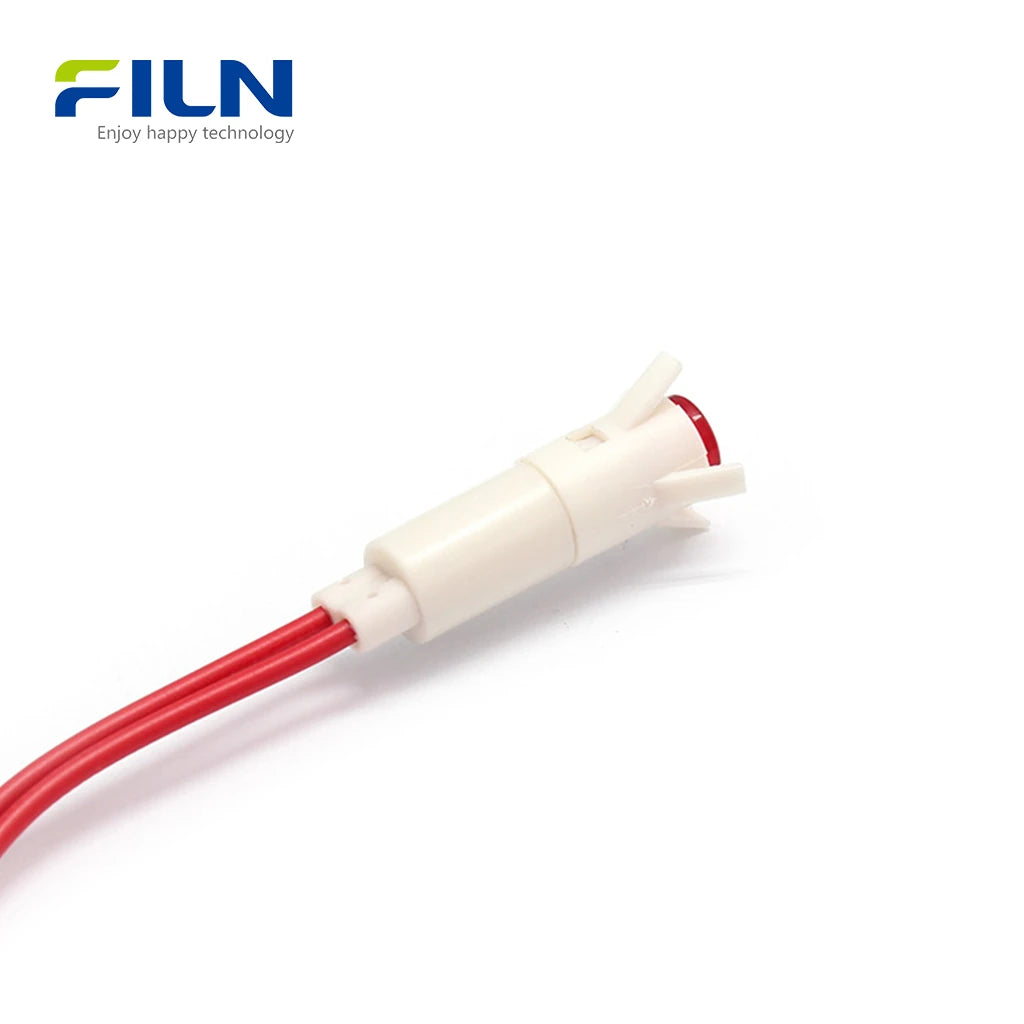

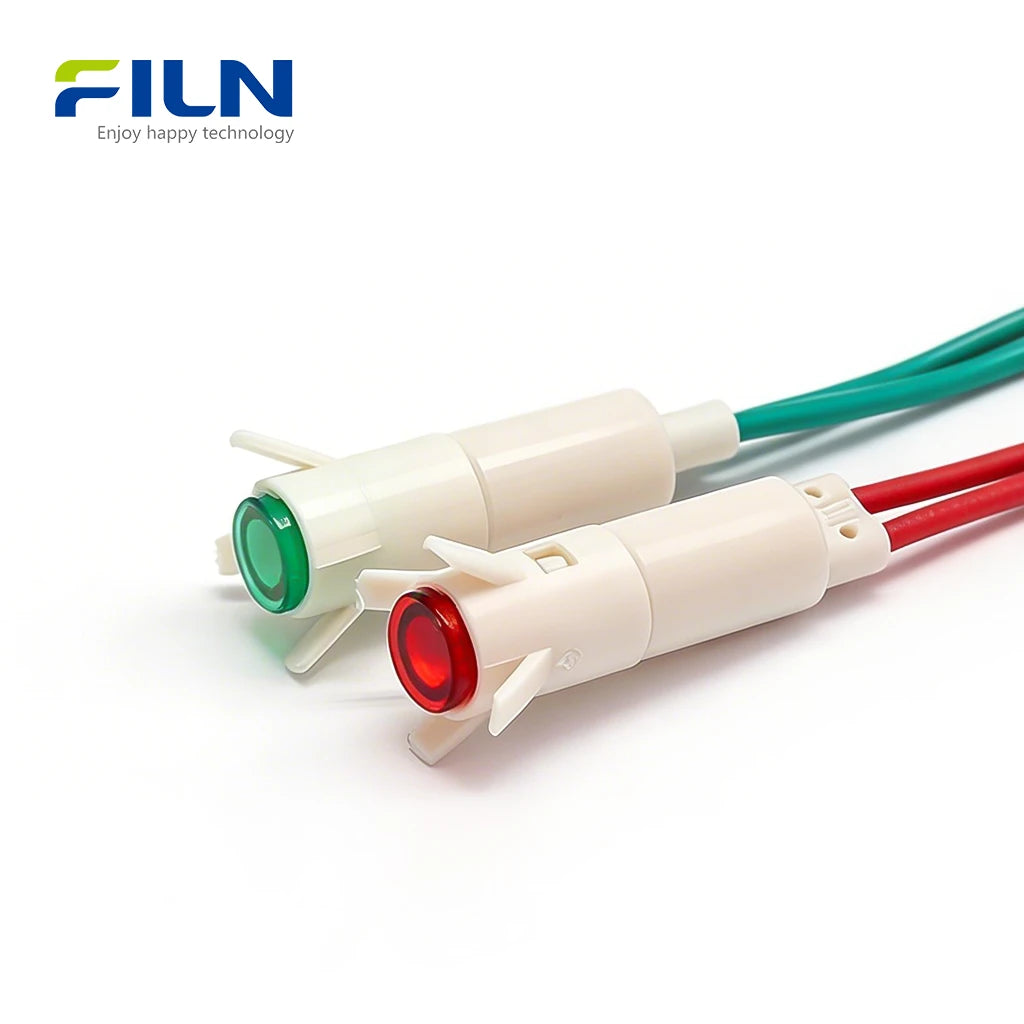

The 12VDC LED light (Model: FL1P-06QW-3) is a high-performance plastic indicator light for sale, designed for industrial precision. This 6mm miniature plastic indicator features a sleek round head and a snap-in led pilot lamp structure for rapid installation. Manufactured by FILN, a professional factory with certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, these lights ensure maximum reliability. Ideal for automation and electrical panels, our industrial plastic signal light provides a wire lead type indicator light design with a standard 15cm tail, making it superior to traditional 2.8mm terminal types for tight spaces. Order your small size plastic warning light today directly from our factory!
Quick Specifications
| Mounting Hole | 6mm / 0.236 inch |
| Voltage | 12V-24V, 110V-220V (Customized Support) |
| LED Color | Red, Green (Stock); Yellow, Blue, White (3-week Lead Time) |
| Waterproof Rating | Non-waterproof (Snap-in type) |
| Operating Temp | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Installation | Snap-in Mounting |
| Wiring Type | Wire Lead (15cm PVC Wire) |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Rated Working Parameters
| Rated Voltage | 3V to 250V (Customized) |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Component Name | Material |
|---|---|
| Shell (Housing) | PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade (Lens) | High-transparency PC |
| Luminescent Source | High-brightness LED |
| Resistance | Carbon Film Resistance |
| Wire Material | PVC Insulated Wire |
General Characteristics
| Insulation and voltage resistance | 1800V/5s |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Cold/Heat Resistant | -40℃ / +80℃ |
Electric Property
| Insulation Resistance | DC500V for 1 min, ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s, No breakdown |
Durability Characteristics
| Continuous Working Life | Test Condition: 30mA 1000h | Requirement: 50,000 - 60,000 hours |
Resistant Performance
| High Temperature | 80℃ 96h |
| Low Temperature | -40℃ 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
Key Features
- LED High Brightness: Utilizes advanced red-green 12v led indicator chips for clear visibility.
- Long Lifespan: Engineered for over 60,000 hours of continuous operation.
- Industrial Durability: Robust PA66 housing resists corrosion and impact.
- Easy Installation: Features a simple snap-in mechanism that eliminates the need for mounting nuts.
- Pre-wired Convenience: Includes 15cm PVC wire leads, reducing assembly time compared to soldering 2.8mm terminals.
Applications
- Industrial Control Panels: Real-time status monitoring for 12vdc led light 6mm panel mount setups.
- CNC Machinery: Essential for fault detection and operational signaling.
- Electrical Cabinets: Compact 6mm miniature plastic indicator fits high-density arrays.
- Automation Equipment: High-reliability snap-in led pilot lamp for 24/7 production lines.
- Household Appliances: Power status indication for commercial kitchen and cleaning tools.
Installation Guide
- Drill a precise 6mm (0.236 inch) hole in your control panel.
- Clean the surrounding area of the panel to ensure a secure fit.
- Pass the 15cm wire leads through the hole from the front.
- Push the snap-in led pilot lamp into the hole until the clips lock onto the panel surface.
- Connect the wire lead type indicator light to your DC power source, ensuring correct polarity.
What Is a 12VDC LED Light Indicator?
An industrial plastic signal light is a critical component used to communicate machine status to human operators. Unlike traditional incandescent lamps, a plastic indicator light for sale today uses high-efficiency LEDs that consume less than 20mA of current while generating minimal heat. The plastic housing (PA66) provides excellent electrical insulation and chemical resistance. In B2B environments, the wire lead type indicator light is often preferred over pin types because it allows for immediate connection to wiring harnesses, saving significant labor costs during mass production of 220v plastic led status light systems.
Factory Direct Supply
FILN is a world-class manufacturer specializing in custom-length wire indicator light solutions. We offer:
- Direct Factory Pricing for bulk B2B orders.
- Custom voltage (3V-380V) and custom-length wire indicator light.
- Connector integration for plug-and-play functionality.
- Fast global shipping for red-green 12v led indicator products.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy this 12vdc led light directly from your factory?
Yes, we offer this plastic indicator light for sale directly with wholesale pricing for industrial customers.
Yes, we offer this plastic indicator light for sale directly with wholesale pricing for industrial customers.
2. What is the advantage of a snap-in mounting?
The snap-in led pilot lamp allows for tool-free installation. You simply push the 6mm light into the panel, making it much faster than nut-tightening models.
The snap-in led pilot lamp allows for tool-free installation. You simply push the 6mm light into the panel, making it much faster than nut-tightening models.
3. Is the 6mm miniature plastic indicator waterproof?
The snap-in version is designed for dry environments. If you need IP65 or IP67, please inquire about our industrial plastic signal light with screw-thread mounting.
The snap-in version is designed for dry environments. If you need IP65 or IP67, please inquire about our industrial plastic signal light with screw-thread mounting.
4. Do you support 220v plastic led status light customization?
Yes! While 12V and 24V are standard, we can manufacture the same 6mm size for 110V or 220V AC applications.
Yes! While 12V and 24V are standard, we can manufacture the same 6mm size for 110V or 220V AC applications.
5. What is the standard wire length for this wire lead type indicator light?
The standard length is 15cm. However, as a factory, we provide custom-length wire indicator light options to meet your project specs.
The standard length is 15cm. However, as a factory, we provide custom-length wire indicator light options to meet your project specs.
6. Are colors other than red and green available for the 12vdc led light?
Yes, Yellow, Blue, and White are available with a 3-week production lead time.
Yes, Yellow, Blue, and White are available with a 3-week production lead time.
7. What materials are used in this small size plastic warning light?
We use flame-retardant PA66 nylon for the shell and high-transparency PC for the lens to ensure durability.
We use flame-retardant PA66 nylon for the shell and high-transparency PC for the lens to ensure durability.
8. How does a wire lead light differ from a 2.8mm terminal indicator?
The wire lead type indicator light comes pre-wired, reducing labor. A terminal type requires separate connectors or soldering.
The wire lead type indicator light comes pre-wired, reducing labor. A terminal type requires separate connectors or soldering.
9. Does FILN provide certifications for international trade?
Absolutely. Our indicators are UL, CE, and RoHS certified, ensuring compliance for the US and European markets.
Absolutely. Our indicators are UL, CE, and RoHS certified, ensuring compliance for the US and European markets.
10. Can I request a custom wire connector?
Yes, we can add XH2.54, Molex, or waterproof connectors to your 12vdc led light 6mm panel mount orders.
Yes, we can add XH2.54, Molex, or waterproof connectors to your 12vdc led light 6mm panel mount orders.
