Button Switch Drawing
PRODUCT OVERVIEW

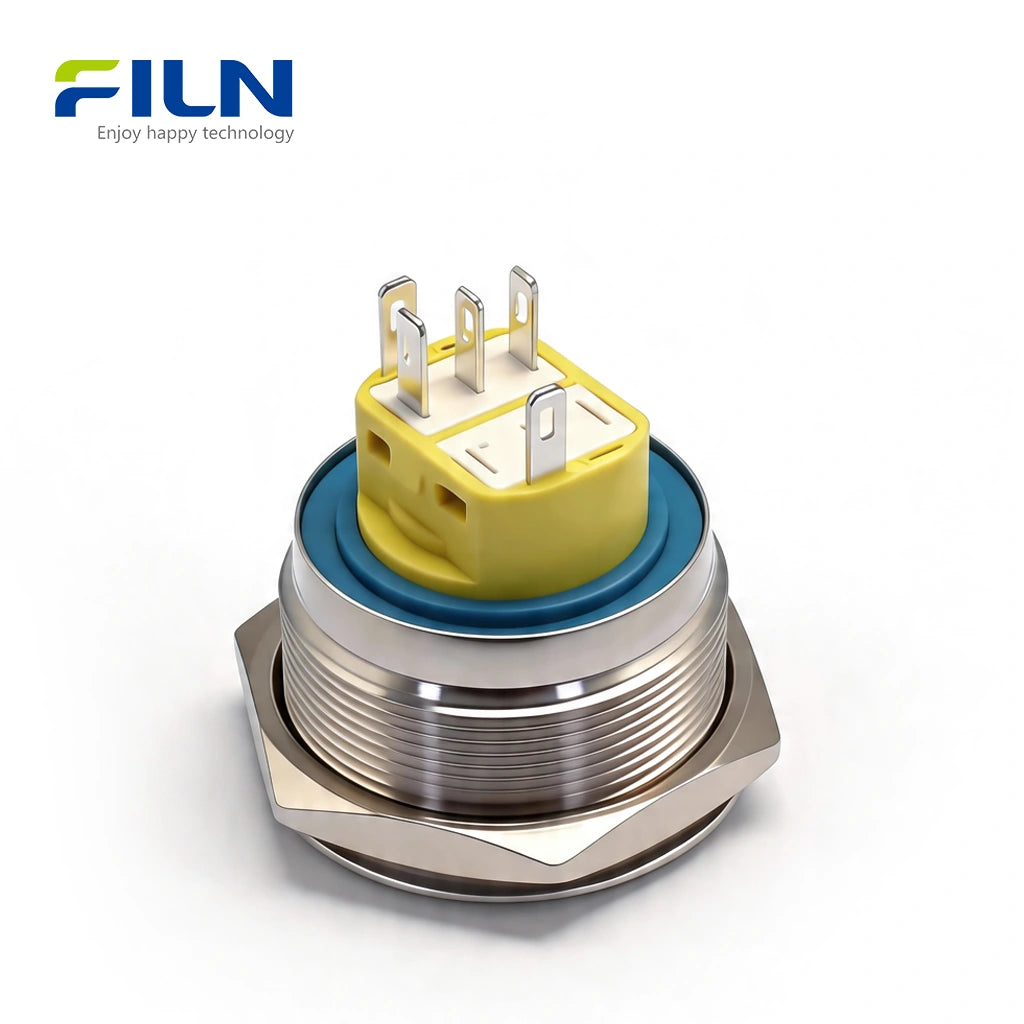

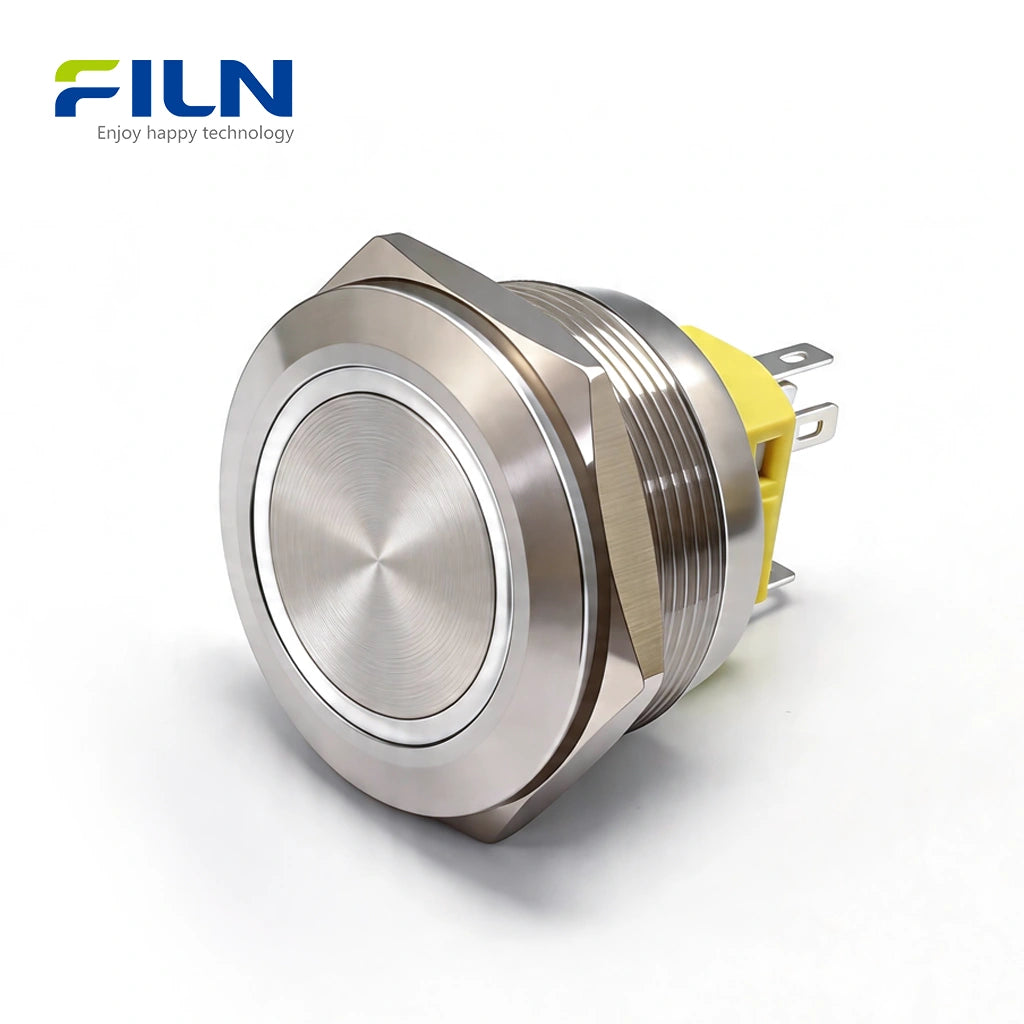

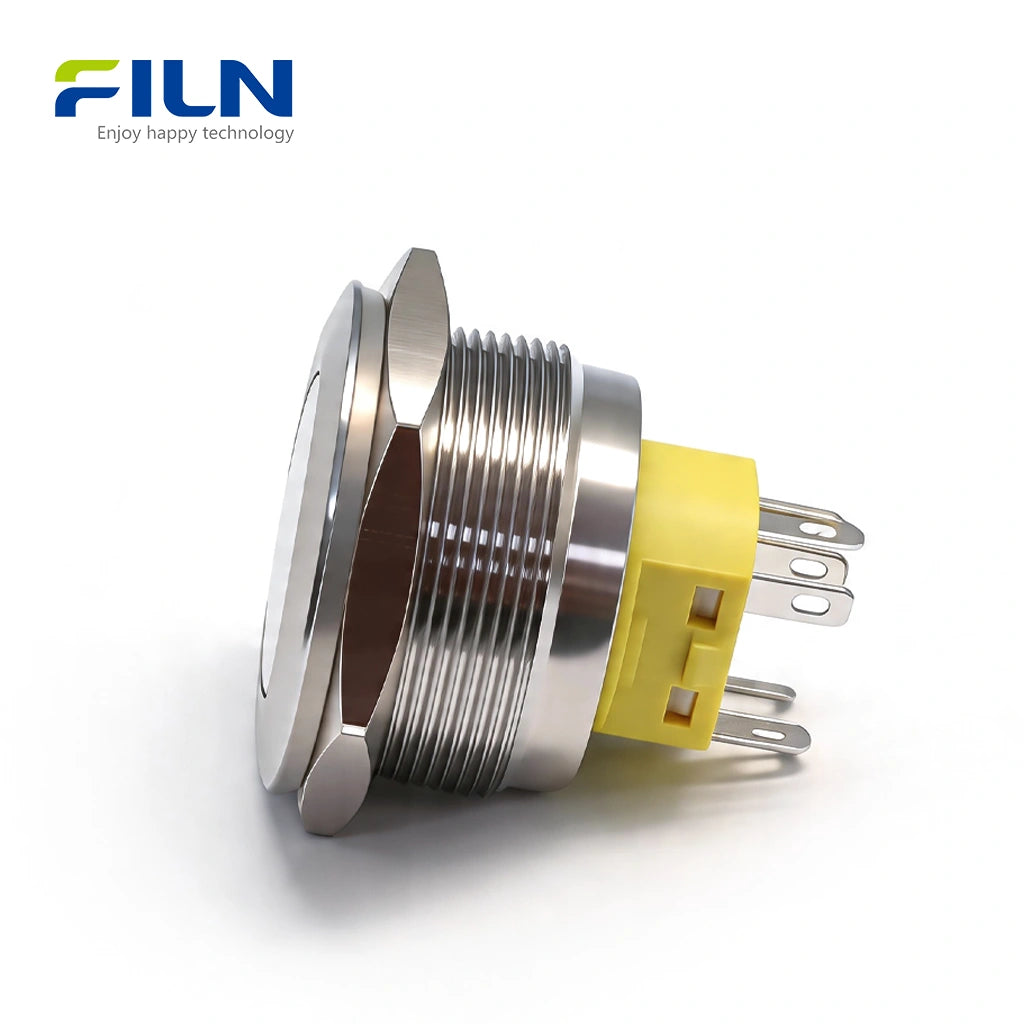

The 12v push button switch momentary (Model: FLM30-FJ-1-E) is a high-performance 30mm industrial control component engineered by FILN. This stainless steel switch features a robust silver metal shell and a brilliant ring LED indicator, ensuring superior visibility and status feedback in dark or low-light environments. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it is built to withstand rigorous industrial use. Available in both momentary and latching functions, this 5-pin terminal switch is essential for any equipment requiring reliable circuit control, from CNC machines to automation systems. Its elegant design and high durability make it the preferred choice for global B2B procurement.
QUICK SPECIFICATIONS
| Property | Technical Data |
|---|---|
| Model Number | FLM30-FJ-1-E |
| Mounting Diameter | 30mm (1.18 inch) |
| Operation Function | Momentary (Self-reset) / Latching (Self-locking) |
| LED Colors | Red, Green, Yellow, Blue, White (Bi-color/Tri-color available) |
| Head Shape | Flat Head |
| Terminal Type | 5-Pin Solder/Plug-in Pins |
PERFORMANCE PARAMETERS
| Rated Voltage | 36V DC / 250V AC |
| Rated Current | 5A DC / 5A AC |
| Rated Power | 180W (DC) / 1250W (AC) |
| Dielectric Strength | 1800V |
| Contact Resistance | < 50mΩ |
| Insulation Resistance | ≥ 1000MΩ |
| LED Voltage Range | 3V - 220V (Standard 12V-24V) |
| Certifications | CE, UL, VDE, RoHS, SGS, ISO9001 |
COMPONENT MATERIALS
| Button Actuator | 304 Stainless Steel / 6063 Aluminum Alloy |
| Housing Shell | H59 Brass / 304 Stainless Steel |
| Light Lens | Flame-Retardant PC Plastic |
| Base Material | PA66+GF20% Fireproof Nylon |
| Contact Points | Silver Contact AgCdO12 |
| Waterproof Gasket | SIL Silicone Rubber |
ENVIRONMENT & DURABILITY
| Operating Temp | -25°C to +85°C |
| Protection Level | IP65 Waterproof, IK08 Impact Resistance |
| Mechanical Life | 500,000 Cycles |
| Electrical Life | 100,000 Cycles (3A) / 50,000 Cycles (5A) |
KEY FEATURES
- Superior Durability (IP65 & IK08): Built for outdoor and high-vibration industrial machinery.
- High-Power Efficiency: Supports up to 5A 250V AC/DC, reducing the need for intermediate relays.
- Premium Silver Contacts: Ensures low contact resistance and high electrical stability.
- Visual Feedback: Ring LED provides clear status indication, essential for safety and HMI aesthetics.
- Compact 5-Pin Design: Optimized for small control panels with 2.8x0.5mm standard terminals.
⚡ Efficiency Upgrade: This switch can be paired with our professional pre-wired harness to eliminate soldering.
Buy Plug-and-Play Wire Connector Here →
Buy Plug-and-Play Wire Connector Here →

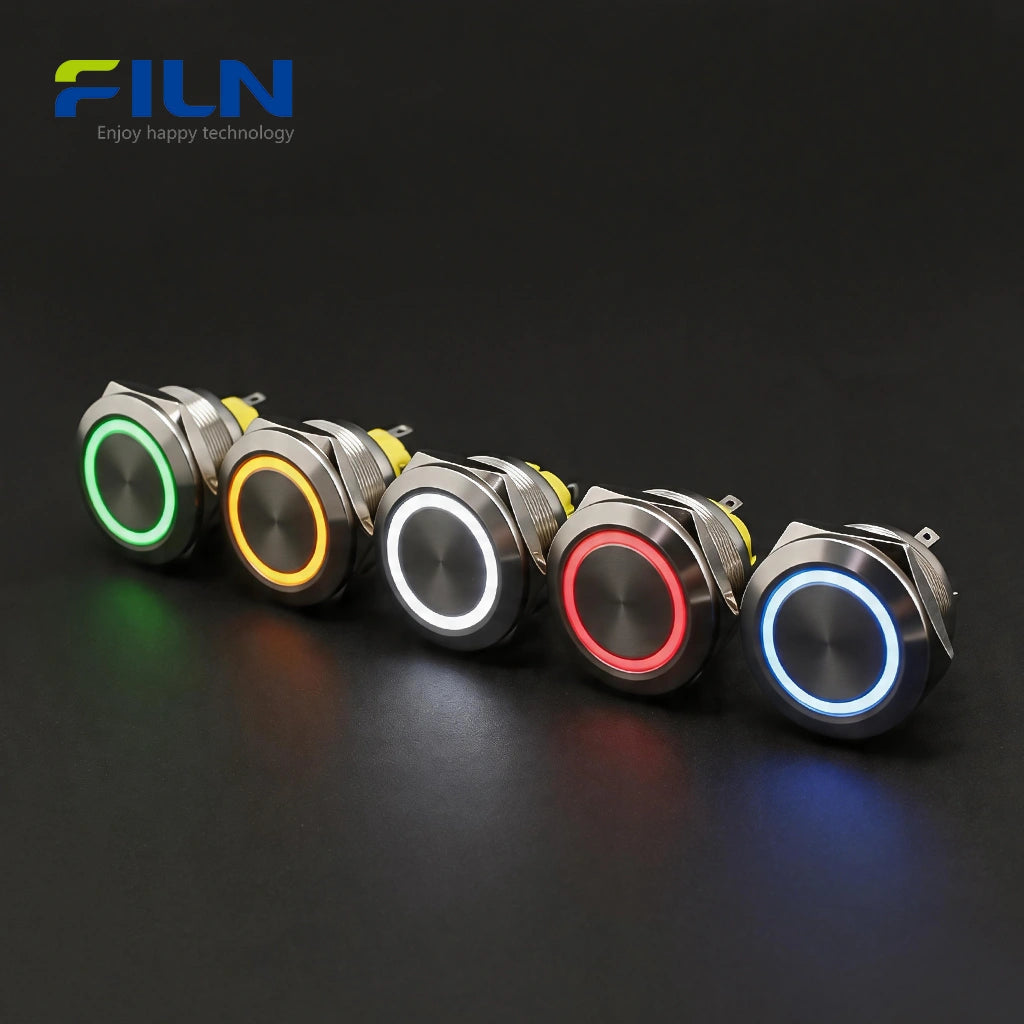

LED COLOR CODING GUIDE
Using different LED colors improves operational efficiency and safety:
- Red: Typically represents Stop or Emergency status.
- Green: Indicates Start or System Ready.
- Yellow: Used for Warning or Standby modes.
- Blue: Often assigned to auxiliary or manual functions.
- White: Best for backlight illumination in dark workspaces.
APPLICATIONS
The versatility of the 12v push button switch momentary allows it to be used in:
- Industrial Control Panels
- CNC Machines
- Automation Equipment
- Electrical Cabinets
- Marine & Boat Systems
- Medical Devices

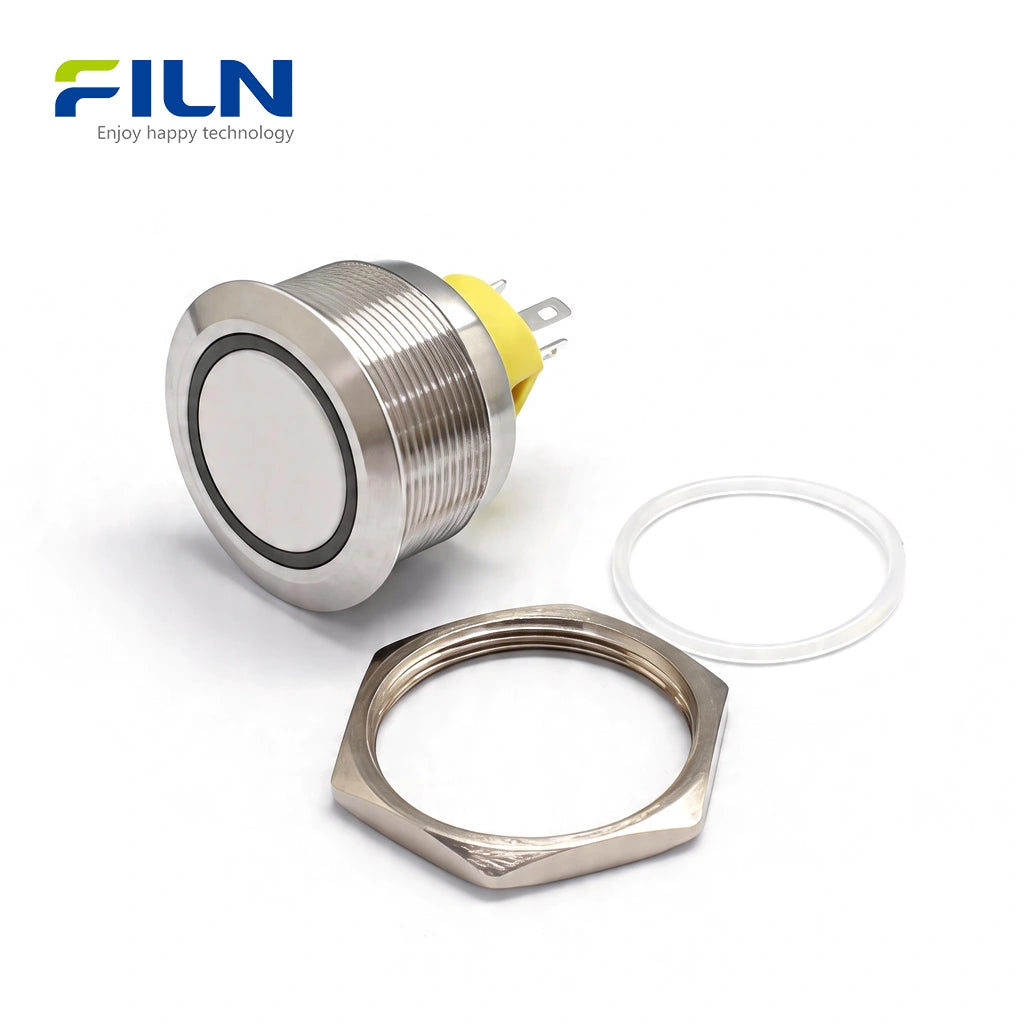

INSTALLATION GUIDE
- Drill a 30mm hole on the panel.
- Insert the button actuator through the hole from the front.
- Place the metal nut on the rear side and tighten to fix the switch to the panel.
- Proceed with standard 5-pin terminal wiring according to the circuit logic.
TERMINAL TYPE COMPARISON
| Terminal Type | Wiring Method | Advantages |
|---|---|---|
| Pin Terminal (5-Pin) | Soldering or Connector | Fastest install, space-saving, long-life. |
| Screw Terminal | Screw clamping | No tools needed for field repairs. |
| Pre-wired | Direct connection | Easy but less flexible in cable length. |

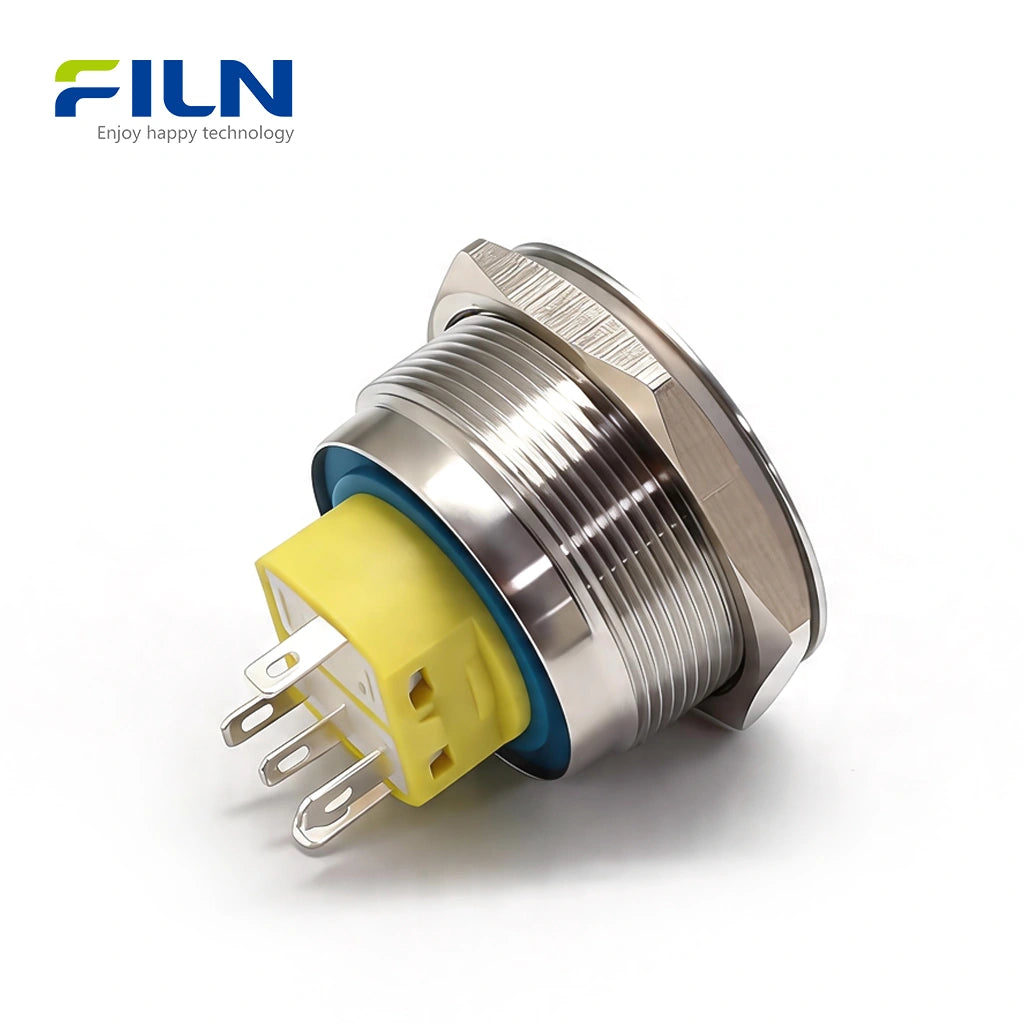

5-PIN WIRING CONFIGURATIONS
A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -)[cite: 39].
Mode 1: Normal OFF, Sync LED (NO Connection)
Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously[cite: 41, 42].
Mode 2: Normal OFF, Constant LED (NO Connection)
The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed[cite: 47, 48].
INDUSTRY KNOWLEDGE
What is a 12V Push Button Switch Momentary?
In industrial environments, every powered device requires a method to break or connect a circuit. This 30mm momentary switch acts as a crucial human-machine interface. Its larger size makes it easier for operators to interact with while wearing gloves, and its LED indicator provides essential feedback in dark or emergency situations.
Latching vs. Momentary
| Function | Logic | Application |
|---|---|---|
| Momentary | Springs back after release | PC Power, Reset buttons, Car Horns. |
| Latching | Locks in position after press | Light switches, Power buttons. |
FACTORY DIRECT SUPPLY - FILN
- No MOQ: Direct from factory, support for small orders.
- Fast Delivery: Reliable global logistics.
- Certification: Full international safety compliance (CE, UL, RoHS).
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
FAQ - 12V PUSH BUTTON SWITCH
Q1: Is the 30mm 5-pin LED switch waterproof?
Yes, it features an IP65 rating, perfect for splash-proof and dust-proof industrial applications.
Q2: Can I get this 12v switch push button in 110V?
Yes, FILN supports custom voltage from 3V up to 220V for the internal LED.
Q3: What is the difference between momentary and latching?
Momentary springs back after you release it (like a PC power button); Latching stays down until pressed again.
Q4: Do you provide a matching wiring harness for the 5-pin switch?
Yes, we offer custom 5-wire sockets to simplify your assembly line.
Q5: Can the ring LED be always on as a backlight?
Yes, by wiring the LED (+) directly to the power source instead of the output terminal[cite: 47].
Q6: Is stainless steel better than aluminum for the shell?
Stainless steel offers better corrosion resistance for marine or medical environments.
Q7: What does the 'C' pin stand for in the 5-pin configuration?
It stands for 'Common' and is typically where you connect the power input[cite: 39].
Q8: Is this switch certified for the European market?
Yes, it is fully CE and VDE certified.
Q9: Can I order this switch with a dual-color LED?
Yes, FILN provides Bi-color and Tri-color LED customization.
Q10: What is the mechanical life span?
The switch is rated for 500,000 mechanical operations.
