Product Overview

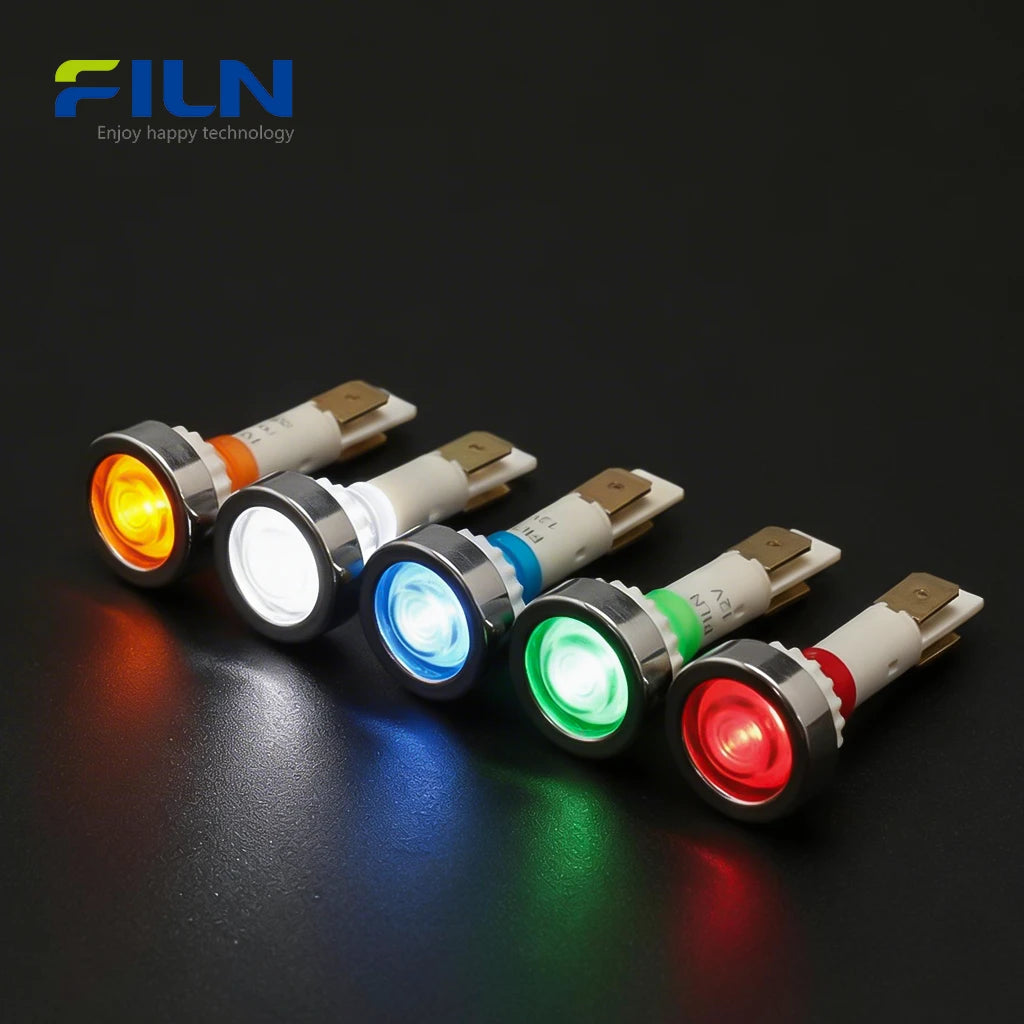

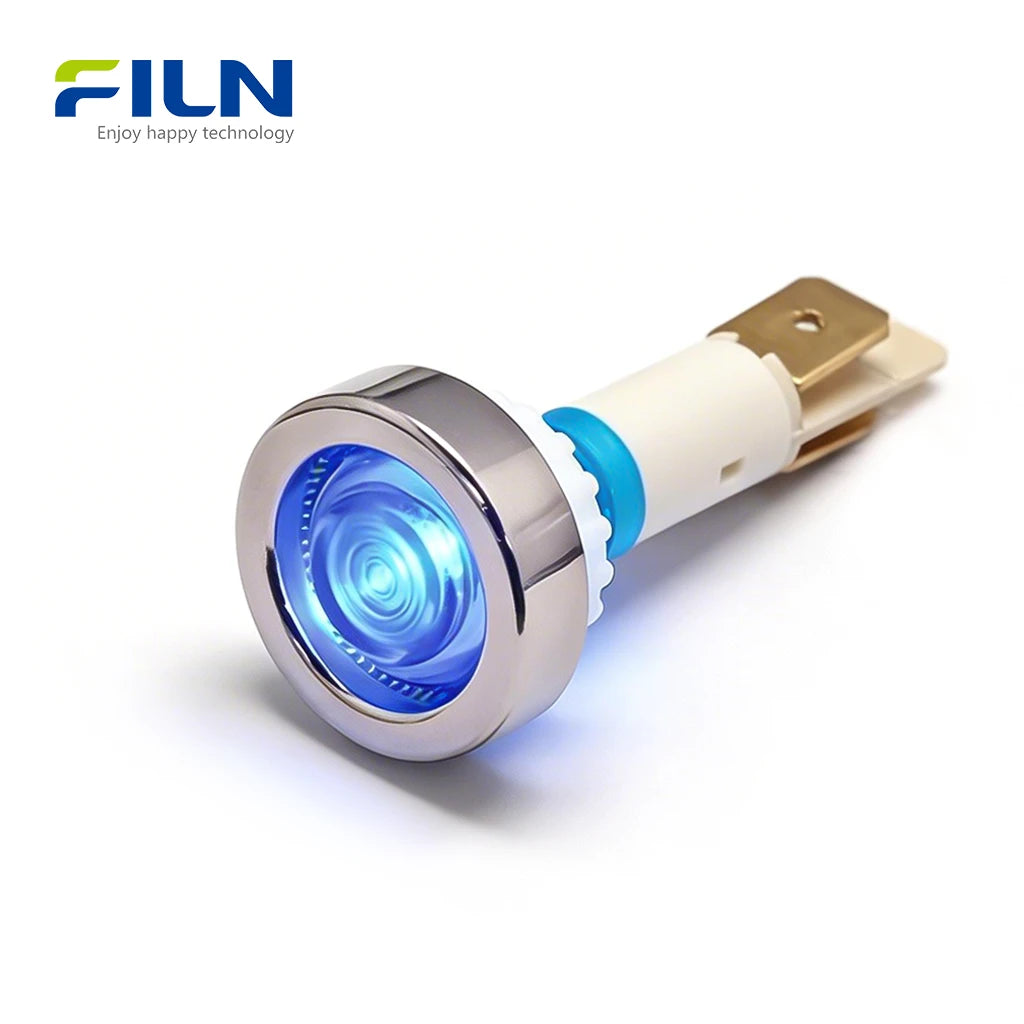

The 12v indicator lamp (Model: FL1P-10NJ-1) is a premium 10mm plastic indicator light factory solution designed for industrial and commercial applications. This high-brightness red green 12v indicator lamp led features a distinctive silver plated ring around the head, providing an elegant and professional aesthetic. As a specialized 12v indicator lamp for sale, it is widely utilized in kitchen equipment status indicator panels and automation systems. FILN ensures top-tier quality with certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you need a custom voltage plastic warning light or a standard 2-pin terminal version, this durable pa66 plastic indicator lamp is available for direct purchase online.
Quick Specifications
| Mounting Hole Size | 10mm (0.39 inch) |
| Rated Voltage | 12V-24V, 110V-220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | Head IP65 (Screw Mount) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Installation Type | Screw Mount with Nut |
| Wiring Type | 2.8mm Pin Terminal (2-Pin) |
| Product Certification | ISO9001, CE, VDE, RoHS, SGS, UL |
| Component Name | Material |
| Shell (Outer Case) | PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade | PC (Polycarbonate) |
| Luminescent Source | LED |
| Resistance | Carbon Film Resistance |
| 2.8mm Terminal | H59 Copper (Brass) |
Rated Working Parameters
| Rated Voltage | Customized (Default 12V) |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | PA66 |
| Lens | High Transparency PC |
| Seal Ring | SIL Silicone |
| Terminal | Brass with Silver Plating |
| Wire Material (For Wire Lead Version) | UL1007 / PVC |
General Characteristics
| Insulation and Voltage Resistance | 1800V/5s |
| Working Life | 60,000h |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |

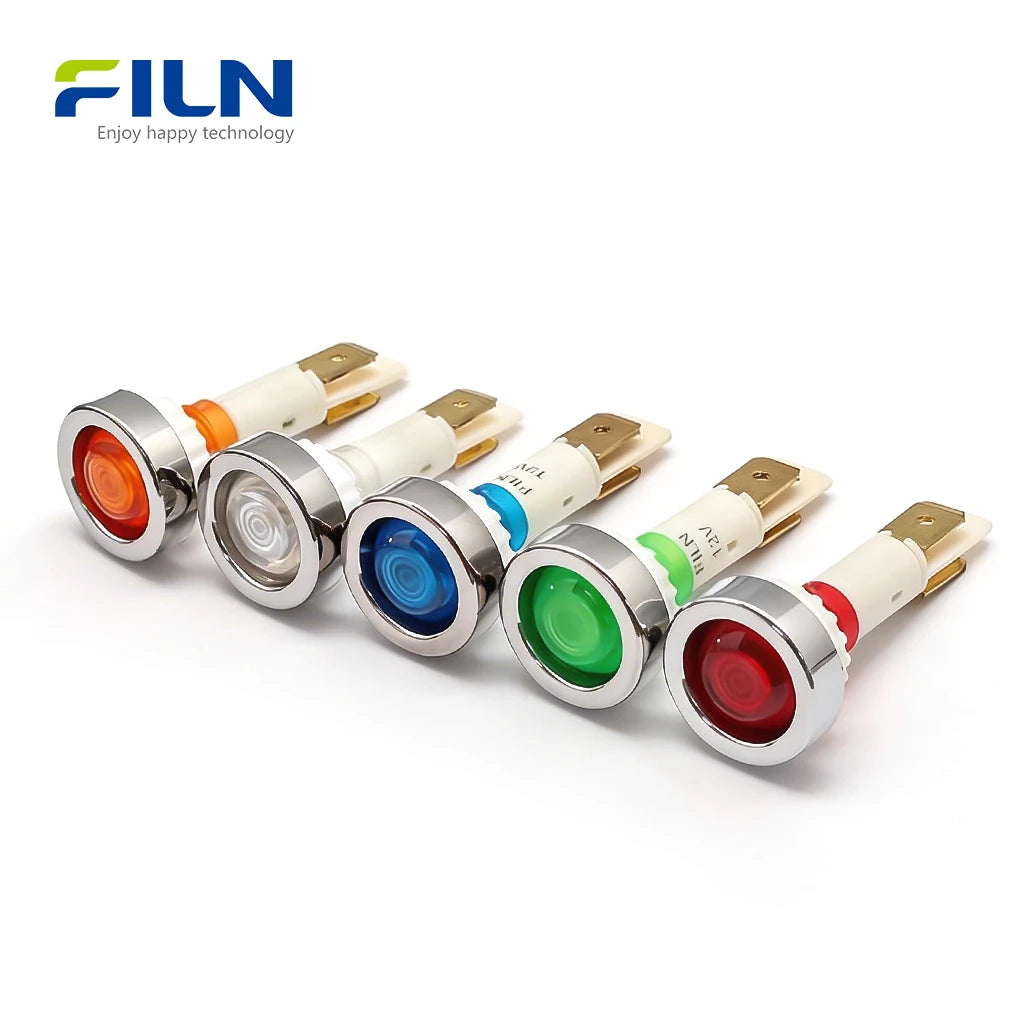

| Available Colors | Red, Green, Blue, Yellow, White |
Electric Property
| Item | Test Condition | Requirement |
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Continuous Working Life | 50,000 - 60,000 hours (Tested at 30mA 1000h) |
Resistant Performance
| High Temperature Resistance | 80℃ for 96h |
| Low Temperature Resistance | -40℃ for 96h |
| Moisture Resistance | 40℃, 90-95%RH for 96h |
Key Features
- LED High Brightness: Equipped with a silver plating ring for enhanced luminosity and a premium appearance.
- Long Lifespan: Rated for up to 60,000 hours of continuous operation.
- Industrial Grade Material: Made of high-quality PA66, offering better heat resistance than standard plastic.

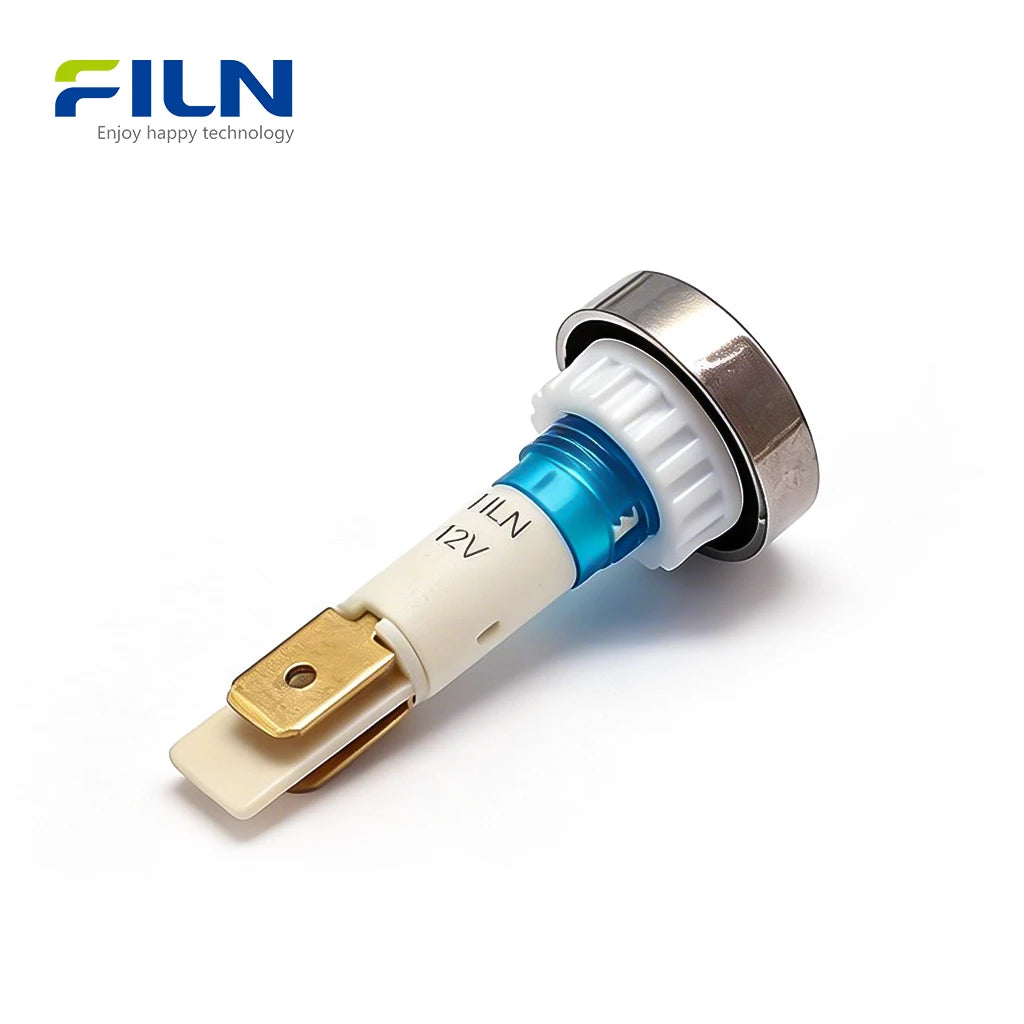

- 2-Pin Terminal Design: Easy connection using 2.8mm terminals, saving assembly time.
- IP65 Waterproof: The ip65 waterproof plastic pilot light head is ideal for humid environments like kitchens.
Applications

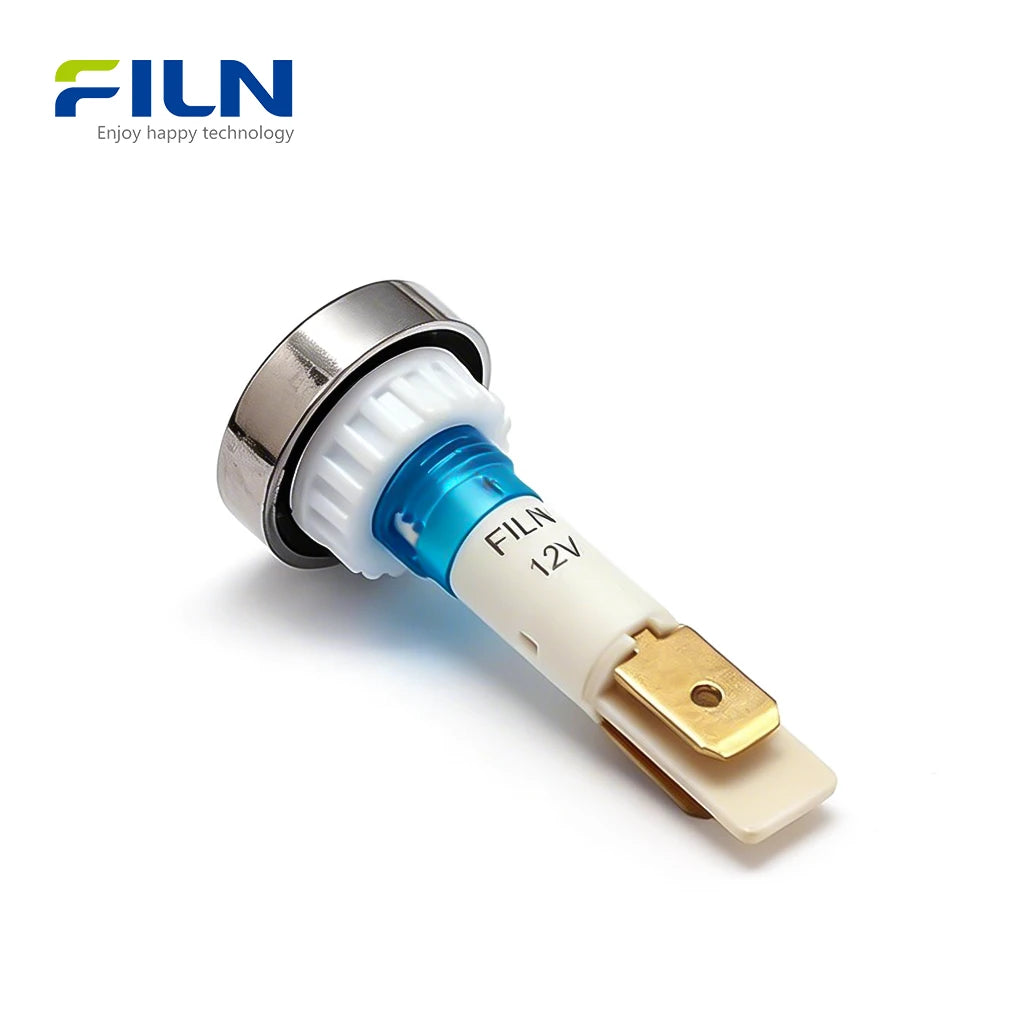

- Kitchen Equipment: Ideal for ovens, dishwashers, and food warmers.
- Industrial Control Panels: Power status monitoring.
- Automation Machinery: CNC machines and electrical cabinets.
- Marine & Medical: Reliable signal feedback for critical systems.

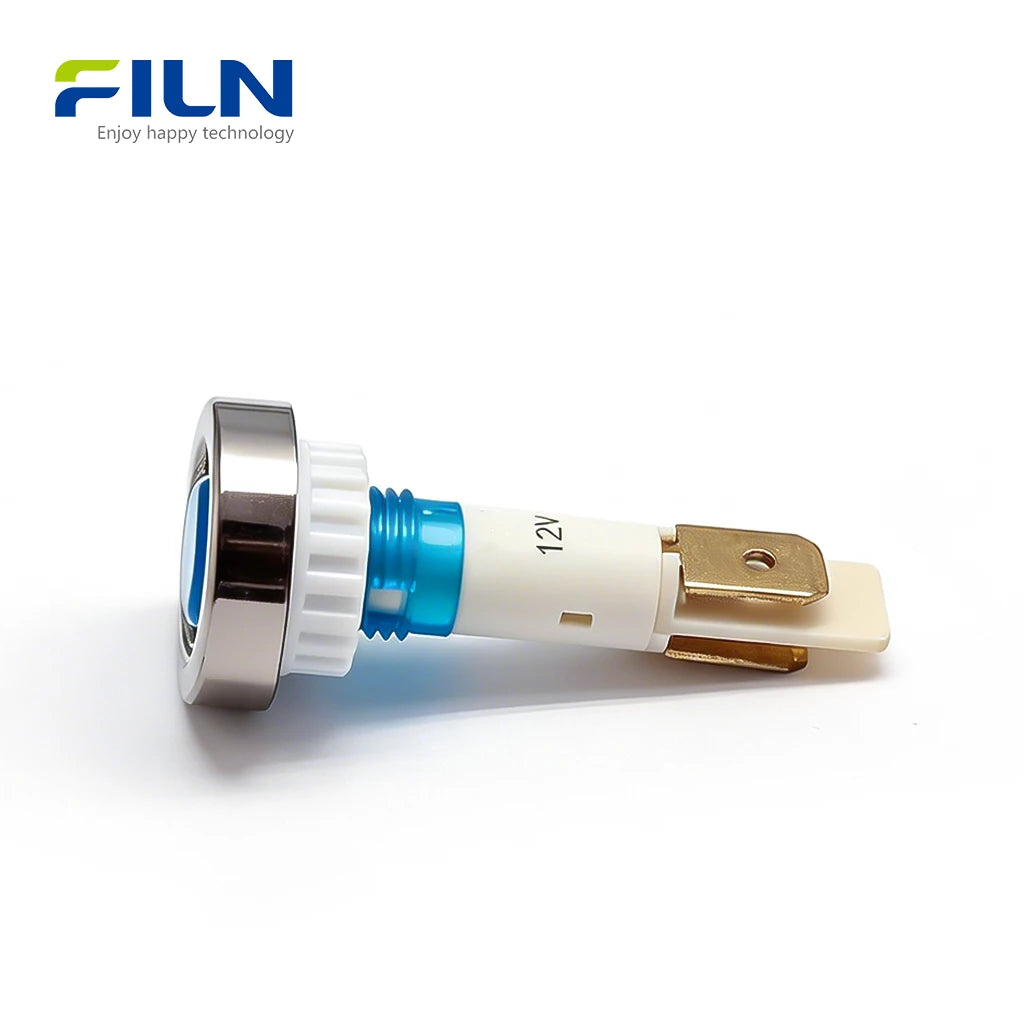

Installation Guide
- Drill a 10mm hole in the mounting panel.
- Insert the screw mount 12v indicator lamp through the front of the panel.
- Slide the plastic nut from the back and tighten it to secure the lamp.
- Connect the circuit using 2.8mm female terminals to the 2-pin pins.
What Is a 12V Indicator Lamp?
A 12v indicator lamp is a specialized signaling device used to visually communicate the operational status of a circuit. In industrial settings, these lamps are critical for safety and efficiency. Unlike metal indicators, a plastic indicator light factory product like the FL1P-10NJ-1 offers superior insulation and cost-effectiveness while remaining resistant to corrosion. The 2-pin terminal signal lamp design provides a more stable and faster connection compared to traditional wire leads. Plastic indicators are lightweight and ideal for mass-produced equipment where durability and visual clarity are paramount.
Factory Direct Supply
FILN is a leading manufacturer specializing in industrial signal solutions. Our filn 10mm led indicator lamp products are available for direct purchase with the following benefits:
- ✅ Factory Direct Pricing - No middleman.
- ✅ Full Customization - Voltage, wire length, and connectors.
- ✅ Global Shipping - Fast delivery for B2B orders.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy this 12v indicator lamp for sale directly?
Yes, we offer direct factory sales for both small and large bulk orders online.
2. What is the difference between pin terminal and wire lead types?
The 2-pin terminal allows for quick-connect plug-ins, while wire leads are better for permanent soldering or long-distance wiring.
3. Is the 10mm plastic indicator light factory certified?
Absolutely. Our products hold UL, CE, and ISO9001 certifications.
4. Can you customize the voltage for this 10mm lamp?
Yes, we support 3V to 380V customization beyond the standard 12V-220V range.
5. Is this lamp suitable for kitchen ovens?
Yes, the PA66 material is heat-resistant, making it a perfect kitchen equipment status indicator.
6. What are the advantages of plastic over metal indicators?
Plastic indicators are non-conductive (safer), cost-effective, and resistant to chemical corrosion.
7. How do I install this screw mount 12v indicator lamp?
Simply drill a 10mm hole, insert the lamp, and tighten the plastic nut from behind.
8. Does the silver ring affect the brightness?
The silver plating reflects light, making the signal appear brighter and more premium.
9. What is the waterproof rating?
The head is rated IP65, suitable for splashes and high humidity.
10. How long is the lifespan of the LED?
The LED source is rated for over 60,000 hours of continuous use.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
