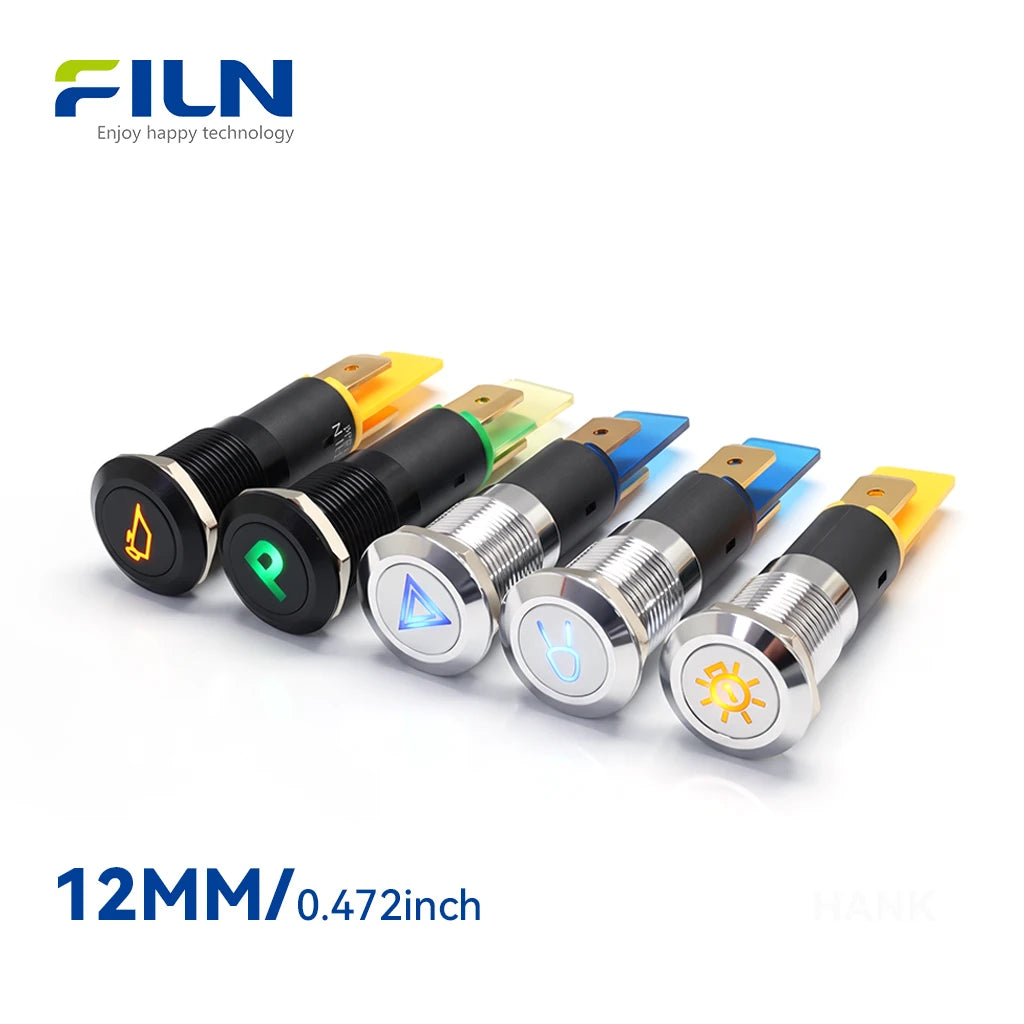

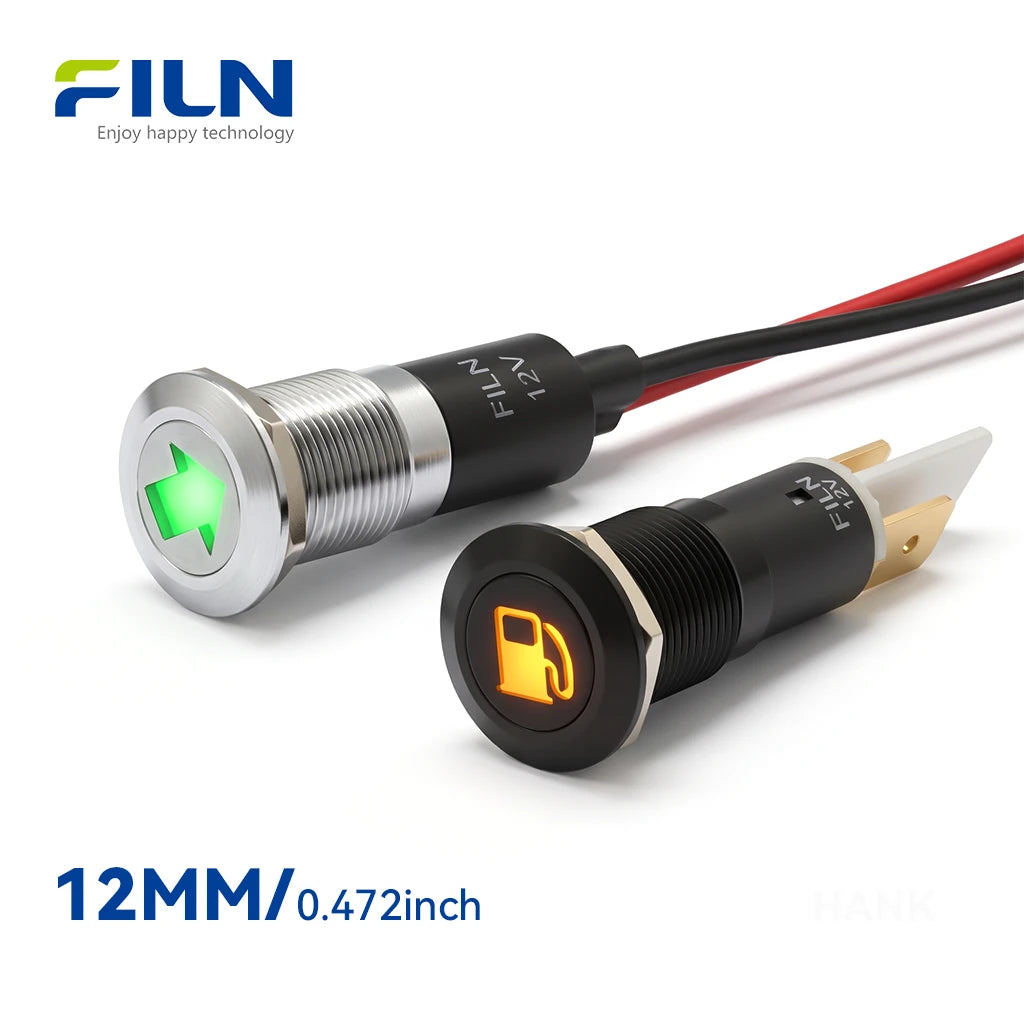

12mm Symbol Indicator Light
FILN 12mm symbol indicator light is a compact metal visual signaling component for automotive dashboards, industrial control panels, electrical equipment, machinery, and OEM applications. A laser-etched graphic identifies the function or status represented by the electrical circuit, while the integrated LED provides clear illumination.

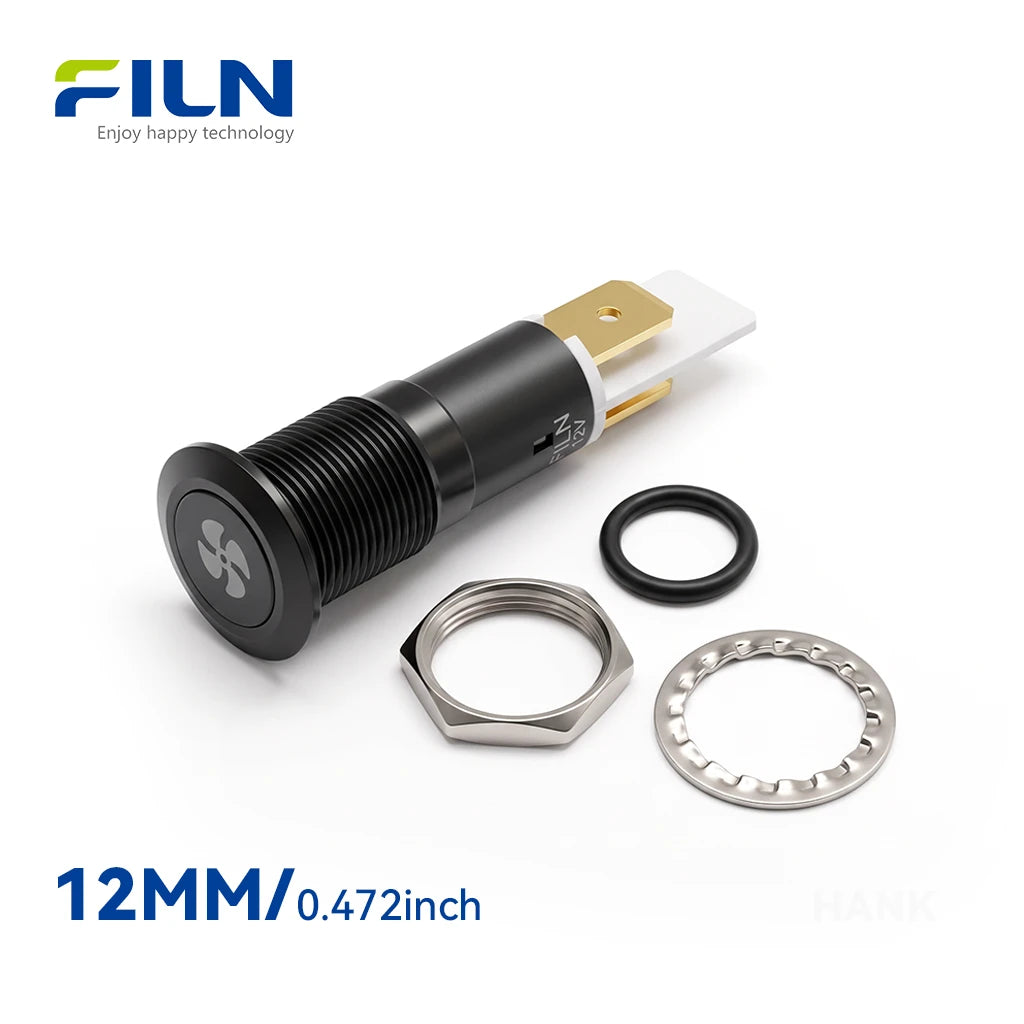

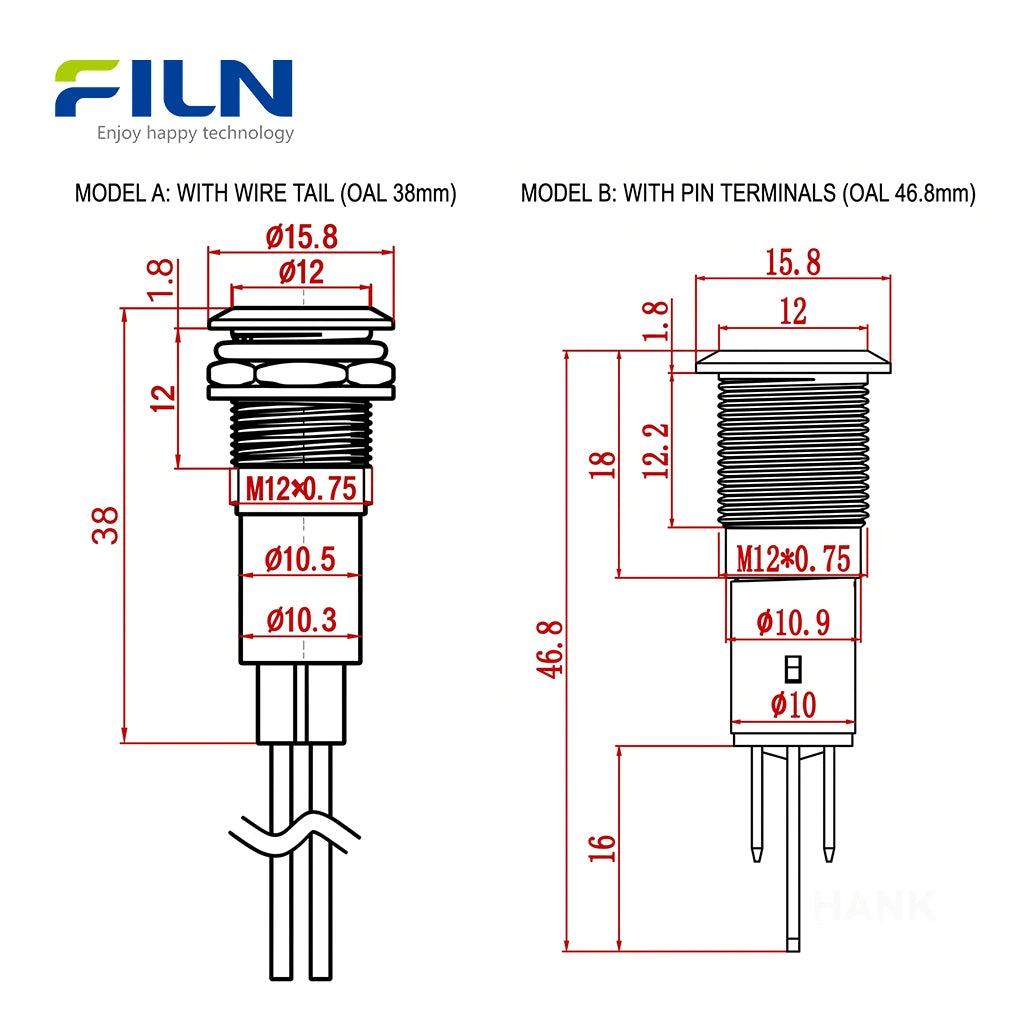

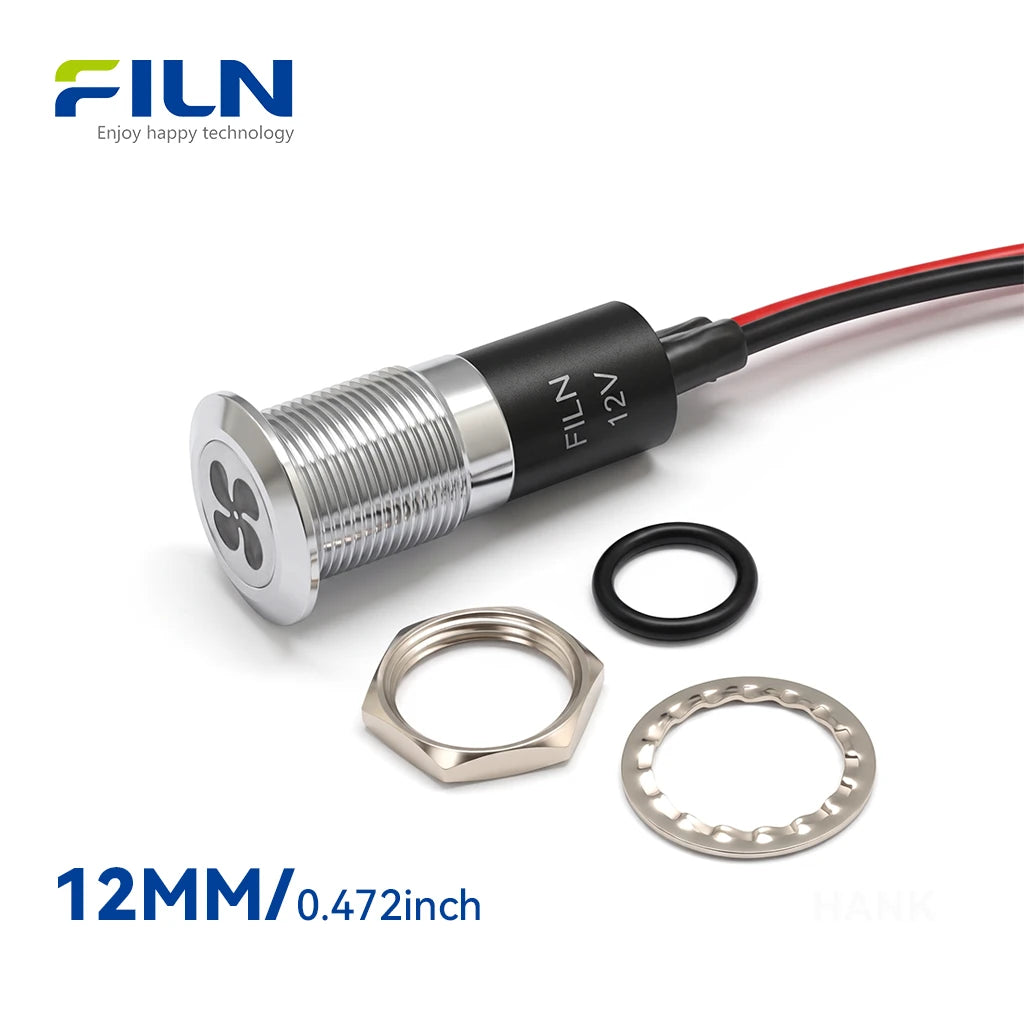

Standard configurations include a 12mm mounting hole, 12V DC/AC operation, 2PIN connection, high-brightness LED illumination, and IP65/IP67 protection depending on configuration. FILN supports custom symbol indicator light solutions, including symbol graphics, LED colors, voltage, wire length, connection methods, and OEM/ODM requirements.
For buyers: Choose the symbol first, then confirm the electrical signal that should illuminate it. FILN can manufacture the selected graphic as a customized 12mm metal indicator light for your application.
Symbol Reference
12mm Symbol Indicator Light: Symbol Names, Meanings & Illumination
Before choosing a symbol indicator light, identify what the graphic needs to communicate. The symbol tells the operator what the illuminated signal means; the electrical circuit determines when the LED turns on.
Symbol reference chart — codes and symbol graphics can be customized for OEM applications.
1. Symbol
Identifies a function, warning, operating mode, or equipment status.
2. Electrical Signal
A switch, sensor, ECU, controller, or other circuit sends the signal that controls the LED.
3. Illumination
The LED lights the engraved graphic so the operator can recognize the status quickly.
What Does a Symbol Indicator Light Mean?
A symbol indicator light combines a recognizable graphic with an illuminated LED. For example, a fog-light symbol communicates a lighting function, a battery symbol communicates charging-system status, and a temperature symbol communicates an overheating-related warning. The exact meaning should always follow the equipment manufacturer's defined symbol and control logic.
The symbol is not itself a sensor. It illuminates because an electrical circuit supplies the indicator with its configured voltage/current. Depending on the application, the signal may come from a switch, sensor, controller, ECU, relay, or other control device.
Symbol Indicator Light Meaning Guide
The guide below explains the supplied symbol names, what each symbol communicates, and the typical condition that causes the corresponding indicator to illuminate. Actual control logic can vary by vehicle, machine, controller, and OEM design.
1
Front Fog Lights
Meaning: Indicates that the front fog lamps are switched on or activated.
Why it illuminates: Illuminates when the front fog-light circuit is turned on.
2
High Beam Headlights
Meaning: Indicates that the high-beam headlights are active.
Why it illuminates: Illuminates when high-beam output is selected.
3
Engine Start / Power Indicator
Meaning: Shows that the vehicle or equipment has entered a start or power-on state.
Why it illuminates: Illuminates when the ignition, power, or start circuit is active.
4
Fire Extinguisher / Fire Warning
Meaning: Indicates a fire-extinguishing function or a fire-related warning condition.
Why it illuminates: Illuminates when the connected fire-warning or suppression circuit sends a signal.
5
Engine Check / Fault Warning
Meaning: Alerts the operator that the engine or its control system requires attention.
Why it illuminates: Illuminates when the control system detects a configured engine fault.
6
Side Marker / Low Beam Lights
Meaning: Indicates side-marker or low-beam lighting is active.
Why it illuminates: Illuminates when the corresponding exterior-light circuit is switched on.
7
Seat Belt Unfastened Warning
Meaning: Indicates that a required seat belt is not fastened.
Why it illuminates: Illuminates when the seat-belt sensor detects an unfastened condition.
8
Parking Brake (Handbrake)
Meaning: Indicates that the parking brake is engaged.
Why it illuminates: Illuminates when the parking-brake switch or control signal is active.
9
Brake System Warning / Low Brake Fluid
Meaning: Warns of a brake-system condition or low brake-fluid level.
Why it illuminates: Illuminates when the brake warning circuit detects the configured fault or low-fluid condition.
10
Hazard Warning Lights (Double Flashers)
Meaning: Indicates that the vehicle hazard warning lights are operating.
Why it illuminates: Illuminates when the hazard-warning switch activates both turn-signal circuits.
11
Right Turn Signal
Meaning: Shows that the right-side turn signal is active.
Why it illuminates: Illuminates or flashes when the right turn-signal circuit is energized.
12
Coolant Overheating Warning
Meaning: Warns that engine coolant temperature has reached an excessive level.
Why it illuminates: Illuminates when the temperature sensor/control circuit reaches its warning threshold.
13
Low Fuel Level Warning
Meaning: Indicates that the fuel level is low and refueling may be required.
Why it illuminates: Illuminates when the fuel-level sensor reaches the low-level threshold.
14
Dual Turn Signals
Meaning: Indicates both turn signals are operating together, commonly for hazard warning.
Why it illuminates: Illuminates or flashes when both left and right turn-signal circuits are active.
15
Low Engine Oil Pressure Warning
Meaning: Warns that engine oil pressure is below the configured safe level.
Why it illuminates: Illuminates when the oil-pressure sensor or switch reports low pressure.
16
Battery / Charging System Fault
Meaning: Indicates a battery or charging-system problem.
Why it illuminates: Illuminates when the charging circuit detects insufficient charging or a related fault.
17
Horn Indicator
Meaning: Identifies the horn function or its active status.
Why it illuminates: Illuminates when the horn-related control circuit is energized, if configured as an indicator.
18
Engine Start
Meaning: Indicates the engine-start function is active or selected.
Why it illuminates: Illuminates when the starter/start-control circuit receives its activation signal.
19
Rear Fog Light
Meaning: Indicates that the rear fog lamp is switched on.
Why it illuminates: Illuminates when the rear fog-light circuit is activated.
20
Right Turn Signal
Meaning: Indicates a right turn or lane-change signal.
Why it illuminates: Illuminates or flashes when the right turn-signal circuit is active.
21
Side Marker Lights (Position Lights)
Meaning: Indicates that the vehicle position or side-marker lights are on.
Why it illuminates: Illuminates when the position-light circuit is activated.
22
Check Engine Light (Exhaust Fault)
Meaning: Indicates a detected engine-management or emissions-related fault.
Why it illuminates: Illuminates when the engine control system detects a stored fault condition.
23
General Hazard / Warning Triangle
Meaning: Provides a general warning or attention signal.
Why it illuminates: Illuminates when the equipment control system activates a general warning output.
24
Smart Key Indicator
Meaning: Indicates the smart-key system status or an interaction with the key.
Why it illuminates: Illuminates when the smart-key system sends the corresponding status signal.
25
Anti-lock Braking System (ABS) Fault
Meaning: Warns that the ABS system has detected a fault.
Why it illuminates: Illuminates when the ABS control unit reports a malfunction.
26
Exterior Light Failure Warning
Meaning: Warns that an exterior lamp or lighting circuit may have failed.
Why it illuminates: Illuminates when the lighting control system detects a lamp or circuit fault.
27
Park Gear (P)
Meaning: Indicates that the transmission is in Park.
Why it illuminates: Illuminates when the transmission-position signal is P.
28
Neutral Gear (N)
Meaning: Indicates that the transmission is in Neutral.
Why it illuminates: Illuminates when the transmission-position signal is N.
29
Drive Gear (D)
Meaning: Indicates that the transmission is in Drive.
Why it illuminates: Illuminates when the transmission-position signal is D.
30
Reverse Gear (R)
Meaning: Indicates that the transmission is in Reverse.
Why it illuminates: Illuminates when the transmission-position signal is R.
31
Brake Pad Wear Warning
Meaning: Warns that brake-pad wear has reached the monitored service limit.
Why it illuminates: Illuminates when the brake-wear sensor or service circuit is triggered.
32
Four-Wheel Drive (4WD) / Differential Lock
Meaning: Indicates four-wheel-drive or differential-lock operation.
Why it illuminates: Illuminates when the corresponding drivetrain mode is selected or engaged.
33
Automatic Transmission Fault
Meaning: Warns of a detected automatic-transmission problem.
Why it illuminates: Illuminates when the transmission control system reports a fault.
34
Nitrous Oxide System (NOS) Active
Meaning: Indicates that a nitrous-oxide system is active.
Why it illuminates: Illuminates when the connected NOS control circuit is enabled.
35
Purge System Indicator
Meaning: Indicates operation of a purge or related emissions-control function.
Why it illuminates: Illuminates when the purge-control circuit is activated.
36
Critical Danger Warning (Skull Symbol)
Meaning: Provides a strong visual warning of a critical danger condition.
Why it illuminates: Illuminates when the connected emergency or danger signal is activated.
37
Low Beam Headlights
Meaning: Indicates that the low-beam headlights are active.
Why it illuminates: Illuminates when the low-beam headlight circuit is switched on.
39
Engine Control Unit (ECU) Fault
Meaning: Indicates a fault detected by the engine control unit.
Why it illuminates: Illuminates when the ECU outputs the configured fault signal.
40
Blower Fan Active
Meaning: Indicates that a blower or ventilation fan is operating.
Why it illuminates: Illuminates when the fan control circuit is energized.
41
Frost / Icy Road Warning
Meaning: Warns of possible frost or icy-road conditions.
Why it illuminates: Illuminates when the temperature/road-condition system reaches its configured warning threshold.
42
Diesel Glow Plug / Pre-Heating Indicator
Meaning: Indicates diesel engine glow-plug preheating before starting.
Why it illuminates: Illuminates during the glow-plug preheating cycle.
43
Windshield Defrost / Defog
Meaning: Indicates that the front windshield defrost or defog function is active.
Why it illuminates: Illuminates when the front defrost circuit is switched on.
44
Rear Window Defrost / Defog
Meaning: Indicates that the rear-window defrost function is active.
Why it illuminates: Illuminates when the rear defrost circuit is switched on.
45
Electronic Stability Program (ESP) / Traction Control
Meaning: Indicates stability-control or traction-control operation or a related warning.
Why it illuminates: Illuminates when the system is active or when the control unit reports a relevant condition.
60
Airbag System Fault (SRS)
Meaning: Warns of a fault in the supplemental restraint/airbag system.
Why it illuminates: Illuminates when the SRS control unit detects a fault.
61
Door Ajar Warning
Meaning: Indicates that a monitored door is not fully closed.
Why it illuminates: Illuminates when a door-ajar switch or sensor reports an open condition.
63
Overdrive Off (O/D OFF)
Meaning: Indicates that the transmission overdrive function has been switched off.
Why it illuminates: Illuminates when the O/D-off control is activated.
82
Windshield Washer Fluid Low
Meaning: Warns that windshield washer fluid is low.
Why it illuminates: Illuminates when the washer-fluid level sensor reaches its low threshold.
90
Tire Pressure Monitoring System (TPMS)
Meaning: Indicates low tire pressure or a TPMS-related condition.
Why it illuminates: Illuminates when the TPMS detects low pressure or a system fault.
98
Auto Hold / Brake System Fault
Meaning: Indicates Auto Hold status or a related brake-system condition.
Why it illuminates: Illuminates when Auto Hold is active or the brake-control system reports the configured condition.
169
Convertible Top Unlocked / Open
Meaning: Indicates that the convertible roof is open or not fully secured.
Why it illuminates: Illuminates when the roof-position sensor detects an open or unsecured state.
170
Trunk / Tailgate Open
Meaning: Indicates that the trunk or tailgate is open.
Why it illuminates: Illuminates when the trunk/tailgate switch or sensor reports an open condition.
188
Parking Sensors / Park Assist
Meaning: Indicates parking-assist or parking-sensor operation.
Why it illuminates: Illuminates when the park-assist system is activated or reports a monitored condition.
189
Headlight Washer System
Meaning: Indicates that the headlight-washer function is active.
Why it illuminates: Illuminates when the headlight-washer circuit is activated.
190
Fuel Cap Open Warning
Meaning: Indicates that the fuel cap or fuel-filler area is not properly closed.
Why it illuminates: Illuminates when the fuel-cap sensor detects an open or unsecured condition.
207
Lighting System Malfunction
Meaning: Warns of a detected fault in the vehicle lighting system.
Why it illuminates: Illuminates when the lighting-control system reports a malfunction.
209
Diesel Particulate Filter (DPF) Warning
Meaning: Indicates a DPF condition requiring driver attention.
Why it illuminates: Illuminates when the DPF system reaches its configured warning condition.
214
ECO Driving Mode Indicator
Meaning: Indicates that an economy-oriented driving mode is active.
Why it illuminates: Illuminates when ECO mode is selected.
216
DPF Regeneration / Filter Status
Meaning: Indicates DPF regeneration or filter-status activity.
Why it illuminates: Illuminates when the DPF control system enters the corresponding status.
217
Windshield Wiper Fault
Meaning: Warns of a fault in the windshield-wiper system.
Why it illuminates: Illuminates when the wiper control system detects a malfunction.
218
Convertible Roof Operation Warning
Meaning: Indicates a convertible-roof operation or fault condition.
Why it illuminates: Illuminates when the roof system reports an operation-related status or warning.
219
Tow Hitch / Trailer Lock Indicator
Meaning: Indicates trailer/tow-hitch connection or locking status.
Why it illuminates: Illuminates when the tow-hitch or trailer-lock circuit reports the configured status.
220
Headlight Range Control
Meaning: Indicates headlight beam-range adjustment or control.
Why it illuminates: Illuminates when the headlight-range control system is active or requires attention.
221
Adaptive High Beam / Light Angle
Meaning: Indicates adaptive high-beam or light-angle control.
Why it illuminates: Illuminates when the adaptive lighting system is active or reports its status.
222
Distance Warning / Forward Collision Warning
Meaning: Warns that the monitored following distance or forward-collision risk has reached a warning threshold.
Why it illuminates: Illuminates when the driver-assistance system sends a distance or collision-warning signal.
224
Cruise Control Active
Meaning: Indicates that cruise control is engaged or active.
Why it illuminates: Illuminates when the cruise-control system is switched on or engaged.
225
Hill Descent Control (HDC)
Meaning: Indicates that hill-descent control is active.
Why it illuminates: Illuminates when HDC is selected or operating.
226
Key Battery Low Warning
Meaning: Warns that the smart-key battery is low.
Why it illuminates: Illuminates when the key system reports a low battery condition.
227
Press Brake Pedal Indicator
Meaning: Instructs the operator to press the brake pedal before a required operation.
Why it illuminates: Illuminates when the control system requires brake-pedal input.
228
Speed Limiter Indicator
Meaning: Indicates that a vehicle speed-limiting function is active.
Why it illuminates: Illuminates when the speed limiter is selected or engaged.
233
Directional Turn Signals
Meaning: Indicates turn-signal direction or a combined directional signal.
Why it illuminates: Illuminates or flashes when the corresponding turn-signal circuit is active.
234
Service / Maintenance Required (Wrench)
Meaning: Indicates that scheduled service or maintenance attention is required.
Why it illuminates: Illuminates when the service interval or maintenance-control system sends a reminder.
243
Electric Power Steering (EPS) Fault
Meaning: Warns of a detected electric power-steering fault.
Why it illuminates: Illuminates when the EPS control unit reports a malfunction.
244
Brake System Service Check
Meaning: Indicates that the brake system should be checked or serviced.
Why it illuminates: Illuminates when the brake-control or service circuit sends a maintenance warning.
245
Information Indicator (i)
Meaning: Provides general information or a status message requiring operator attention.
Why it illuminates: Illuminates when the control system generates the corresponding information signal.
246
Light Sensor / Lane Detection Sensor
Meaning: Indicates operation or status of a light or lane-detection sensor system.
Why it illuminates: Illuminates when the related sensor system is active or reports a monitored condition.
247
Key Not Detected / Invalid Key
Meaning: Indicates that the authorized key is not detected or is invalid.
Why it illuminates: Illuminates when the keyless-entry/immobilizer system cannot validate the key.
248
Remote Key Signal / Sensor Warning
Meaning: Indicates a remote-key signal or related sensor condition.
Why it illuminates: Illuminates when the remote-key system reports the configured warning/status.
249
Steering Column Lock Warning
Meaning: Warns of a steering-column-lock status or fault.
Why it illuminates: Illuminates when the steering-lock system reports a lock or unlock problem.
251
Door / Roof Open Warning
Meaning: Indicates that a monitored door or roof panel is open.
Why it illuminates: Illuminates when the relevant switch or sensor detects an open condition.
252
Lane Departure Warning (LDW)
Meaning: Warns that the vehicle may be leaving its detected lane.
Why it illuminates: Illuminates or flashes when the lane-monitoring system detects a departure condition.
253
Hood Open Warning
Meaning: Indicates that the hood is open or not fully latched.
Why it illuminates: Illuminates when the hood sensor reports an open condition.
254
Adaptive Front-lighting System (AFS)
Meaning: Indicates adaptive front-lighting operation or status.
Why it illuminates: Illuminates when the AFS system is active or reports a related condition.
255
Side Airbag / Occupant Sensor Fault
Meaning: Warns of a side-airbag or occupant-detection system fault.
Why it illuminates: Illuminates when the restraint-system control unit detects a fault.
256
Side Slip / Lane Keep Assist
Meaning: Indicates side-slip control or lane-keeping assistance.
Why it illuminates: Illuminates when the relevant stability or lane-assist function is active.
257
Water in Fuel Filter Warning
Meaning: Warns that water has been detected in the fuel-filter system.
Why it illuminates: Illuminates when the water-in-fuel sensor reaches its warning threshold.
258
Suspension System / Shock Absorber Fault
Meaning: Warns of a suspension or shock-absorber system condition.
Why it illuminates: Illuminates when the suspension-control system detects a fault or service condition.
259
AUTO Rain-Sensing Wipers
Meaning: Indicates automatic rain-sensing wiper mode is active.
Why it illuminates: Illuminates when automatic wiper control is selected.
260
Key Not Found / Engine Immobilizer
Meaning: Indicates that the authorized key is missing or the engine immobilizer is preventing normal authorization.
Why it illuminates: Illuminates when the immobilizer/key-authentication system reports the corresponding condition.
Custom Symbol Indicator Light by FILN
FILN is a professional manufacturer of pushbutton switches and indicator lights and supports customized symbol indicator light production. Custom options can include symbol graphics, laser engraving, LED color, voltage, wiring, wire length, head style, and other OEM/ODM requirements.
For custom projects: send your symbol artwork, code, drawing, voltage, LED color, and application requirements to FILN for engineering evaluation and quotation.
What is a Symbol Indicator Light?
A symbol indicator light is a specialized industrial and automotive pilot device designed to communicate operational states, warning conditions, or power modes through backlit graphic symbols. These components use an integrated LED light source to transform electrical signals into clear visual cues on equipment control panels and vehicle dashboards.
Product Overview & Engineering Principles
The FILN 12mm metal dash light and symbol indicator light is engineered for high-reliability visual status monitoring in demanding industrial and vehicular environments. Mechanically, the unit relies on a precision-machined metal housing secured via a threaded barrel and backing nut, providing resistance against mechanical shocks, vibration, and physical impact.
Electrically, it utilizes a high-efficiency LED coupled with a protective current-limiting resistor. When the configured electrical circuit is energized, the LED emits light through the internal optical structure, illuminating the selected laser-etched symbol. Main applications include automated manufacturing machinery, commercial vehicles, marine control desks, and power distribution switchboards.
Quick Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Description | Metal symbol indicator light with pre-wired leads / pin terminals |
| Indicator Light Model | FL1M-12FW-1 (With wires) / FL1M-12FJ-1 (Pin terminal) |
| Mounting Hole Size | 12mm (Approx. 0.47 inches) |
| Voltage Rating | 12V DC/AC (Customizable across wider voltage ranges) |
| LED Color Options | Red, Green, Yellow, Blue, White, Dual-Color, Tri-Color |
| Waterproof Rating | IP65 / IP67 (Configuration dependent) |
| Wiring Type | 2PIN with 20cm wire leads or 2PIN solder/quick-connect pin terminal |
| Head Type & Surface | Flat head with laser-etched ISO symbol; smooth surface without burrs, oxidation, or cracks |
| Assembly Quality | Head and base securely fitted; zero rotation, detachment, tilt, or deformation |
Performance Parameters
| Performance Metric | Technical Specification |
|---|---|
| Rated Operating Voltage | 3V – 480V DC/AC (Configured for 12V standard application) |
| AC Frequency | 50/60 Hz |
| Rated Operating Current | ≤ 20 mA |
| Rated Power Consumption | Approx. 0.2 W |
| Insulation Resistance | ≥ 100 MΩ (Tested at 500V DC applied between lead wires and housing) |
| Dielectric Strength / Voltage Proof | 1500V – 1800V AC, no breakdown or flashover |
| Operating Life Expectancy | 50,000 to 100,000 hours of continuous operation |
| Ingress Protection Rating | IP65 / IP67 certified environmental sealing |
Component Materials & Engineering Purpose
Every material utilized in the construction of the FILN 12mm metal dash light and symbol indicator light is selected to support mechanical durability, electrical safety, and environmental resistance.
| Component | Material | Engineering Purpose |
|---|---|---|
| Shell / Housing | Copper alloy / Black-plated zinc-aluminum alloy | Mechanical strength, impact resistance, and professional finish. |
| Lamp Holder | PA66 | Electrical insulation and thermal stability. |
| Lampshade / Lens | PC | Optical clarity, light diffusion, and impact resistance. |
| Luminescent Source | High-brightness LED | Energy-efficient, long-life illumination. |
| Resistor | Carbon film resistor | Regulates current to protect the LED. |
| Wire / Lead Wire | PVC insulated copper wire | Flexible and insulated electrical connection. |
| Nut | Copper alloy | Secure threaded panel locking. |
| O-Ring | Silicone / Silica gel | Waterproof and dustproof sealing. |
| Lock Washer | Stainless steel | Helps prevent loosening from vibration. |
Environmental Performance Specifications
| Environmental Test / Parameter | Specification / Test Condition |
|---|---|
| Application Range | General use range for FILN metal indicator light series |
| Part Name | Metal indicator light / Symbol dash light |
| Operating & Storage Temperature | -40℃ ~ +80℃ |
| Operating Relative Humidity | ≤85% at +40℃ |
| High Temperature Test | 96 hours at 80±2℃ |
| Low Temperature Test | 96 hours at -40±2℃ |
| Constant Temperature & Humidity Test | 96 hours at 40±2℃, 90%~95%RH |
| Temperature Cycling Test | Alternate between -40℃ (30min) and 85℃ (30min), 5 cycles total |
LED Specification & Electro-Optical Characteristics
The internal semiconductor LED chip is engineered to provide consistent symbol illumination and long operational life.
| Parameter Category | Test Condition / Limit | Specification Value |
|---|---|---|
| Absolute Maximum Rating | Maximum Forward Current (IFP) | 20 mA |
| Reverse Voltage (VR) | 5 V | |
| Power Dissipation (PD) | 60 mW | |
| Operating Temperature (TOPR) | -40°C ~ +80°C | |
| Storage Temperature (TSTG) | -40°C ~ +100°C | |
| Electro-Optical Characteristics (Ta = 25°C) | Forward Voltage (VF) [IF = 20 mA] | 2.8 V (Min.) ~ 3.2 V (Max.) |
| Reverse Current (IR) [VR = 5 V] | 5 µA (Max.) | |
| Viewing Angle (2θ₁/₂) [IF = 20 mA] | 60° | |
| Luminous Intensity (Iv) [IF = 20 mA] | 500 mcd (Min.) ~ 800 mcd (Max.) | |
| Recommended Forward Current (IF) | 20 mA | |
| Dominant Wavelength (λd) [IF = 20 mA] | 520 nm ~ 525 nm | |
| Junction Temperature (Tj) | Max. 125°C at IF = 20 mA | |
| Thermal Resistance (RJP) | 8°C/W |
Standard Test Conditions
| Atmospheric Parameter | Standard Measurement Range |
|---|---|
| Ambient Temperature | 5℃ ~ 35℃ |
| Relative Humidity | 45% ~ 85% |
| Air Pressure | 86 ~ 106 kPa (860 ~ 1060 mbar) |
Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curve. Tolerance of luminous intensity measurement: ±15%, tolerance of voltage measurement: ±0.1V.
Applications by Industry
Metal indicator lights utilize high-strength metal housings and are designed for industrial and advanced commercial environments where mechanical durability, environmental resistance, and clear visual status indication are important.
1. Industrial Automation & Machinery Manufacturing
Control panels for CNC machinery, production lines, hydraulic systems, and pneumatic equipment use indicator lights to communicate power, operating, warning, and fault conditions.
2. Outdoor Power & Renewable Energy Systems
EV charging equipment, outdoor distribution boxes, solar power systems, and PV equipment can use metal indicator lights for equipment status monitoring.
3. Commercial Vehicles & Marine Equipment
Commercial vehicles, construction machinery, marine control panels, and ship instruments use dash lights to display oil pressure, coolant temperature, brake faults, lighting status, and other conditions.
4. Vending & Public Access Equipment
Vending machines, ticketing machines, access control systems, intercom panels, and public-facing equipment use compact metal indicators for status communication.
5. Medical & Food Processing Equipment
Food processing equipment and medical sterilization systems can use indicator lights to differentiate operating stages such as heating, sterilizing, exhausting, or general equipment status.
LED Indicator Color Meanings and Application Guide
Indicator light colors provide an additional visual cue for operational states on control panels and automotive dashboards.
| Color | Common Meaning | Typical Status | Typical Application |
|---|---|---|---|
| Red | Danger / Stop | Fault / Emergency | Brake warning, emergency stop |
| Green | Normal / Safe | Running / Active | Power ON, normal status |
| Yellow / Amber | Caution / Alert | Warning / Standby | Low fuel, engine check |
| Blue | Mode / Status | Charging / Auxiliary | EV charging, high beams |
| White | Neutral / Power | Standby / General | General status |
Note: Indicator light color conventions can vary by equipment manufacturer, control-system design, industry standard, country, and application.
Installation Guide
- Prepare Tools: Gather a drill or punch press, caliper, appropriate 12mm drill bit, wiring tools, and fastening tools.
- Panel Preparation: Measure and mark the target installation location.
- Drill Mounting Hole: Drill a precise 12mm circular hole and remove burrs.
- Position O-Ring: Place the silicone sealing ring onto the threaded barrel.
- Insert Indicator: Insert the indicator from the front of the panel.
- Secure Locking Nut: Tighten the rear nut to secure the indicator and compress the O-ring.
- Verify Symbol Orientation: Align the laser-etched symbol correctly.
- Connect Wiring: Complete the electrical connection with power disconnected.
- Final Inspection: Verify mechanical firmness, electrical continuity, and seal integrity.
Wiring Guide & Connection Methods
The FILN 12mm metal symbol indicator light is available in two wiring configurations: pre-wired cable leads and pin terminals.
- Pin Terminal Indicators (FL1M-12FJ-1): Two exposed electrical pins can be connected using quick-connect receptacles or direct soldering.
- Pre-Wired Indicators (FL1M-12FW-1): Supplied with 20cm PVC insulated wire leads. Custom wire lengths are available for OEM requirements.
CRITICAL SAFETY NOTICE: Always disconnect electrical power before performing wiring operations.
| Wiring Type | Advantages | Limitations |
|---|---|---|
| Pin Terminal (FL1M-12FJ-1) | Compact rear profile and removable connection. | Requires connectors or soldering. |
| Pre-Wired (FL1M-12FW-1) | Ready-to-connect 20cm wire leads. | Standard wire length is 20cm. |
Industry Knowledge Center
How Indicator Lights Work: A controlled electrical current passes through the internal LED and series resistor. When energized, the LED emits photons through the optical lens, illuminating the laser-etched symbol.
Why Material Selection Matters: Metal housings provide mechanical rigidity and structural durability for industrial and vehicular applications.
Industry Standards & Compliance: FILN manufacturing processes align with ISO9001 quality management systems and products are supplied for international markets with applicable certifications.
Maintenance & Troubleshooting: Periodically inspect mounting tightness, terminal condition, and operating voltage. If faint phantom illumination occurs, residual leakage current from electronic control outputs should be checked.
Buyer Decision Guide & RFQ Checklist
- Mounting Hole: 12mm.
- Voltage: Standard 12V; confirm AC or DC requirements.
- Housing: Confirm required metal material and finish.
- IP Rating: Confirm IP65/IP67 requirement.
- Wiring: Select pre-wired leads or pin terminals.
RFQ Checklist
- Product Type & Model: FL1M-12FW-1 / FL1M-12FJ-1
- Mounting Hole: 12mm
- Voltage: 12V DC/AC
- LED Color: Red, Green, Yellow, Blue, White, Dual, Tri
- ISO Symbol Code / Custom Graphic
- Housing Material & Finish
- Wiring Method & Lead Length
- Waterproof Requirement
- Order Quantity & Target Market
FILN Manufacturing and Engineering Capabilities
As a dedicated industrial manufacturer, FILN provides engineering, R&D, custom production, and OEM/ODM support for global B2B customers.
- R&D and Engineering: Support for custom symbol laser etching, wire harnesses, and housing dimensions.
- OEM & ODM: Custom packaging, private labeling, operating voltage, and symbol configurations.
- Production: 10,000 m² facility with 20+ advanced automated production lines.
- Quality Control: Electrical, waterproof, and thermal testing capabilities.
- Global Supply: Sample, small-batch, and mass-production support.
Factory Direct Supply & Company Profile
Yueqing Yulin Electronic Co., Ltd., operating under the FILN brand, is located in Wenzhou, Zhejiang. Established as a professional electrical switch manufacturer integrating R&D, production, and sales, FILN products are supplied to international markets. The company operates a modern 10,000 m² facility with 20+ production lines and an independent testing laboratory.
- Production Capabilities: Indicator lights, push button switches, rocker switches, toggle switches, and small electrical components.
- Quality System: ISO9001 and applicable international certifications.
- Export Markets: North America, Europe, Asia, and Oceania.
- Manufacturing Advantages: Engineering support, custom solutions, and rapid technical communication.
Explore our complete metal indicator light lineup: View All Metal Indicator Light Products
Official Website: www.filn.com | Direct Inquiry Email: inquiry@cnylin.com.cn
Frequently Asked Questions
Why does a 12V LED indicator light illuminate?
When the configured electrical circuit supplies voltage, controlled current flows through the internal resistor and LED. The LED emits light through the optical lens and illuminates the laser-etched symbol.
What does the symbol on the indicator mean?
The symbol identifies the equipment function or status represented by the electrical circuit. FILN supports a wide range of automotive and industrial symbols and can provide custom laser-etched graphics.
What is the required panel cutout size?
The required mounting hole diameter is 12mm, approximately 0.47 inches.
What materials are available?
FILN offers nickel-plated brass, stainless steel, and black or silver-plated zinc-aluminum alloy configurations.
Can custom symbols be laser-etched?
Yes. FILN provides OEM customization for standard automotive and industrial symbols as well as customer-specified graphics.
How long are the standard wire leads?
Pre-wired FL1M-12FW-1 models are supplied with 20cm PVC insulated wire leads. Custom lengths can be requested for OEM applications.
How can phantom illumination be prevented?
Phantom illumination can occur when residual leakage current from solid-state control outputs flows through an LED indicator. A suitable parallel bleeder resistor can be used to shunt the residual current when appropriate.
How do I request bulk pricing or technical data?
Contact FILN engineering and sales at inquiry@cnylin.com.cn for quotations, technical data sheets, samples, and 3D CAD model requests.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
- Choosing a selection results in a full page refresh.
