Product Overview

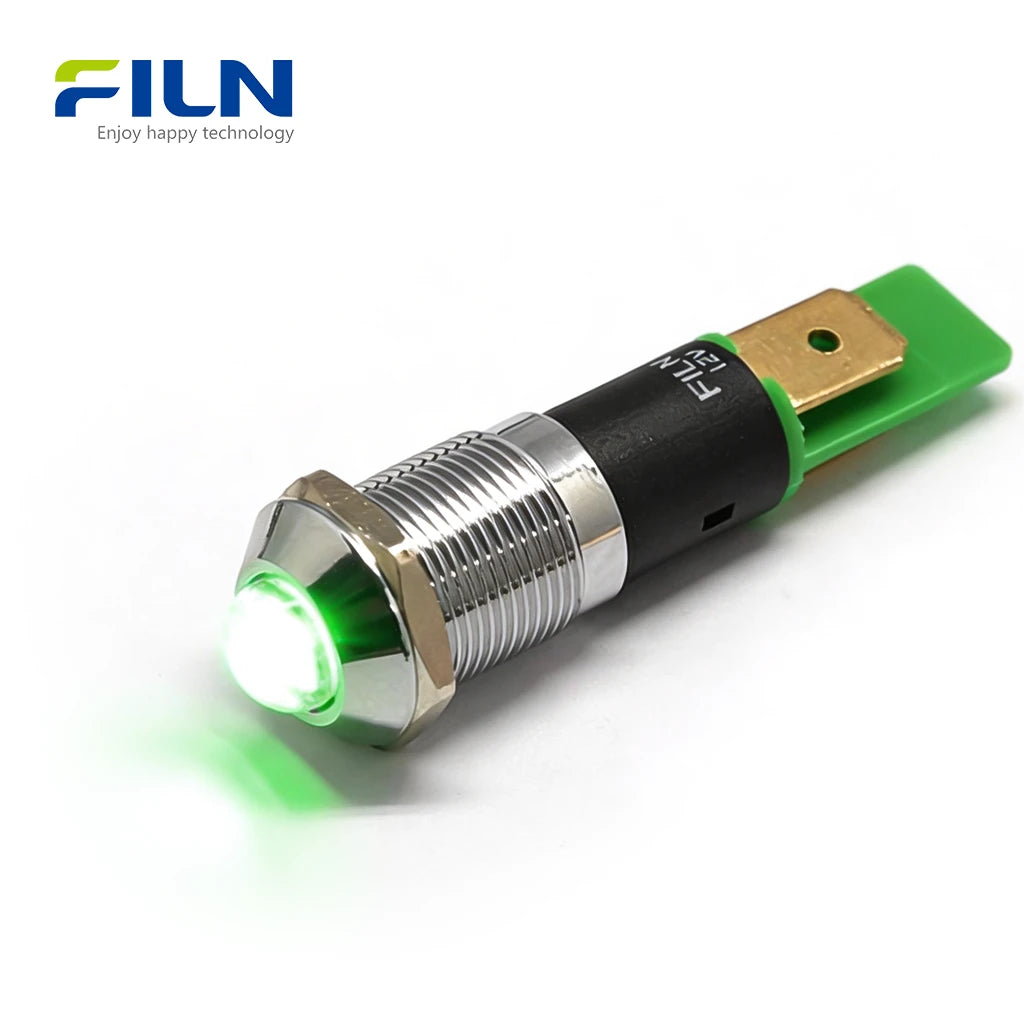

The 120VAC indicator light (Model: FL1M-12SJ-1) is a premium 12mm metal high-head pilot lamp designed for diverse applications including medical devices, testing equipment, yachts, and new energy systems. Engineered by FILN, this product carries ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications. Its high-head design offers superior side-angle visibility and tactile feedback, while the 2-pin terminal ensures a secure, high-current connection compared to standard wire leads. With a robust industrial-grade metal housing available in silver or black, these indicators provide long-lasting reliability and are easy to install in demanding environments.
Quick Specifications
| Mounting Hole | 12mm / 0.47" |
| Voltage | 12-24V, 110-220V (Customized Support) |

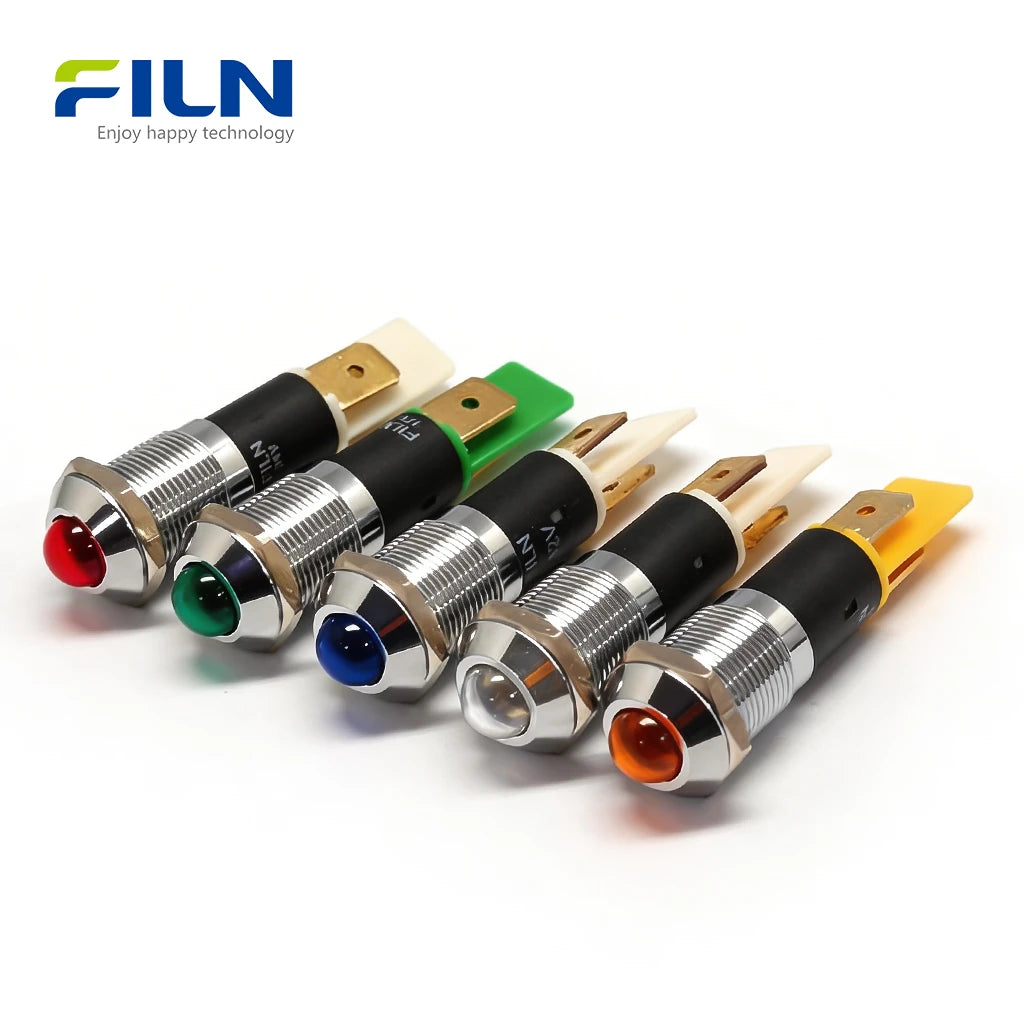

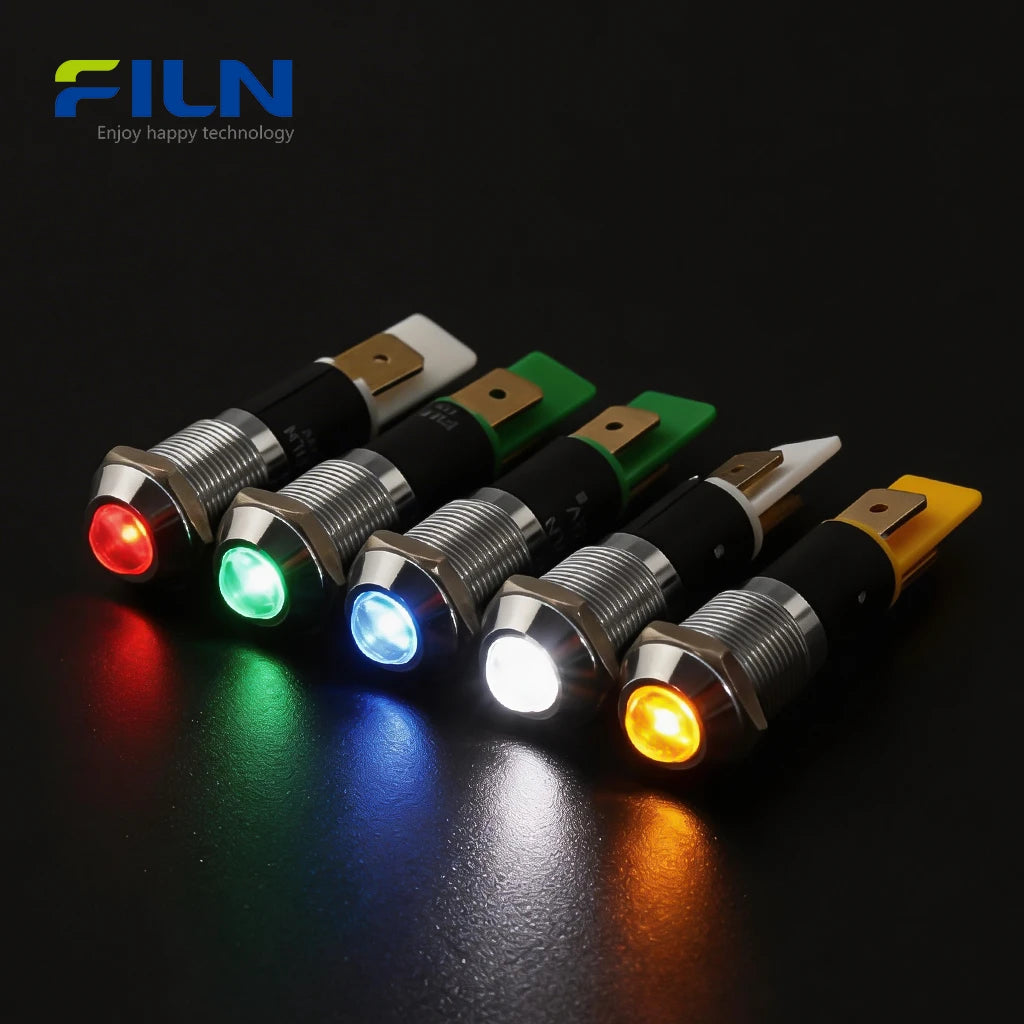

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃～80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | 2-PIN Plug-in Terminal |
Rated Working Parameters
| Rated Voltage | Customized (120VAC Included) |
| Frequency(AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Stainless Steel / Nickel-plated Brass (Silver or Black) |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone O-ring |
| Terminal | Copper Alloy with Silver Plating |
| Wire Material | Customized upon request |
General Characteristics
| Application | Medical, Marine, Industrial Control |
| Part Name | LED Indicator Light |
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Waterproof Rating | IP67 |
Ambient Temp: 5~35℃ | Relative Humidity: 45~85% | Air Pressure: 86~106Kpa
Electric Property
| Insulation Resistance | Test Condition: DC500V 1min | Req: ≥100MΩ |
| Dielectric Strength | Test Condition: 1500VAC / 5mA / 60s | Req: No breakdown |
Durability Characteristics
| Continuous Working Life | 50,000 Hours (Tested at 30mA 1000h) |
Resistant Performance
| High Temperature | 80℃ 96h |
| Low Temperature | -40℃ 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 rounds) |
Key Features

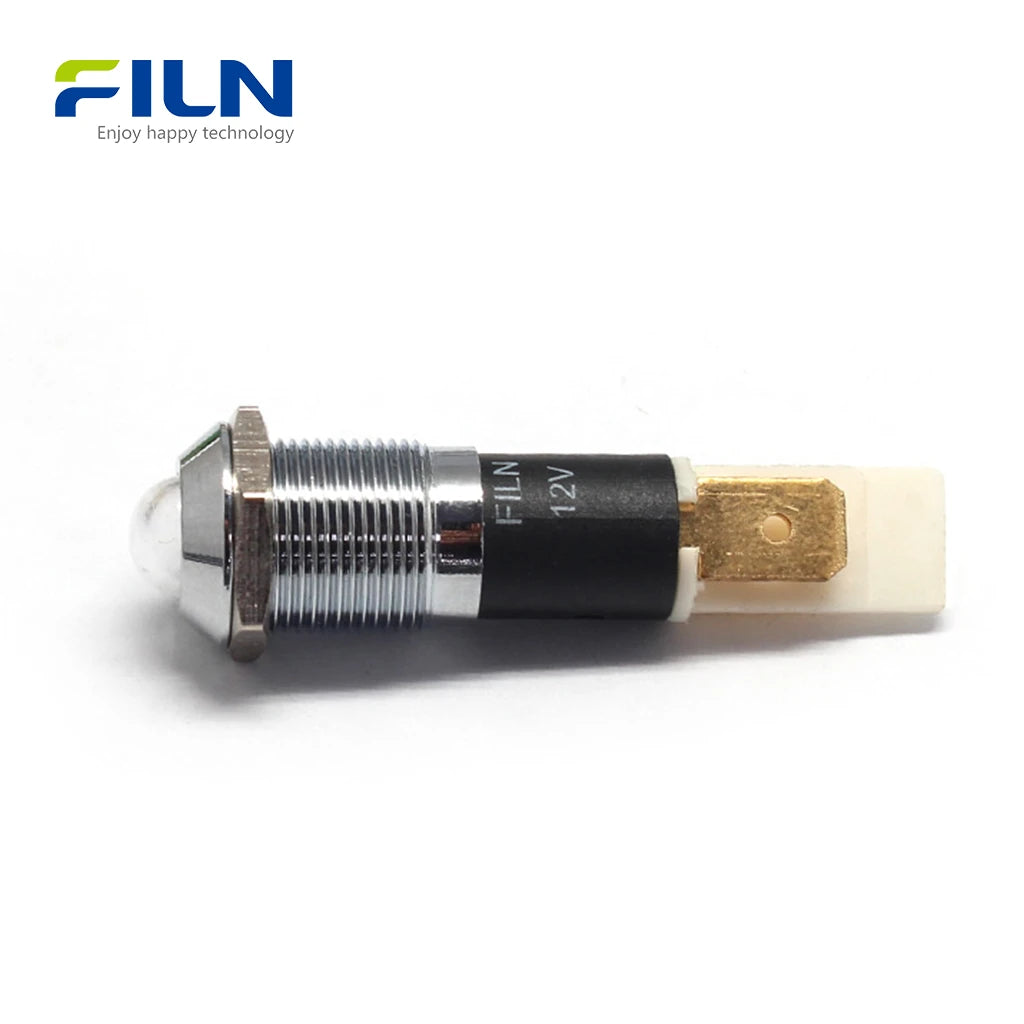

- High Head Visibility: Elevated lens provides 360-degree signal recognition.
- Metal Durability: CNC-machined shell available in silver nickel-plating or black oxide.
- 2-PIN Terminal: Superior for vibration resistance and high-current stability compared to standard wiring.

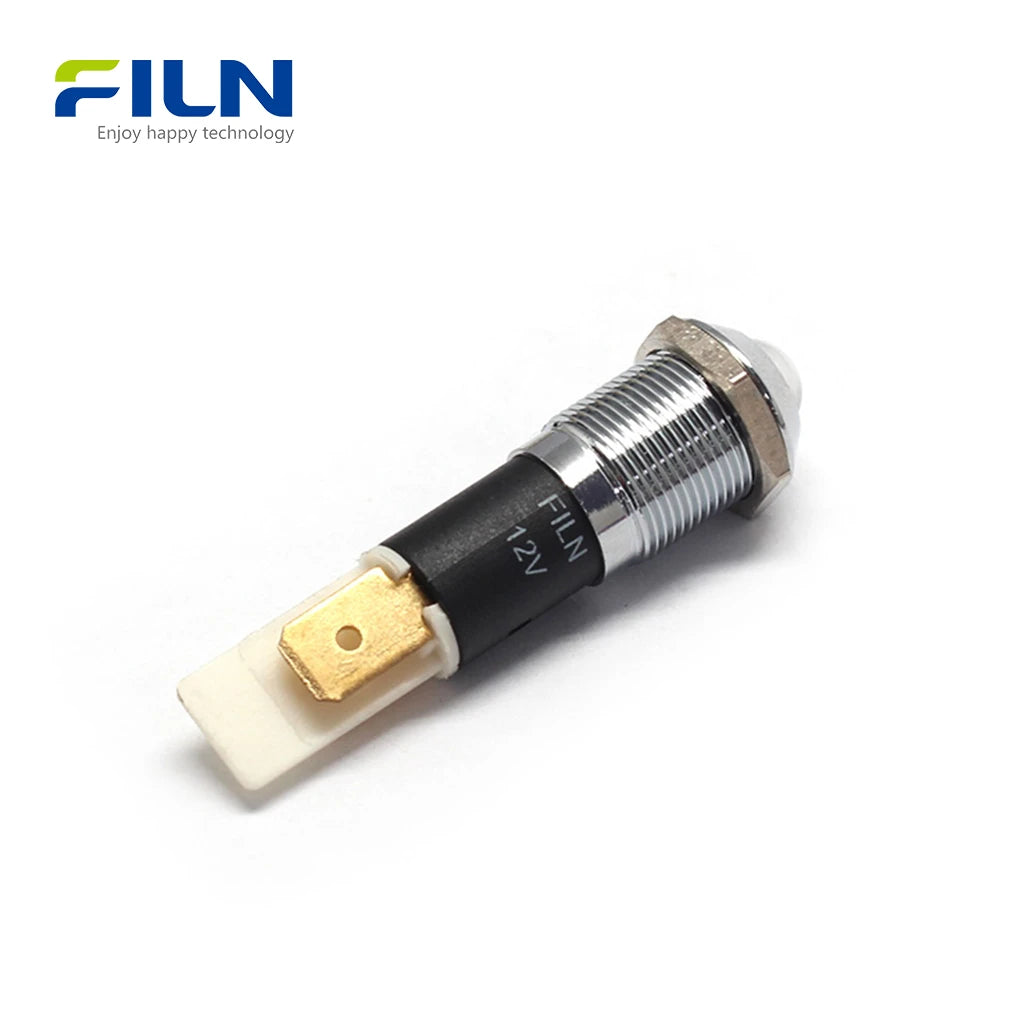

- IP67 Waterproof: Includes an oversized O-ring for absolute sealing in marine and medical environments.
- Long Service Life: Advanced LED chips ensure over 50,000 hours of operation.
Applications
- Medical Devices: Sterilizers, patient monitors, and diagnostic equipment.
- Marine Systems: Yacht control panels and navigation lighting.
- Testing Equipment: Laboratory power supplies and quality control sensors.
- New Energy: EV charging stations and solar inverters.
- Industrial Machinery: CNC centers and automated production lines.
Installation Guide
- Drill a 12mm diameter hole in the mounting panel.
- Place the oversized O-ring onto the indicator body to ensure a waterproof seal.
- Insert the indicator light into the hole from the top/front of the panel.
- From the back, thread the M12 nut onto the smooth-running metal threads.
- Tighten the nut to secure the indicator light firmly against the panel.
- Connect your 120VAC power source to the 2-PIN terminals.
What Is an 120VAC Indicator Light?
A 120VAC indicator light is a critical visual status component used to monitor the power state of electrical systems. The high-head design is specifically engineered for environments where operators need to see signals from the side, providing an advantage over flat-head models. Furthermore, the pin-type terminal offers a significant advantage over pre-wired versions by allowing for modular maintenance—if a wire is damaged, the indicator does not need to be replaced, just re-plugged. This makes them ideal for industrial control panels and high-reliability medical equipment where downtime must be minimized.
Factory Direct Supply
- Voltage Customization: Wide range from 3V to 380V.
- Custom Wire Lengths: Tailored to your specific cabinet dimensions.
- Connector Customization: Professional crimping and harness assembly.
- Fast Global Shipping: Rapid lead times for B2B orders.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I use this 120VAC indicator light on a yacht?
Yes, with an IP67 waterproof rating and marine-grade metal housing, it is perfect for yacht control panels.
2. What is the benefit of the high-head design?
The high-head lens allows the light to be visible from wider angles, ensuring safety signals are seen clearly from any direction.
3. Does the metal housing rust?
No, our housings are made of stainless steel or nickel-plated brass, providing excellent corrosion resistance.
4. What is the difference between 2-PIN terminals and wire leads?
2-PIN terminals are more convenient for high-current applications and allow for modular connection/disconnection during maintenance.
5. Are these lights compatible with medical equipment standards?
Yes, they are UL and CE certified, making them suitable for healthcare and medical diagnostic devices.
6. What colors are available?
We offer Red, Green, Yellow, Blue, and White LED options.
7. Is the installation nut included?

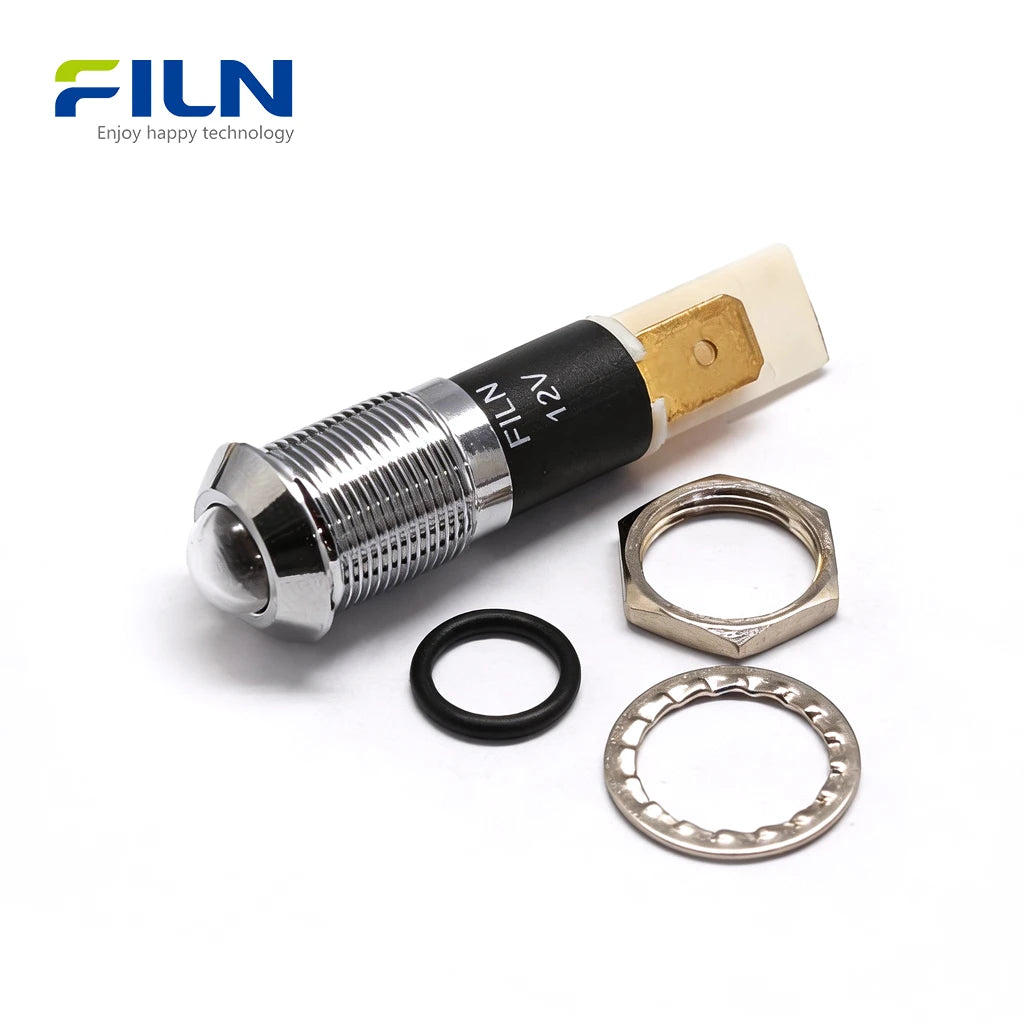

Yes, each unit includes an M12 nut and an oversized O-ring for waterproof sealing.
8. Can the voltage be customized for 24V?
Yes, we support customization for 12-24V as well as standard 110-220V.
9. How long is the service life?
Our LED indicator lights are rated for over 50,000 hours of continuous use.
10. Do you offer black housings?

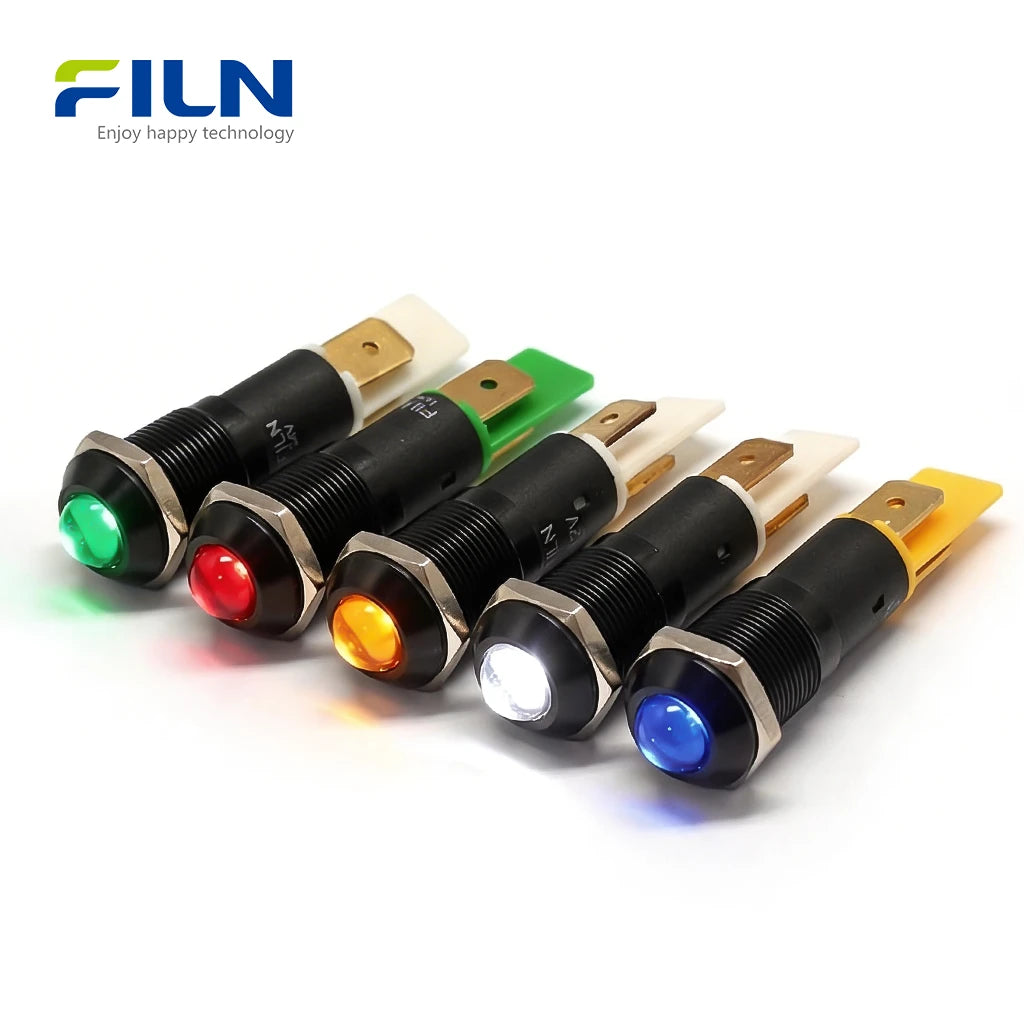

Yes, we provide both silver (nickel-plated) and black (anodized/oxide) housing options.
