Product Overview: 8mm 12 Volt Indicator Light

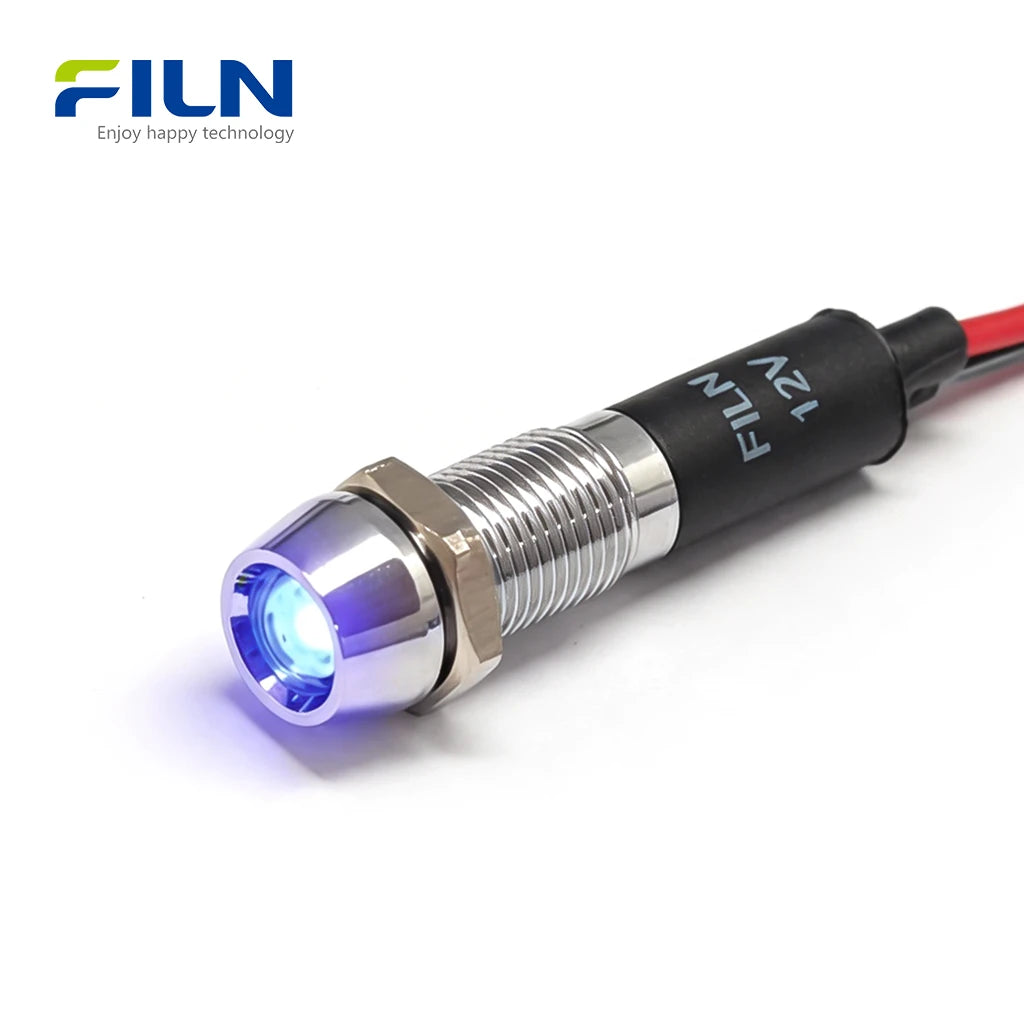

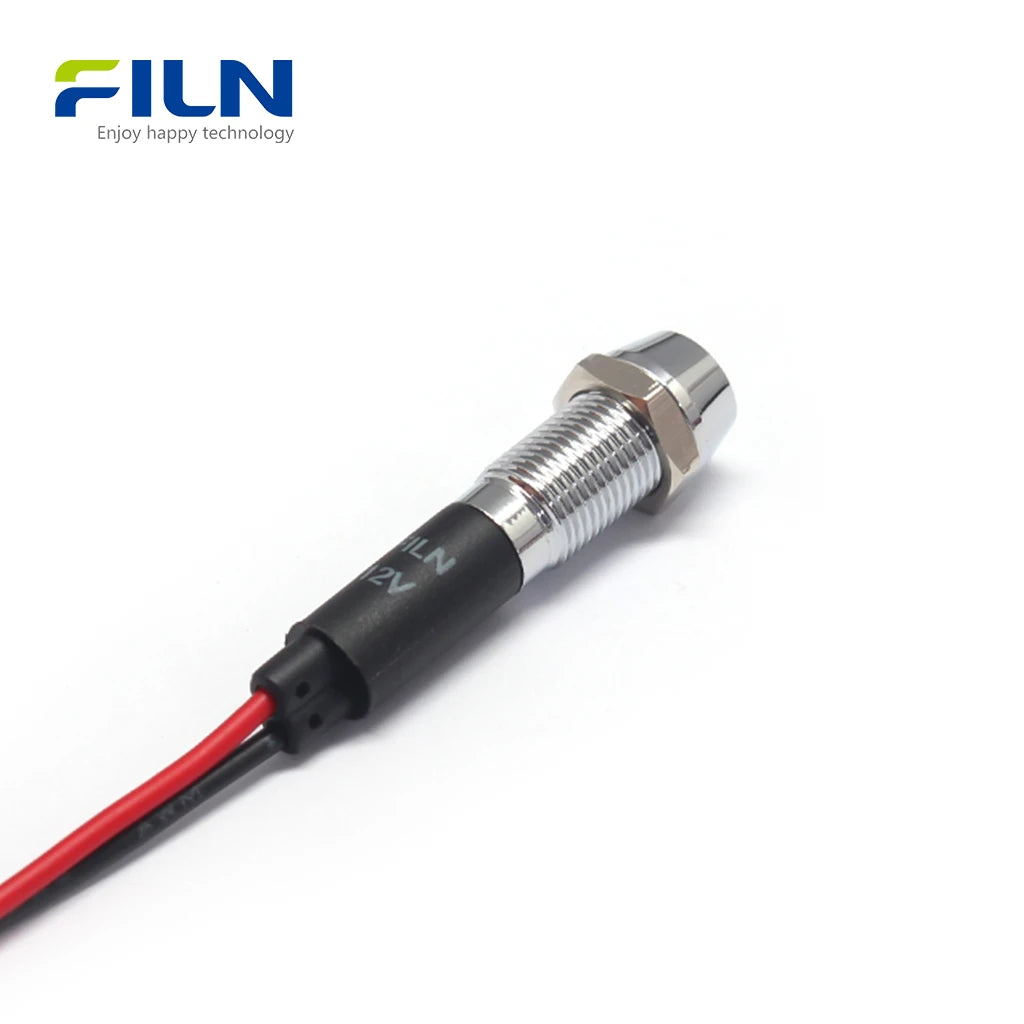

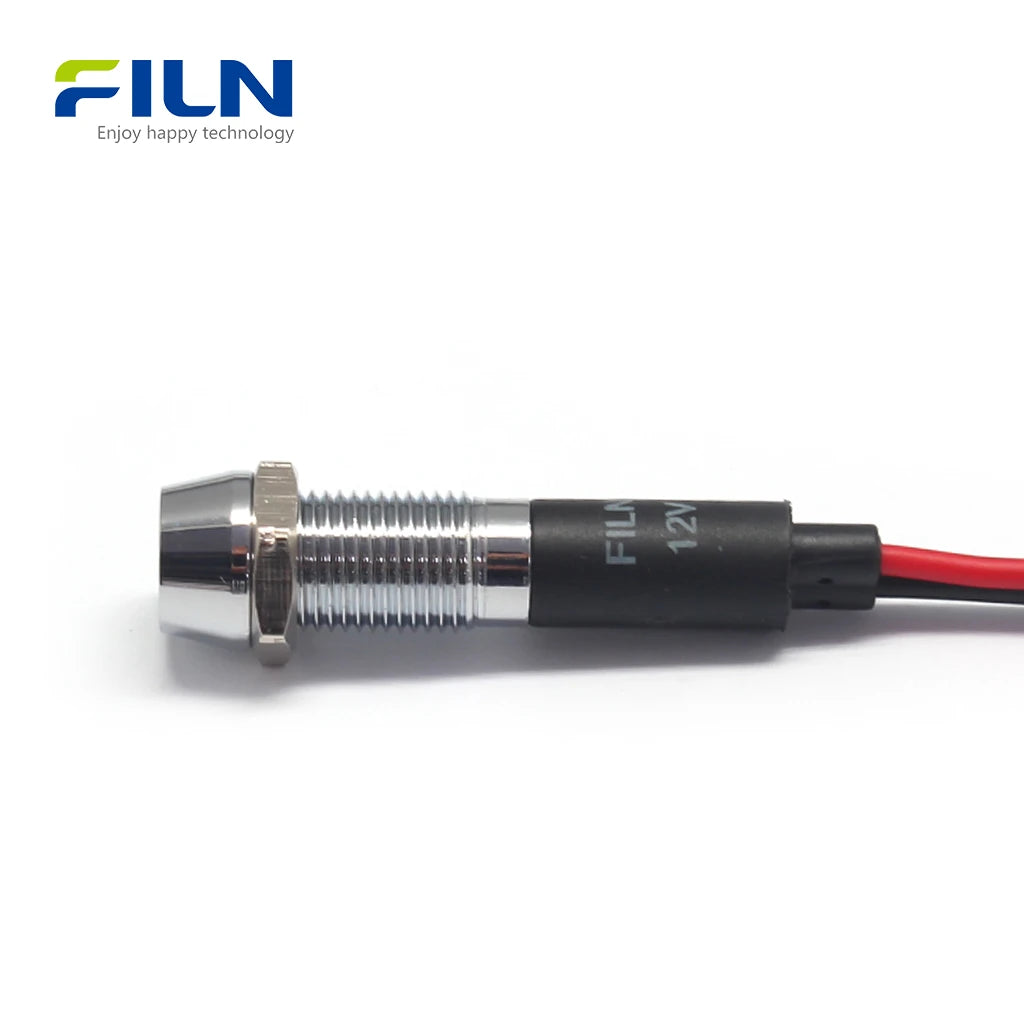

The 12 volt indicator light is a high-performance 8mm LED signal lamp designed for demanding industrial environments. Featuring a concave head design and a durable metal shell available in silver or black, this IP67 waterproof indicator ensures reliable status signaling for machinery. With non-polar LED beads and pre-installed 15cm wire leads, it simplifies wiring in complex circuits. Ideal for 12-24V and 110-220V applications, these lights are widely used in automation, CNC equipment, and electrical cabinets due to their long lifespan and corrosion resistance.
Quick Specifications
| Mounting Hole | 8mm |
| Voltage | 12V-24V, 110V-220V (Customizable) |

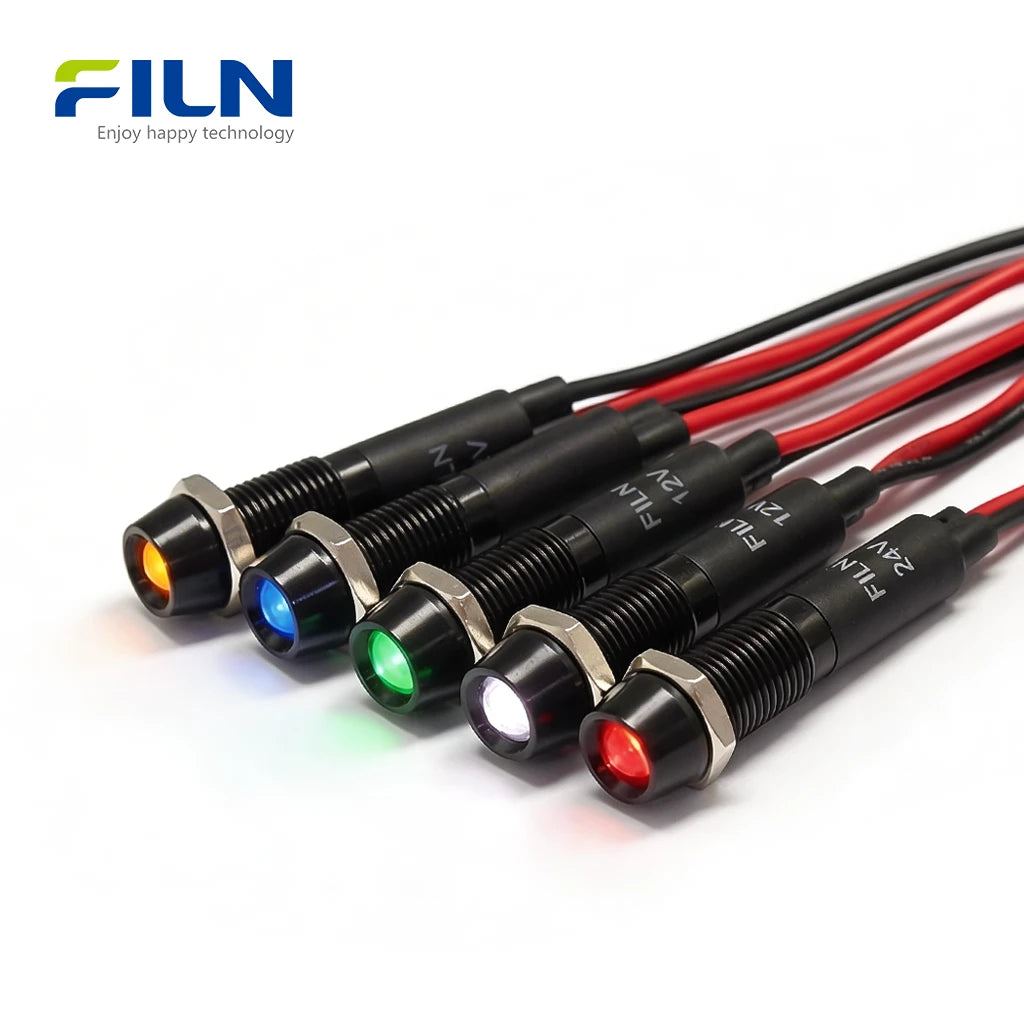

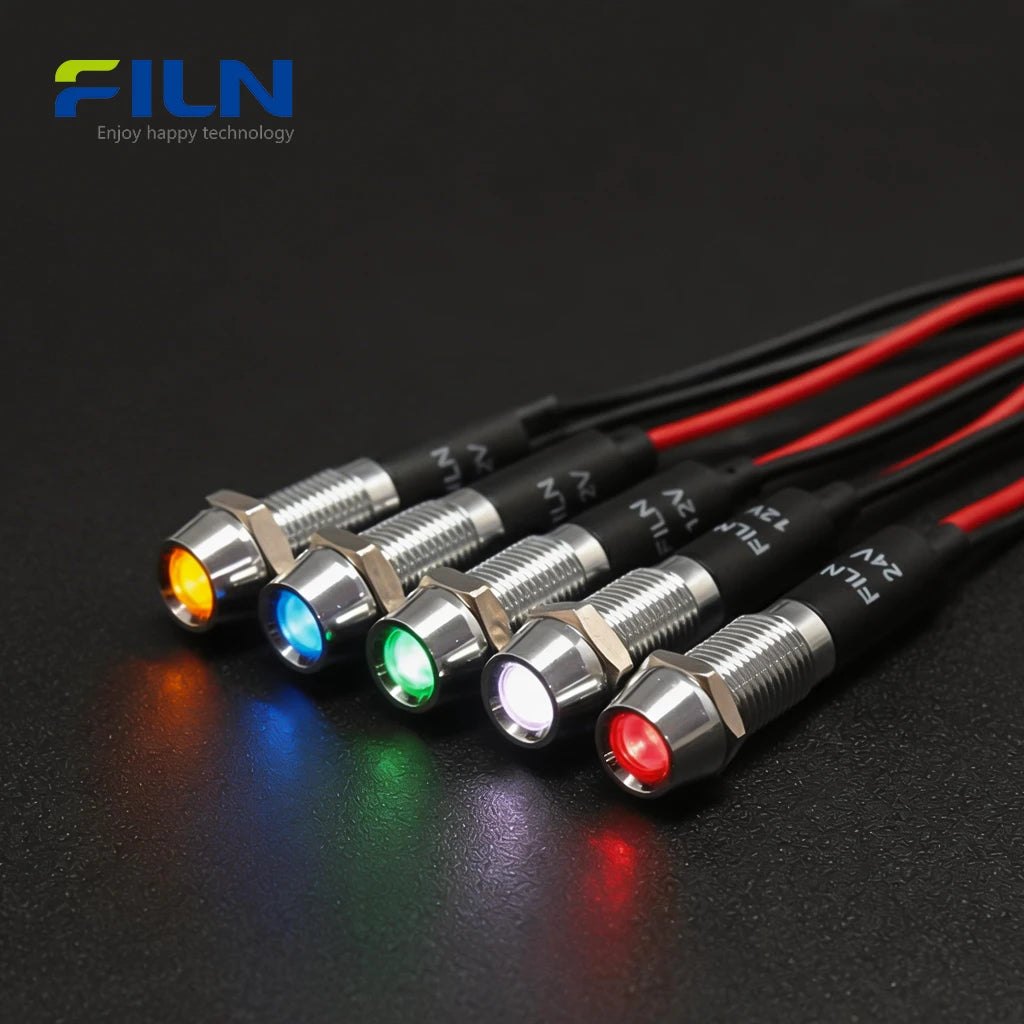

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
Component Materials
| Housing | Nickel-plated Brass / Black Anodized Aluminum |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone / Rubber |
| Terminal | 15cm PVC Wire Leads |
| Wire Material | Copper with PVC Insulation |
General Characteristics
| Application | Signal Indication |
| Operating Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Ambient Temperature | 5~35℃ |
| Air Pressure | 86~106Kpa |
Rated Working Parameters
| Rated Voltage | 3V / 6V / 12V / 24V / 110V / 220V |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Electric Property
| Parameter | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability Characteristics
| Feature | Test Condition | Requirement |
|---|---|---|
| Continuous Working Life | 30mA 1000h | 50,000 hours |
Resistant Performance
| High Temperature | 80℃ for 96h |
| Low Temperature | -40℃ for 96h |
| Moisture Resistance | 40℃ 90-95%RH for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Rounds) |
Key Features
- LED High Brightness: Exceptional visibility even in well-lit factory environments.
- Long Lifespan: Rated for 50,000 hours of continuous operation.
- IP67 Waterproof: Full protection against dust and water immersion.
- Easy Installation: Pre-wired with 15cm leads and includes mounting accessories.
- Industrial Grade Reliability: Rugged metal housing with non-polar LED beads for safe wiring.
Common Applications
- Industrial control panels and distribution boards.
- CNC machines and heavy-duty manufacturing equipment.
- Automation systems and robotics monitoring.
- Electrical cabinets and power supply units.
- Marine systems and outdoor signage.
- Medical diagnostic and laboratory devices.
Installation Guide
- Drill an 8mm diameter hole in the mounting panel.
- Place the included waterproof rubber ring onto the indicator light head.
- Insert the indicator through the hole from the front of the panel.
- Slide the metal nut over the wires from the back and tighten against the panel.
- Connect the 15cm wire leads to your power source (non-polar LEDs allow flexible wiring).
What is a 12 Volt Indicator Light?
A 12 volt indicator light is a specialized signaling device used to communicate the operational status of industrial equipment. In B2B environments, these 8mm LED indicators act as critical visual feedback components, notifying operators of power status, system errors, or process completion. By using metal shells and IP67 sealing, these lights survive vibration, moisture, and chemical exposure better than plastic alternatives. Their compact 8mm size makes them perfect for high-density control panels where space is limited but clarity is mandatory.
FILN Factory Direct Supply
As a leading manufacturer, FILN offers professional customization for your industrial projects:
- Voltage Customization: Options for 3V up to 380V.
- Wire Length: Standard 15cm or custom lengths to suit your cabinet layout.
- Connector Customization: Pre-installed terminals or quick-connectors available.
- Fast Global Shipping: Rapid fulfillment directly from our production facility.
Frequently Asked Questions
Q1: Is the 8mm 12 volt indicator light polarity sensitive?
A: No, FILN indicators use non-polar LED beads, meaning you can connect the positive and negative wires in either direction.
A: No, FILN indicators use non-polar LED beads, meaning you can connect the positive and negative wires in either direction.
Q2: Can I use this light for 24V systems?
A: While this model is optimized for 12V, we provide multi-voltage versions that support 12-24V AC/DC.
A: While this model is optimized for 12V, we provide multi-voltage versions that support 12-24V AC/DC.
Q3: What colors are available?
A: We offer Red, Green, Yellow, Blue, and White LED options.
A: We offer Red, Green, Yellow, Blue, and White LED options.
Q4: Is the mounting nut included?

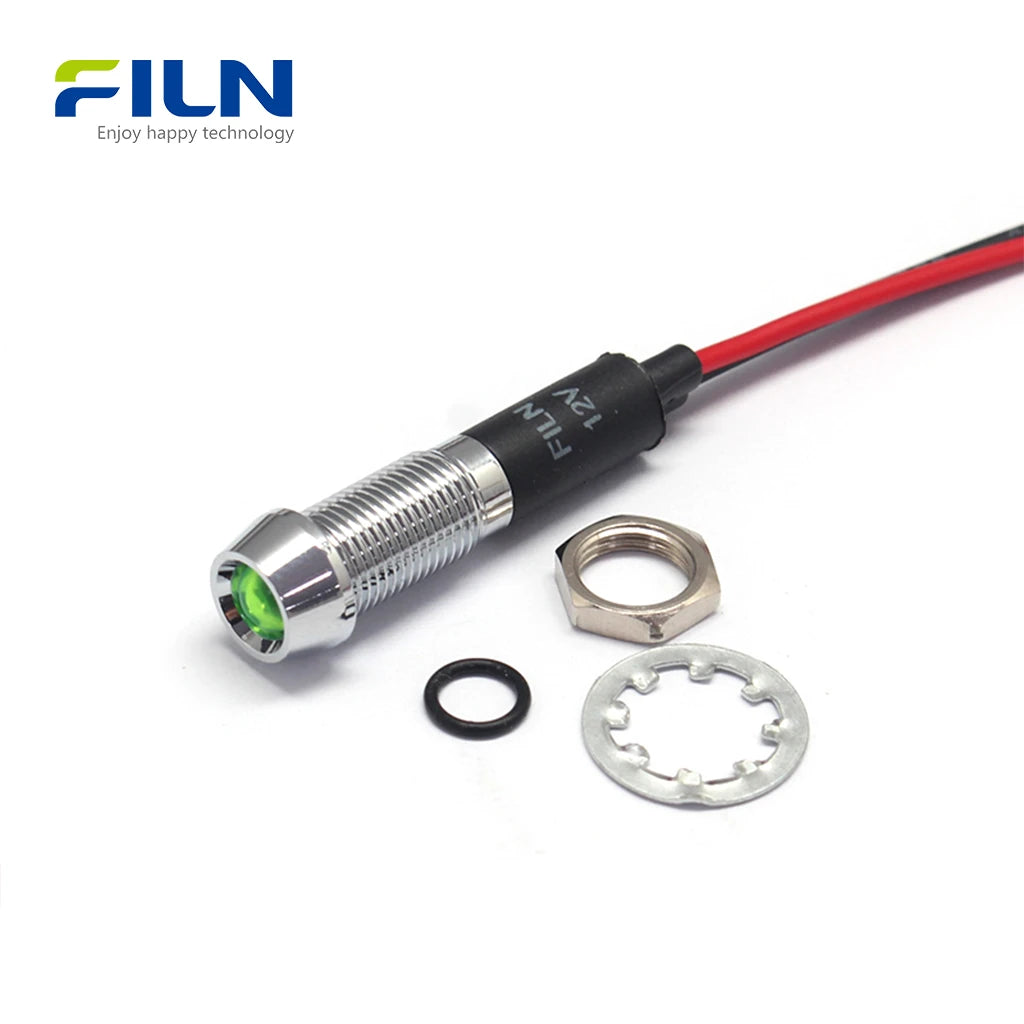

A: Yes, each light comes with one waterproof ring and one metal mounting nut.
A: Yes, each light comes with one waterproof ring and one metal mounting nut.
Q5: What is the housing material?
A: It is available in nickel-plated brass (silver) or black anodized aluminum (black).
A: It is available in nickel-plated brass (silver) or black anodized aluminum (black).
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
