Product Overview
The 110v indicator lamp (Model: FL1P-10NJ-8) is a premium 10mm plastic indicator light factory solution designed with a unique "High-Head" circular aesthetic. Constructed from durable pa66 plastic indicator lamp material, this unit is engineered to provide an exceptionally bright and atmospheric glow, making it a favorite for kitchen equipment status indicator applications. This 2-pin terminal signal lamp is now available for sale, allowing engineers and procurement managers to buy directly from the manufacturer. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, the FL1P-10NJ-8 ensures long-term reliability and high-voltage safety for any custom voltage plastic warning light requirement.
Quick Specifications
| Mounting Hole Size | 10mm (0.39 inch) |
| Rated Voltage | 110V-120V AC (12V/24V/220V Customizable) |

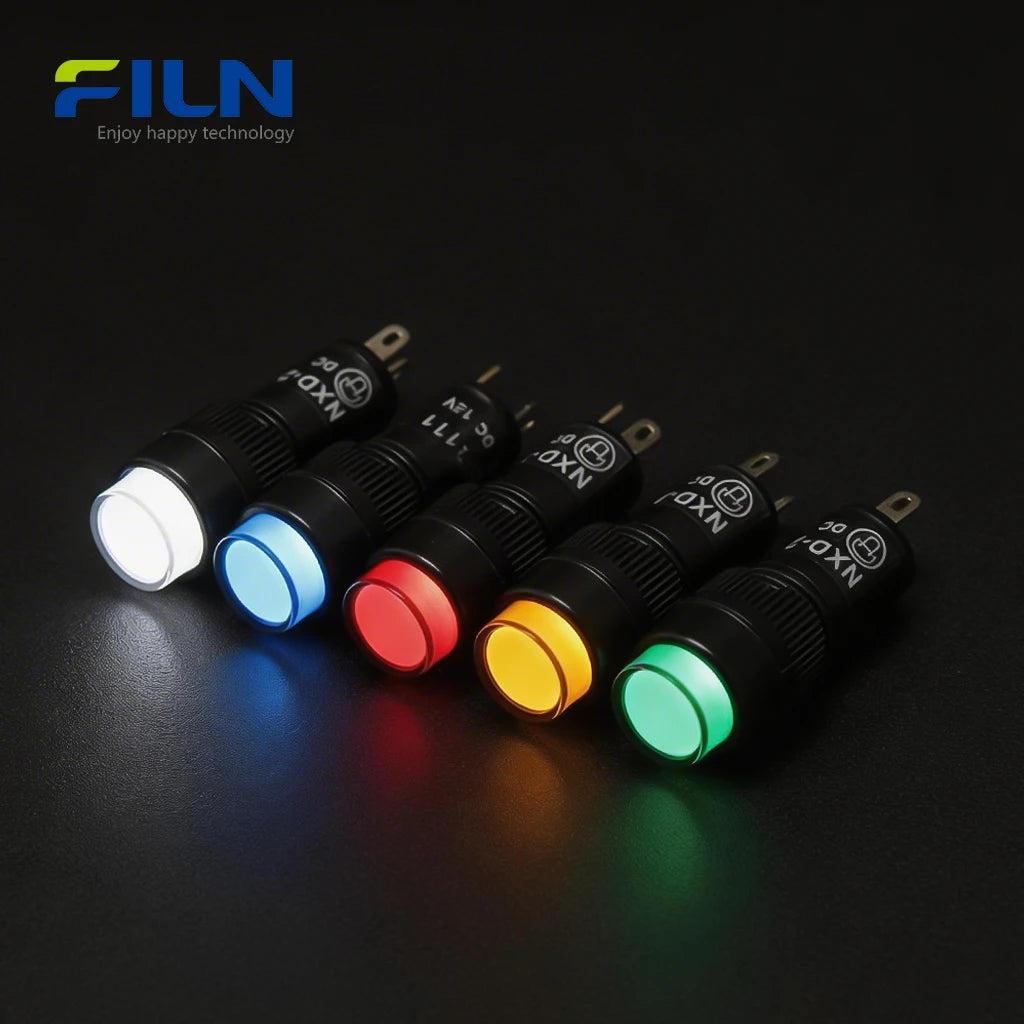

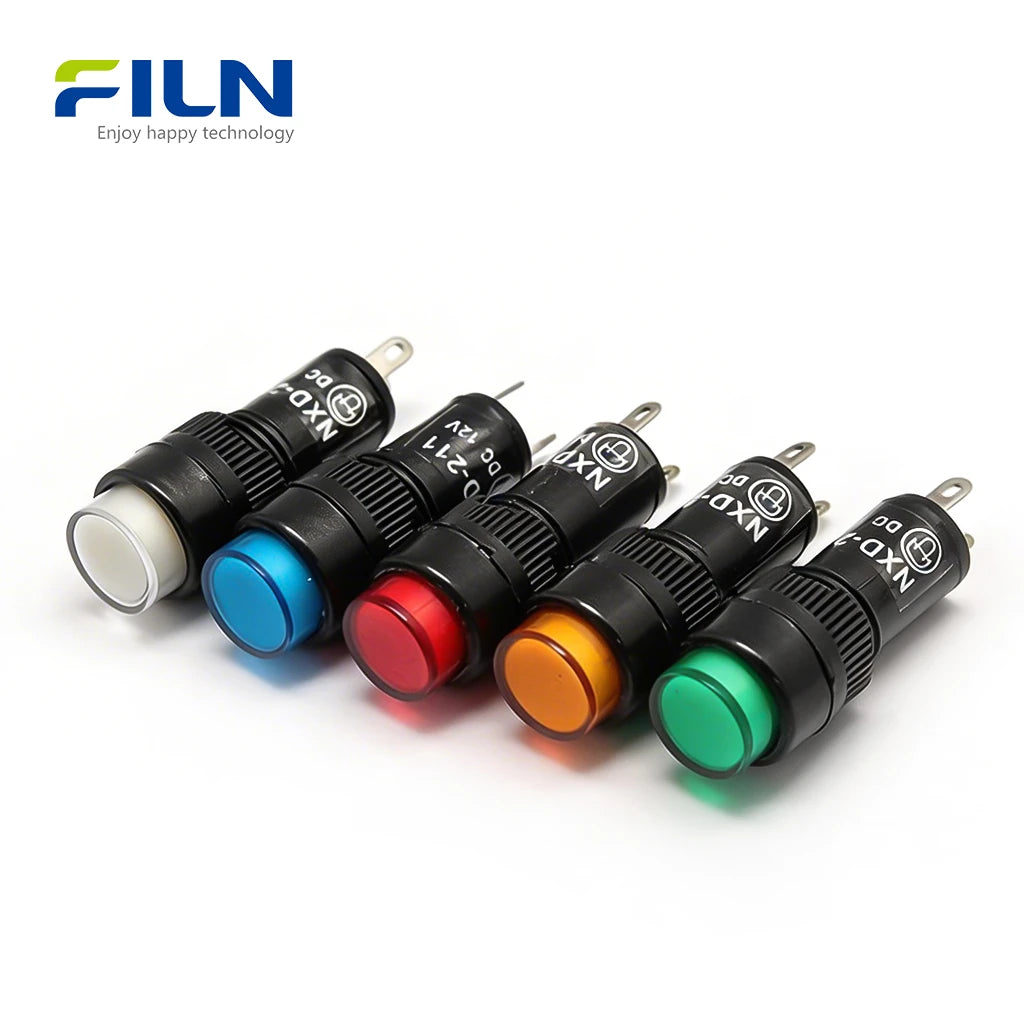

| LED Color | Red, Green, Yellow, Blue, White |

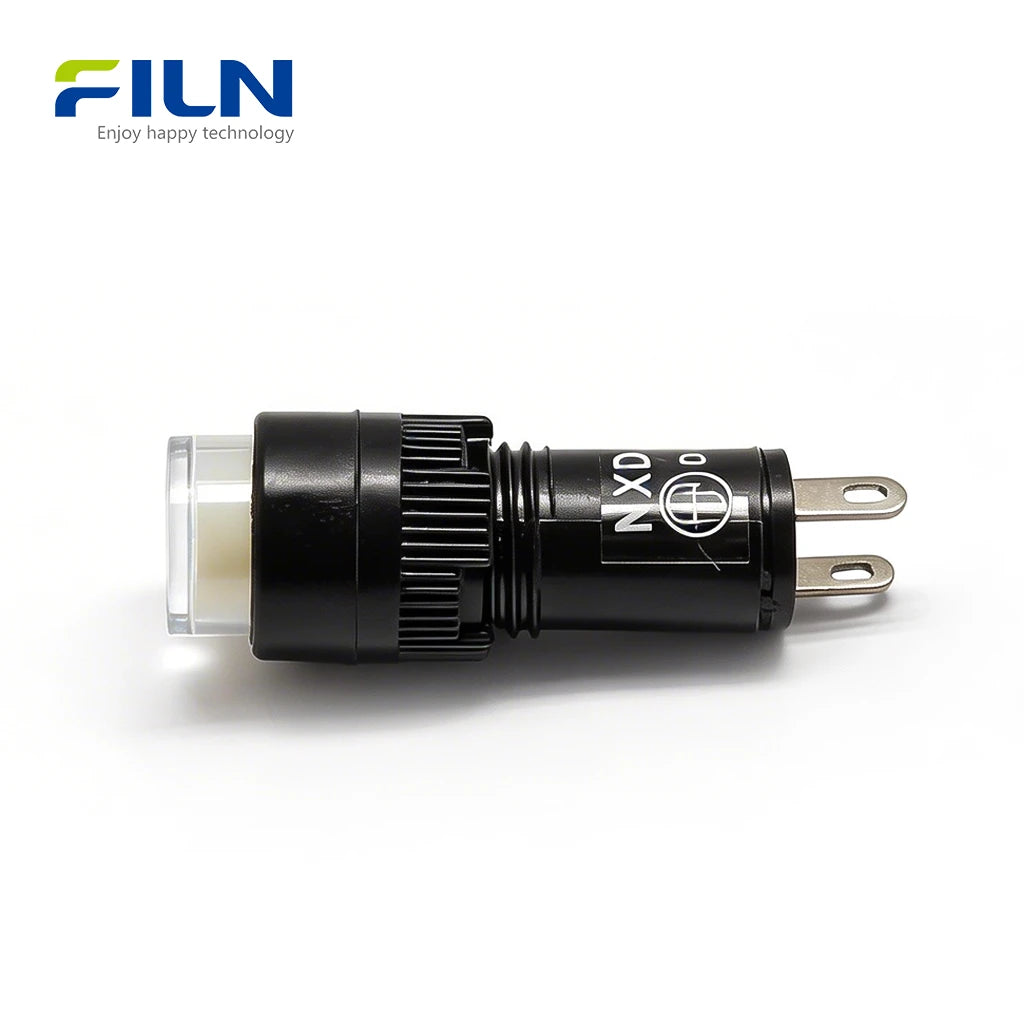

| Head Style | High-Head Round (Plastic) |
| Waterproof Rating | Head IP65 |

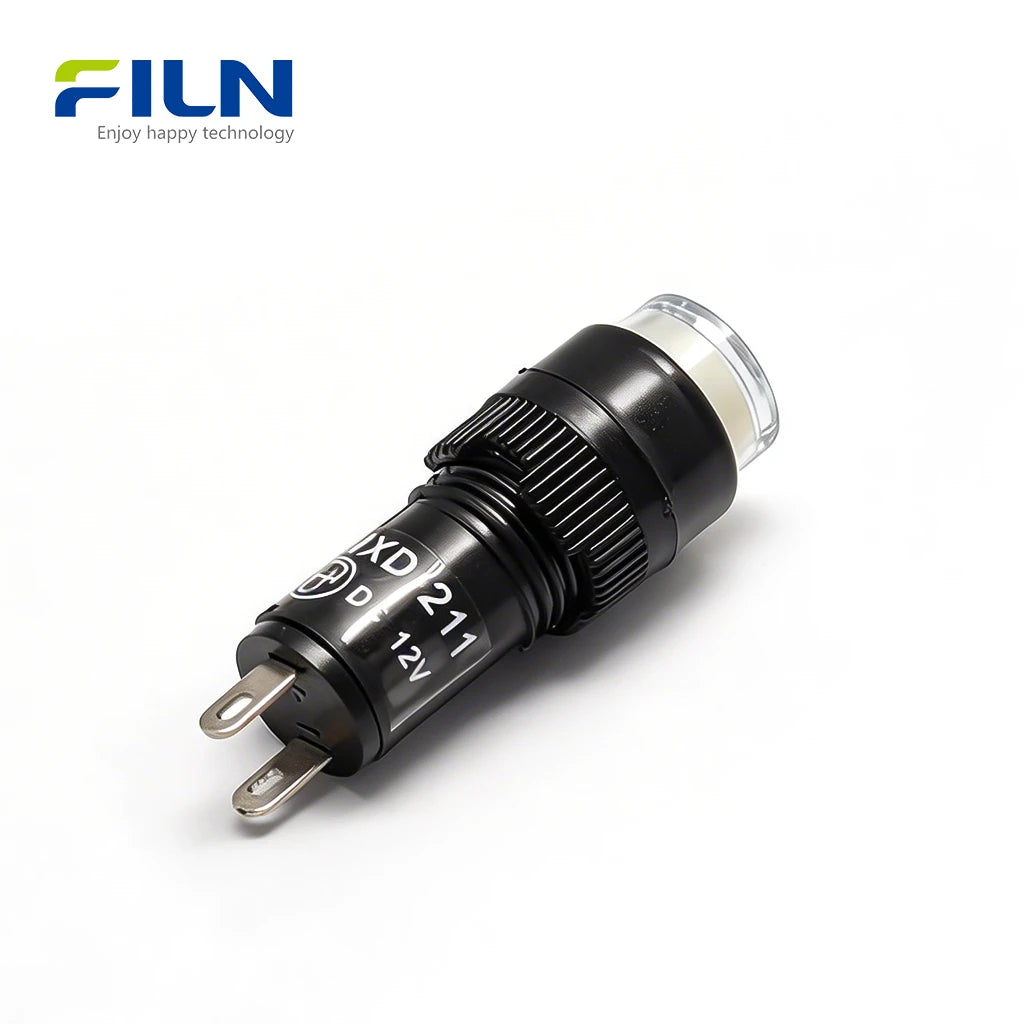

| Wiring Type | 2.8mm Pin Terminal (2-Pin) |
| Lifespan | 60,000 Hours |
| Component Name | Material |
| Shell / Holder | PA66 Nylon |
| Lampshade | High-Transparency PC |
| Luminescent Source | LED |
| Nut | PA66 Plastic |
| 2.8mm Terminal | H59 Copper (2-Pin) |
Rated Working Parameters
| Rated Voltage | 110V (Standard) / Customized |
| Frequency(AC) | 50～60Hz |
| Rated Current | ≤20mA |
General Characteristics & Color Codes
Effective visual communication is achieved through standardized LED colors:
- Red: Indicates emergency, failure, or dangerous heat levels.
- Green: Signifies normal operation, ready status, or safe start.
- Yellow/Amber: Represents standby mode, warnings, or caution required.
- Blue: Used for mandatory information, reset status, or specific operator tasks.
- White: General power-on indicator or broad monitoring status.
| Insulation Resistance | 1800V/5s |
| Operating Temperature | -40℃ to +80℃ |
| Relative Humidity | ≤85% at +40℃ |
Key Features
- High-Head Design: Provides a wider viewing angle and atmospheric lighting effect.
- PA66 Industrial Material: Superior chemical resistance and electrical insulation over metal.
- Long Lifespan: High-quality LED rated for up to 60,000 hours.
- 2.8mm Pin Terminal: Enables fast, reliable plug-and-play wiring (2-Pin).
- Kitchen-Ready: Grease and heat resistant, perfect for commercial ovens and fryers.
Installation Guide
- Drill a 10mm hole on the machine panel.
- Insert the 110v indicator lamp from the top (exterior) of the panel.
- Slide the plastic nut onto the lamp body from the back.
- Tighten the plastic nut securely against the panel surface.
- Plug in 2.8mm female terminals to the 2-pin tail for final connection.
What Is an 110V Indicator Lamp?
An 110v indicator lamp is a signaling component used to monitor AC power status.
Plastic vs. Metal: While metal indicators are rugged, durable pa66 plastic indicator lamps offer better safety in high-voltage 110V/220V circuits because the body is naturally non-conductive. Plastic is also resistant to corrosion from kitchen cleaning chemicals.
Pin vs. Wire-Lead: The 2-pin terminal signal lamp design (pin type) is preferred for modern assembly lines because it allows for fast disconnects, whereas wire-lead indicators require more manual wire stripping or soldering. Our 10mm plastic indicator light factory focuses on pin designs to save our B2B clients time and money.
Factory Direct Supply
FILN is a premier 10mm plastic indicator light factory. Purchase our 110v indicator lamp directly for the best B2B wholesale rates.
- ✅ Fast Shipping - Worldwide delivery from our factory hub.
- ✅ Full Customization - Voltages from 3V to 380V available.
- ✅ Certified Quality - UL, CE, RoHS, and ISO9001.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy this 110v indicator lamp for sale directly?
Yes, our 110v indicator lamp for sale is available for direct online purchase for global B2B clients.
2. Why is the high-head design better for kitchen equipment?
The high-head design provides better visibility from different angles, crucial for busy kitchen operators.
3. What terminal size is used for the 2-pin connection?
It uses a standard 2.8mm pin terminal, compatible with common industrial female connectors.
4. Is the lamp body heat resistant?
Yes, our durable pa66 plastic indicator lamp is rated for up to +80℃, suitable for commercial appliance environments.
5. Can this 10mm plastic indicator light factory product support 220V?
Yes, the FL1P-10NJ-8 can be customized for any voltage from 12V up to 220V or even 380V.
6. What does a yellow light mean on a fryer?
Yellow typically signifies a standby mode or a warning that the device hasn't reached the set temperature yet.
7. Are plastic nuts reliable?
Our industrial-grade PA66 nuts provide excellent vibration resistance and won't rust or corrode over time.
8. Is the red green 110v indicator lamp led certified?
Yes, all our LED products are UL, CE, and RoHS certified.
9. How do I choose between a pin and a wire-lead type?
Choose the 2-pin terminal signal lamp if you want fast assembly; choose wire-lead if you need pre-sealed, long-distance wiring.
10. Does FILN offer custom colors?
We offer Red, Green, Yellow, Blue, and White as standard, with custom color options available for bulk orders.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
