Product Overview

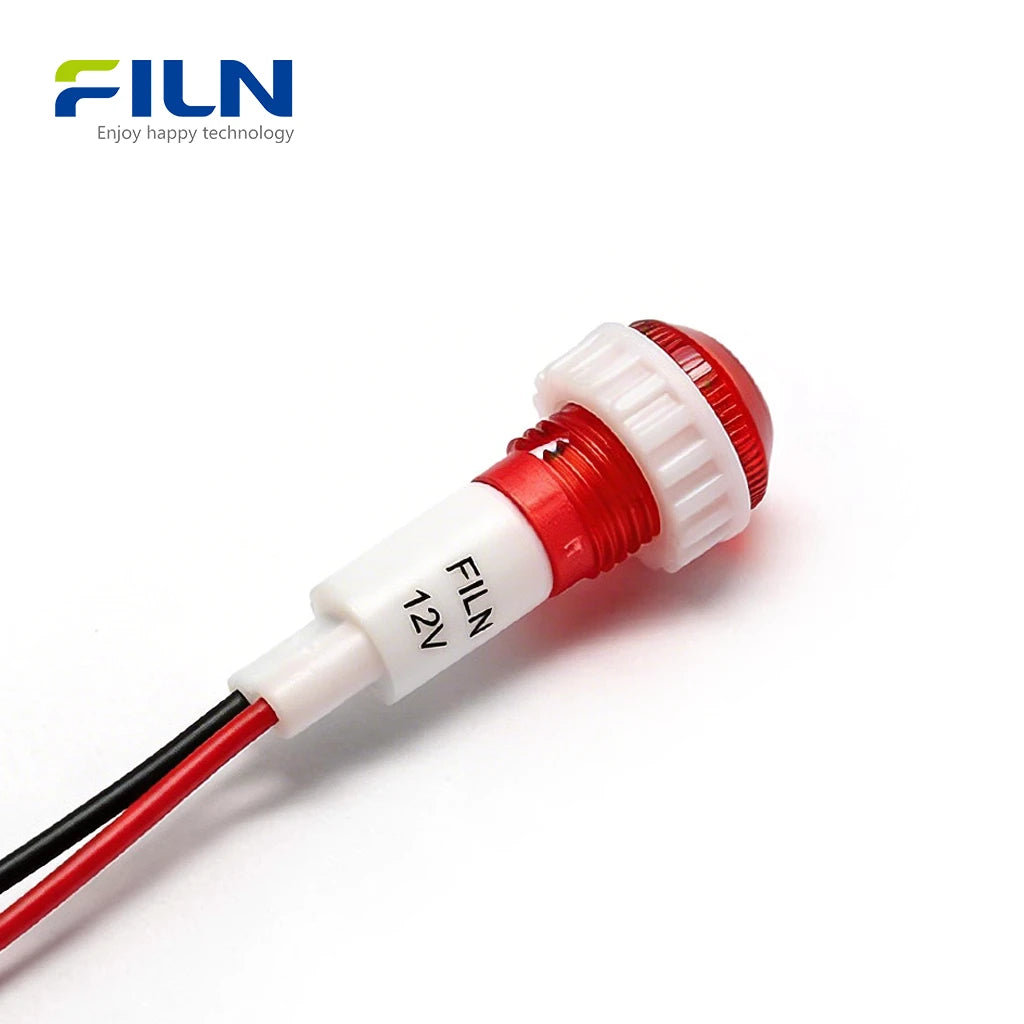

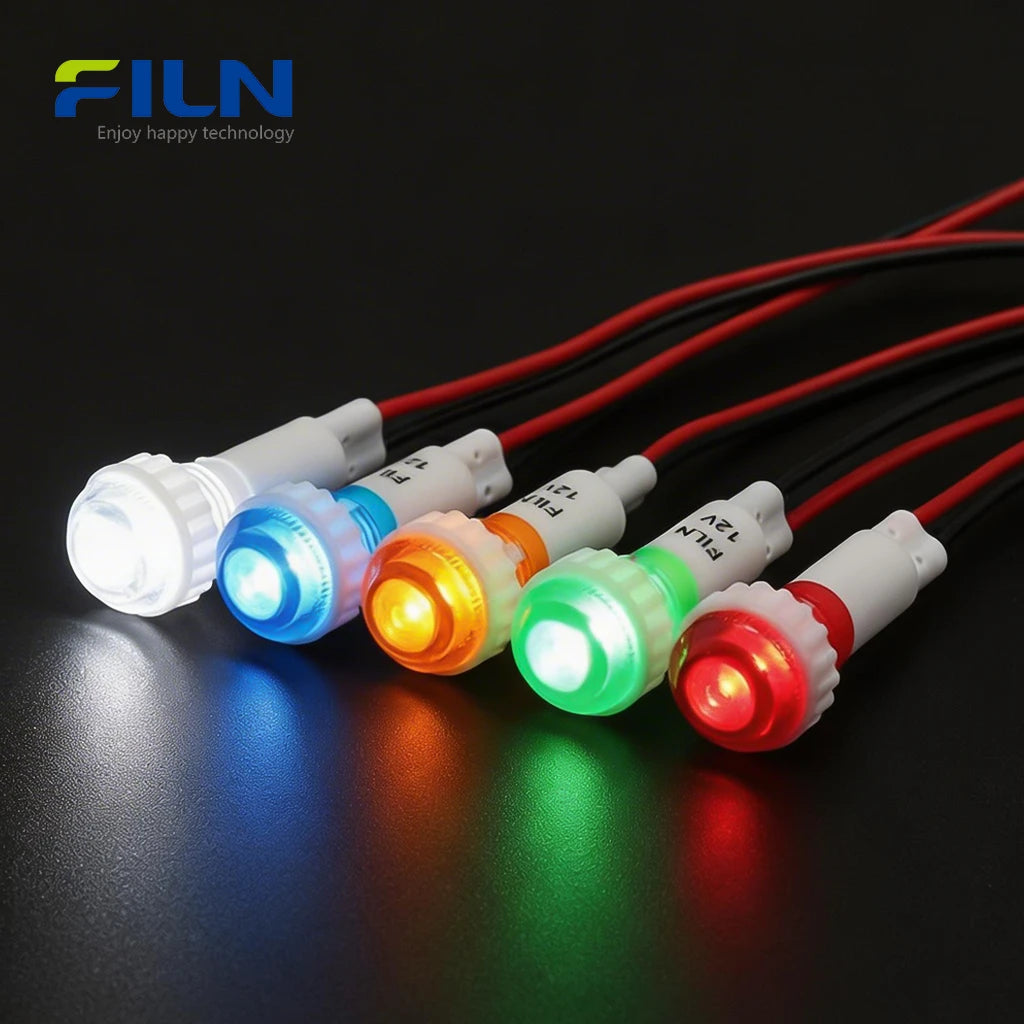

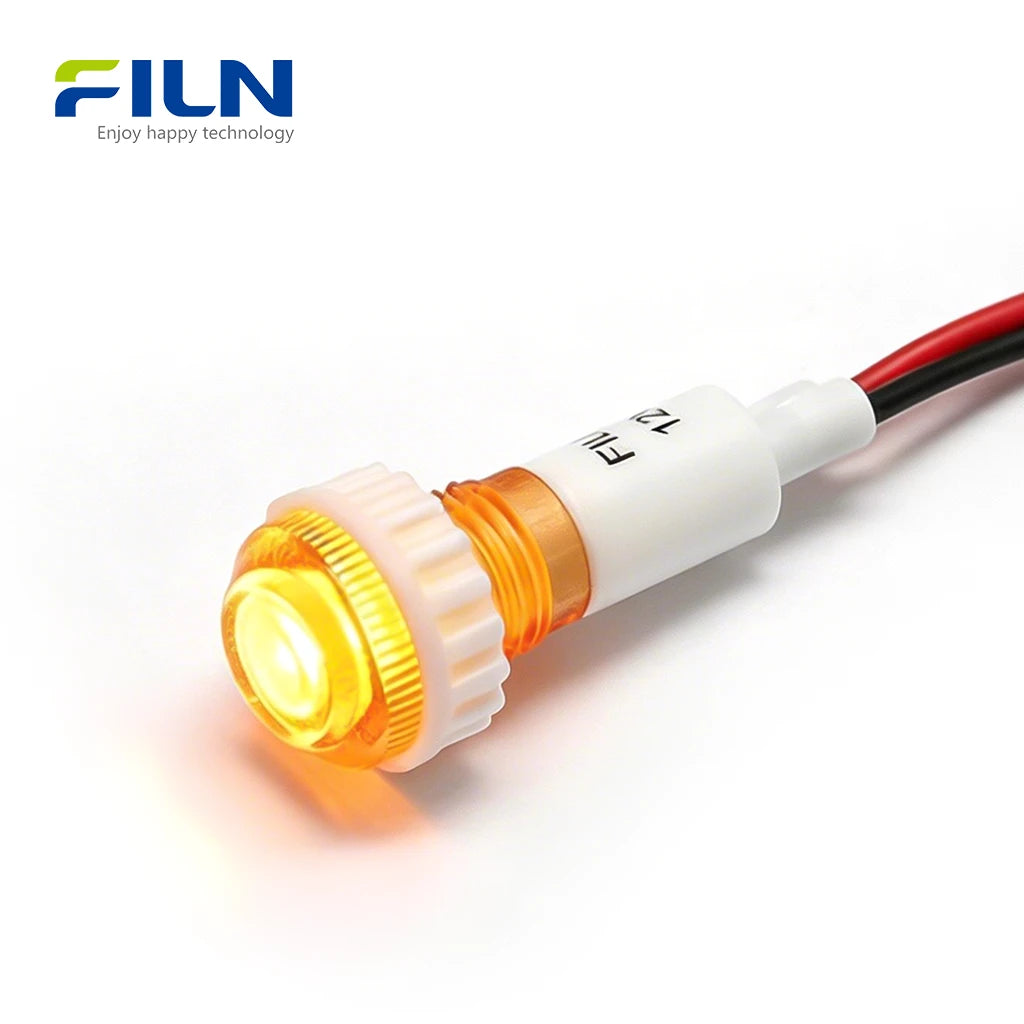

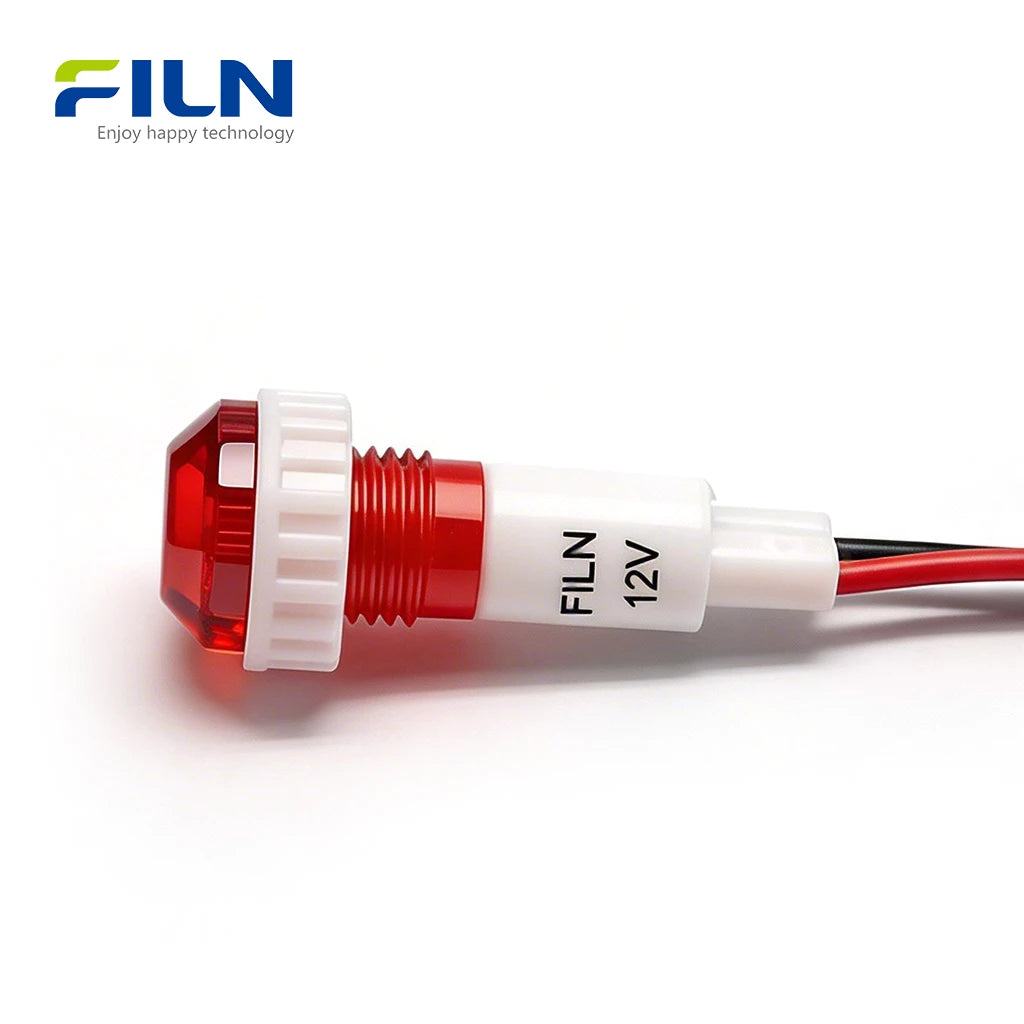

The 10mm plastic indicator lamp light (Model: FL1P-10NW-2) is a versatile industrial led signal lamp 10mm designed for high-visibility panel status indication. Featuring a prominent "High Head" round profile, this high-head plastic indicator lamp light 220v delivers an atmospheric and professional aesthetic to any industrial interface. This 10mm plastic indicator lamp light for sale is produced by FILN, a world-class factory certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Engineered for flexibility, it supports 12V, 24V, 110V, and 220V, with customization available for unique requirements. These units are ready for direct online purchase, providing a reliable high-brightness led indicator lamp light waterproof solution for machinery and commercial equipment.
Quick Specifications
| Mounting Hole | 10mm / 0.39 inch | Voltage | 12-24V / 110-220V (Customized) |
|---|---|---|---|

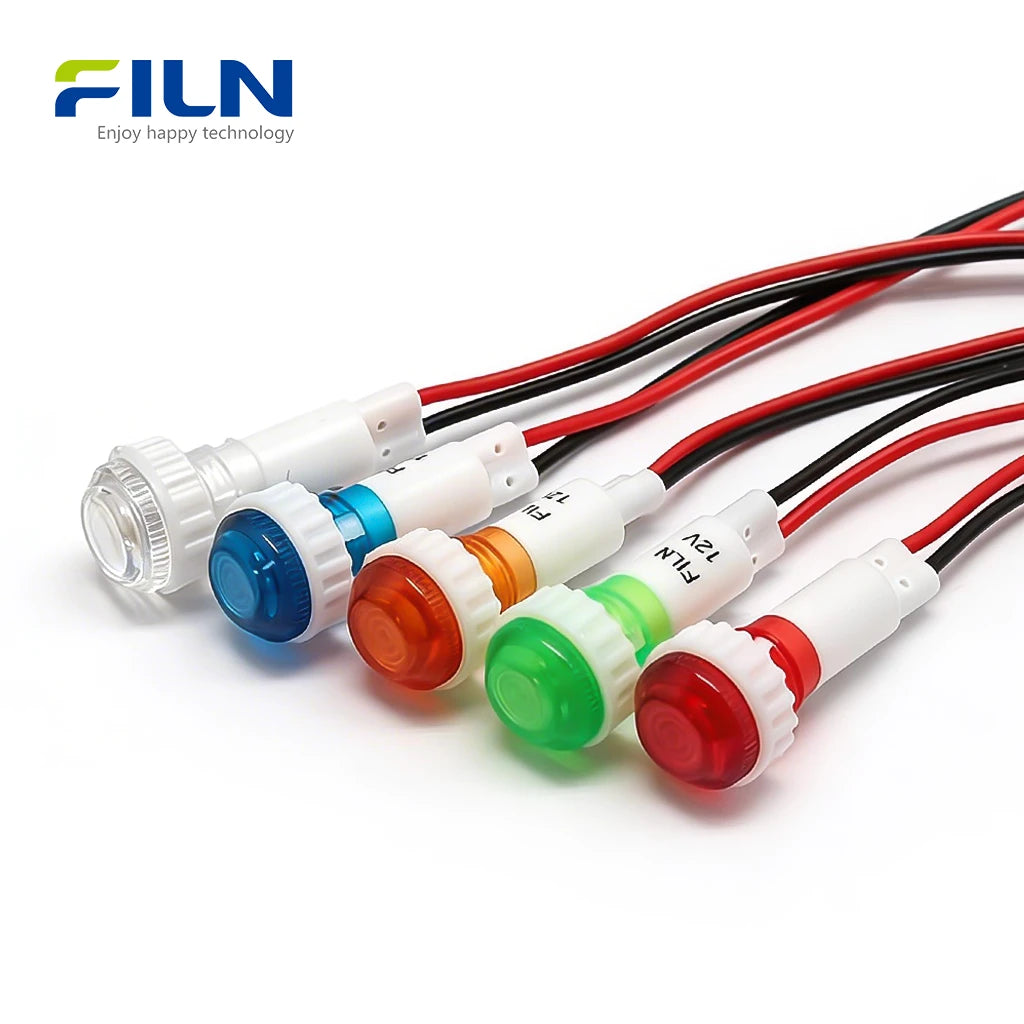

| LED Color | Red, Green, Yellow, Blue, White | Lifespan | 60,000 Hours |
| Waterproof Rating | IP65 (Head for Threaded Type) | Wire Length | 15cm (Standard PVC) |
| Mounting Type | Plastic Nut Fixed | Wiring Type | Wire Lead / 2.8mm Pin |
| Component Name | Material |
|---|---|
| Shell / Lamp holder | High-Grade PA66 Nylon |
| Lampshade (Lens) | PC (Polycarbonate) |
| Luminescent Source | LED Chip |
| Resistance | Carbon film resistance |
| 2.8mm Terminal | H59 Copper (Brass) |
| Wire specification | 15cm PVC Insulated Wire |
Rated Working Parameters
| Rated Voltage | Customized (3V-380V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
General Characteristics
| Item | Parameter |
|---|---|
| Insulation Resistance | 1800V/5s |
| Working Life | 60,000h |
| Operating Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric & Durable Performance
| Test Item | Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V / 1 min | ≥100MΩ |
| Continuous Working Life | 30mA / 1000h | 50,000 Hours |
| Moisture Resistance | 40℃ 90-95%RH / 96h | Stable Performance |
Key Features & Industrial Applications
- High Head Visual Impact: Round high-head profile for superior 180° visibility.
- PA66 Insulation: Superior chemical resistance and electrical safety compared to metal.
- Dual Wiring Options: Choose between pre-wired 15cm leads or 2.8mm terminal plastic indicator lamp light pins.
- Easy Installation: Secured via a heavy-duty plastic nut for a vibration-proof fit.
- Long Operation: Industrial-grade LEDs rated for 60,000+ hours.
Ideal for: Industrial control systems, kitchen equipment indicator lamp light plastic, CNC machines, power supply cabinets, and automation panels.
Installation Guide (Threaded Mounting)
- Drill a precise 10mm hole on the equipment panel.
- Insert the threaded mount plastic indicator lamp light 10mm through the hole from the front side.
- Thread the plastic nut onto the body from the rear of the panel.
- Tighten the nut to secure the lamp firmly against the panel surface.
- Connect the 15cm wire leads or attach female spade connectors to the 2.8mm pins.
What Is a 10mm Plastic Indicator Lamp Light?
A 10mm plastic indicator lamp light is a critical signal component used to provide visual feedback on machine states.
Metal vs. Plastic Indicators:
Plastic indicators (PA66) are corrosion-proof and provide excellent electrical insulation, making them safer for high-voltage panel use. Metal indicators offer physical robustness but are susceptible to rust in saline or acidic environments.
Wiring vs. Pin Design:
Wire leads (15cm) simplify installation in tight spaces, while 2.8mm terminal plastic indicator lamp light pins allow for rapid assembly in production environments using standardized crimp connectors.
The Meaning of LED Colors:
• Red: Emergency/Fault—Indicates a critical error or stop status.
• Green: Ready/Run—Confirms normal operating conditions.
• Yellow: Caution/Wait—Signals a transition or non-critical warning.
• Blue: Service/Action—Indicates mandatory operator intervention needed.
• White: Power/Neutral—Confirms power is active without specific machine status.
FILN Factory Direct Supply
As a dedicated filn factory custom indicator lamp light provider, we support your B2B needs with direct sales and engineering support.
- ✅ Buy Directly: Standard models available for immediate online purchase.
- ✅ Bespoke Solutions: Customizable voltage (3V-380V) and wire lengths.
- ✅ Certified Quality: Every batch is tested for industrial reliability.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy the 10mm plastic indicator lamp light for sale directly?
Yes, our Shopify store allows you to purchase standard and custom voltages directly from the factory.
2. What voltage should I choose for fl1p-10nw-2-led-indicator-12v?
For battery-operated systems, 12V or 24V is best. For industrial mains, select the 110V or 220V model.
3. Why use a high-head plastic indicator lamp light 220v?
The high-head design is more visible from wide angles compared to flat indicators, improving workspace safety.
4. Are these suitable for kitchen appliances?
Absolutely. The kitchen equipment indicator lamp light plastic is popular in ovens and fryers due to its PA66 heat resistance.
5. Can I get a longer wire than 15cm?
Yes, as a filn factory custom indicator lamp light manufacturer, we can provide custom lengths from 5cm up to several meters.
6. Is the 2.8mm terminal better than the wire lead?
It depends on your assembly process. Pin terminals are faster for factory lines using connectors; wire leads are better for manual soldering.
7. What are the benefits of plastic vs metal indicators?
Plastic is rust-proof, provides better electrical insulation, and is more cost-effective for large production runs.
8. Is the high-brightness led indicator lamp light waterproof?
The head is IP65 rated, making it resistant to splashes and dust when correctly mounted on a panel.
9. How long is the expected lifespan?
The high-quality LED chips are designed to last over 60,000 hours, significantly reducing maintenance costs.
10. Does FILN ship internationally?
Yes, we ship globally via express carriers to ensure your production lines never stop.
