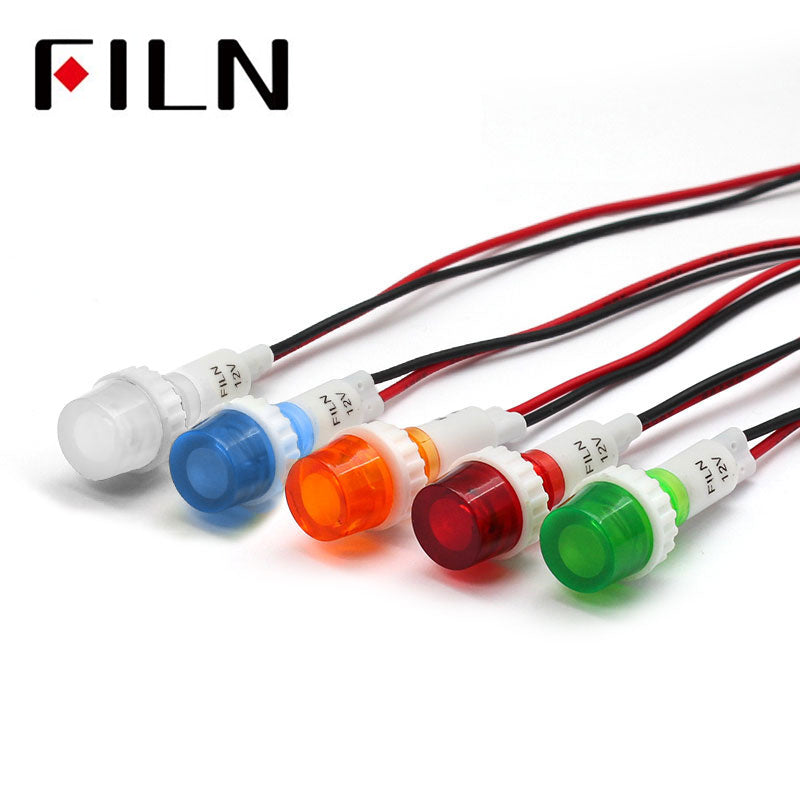

10MM 120V 240V Panel Neon Indicator Lights Lamp

Color
RED
GREEN
WHITE
YELLOW
BLUE
Voltage

Description

Product Drawing

Neon Indicator Product Drawing

Neon Indicator Lights Product Parameters

Component Name Material
Lens PC Plastic
Metal Body H59 Brass Or 304 Stainless Steel
Washer T10 Cold Rolled Steel
Rubber Ring SIL Silica Gel
Nut H59 Nickel Plated Brass
Housing PA66 Nylon
Light Source LED
Resistor Metal Film
Cable PTFE AWG22 0.3mm²
Items Parameter
Rated Voltage 3V-780V DC Or AC
Rated Current 20MA
Rated Power 0.2W
Insulation And Voltage Resistance 1800V
Working Life 100,000H
Electrical Life 100,000
Cold-resistant -40℃
Heat-resisting 80℃
Plug-in C2680 ROHS Brass

Product Item FL1P-10NW-3
Panel Mount Diameter 10MM
Contact Way With Wire
Install Way Screw Terminal
Lamp Type LED
Rated voltage AC / DC, 3V, 6V, 12V, 24V, 220V, 380V
Lamp Color Red, Yellow, Blue, Green, White
Product Design Flat Head
Shell Material PC
Base Material PA66 Nylon
Terminal Material Brass
Applications Coffee machine, Kitchen equipment, Household appliances, Automobiles, Medical equipment, Industrial equipment etc.
