19MM RED Green Blue Three Color 12V Push Button Switch

$3.86
Shipping calculated at checkout.
DESCRIPTION
  • 100% money back guarantee
  • Quickly customize products in 21 days
  • Fast delivery

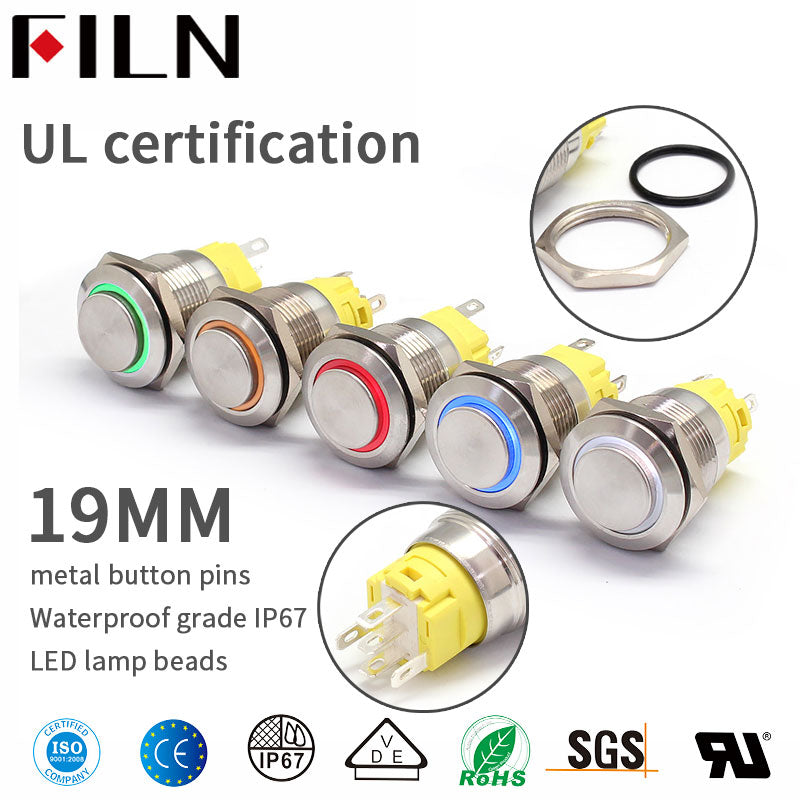

FLM19-10HEJ Push Button Switch Product Introduction

The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.

The indicator light used by the push button switch is non-polar LED, with a service life of 50000 hours.

The waterproof rating of the push button switch is IP67, and the mounting hole size is 19MM.

The voltage of the push button switch can be 12V, 36V, 110V, 220V,  etc.

19MM metal push button switch can make five colors of light: red, yellow, blue, green, and white.

You can also customize the button switch for two-color lights and three-color lights.

Product specifications

Production Series FLM19-10HEJ Light Guide Button PC Plastic
Button Shape Round Actuator 304 Stainless Steel
Button Led Ccolor Red Blue Green Yellow White Housing Seeve H59 Nickel Plated Brass/304 Stainless Steel
Mechanical Life The 500 Thousand Time Button Pin H62 Copper Alloy
Electrical Life The 100 Thousand Time Rubber Ring SIL Silica Gel
Protection Level IP67 IK09 Nut H59 Nickel Plated Brass
Rated Voltage 36V(DC) 250V(AC) Housing PA66+GF20% Nylon
Rated Current 5A(DC)5A(AC) Light Source LED
Rated Power 180W(DC)1250W(AC) Resistor Metal Film
Operating Temperature -25℃~+85℃ Contact AgCdO12

19MM Metal Button Introduction
