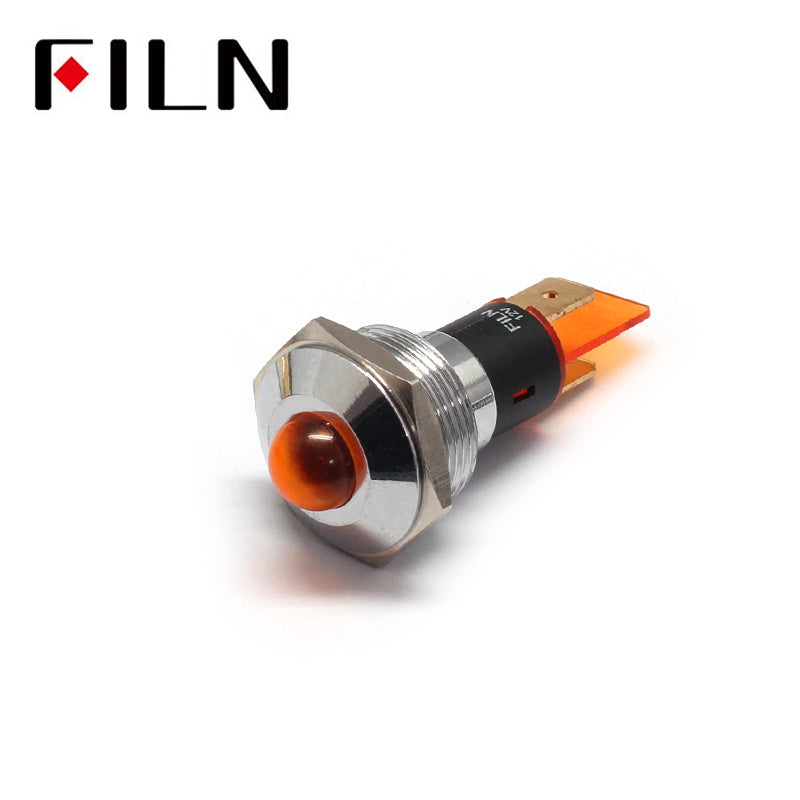

| Product Item | FL1M-19SJ |
| Panel Mount Diameter | 19mm |
| Contact Way | Pins |
| Install Way | screw terminal |
| Lamp Type | LED |
| Rated voltage | AC/DC,3V、6V、12V、24V、220V、380V |
| Lamp Color | red yellow blue green white |
| Product Design | convex head |
| Shell Material | brass plated nickel/stainless steel |
| Base Material | PA65 nylon |
| Terminal Material | brass |
| Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc |
| Component name | Material |
| Lens | PC plastic |
| Metal Body | H59 brass or 304 stainless steel |
| Wahser | T10 Cold Rolled Steel |
| Rubber Ring | SIL silica gel |
| Nut | H59 nickel plated brass |
| Housing | PA66 nylon |
| Light Source | LED |
| Resistor | Metal film |
| Cable | PTFE AWG22 0.3mm² |
| Plug-in | C2680 RoHS brass |
| items | parameter |
| Rated Voltage | 3V-780V DC or AC |
| Rated Current | 20mA |
| Rated Power | 0.2W |
| Insulation and Voltage Resistance | 1800V |
| Working Life | 100000h |
| Electrical Life | 100000 |
| Cold-resistant | -40℃ |
| Heat-resisting | 80℃ |
