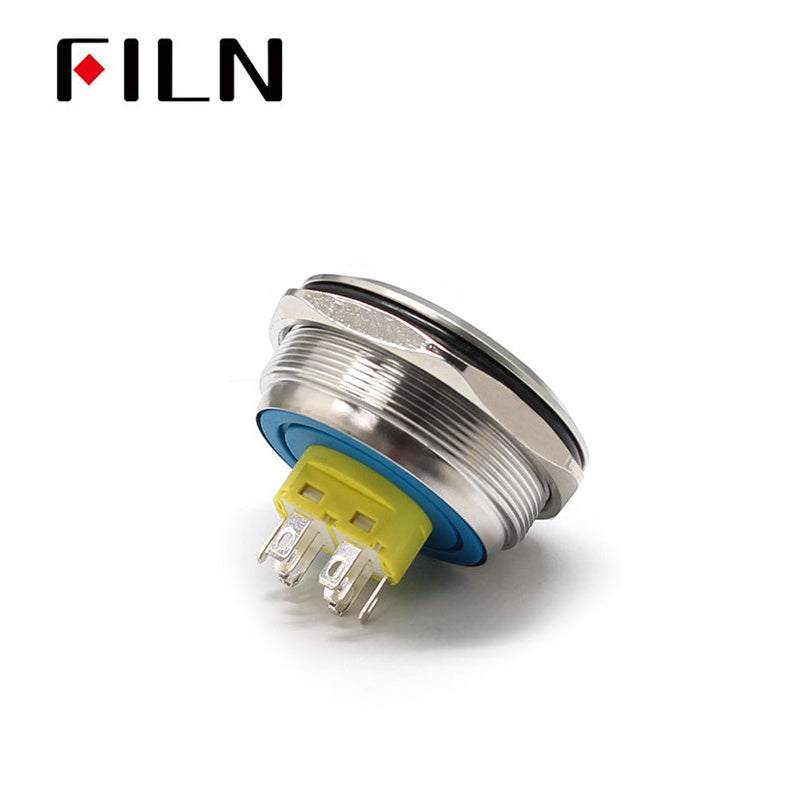

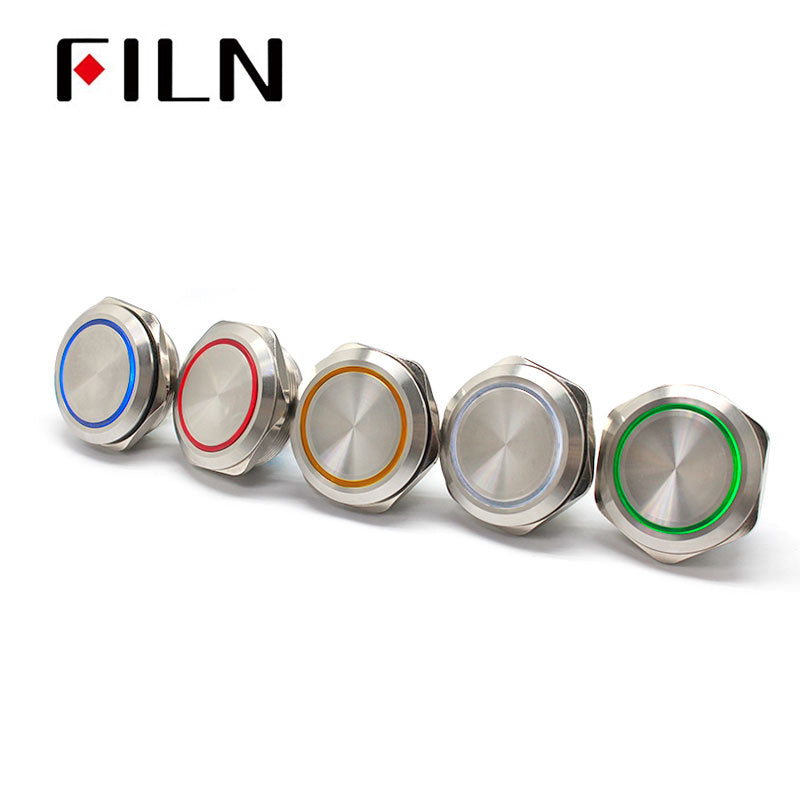

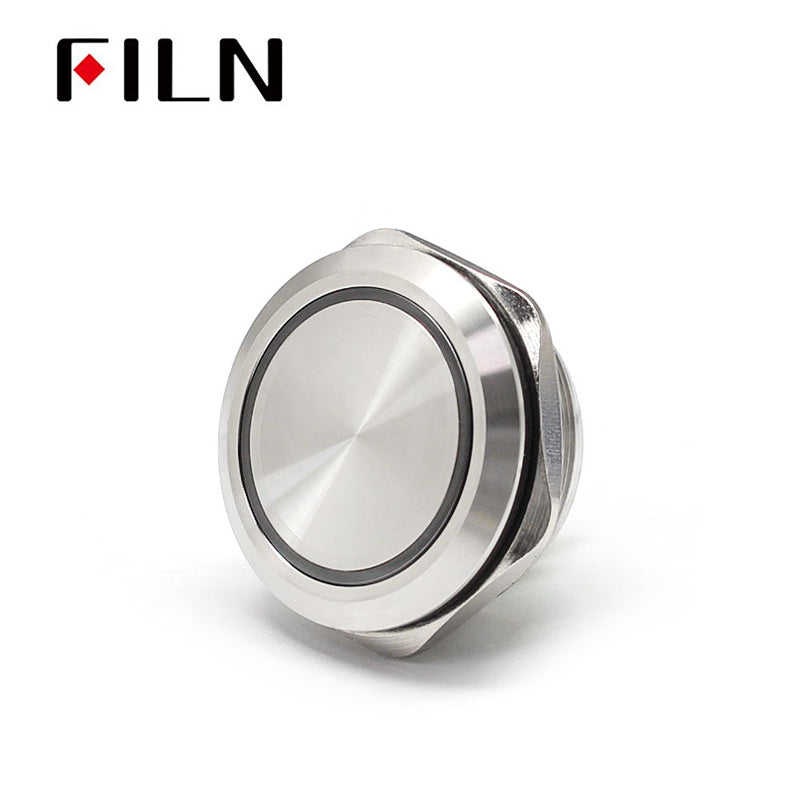

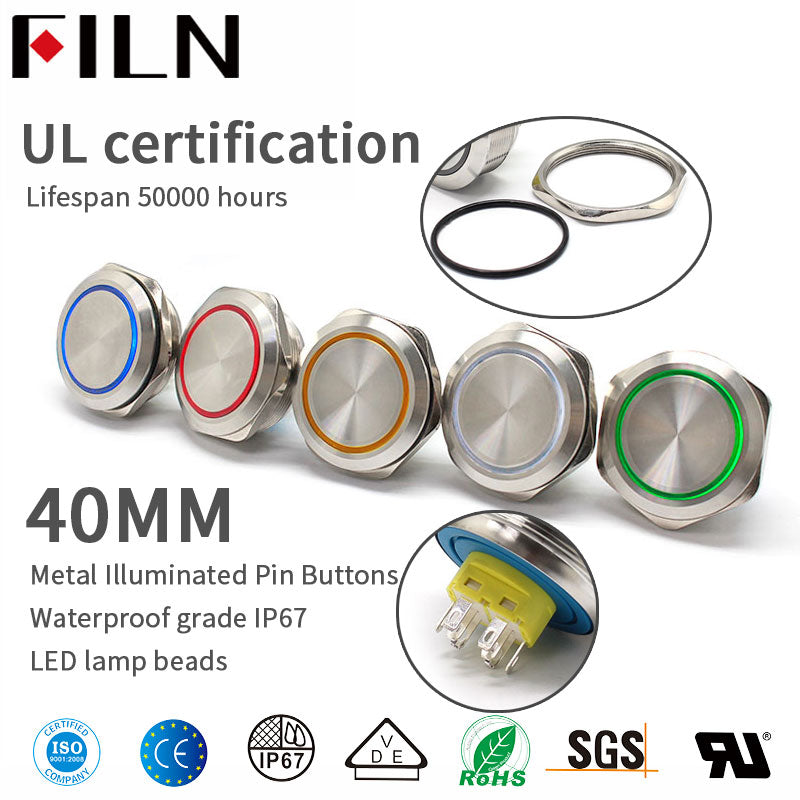

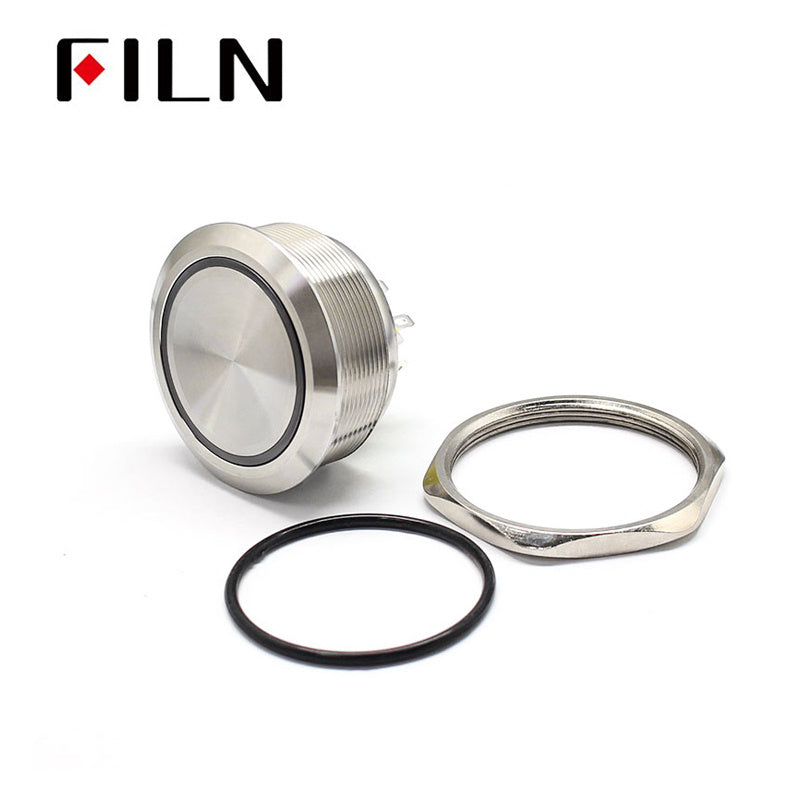

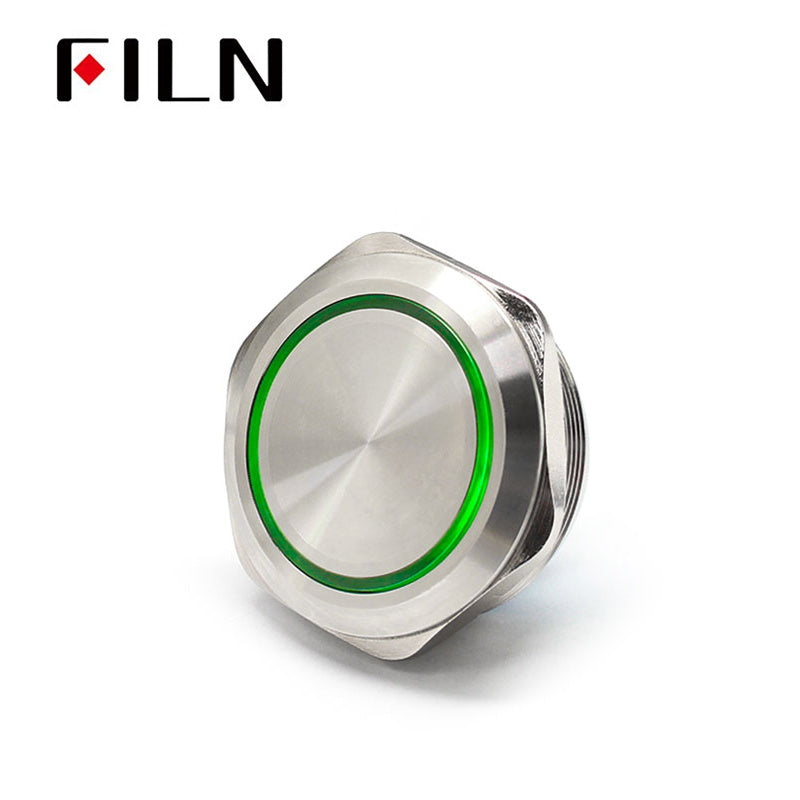

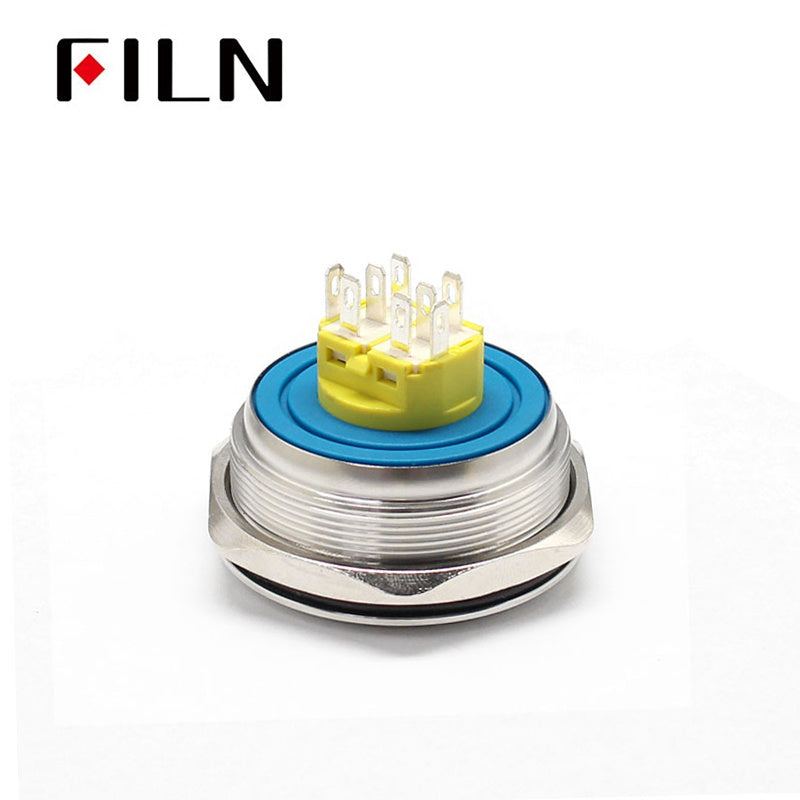

40mm Red 12VLager Big Push Button Switch Parts
40mm Red 12VLager Big Push Button Switch Online Shop
40mm Red 12VLager Big Push Button Switch Bottom
40mm Red 12VLager Big Push Button Switch Details
40mm Red 12VLager Big Push Button Switch Colour
40mm Red 12VLager Big Push Button Switch Price

40mm stainless steel ring lamp 6v 12v 24v 220v green white yellow red momentary latching 1no1nc led metal push button switch

How to connect the wire with the big push button switch: 1. The switch is locked, the...
$12.50
$12.50
Please hurry! Only 2000 left in stock
Color: RED
Voltage: 6V
Function: Momentary
Subtotal: $12.50
10 customers are viewing this product

Shipment by DHL

Enjoy points to reduce shipping fees

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

40mm stainless steel ring lamp 6v 12v 24v 220v green white yellow red momentary latching 1no1nc led metal push button switch

40mm stainless steel ring lamp 6v 12v 24v 220v green white yellow red momentary latching 1no1nc led metal push button switch

$12.50

40mm stainless steel ring lamp 6v 12v 24v 220v green white yellow red momentary latching 1no1nc led metal push button switch

$12.50
Color: RED
Voltage: 6V
Function: Momentary

How to connect the wire with the big push button switch:

40mm Red 12VLager Big Push Button Switch

1. The switch is locked, the light is on and the device starts. The switch reset, the light is off and the device is closed.

40mm Red 12VLager Big Push Button Switch

2. The switch is locked, the light is off and the device starts. The switch is reset, the light is on and the device is off.

40mm Red 12VLager Big Push Button Switch

3. The switch is locked, the device starts. The switch is reset, the device is closed and the light is on.

Production Series FLM40-11FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 250V Housing PA66+GF20% nylon
Rated Current 5A Light Source LED
Rated Power 1250W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12



The 40mm round 5-pin 1NO1NC metal push button switch has various applications and advantages. This type of switch is commonly used in industrial control panels, machinery, equipment, and automation systems. Here are the usage scenarios and benefits of this metal push button switch:

This metal push button switch Usage Scenarios:

  1. Industrial Control Panels: This switch is ideal for use in control panels where operators need to interact with the machinery or equipment. It can be used for starting or stopping processes, controlling motor functions, or activating various functions within the control system.
  2. Machinery and Equipment: The metal push button switch is suitable for integration into machinery and equipment, providing operators with a reliable and durable input device. It can be used for emergency stops, mode selection, reset functions, or any other operation that requires a robust and responsive switch.
  3. Automation Systems: In automation systems, this switch can be employed to initiate or interrupt specific tasks or sequences. It can be utilized as a control element in programmable logic controllers (PLCs), human-machine interfaces (HMIs), or other automation devices, enabling operators to interact with the system effectively.

This metal push button switch Advantages:

  1. Durability: The metal construction of the switch ensures high durability and longevity, making it suitable for harsh and demanding environments. It can withstand heavy usage, mechanical stress, and exposure to dust, moisture, or extreme temperatures.
  2. Enhanced Reliability: The 5-pin configuration, including the 1 normally open (NO) and 1 normally closed (NC) contacts, provides flexibility in circuit design and offers reliable switching capabilities. It allows for the integration of different control schemes and ensures dependable operation.
  3. Easy Operation: The 40mm size of the switch, along with its distinct ring-shaped design, makes it easy to locate and operate. The button provides tactile feedback, allowing users to feel the actuation and ensuring accurate switching without accidental activations.
  4. Visual Indication: Some metal push button switches come with built-in LED indicators that provide visual feedback, such as illumination or color changes, indicating the status of the switch or the equipment it controls. This feature enhances usability and simplifies monitoring in various applications.
  5. Versatility: The 5-pin configuration allows for flexible wiring options, enabling the switch to be integrated into different control systems and circuits. It can be used as a standalone switch or in conjunction with other control elements, providing versatility in system design.

Overall, the 40mm round 5-pin 1NO1NC metal push button switch offers a reliable, durable, and versatile solution for various industrial control, machinery, and automation applications. Its sturdy construction, ease of operation, and visual indication features make it a preferred choice for professionals seeking dependable input devices in demanding environments.
