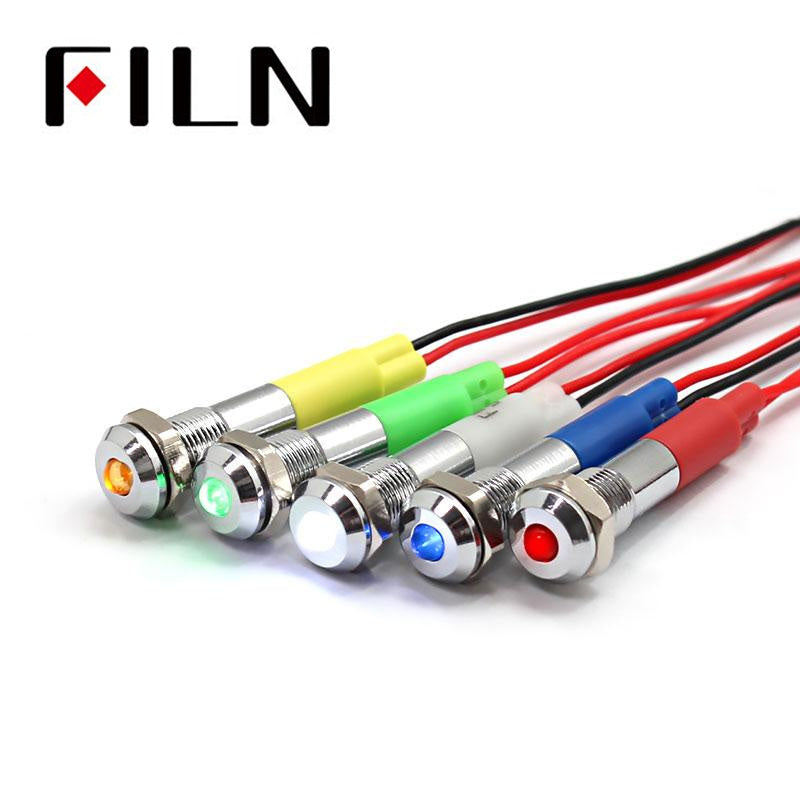

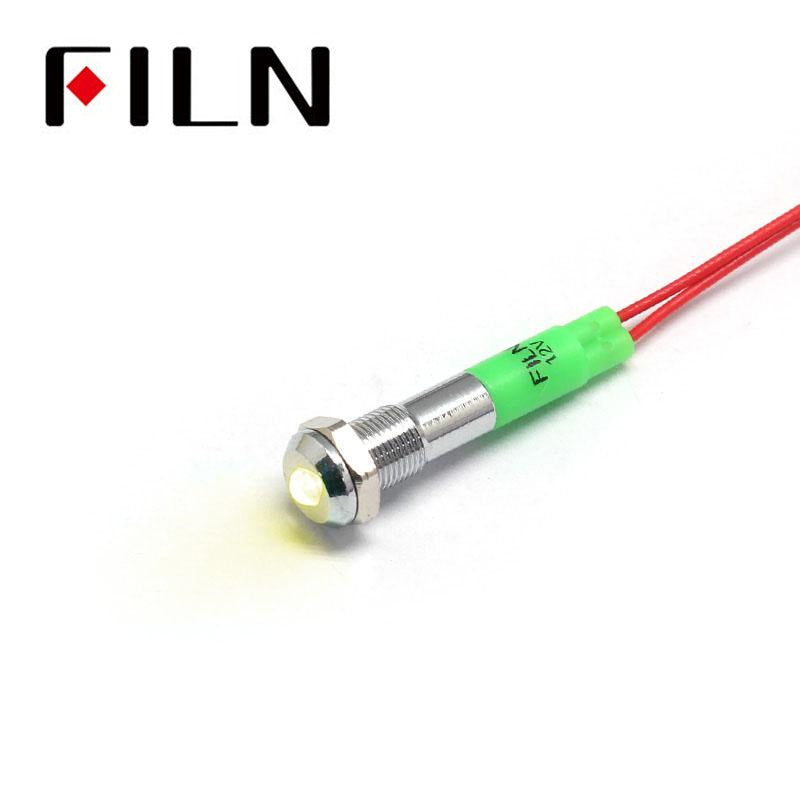

FILN Mini led indicator light led 12V 24V 220V Metal indicator signal pilot lamp with 20cm cable
LED indicator light
12v led indicator light
Mini led indicator light
120 volt led indicator light
220V led indicator light
  • SKU:
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

FILN Mini led indicator light led 12V 24V 220V Metal indicator signal pilot lamp with 20cm cable

Shipping calculated at checkout.

Product specifications

Product Item FL1M-6SW-1
Panel Mount Diameter 6mm
Contact Way Wire Leading type
Install Way screw thread
Lamp Type LED
Rated voltage AC/DC,3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design convex head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material PTFE AWG24
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment, etc
Component name material
lens PC plastic
Metal body H59 brass or 204 stainless steel
wahser T10 Cold Rolled Steel
rubber ring SIL silica gel
nut H59 nickel-plated brass
housing PA66 nylon
Light source LED
Resistor Metal film
Cable PTFE AWG22 0.3mm²
plug-in C2680 RoHS brass
items parameter
Rated voltage 3V-780V DC or AC
rated current 20mA
rated power 0.2W
Insulation and voltage resistance 1800V
working life 100000h
electrical life 100000
cold-resistant -40℃
heat-resisting 80℃

The use of this LED Indicator Light scene

  1. Electronics and Appliances: LED indicator lights are widely used in electronics and appliances to provide visual feedback on power status, operational modes, or system functions. The compact 6mm size of this LED indicator light allows for integration into small devices or circuit boards, making it suitable for applications such as computer peripherals, home appliances, or consumer electronics.
  2. Control Panels and Instrumentation: LED indicator lights are essential components in control panels and instrumentation systems, offering visual indication of different states or alarm conditions. The protruding head design ensures clear visibility even in crowded panel layouts, making it ideal for industrial control panels, laboratory equipment, or scientific instruments.
  3. Automotive and Automotive Accessories: LED indicator lights are commonly used in automotive applications, both in vehicle interiors and exteriors. They can be employed as dashboard indicators, turn signals, brake lights, or in auxiliary lighting systems. The 6mm size of this LED indicator light allows for discreet installation while providing bright and reliable illumination.
  4. Communication and Networking Equipment: LED indicator lights are frequently integrated into communication and networking equipment to display connection status, signal strength, or error conditions. The metal casing of this LED indicator light enhances its durability and shielding capabilities, making it suitable for networking devices, routers, or telecommunications equipment.
  5. Industrial Automation: LED indicator lights play a vital role in industrial automation systems, providing visual feedback on machine status, operation modes, or alarm conditions. The 6mm size of this LED indicator light allows for flexible integration into control panels or machine interfaces, facilitating efficient monitoring and operation in industrial environments.
  6. Security Systems: LED indicator lights are crucial components in security systems, such as surveillance cameras, alarm panels, or access control systems. They can indicate system readiness, alarm activation, or system status. The 20cm PVC wire attached to this LED indicator light enables convenient wiring and installation in security system configurations.


The description of the 12V mini LED indicator light 120V 220V 240V

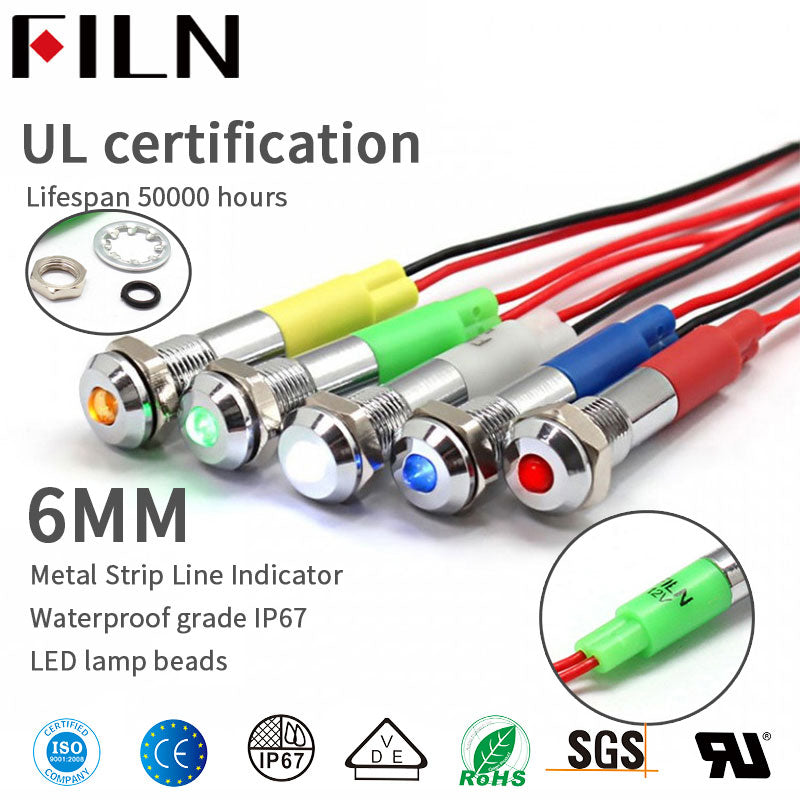

The mounting hole size of the LED indicator light is 6MM, you can open the hole of 6.05MM on the indicator light panel. Put the 6MM LED indicator light in the lamp mounting hole, place the waterproof cap, and then screw on the nut of 6MM, it is fixed and waterproof.

    1. The appearance of the 12V LED indicator light adopts the brass material, it became very beautiful after the plating process. It can be used on the high-end machine equipment. You’d better use the stainless steel if you used it on the seaside or places where has the sulfuric acid.
    2. The lamp bulb of the 120 volt LED indicator light adopts LED as the light source, usually called LED indicator light or LED pilot light. LED uses a two-core process, it can achieve a variety of DC AC LED indicator light.
    3. The 220V LED indicator light can achieve five colors of red, green, yellow, blue, white, etc. Among which red LED indicator light is the most common.
    4. The mini LED indicator light can achieve a variety of voltages, such as 2V, 3V, 6V, 12V, 24V, 110V, 120V, 220V, 240V, 250V, etc. Among which 12V LED indicator light is the most conventional. Basically, 110V, 120V LED indicator light are popular with the North America market, while 220V 240V LED indicator light is popular with Asia market.
    5. The waterproof rating of the waterproof LED indicator light is IP67, it can be used outdoors.
    6. The service life of the 120 volt LED indicator light is 50,000 hours, the quality guarantee period is 5 years, Filn will replace the problem products free of charge if there is any question during the warranty period.
    7. The wiring of the LED indicator light adopts the high-temperature Teflon material, its temperature resistance is above 220 degrees, it can be used in high temperature usage scenarios.
    8. The 240V LED indicator light had passed the certifications of UL, CE, ROSH, which can ensure the product’s quality, it can be sold in the US market.
    9. The end of the 110V LED indicator light can customize a variety of different terminals according to the customer’s demand.

What is a LED indicator light ?

LED indicator light means that take the LED as the light source, the previous neon lamp indicator light basically uses LAM as the light source, the light effect is bad and the service life is short.

How to wire a LED indicator light?

Firstly, install the LED indicator light on the indicator light panel, the positive pole connects the red line while the negative pole connects the black line. When connect to electricity, LED indicator light will light up, the wiring is completed

The advantages of the LED indicator light produced by Filn.

  • There is no MOQ, we can produce the LED indicator light from 1 piece according to customer’s demand.
  • Fast delivery, 1000 pieces can be completed within 3 days as long as you determine the specification.
  • Filn can customize and develop a variety of different LED indicator light as long as you determine the specification.
  • Filn has 20 years of experience in LED indicator light producing, it can avoid many detail problems of the LED indicator light.
  • Filn has 20 years of overseas sales experience, the sales team is composed of LED indicator light engineers, they can solve any problems regarding the indicator ligh
