| Product Item | FL1M-8FW-5 |
| Panel Mount Diameter | 8mm |
| Contact Way | With wire |
| Install Way | screw terminal |
| Lamp Type | LED |
| Rated voltage | AC/DC,3V、6V、12V、24V、220V、380V |
| Lamp Color | red yellow blue green white |
| Product Design | convex head |
| Shell Material | brass plated nickel/stainless steel |
| Base Material | PA66 nylon |
| Terminal Material | brass |
| Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment, etc |
| Component name | material |
| lens | PC plastic |
| Metal body | H59 brass or 204 stainless steel |
| washer | T10 Cold Rolled Steel |
| rubber ring | SIL silica gel |
| nut | H59 nickel-plated brass |
| housing | PA66 nylon |
| Light source | LED |
| Resistor | Metal film |
| Cable | PTFE AWG22 0.3mm² |
| plug-in | C2680 RoHS brass |
| items | parameter |
| Rated voltage | 3V-780V DC or AC |
| rated current | 20mA |
| rated power | 0.2W |
| Insulation and voltage resistance | 1800V |
| working life | 100000h |
| electrical life | 100000 |
| cold-resistant | -40℃ |
| heat-resisting | 80℃ |
120V indicator light
The dimensions of the 120V indicator light are basically set according to installation size, the mounting size of the product is 8mm, our metal copper parts are with thread. General metal indicator light is threaded type, which is easy to install and tighten.
What is a Filn 8mm IP65 green 120V 240V LED indicator lights?
- The mounting hole size of the 120V indicator light is 8mm, we can customize the threaded indicator light copper parts, for example, we can electroplate the product with zinc and aluminum alloy.
- We design a more convenient 120V indicator light for customers, the mounting hole size is 8mm and it is suitable for installation in the hole of 8.2mm. The copper part is threaded, so it is convenient for customer installation.

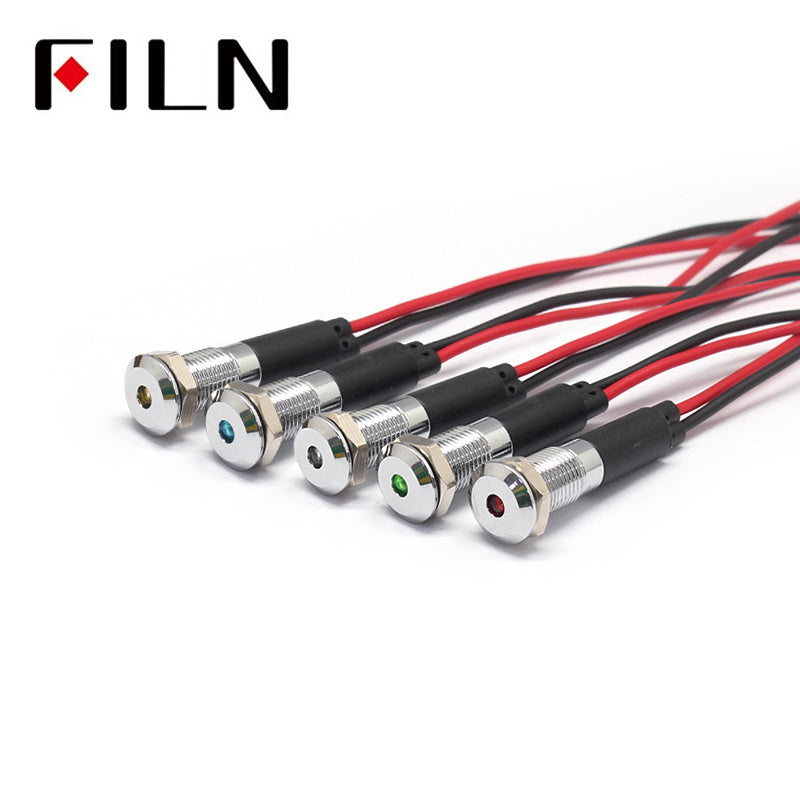

- As a high-end 120V indicator light, it has its own corresponding color. Such as 120V red indicator light, 120V blue indicator light, 120V white indicator light, 120V green indicator light, 120V yellow indicator light.
- The above products with various colors are available for customers to choose from. We basically choose LED as the product’s lamp beads.
- The wire material of the 120V indicator light is nylon. If you need product with PVC wire, we can customize it.
- The general service life of the waterproof 120V indicator light is 50,000 to 60,000 hours, and the waterproof rating is from IP65 to IP67. The waterproof 120V indicator light has long service life and waterproof function, meanwhile, its durability is very high. If there are some problems in use, such as the indicator light is not what you would expect, or you are not satisfied with the product, we will replace the product free of charge.
- Except for 120V indicator light, Filn can achieve a variety of voltages, such as 12V, 24V, 36V, 110V, 220V, 240V, etc. You can choose corresponding voltage based on the region, Europe and US are generally use small voltage, while the voltage will be relatively high in Asia. Choosing correct voltage will make the indicate light’s service life more longer.
- The above are just some basic introductions, and the most important thing is that we have 20 years of overseas trade experience. In order to meet the needs of different markets, we had passed the certifications of UL, CE, ROSH, etc. These certifications hold up a quality umbrella for customers.
What is a 120V indicator light？
The 120V indicator light is a indicator light with 120V voltage, we choose LED as the luminator. If you want to a neon bulb as the luminator, we can customize it. However, we don’t recommend this type since its service life is relatively not long.
How about the waterproof effect of the 120V indicator light?
How to wire a 120V indicator light？
Our 120V indicator light is irrespective of positive and negative poles, it will light up as long as connect the wire. The premise is to turn on the power supply, of course, to choose the appropriate voltage, otherwise the effect is not obvious.
The advantages of Filn
We have rich experience of overseas trade, providing premium services to customers. We will replace the problem products free of charge, and we have no MOQ, you can purchase our product from one piece.
If you purchase the product in bulk, we can arrange the order quickly. We can deliver 120 V indicator light within 3 days.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
