FILN 6MM LED Indicator Light Mini Metal Pilot Signal Lamp Flat Head indicator light

Component Material

Performance Parameter

6mm metal indicator light

What are the characteristics of 6mm metal indicator light?

The waterproof rating of 24v indicator lights can reach IP67, and the relevant waterproof certification has been obtained. Threaded installation is adopted, and the operation is simple and convenient. The tail wiring can be customized according to customer requirements, such as wire length, wire gauge, and wire.

Product introduction of FILN 6mm metal indicator light waterproof Mini Blue LED Indicator Lights?

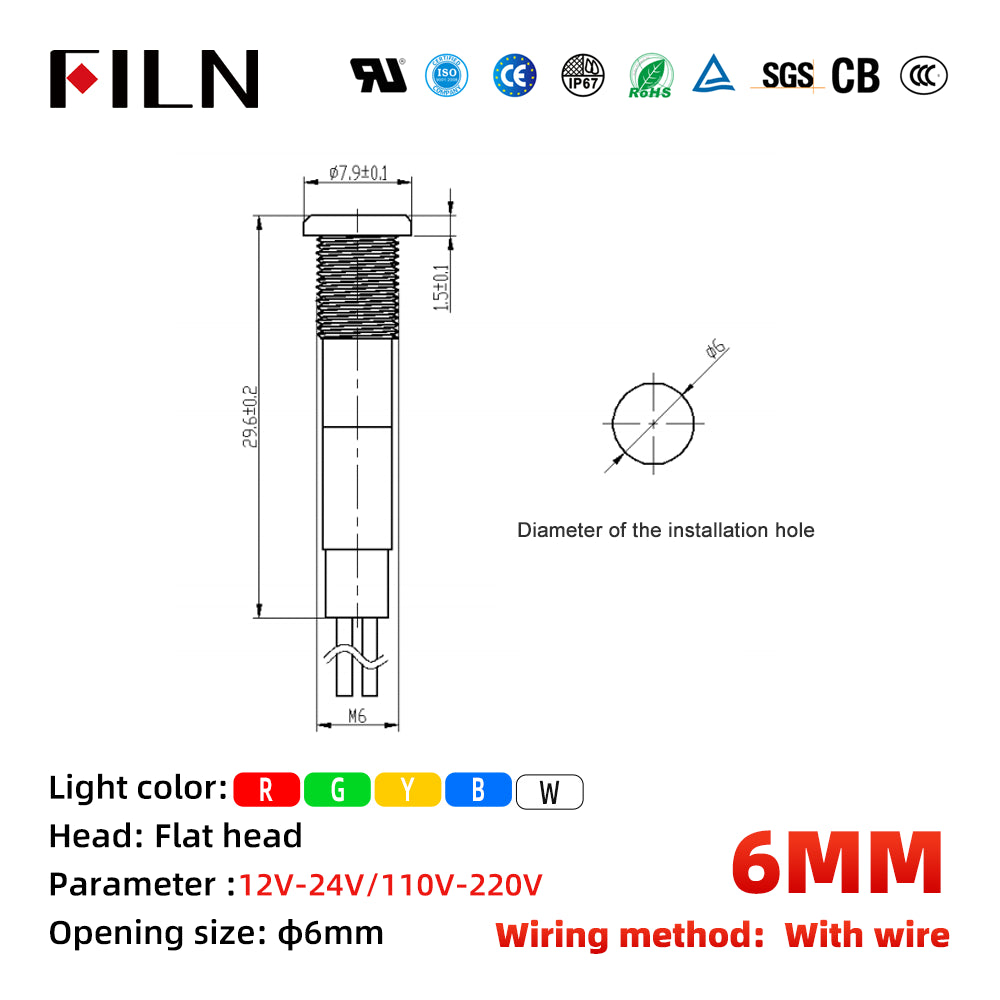

1. The mounting hole size of the metal  indicator lights is 6mm. The 6mm size is our current smallest size. In addition, we also have 8mm, 10mm, 12mm, 14mm, 16mm, 19mm, 22mm, etc.
2. The voltage of the metal Indicator light is 3V, 6V, 12V, 24V, 48V, 110V, 220V, 380V, etc. It can be customized by changing the resistance. Among them, 12V, 24v, 220v are the most ordered voltages. .

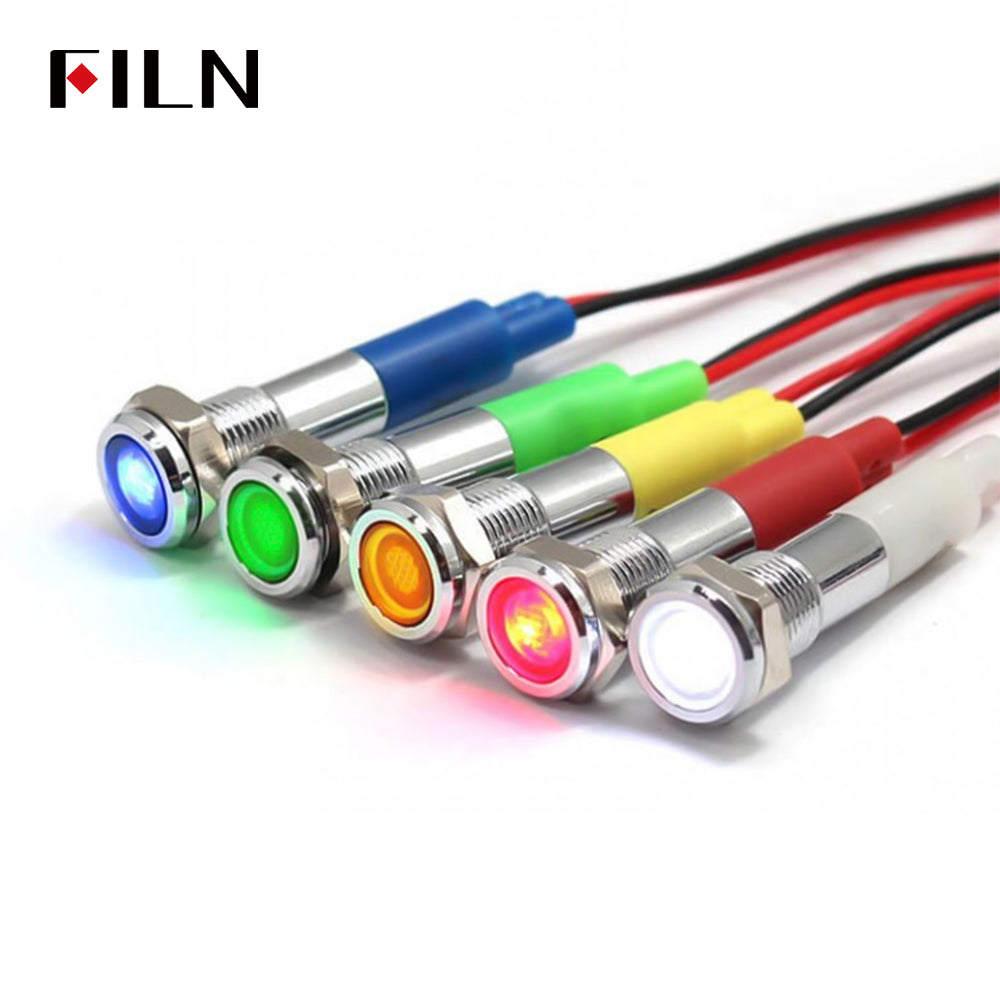

3. 3.6V indicator lights can be made in five colors, red, yellow, blue, green and white. The internal LED is a non-polar LED, regardless of the positive and negative poles. For the time being, 6mm can't be used for two-color and three-color indicator light, and for sizes larger than 8mm, two-color and three-color indicator light can be used.
4. Waterproof indicator lights can be made of three materials, stainless steel, brass, and zinc-aluminum alloy with black plating. At present, brass is the most made material. The cost of brass is relatively low, stainless steel can resist corrosion, and the appearance of zinc alloy can be electroplated in various colors. The base of the Waterproof indicator lights is made of PC and nylon PA66 materials, which can withstand a temperature of 160 degrees. The environment where it is used is usually between minus 40 and 80 degrees.

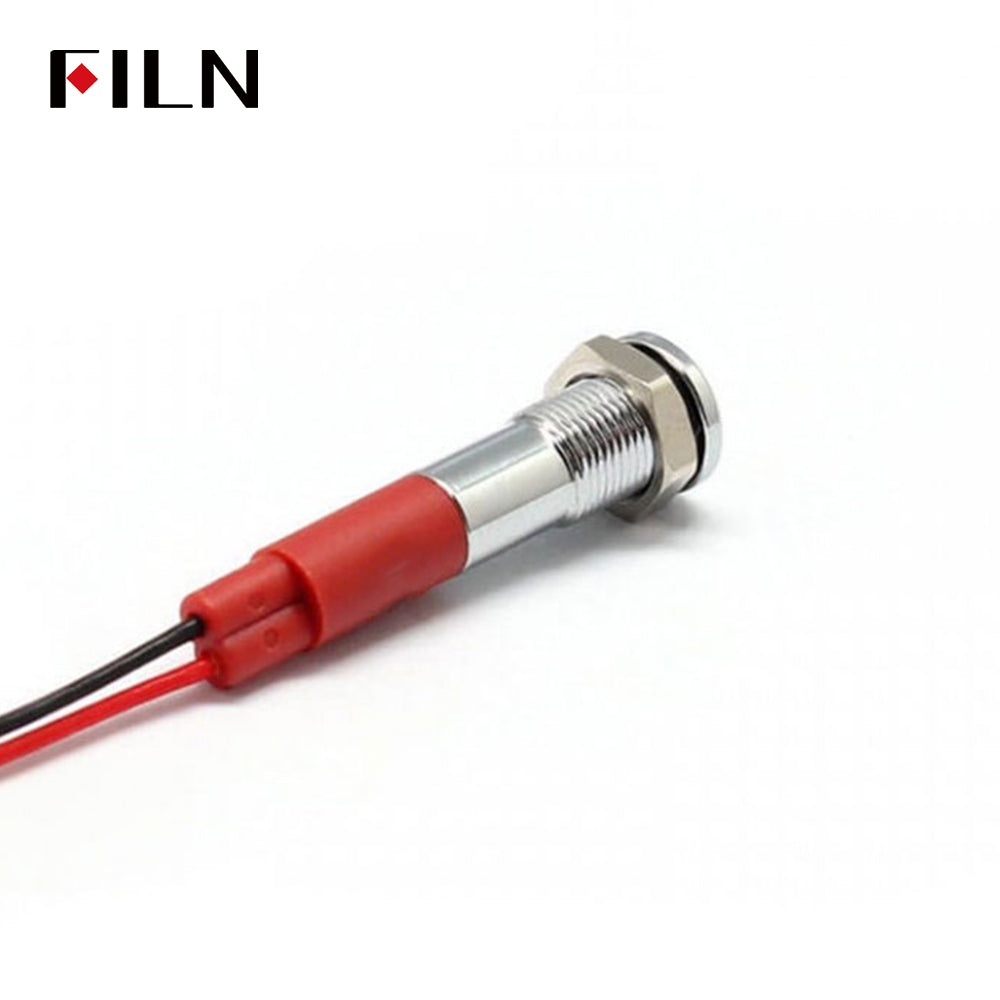

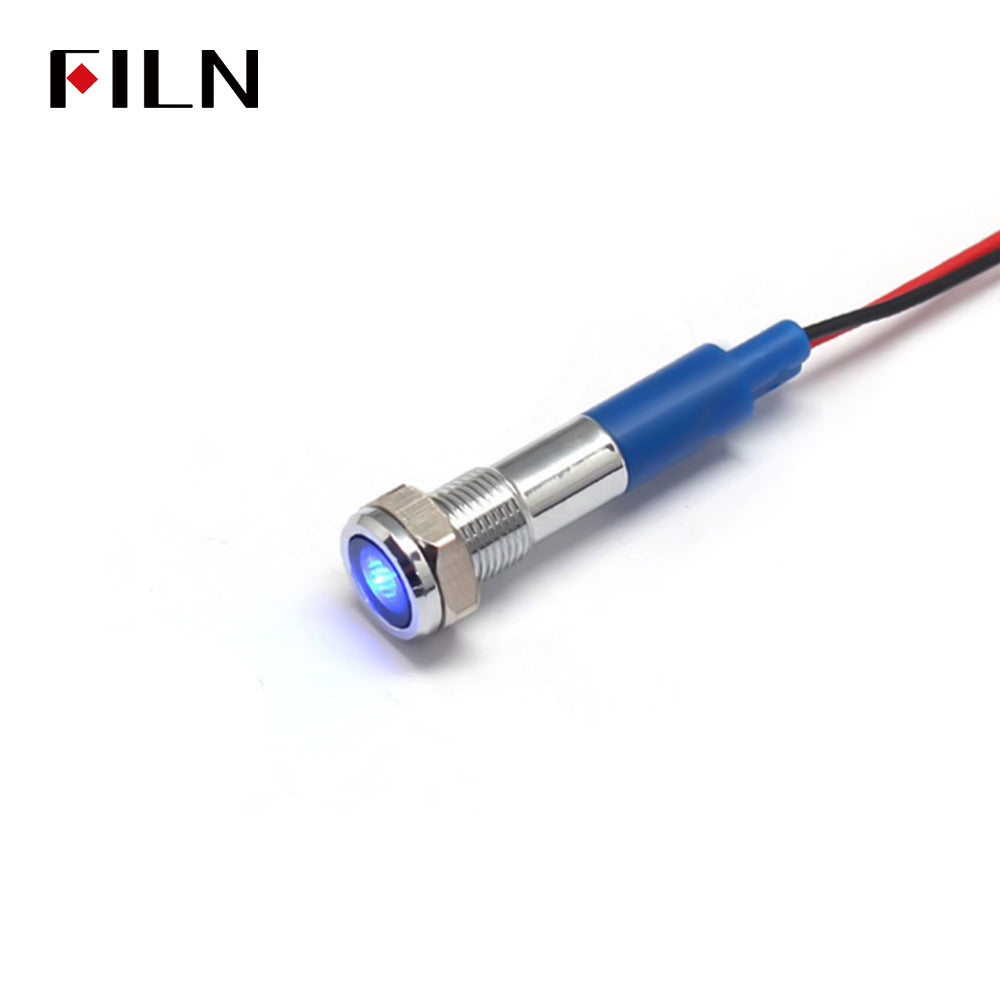

5. There are three ways to connect the mini indicator light: pin, wire and pin. The 6mm indicator light in the picture is a direct wire connection, the wire gauge is AWG24, Teflon wire, and the wire length is usually 20cm. For the time being, the 6mm 24V indicator light can only be connected with wires and pins. The size of 8mm or more can be used for pin connection, the size of the pin is usually 2.8*0.5mm, and the larger size is 6.3*0.8mm.
6. 6volt LED indicator lights have passed the US UL, CE, ROSH and other certifications. These international certifications have proved the international standards for the various functional symbols of the 24v indicator light, ensuring the quality, and can also be sold and used in the US and European markets.

How to wire 6mm metal indicator light ?

The wiring of metal indicator lights is very simple, it only has two light wires, and our lamp beads do not distinguish between positive and negative poles, so just connect one wire to the positive pole of the power supply and the other wire to the negative pole of the power supply. The light can work.

What are the advantages of FILN's production of Waterproof indicator lights?

1.  We are a manufacturer and have sufficient material inventory, so the delivery time is very fast. 1000 indicator lights can be completed within 5 days.
2.  The relevant certificates, specifications and other materials are very complete and can be provided quickly.
3.  There is no minimum order quantity requirement.
4. The development speed is fast. FILN has a professional engineer team for R&D and design of ship-type switches, as well as a professional engineer team for producing indicator molds. The design of Waterproof indicator lights and mold development are basically completed within 30-40 days.
5.  Have warranty service and after-sales service.

Where are waterproof indicator lights used?

Waterproof indicator lights are mostly used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion televisions, coffee makers, power strips, massage machines, etc., mainly in household appliances and kitchen equipment.

How to buy 6mm metal indicator light?

You can buy our products directly online, such as Alibaba, or buy this 24v indicator lights through offline email communication. The single weight of this model is about 0.01 kg. According to the number of customers, the transportation method of express or sea and air can be determined. The quantity of one box is 2000. If you need samples to test, we can provide samples for free.

The 24v indicator lights launched by Yulin Electronics are competitive in price in the same industry and have the most complete styles. Yulin Electronics has been widely praised at home and abroad for its product quality assurance. If you need our products, are interested in our products, want samples, etc., please contact us directly.
