FILN 16MM copper core feet short push button switch

Voltage
Function

Description

  • 100% money back guarantee
  • Quickly customize products in 21 days
  • Fast delivery

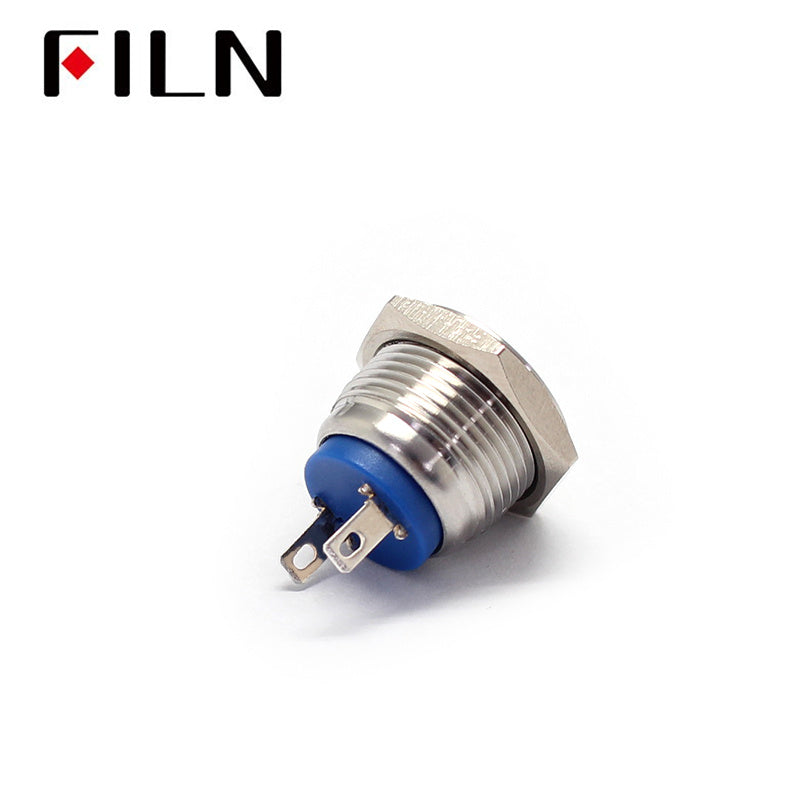

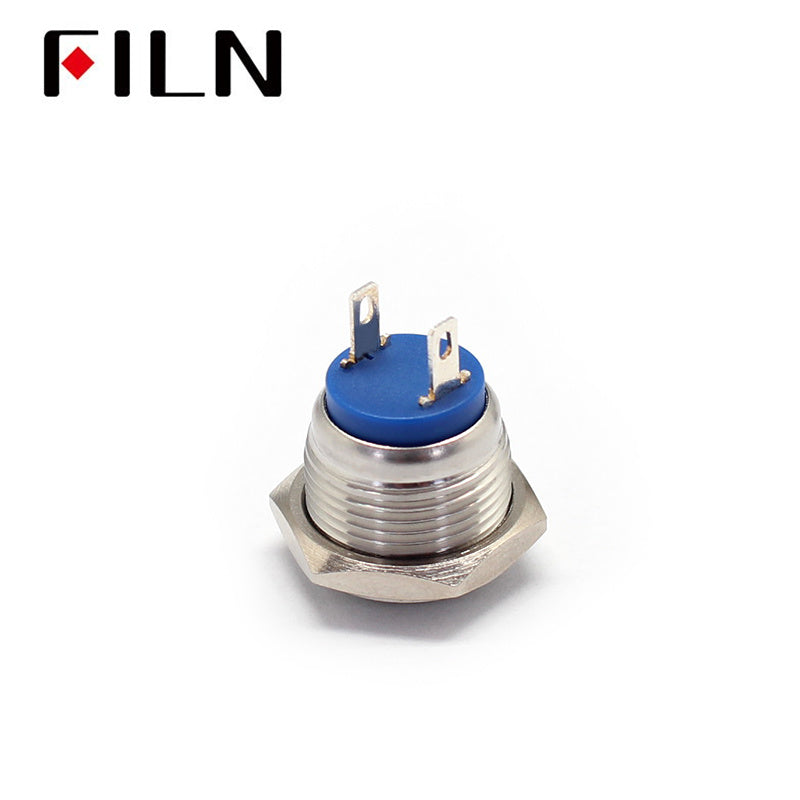

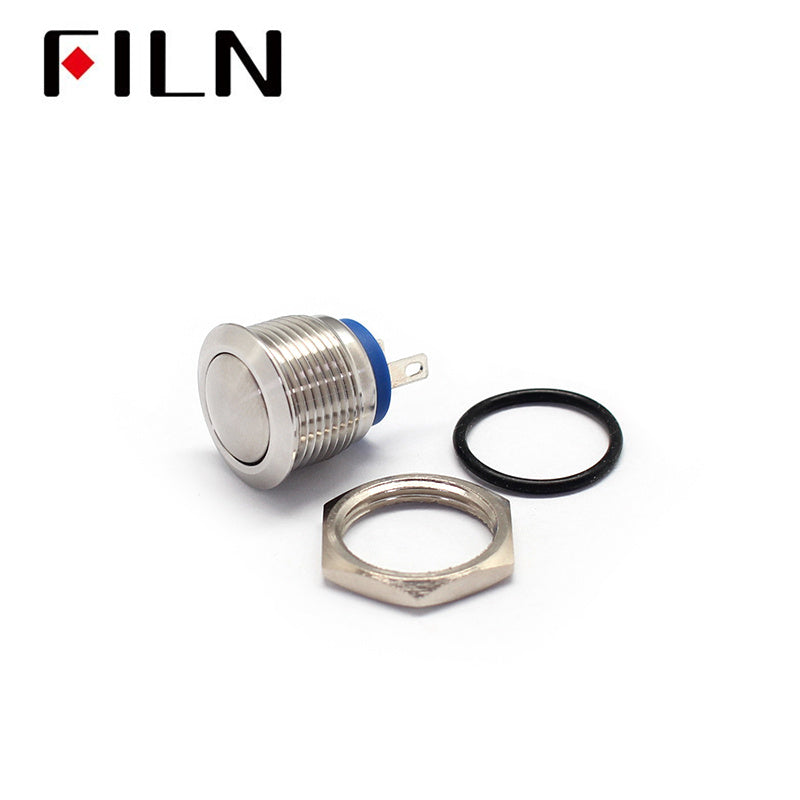

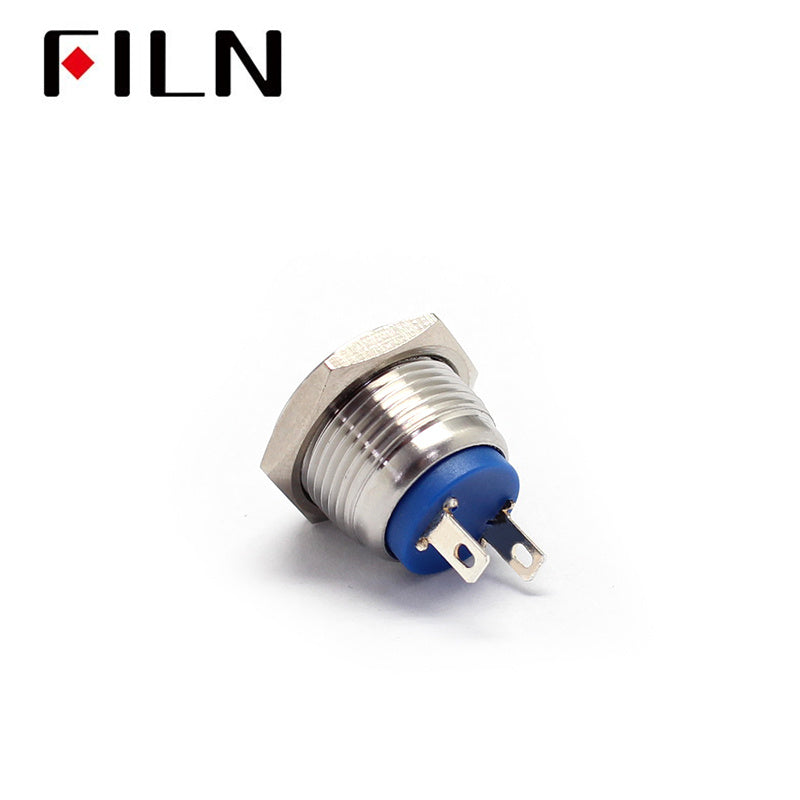

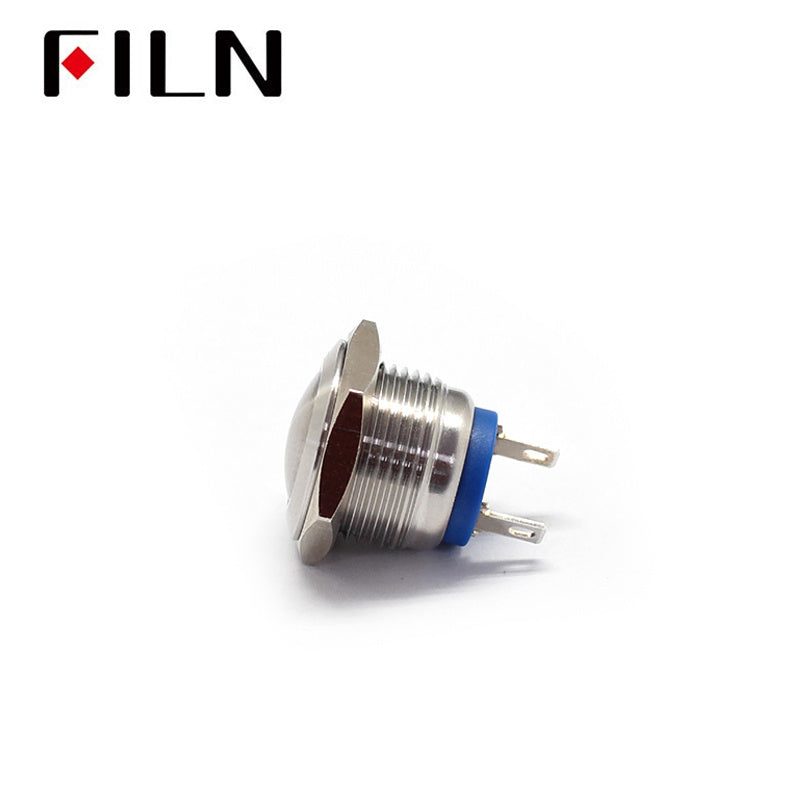

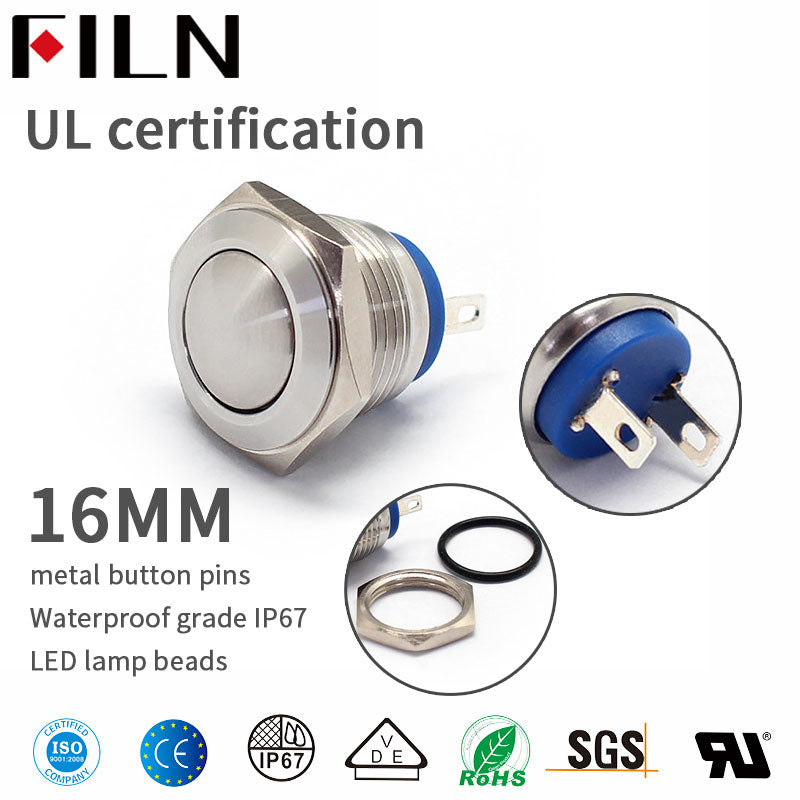

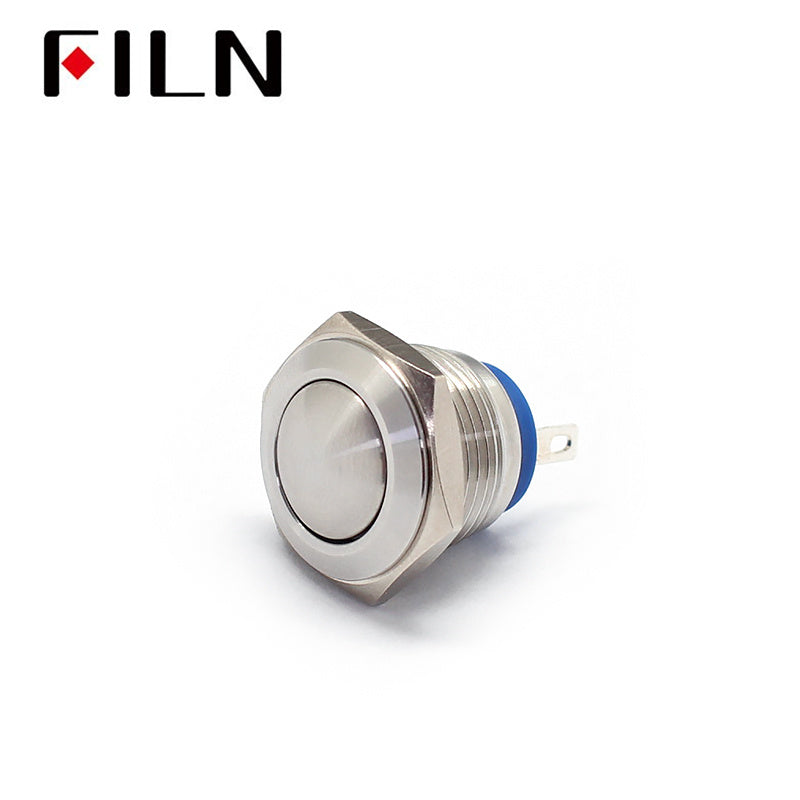

FLM16-10FSM Push Button Switch Product Introduction

The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.

The waterproof rating of the push button switch is IP67, and the mounting hole size is 16MM.

The voltage of the push button switch can be 12V, 36V, 48V, etc.



Production series FLM16-10FSM Light guide button
button shape round actuator 304 Stainless steel
button led color Housing sleeve H59 nickel plated brass/304Stainless steel
Mechanical life The 500 thousand time Button pin H62 copper alloy
electrical life The 100 thousand time rubber ring SIL silica gel
protection level IP65 IK08 nut H59 nickel plated brass
Rated voltage 36V(DC) 250(AC) housing PA66+GF20% nylon
rated current 2A(DC)0.5A(AC) Light source
rated power 72W(DC)125W(AC) Resistor
Operating temperature -25℃~+85℃ contact AgCdO12
FILN 16MM cheap price copper core feet short push button switch
