FILN 6MM 12Volt Indicator Light Concave Head Mini LED Indicator Lamp Lights

  Component Material Component Name Material Shell Copper Alloy Lamp Holder PA66 Lens PC Luminescent Source LED...
$0.96
$0.96
Please hurry! Only 1000 left in stock
Material: Silver Shell

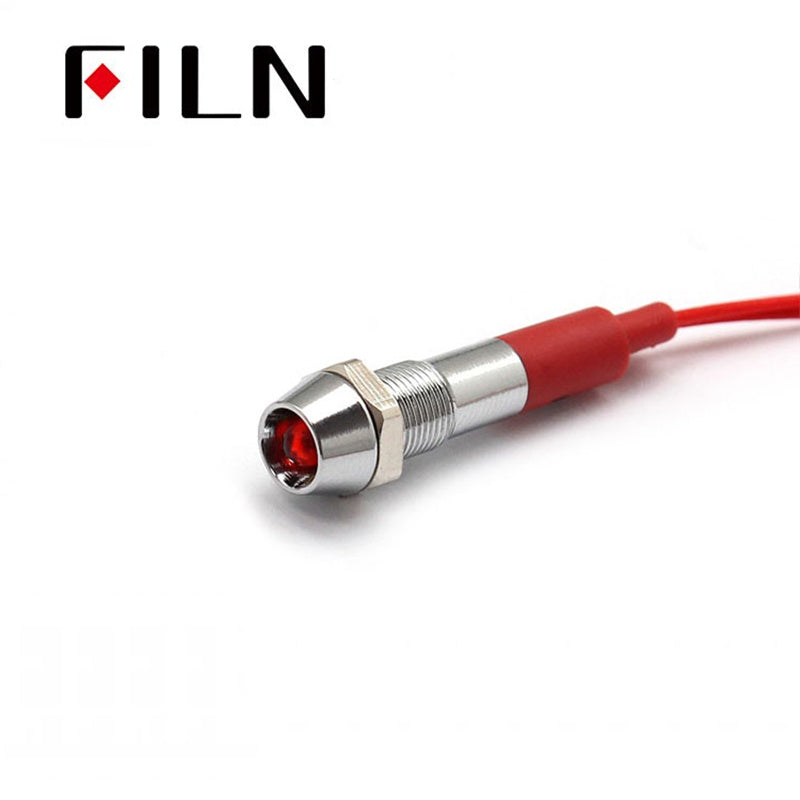

Light Color: RED
Voltage: 12V-24V
Subtotal: $0.96
10 customers are viewing this product

Shipment by DHL

Enjoy points to reduce shipping fees

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

FILN 6MM 12Volt Indicator Light Concave Head Mini LED Indicator Lamp Lights

FILN 6MM 12Volt Indicator Light Concave Head Mini LED Indicator Lamp Lights

$0.96

FILN 6MM 12Volt Indicator Light Concave Head Mini LED Indicator Lamp Lights

$0.96
Material: Silver Shell
Light Color: RED
Voltage: 12V-24V



Component Material

Component Name Material
Shell Copper Alloy
Lamp Holder PA66
Lens PC
Luminescent Source LED
Resistance Carbon Film Resistance
Wire Leading PVC
Nut Copper Alloy
O-ring Silica Gel
Gasket Iron (A3 Steel)

Performance Parameter

Item Parameter
Voltage 3–250V
Rated Current 20mA
Rated Power 0.2W
Insulation and
Voltage Resistance
2000V / 10s
Working Life 100,000h
Cold-Resistant -40℃
Heat-Resistant 80℃



12volt led indicator light

What is a 12volt led indicator light?

The indicator lamp refers to a device that uses light to monitor the operation or position status of circuits and electrical equipment. The indicator lamp is usually used to reflect the working state of the circuit (charged or uncharged), the working state of electrical equipment (running, stopping or testing) and the position state (closed or disconnected). Low-voltage power distribution devices are usually installed on the screen, panel, On the panels of the desks and cabinets, some low-voltage electrical equipment and meters are installed on the panel or other prominent positions to reflect the working status of the equipment. Usually, when the light is on, it means that the device is powered; when the light is off, it means that the device is out of power.




  1. The indicator lamp installation aperture is 6mm, and the installation method is threaded. Install the indicator lamp on the panel, and then screw on the nut. The tail is with a wire, and the conventional wire length is 20cm per wire. We use LED lamp beads of good quality, so the positive and negative poles are not distinguished and can be connected arbitrarily.
  2. 12volt led indicator light voltage range: 3v-220v, commonly used are 6v 12v 24v 110v 220v. The international voltage standard for metal indicator lights is a passing voltage of 1800V, and the test time is 5 seconds.

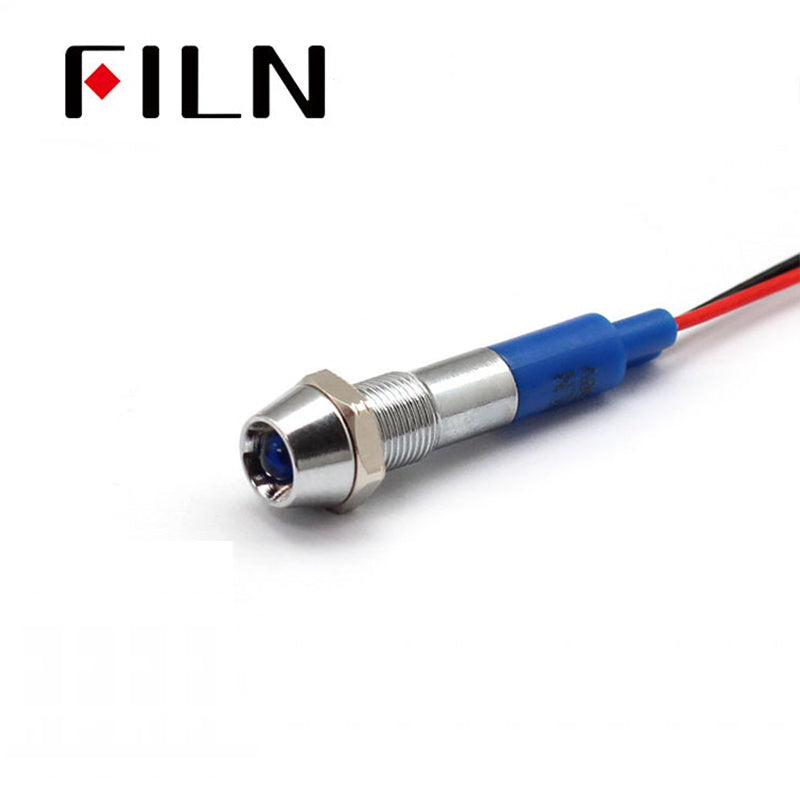

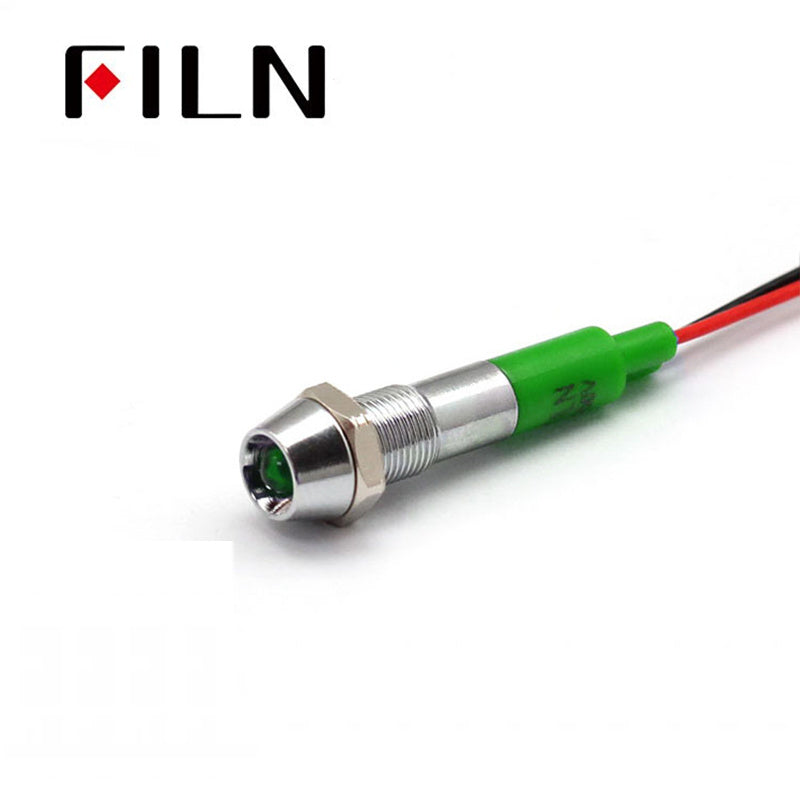

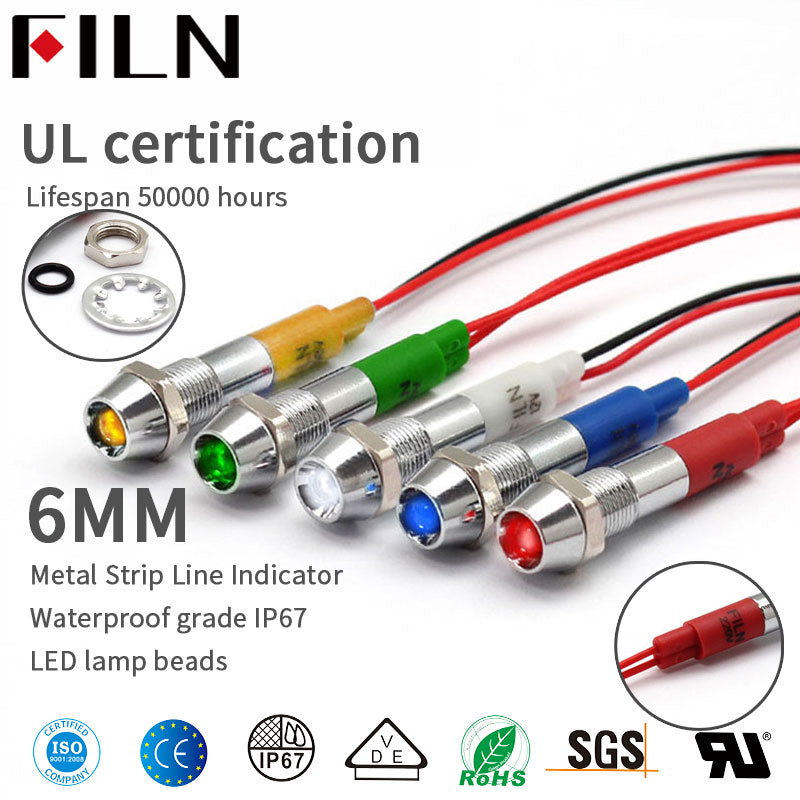

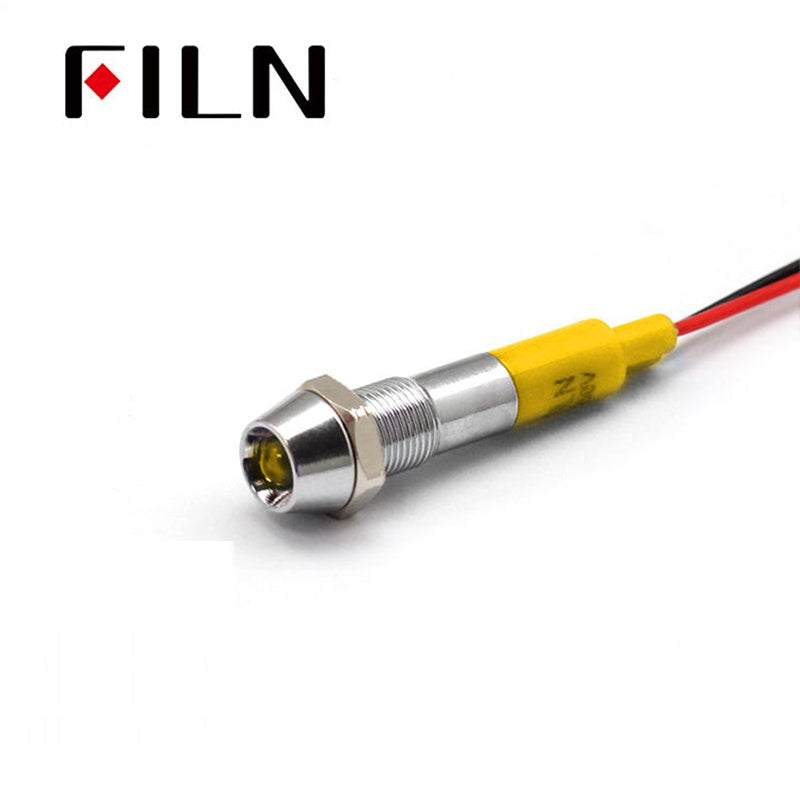

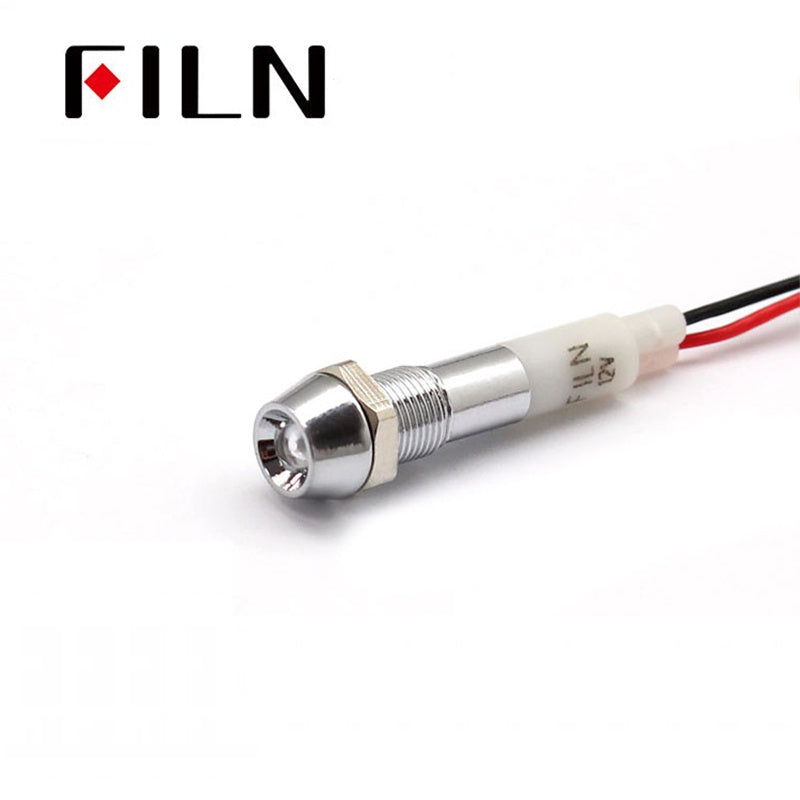

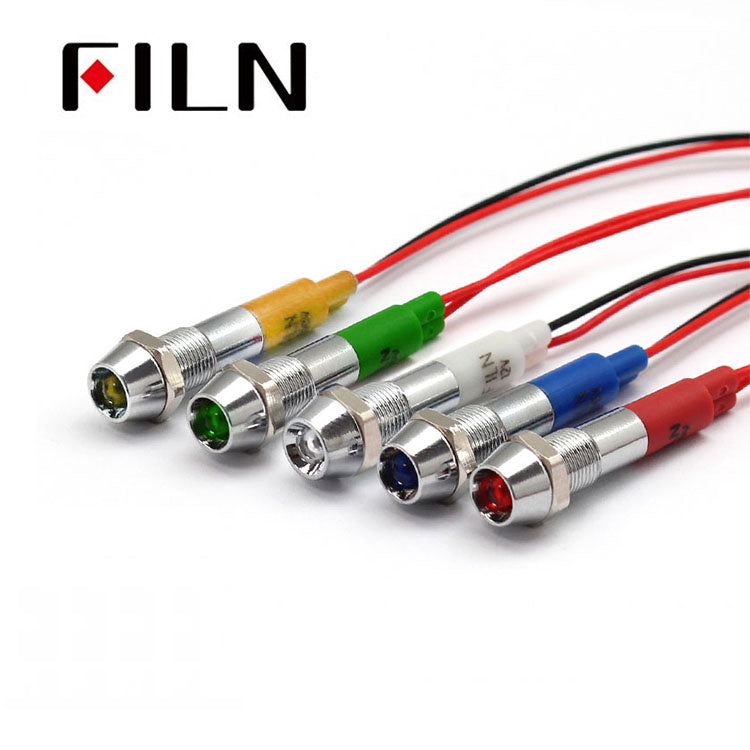

  3. There are mainly 5 colors of MINI led indicator lights, red, yellow, green, blue and white.
  4. 12volt mini led indicator lights component name material
  5. Indicator lamp. There are many types of indicator lamps, such as convex head, concave head, flat head, etc., and the style can also be customized according to personal needs. For details, please refer to www.indicatorlight.com. This is a concave head.

Shade: PC plastic

Metal shell: H59 brass or 204 stainless steel. The metal indicator has explosion-proof function and high-end atmosphere, and is basically used for high-end products. Metal indicator lights are available in copper, stainless steel and zinc alloy aluminum black. Customers on the market usually use copper, stainless steel, especially 316 stainless steel. They are basically used in corrosive environments, such as sea water and Sulfuric acid site. The zinc alloy aluminum black type has a better appearance.

Washer: T10 cold rolled steel plate

Rubber ring: SIL silicone

Nut: H59 nickel-plated brass

Base: PA66 nylon

Light source: led

Resistance: metal film resistor

Cable: pvc cable, the conventional line length is 20cm per line, and the line length can be customized.


How to wire a 12volt led indicator light?

Connect the two wires to the positive and negative poles of the power supply, and the lights will light up. The conventional method is to connect the lights, equipment and power supply in series, so that you can judge whether the equipment is working by turning on or off the lights.




 What are the advantages of FILN's production of 12volt led indicator light?

      1. The 12volt led indicator light produced by FILN has no MOQ. If you need samples to test, we can provide samples for free.
      2. FILN company can provide customized services, increase or decrease the line length, the tail with terminal plastic shell, two-color and three-color 12volt led indicator light, waterproof 12volt led indicator light.
      3. The 12volt led indicator light produced by FILN has CE, ROSH and other international certifications to ensure the quality and consistency of the product.
      4. New12volt led indicator light development is fast. FILN has a professional engineer team for R&D and design of rocker switches, as well as a team of engineers specializing in the production of rocker switch abrasive tools. The design of NEW12volt led indicator light and the development of abrasive tools are basically completed within 30-40 days. .
      5. Quick response to questions, FILN's sales staff are all sales engineers, who can solve and reply to any customer's questions about indicator lights in the fastest time.

 How to buy 12volt led indicator light

You can buy our products directly online, such as Alibaba, or buy this Red indicator light through offline email communication. There is no minimum order quantity requirement.

 The above is the 6 mm FILN 12Volt Red Green White Mini LED Indicator Lamp Lights I brought to you

If you need our products, are interested in our products, want samples, etc., please contact us directly. The email is as follows: Inquiry@cnylin.com.cn
