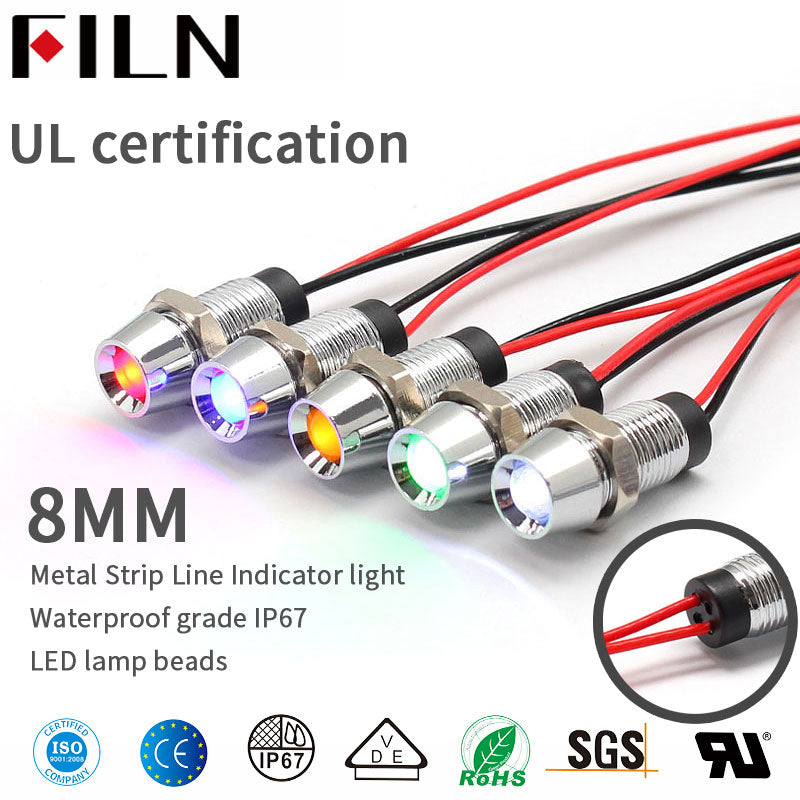

Filn 220Volts And 240Volts 8MM Inverter LED Indicator Lights
220Volts LED indicator light
240Volts LED indicator light
8MM indicator light
220Volts 240Volts indicator light
Waterproof indicator light
  • SKU:
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Filn 220Volts And 240Volts 8MM Inverter LED Indicator Lights

Shipping calculated at checkout.

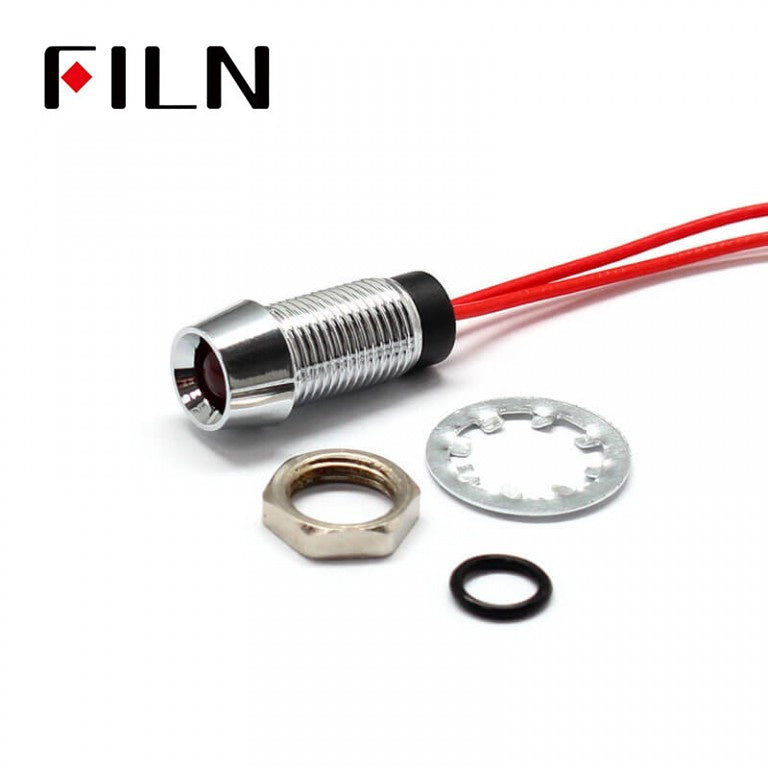

Component name Material
Lens PC Plastic
Metal body H59 Brass or 204 Stainless Steel
Washer T10 Cold Rolled Steel
Rubber ring SIL Silica Gel
Nut H59 Nickel Plated Brass
Housing PA66 Nylon
Light source LED
Resistor Metal Film
Cable PTFE AWG22 0.3mm²
Items Parameter
Rated voltage 3V-780V DC or AC
rated current 20MA
rated power 0.2W
Insulation and voltage resistance 1,800V
working life 100,000h
electrical life 100,000
cold-resistant -40℃
heat-resisting 80℃
Plug-in C2680 Rohs Brass
12 Volts LED Indicator Lights Information
Product Item FL1M-8CW-2
Panel Mount Diameter 8mm
Contact Way With Wire
Install Way Screw Terminal
Lamp Type LED
Rated voltage AC/DC,3V, 6V, 12V, 24V, 220V, 380V
Lamp Color Red, Yellow, Blue, Green, White
Product Design Concave Head
Shell Material Brass Plated Nickel / Stainless Steel
Base Material PA66 Nylon
Terminal Material Brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment, etc.


8MM indicator light

The biggest feature of the 8mm indicator light is that the product is threaded, it is very convenient to install.

The service life will be more longer if use a two-core LED lamp indicator.

 The description of the Filn 220Volts and 240Volts 8MM inverter LED indicator lights

    1. The mounting hole size of the indicator light is 8mm, you can open the hole of 8.02mm in the indicator light panel, then put into the LED indicator light. The product has better effect of waterproof and fixed.
    2. The material of 220 V LED indicator light is brass, but if your usage environment has acidic materials, such as cutting machine installation. We suggest you don’t choose brass because it is prone to corrosion. You can replace the material with stainless steel, which is not easy to corrosion.

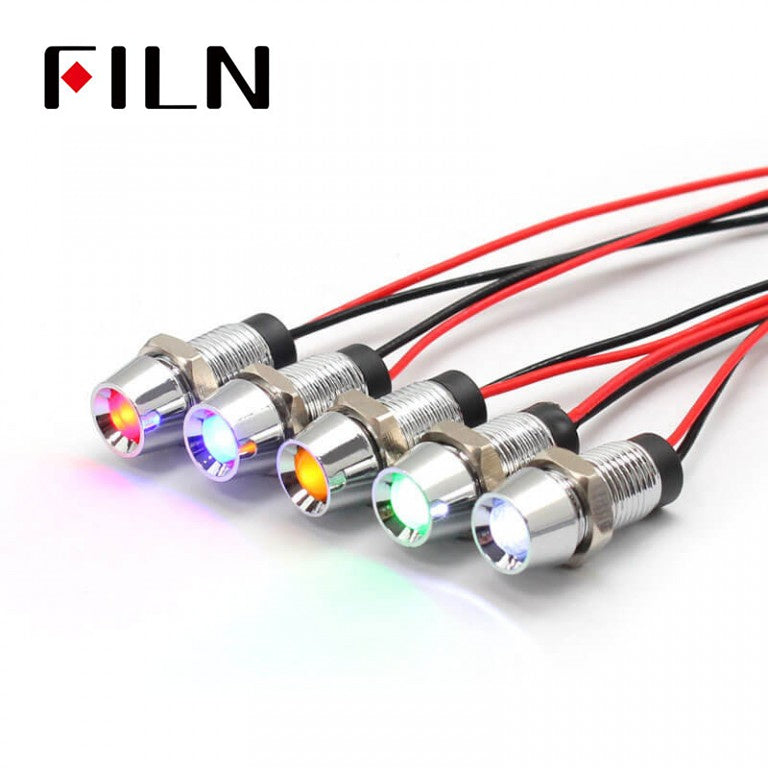

    3. The 240V LED indicator light has many colors, such as red, blue, yellow, green, white. The red indicator light is the most normal and popular.
    4. The waterproof rating of the waterproof indicator light is IP67, it is suitable for outdoors and it can be used in some moisture environment.
    5. The 240V LED indicator light has many voltages, the commonly used is 12V indicator light and 24V indicator light. If you are living in the USA, we recommend you to use 120V indicator light. If you are living in Asia, we recommend you to use 220V indicator light.
    6. The wire of the 8MM indicator light adopts high-temperature resistant and heat-resistant Teflon, such wire can work at 220 degrees. The service life of the 8mm indicator light is 50,000 hours, and the warranty period is 5 years. If you have a problem. We will solve it for you.
    7. The 8mm indicator light had passed the certifications of UL, CE, ROSH, etc., which can ensuring the product’s quality.

 What is a 8MM indicator light ?

The 8MM indicator light means indicator light is installed with a 8mm copper parts, and its light is LED two-core indicator light. We don’t recommend neon bulb since its dark light and short service life.

How to wire a 8mm indicator light ?

The wires of 8mm indicator light are regardless of positive and negative poles. You just need to connect the wire with the positive or negative pole, the indicator light will emit light. Please watch the video below.

The advantages of LED indicator light produced by Filn.

  • There is no MOQ, you can purchase from one piece, we will arrange the delivery for you.
  • As long as you determine the specifications, 1000 pieces will be completed within 3 days.
  • Filn can customize a variety of different 8mm indicator light.
  • Filn has 20 years of import and export experience, the sales team is mostly engineers of 8mm indicator light, they can solve any problems with the indicator lights.
  • Filn has over 20 years of experience in LED indicator light producing, it can avoid many detail problems of 8 mm indicator light.
