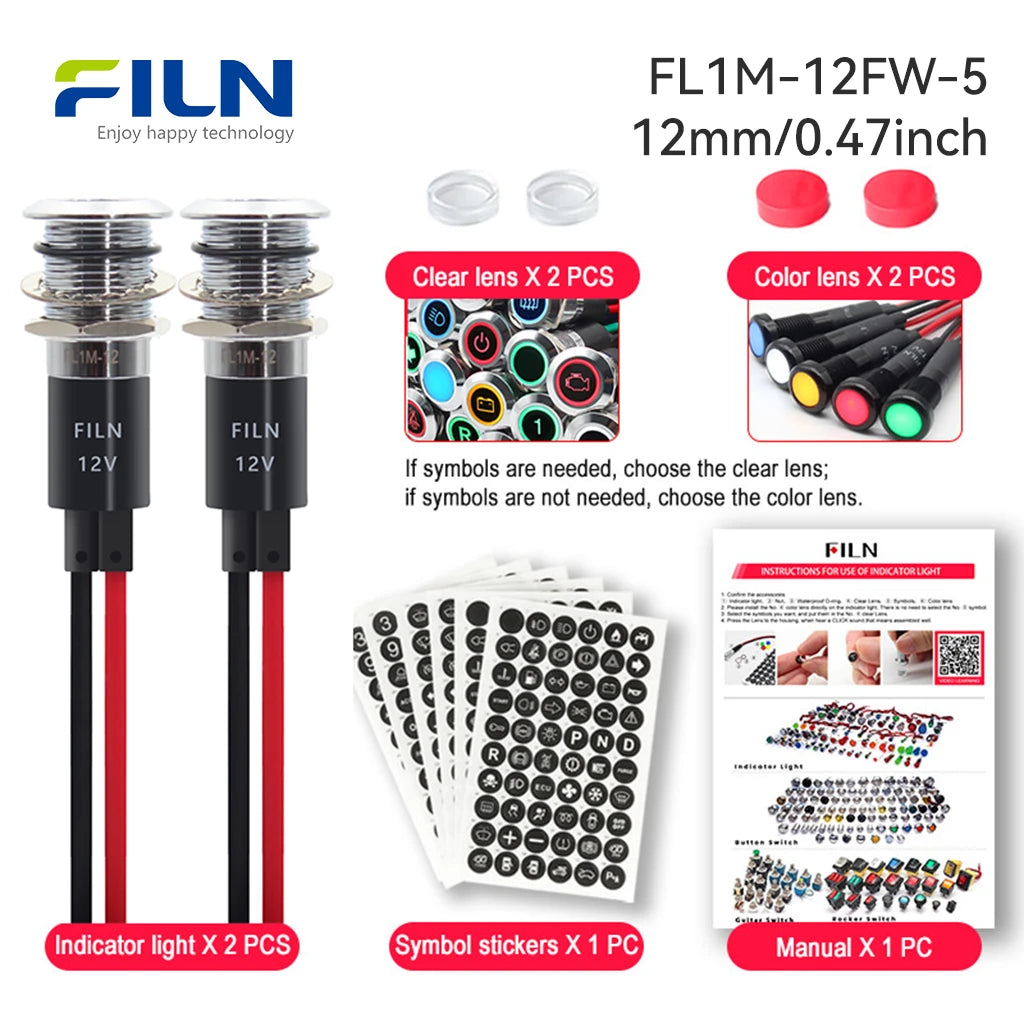

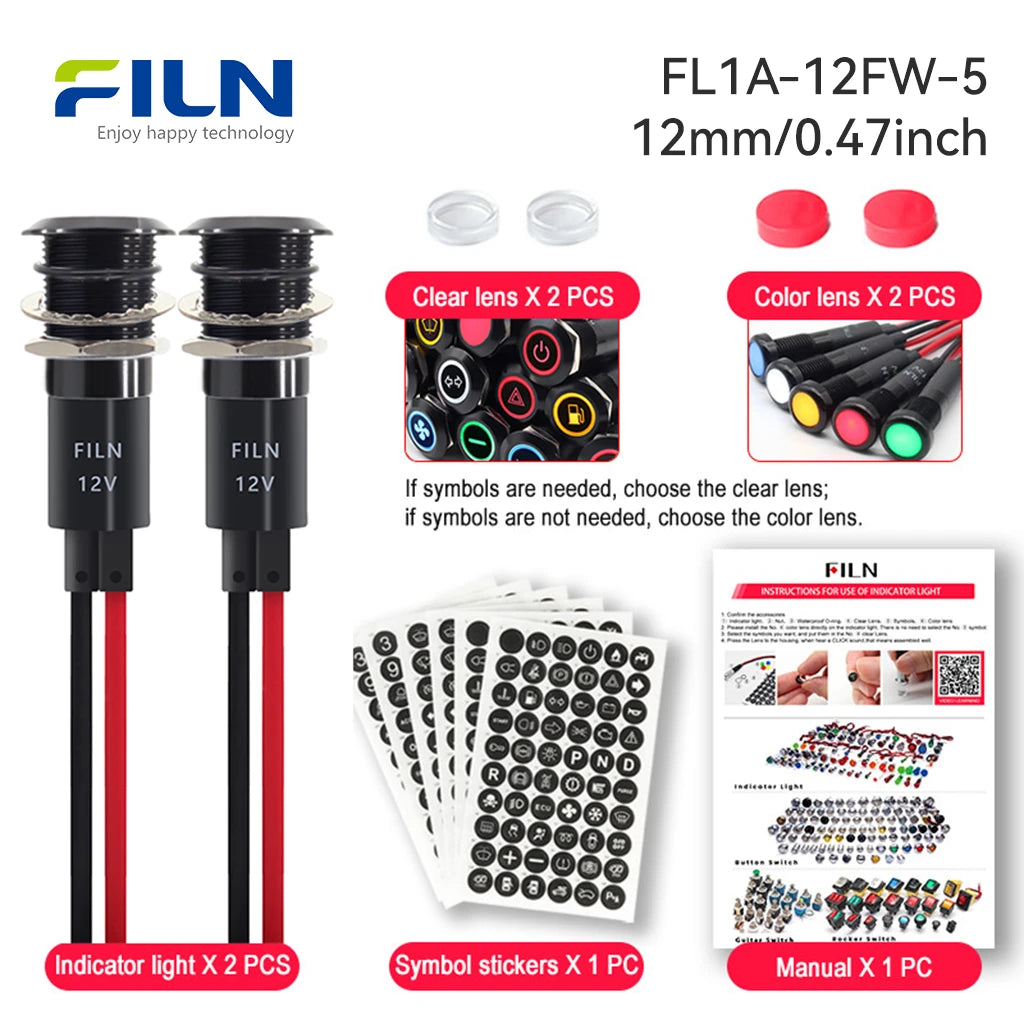

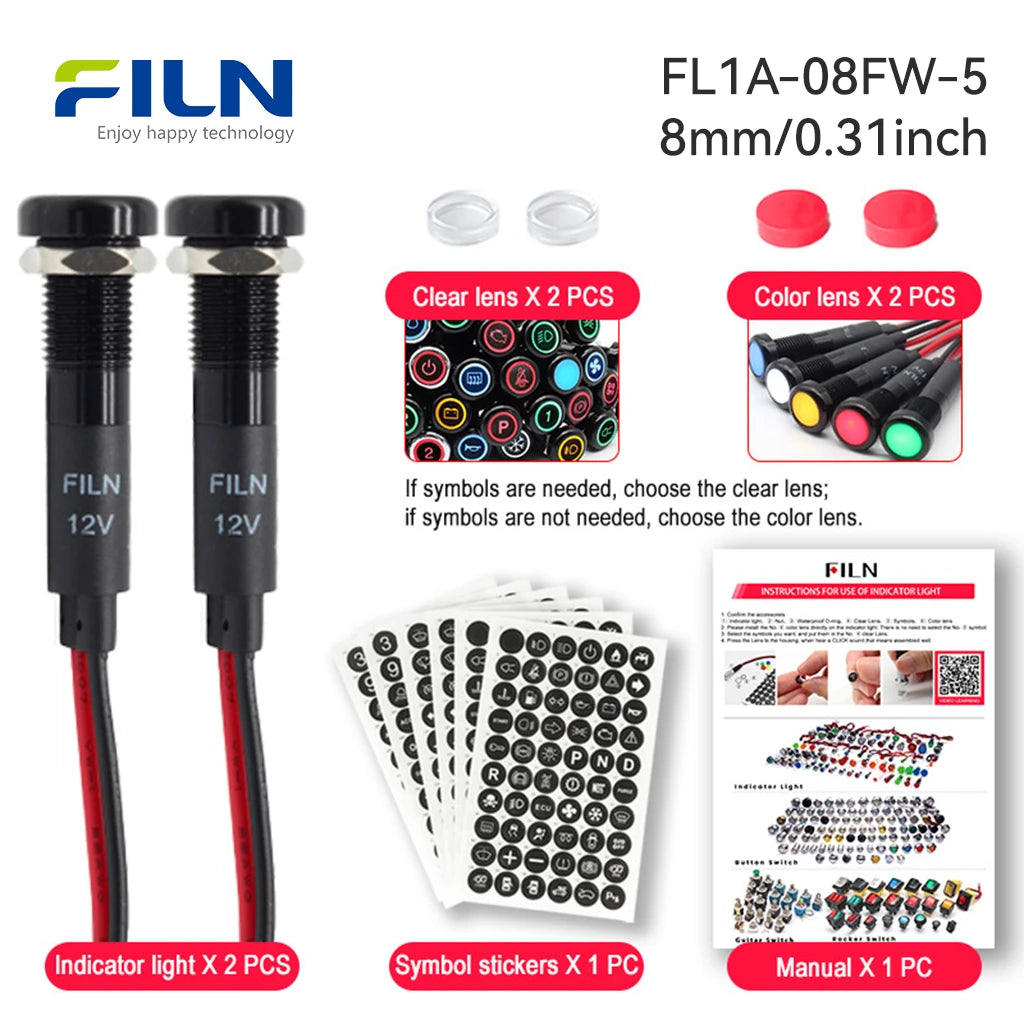

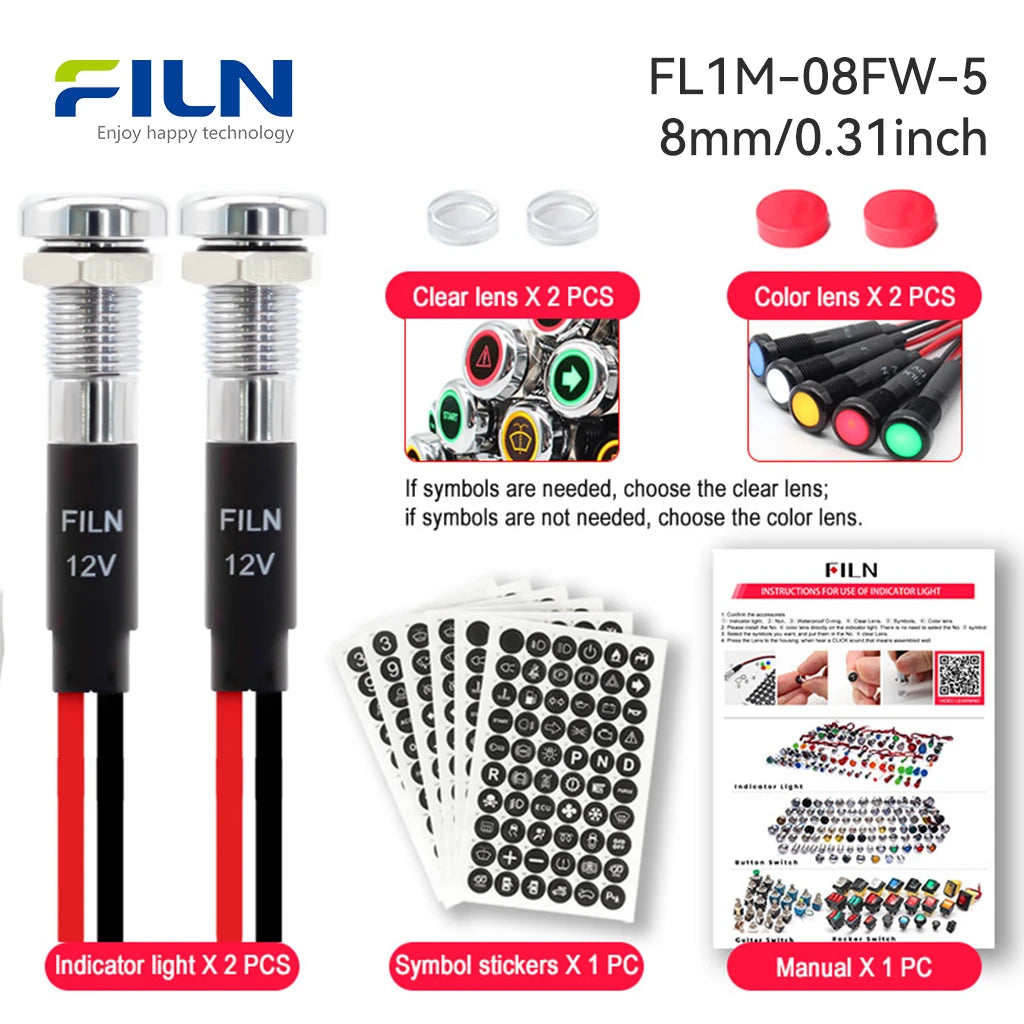

The FILN dashboard indicator lights (Models: FL1M-08FW-5 and FL1M-12FW-5) represent a breakthrough in versatile signaling for the automotive and marine industries. These 8mm and 12mm symbol indicator lights feature a robust metal flat-head design available in silver or black finishes. Engineered for 12-24V systems with customization options, they offer an IP67 waterproof rating and a unique non-polar LED bead for effortless wiring. The core innovation lies in the 185 replaceable symbol stickers included, allowing users to quickly swap icons for cars, yachts, or industrial panels using the provided transparent covers and specialized tools.
Quick Specifications
| Mounting Hole | 8mm (0.31") / 12mm (0.47") |
|---|---|
| Voltage | 12V-24V (Support Customization) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | Pre-wired Lead Type |

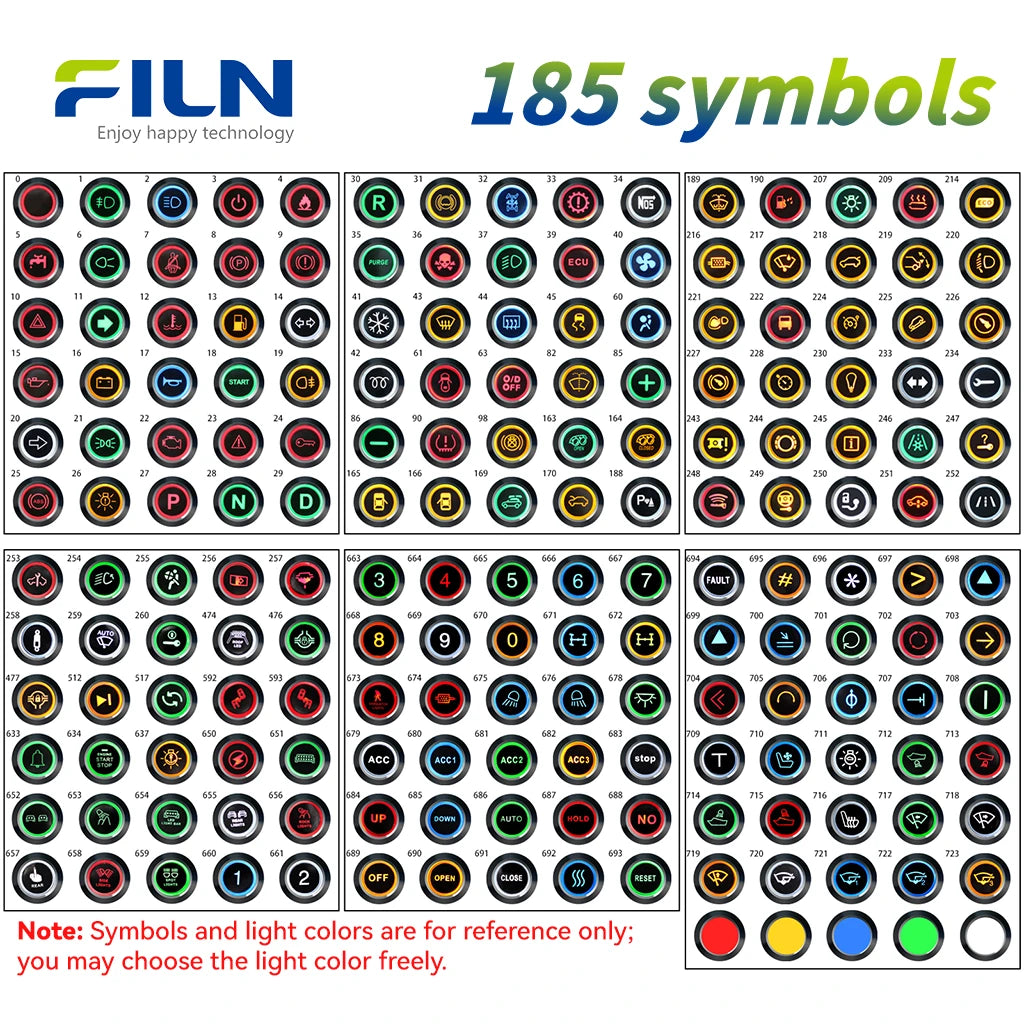

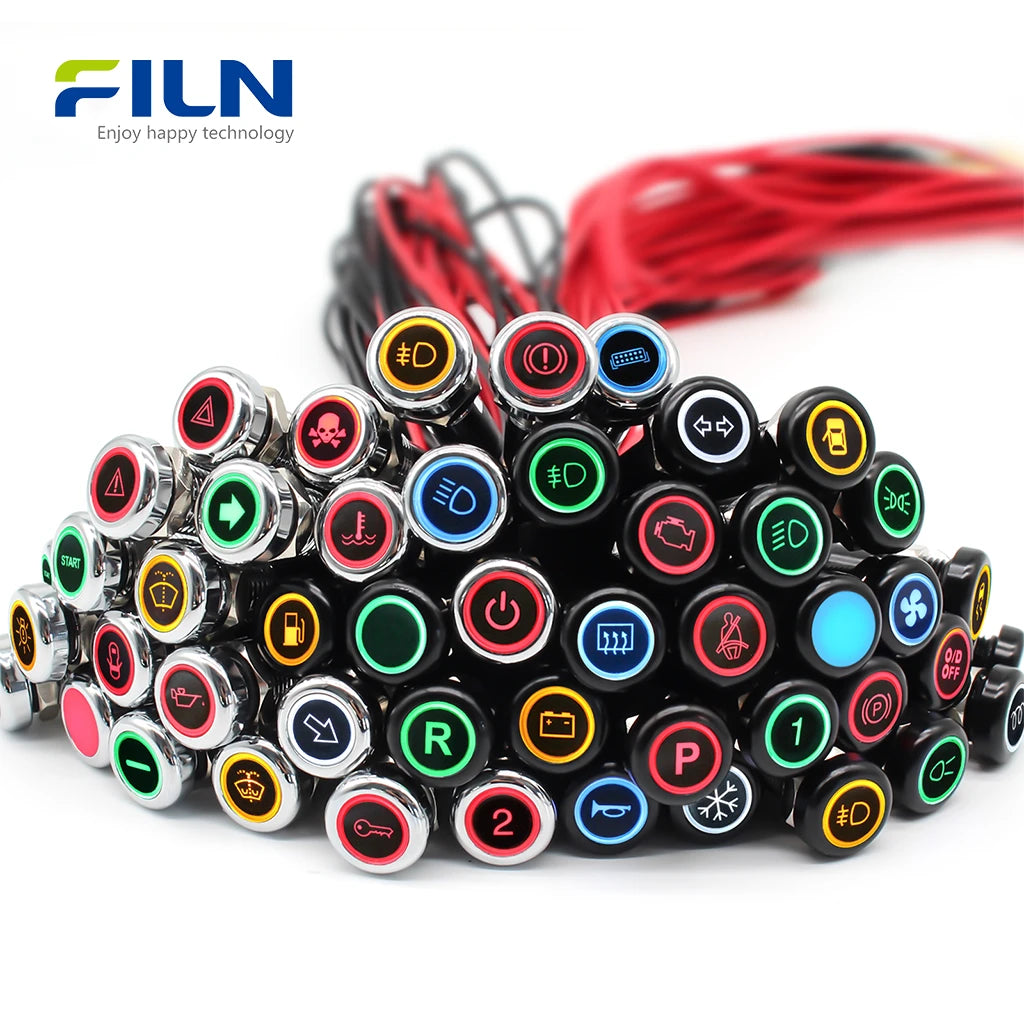

185 Indicator Symbols Reference Table
| Code | Symbol Name | Detailed Explanation |
|---|---|---|
| 0 | Ring | Generic circular indicator, often used for halo lighting or a generic notification bell. |
| 1 | Fog light (front) | Indicates that the front fog lamps are active, improving visibility in mist or fog. |
| 2 | Main beam headlights | High beam indicator; signals that the long-range, high-intensity headlights are on. |
| 3 | Power | Universal power symbol indicating the system is energized, active, or in standby mode. |
| 4 | Flame | Indicates ignition, high temperature, or active burner status in heating systems. |
| 5 | Water-tap | Indicates water flow, fluid supply status, or manual valve control. |
| 6 | Car light | General master switch indicator for the vehicle's entire exterior lighting system. |
| 7 | Seat belt | Safety alert indicating a passenger or driver has not fastened their seatbelt while the vehicle is moving. |
| 8 | Parking brake light | Signals that the manual handbrake or electronic parking brake is currently engaged. |
| 9 | Brake lights warning | Warning that one or more of the exterior brake lamps are malfunctioning or have failed. |
| 10 | Hazard | The double-triangle symbol for hazard warning flashers, used to indicate a stationary or distressed vehicle. |
| 11 | Turn arrow signal | Visual feedback for the left or right directional blinkers during lane changes or turns. |
| 12 | Temperature warning | Critical alert that engine coolant temperature is too high, risking engine overheating. |
| 13 | Low fuel | Alerts the driver that the fuel level has reached the reserve threshold; refilling is required. |
| 14 | Direction indicators | System status for turn signals and hazard light functionality. |
| 15 | Oil pressure low | Serious warning indicating insufficient oil pressure, which can cause immediate engine failure. |
| 16 | Battery warning | Indicates the charging system is faulty; the vehicle is operating only on stored battery power. |
| 17 | Horn | Status or control indicator for the vehicle's audible warning device. |
| 18 | Start | Indicates the ignition start-up sequence or the engine start/stop button. |
| 19 | Fog light (rear) | Indicates the high-intensity rear fog lamp is on to increase visibility for trailing vehicles. |
| 20 | Turn arrow signal | Secondary directional indicator for vehicle turn signals. |
| 21 | Side information light | Indicates the status of side marker lamps or parking lights. |
| 22 | Engine warning | The Check Engine Light (MIL); signals a fault detected in the engine management or emissions system. |
| 23 | Attention danger | General master warning symbol indicating a significant system fault requiring immediate check. |
| 24 | Key | Security or immobilizer system indicator; flashes if the authorized key is not detected. |
| 25 | ABS | Anti-lock Braking System warning; indicates a fault that might cause wheels to lock during hard braking. |
| 26 | Exterior light fault | Generic alert that an exterior bulb (headlight, tail light, etc.) has burned out. |
| 27 | Parking | Status indicator for parking modes, electronic parking brakes, or park-assist. |
| 28 | Neutral | Indicates the transmission is in the Neutral (N) position. |
| 29 | Forward gear | Indicates the transmission is in Drive (D) or a forward-motion gear. |
| 30 | Reverse gear | Indicates the transmission is in Reverse (R); typically activates the backup camera. |
| 32 | 4X4 four-wheel drive | Indicates that the 4WD or All-Wheel Drive system is engaged for extra traction. |
| 33 | Gearbox warning | Alerts to a malfunction or overheating within the automatic or manual gearbox. |
| 34 | Nitrous Oxide Acceleration System | Status of the Nitrous Oxide (NOS) system, indicating readiness for acceleration boost. |
| 35 | PURGE | Used to clear lines in performance systems or purge pollutants in HVAC contexts. |
| 36 | Skull | Extreme danger symbol, used for toxic substances or critical system failure warnings. |
| 37 | Dipped beam headlights | Low-beam headlight indicator; the standard setting for night driving in traffic. |
| 39 | ECU | Engine Control Unit status; signals errors in the vehicle's onboard computer processing. |
| 40 | Fan | Status of the engine cooling fan or the cabin ventilation blower. |
| 41 | Winter mode | Adjusts transmission and throttle behavior to prevent wheel slip on snow or ice. |
| 42 | Glow plug/diesel pre-heat | Specific to diesel engines; indicates the combustion chamber is being pre-heated for starting. |
| 43 | Windscreen defrost | Activates maximum airflow to the front windshield to remove ice or condensation. |
| 44 | Rear window defrost | Turns on the heating elements in the rear glass to clear frost or fog. |
| 45 | Stability control off | Indicates that the Electronic Stability Control (ESC/ESP) has been manually disabled. |
| 60 | Airbag warning | Signals a fault in the airbag system; airbags may not deploy correctly in an accident. |
| 61 | Door open | Alerts that a vehicle door is not securely shut. |
| 63 | Over-Drive OFF | Indicates the highest gear (Overdrive) is disabled for better engine braking or towing. |
| 82 | Insufficient cleaning fluid | Low windshield washer fluid level. |
| 85 | Plus | Control button for increasing values like cruise control speed or audio volume. |
| 86 | Minus | Control button for decreasing values like cruise control speed or audio volume. |
| 90 | Tyre pressure low | TPMS alert; indicates one or more tires are significantly under-inflated. |
| 98 | Brake lights warning | Alternative code for a detected fault in the brake light circuit. |
| 163 | Open the exhaust | Control to open active exhaust valves for a louder engine note. |
| 164 | Close the exhaust | Control to close active exhaust valves for quieter, more efficient operation. |
| 165 | Right door not closed | Specific warning for the front or rear right passenger doors. |
| 166 | Left door not closed | Specific warning for the front or rear left passenger doors. |
| 169 | Convertible roof warning | Indicates the motorized roof is in operation or has a locking fault. |
| 170 | Bonnet open | Visual alert that the engine hood is not fully closed. |
| 188 | Parking assist | Indicates that proximity sensors or the automated parking system is active. |
| 189 | Insufficient cleaning fluid | Redundant indicator for low washer fluid. |
| 190 | Water in filter | Alerts that water has contaminated the fuel filter and must be drained immediately. |
| 207 | Sidelight information | Confirms that side marker or parking lights are switched on. |
| 209 | Catalytic converter warning | Warning for catalyst overheating or damage, which affects vehicle emissions. |
| 214 | ECO | Indicates the vehicle is in fuel-saving / economy mode. |
| 216 | Diesel particulate filter | DPF warning; the filter is full of soot and requires a high-speed driving cycle to clean. |
| 217 | Rain sensor | Status for the automatic rain-sensing wiper system. |
| 218 | Boot open | Signals that the rear trunk or tailgate is open. |
| 219 | Rear spoiler warning | Indicates a fault in the active aerodynamic spoiler/wing system. |
| 220 | Headlight range control | Status for the automatic leveling of the headlight beams. |
| 221 | Rain and light sensor | Indicates the combined sensor for auto-lights and auto-wipers is functioning. |
| 222 | Distance warning | Alerts the driver that they are following the vehicle ahead too closely. |
| 224 | Speed limiter | Indicates that a driver-set maximum speed limit is active. |
| 230 | Light failure | Generic warning for any exterior bulb failure. |
| 233 | Direction indicators | General status for turn signals. |
| 234 | Fault problem | A master fault indicator for various minor or major system errors. |
| 243 | Power steering warning | Indicates a failure in the power steering assistance system, making steering difficult. |
| 244 | Brake pad warning | Indicates that brake pads are worn down to their wear sensors and require replacement. |
| 245 | Information indicator | Indicates a new message or notification is available on the vehicle's dashboard display. |
| 246 | Frost warning | Alerts to low outdoor temperatures where black ice may form on the road. |
| 247 | Key not in vehicle | Flashes if the smart key is taken out of the vehicle while the engine is running. |
| 248 | Key fob battery low | Reminder to replace the battery in the remote keyless entry fob. |
| 249 | Steering lock warning | Indicates an issue with the electronic steering column lock mechanism. |
| 250 | Trailer tow hitch warning | Indicates a fault in the trailer hitch lock or electrical connection. |
| 251 | Air suspension warning | Indicates a fault in the vehicle's air bellows, compressor, or leveling system. |
| 252 | Lane departure warning | Visual alert for the system that monitors the vehicle staying within lane markings. |
| 253 | Service required | Maintenance reminder indicating the car is due for an oil change or inspection. |
| 254 | Adaptive lighting | Indicates the cornering lights or auto-high beams are active. |
| 255 | Airbag deactivated | Confirms the passenger side airbag is turned off, usually for a child seat. |
| 256 | Dirty air filter | Signals that the engine's air intake filter is clogged and needs cleaning/replacement. |
| 257 | Fuel filter warning | Indicates a blockage or service need in the fuel filtration system. |
| 258 | Suspension dampers | Shows the current setting (Sport/Comfort) or a fault in adjustable shock absorbers. |
| 259 | Auto windscreen wiping | Indicates the wipers will automatically activate when rain is detected. |
| 260 | Ignition switch warning | Indicates a fault in the ignition barrel or electronic starting system. |
| 474 | ROOFD LED | Indicator for roof-mounted auxiliary LED lights. |
| 476 | Front differential lock | Off-road feature that forces front wheels to turn at the same speed for grip. |
| 477 | Rear differential lock | Off-road feature that locks rear wheels together for improved traction. |
| 512 | Play and pause | Control for media playback functions. |
| 517 | Cycle | Toggles between different modes or repeat functions. |
| 592 | Left blind spot monitoring | Alerts the driver to a vehicle detected in the left blind spot area. |
| 593 | Right blind spot monitoring | Alerts the driver to a vehicle detected in the right blind spot area. |
| 633 | Door bell | Status for a call chime or external notification. |
| 634 | Engine start/stop | Indicates the status of the automatic engine shut-off feature used at stops. |
| 637 | Light error | General fault in the vehicle lighting circuitry. |
| 650 | Lightning | Warning for high voltage or fast-charging status. |
| 651 | LED LIGHT BAR | Control for auxiliary high-intensity off-road lighting. |
| 652 | REAR | General indicator for rear-facing accessories or functions. |
| 653 | ROCK LIGHTS | Indicates under-chassis lighting is on, used for night-time off-roading. |
| 654 | ROOF LED | Redundant indicator for roof-mounted lights. |
| 657 | Finger | Indicates touch sensor activity or biometric recognition. |
| 658 | SIDELIGHTS | Parking lights or position lamps status. |
| 659 | SPOT LIGHTS | Auxiliary high-beam spotlight indicator. |
| 660-670 | Numbers 0-9 | Numerical indicators for presets, gears, or input codes. |
| 663 | Sasquatch lights | Specialized off-road lighting (common in Bronco Sasquatch packages). |
| 669 | Off | General status indicating a system is deactivated. |
| 670 | Next | Media or menu control to advance to the next item. |
| 672 | Glass heating function | Indicates defogging/defrosting for mirrors or windows is active. |
| 678 | Headlamp | General indicator for main headlights. |
| 679 | ACC | Adaptive Cruise Control or Accessory power mode. |
| 683 | STOP | Emergency stop or brake hold active. |
| 686 | Auto | Indicates a fully automatic operation mode for lights or climate. |
| 693 | Reset | Command to clear data or trip information. |
| 696 | Energy saving mode | Limits performance to extend range or battery life. |
| 710 | Seat ventilation | Indicates that the seat cooling fans are active. |
| 712-715 | Wheel eyebrow lights | Specific status for illumination markers located over each wheel arch. |
| 716 | Seat heating | Indicates that the electric seat warming elements are active. |
| 720-723 | Fuel filter drain | Critical maintenance alert to remove water/contaminants from fuel. |
Rated Working Parameters
| Rated Voltage | Customized (3V-380V available) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |

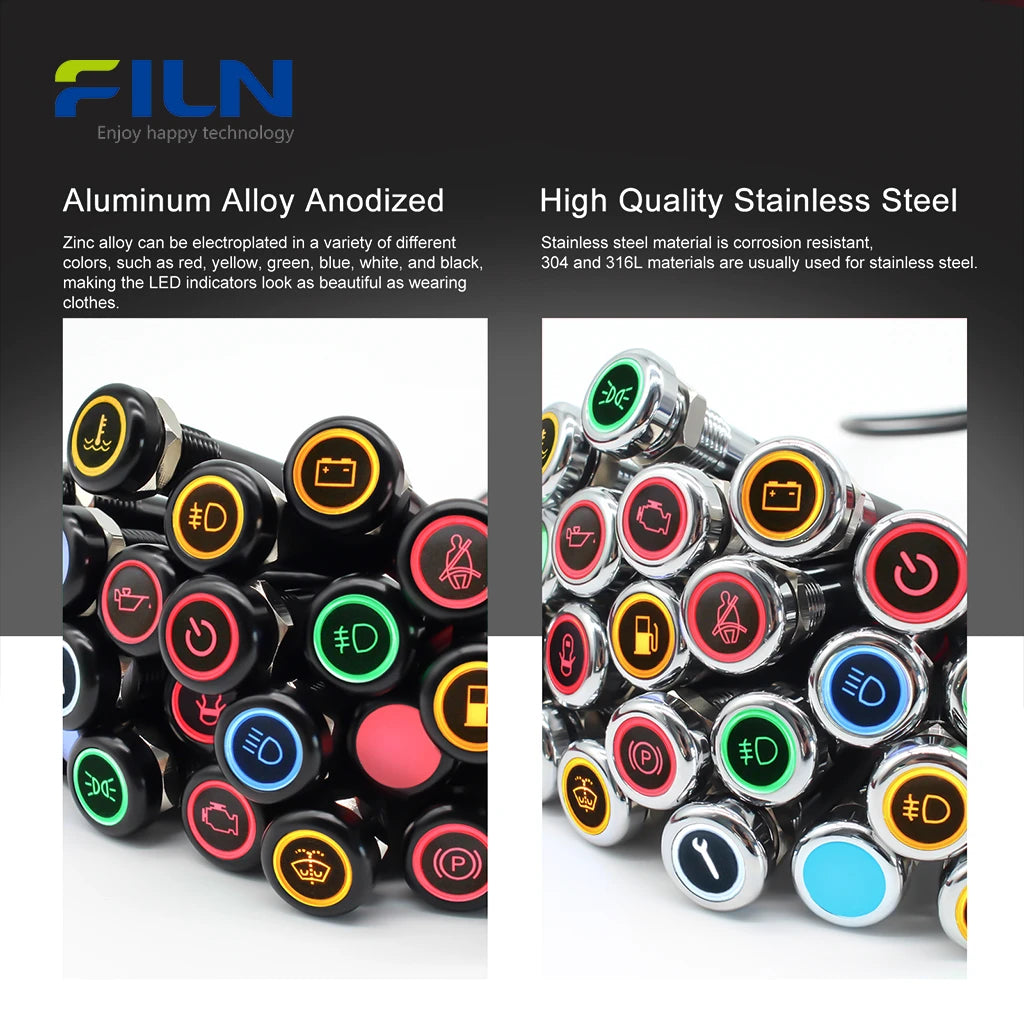

Component Materials
| Housing | Nickel-plated Brass / Aluminum Alloy (Black) |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | Silica Gel |
| Terminal | Copper Lead Wire |
| Wire Material | UL1007 22AWG (Standard) |
General Characteristics
| Operating Temperature | -40℃～80℃ |
|---|---|
| Storage Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Continuous Working Life | 30mA 1000h Test |
|---|---|
| Requirement | 50,000 hours |
Weather Performance
| High Temperature | 80℃ for 96h |
|---|---|
| Low Temperature | -40℃ for 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) |
Key Features
- 185 Replaceable Symbols: Covering cars, yachts, and industrial icons.
- IP67 Waterproof: Perfect for marine and outdoor environments.
- Non-Polar LED: No need to distinguish positive and negative poles during wiring.
- Durable Housing: Choice of premium silver or black metal finishes.
- High Visibility: High-brightness LED beads in 5 vibrant colors.
Applications
- Custom Automotive Dashboards
- Marine and Yacht Control Systems
- CNC Machines and Automation Equipment
- Industrial Electrical Cabinets
- Medical Device Status Indicators

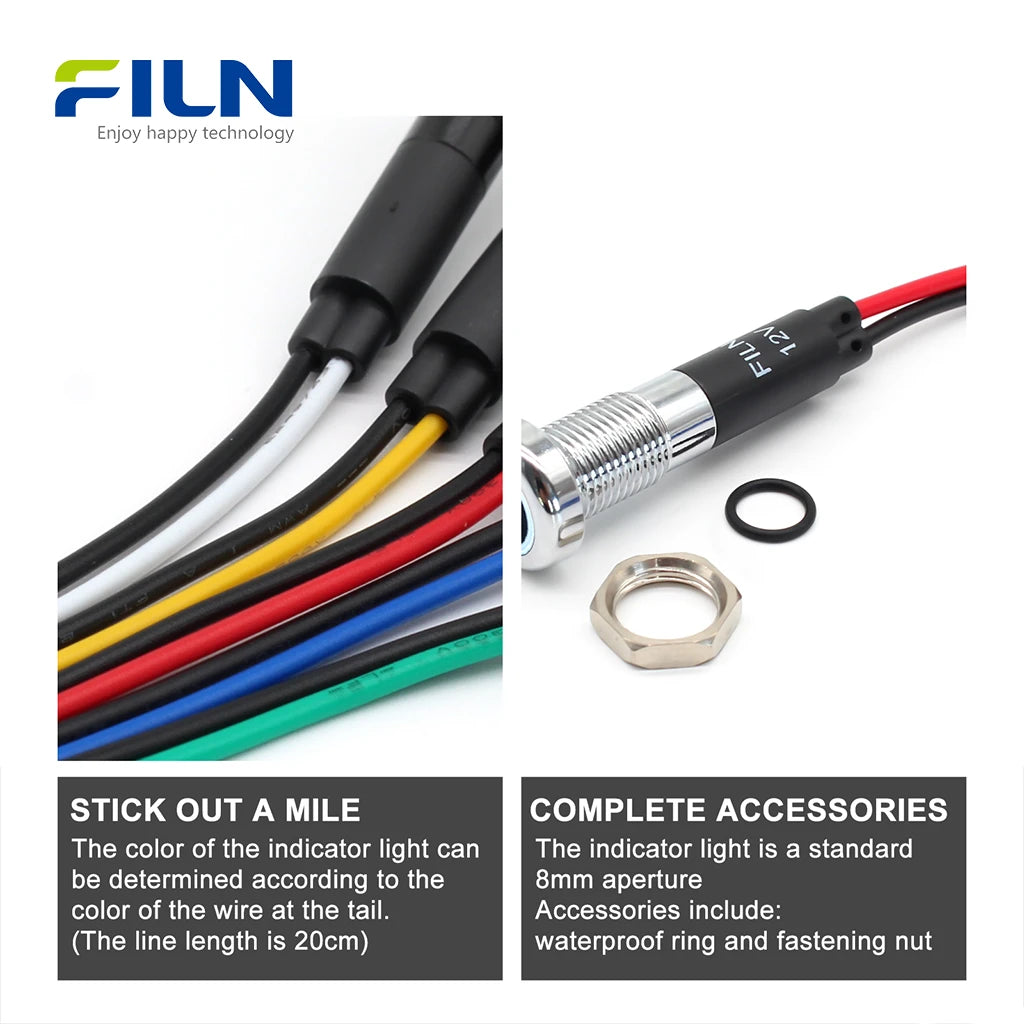

Installation Guide
- Drill a mounting hole (8mm or 12mm) into your panel.
- Insert the indicator light from the front and secure it with the provided nut.
- Connect the lead wires to your power source (12V-24V) without worrying about polarity.
- To add a symbol: Place a sticker on the light head, add the transparent cover, and press firmly.
- Use the provided tool rod to pop the cover off if you need to replace the symbol later.
What Is a Dashboard Indicator Light?
A dashboard indicator light is a critical visual signaling device used to relay system status or warning messages to an operator. In industrial and automotive settings, these symbol indicator lights provide immediate feedback on engine health, safety protocols, or operational modes. By using standardized symbols (like oil pressure, battery status, or bilge pump activity), they ensure operators can respond quickly to changes, enhancing both safety and efficiency in complex environments like yacht helms or CNC control stations.
FILN Factory Direct Advantage
- ✓ Voltage Customization: Supports 3V to 380V.
- ✓ Wire Customization: Specific lengths and connectors available.
- ✓ Quick Shipping: Direct from our Wenzhou manufacturing facility.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q: Can these indicator lights be used in salt water?

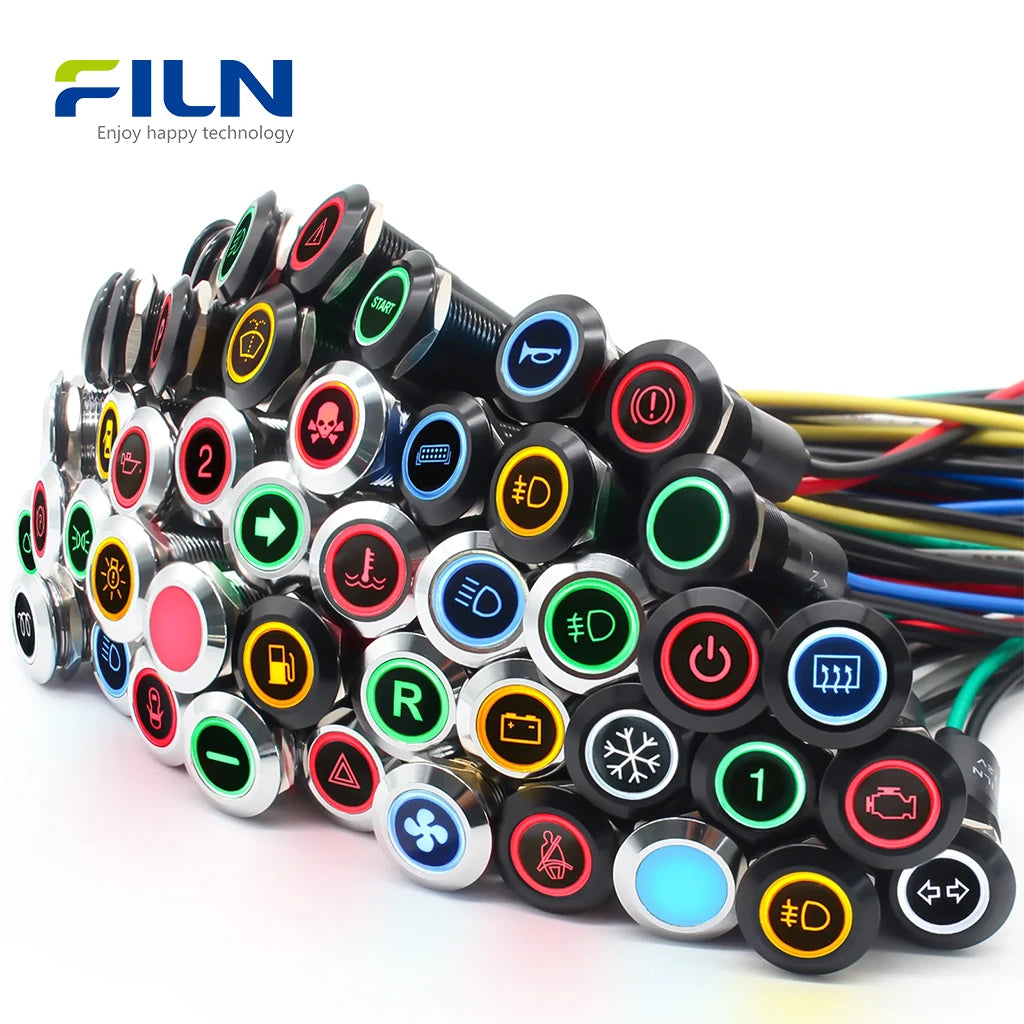

A: Yes, with an IP67 rating and corrosion-resistant metal housing, they are ideal for marine applications.
Q: Are the symbols permanent?
A: No, the 185 included symbols use a sticker system with a transparent cap, allowing for easy replacement over time.
Q: Do I need to worry about polarity when wiring?
A: No, these LED lights are non-polar, making installation much simpler.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
- Choosing a selection results in a full page refresh.
