Chapter 2: Detailed parameters
| Component Name | Material |
| Lens | PC plastic |
| Metal Body | H59 brass or 304 stainless steel |
| Washer | T10 Cold rolled steel |
| Rubber Ring | SIL silica gel |
| Nut | H59 nickel plated brass |
| Housing | PA66 nylon |
| Light Source | LED |
| Resistor | Metal film |
| Cable | PTFE AWG22 0.3mm² |
| Items | Parameter |
| Rated Voltage | 3V-780V DC or AC |
| Rated Current | 20mA |
| Rated Power | 0.2W |
| Insulation and Voltage Resistance | 1800V |
| Working Life | 500,000h |
| Electrical Life | 500,000h |
| Cold-resistant | -40℃ |
| Heat-resisting | 80℃ |
| Plug-in |
C2680 Rohs brass |
| Product Item | FL1M-8SW-1 |
| Panel Mount Diameter | 8mm |
| Contact Way | With wire |
| Install Way | Screw terminal |
| Lamp Type | LED |
| Rated voltage | AC/DC, 3V, 6V, 12V, 24V, 220V, 380V |
| Lamp Color | Red, yellow, blue, green, white |
| Product Design | Concave head |
| Shell Material | Brass plated nickel / stainless steel |
| Base Material | PA66 nylon |
| Terminal Material | Brass |
| Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc |

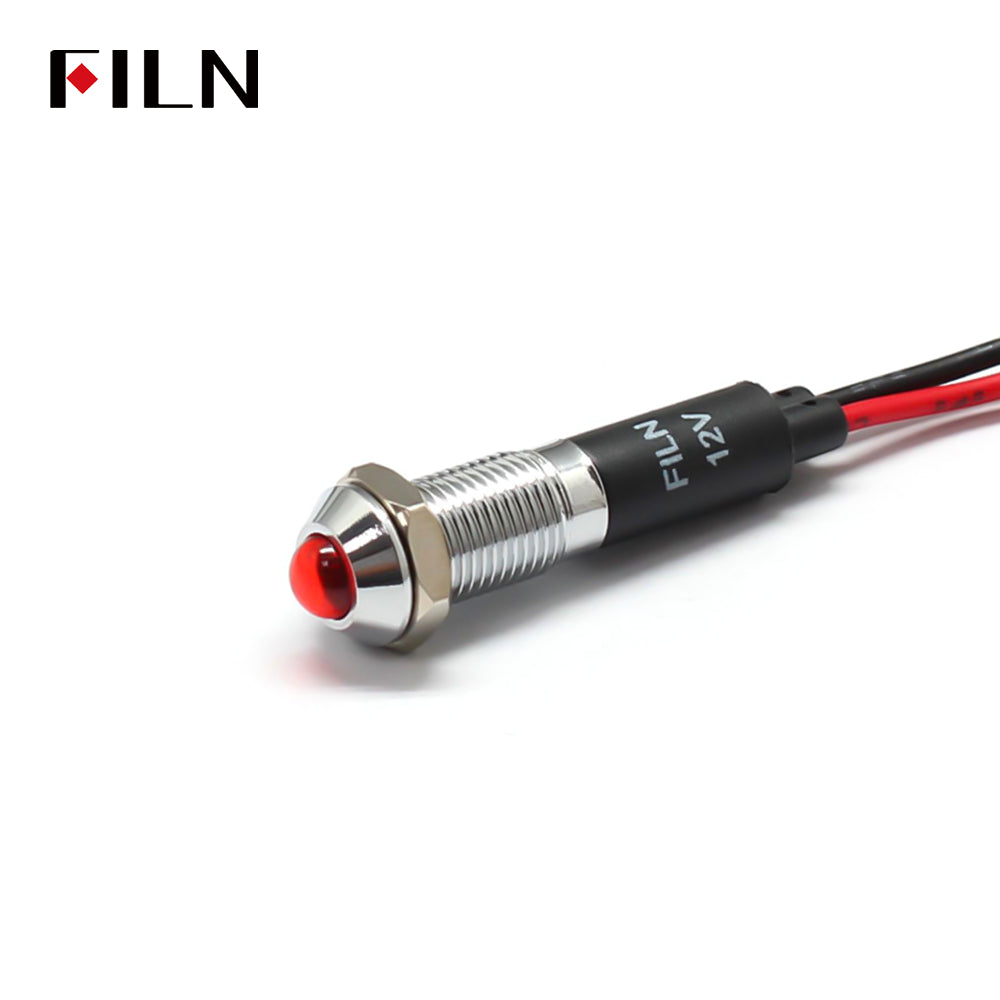

The 8mm raised head metal indicator light with wiring offers several advantages:
- Compact Size: With a diameter of 8mm, this indicator light is small and can be easily installed in tight spaces where larger indicators may not fit. Its compact size allows for flexibility in various applications.
- Durable Construction: Constructed from metal material, the indicator light is robust and resistant to wear and tear. It can withstand harsh environmental conditions, ensuring long-lasting performance.
- Raised Head Design: The raised head design enhances visibility, making it easier for users to notice and identify the indicator light even from a distance. This feature improves overall operational efficiency and reduces the chance of missing critical signals.
- Wired Connection: The indicator light comes with a wiring option, simplifying the installation process. The presence of pre-attached wires eliminates the need for additional wiring work, saving time and effort during setup.
- Versatile Applications: This metal indicator light finds utility in various applications and industries. It can be used for power indication, fault indication, status indication, or any other purpose that requires visual signaling. Its adaptability makes it suitable for a wide range of equipment and systems.
- Color Options: The indicator light is available in different colors such as red, green, yellow, and blue. Each color represents a specific meaning or status, providing users with clear and intuitive visual cues.
- Reliable Performance: With its sturdy construction and high-quality components, the indicator light delivers reliable performance over an extended period. It ensures consistent and accurate signaling, contributing to overall system reliability and safety.
- Cost-Effective Solution: Despite its numerous features and benefits, the 8mm raised head metal indicator light with wiring remains a cost-effective solution. Its competitive pricing makes it an affordable choice without compromising on quality or functionality.
Overall, the 8mm raised head metal indicator light with wiring combines durability, visibility, ease of installation, and versatility, making it a highly advantageous choice for various applications requiring reliable visual signaling.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
