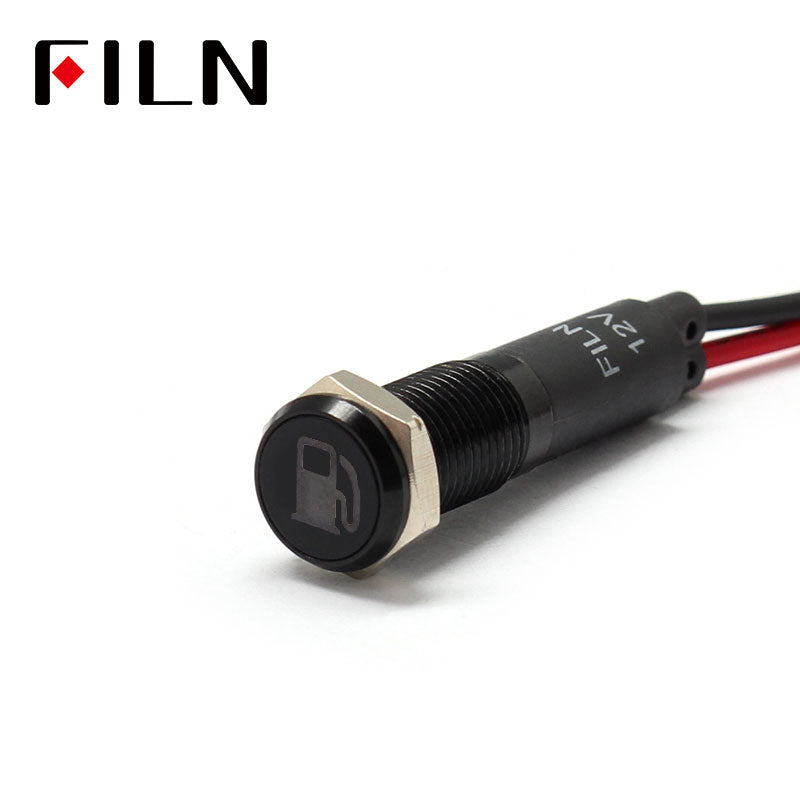

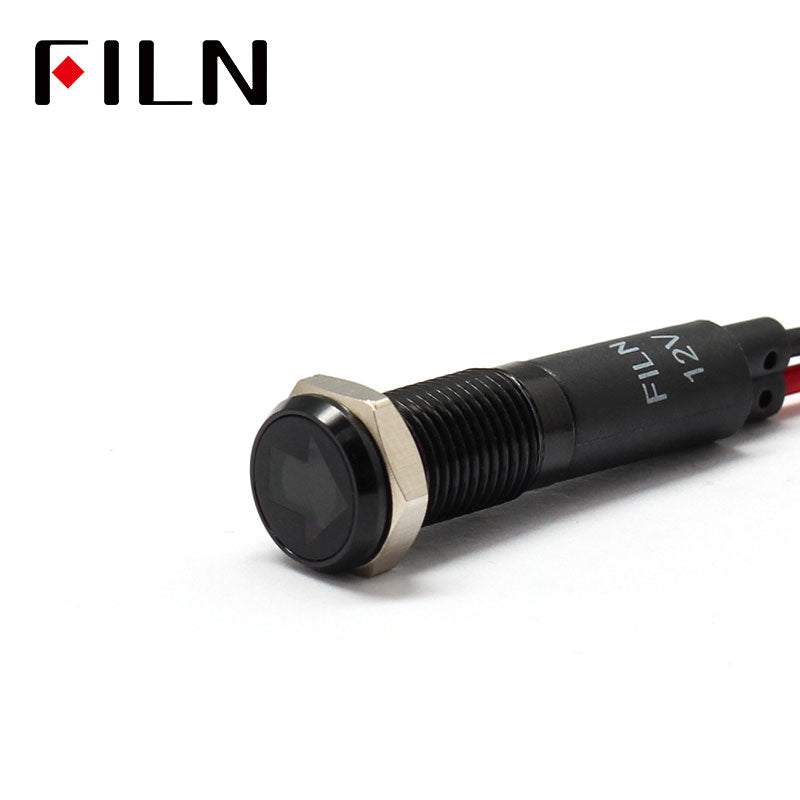

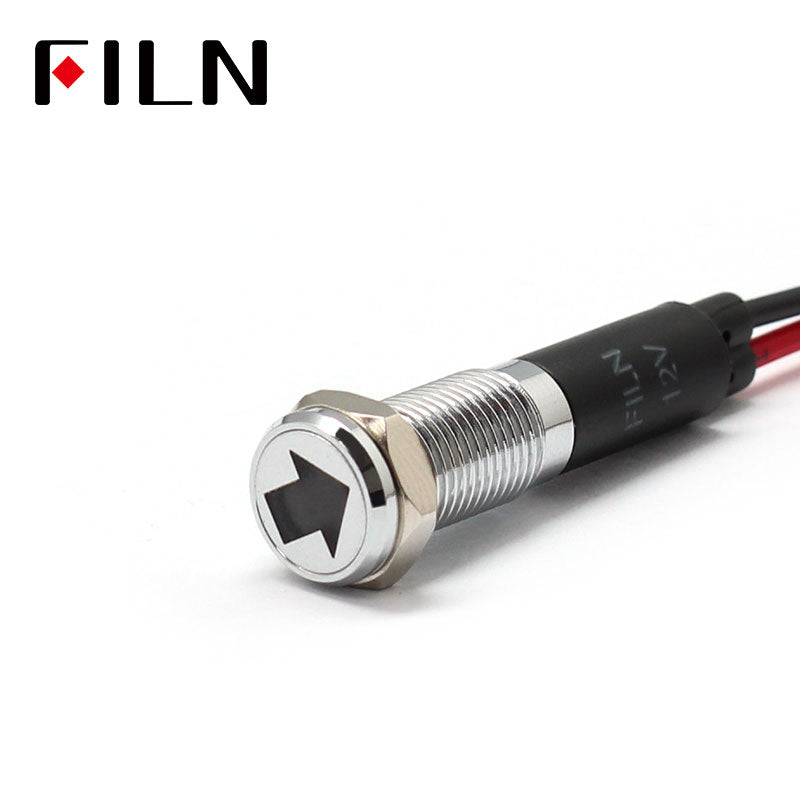

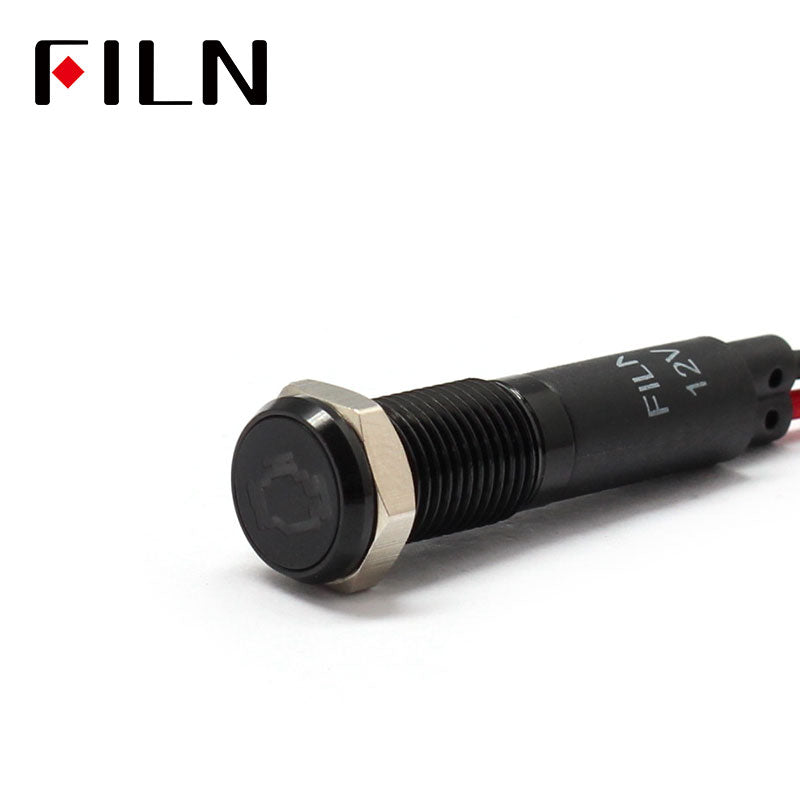

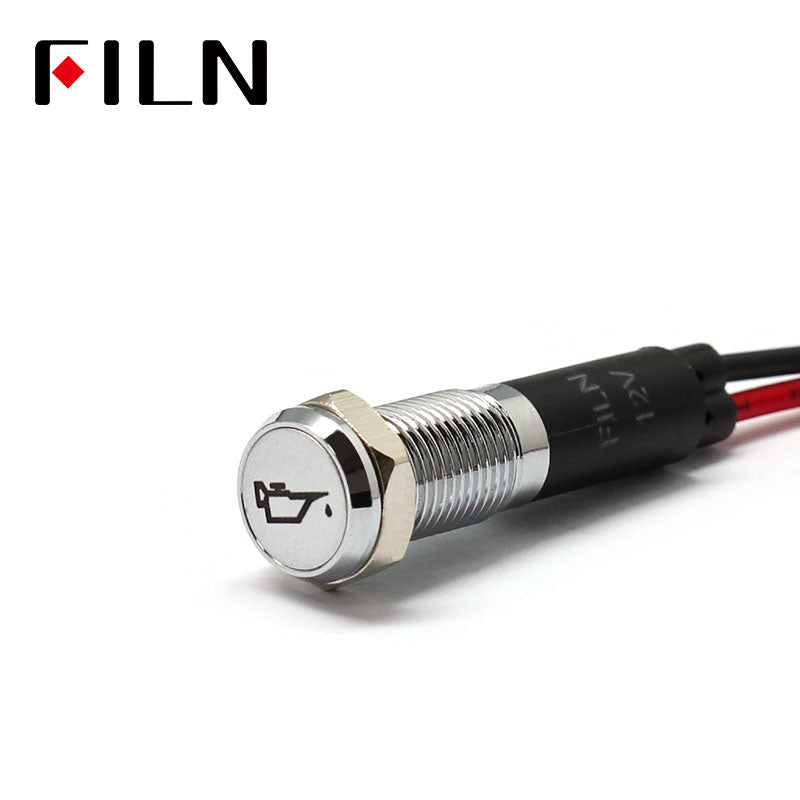

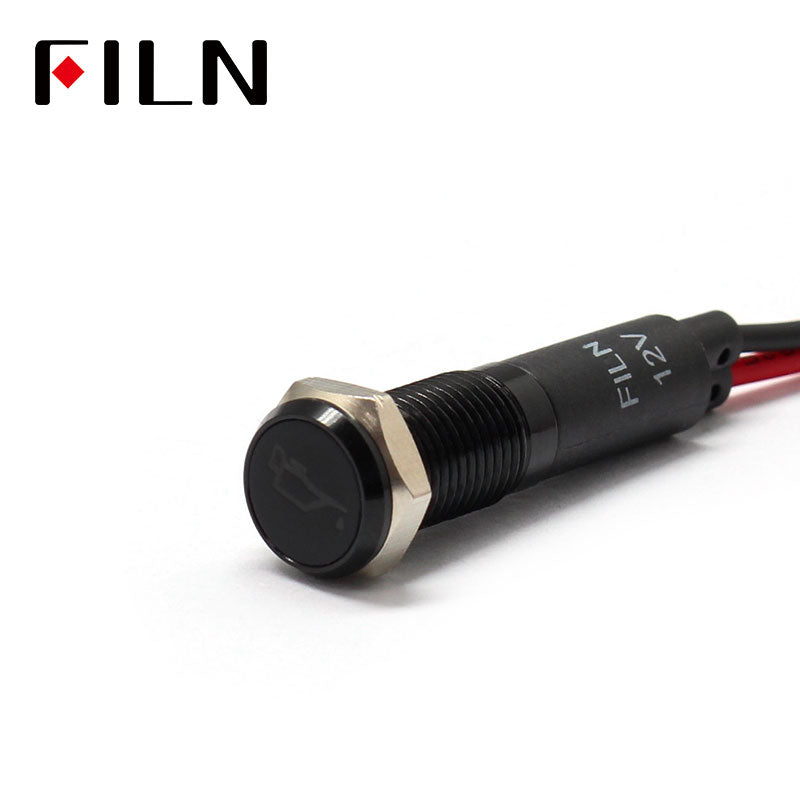

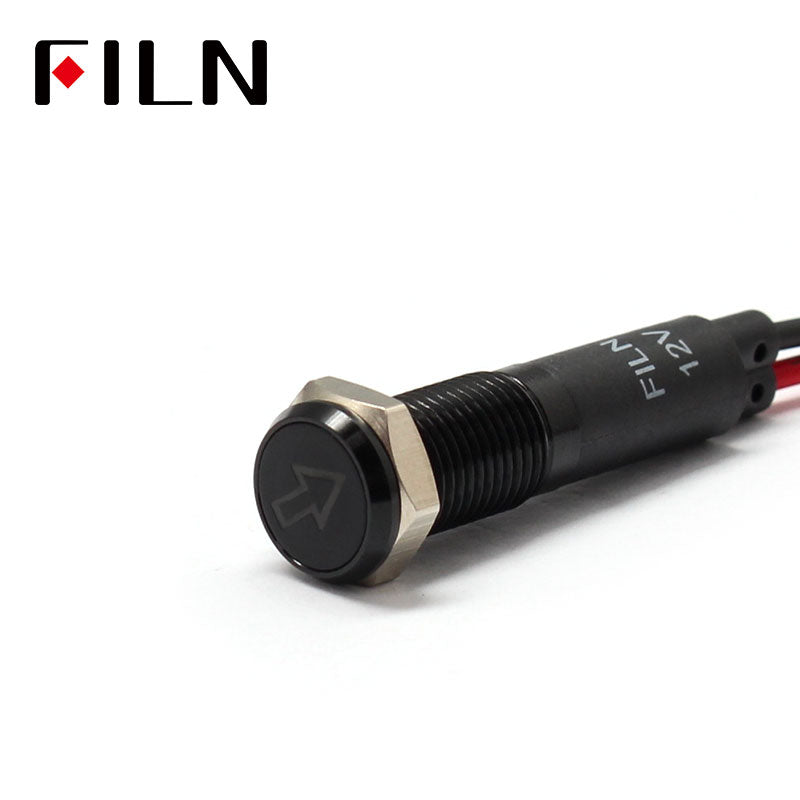

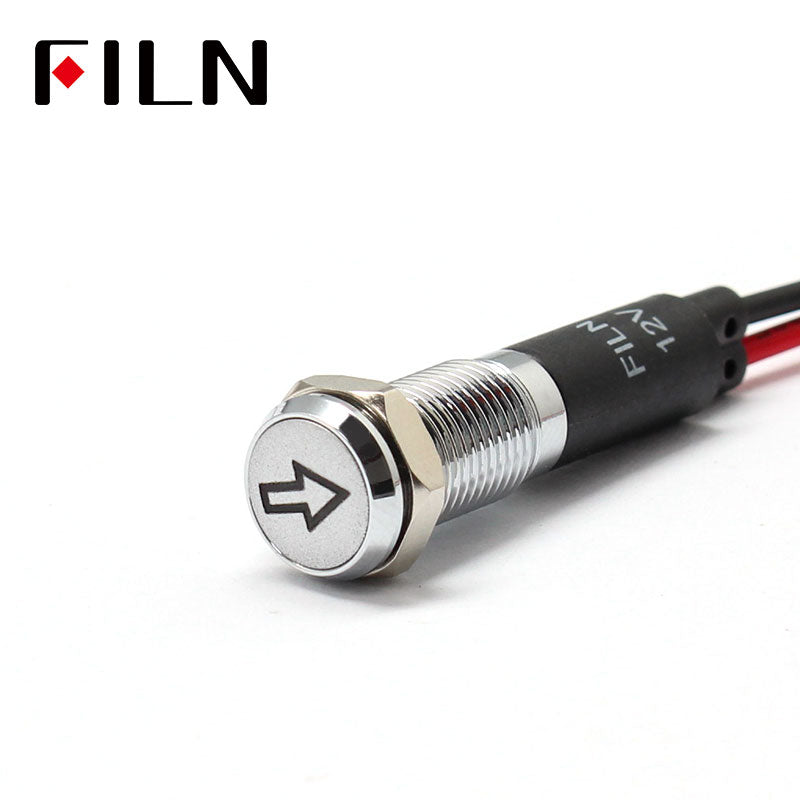

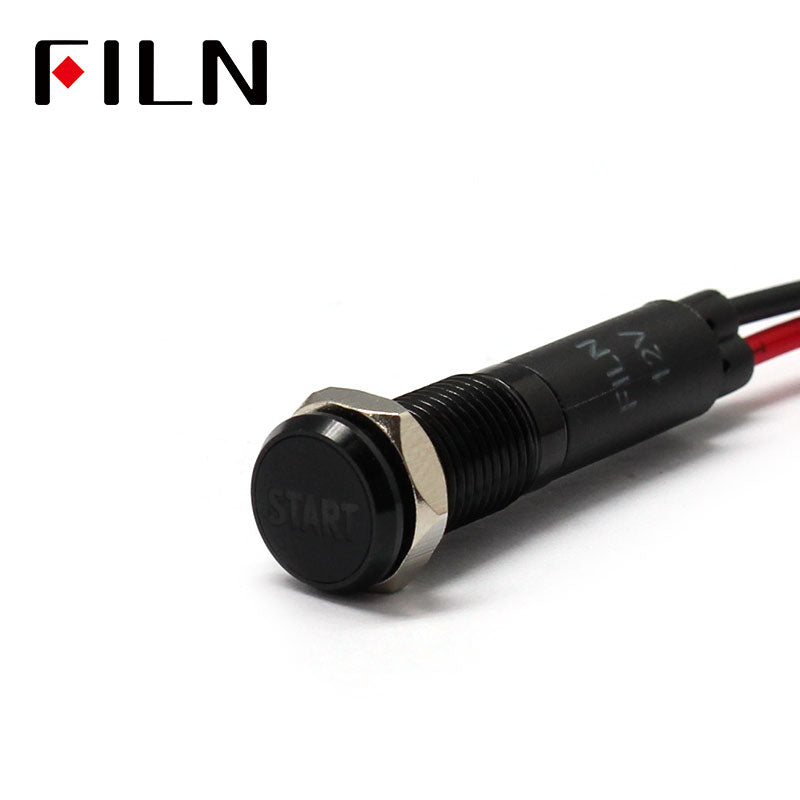

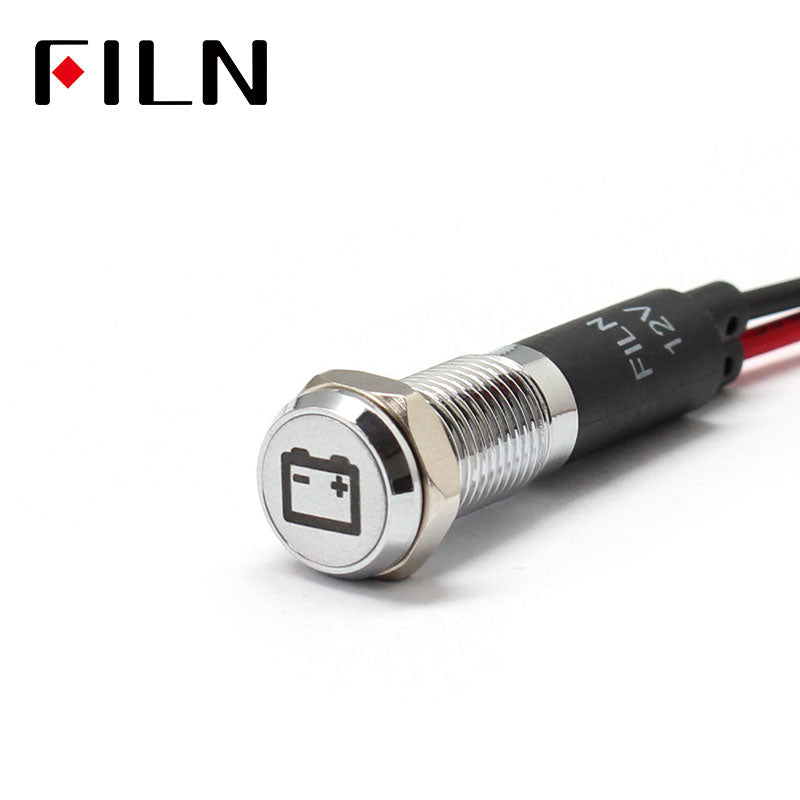

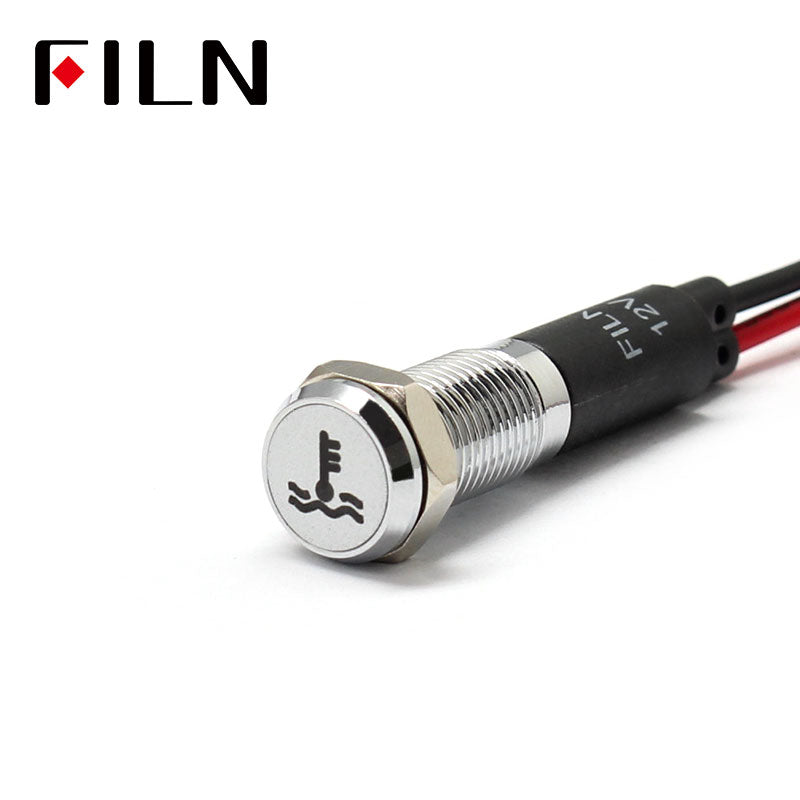

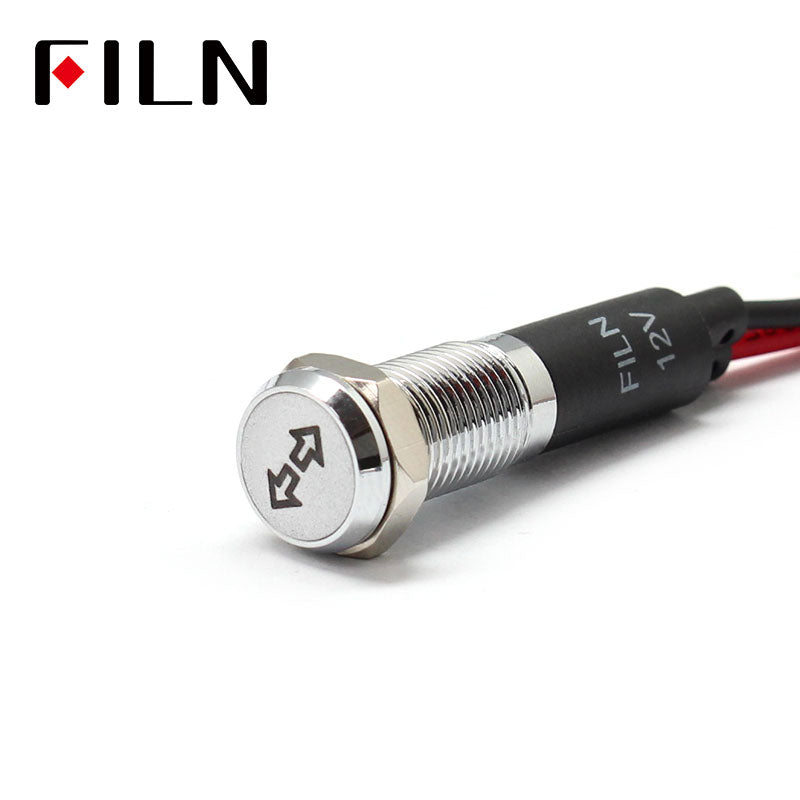

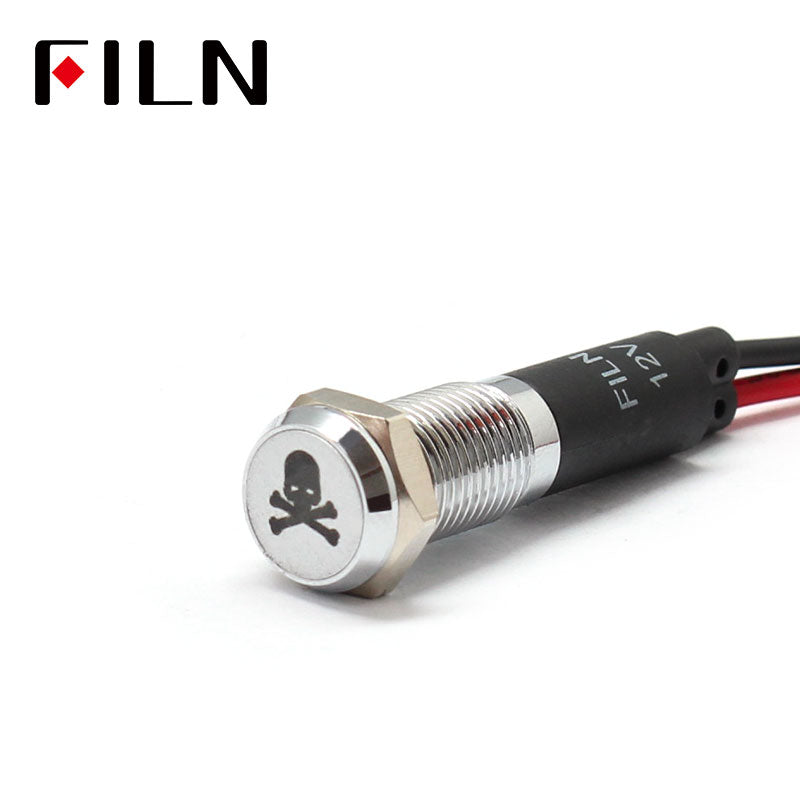

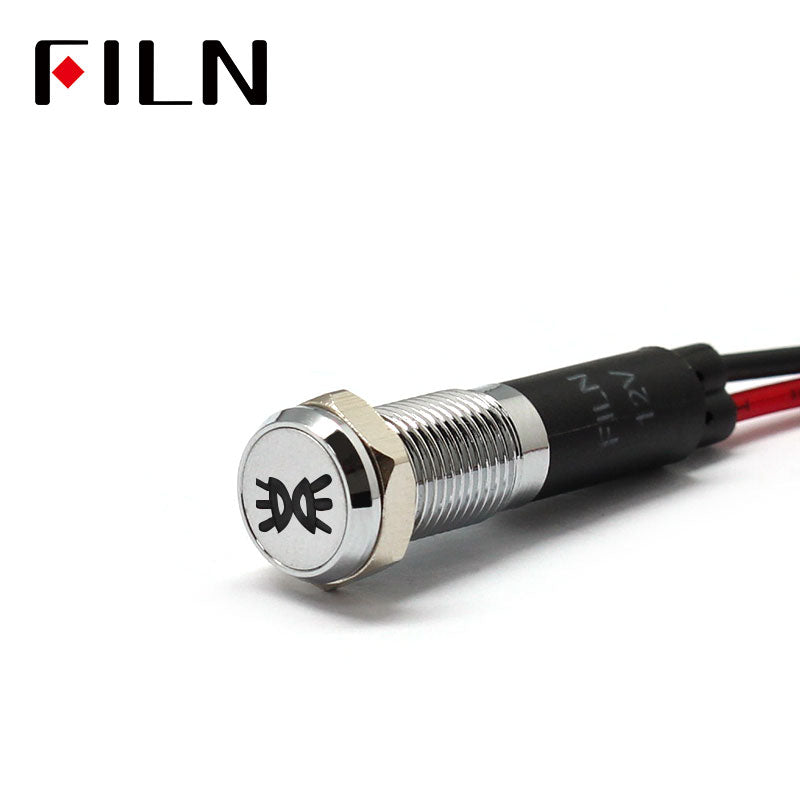

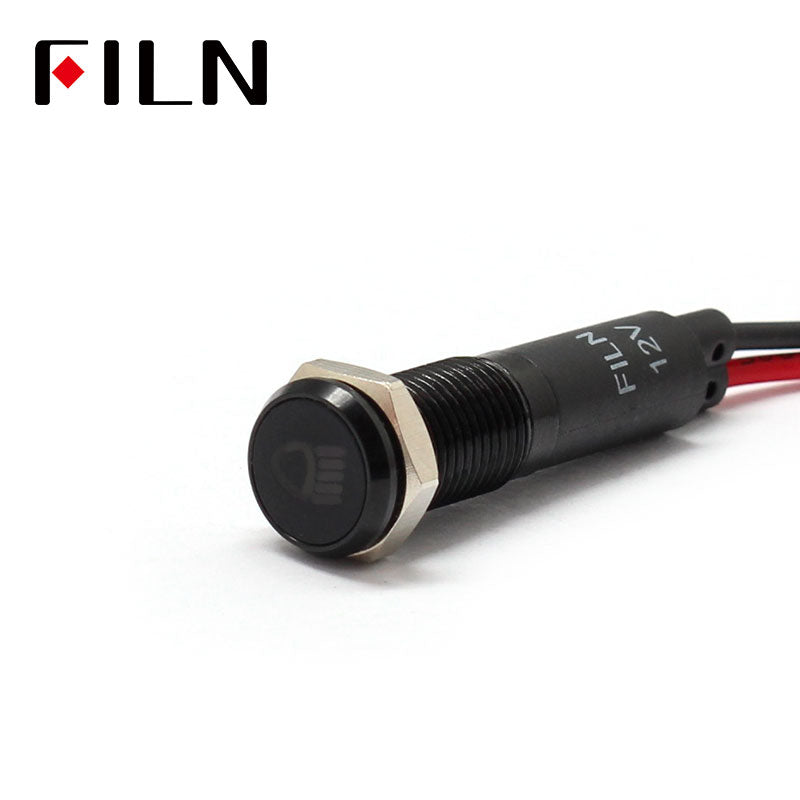

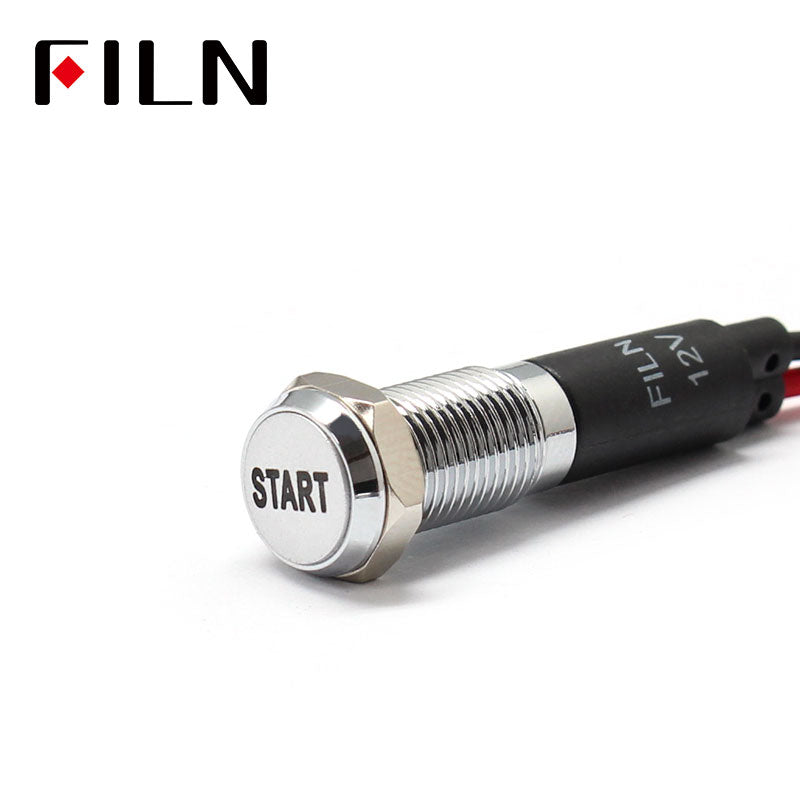

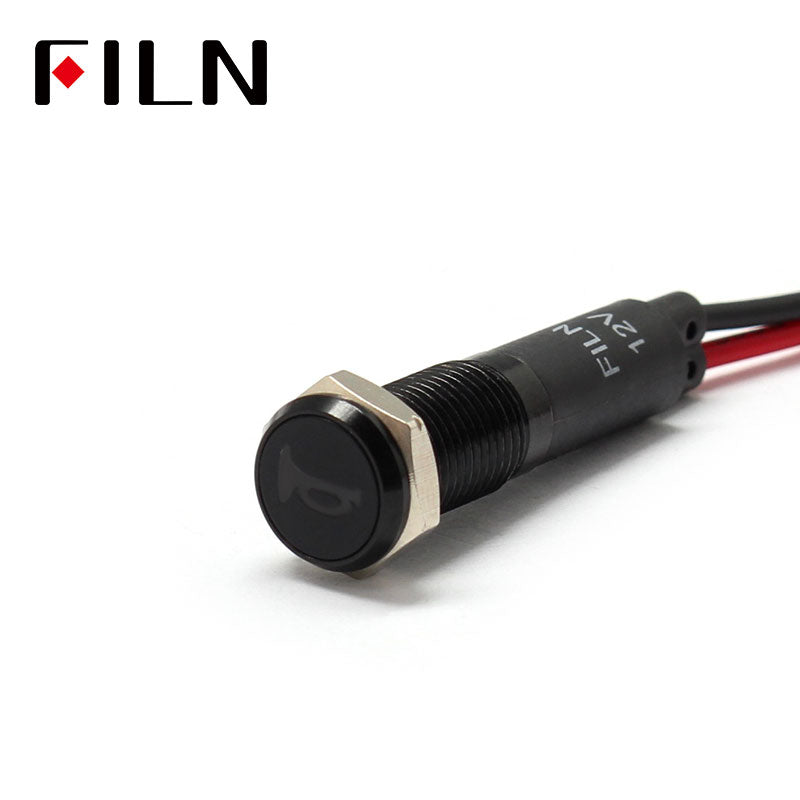

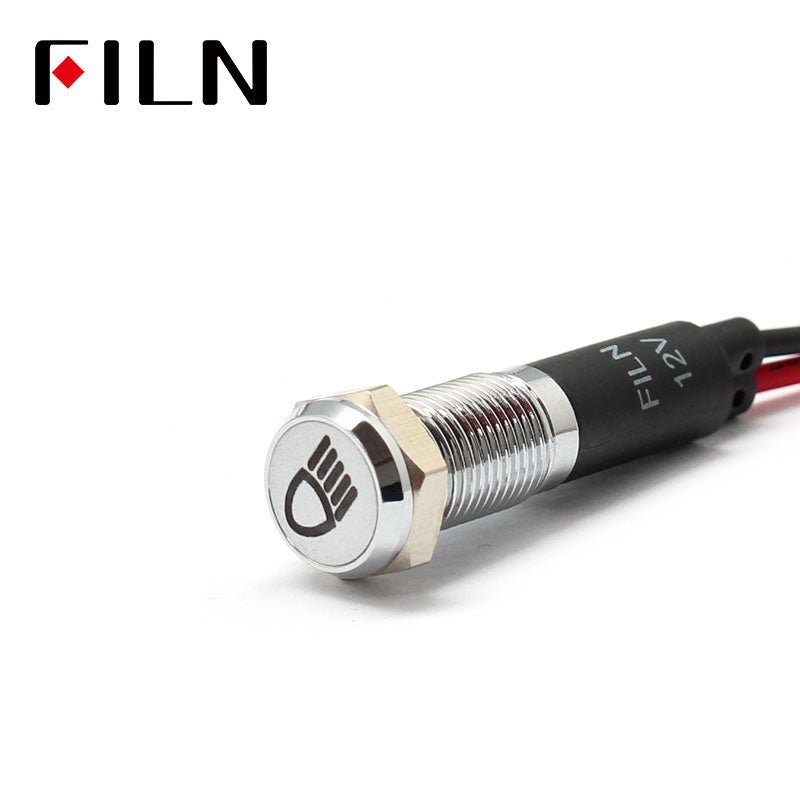

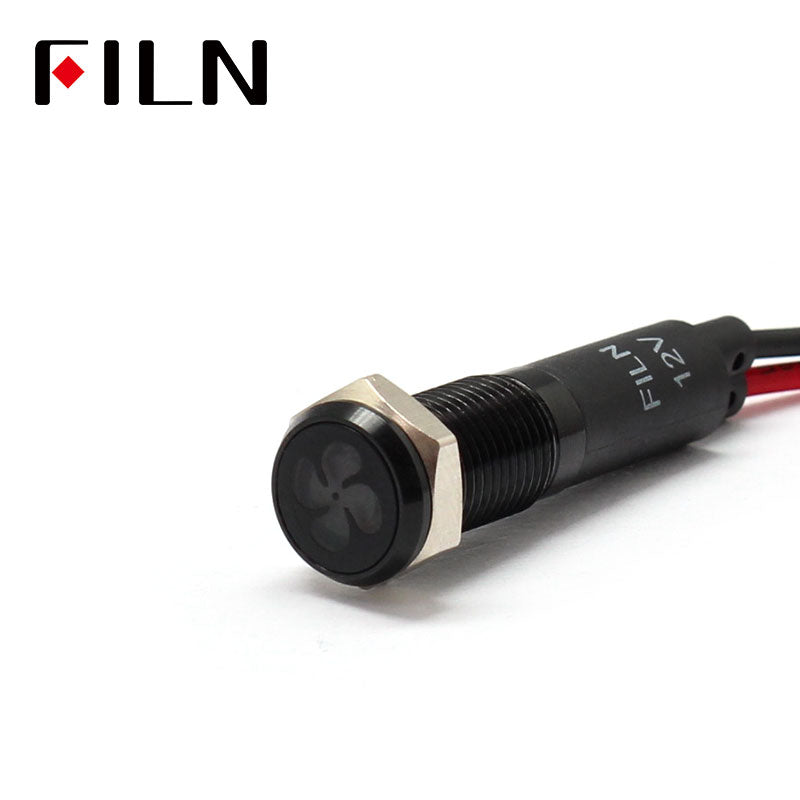

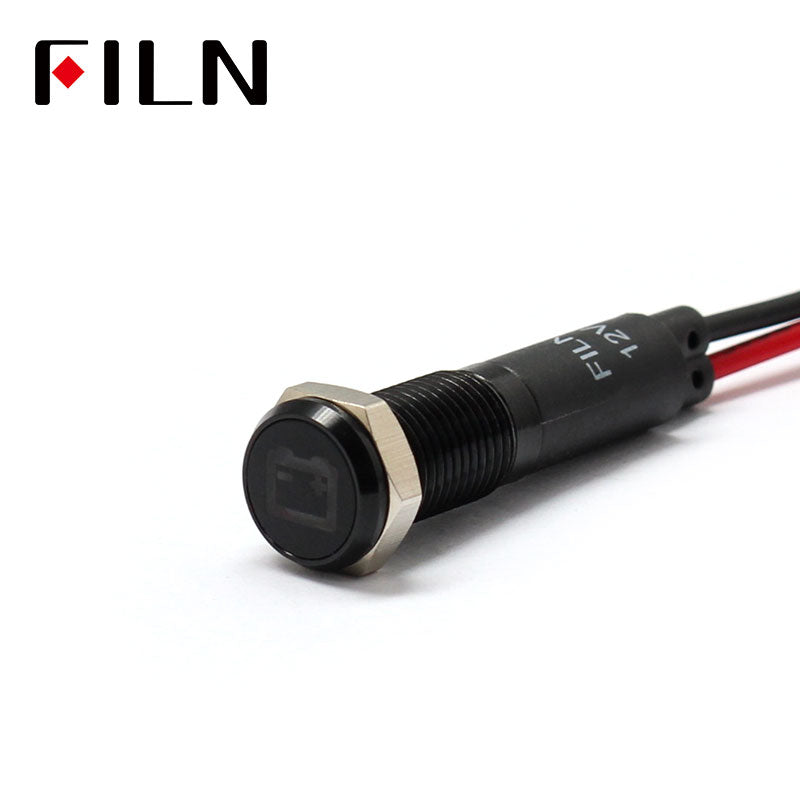

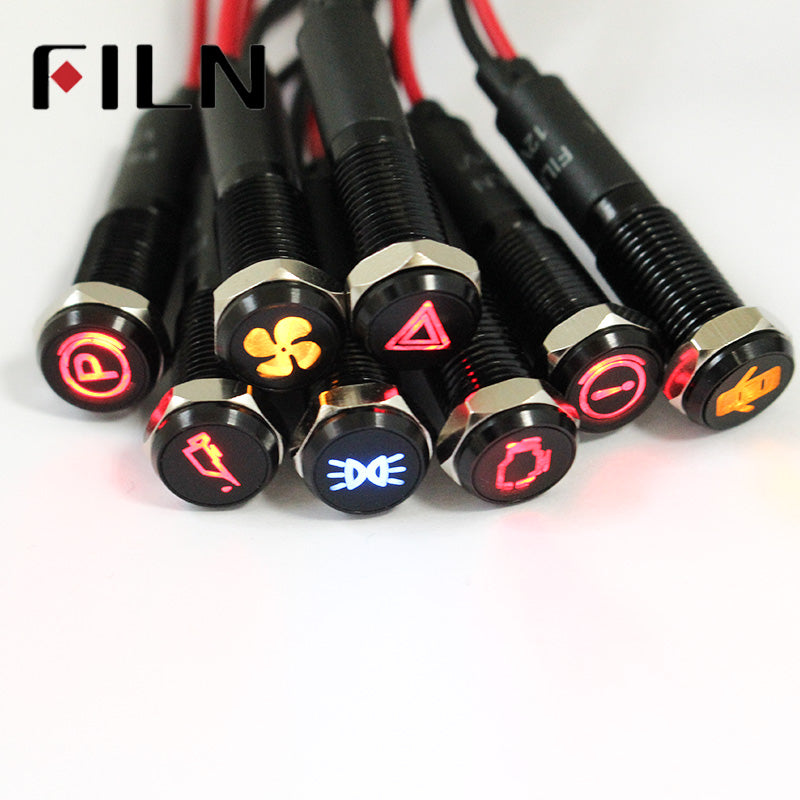

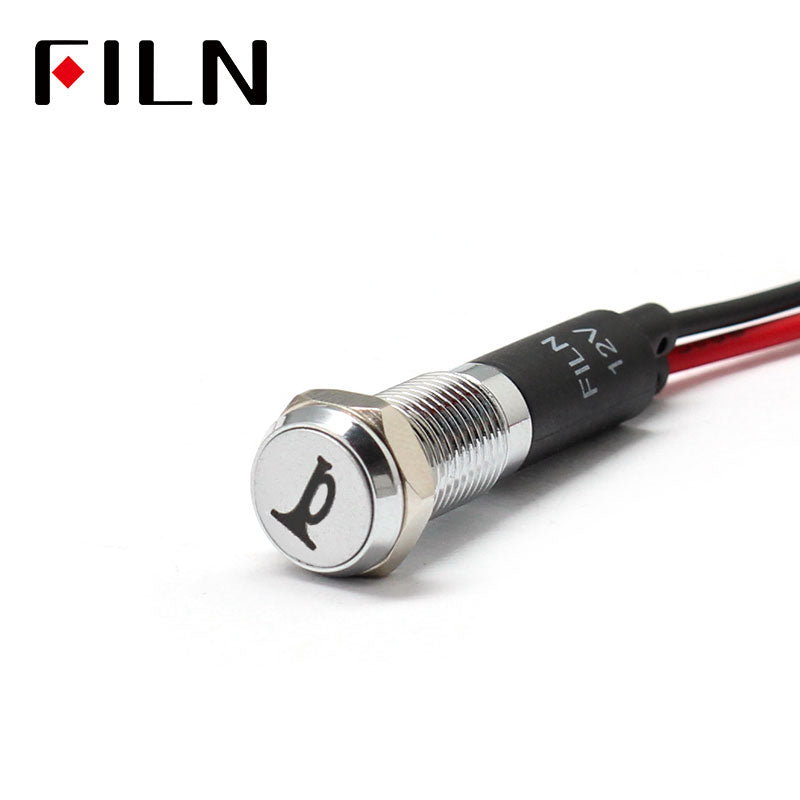

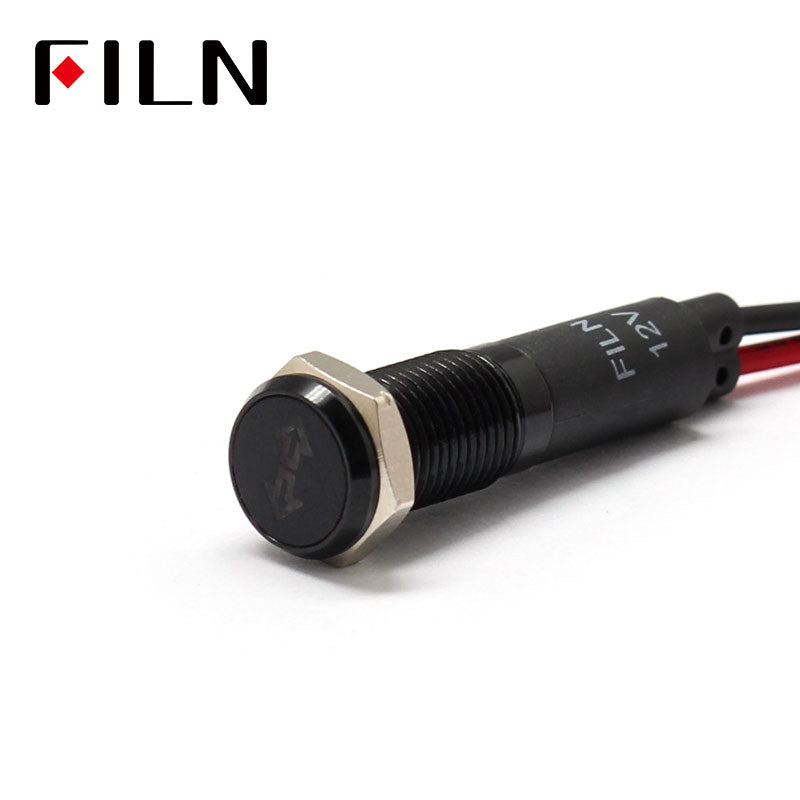

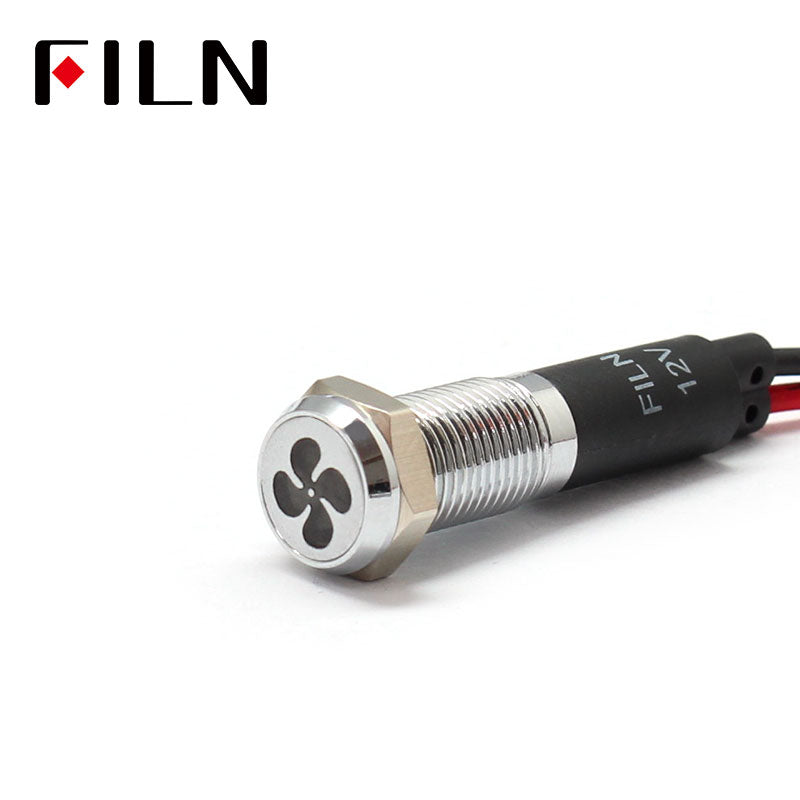

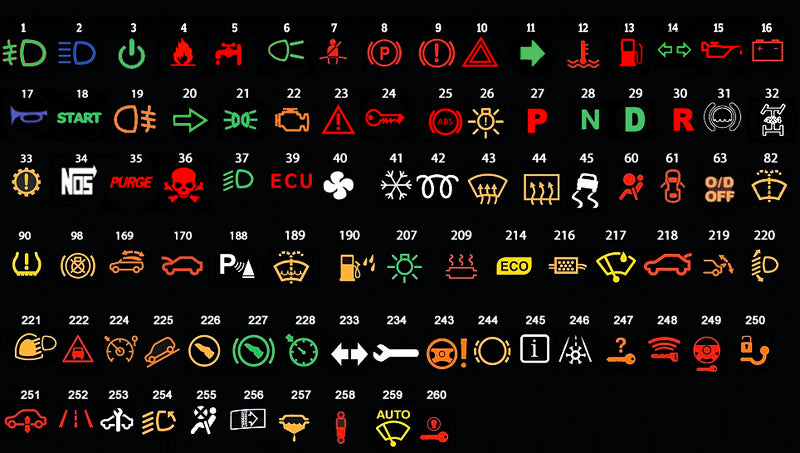

| Symbolic name | Malfunction Indicator Light |
| Panel Mount Diameter | 8 mm, 10 mm, 12 mm, 14 mm, 16 mm |
| Contact Way | With wire |
| Install Way | screw terminal |
| Lamp Type | LED |
| Rated voltage | AC/DC,3V、6V、12V、24V、220V、380V |
| Lamp Color | red yellow blue green white |
| Product Design | convex head |
| Shell Material | brass plated nickel/stainless steel |
| Base Material | PA66 nylon |
| Terminal Material | brass |
| Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment, etc |
| Component name | material |
| lens | PC plastic |
| Metal body | H59 brass or 204 stainless steel |
| wahser | T10 Cold Rolled Steel |
| rubber ring | SIL silica gel |
| nut | H59 nickel plated brass |
| housing | PA66 nylon |
| Light source | LED |
| Resistor | Metal film |
| Cable | PTFE AWG22 0.3mm² |
| plug-in | C2680 RoHS brass |
| items | parameter |
| Rated voltage | 3V-780V DC or AC |
| rated current | 20mA |
| rated power | 0.2W |
| Insulation and voltage resistance | 1800V |
| working life | 100000h |
| electrical life | 100000 |
| cold-resistant | -40℃ |
| heat-resisting | 80℃ |
