Component name | Material |
Lens | PC Plastic |
Metal body | H59 Brass or 204 Stainless Steel |
Washer | T10 Cold Rolled Steel |
Rubber ring | SIL Silica Gel |
Nut | H59 Nickel Plated Brass |
Housing | PA66 Nylon |
Light source | LED |
Resistor | Metal Film |
Cable | PTFE AWG22 0.3mm² |
Items | Parameter |
Rated voltage | 3V-780V DC or AC |
rated current | 20MA |
rated power | 0.2W |
Insulation and voltage resistance | 1,800V |
working life | 100,000h |
electrical life | 100,000 |
cold-resistant | -40℃ |
heat-resisting | 80℃ |
Plug-in | C2680 Rohs Brass |
12 Volts LED Indicator Lights Information | |
Product Item | FL1M-8CW-2 |
Panel Mount Diameter | 8mm |
Contact Way | With Wire |
Install Way | Screw Terminal |
Lamp Type | LED |
Rated voltage | AC/DC,3V, 6V, 12V, 24V, 220V, 380V |
Lamp Color | Red, Yellow, Blue, Green, White |
Product Design | Concave Head |
Shell Material | Brass Plated Nickel / Stainless Steel |
Base Material | PA66 Nylon |
Terminal Material | Brass |
Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment, etc. |

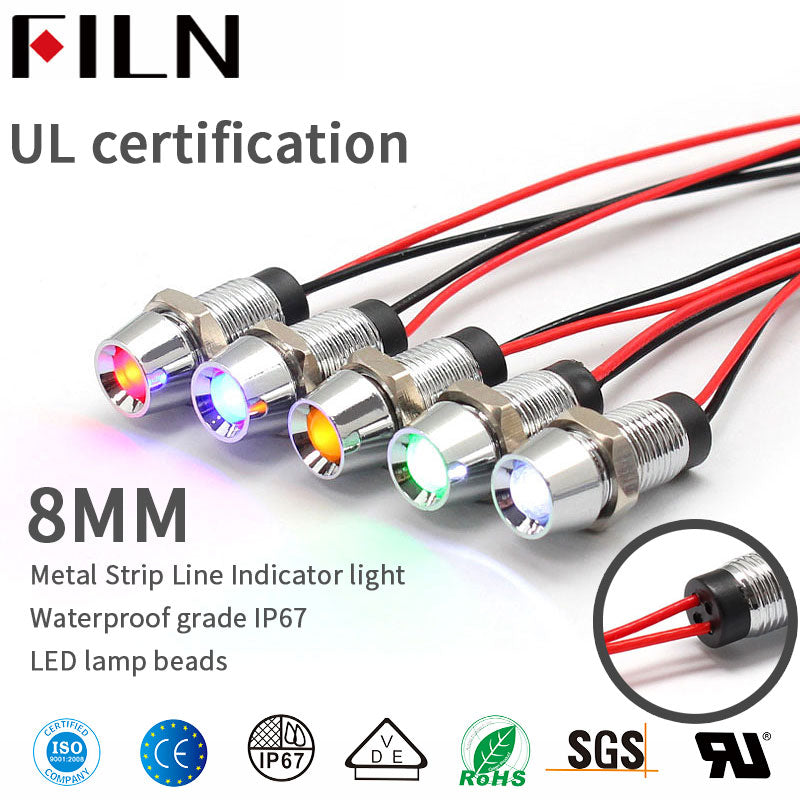

The biggest feature of the 8mm indicator light is that the product is threaded, it is very convenient to install.
The service life will be more longer if use a two-core LED lamp indicator.
The 8MM indicator light means indicator light is installed with a 8mm copper parts, and its light is LED two-core indicator light. We don’t recommend neon bulb since its dark light and short service life.
The wires of 8mm indicator light are regardless of positive and negative poles. You just need to connect the wire with the positive or negative pole, the indicator light will emit light. Please watch the video below.
