Product Overview

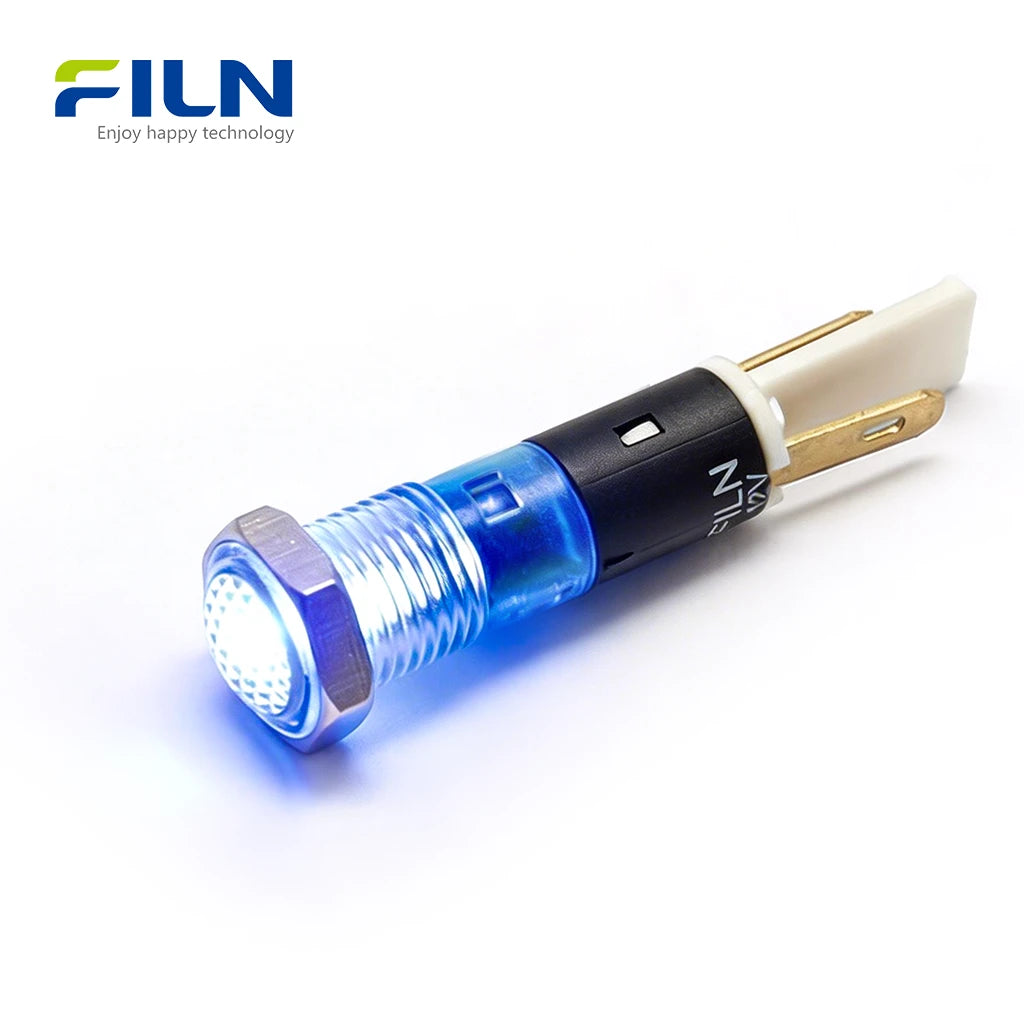

FILN offers high-quality lighting indicators for sale, specifically the FL1P-08NJ-1 model. This 8mm plastic indicator light for sale features a robust PA66 shell and high-brightness LED, making it ideal for industrial control panels and automation equipment. As a leading manufacturer, FILN ensures all 12v green lighting indicators and 220v red pilot lamp terminal products meet global standards including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Our 8mm-plastic-indicator-light-for-sale is designed for durability and ease of use, providing a cost-effective solution compared to metal variants. Whether you need a blue lighting indicators 8mm or a white led dash indicator, our products are available for direct online purchase with global shipping.
Quick Specifications
| Mounting Hole | 8mm (approx. 0.31 inch) |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customized available) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 (Head for thread mount) / Non-waterproof (Snap-in) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Wiring Type | 2.8mm Pin Terminal (2-Pin) |
| Certification | ISO9001, CE, VDE, RoHS, SGS, UL |
| Component Name | Material |
|---|---|
| Shell | PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade | PC (Polycarbonate) |
| Luminescent Source | High-brightness LED |
| Resistance | Carbon film resistance |
| 2.8mm Terminal | H59 Copper (Brass) |
| Wire (if applicable) | PVC |
Rated Working Parameters
| Rated Voltage | Customized (3V - 440V) |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | PA66 Industrial Plastic |
| Lens | PC Transparent/Colored |
| Seal Ring | Silicone/Rubber |
| Terminal | Brass with Silver Plating |
| Wire Material | UL standard PVC (for wire lead type) |
General Characteristics
| Items | Parameter |
|---|---|
| Voltage | 3V～250V |
| Insulation and Voltage Resistance | 1800V/5s |
| Working Life | 60,000h |
| Cold/Heat Resistant | -40℃ / +80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Continuous Working Life | Test Condition: 30mA 1000h Requirement: 50,000 hours |
Resistant Performance
| High Temperature | 80℃ 96h |
| Low Temperature | -40℃ 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) |
Key Features
- LED high brightness: Ensures visibility even in well-lit factory environments.
- Long lifespan: Maintenance-free operation for over 60,000 hours.
- IP65/IP67 waterproof: The waterproof ip65 signal light option is perfect for wet conditions.
- Easy installation: Features a simple snap-in panel mount indicator or nut-fixed design.
- Industrial grade reliability: Using premium PA66 and PC materials for heat resistance.
Applications
- Industrial control panels and CNC machines.
- Automation equipment and industrial led warning light systems.
- Electrical cabinets and power distribution units.
- Marine systems and amber lighting indicators panel mount for boat consoles.
- Medical devices and commercial kitchen appliances.
Installation Guide
- Determine the panel thickness and drill an 8mm hole.
- Insert the 8mm-plastic-indicator-light-for-sale from the front of the panel.
- From the rear, slide the washer and screw the nut tightly onto the thread to secure the unit.
- Connect the 2.8mm pin terminals using compatible female connectors or direct soldering.
What Is an 8mm Plastic Lighting Indicator?
An 8mm-plastic-indicator-light-for-sale is a compact signaling device used to provide visual status feedback on machinery. Unlike metal indicators, plastic versions offer superior insulation and are lighter in weight. The 2-pin plastic indicator lamp design allows for rapid wiring in mass production. While metal indicators offer higher impact resistance, plastic lighting indicators are corrosion-resistant and cost-effective for indoor electronic equipment. They are essential for safety, indicating "Power On," "Fault," or "Operation Cycle" in modern industrial ecosystems.
Factory Direct Supply
FILN is a professional manufacturer offering lighting indicators with full customization options:
- Factory Direct Sale
- Voltage Customization
- Wire Length Customization
- Connector Customization
- Fast Global Shipping
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Are these lighting indicators available for direct sale?
A: Yes, you can purchase them directly from our Shopify store or contact our factory for bulk custom orders.
Q2: What is the difference between plastic and metal indicators?
A: Plastic indicators (PA66) offer excellent insulation and lower cost, while metal indicators are better for high-impact outdoor environments.
Q3: Can I get a 110V or 220V version?
A: Yes, our 8mm lighting indicators support a wide range of voltages from 3V to 250V AC/DC.
Q4: Is the LED replaceable?
A: The LED is integrated for maximum lifespan and waterproofing, so the whole unit is typically replaced if needed, though they last over 60,000 hours.
Q5: Do you support custom terminal types?
A: Yes, we can provide 2.8mm pins, soldering lugs, or pre-wired leads based on your project requirements.
