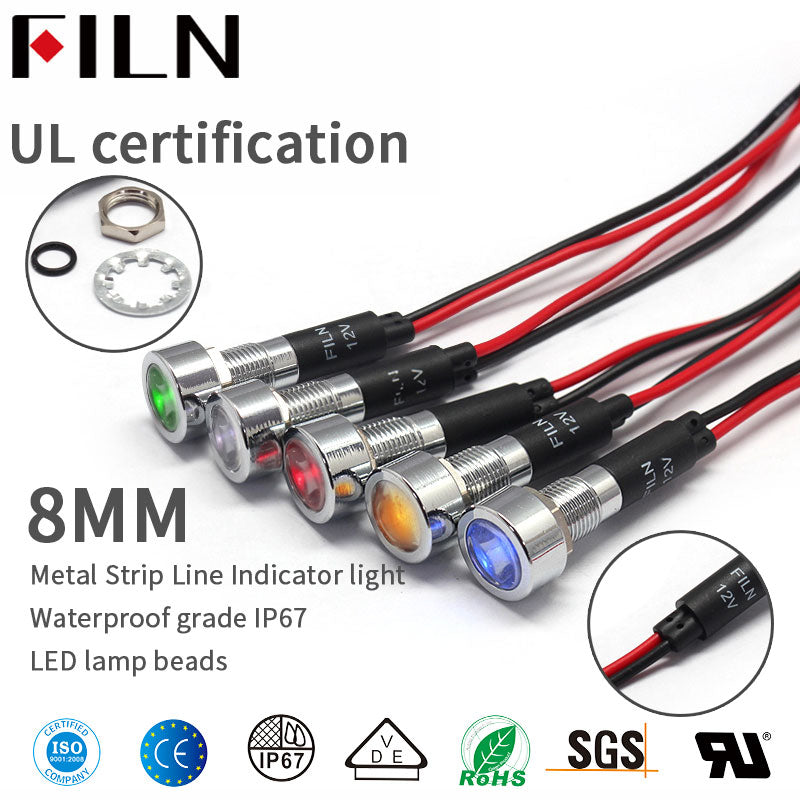

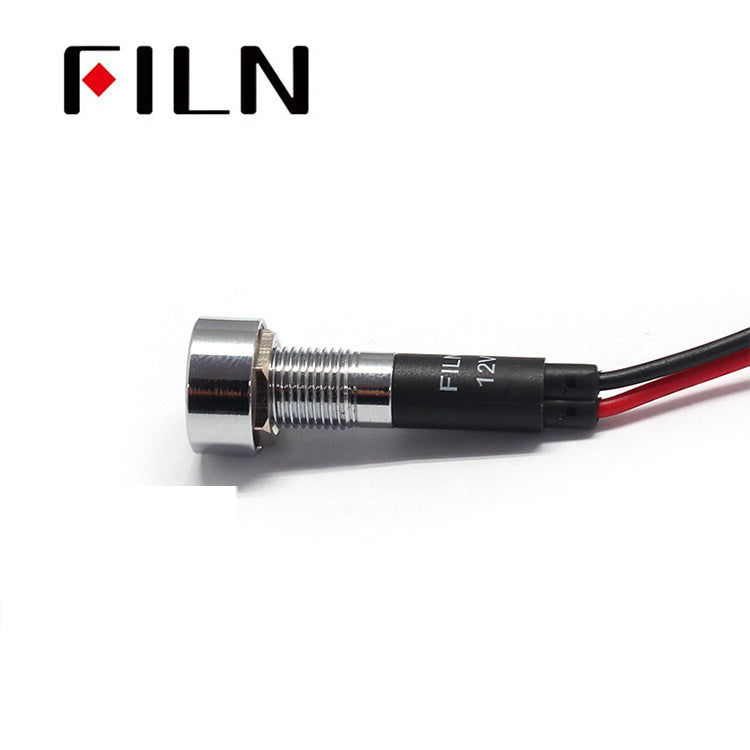

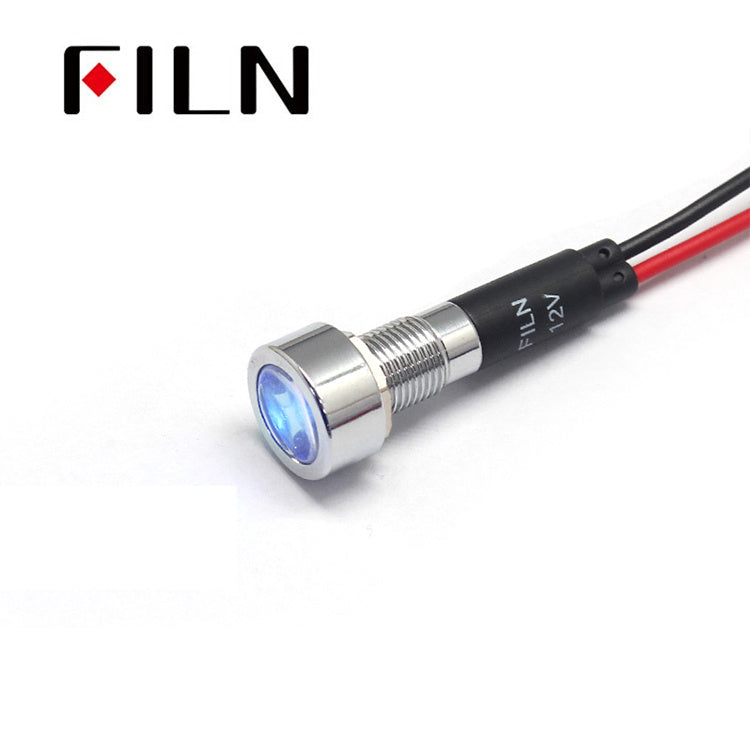

8mm 12V 24V 110V 220v Metal Blue Red Green LED Indicator Light

Color
RED
YELLOW
BLUE
WHITE
GREEN
Voltage

Description

Product Item FL1M-8SW-5
Panel Mount Diameter 8mm
Contact Way With wire
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC, 3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design Flat head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc
Component name Material
Lens PC plastic
Metal Body H59 brass or 304 stainless steel
Wahser T10 Cold Rolled Steel
Rubber Ring SIL silica gel
Nut H59 nickel plated brass
Housing PA66 nylon
Light Source LED
Resistor Metal film
Cable PTFE AWG22 0.3mm²
Plug-in C2680 RoHS brass
Items Parameter
Rated Voltage 3V-780V DC or AC
Rated Current 20mA
Rated Power 0.2W
Insulation and Voltage Resistance 1800V
Working Life 100000h
Electrical Life 100000
Cold-resistant -40℃
Heat-resisting 80℃



240v power indicator light

What is a 240v power indicator light ?

240v power indicator light refers to equipment that uses light to monitor the operation or position status of circuits and electrical equipment. The power indicator light has a wide range of applications, and can be used in coffee machines, kitchen equipment, household appliances, automobiles, medical equipment, and industrial equipment.

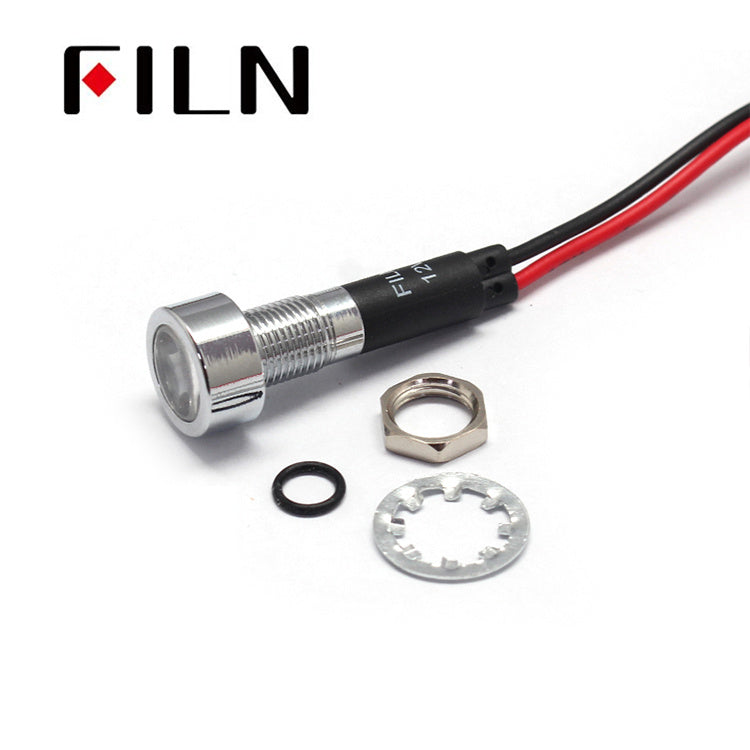

1.The installation aperture of 8mm led indicator light is 6mm, and the installation method is threaded. Install the indicator light on the panel, and then screw on the nut. The tail is with a wire, and the conventional wire length is 20cm per wire. We use high-quality LED lamp beads, so the positive and negative poles are not distinguished, and they can be connected arbitrarily.

2.120v indicator light voltage range: 3v-220v, commonly used are 6v 12v 24v 110v 220v. The international voltage standard for metal indicator lights is a passing voltage of 1800V, and the test time is 5 seconds.

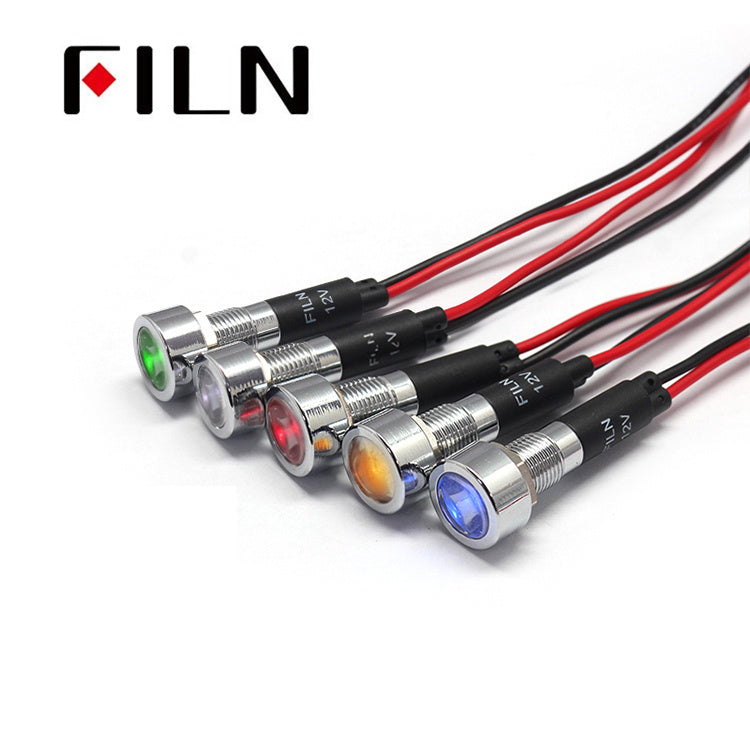

3.The colors of the 240v led indicator light are mainly 5 kinds, red, yellow, green, blue and white.

4.240v power indicator light component name material

Shade: PC plastic

Metal shell: H59 brass or 204 stainless steel. The metal indicator has explosion-proof function and high-end atmosphere, and is basically used for high-end products. Metal indicator lights are available in copper, stainless steel and zinc alloy aluminum black. Customers on the market usually use copper, stainless steel, especially 316 stainless steel. They are basically used in corrosive environments, such as sea water and Sulfuric acid site. The zinc alloy aluminum black type has a better appearance.

Washer: T10 cold rolled steel plate

Rubber ring: SIL silicone

Nut: H59 nickel-plated brass

Base: PA66 nylon

Light source: led

Resistance: metal film resistor

Cable: pvc cable, the conventional line length is 20cm per line, and the line length can be customized.

5.power light indicator There are many types of light indicator, such as convex head, concave head, flat head, etc., and styles can also be customized according to personal needs.


 How to wire a 240v power indicator light?

Connect the two wires to the positive and negative poles of the power supply, and the lights will light up. The usual practice is to connect the lights, equipment and power supply in series, so that you can judge whether the equipment is working by turning on or off the lights.




 What are the advantages of FILN's production of led power indicator light?

    1. The 8mm led indicator light produced by FILN has no MOQ. If you need samples to test, we can provide samples for free.
    2. FILN company can provide customized services, increase or decrease the line length, the tail with terminal plastic shell, two-color and three-color power light indicator light, waterproof power light indicator light.
    3. The 12volt led indicator light produced by FILN has CE, ROSH and other international certifications to ensure the quality and consistency of the product.
    4. New 240v power indicator light development speed is fast. FILN has a professional R&D and design team of engineers for rocker switches, as well as a team of engineers specializing in the production of rocker switch abrasives. The design and grinding of NEW 240v power indicator light are basically completed within 30-40 days. Tool development.
    5. Quick response to questions, FILN's sales staff are all sales engineers, who can solve and reply to any customer's questions about indicator lights in the fastest time.

 How to buy led power indicator light

You can buy our products directly online, such as Alibaba, or buy this Red indicator light through offline email communication. There is no minimum order quantity requirement.

 The above is the FILN led 120v 220v 240v power 8mm light Indicator Light I brought to you

If you need our products, are interested in our products, want samples, etc., please contact us directly.
