Product Overview

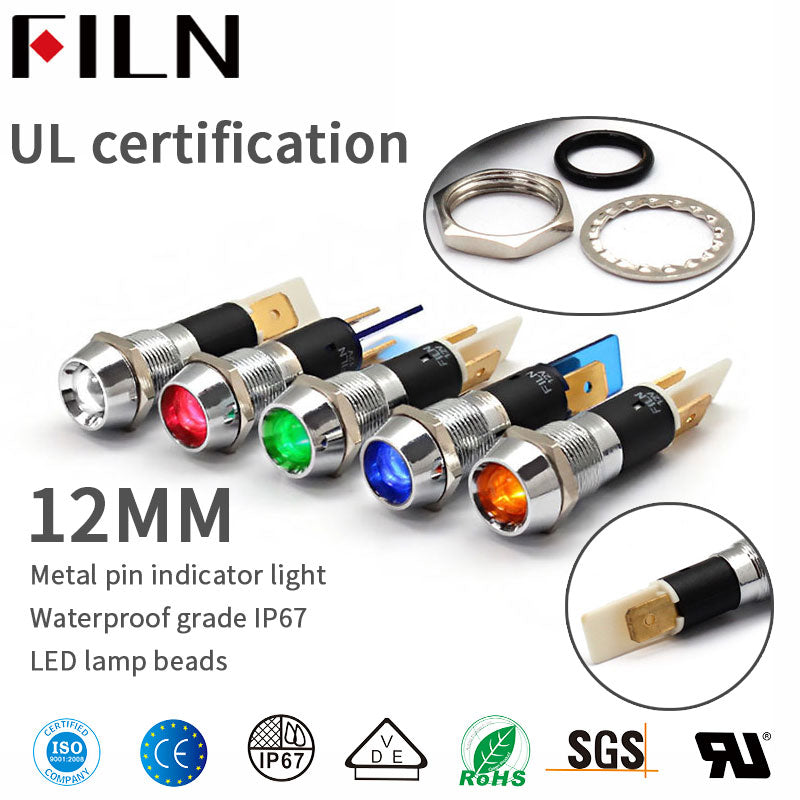

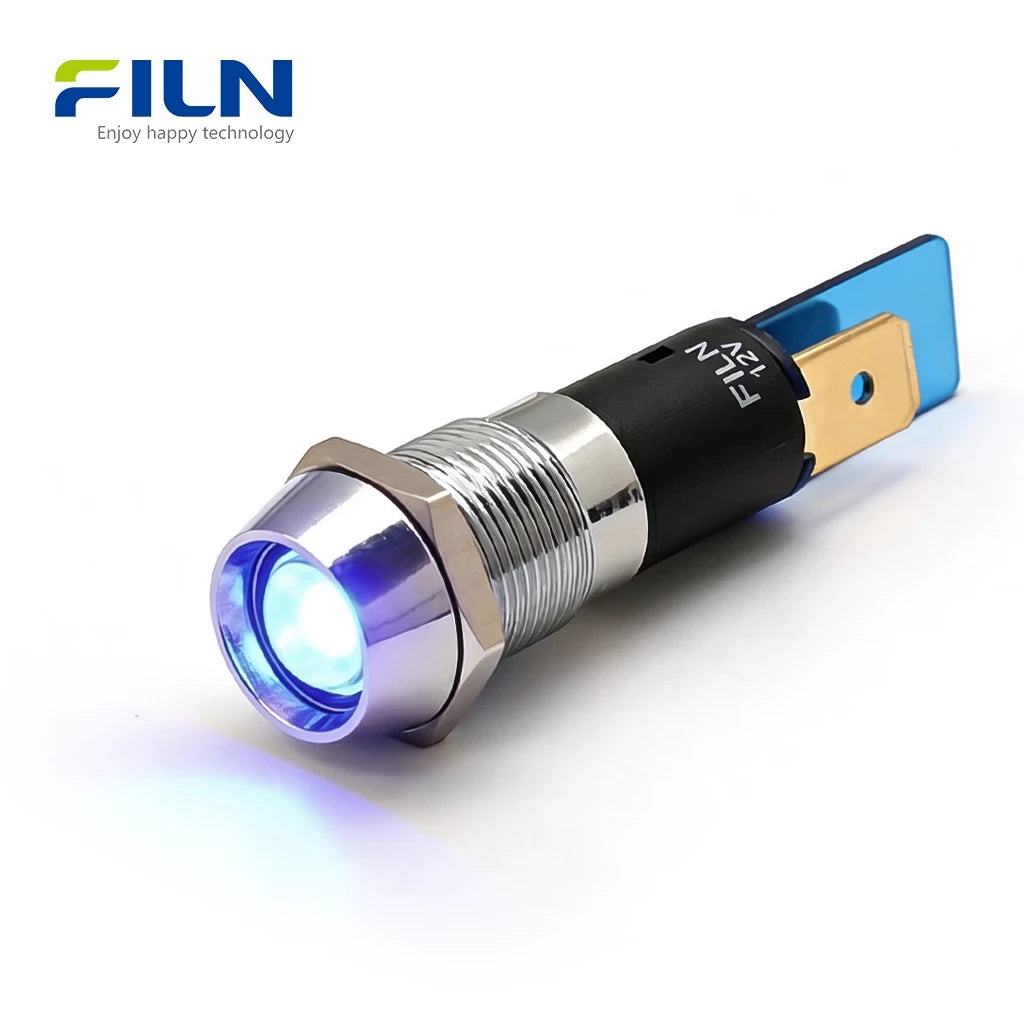

The 24 volt DC LED indicator light (Model: FL1M-12CJ-1) is a professional 12mm concave-head pilot lamp designed for precision signaling. This metal LED indicator is certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, ensuring global compliance for critical applications. Its unique concave head design protects the lens from impact and reduces glare, making it ideal for industrial control panels, medical devices, yachts, and new energy equipment. Featuring a durable metal housing in silver or black and 2-pin terminals for rapid installation, this light offers industrial-grade reliability and a long operational lifespan.
Quick Specifications
| Mounting Hole | 12mm / 0.47" |
| Voltage | 12-24V (Standard 24V DC), 110-220V Support |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃～80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | 2-PIN Plug-in Terminal (Solder Lug) |
Rated Working Parameters
| Rated Voltage | Customized (12V/24V/110V/220V) |
| Frequency(AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Nickel-plated Brass / Stainless Steel (Silver or Black) |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone (Large O-ring included) |
| Terminal | Phosphor Bronze with Silver Plating |
| Wire Material | High-grade customization available |
General Characteristics
| Application | Industrial, Medical, Marine, Testing |
| Part Name | Concave Head LED Indicator |
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Waterproof Rating | IP67 |
Operating Temp: -40℃～80℃ | Relative Humidity: ≤85% at +40℃ | Ambient Temp: 5~35℃ | Air Pressure: 86~106Kpa
Electric Property
| Insulation Resistance | DC500V 1min | Req: ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | Req: No breakdown |
Durability Characteristics
| Continuous Working Life | 50,000 Hours (Test: 30mA 1000h) |
Resistant Performance
| High Temperature | 80℃ 96h |
| Low Temperature | -40℃ 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) |
Key Features
- High Brightness LED: Premium chips for maximum signal clarity.
- Concave Head Advantage: Protects the lens from physical damage and provides non-glare illumination.
- IP67 Waterproof: Includes an oversized silicone O-ring for superior environmental sealing.
- Efficient 2-PIN Terminal: Faster wiring and more robust electrical stability than standard lead wires.
- Industrial Durability: Metal housing (silver or black) ensures corrosion and impact resistance.
Applications
- Industrial Control Panels
- Medical Diagnostic Gear
- Yacht & Marine Dashboards
- New Energy Inverters
- CNC Lathe Status Signals
- Laboratory Testing Kits
- Electrical Cabinets
- Automated Vending Units
Installation Guide
- Drill a 12mm diameter hole in your application panel.
- Insert the indicator light from the front/top of the panel.
- Ensure the oversized O-ring is seated between the light head and the panel.
- From the rear, slide the M12 nut onto the smooth-running metal threads.
- Tighten the nut firmly to secure the indicator light.
- Connect the 24V power supply to the 2-pin plug-in terminals.
What Is a 24 Volt DC LED Indicator Light?
A 24 volt DC LED indicator light is a standard signaling component in modern automation and marine electronics. The concave head design offers a distinct functional advantage: the recessed lens is shielded by the metal housing, preventing accidental breakage in rugged industrial environments and providing a localized, non-distracting light source. While wired indicator lights are common, 2-pin terminal (plug-in) models like the FL1M-12CJ-1 are preferred for high-density panels. They allow for modular assembly and significantly easier maintenance, as the wiring can be detached or replaced without removing the entire indicator unit.
Factory Direct Supply & Customization
FILN is a specialized manufacturer supporting high-precision industrial requirements:
- Factory Direct: Competitive B2B pricing with direct technical support.
- Voltage Customization: Available for 12V, 24V, 110V, 220V, and bespoke ranges.
- Wiring & Connector Customization: Tailored wire lengths and connector types.
- Fast Global Shipping: Rapid turnaround for international projects.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I use the 24V DC LED indicator on a marine boat?
Yes, with an IP67 rating and metal shell, it is perfect for marine environments.
2. What is the advantage of the concave head design?
The recessed lens is shielded from physical impacts and minimizes distracting glare.
3. Are black housings available?
Yes, we provide silver nickel-plated and black anodized housing options.
4. What is the benefit of 2-pin terminals over wire leads?
They provide a more stable electrical connection and allow for modular assembly/disassembly.
5. Is the mounting hardware included?
Yes, each unit comes with an M12 nut and an oversized waterproof silicone O-ring.
6. Can these be used in medical devices?
Yes, the UL/CE certifications make them suitable for high-standard medical applications.
7. How long will the LED last?
Our industrial LED chips are rated for over 50,000 hours of service.
8. Is the installation thread smooth?
Yes, the M12 threads are precision-machined for effortless mounting.
9. Do you support custom voltages like 48V?
Yes, FILN offers full factory customization for bespoke voltage and wire requirements.
10. Are these resistant to vibration?
The robust metal build and pin terminals make them ideal for heavy machinery like CNC lathes.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
