In any demanding environment—be it on the high seas, an off-road trail, or an industrial factory floor—the reliability of your electrical system is paramount. The constant threat of moisture, dust, and physical stress can wreak havoc on standard electrical components, leading to catastrophic failures, dangerous short circuits, and expensive downtime. The challenge is clear: how do you safely control high-power devices in these unforgiving conditions? The answer lies in a solution that is more than just a switch; it’s a fully engineered, hermetically sealed control system.

This is where the FILN Waterproof inline Switch excels. It is a purpose-built, integrated unit designed to provide robust 30A power control within a completely protected enclosure. This guide will not only detail the exceptional features of the FILN switch but also delve into the critical science and engineering behind what makes a truly effective waterproof electrical solution.

The Anatomy of a Truly Waterproof Electrical Solution

Before appreciating the FILN switch, it’s crucial to understand the principles of electrical protection. The term “waterproof” is often used loosely. True protection is a result of meticulous design, material science, and adherence to certified standards.

Beyond the Box: A Deep Dive into IP Ratings

The most critical specification for any protective enclosure is its Ingress Protection (IP) rating. This international standard precisely defines the level of sealing effectiveness against foreign bodies (like dust and dirt) and moisture. An IP rating consists of two numbers:

• First Digit (Solids Protection): This ranges from 0 (no protection) to 6 (completely dust-tight). A rating of 6 is essential for environments where fine particles could penetrate and damage internal components.

• Second Digit (Liquids Protection): This ranges from 0 (no protection) to 9 (protection against high-pressure, high-temperature spray jets). Understanding the specific levels is key:
  • IP65: Protected against water jets from any angle. This is suitable for applications that need to withstand rain or a standard garden hose rinse.
  • IP66: Protected against powerful water jets. This offers a higher level of protection needed for environments like boat decks that face heavy seas or industrial equipment that requires high-pressure washdowns.
  • IP67: The FILN Waterproof inline Switch carries this rating. It means the unit is completely dust-tight (6) and can withstand immersion in water up to 1 meter deep for 30 minutes (7). This provides robust protection against both spray and the risk of temporary submersion.
  • IP68: This rating is for continuous immersion in water under conditions specified by the manufacturer.

For the vast majority of marine, automotive, and outdoor applications, an IP67 rating represents the perfect balance, exceeding spray-down requirements while providing critical protection against immersion.

Material Science: Choosing the Right Enclosure

The material of the waterproof electrical box itself is just as important as its seal. The right material must resist environmental threats like UV radiation, impacts, and chemicals. Common choices include:

• ABS Plastic: A strong, impact-resistant thermoplastic. It’s a great all-around choice, but lower-quality ABS can become brittle over time with constant UV exposure.
• Polycarbonate: More impact-resistant and has better UV stability than ABS, making it a superior choice for enclosures that are constantly exposed to direct sunlight.
• Stainless Steel/Aluminum: These offer the ultimate in durability, impact resistance, and corrosion protection (especially marine-grade stainless steel).

FILN constructs its waterproof enclosures from high-grade, UV-stabilized thermoplastics, ensuring long-term durability without cracking or degradation from sun exposure.

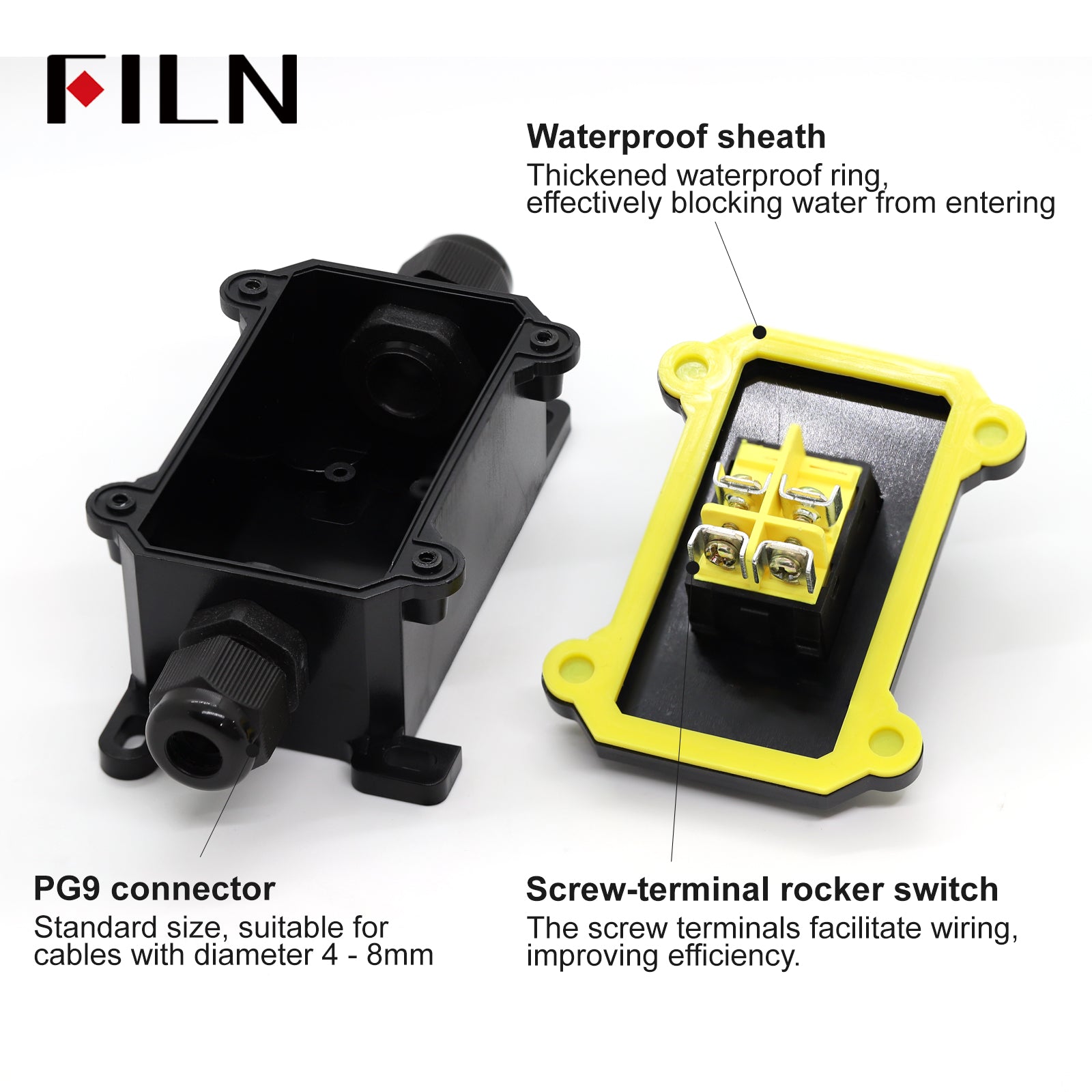

The Critical Role of Gaskets, Seals, and Cable Glands

A box is only as strong as its weakest point. A perfect seal is achieved through:

• Gaskets: A high-quality silicone or rubber gasket fitted into a channel in the enclosure lid creates a compression seal when closed, blocking the path for water and dust.
• Cable Glands (Cord Grips): A waterproof electrical box is useless if the entry points for wires are not sealed. Cable glands are specialized fittings that screw into the box. As you tighten the gland, a rubber seal inside compresses around the cable, creating a watertight barrier.

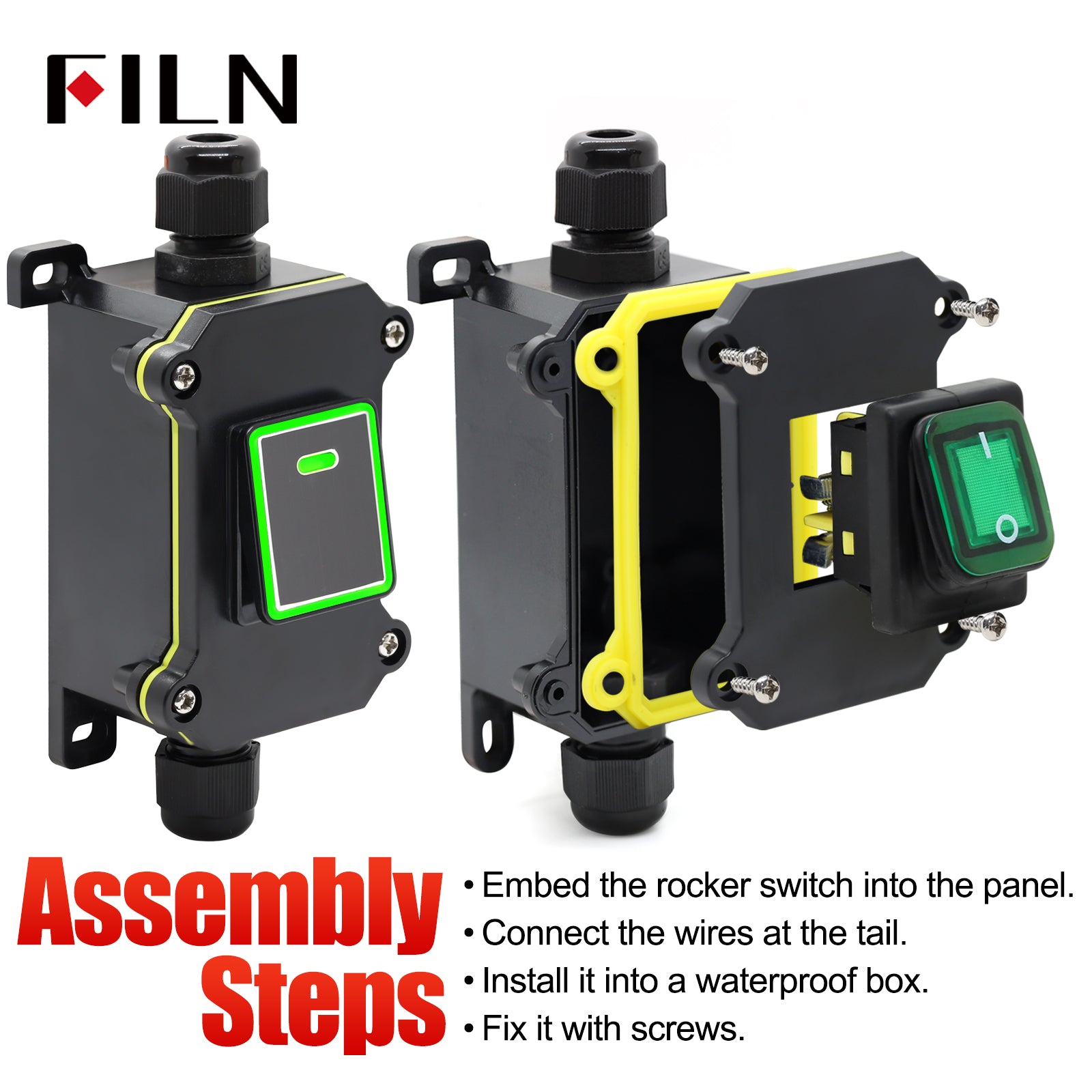

The FILN Waterproof inline Switch is a factory-sealed unit, meaning the switch, enclosure, and cable glands are all pre-assembled and tested, eliminating the risk of improper installation.

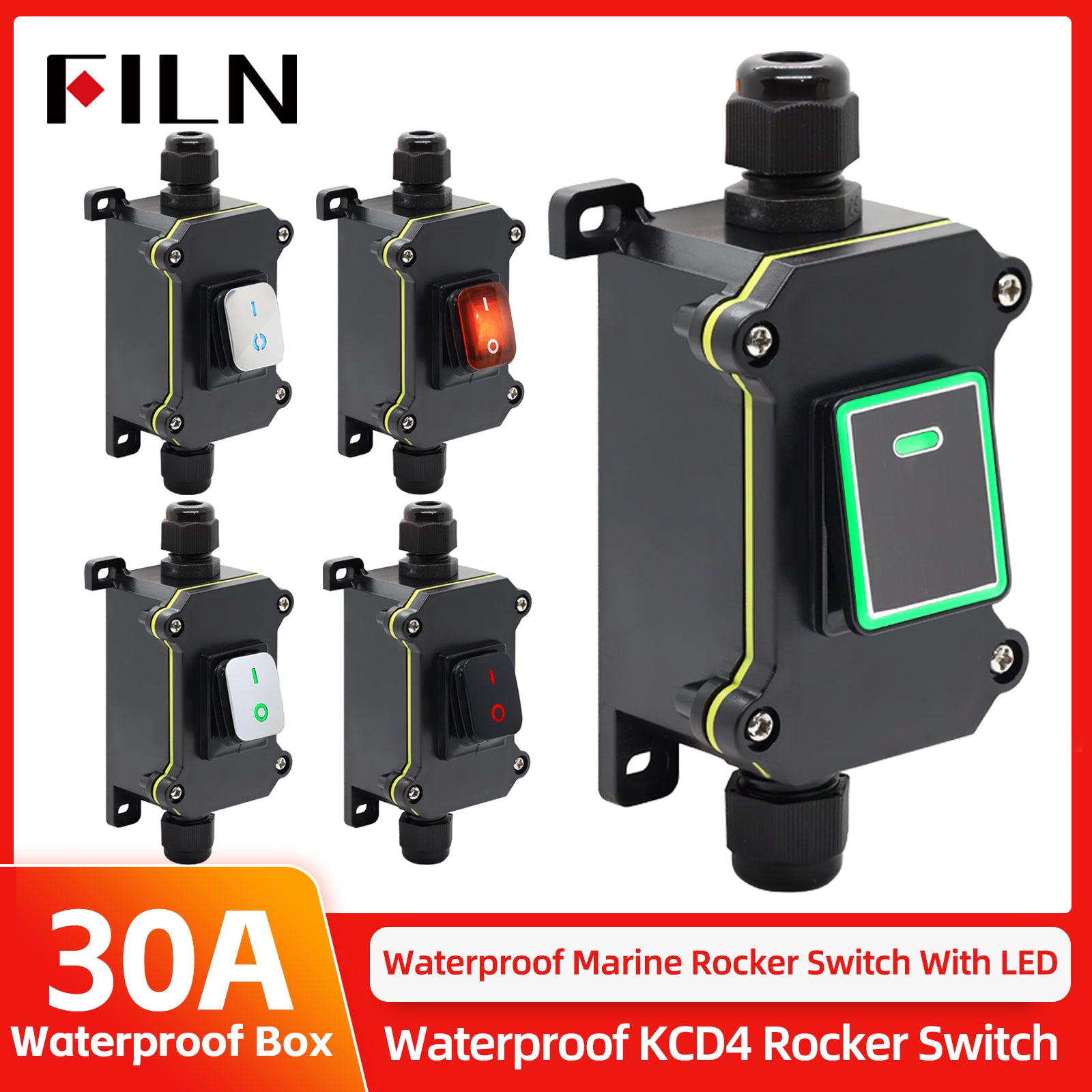

The FILN 30A Waterproof Inline Switch: An Integrated System

Understanding the science above makes it clear why the FILN switch is a superior system. It’s not a collection of parts; it’s a holistic solution where every component is designed to work in harmony.

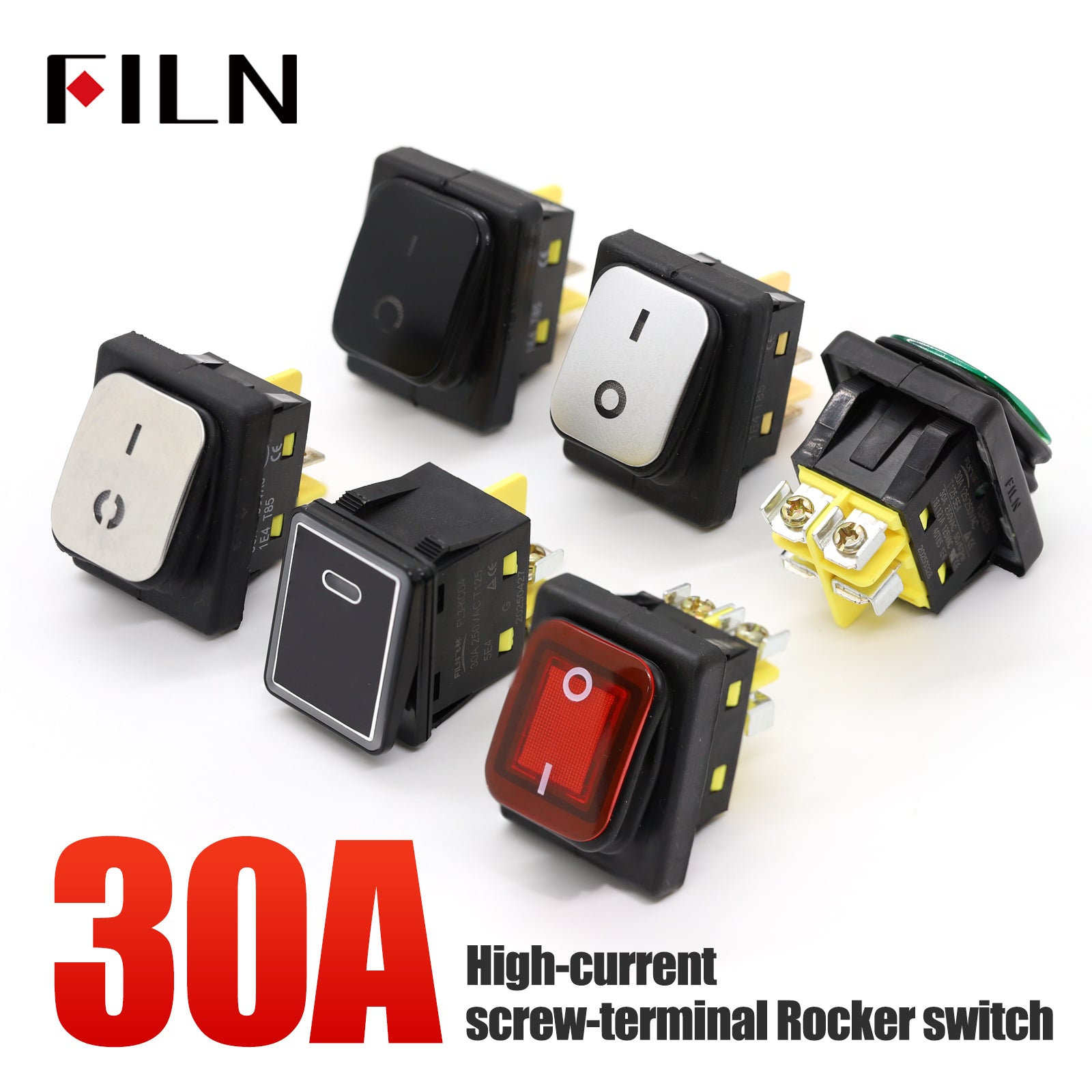

Uncompromising Power: The 30A Heavy-Duty Rocker Switch

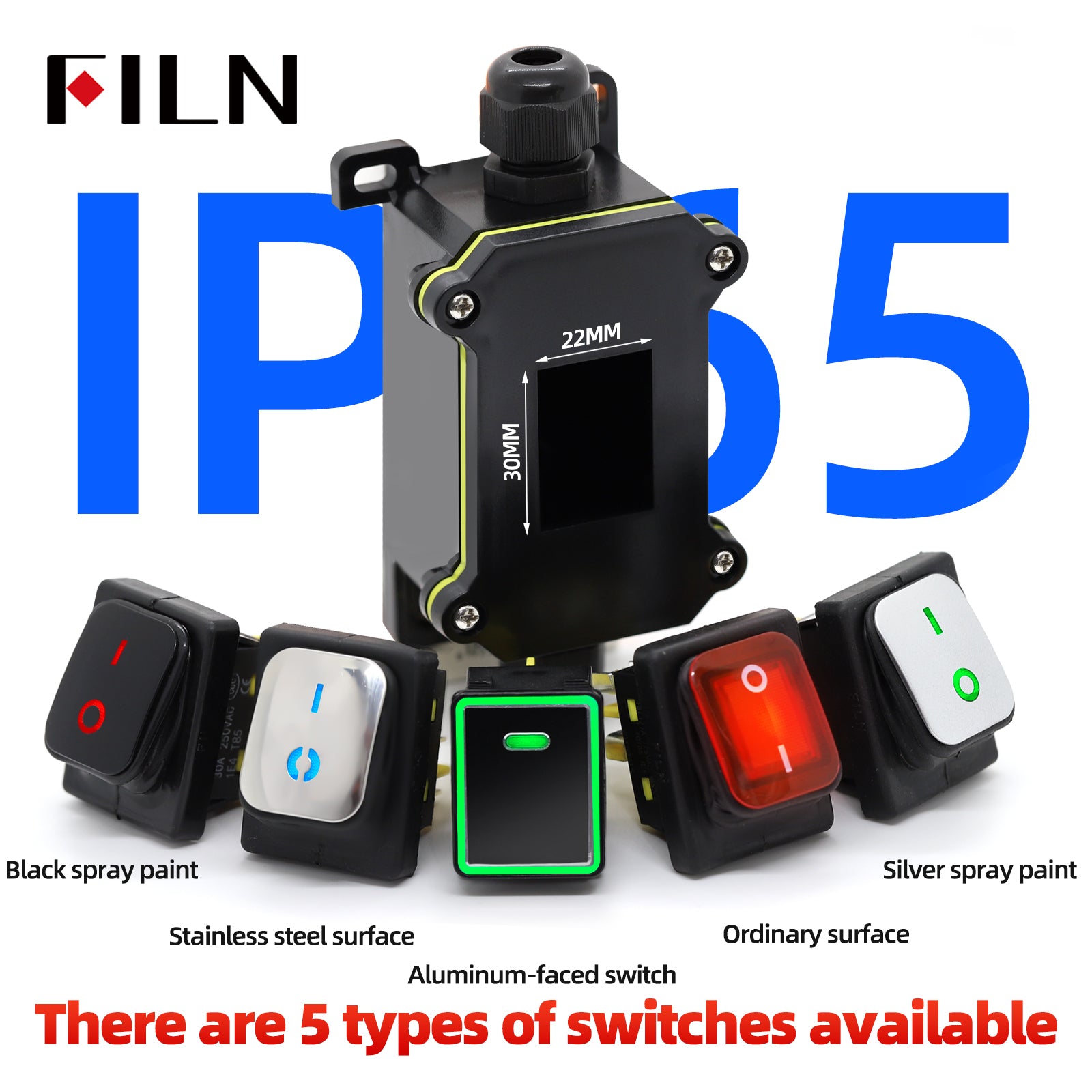

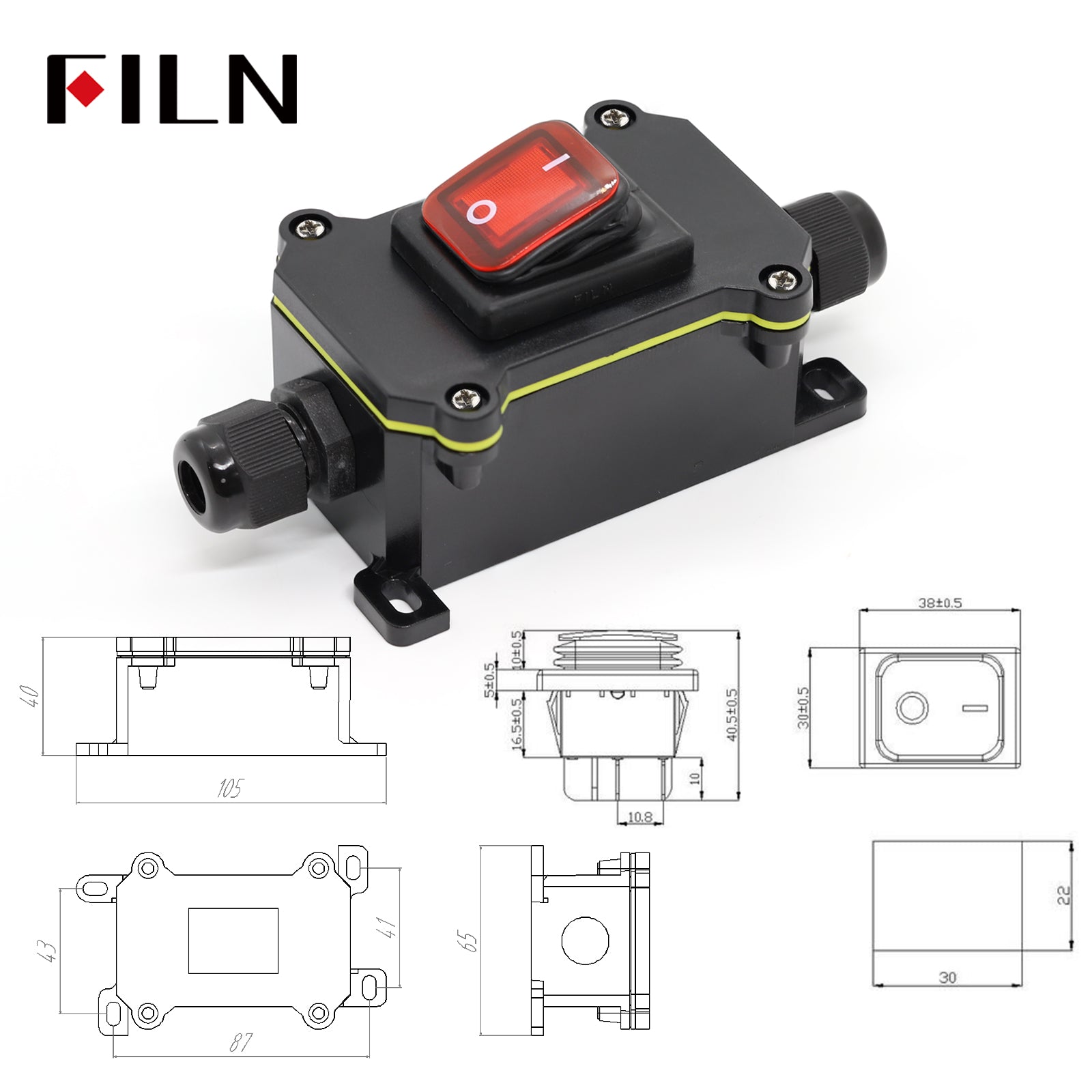

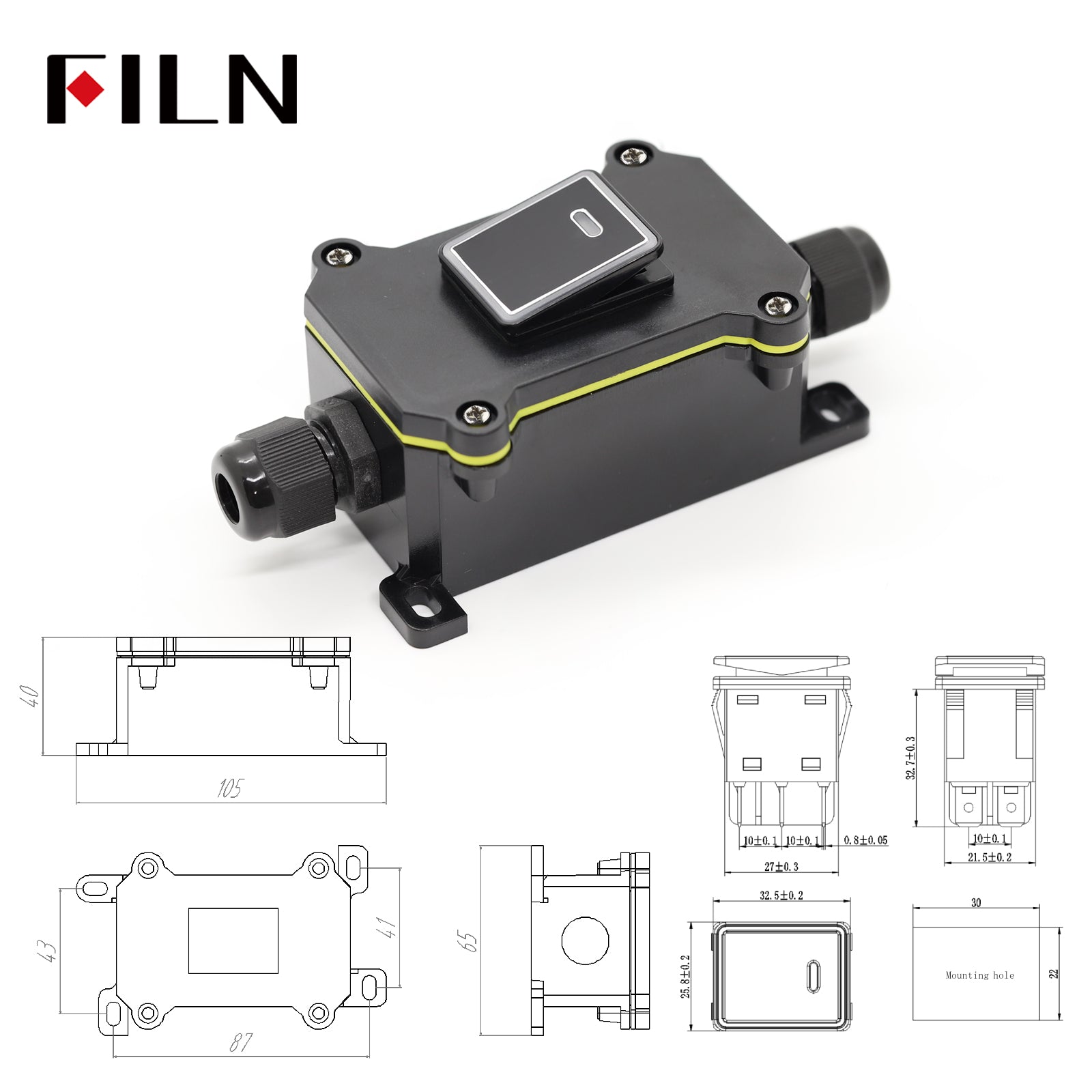

At its core is a formidable 30A rocker switch. This high amperage capacity is essential for safely managing power-hungry equipment such as large LED light bars, pumps, winches, and motors. This heavy duty rocker switch is built for high-cycle, long-life performance. Its standardized 22x30mm panel cutout design is a testament to its professional-grade engineering.

Unmatched Versatility: double outlet and single outlet

FILN provides two functional models to streamline your wiring:

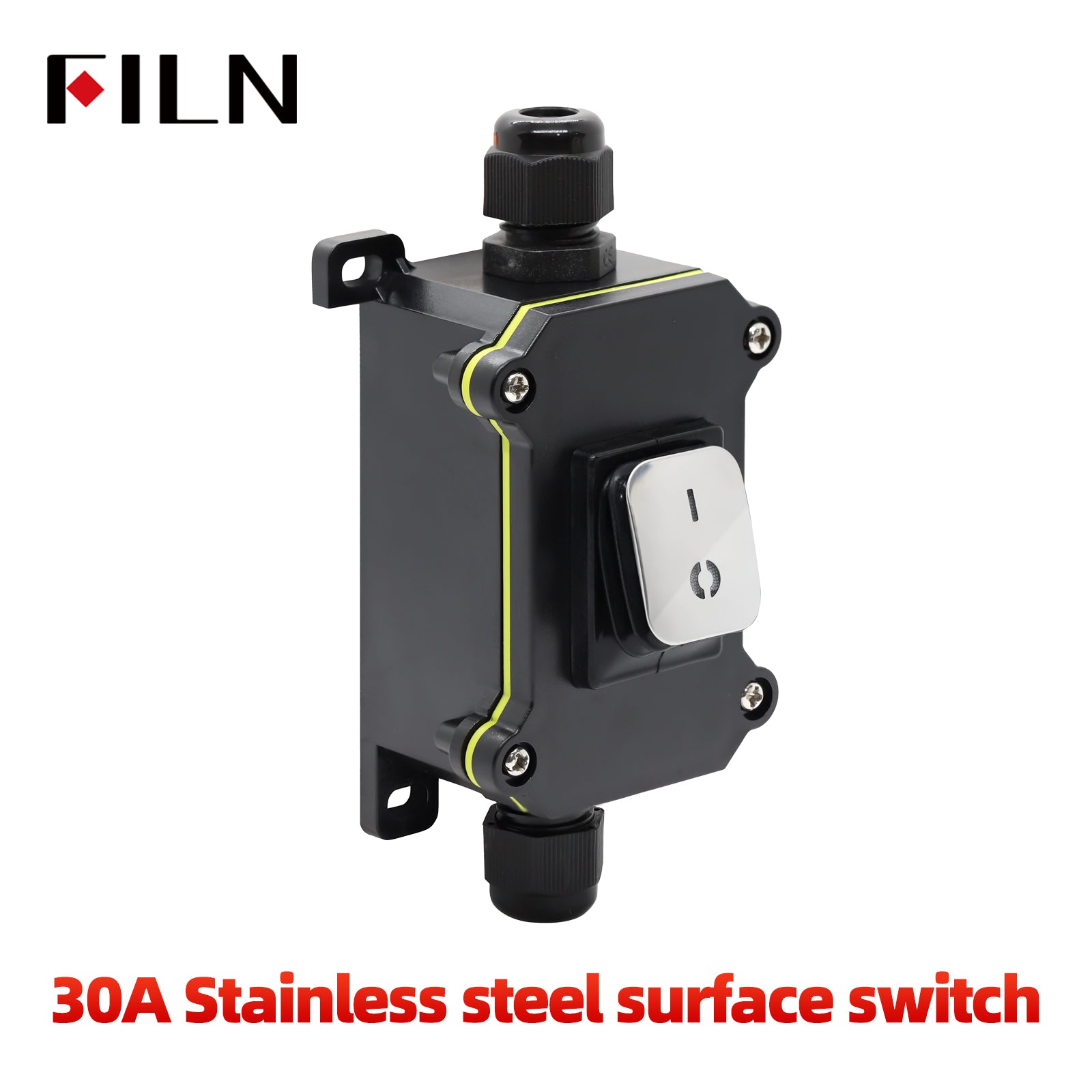

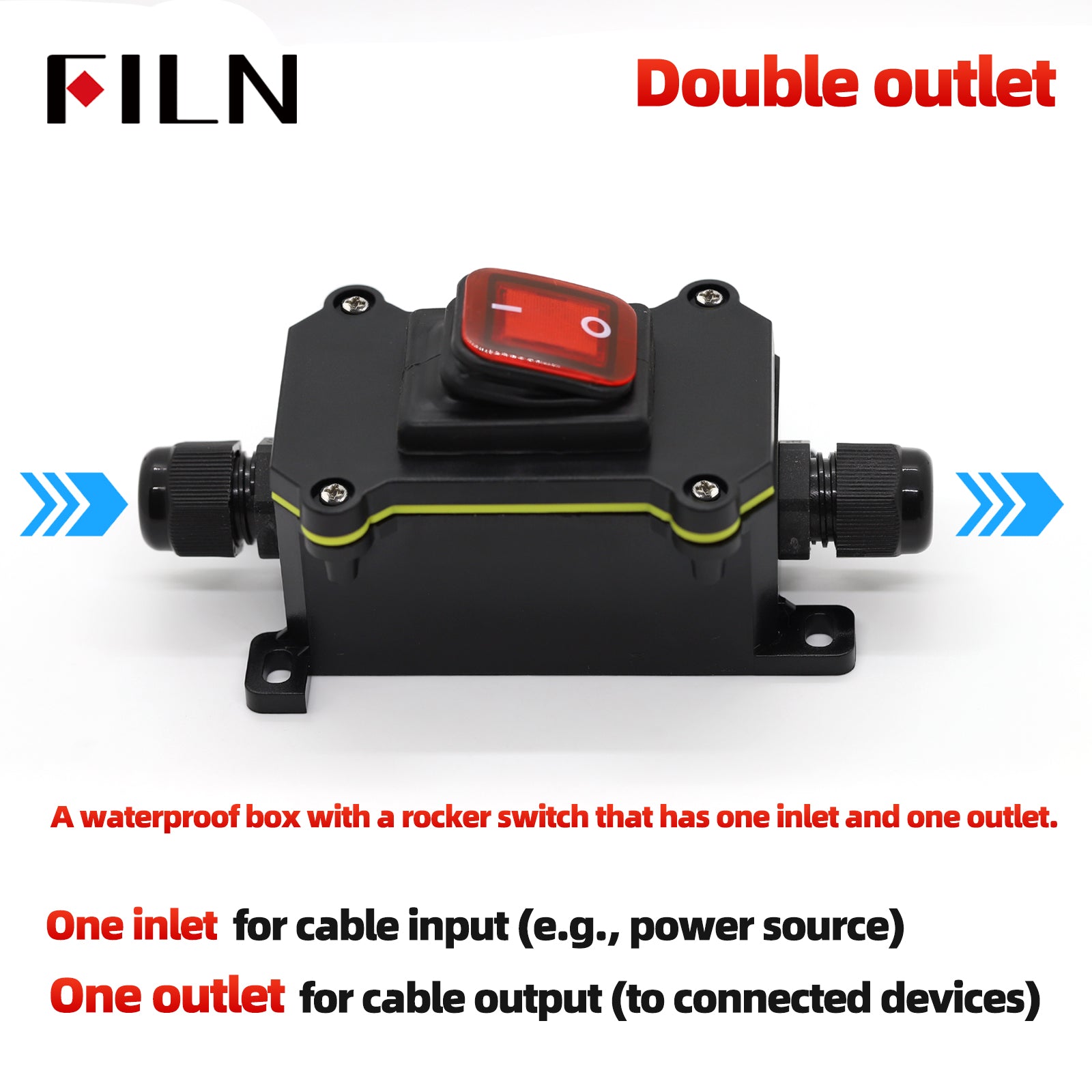

• Double Outlet Waterproof Box
• The double outlet model features two ports: one inlet and one outlet. This design allows cables or wires to enter through one port and exit through the other, making it ideal for applications where cables need to pass through the box from one side to the other (e.g., connecting external devices to internal systems while maintaining waterproof integrity). The separate inlet and outlet ensure clear cable management and prevent clutter, providing a secure and organized solution for dual-directional cable routing.
• Single Outlet Waterproof Box
• In contrast, the single outlet waterproof box is equipped with only one outlet port. This type is suitable for scenarios where only a single cable needs to be routed out of the box (e.g., when power or signals need to be transmitted from the interior to the external environment without an incoming cable). The single-port design offers a simplified structure, emphasizing compactness and ease of installation, while still maintaining the same high-level waterproof performance to protect internal components from moisture, dust, and other environmental factors.

Total Customization: Your Switch, Your Style

Functionality does not mean sacrificing form. The FILN Waterproof inline Switch offers unparalleled aesthetic customization.

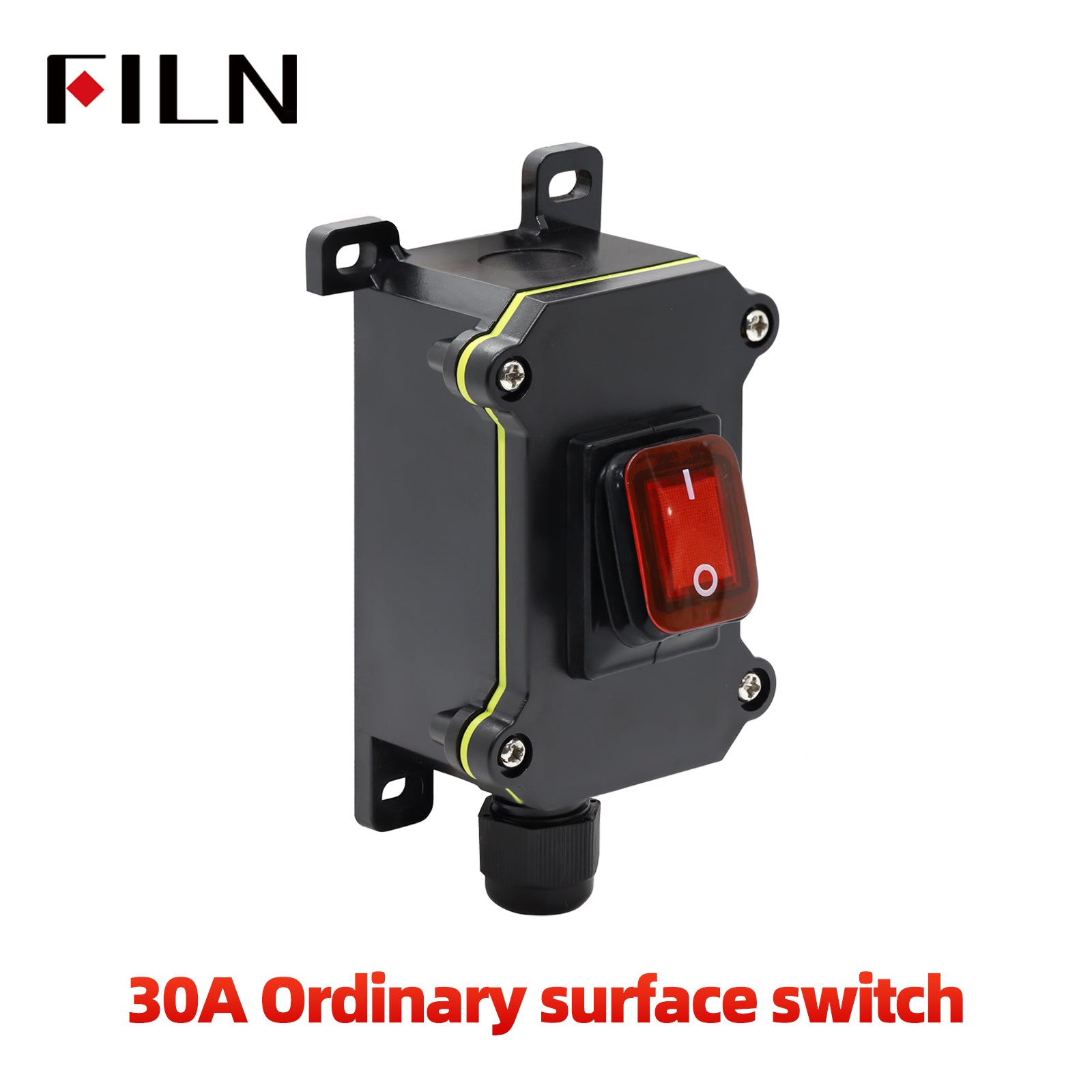

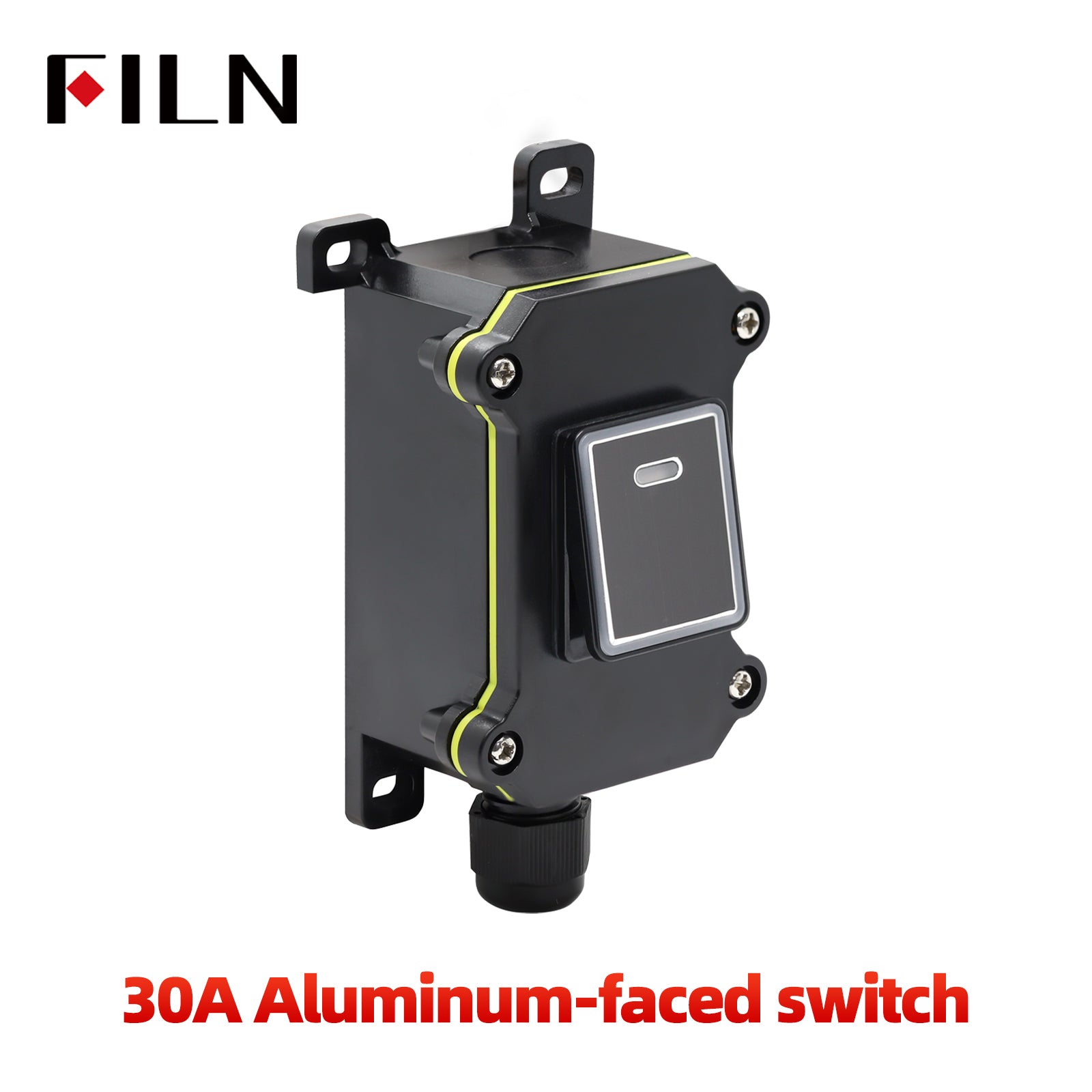

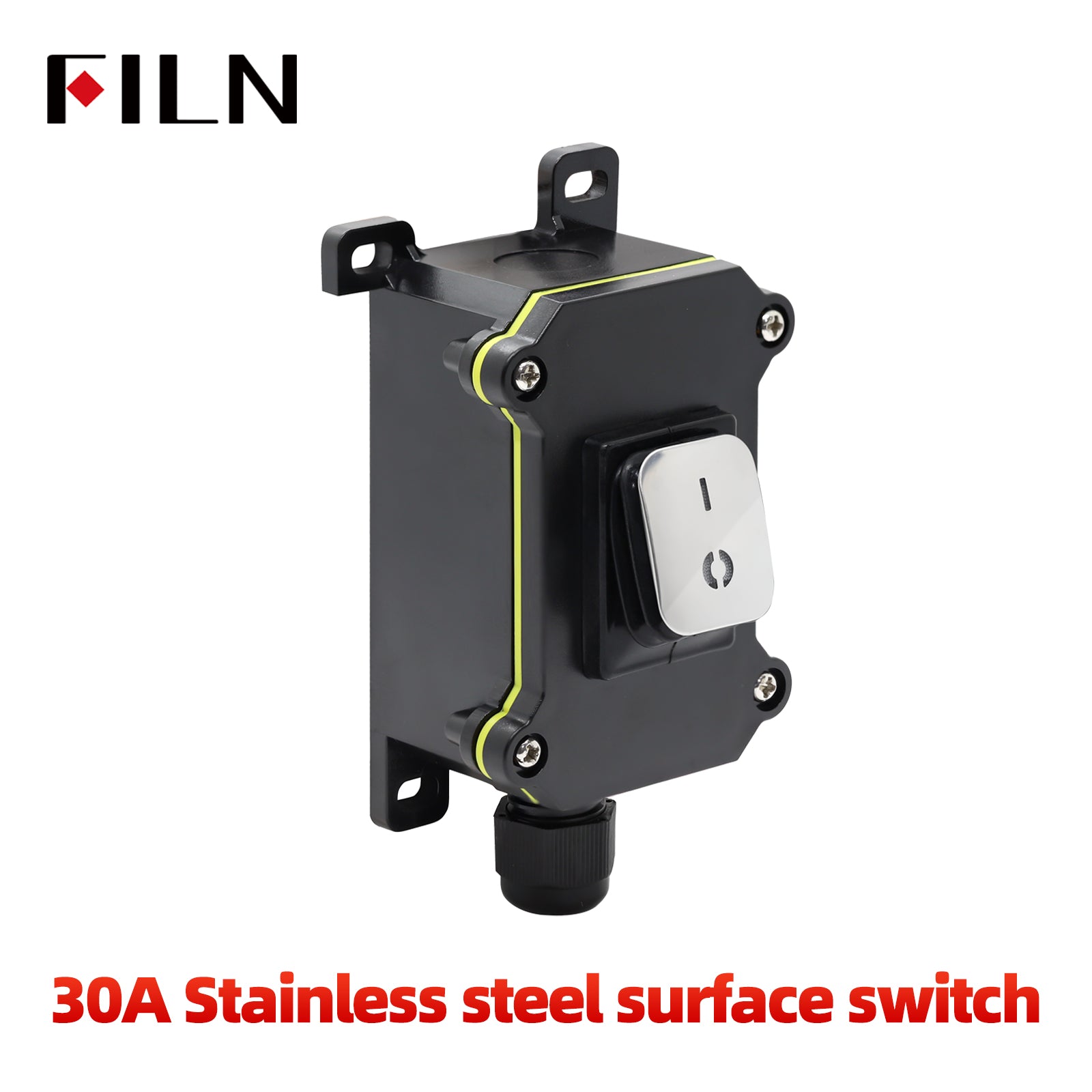

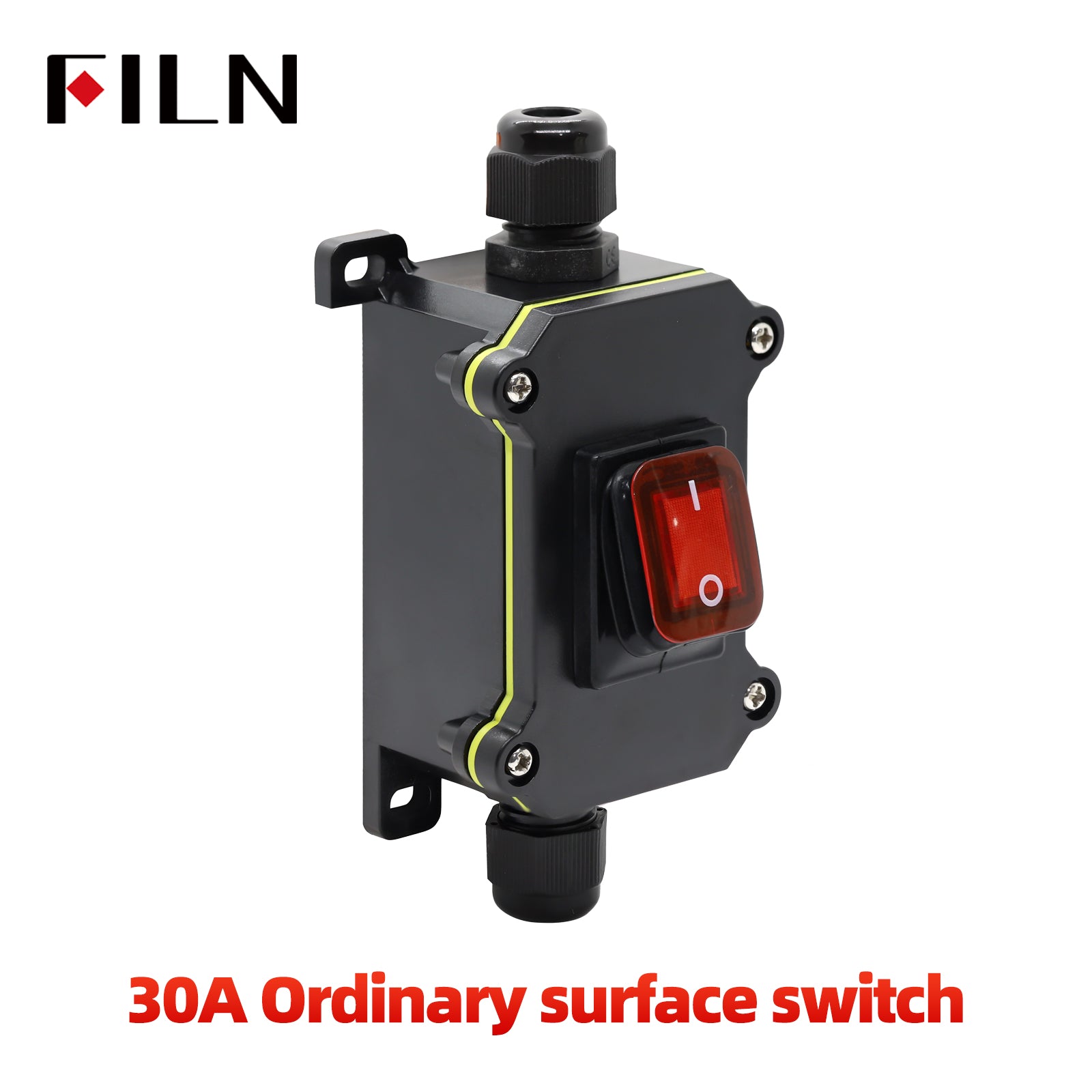

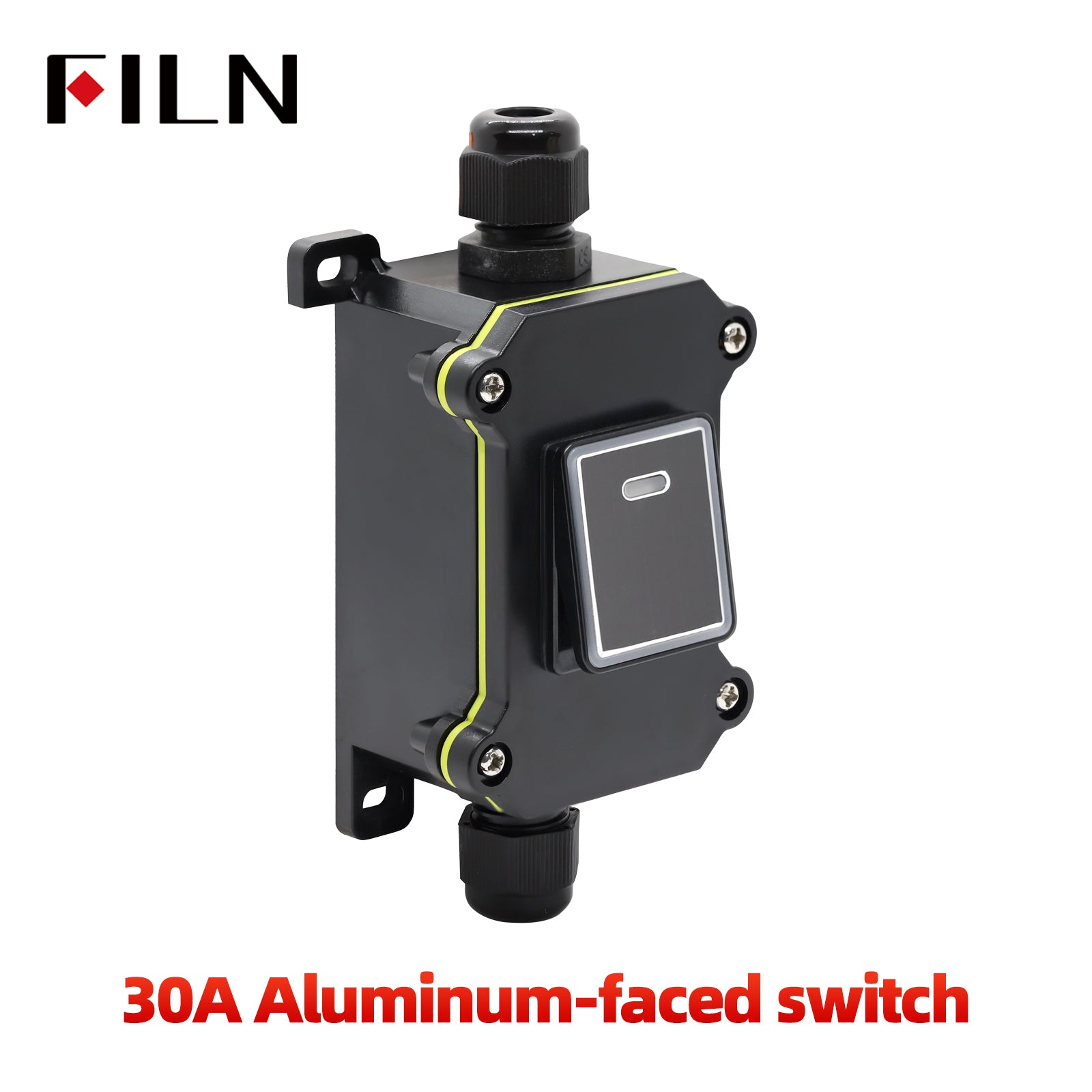

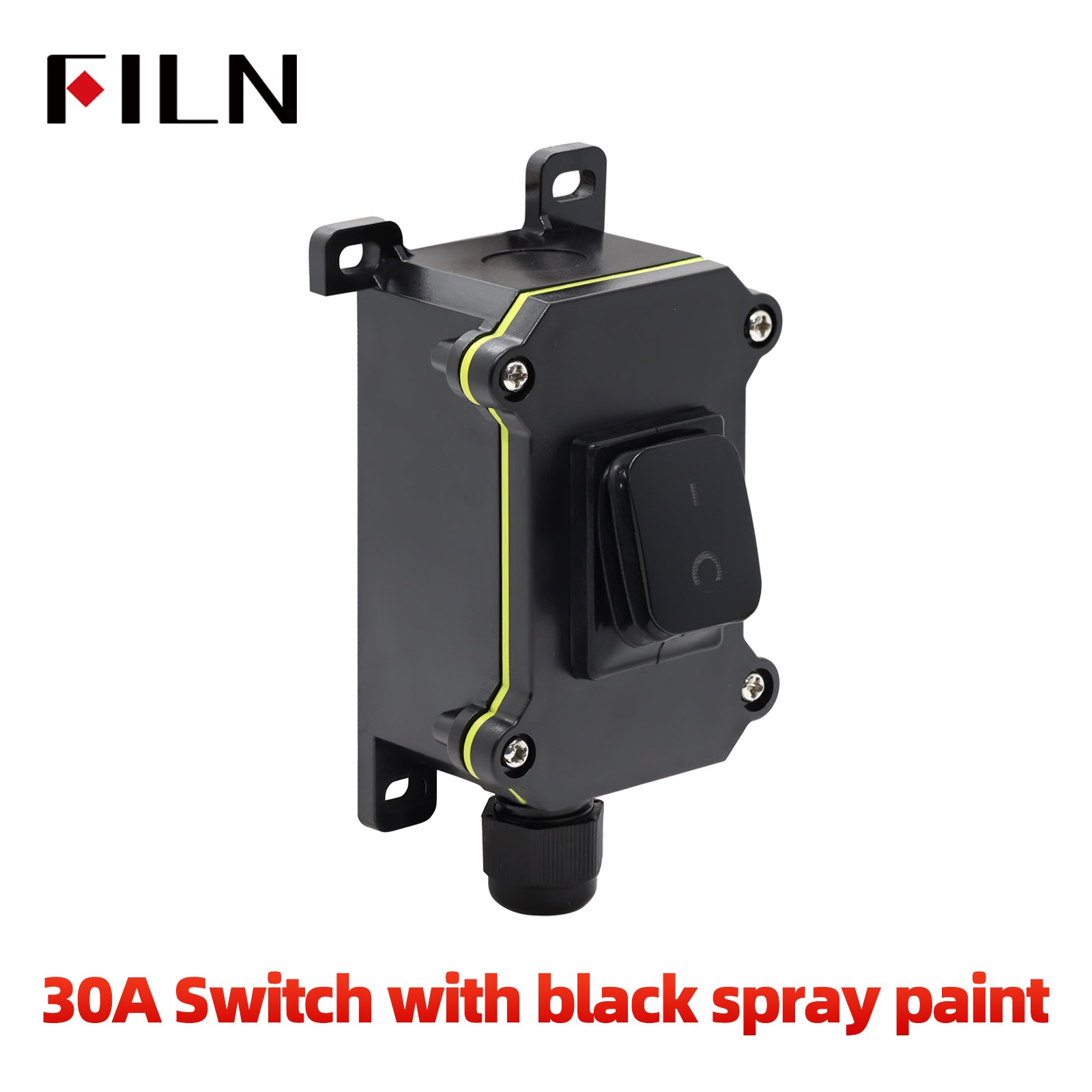

• Four Distinct Rocker Surfaces: Choose the finish that best suits your project: the durable Standard finish, the corrosion-proof Stainless Steel for marine applications, the non-reflective Painted surface for a tactical look, or the sleek and modern Aluminum face.
• Five Vibrant LED Colors: The integrated LED waterproof switch provides clear visual feedback. Available in Red, Green, Yellow, Blue, and White, the illumination can be used to indicate power status or match existing dashboard lighting.

Real-World Applications: Where Protection Meets Performance

The robust design and high-current capability of this switch make it the premier choice across numerous industries:

• Marine Sector: As a marine grade switch, it’s perfect for bilge pumps, livewell aerators, and navigation lights. Its IP67 rating ensures it can handle spray, waves, and washdowns.
• Automotive & Off-Road: The go-to 12v waterproof switch for custom vehicle builders. It reliably controls off-road light bars, winches, and air compressors on Jeeps, trucks, and UTVs.
• Outdoor & Residential: An excellent outdoor switch box for managing landscape lighting, pond pumps, and gate openers, ensuring year-round operation regardless of weather.
• Industrial & Agricultural: Its ruggedness is ideal for controlling machinery, conveyor belts, and irrigation pumps in environments exposed to dust, debris, and regular cleaning with water jets.

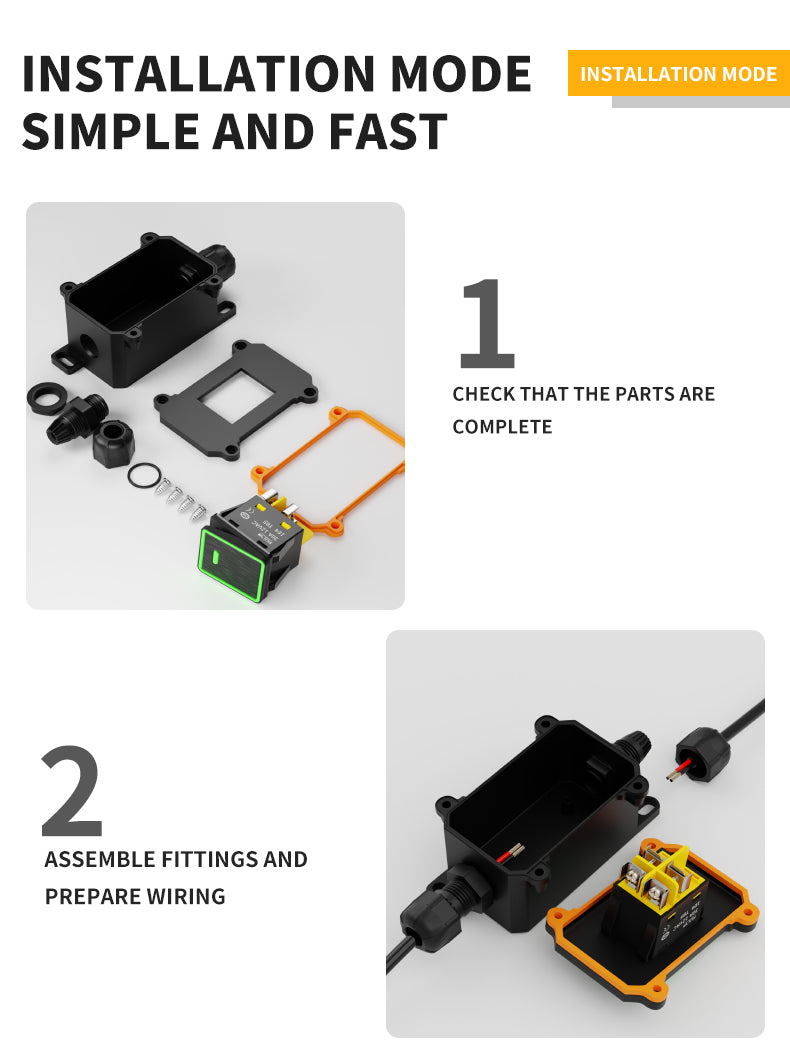

Installation and Best Practices for Longevity

To ensure maximum performance and lifespan from your FILN Waterproof inline Switch:

• Secure Mounting: Mount the box securely to a flat, stable surface to prevent vibration from stressing the cable glands.
• Inspect Seals: Periodically check that the lid screws are snug (but not over-tightened) to maintain gasket pressure.
• Trust the Factory Seal: Avoid opening the enclosure unless absolutely necessary, as this can compromise the factory-tested waterproof seal.

Why FILN is the Definitive Choice

In a market flooded with components, FILN provides a complete, certified, and reliable control system. By choosing the FILN Waterproof inline Switch, you are eliminating the weak points inherent in a multi-part, self-assembled solution. You are investing in peace of mind, knowing that your critical systems are protected by a professionally engineered product designed for the harshest conditions on Earth.

Don’t let water and dust dictate the limits of your project. Enhance your electrical system with the industry’s leading Waterproof inline Switch. Contact the FILN team today to get a quote and find the perfect custom configuration for your high-power application.
