22MM 110V LED illuminated Latching Red Push Button Switch

Color
red
yellow
green
white
blue
Voltage
Function

Description

  • 100% money back guarantee
  • Quickly customize products in 21 days
  • Fast delivery

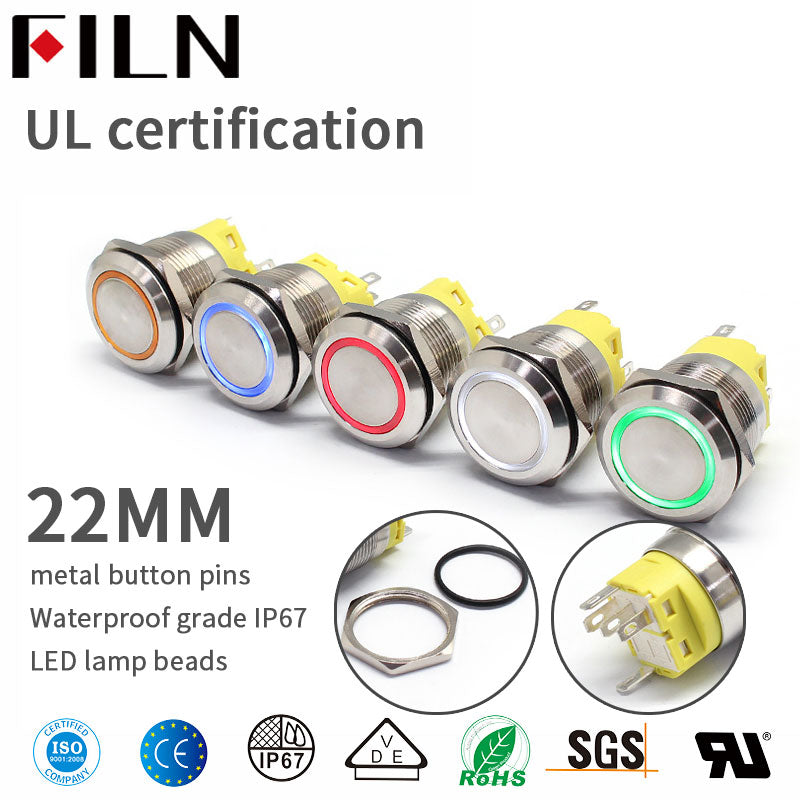

FLM22-FJ-1E Push Button Switch Product Introduction

The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.

The indicator light used by the push button switch is non-polar LED, with a service life of 50000 hours.

The waterproof rating of the push button switch is IP67, and the mounting hole size is 22MM.

The voltage of the push button switch can be 3V, 6V, 12V, 24V, 110V, 220V, 250V, 380V, etc.

22MM metal push button switch can make five colors of light: red, yellow, blue, green, and white.

You can also customize the button switch for two-color lights and three-color lights.

Product specifications

Production series FLM22-FJ-1E Light guide button PC plastic
button shape round actuator 304 Stainless steel
button led color Red blue green yellow white Housing sleeve H59 nickel plated brass/304Stainless steel
Mechanical life The 500 thousand time Button pin H62 copper alloy
electrical life The 100 thousand time rubber ring SIL silica gel
protection level IP67 IK09 nut H59 nickel plated brass
Rated voltage 36V(DC) 250V(AC) housing PA66+GF20% nylon
rated current 1A(DC)0.5A(AC) Light source LED
rated power 36W(DC)125W(AC) Resistor Metal film
Operating temperature -25℃~+85℃ contact AgCdO12
