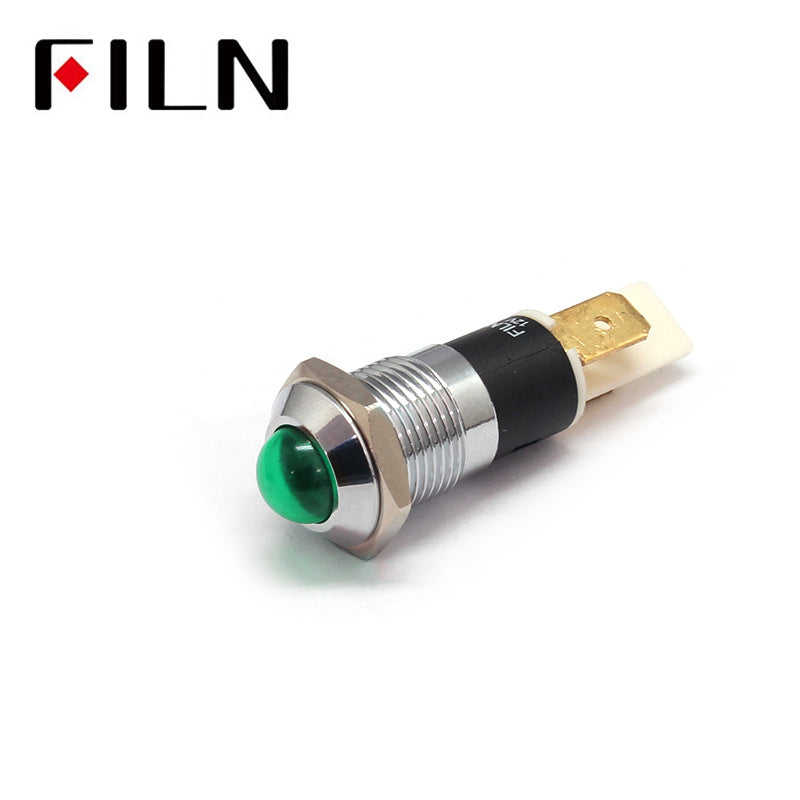

Product Item | FL1M-14SJ-1 |
Panel Mount Diameter | 14mm |
Contact Way | Pins |
Install Way | screw terminal |
Lamp Type | LED |
Rated voltage | AC/DC,3V、6V、12V、24V、220V、380V |
Lamp Color | red yellow blue green white |
Product Design | convex head |
Shell Material | brass plated nickel/stainless steel |
Base Material | PA66 nylon |
Terminal Material | brass |
Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc |
Component name | material |
lens | PC plastic |
Metal body | H59 brass or 204 stainless steel |
wahser | T10 Cold Rolled Steel |
rubber ring | SIL silica gel |
nut | H59 nickel plated brass |
housing | PA66 nylon |
Light source | LED |
Resistor | Metal film |
Cable | PTFE AWG22 0.3mm² |
plug-in | C2680 RoHS brass |
items | parameter |
Rated voltage | 3V-780V DC or AC |
rated current | 20mA |
rated power | 0.2W |
Insulation and voltage resistance | 1800V |
working life | 100000h |
electrical life | 100000 |
cold-resistant | -40℃ |
heat-resisting | 80℃ |
