Product Overview

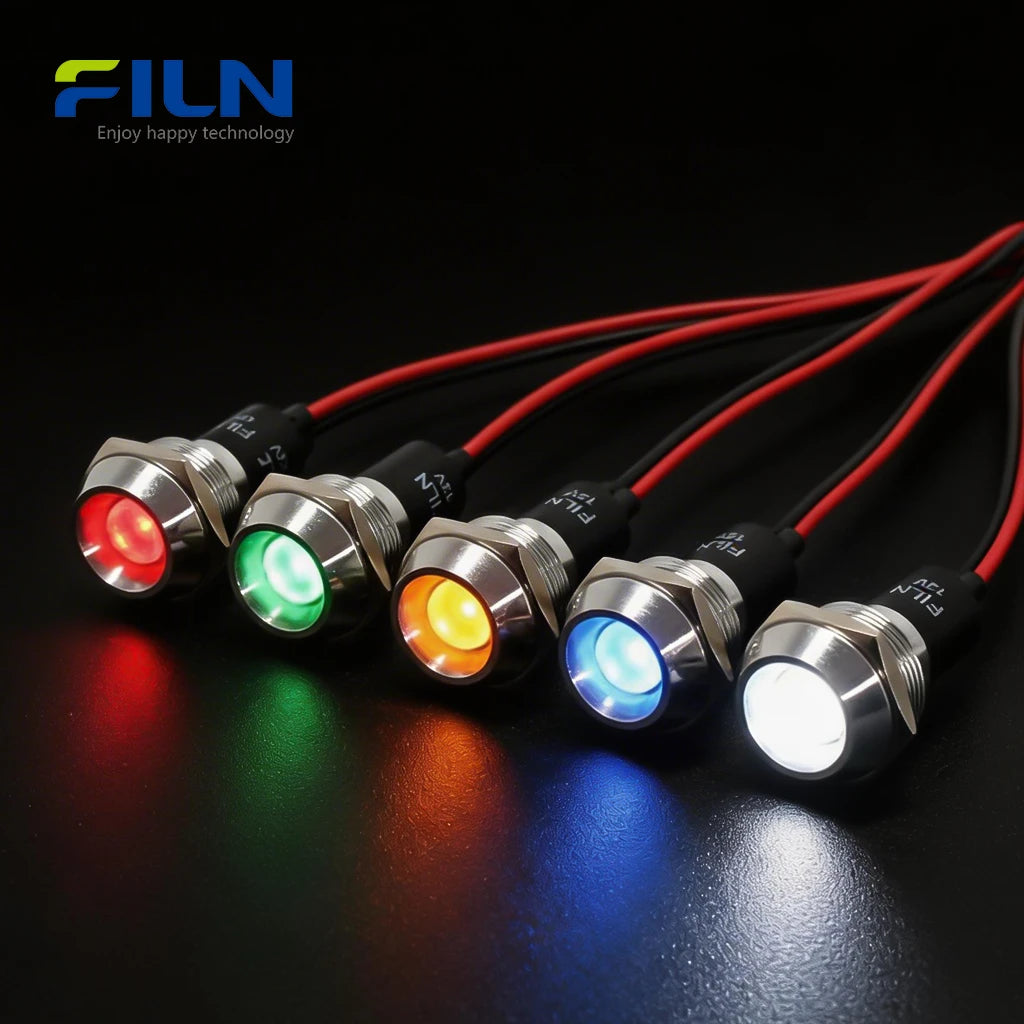

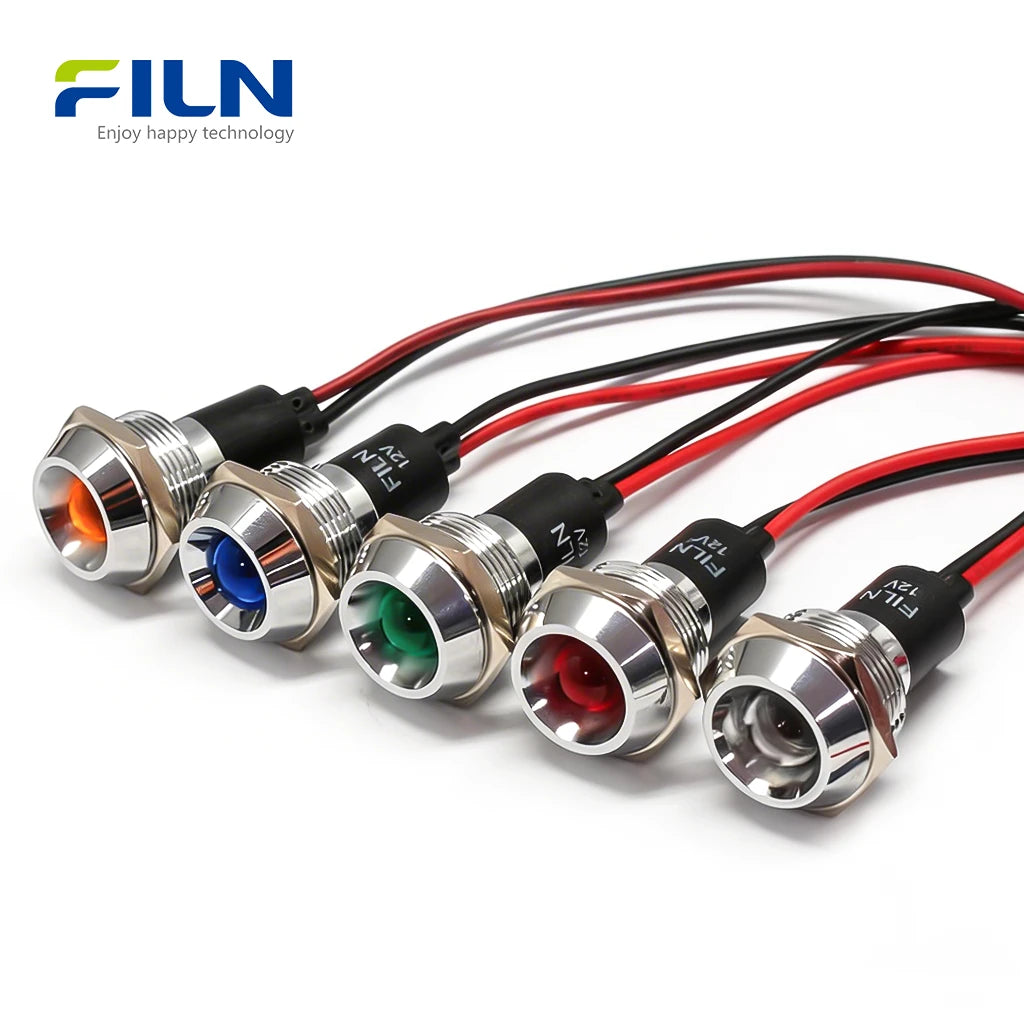

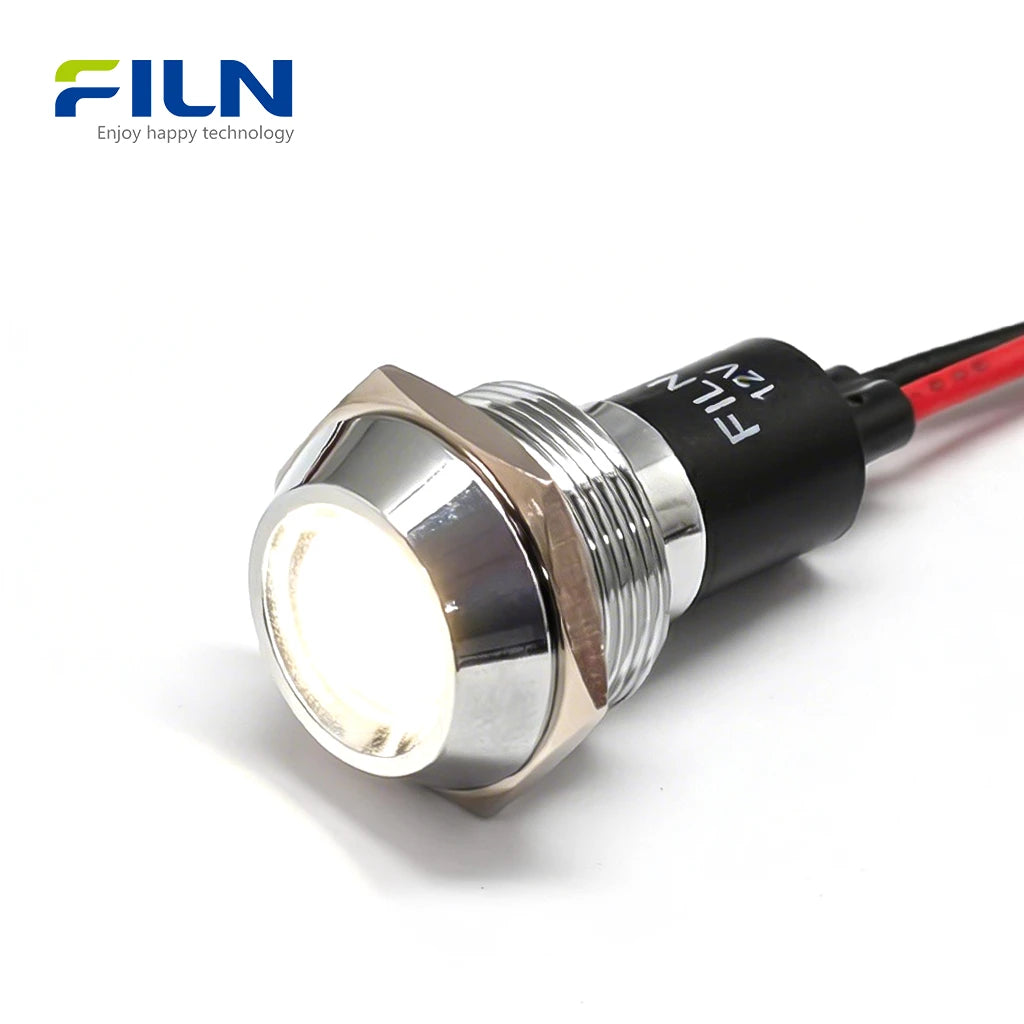

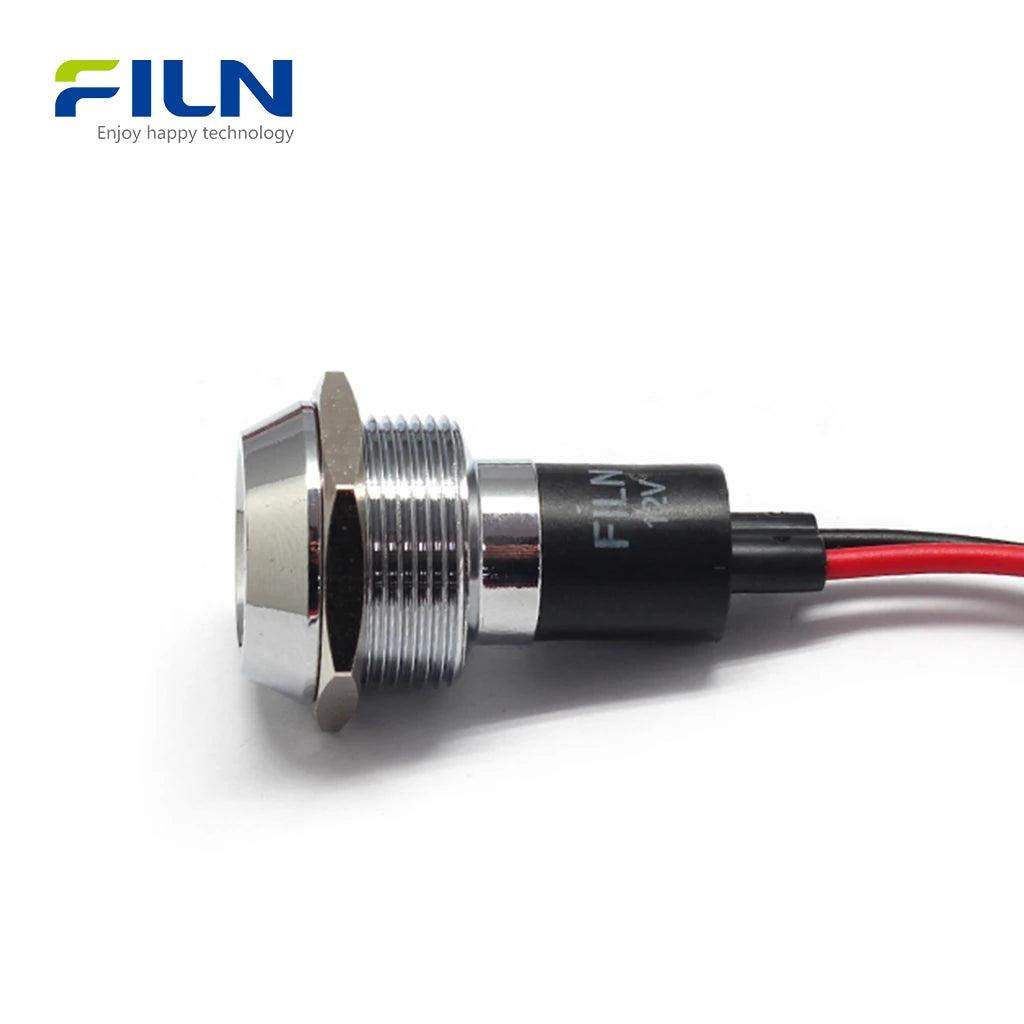

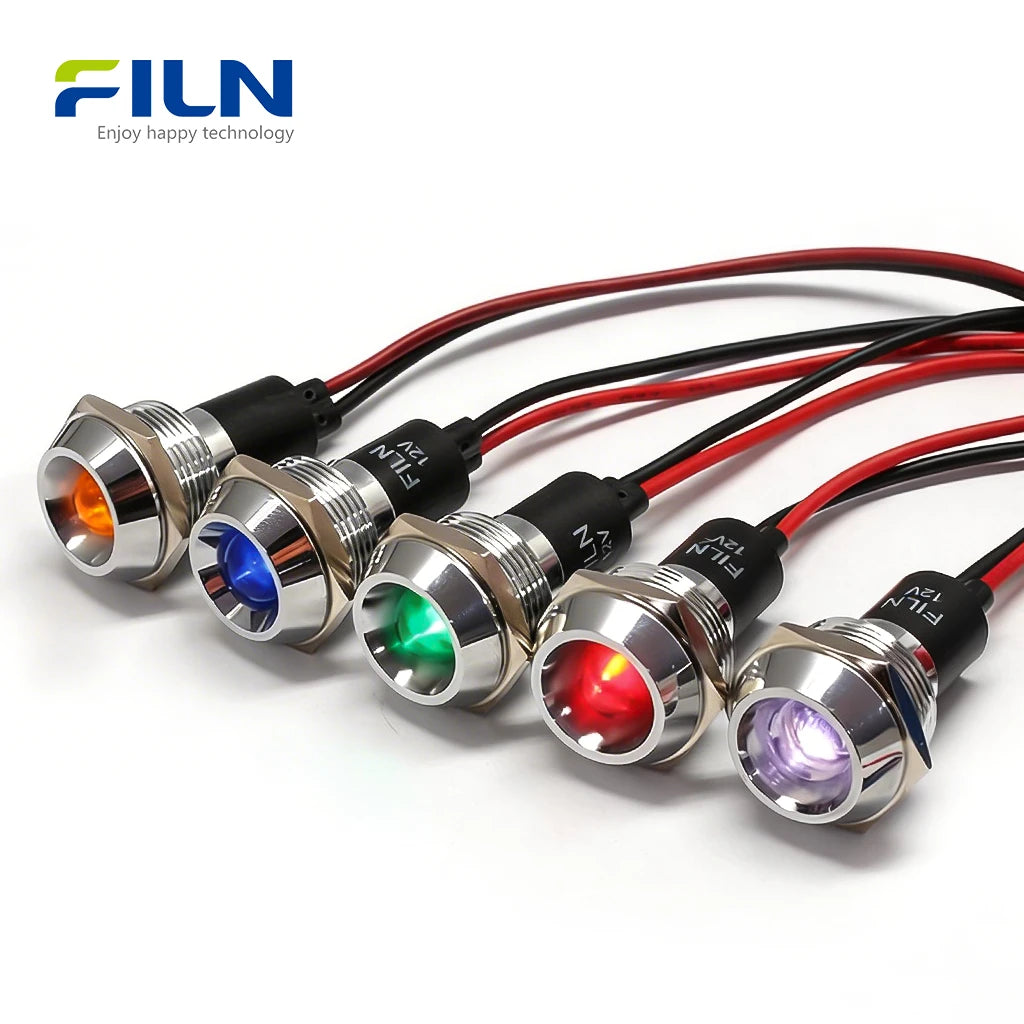

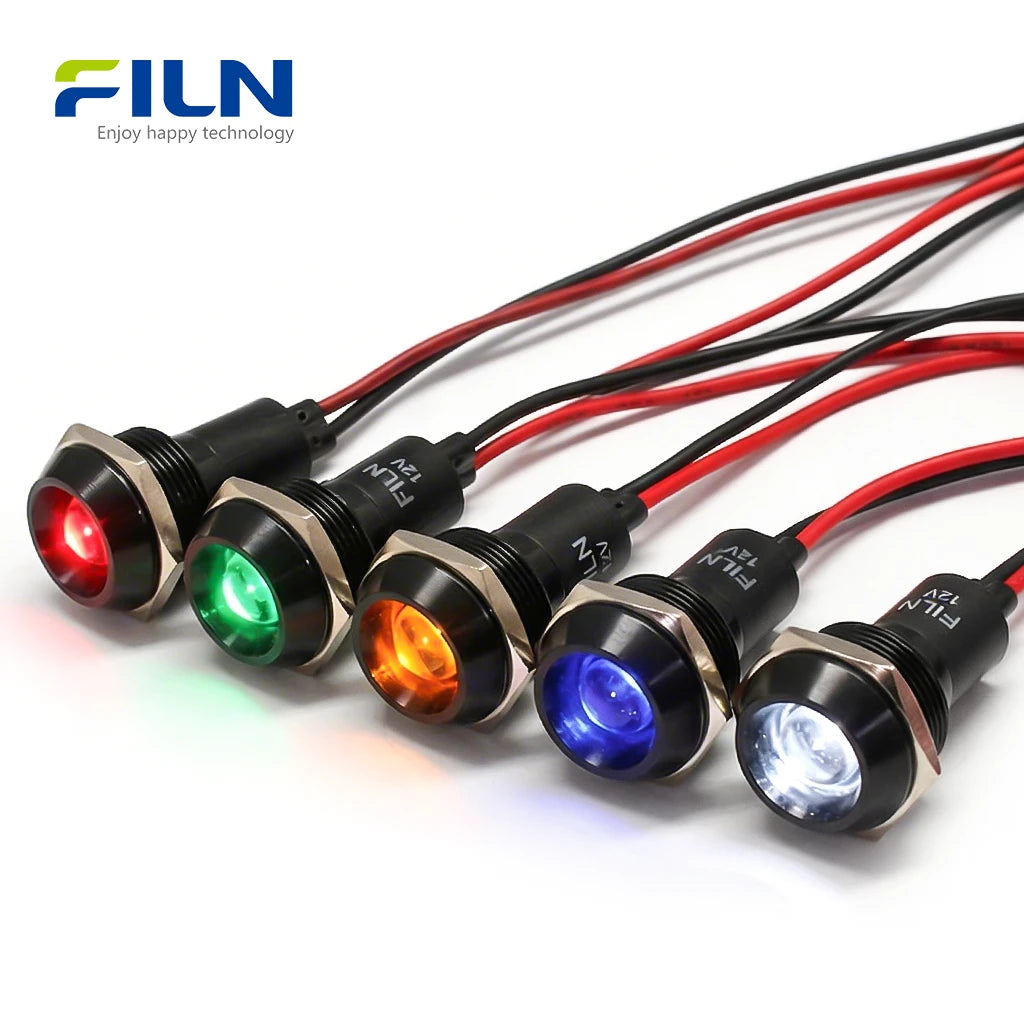

The FL1M-19CW-1 LED Indicators from FILN are professional-grade signaling solutions designed for demanding industrial environments. These 19mm metal LED indicators feature a robust recessed head design, offering superior protection and a sleek aesthetic in both silver and black chrome shells. With world-class certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67, they ensure safety and reliability. These indicators are widely used in industrial control panels, CNC machines, and automation equipment. The pre-wired design with 15cm leads simplifies installation, while the high-brightness LED offers a lifespan of over 50,000 hours. As a direct factory, FILN provides full customization for voltage (12V to 220V) and wire length to meet specific B2B project requirements.
Quick Specifications
| Mounting Hole | 19mm / 0.75" |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | ≥50,000 Hours |
| Wiring Type | Pre-wired Lead (15cm Standard) |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Nickel or Chrome Plated |
| Lamp Holder | PA66 Nylon | High temp resistance |
| Lampshade | PC Polycarbonate | High light transmission |
| Light Source | LED | Long life, low energy |
| Resistor | Carbon Film | Stable current protection |
| O-ring | Silica Gel | IP67 waterproof seal |
Rated Working Parameters
| Rated Voltage | Customized (3V-380V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Brass with Nickel/Black Plating |
|---|---|
| Lens | High-strength PC |
| Seal Ring | High-grade Silicone |
| Terminal | High-quality Brass |
| Wire Material | UL Standard PVC Copper Wire |
General Characteristics
| Application | Industrial Signal Transmission |
|---|---|
| Part Name | FL1M-19CW-1 Indicator Light |
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Test Item | Test Condition | Requirement |
|---|---|---|
| Working Life | 30mA 1000h continuous | 50,000 hours |
Resistant Performance
| High Temp Resistance | 80℃ for 96h |
|---|---|
| Low Temp Resistance | -40℃ for 96h |
| Moisture Resistance | 40℃, 90-95%RH for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 cycles) |
Key Features
- LED High Brightness: Utilizes premium chips for clear visibility even in bright environments.
- Long Lifespan: Engineered for over 50,000 hours of continuous industrial use.
- IP67 Waterproof: Full protection against dust and temporary immersion in water.

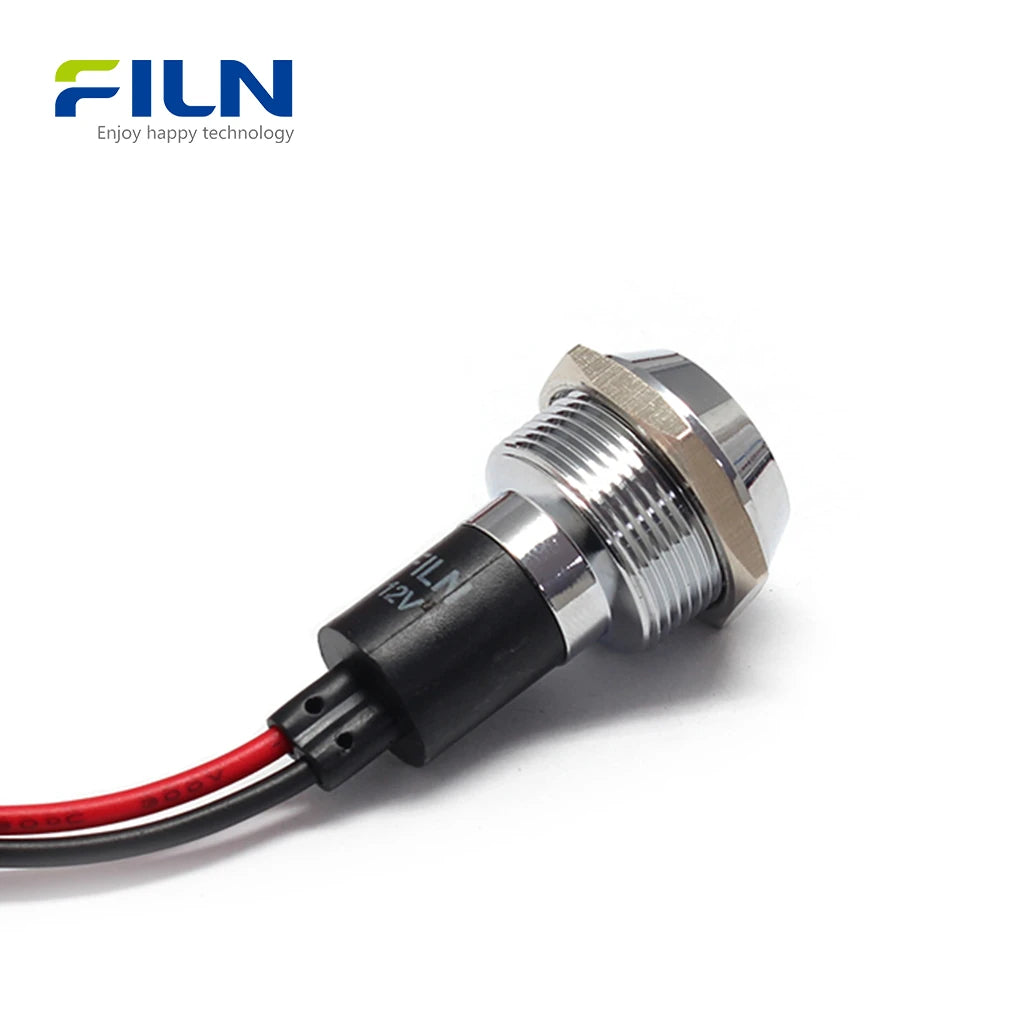

- Easy Installation: Pre-wired 15cm leads save assembly time compared to pin terminals.
- Industrial Grade Reliability: Recessed head design protects the lens from accidental impacts.
Applications
- Industrial control panels and distribution boards
- CNC machining centers and precision lathes
- Automated production line status signaling
- Electrical cabinets and power supply units
- Marine and outdoor equipment systems
- Medical and laboratory diagnostic devices
Installation Guide
- Drill a 19mm diameter hole in the mounting panel.
- Insert the LED indicator from the top of the panel.

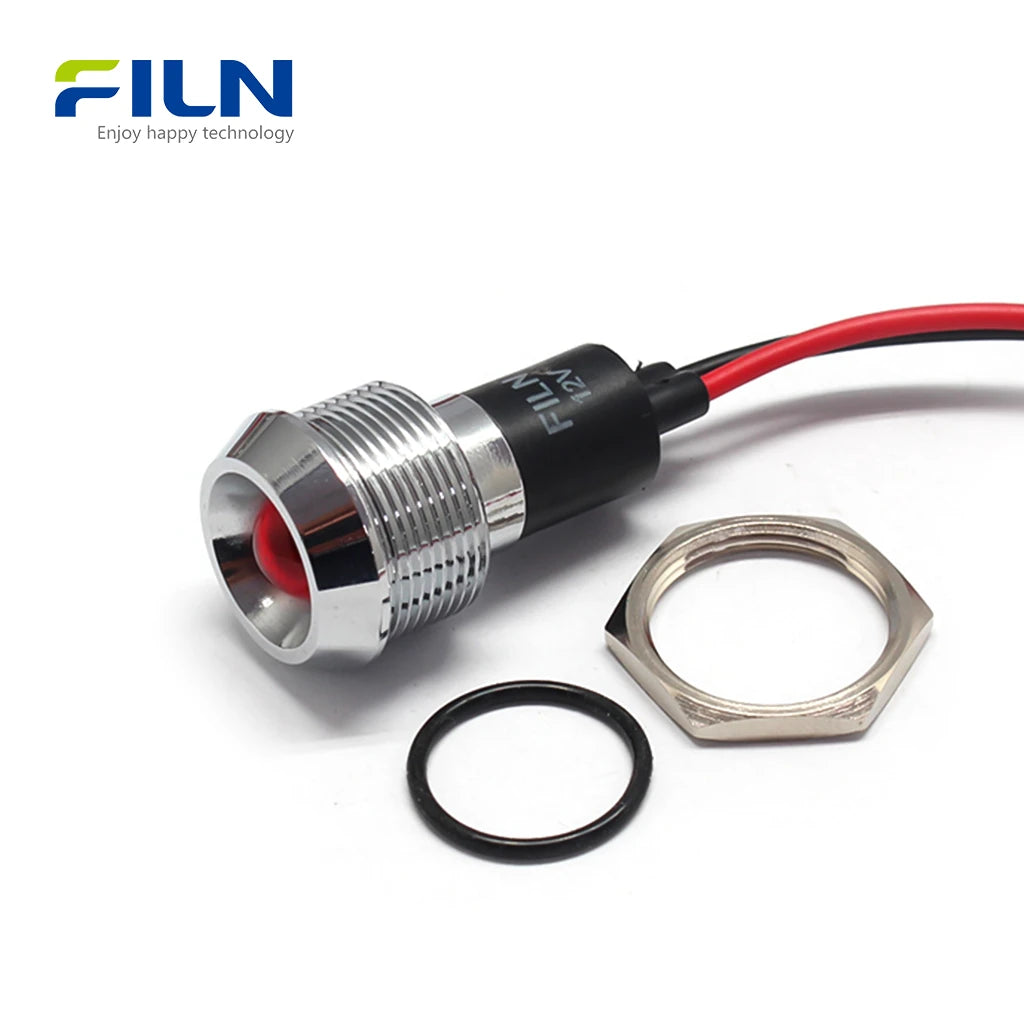

- Slide the silicone O-ring and the M19 nut onto the threads from behind.
- Tighten the nut to secure the unit firmly against the panel.
- Connect the pre-wired leads to your power source (red for positive, black for negative).
What Is an LED Indicator Light?
An LED indicator light (also known as a pilot light) is a critical component in industrial automation that provides real-time visual feedback regarding the status of a machine or electrical circuit. Unlike standard lamps, industrial LED indicators like the 19mm metal series are built to withstand vibration, moisture, and high temperatures. The recessed head design of the FL1M-19CW-1 is particularly advantageous as it prevents the lens from being damaged by passing objects and reduces glare from side-angles. Additionally, pre-wired LED indicators offer a significant advantage over pin-type terminals in high-vibration environments, as soldered wire connections are less likely to loosen or corrode over time.
FILN Factory Direct Supply
FILN is a world-leading manufacturer of indicator lights and button switches. We provide:
- Factory Direct: No middleman, competitive B2B pricing.
- Voltage Customization: 3V, 6V, 12V, 24V, 110V, 220V, 380V.
- Wire Length: Custom leads tailored to your machine design.
- Global Shipping: Fast delivery to over 150 countries.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. What is the lifespan of these 19mm LED indicators?
The FILN 19mm LED indicators have a lifespan of over 50,000 hours of continuous use.
2. Can I get a custom wire length for the pre-wired LED?
Yes, as a factory, FILN can customize wire lengths and add connectors according to your specific needs.
3. Is the 19mm metal indicator light waterproof?
Yes, our indicators carry an IP67 rating, making them completely dustproof and waterproof for outdoor use.
4. What voltages are available for the 12v led signal lamp?
We offer standard 12V, 24V, 110V, and 220V, but any specific voltage can be customized.
5. What is the advantage of a recessed head indicator?
The recessed head protects the lens from physical impact and provides a cleaner, flush-look on control panels.
6. What materials are used for the shell?
We offer high-quality copper alloy with nickel plating (silver) or black chrome plating.
7. How does the waterproof seal work?
The indicator comes with a high-grade silicone O-ring that seals the mounting hole when tightened with the M19 nut.
8. Are FILN LED indicators UL certified?
Yes, our products carry UL, CE, VDE, and RoHS certifications for global industrial compliance.
9. Difference between pre-wired and pin terminals?
Pre-wired indicators are easier to install and more reliable in vibration-heavy environments than pin types.
10. Do you support small batch customization?
Yes, FILN supports B2B customization even for small sample batches to ensure product compatibility.
