19MM 10A 250V IP67 FILN momentary push button switch

$4.23
Shipping calculated at checkout.
DESCRIPTION
  • 100% money back guarantee
  • Quickly customize products in 21 days
  • Fast delivery

FLM19-10FEJM Push Button Switch Product Introduction

The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.

The indicator light used by the push button switch is non-polar LED, with a service life of 50000 hours.

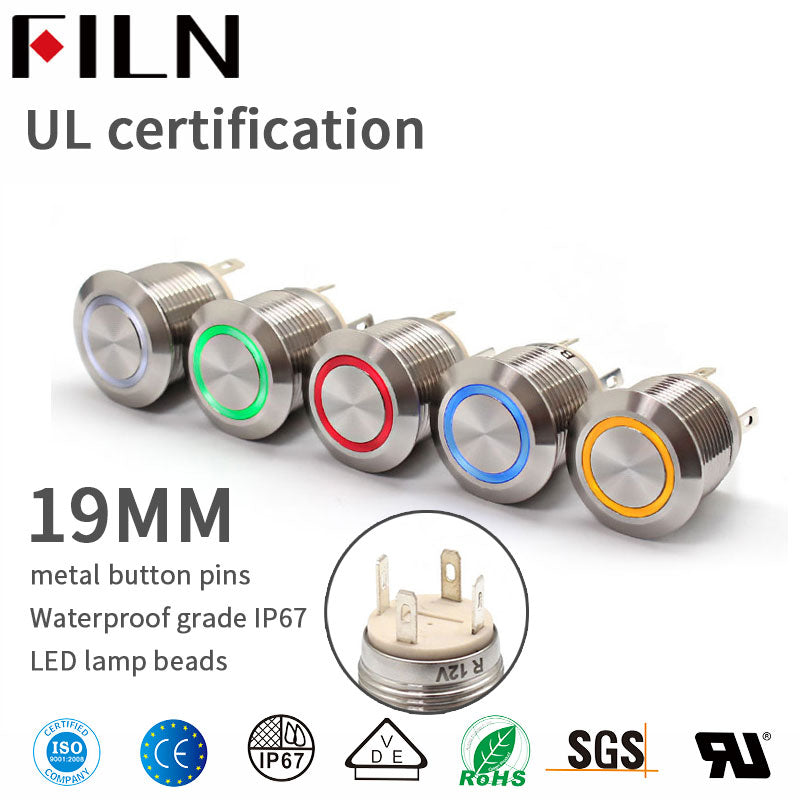

The waterproof rating of the push button switch is IP67, and the mounting hole size is 19MM.

The voltage of the push button switch can be 12V, 36V, 48V, etc.

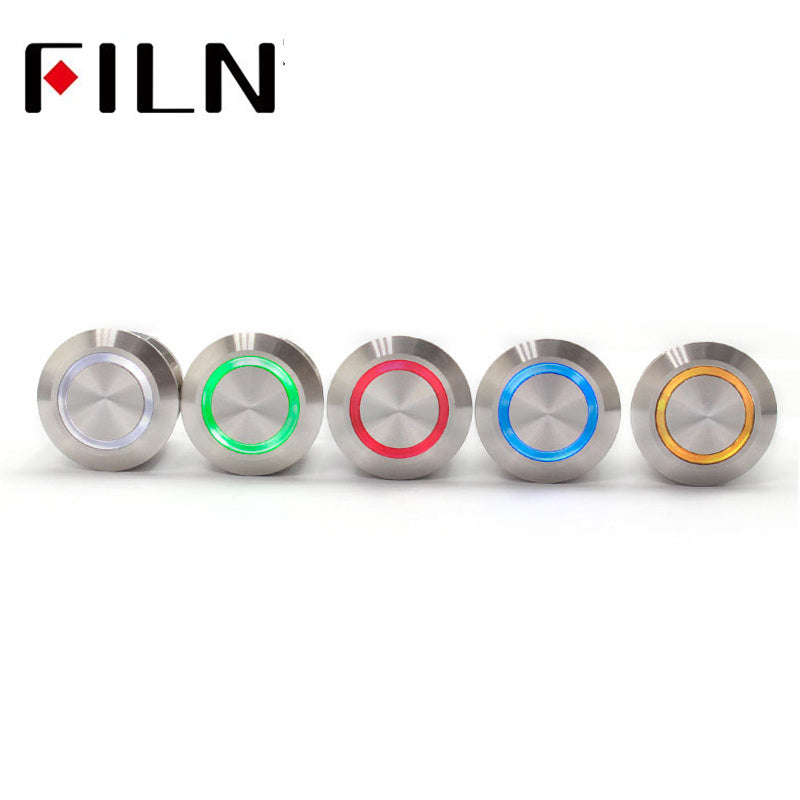

19MM metal push button switch can make five colors of light: red, yellow, blue, green, and white.

You can also customize the button switch for two-color lights and three-color lights.

Product specifications

Production series FLM19-10FEJM Light guide button PC plastic
button shape round actuator 304 Stainless steel
button led color Red blue green yellow white Housing sleeve H59 nickel plated brass/304Stainless steel
Mechanical life The 500 thousand time Button pin H62 copper alloy
electrical life The 100 thousand time rubber ring SIL silica gel
protection level IP67 IK09 nut H59 nickel plated brass
Rated voltage 36V(DC) 250V(AC) housing PA66+GF20% nylon
rated current 3A(DC)3A(AC) Light source LED
rated power 108W(DC)750W(AC) Resistor Metal film
Operating temperature -25℃~+85℃ contact AgCdO12


ADDITIONAL INFORMATION
Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester
