16mm 6V 12V 110V 220V LED Push Button Switch Ring LED

Color
RED
YELLOW
GREEN
BLUE
WHITE
Black shell
Voltage
size

Description

  • 100% money back guarantee
  • Quickly customize products in 21 days
  • Fast delivery

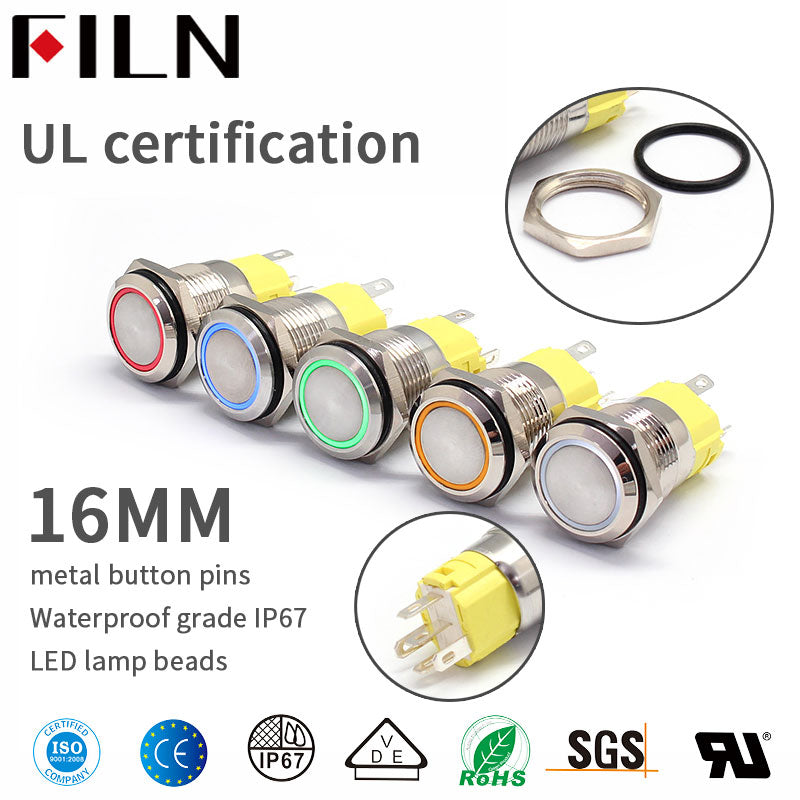

  • FLM16-11FEJ Push Button Switch Product Introduction

  • The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.

    The indicator light used by the push button switch is non-polar LED, with a service life of 50000 hours.

    The waterproof rating of the push button switch is IP67, and the mounting hole size is 16MM.

    The voltage of the push button switch can be 12V, 220V, etc.

    16MM metal push button switch can make five colors of light: red, yellow, blue, green, and white.

    You can also customize the button switch for two-color lights and three-color lights.

Product specifications

  • Production series FLM16-11FEJ Light guide button PC plastic
    button shape round actuator 304 Stainless steel
    button led color Red blue green yellow white Housing sleeve H59 nickel plated brass/304Stainless steel
    Mechanical life The 500 thousand time Button pin H62 copper alloy
    electrical life The 100 thousand time rubber ring SIL silica gel
    protection level IP65 IK09 nut H59 nickel plated brass
    Rated voltage 36V(DC) 250(AC) housing PA66+GF20% nylon
    rated current 5A(DC)5A(AC) Light source LED
    rated power 180W(DC)1250W(AC) Resistor Metal film
    Operating temperature -25℃~+85℃ contact AgCdO12
