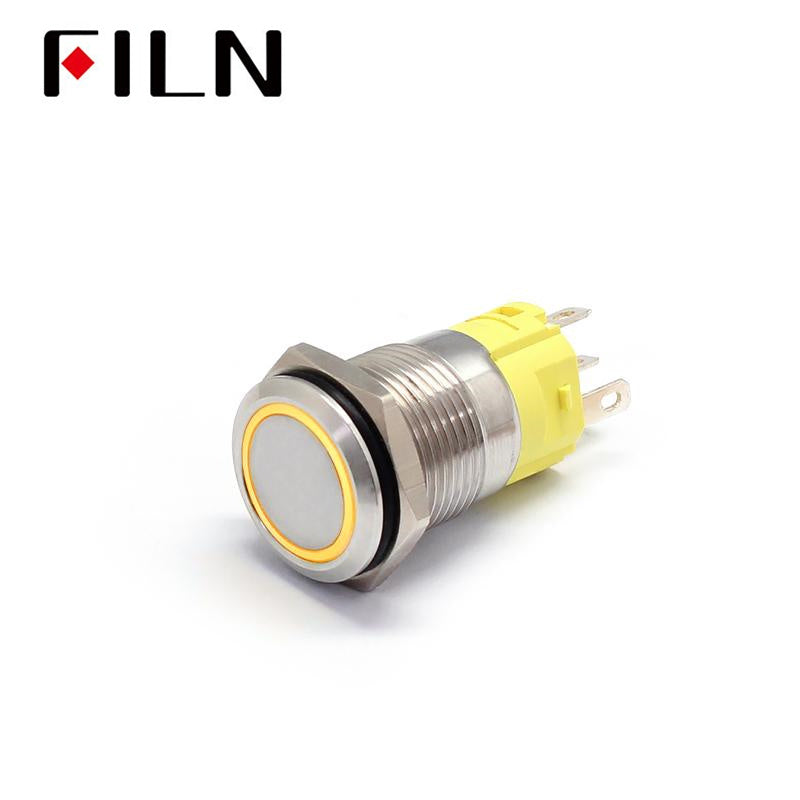

16mm 19mm 22mm LED waterproof stainless steel button switch 12V self-locking car modification symbol switch

Size
Material

Description

16mm 19mm 22mm LED waterproof stainless steel button switch 12V self-locking car modification symbol switch

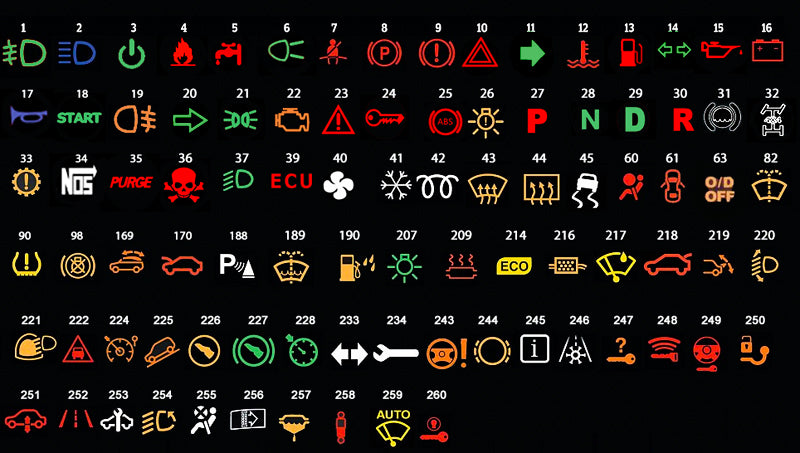

If you need to customize, you can select the corresponding desired symbol from the way

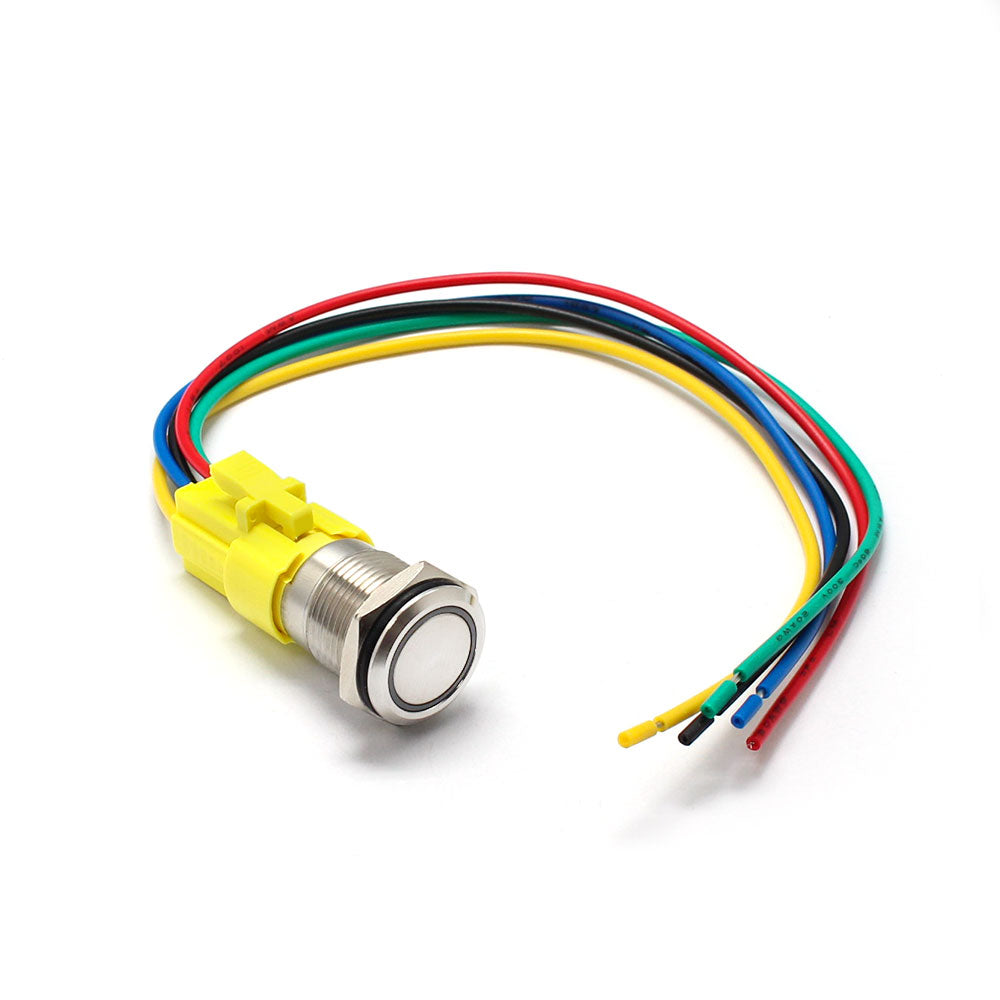

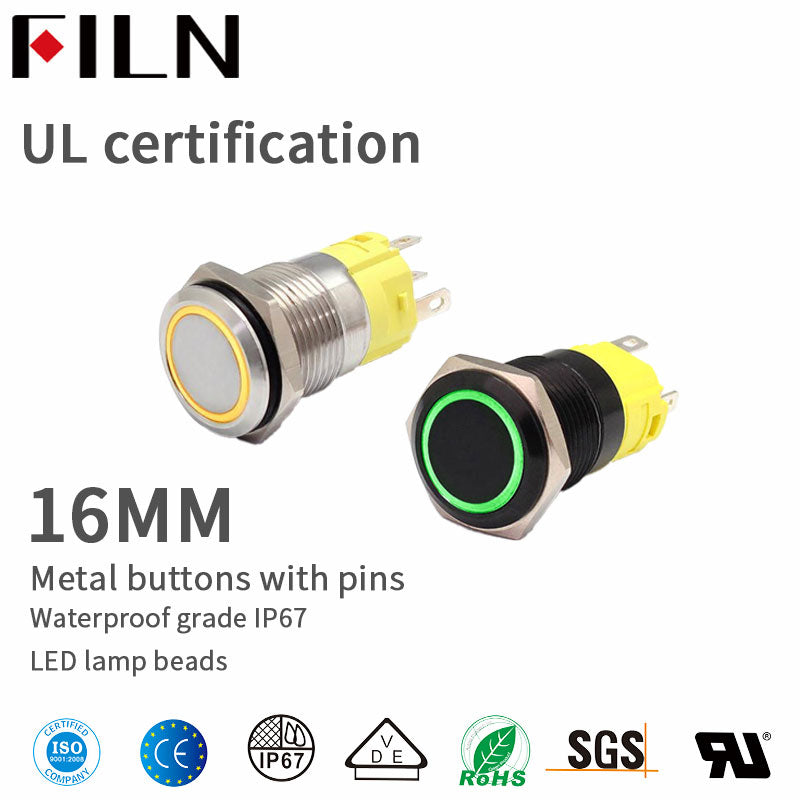

16MM Push button switch 12V self-locking car modification symbol switch

16MM Push button switch 12V self-locking car modification symbol switch

Production Series FLM16 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel-plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Knut H59 nickel-plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 5A(DC)5A(AC) Light Source LED
Rated Power 180W(DC)1250W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12



19MM  Push button switch 12V self-locking car modification symbol switch

Production Series FLM19 Light Guide Button PC Plastic
Button Shape Round Actuator 304 Stainless Steel
Button LED color Red blue green yellow white Housing sleeve H59 nickel-plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel-plated brass
Rated Voltage 36V(DC) 250V(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor Metal film
Operating temperature -25℃~+85℃ Contact AgCdO12

22MM Push button switch 12V self-locking car modification symbol switch

Production Series FLM22-10FJZ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel-plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel-plated brass
Rated Voltage 36V(DC) 250V(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12
