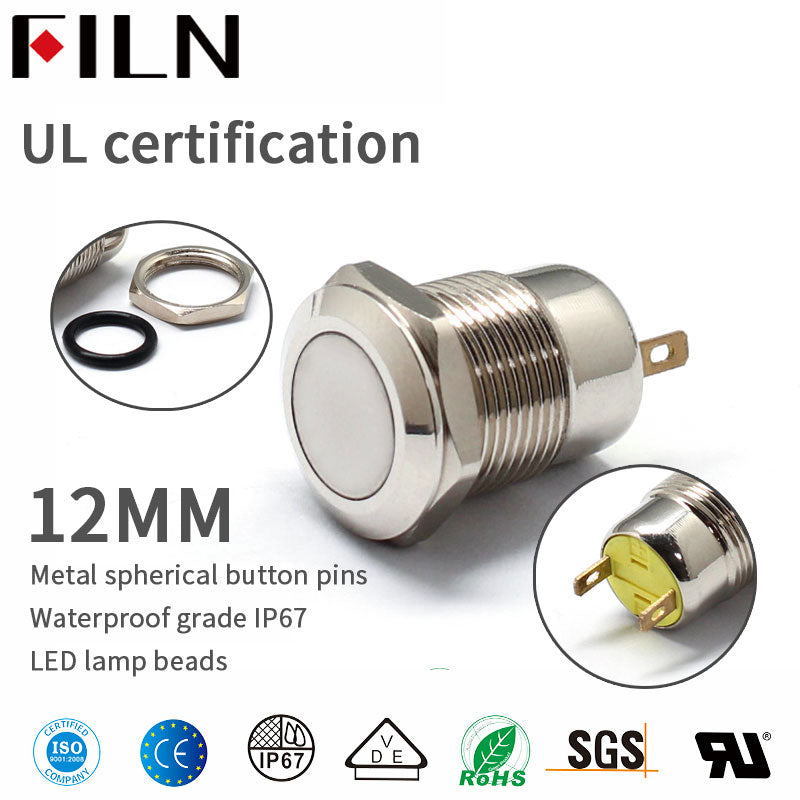

12MM 12V Momentary Waterproof ip67 Push Button Switch ON-OFF push button

size

Description



12V Momentary Waterproof ip67 Push Button Switch Schematic diagram
Production Series FLM12-10FJM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12
