Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.
Product Overview

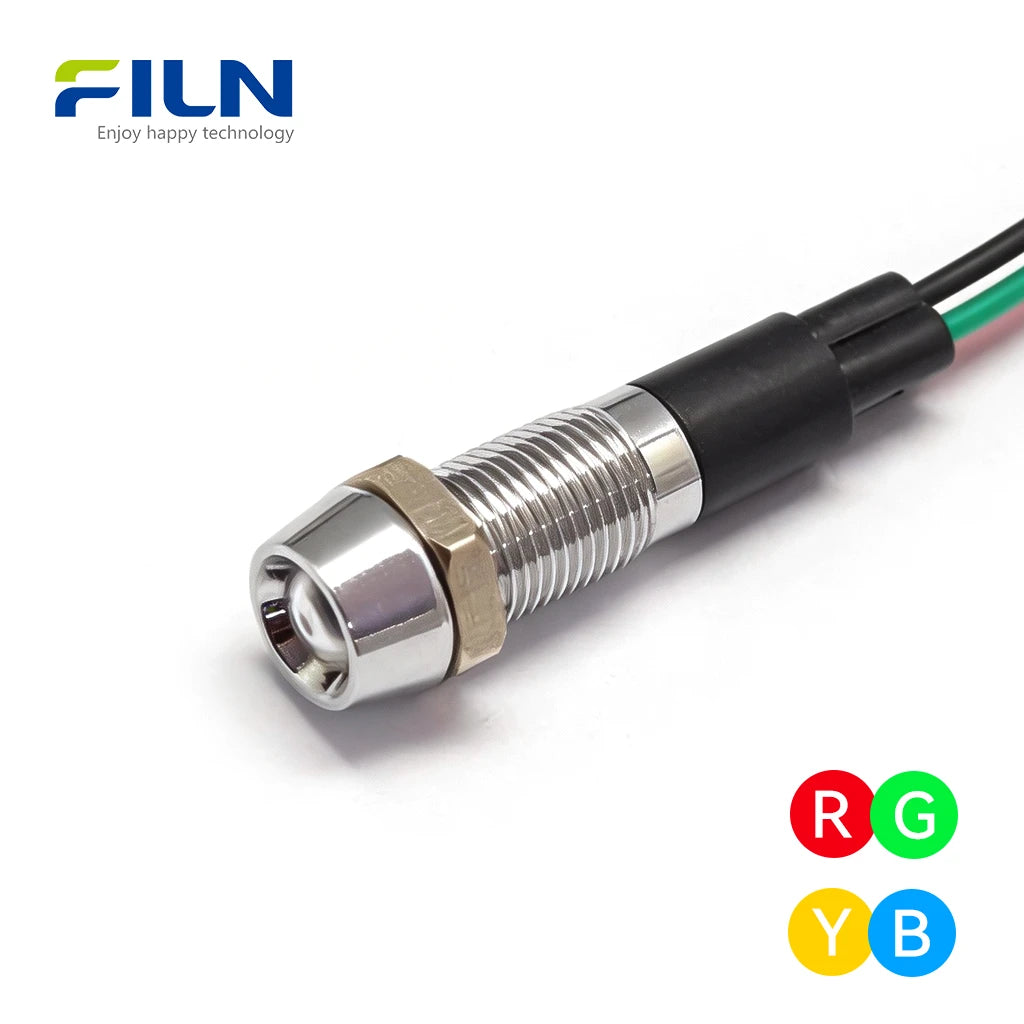

The Red/Blue Dual-color LED Indicator (Model: FL1M-08CW-D) is a high-precision 8mm industrial signaling solution designed for compact spaces. This recessed head metal indicator features a unique dual-color capability, allowing it to emit two distinct signals from a single white transparent lens when powered. Engineered for versatility, it supports 12V, 24V, 110V, and 220V configurations with IP67 waterproof protection. Whether utilized in automation or marine systems, this dual-color LED provides clear visual feedback with common cathode or common anode options, ensuring seamless integration into complex electrical circuits.
Quick Specifications
| Mounting Hole | 8mm (0.31 inch) |
|---|---|
| Voltage | 12-24V / 110-220V (Customizable) |
| LED Color | Dual-color (Red/Blue, etc.) |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Wire Lead (15cm standard) |
| Head Type | Recessed Head (Metal) |
Rated Working Parameters
| Rated Voltage | Customized (3V to 380V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Nickel-plated Brass / Black Anodized Aluminum |
|---|---|
| Lens | PC Plastic (Transparent) |
| Seal Ring | Silicone (8mm O-ring included) |
| Wire Material | UL1007 PVC Copper Wire (15cm) |
General Characteristics
| Operating Temperature | -40℃～80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Key Features
- LED High Brightness: Superior visibility even in well-lit industrial environments.
- Long Lifespan: Rated for 50,000 hours of continuous operation.
- IP67 Waterproof: Full protection against dust and temporary water immersion.
- Compact Recessed Head: Specifically designed for low-profile panels and small spaces.
- Dual-color Versatility: Supports Common Cathode/Anode for multi-status signaling.
Applications
- Industrial control panels and CNC machinery.
- Automated manufacturing and robotics systems.
- Marine dashboards and waterproof electrical cabinets.
- Medical equipment and laboratory instrumentation.
Installation Guide
- Drill an 8mm (M8) mounting hole in your equipment panel.
- Insert the LED indicator through the front of the panel.
- Place the provided 8mm O-ring seal between the head and panel for waterproofing.
- From the rear, secure the indicator by tightening the M8 hex nut on the smooth threads.
- Connect the 15cm wire leads to your power source (Red/Blue/Common wires).
What Is a Red/Blue Dual-color LED Indicator?
A Red/Blue Dual-color LED Indicator is an advanced signaling component that integrates two different colored LED chips within a single housing. In industrial settings, these are used to represent two different states (e.g., Red for "Error" and Blue for "Standby") without requiring two separate holes on a control panel.
Common Cathode vs. Common Anode: A Common Cathode setup shares a single negative wire (ground) for both colors, while a Common Anode shares a single positive wire. Choosing the right one depends on your controller's output signal. Compared to pin-type terminals, our pre-wired leads (15cm) offer faster installation and better protection against vibration in tight spaces.
FILN Factory Direct Advantage
- Direct Manufacturer Pricing: No middleman costs.
- Complete Customization: Voltage, wire length, and connectors tailored to your needs.
- Global Logistics: Fast international shipping for B2B bulk orders.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q: Is the 8mm dual-color LED waterproof?
A: Yes, it is rated IP67, making it suitable for marine and outdoor use.
Q: What is the benefit of the recessed head?
A: It prevents accidental contact and provides a sleek, low-profile look on control panels.
Q: Can I get a 110V version?
A: Yes, we support 12V, 24V, 110V, and 220V customized voltages.
