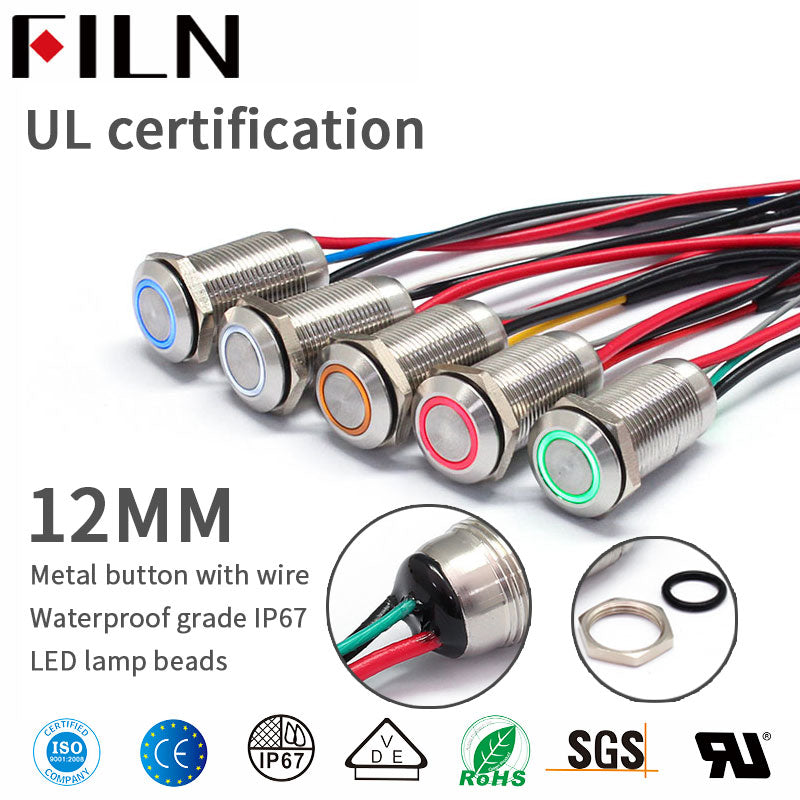

FILN 12mm Waterproof IP67 Light Push Button Switch With Wire Momentary Latching LED
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire Colour
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire Yellow
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire Red
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire Size
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire Green
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire Blue
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire Size
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire White
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire Front
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire Detail
12mm Waterproof Momentary Latching LED Light Push Button Switch With Wire Red
  • SKU:
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

FILN 12mm Waterproof IP67 Light Push Button Switch With Wire Momentary Latching LED

$3.86
Shipping calculated at checkout.
DESCRIPTION
12mm Waterproof Momentary Latching LED Light Push Button Switch Dimensions
12mm Waterproof Momentary Latching LED Light Push Button Switch Schematic diagram
  • 100% money back guarantee
  • Quickly customize products in 21 days
  • Fast delivery

FLM12-FW-1 Push Button Switch Product Introduction

The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.

The indicator light used by the push button switch is non-polar LED, with a service life of 50000 hours.

The waterproof rating of the push button switch is IP67, and the mounting hole size is 12MM.

The voltage of the push button switch can be 6V, 12V, 24V, 110V, 220V, 250V, 380V, etc.

12MM metal push button switch can make five colors of light: red, yellow, blue, green, and white.

You can also customize the button switch for two-color lights and three-color lights.

Product specifications

Production series

FLM12-FW-1

Light guide button

PC plastic

button shape

round

actuator

304 Stainless steel

button led color

Red blue green yellow white

Housing sleeve

H59 nickel plated brass/304Stainless steel

Mechanical life

The 500 thousand time

Button pin

H62 copper alloy

electrical life

The 100 thousand time

rubber ring

SIL silica gel

protection level

IP67 IK09

nut

H59 nickel plated brass

Rated voltage

36V(DC) 250(AC)

housing

PA66+GF20% nylon

rated current

3A(DC)3A(AC)

Light source

LED

rated power

108W(DC)750W(AC)

Resistor

Metal film

Operating temperature

-25℃~+85℃

contact

AgCdO12



The 12mm waterproof push button switch with IP67 rating and a 20cm wire is a circular metal button switch that offers reliable performance in various usage scenarios. Here are the scenarios in which this metal push button switch is used

  1. Industrial Control Systems: This push button switch finds extensive use in industrial control systems, where operators need to initiate or stop specific processes or machinery. Its waterproof design ensures protection against environmental factors, making it ideal for demanding industrial environments.
  2. Automation and Robotics: Push button switches are frequently employed in automation and robotic systems, serving as control interfaces for initiating specific actions or movements. The waterproof and durable nature of this switch enables its integration into automated systems that operate in challenging conditions.
  3. Electrical Panels and Cabinets: Within electrical panels and cabinets, push button switches are crucial components for controlling power supply, circuit breakers, or other electrical functions. The IP67 waterproof rating ensures the switch's reliable operation and protection against moisture or dust in these enclosed environments.
  4. Automotive and Transportation: In automotive applications, push button switches are utilized for various functions, such as starting or stopping engines, activating lights, or controlling auxiliary systems. The waterproof feature of this switch enables its installation in vehicle interiors or exteriors, enduring exposure to moisture, dirt, or other environmental factors.
  5. Security Systems: Push button switches are commonly integrated into security systems, such as access control panels or alarm systems. The switch's durability and waterproof capabilities make it suitable for both indoor and outdoor security installations, ensuring consistent performance even in adverse weather conditions.
  6. Medical and Healthcare Equipment: Push button switches play a vital role in medical and healthcare equipment, where precise control and reliable operation are essential. The waterproof nature of this switch allows for its application in medical devices that require regular cleaning or may be exposed to liquids during operation.

Next are the advantages of this metal push button switch

  1. Convenience: As a push button switch, it offers a user-friendly interface, allowing easy activation or deactivation of a function with a simple press. This convenience makes it intuitive for users to operate and control various systems or equipment.
  2. Robust Construction: The metal button switch is built with durability in mind. Its sturdy construction enables it to withstand physical impacts, ensuring long-lasting performance even in demanding environments.
  3. Waterproof Design: With an IP67 waterproof rating, this switch provides superior protection against water ingress. It can be safely used in wet or humid conditions without compromising its functionality. The waterproof feature adds reliability and extends the lifespan of the switch.
  4. Versatile Wiring: The 20cm wire attached to the switch allows for flexible installation options. It provides ample length for convenient connection to power sources or other components, facilitating easy integration into different systems or equipment configurations.
  5. Reliable Performance: The combination of its durable construction, waterproof design, and high-quality components contributes to the switch's overall reliability. It ensures consistent operation and minimizes the risk of malfunctions or failures, enhancing the performance of the system or equipment it is used in.
  6. Wide Application Range: This push button switch is suitable for various industries and applications. It can be employed in industrial control systems, automotive electronics, outdoor equipment, marine and maritime applications, medical devices, and more. Its versatility makes it a versatile choice for different environments and requirements.

In summary, the 12mm waterproof push button switch with IP67 rating and a 20cm wire offers the benefits of convenience, robust construction, waterproof design, versatile wiring, reliable performance, and wide application range. These advantages make it an excellent choice for numerous systems and equipment where a push button switch is needed.

ADDITIONAL INFORMATION
Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester
