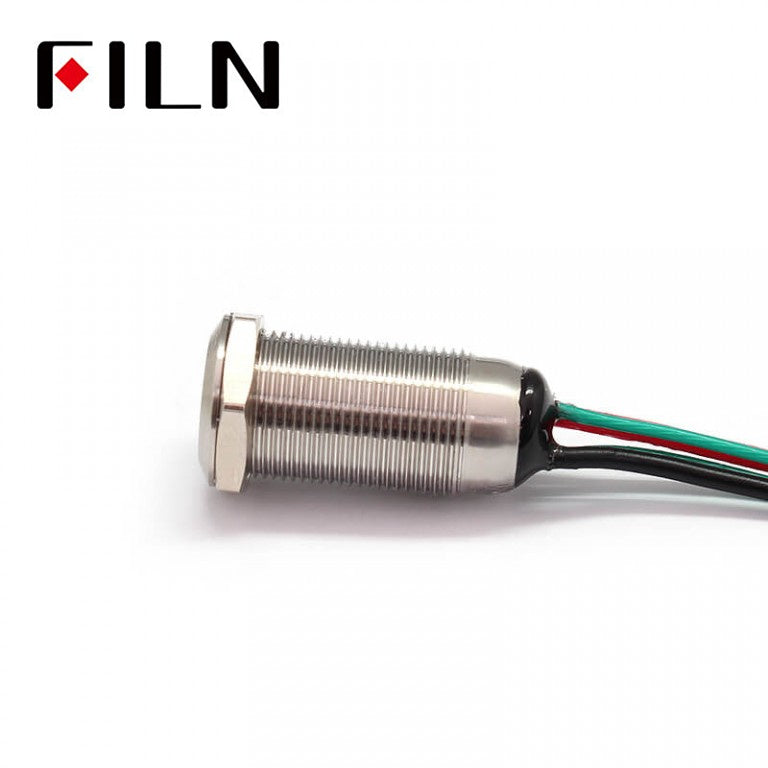

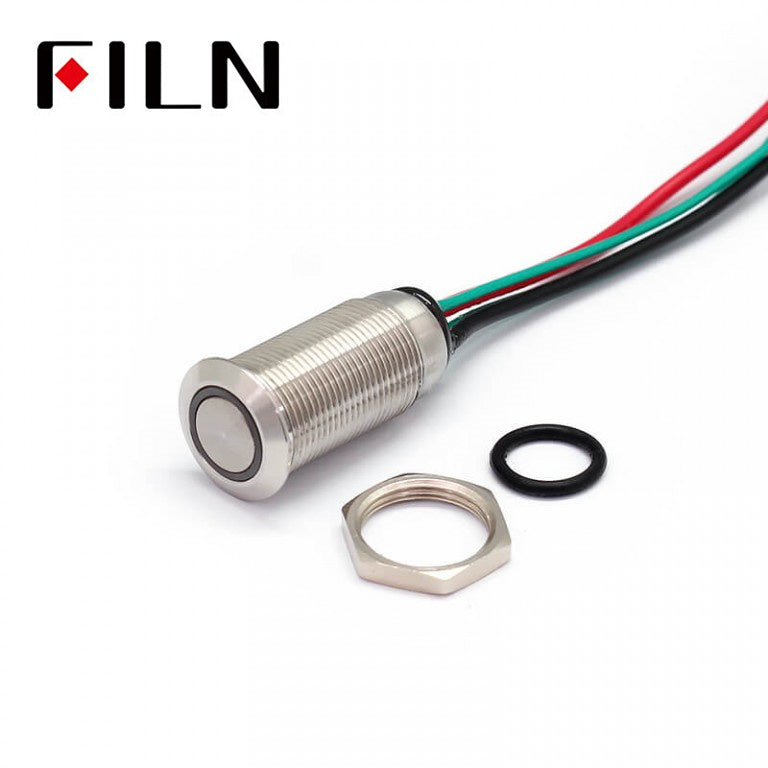

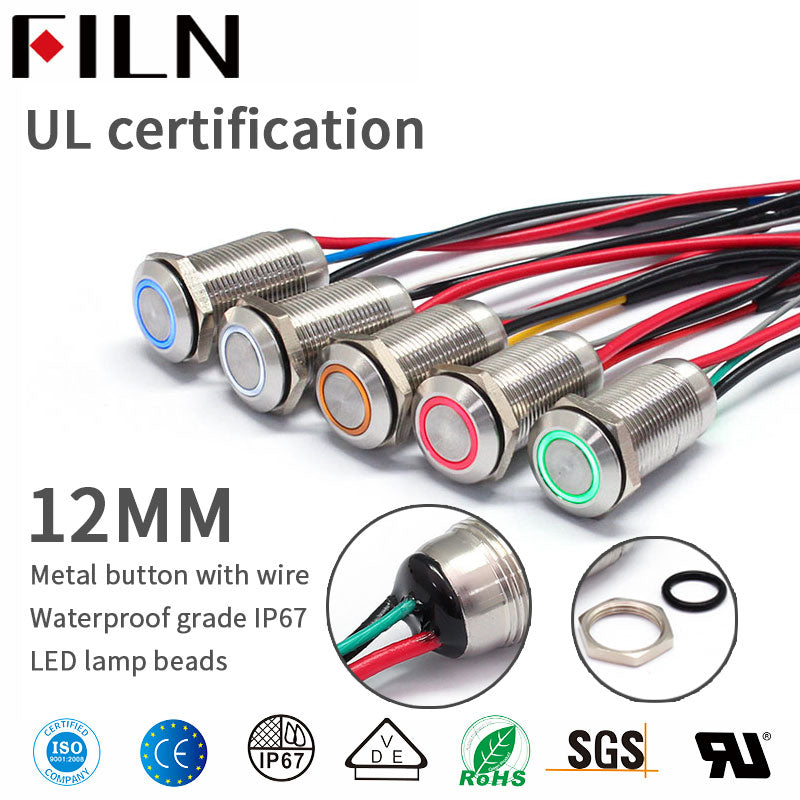

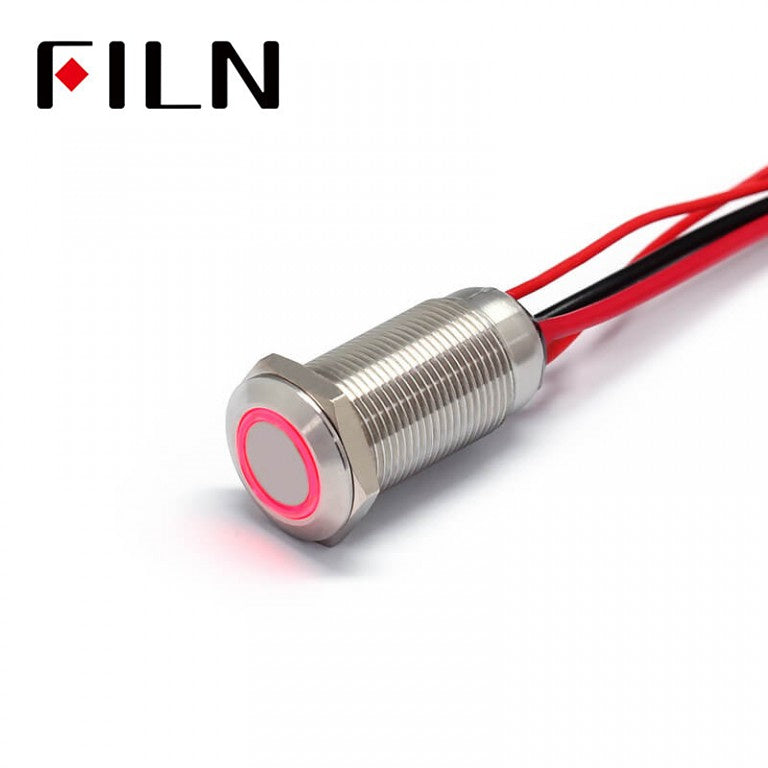

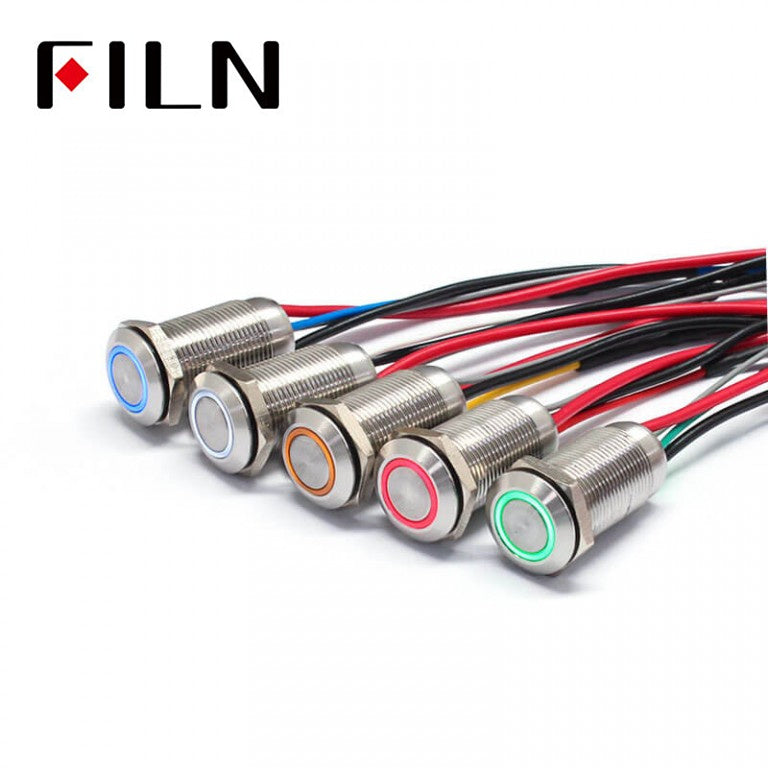

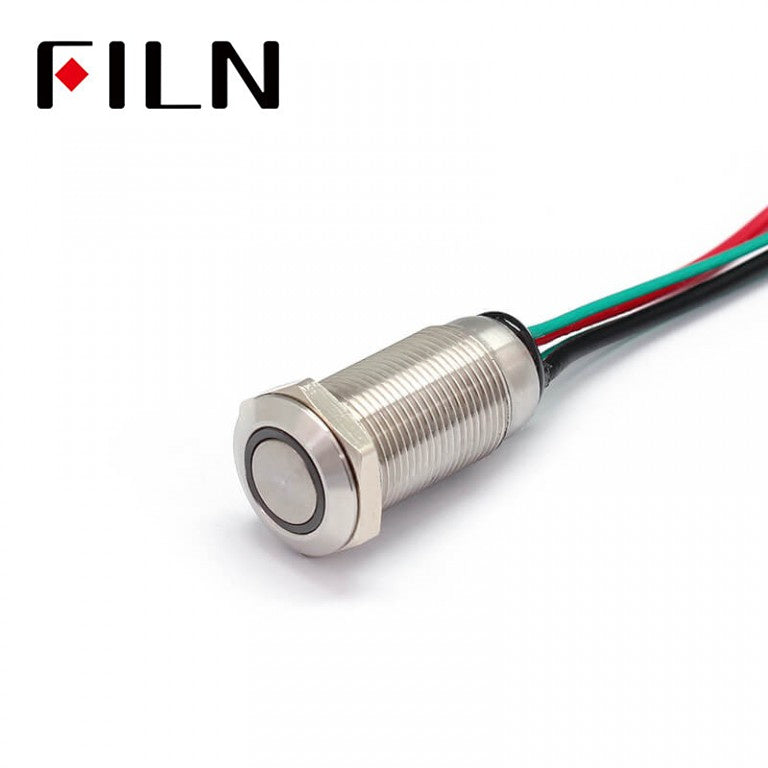

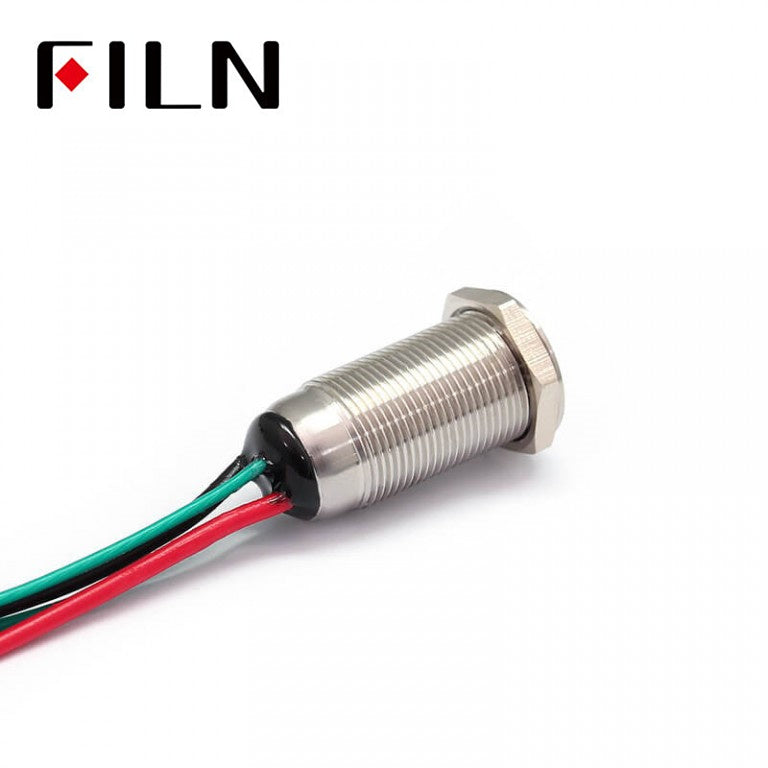

12MM Waterproof Mini LED Illuminated Push Button Switch With Wire

Color
RED
YELLOW
BLUE
GREEN
WHIITE
Voltage
size

Description

Production Series FLM12-10FWEZ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color red,blue,green,yellow,white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED
Rated Power 36W(DC)125W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12
