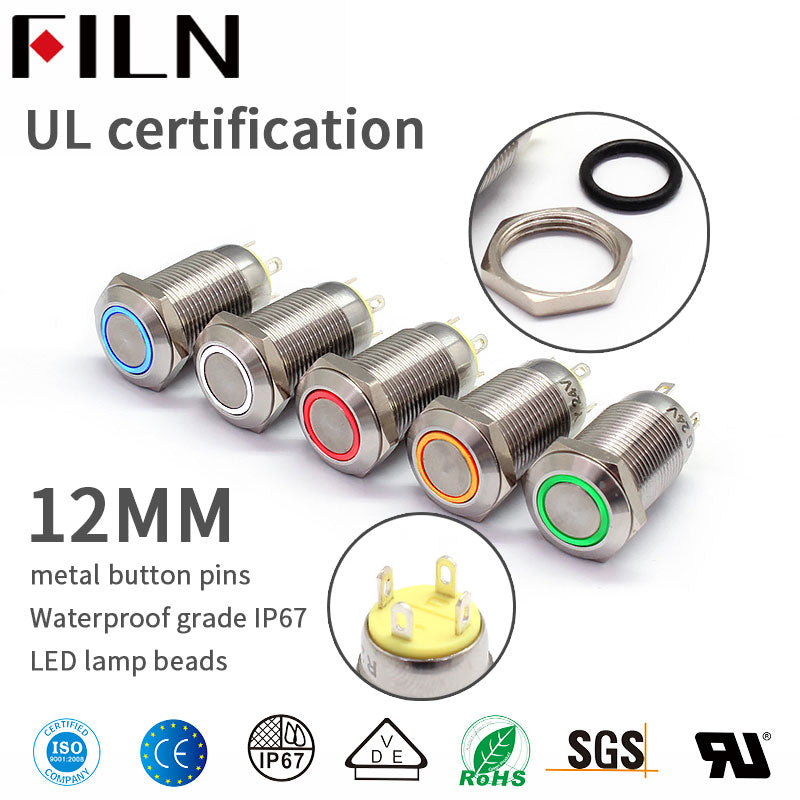

The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.
The indicator light used by the push button switch is non-polar LED, with a service life of 50000 hours.
The waterproof rating of the push button switch is IP67, and the mounting hole size is 12MM.
The voltage of the push button switch can be 3V, 6V, 12V, 24V, 110V, 220V, 250V, 380V, etc.
12MM metal push button switch can make five colors of light: red, yellow, blue, green, and white.
You can also customize the button switch for two-color lights and three-color lights.
| Production series | FLM12-10FJZ | Light guide button | |
| button shape | round | actuator | 304 Stainless steel |
| button led color | Red, blue, green, Orange and white | Housing sleeve | H59 nickel plated brass/304Stainless stee |
| Mechanical life | The 500 thousand time | Button pin | H62 Copper alloy |
| electrical life | The 100 thousand time | rubber ring | SIL silica gel |
| protection level | IP65 IK08 | nut | H59 nickel plated brass |
| Rated voltage | 36V（DC） 250（AC） | housing | PA66+GF20% nylon |
| rated current | 1A（DC）0.5A（AC） | Light source | LED |
| rated power | 36W（DC）125W（AC） | Resistor | |
| Operating temperature | -25℃~+85℃ | contact | AgCdO12 |
