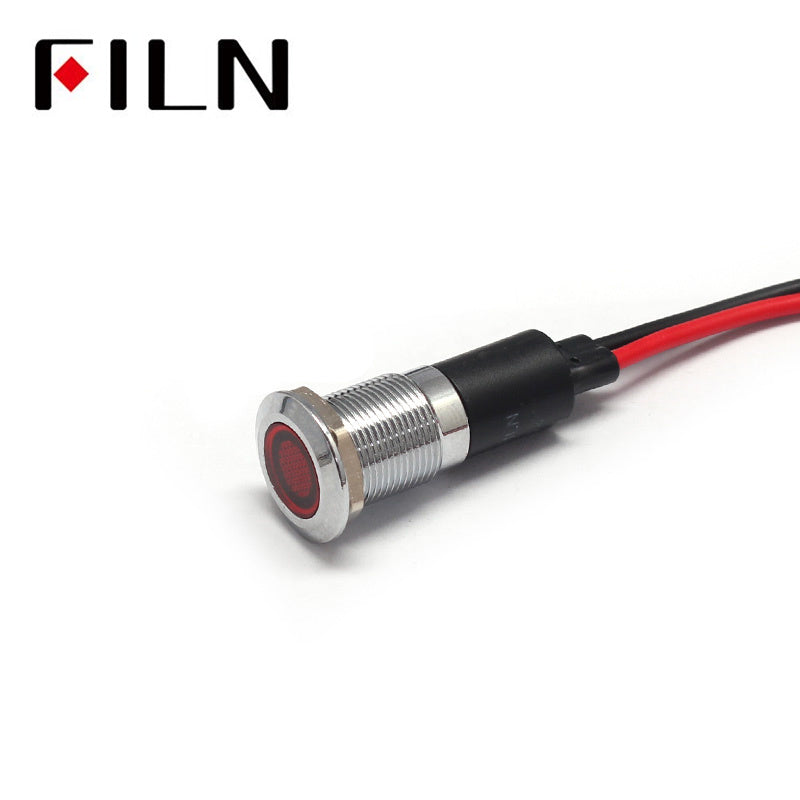

12MM 12V Metal Red LED Indicator Light



red led indicator light drawing


Description of red LED indicator light
The opening hole of red LED indicator light 12mm
Waterproof level IP6, IP67
The installation style Thread Fastening Style
Color Red, Green, Blue, Yellow, Orange, White, Purple
Certification UL, CE, ROSH, IP67, CCC, ISO90001
Weight/quantity 1KG/50pcs
The project test criteria of red LED indicator light
The criteria of withstand voltage test 1800V
The criteria of waterproof test IP67
The criteria of strain relief test 10KG
The criteria of high and low temperature test 40 degrees below zero- 80 degrees
The criteria of service life test 50,000 hours
Package 50pcs/box, 1000pcs/CTN
Wire style With wire
The material of red LED indicator light
The style of head Plush copper
The plastic material of head PC
The installation style Screw thread style
The metal material of shell Brass, Stainless,Zinc alloy
Lamp type LED
The material of base PA66
Connection type Terminals connection with wire
The material of nut Brass, 10mm nut, 0.75mm screw pitch
The material of waterproof washer Silica gel
The material of gasket Stainless, Iron
The material of resistor Carbon film resistance
The material of wire PVC
