Product Overview

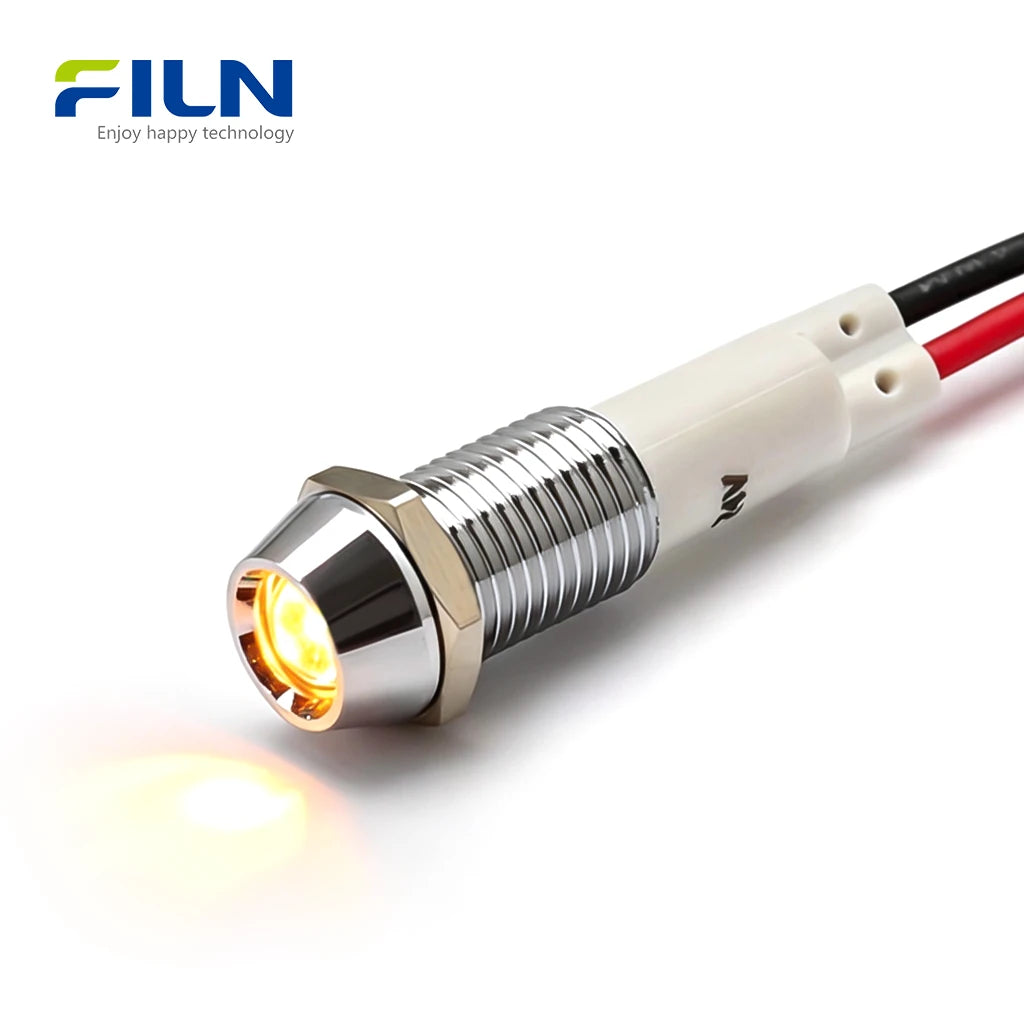

The ac power indicator light (Model: FL1M-10SW-1) is a professional 10mm signal solution designed for high-visibility status tracking. This model features a unique concave head design that protects the lens from impact while offering a wide viewing angle. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67[cite: 1], it ensures safe operation in demanding environments. Available in silver or black metal housings, it supports 12V-24V and 110V-220V AC power with full customization options[cite: 4]. Primarily used in automation, CNC equipment, and electrical cabinets, its long lifespan and pre-wired leads make it a top choice for B2B industrial procurement.
Quick Specifications
| Mounting Hole | 10mm / 0.39 inch |
| Voltage | 12-24V, 110-220V AC (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to 80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | Wire Lead Type |
Rated Working Parameters
| Rated Voltage | Customized |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Nickel-plated Brass / Black Aluminum |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silica Gel |
| Terminal | Lead Wire |
| Wire Material | UL Standard Copper Wire |
General Characteristics
| Application | Status Signal Indication |
| Operating Temperature | -40℃～80℃ |
| Relative Humidity (Max) | ≤85% at +40℃ |
| Ambient Temperature | 5~35℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Property | Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No flashover |
Durability Characteristics
| Continuous Working Life | 30mA 1000h | 50,000 hours |
Resistant Performance
| High Temperature | 80℃ 96h | Pass |
| Low Temperature | -40℃ 96h | Pass |
| Temperature Cycling | -40℃ → 25℃ → 85℃ | 5 rounds |
Key Features
- LED high brightness: Superior luminance for clear status identification.
- Long lifespan: Rated for over 50,000 hours of continuous use.
- IP67 waterproof: Fully sealed against water and dust ingress.
- Easy installation: Direct wire leads and smooth M10 threading for quick setup.
- Industrial grade reliability: Metal concave head protects against impact and scratches.
Applications
- Industrial control panels and CNC machinery.
- Automation equipment and electrical cabinets.
- Marine systems and nautical dashboards.
- Medical diagnostic and laboratory devices.
- Household appliances and DIY electronics.
- Automotive status and warning indicators.
Installation Guide
- Drill a 10mm hole in the mounting panel according to the product size.
- Insert the indicator light from the top/front of the panel.
- Ensure the included O-ring is seated correctly for waterproofing.
- Secure the indicator by tightening the M10 nut from the back side.
- Connect the pre-wired leads to your AC power source.
What Is an AC Power Indicator Light?
An ac power indicator light is a critical visual component used to monitor the presence of electricity in a system. The concave head design of the FL1M-10SW-1 provides two main advantages: it protects the internal LED lens from physical impact and minimizes lens scratches over time, ensuring long-term optical clarity.
When comparing pre-wired (wire lead) indicators to traditional pin-type terminals, the pre-wired version offers significantly easier installation. It eliminates the need for soldering or crimping onsite, which reduces labor costs and prevents connection failures caused by vibrations in industrial or automotive applications.
FILN Factory Direct Supply
- ✅ Factory Direct: Lowest price from source manufacturer.
- ✅ Voltage Customization: Supports 3V to 380V requirements[cite: 4].
- ✅ Wire & Connector Customization: Tailored lengths and connectors[cite: 4].
- ✅ Fast Global Shipping: Rapid delivery for global projects.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the benefit of a concave head?
A: It prevents accidental physical damage to the lens and provides a distinct visual style for panels.
Q2: Is this AC power indicator light truly waterproof?
A: Yes, it is IP67 rated, meaning it is dust-tight and can withstand immersion in water up to 1 meter.
Q3: Can I use this for a 12V DC system?
A: While optimized for AC, we support customized voltage configurations for 12V-24V DC as well.
Q4: Why should I choose the pre-wired version?
A: It saves time during installation and provides a more reliable connection in high-vibration environments.
Q5: Does it come with all mounting parts?
A: Yes, it includes a high-quality M10 nut and a 10mm waterproof O-ring.
Q6: What certifications does FILN have?
A: We hold UL, CE, VDE, RoHS, SGS, and ISO9001 certifications[cite: 1].
Q7: Can I request a black shell?
A: Yes, we offer both chrome/silver and black anodized aluminum finishes.
Q8: What is the maximum voltage supported?
A: Standard models go up to 220V AC, but we can customize up to 380V.
Q9: Is the thread installation smooth?
A: Absolutely, our M10 threads are precision-engineered for smooth and secure fastening.
Q10: Are these lights suitable for home coffee machines?
A: Yes, they are widely used in commercial and high-end home appliances due to their durability.
