Product Overview

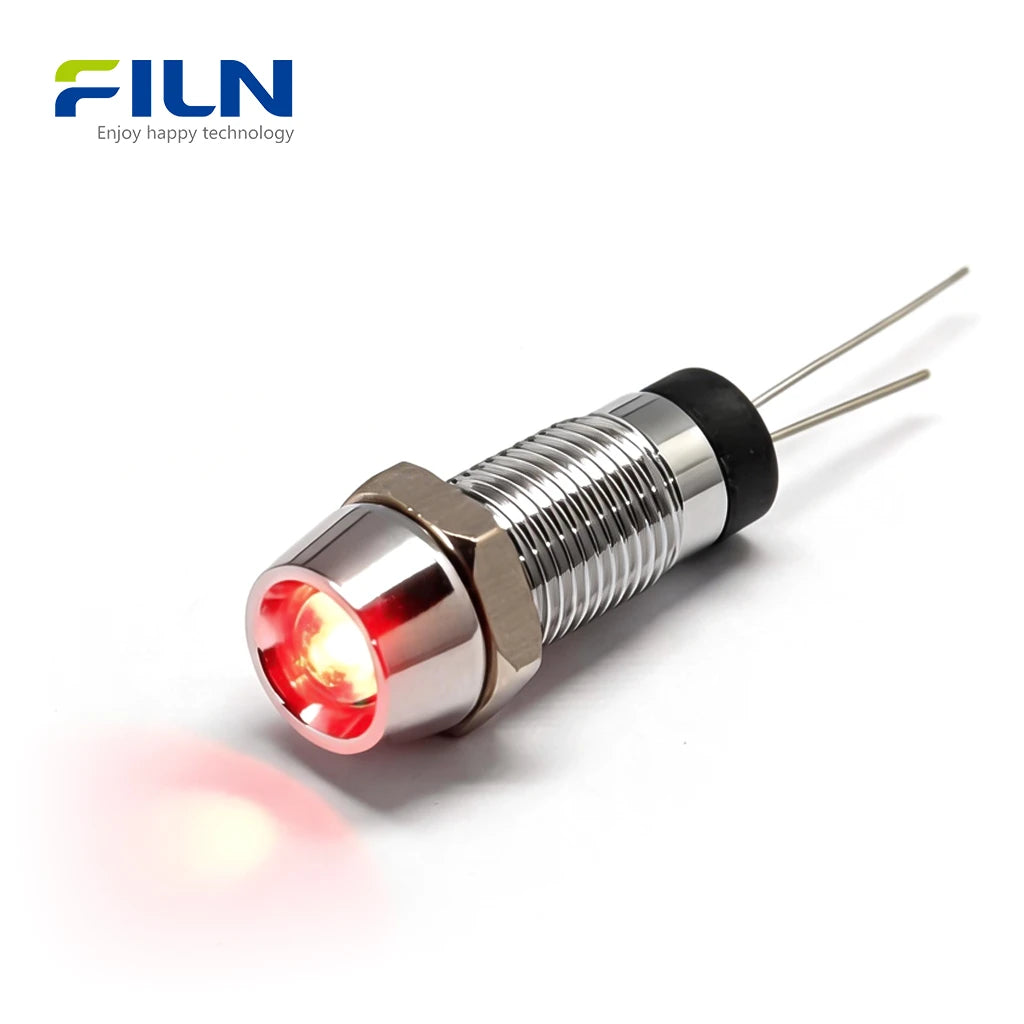

The 8mm Red Light Indicator (FL1M-08CJ-3) is a high-performance industrial signal lamp designed for precision monitoring. Featuring a metal recessed head and pin terminals, this red light indicator offers a compact profile ideal for small space installations compared to standard models. It supports wide voltage ranges from 12-24V to 110-220V with non-polar LED beads for flexible wiring. Built with a durable metal shell and IP67 waterproof rating, it excels in industrial control panels, automation, and marine systems, providing long-lasting LED high brightness and reliability.
Quick Specifications
| Mounting Hole | 8mm / 0.31 inch | |
| Voltage | 12V, 24V, 110V, 220V (Customizable) | |

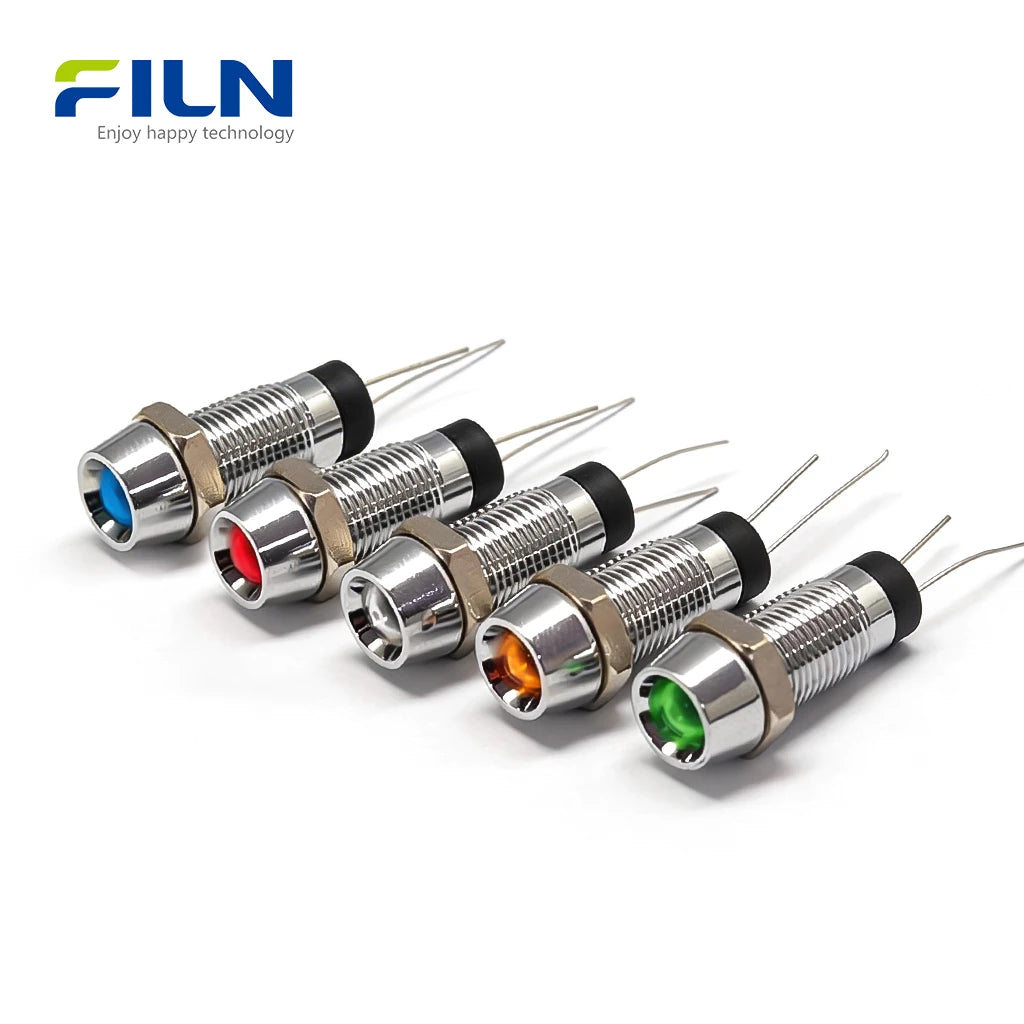

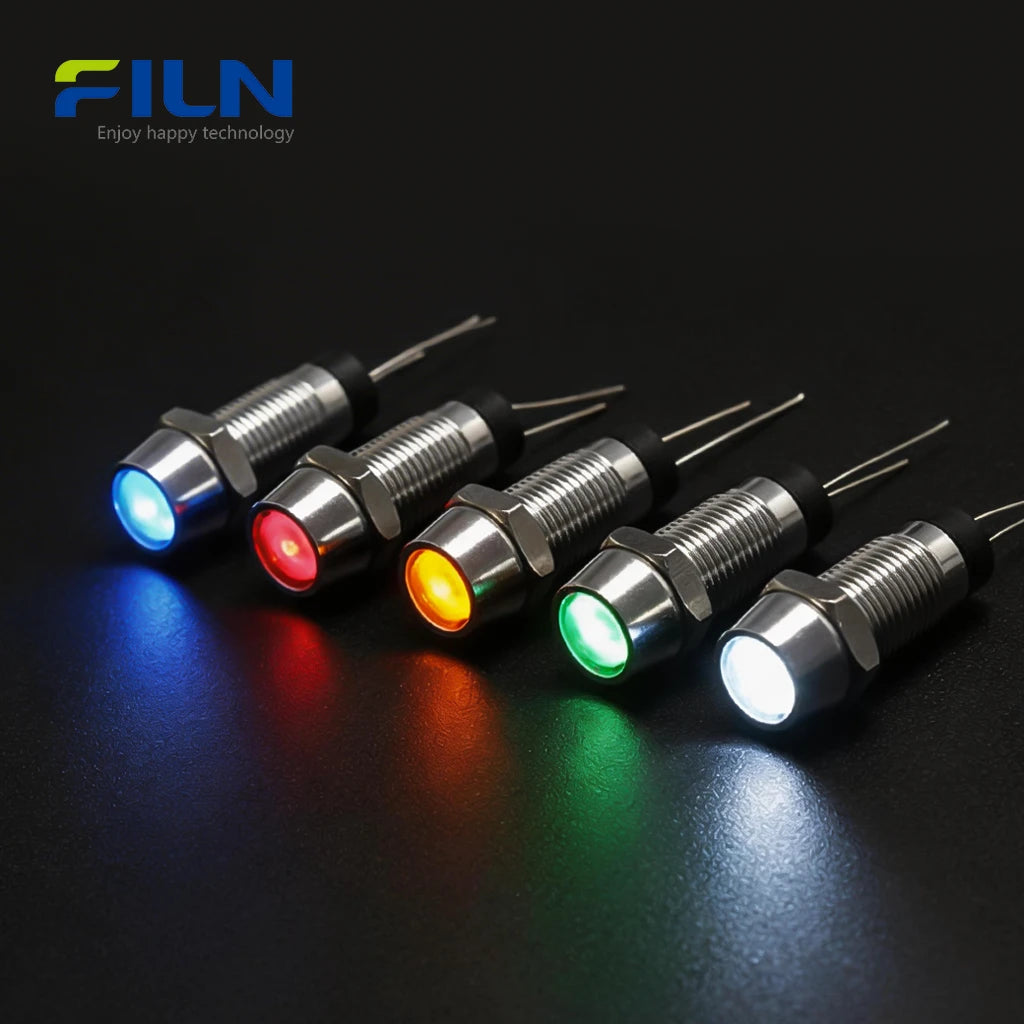

| LED Color | Red (Green, Yellow, Blue, White available) | |
| Waterproof Rating | IP65 / IP67 | |
| Operating Temperature | -40℃ to +80℃ | |
| Lifespan | Wiring Type | Pin Terminal (Solderable to PCB) |
Rated Working Parameters
| Rated Voltage | 12V-220V Customized |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Nickel-Plated Brass / Stainless Steel (Black optional) |
| Lens | Polycarbonate (PC) |
| Seal Ring | O-type Waterproof Ring (Included) |
| Terminal | Pin Terminal (M8 Nut Included) |
General Characteristics
| Part Name | 8mm Metal Indicator Light | ||
| Operating Temperature | Storage Temperature | Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Property | Test Condition | Requirement |
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability Characteristics
| Feature | Test Condition | Requirement |
| Continuous Working Life | 30mA 1000h | 50,000 hours |
Resistant Performance
| High Temperature | 80℃ for 96h |
| Low Temperature | -40℃ for 96h |
| Moisture Resistance | 40℃, 90-95%RH for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 rounds) |
Key Features
- LED High Brightness: Clear visibility even in high-ambient light environments.

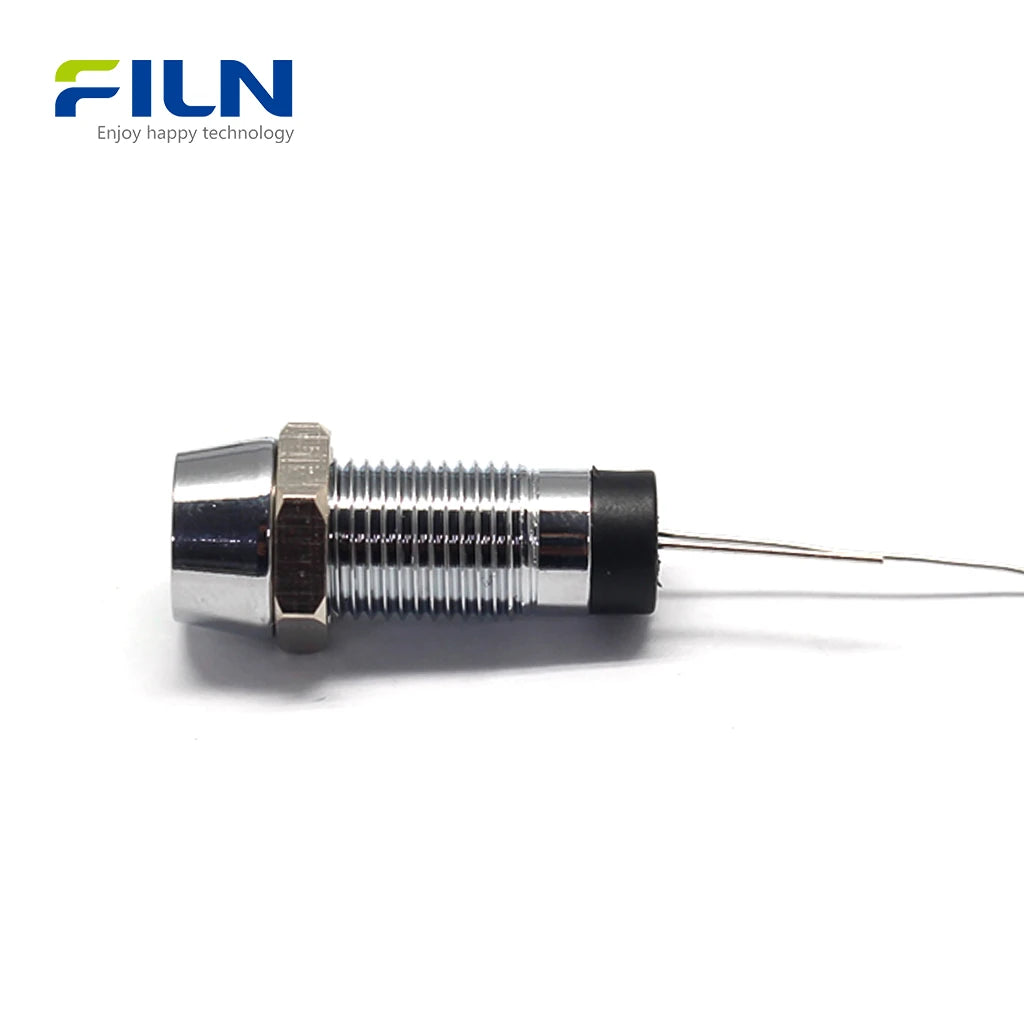

- Compact & Space-Saving: Shorter overall length than standard 8mm models, perfect for tight enclosures.
- IP67 Waterproof: Full protection against dust and water immersion.
- Industrial Reliability: Metal shell with smooth M8 threading and non-polar LED circuitry.

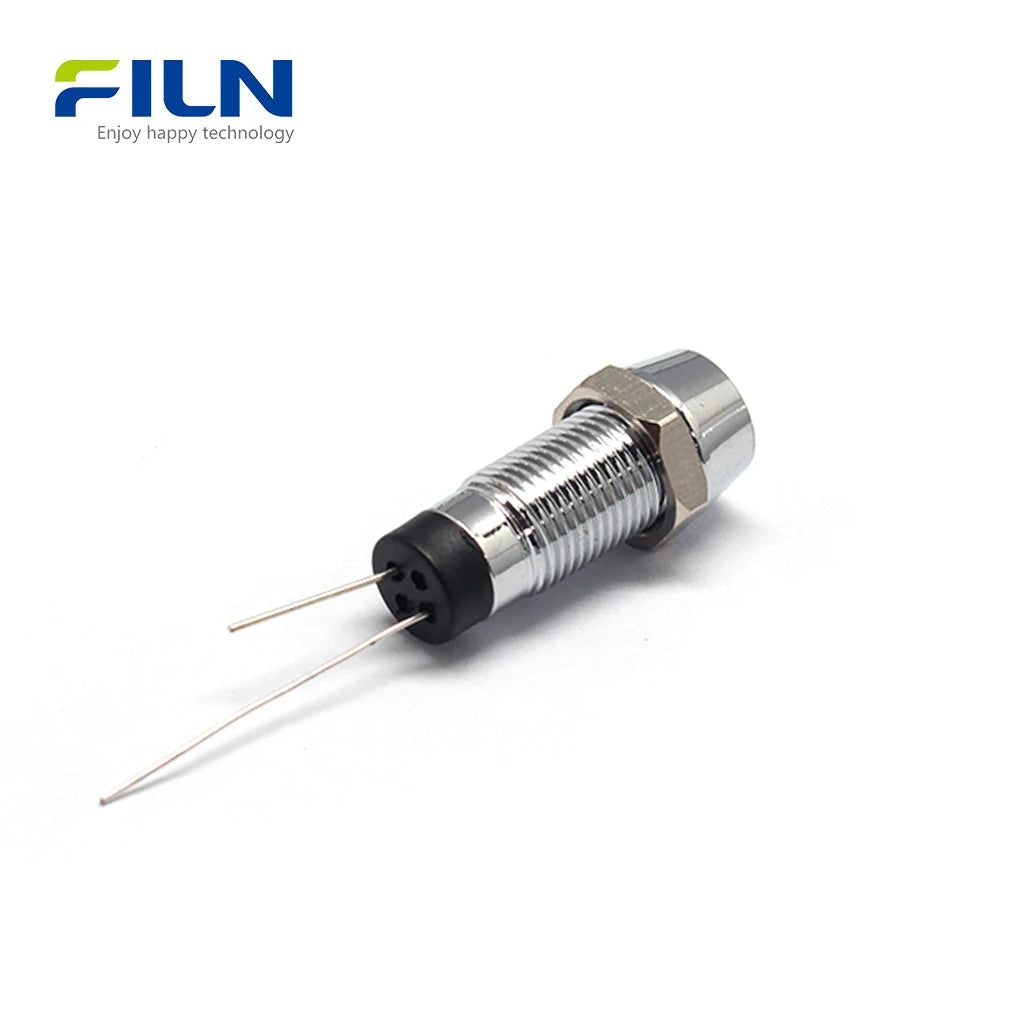

- Easy Installation: Pin-type terminals for secure PCB soldering or wiring.
Applications
- Industrial control panels and CNC machinery
- Electrical distribution cabinets [cite: 3]
- Marine and offshore navigation systems
- Medical equipment and laboratory instruments
- Automated production lines
Installation Guide
- Drill an 8mm (M8) mounting hole on the target panel.
- Insert the indicator light from the top side of the panel.
- Ensure the O-type waterproof ring is correctly positioned.
- Secure the unit from the back using the provided M8 nut.
- Solder the pin terminals to your PCB or wiring harness (Non-polar LED).
What Is a Red Light Indicator?
A red light indicator is a visual signal device used in industrial environments to communicate machine status, such as "Stop," "Danger," or "System Fault." In the case of the FL1M-08CJ-3, the pin terminal design specifically caters to PCB-integrated systems, offering a more stable electrical connection compared to blade-type terminals. Its recessed head design protects the lens from physical impact, while the 8mm diameter ensures high-density installation on compact control interfaces.
FILN Factory Direct Advantage
- Factory Direct: Professional manufacturing from Wenzhou, China.
- Full Customization: Custom voltage, wire length, and connector types.
- Rapid Shipping: Global logistics via UPS/DHL for B2B bulk orders.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. What is the difference between Pin and Blade terminals?
Pin terminals (like on the FL1M-08CJ-3) are thin and circular, designed for PCB soldering, whereas blade terminals are flat for quick-connect spade connectors.
2. Can I use this 8mm red light indicator with 220V AC?
Yes, we offer versions specifically rated for 110V-220V AC with built-in resistors.
3. Is the LED polarity sensitive?
No, this model uses non-polar LED beads, meaning you can connect the positive and negative wires to either pin.
4. Does it come with mounting accessories?

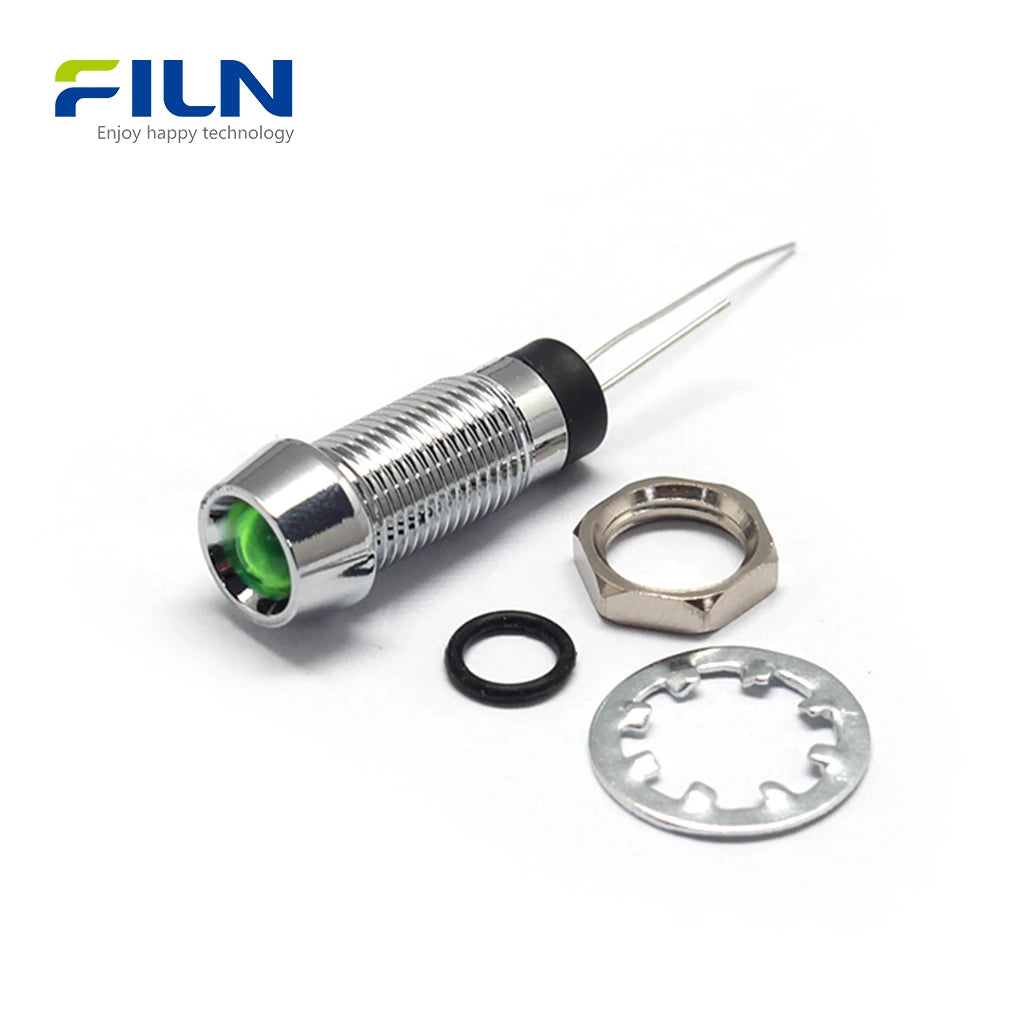

Yes, every indicator includes one M8 nut and one O-type waterproof silicone ring.
5. Is the metal shell available in different colors?

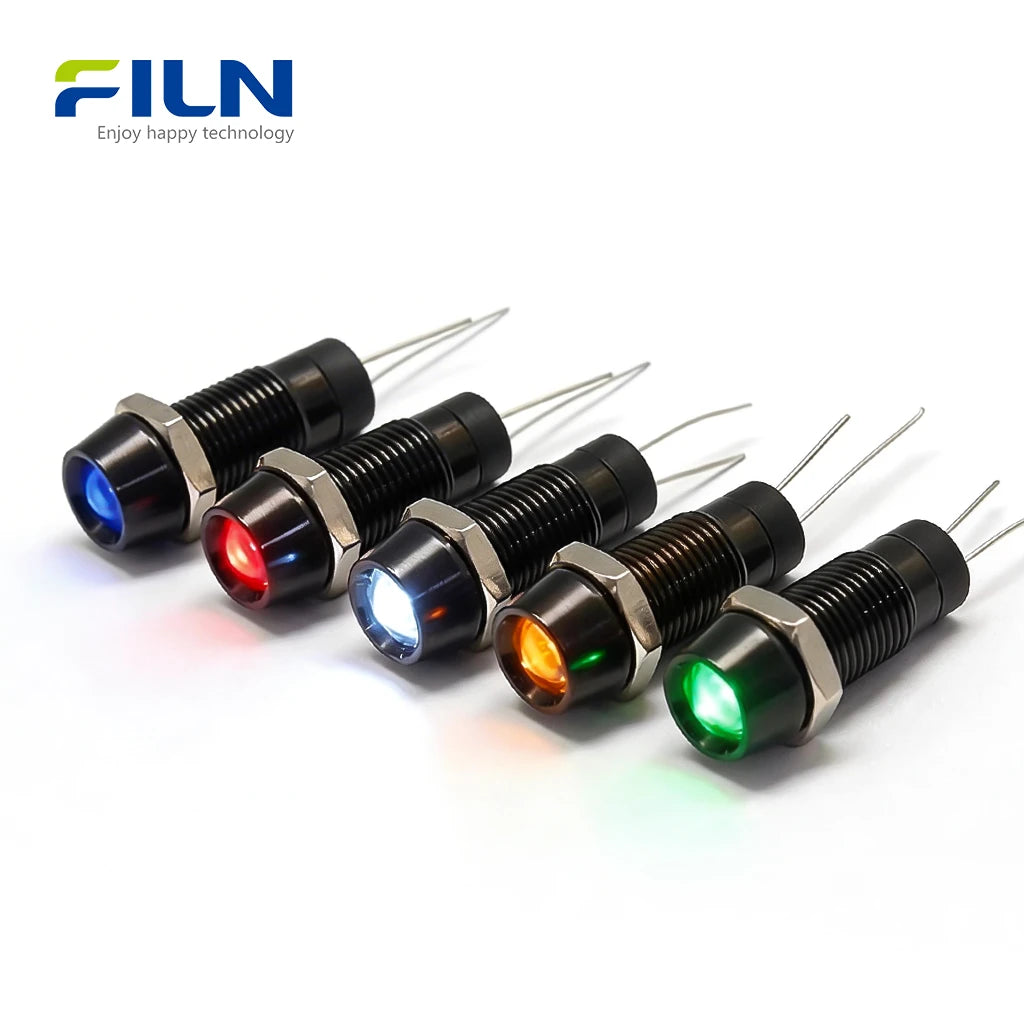

Standard is silver (nickel-plated brass), but we also offer a sleek black anodized finish.
6. How does the FL1M-08CJ-3 compare to the 08CJ-2?
The 08CJ-3 is significantly shorter in length, making it the better choice for shallow panels or compact devices.
7. What is the waterproof rating?
It is rated IP67, making it fully submersible in water for short periods and dust-tight.
8. Can FILN customize the wire length?
Absolutely. Although this is a pin-type, we can solder custom wires and connectors according to your specs.
9. What are the typical applications for a red LED signal lamp?
It is most commonly used for power status, error warnings, and stop indicators in machinery.
10. Are these indicators certified for international use?
Yes, FILN products are designed to meet global B2B standards for industrial electrical components.
