Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.
Product Overview

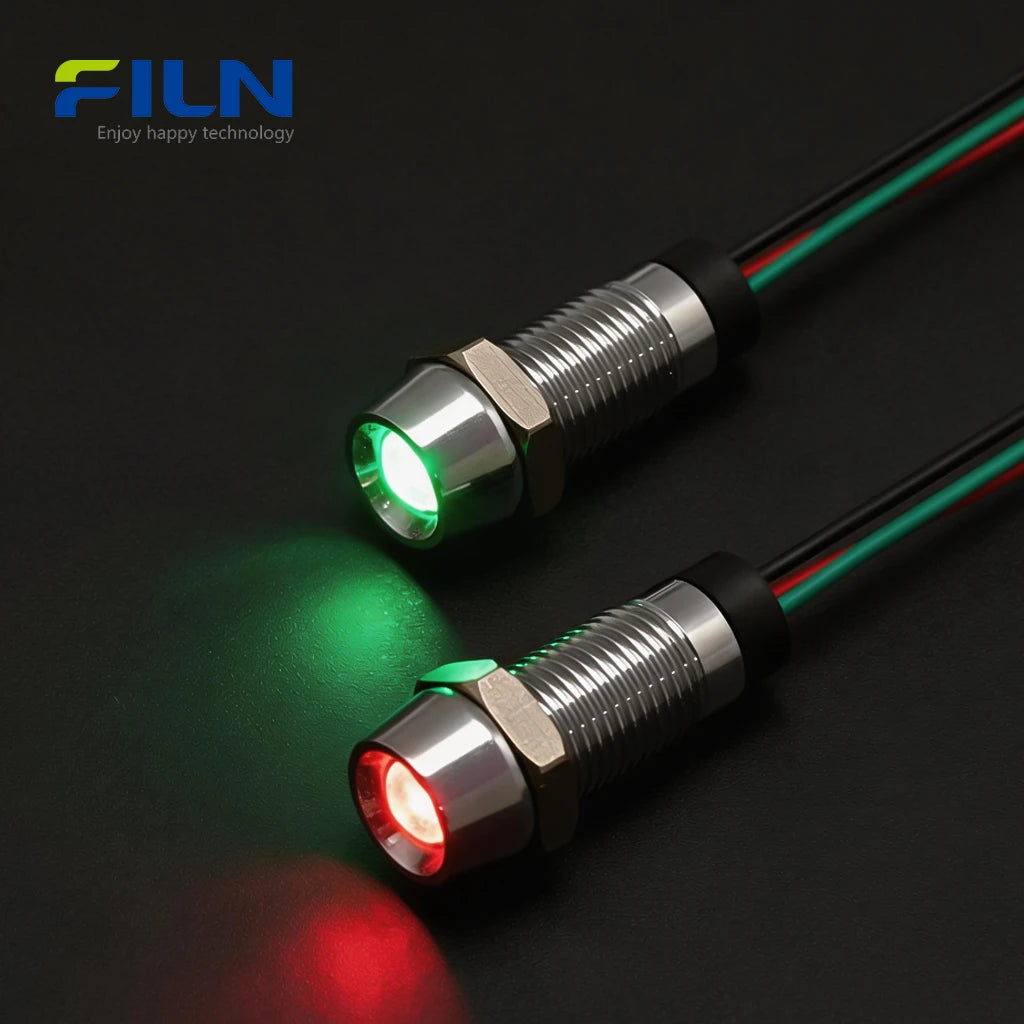

The 8mm Pre-wired Dual Color LED Pilot Light is a high-precision signaling solution designed for demanding industrial environments. Featuring a recessed metal head and IP67 waterproof rating, this indicator provides reliable multi-status feedback for CNC machinery, automation panels, and marine systems. This dual-color metal indicator supports both common cathode and common anode configurations, allowing for versatile wiring integration. With its pre-wired 20cm leads and M8 threaded body, it ensures a secure, vibration-resistant installation for global industrial applications.
Quick Specifications
| Mounting Hole | 8mm (0.31 inch) |
|---|---|
| Voltage | 12-24V / 110-220V (Customizable) |

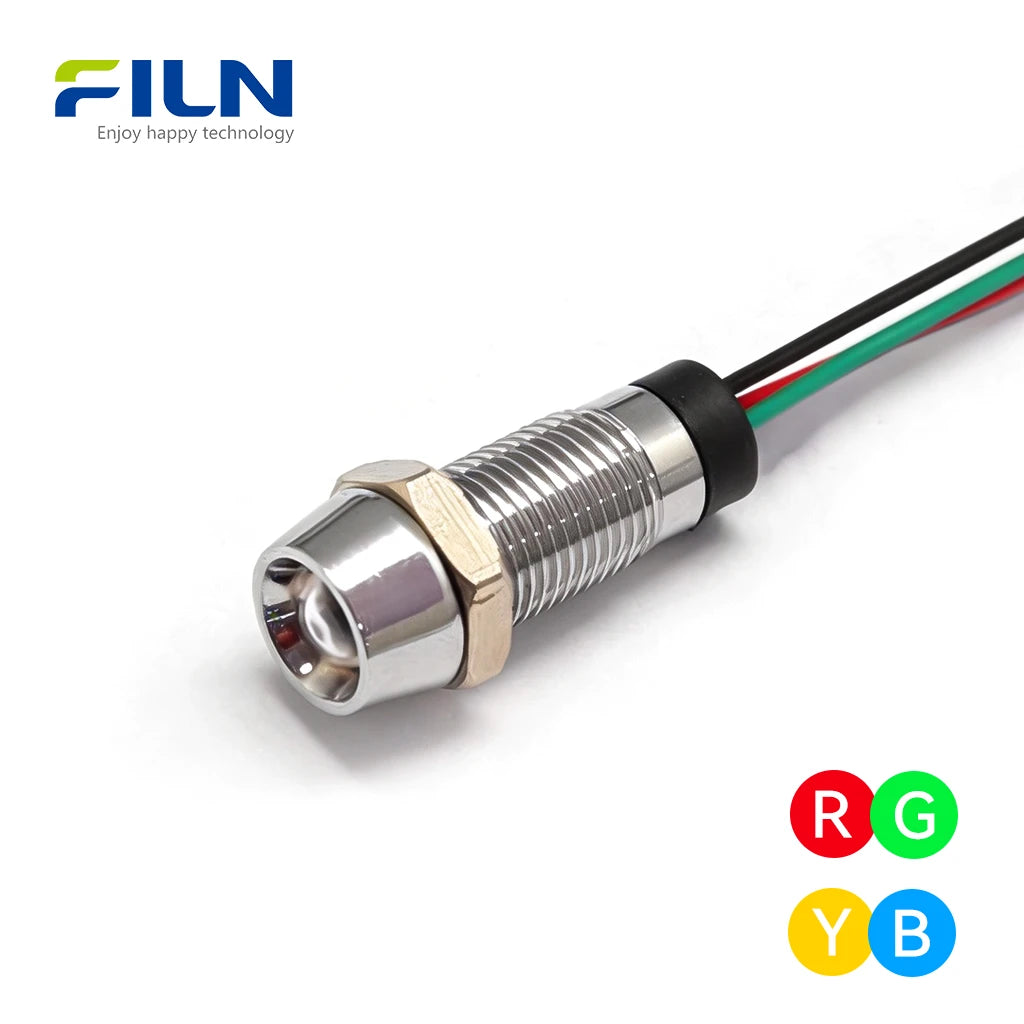

| LED Color | Red/Green,Yellow/Blue, Red/White (Dual Color) |

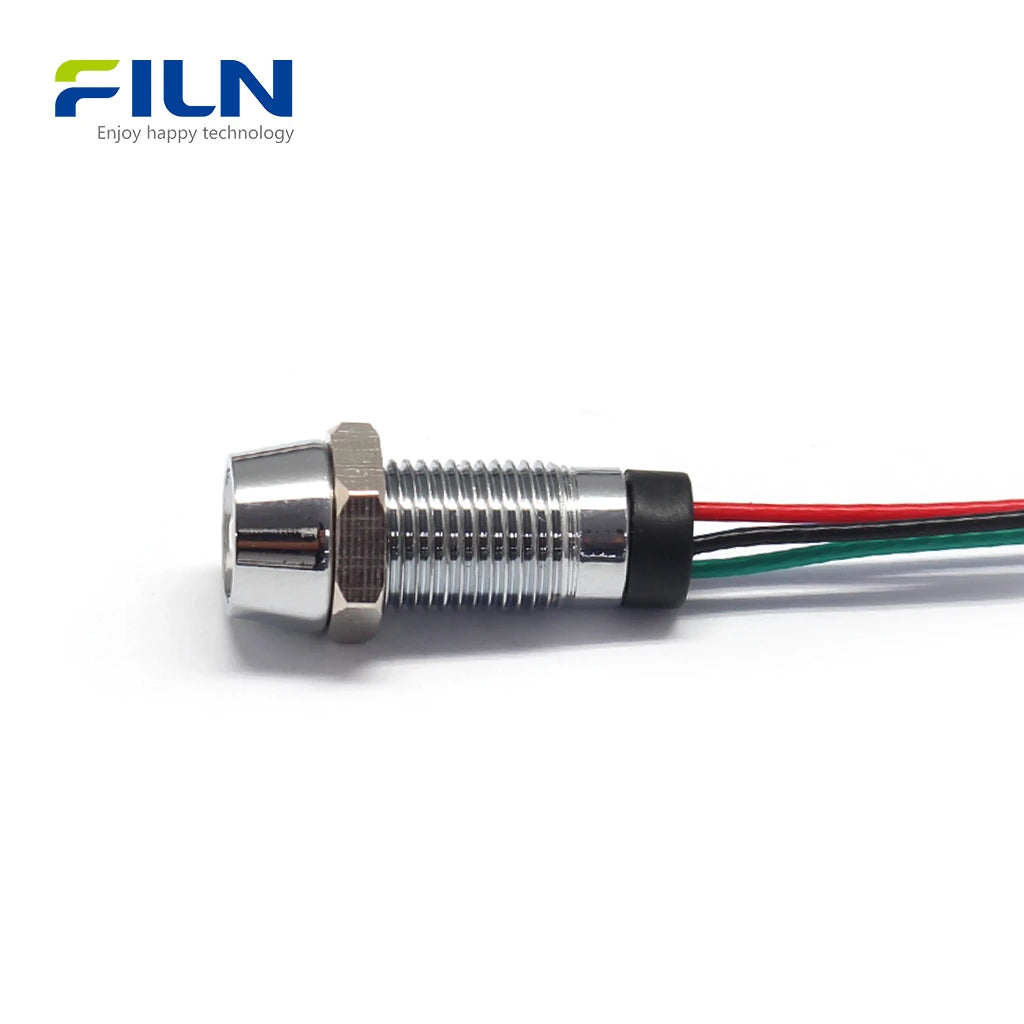

| Wiring Method | Common cathode by default. Please leave a note or contact us if common anode is required. |
| Waterproof Rating | IP65 / IP67 |

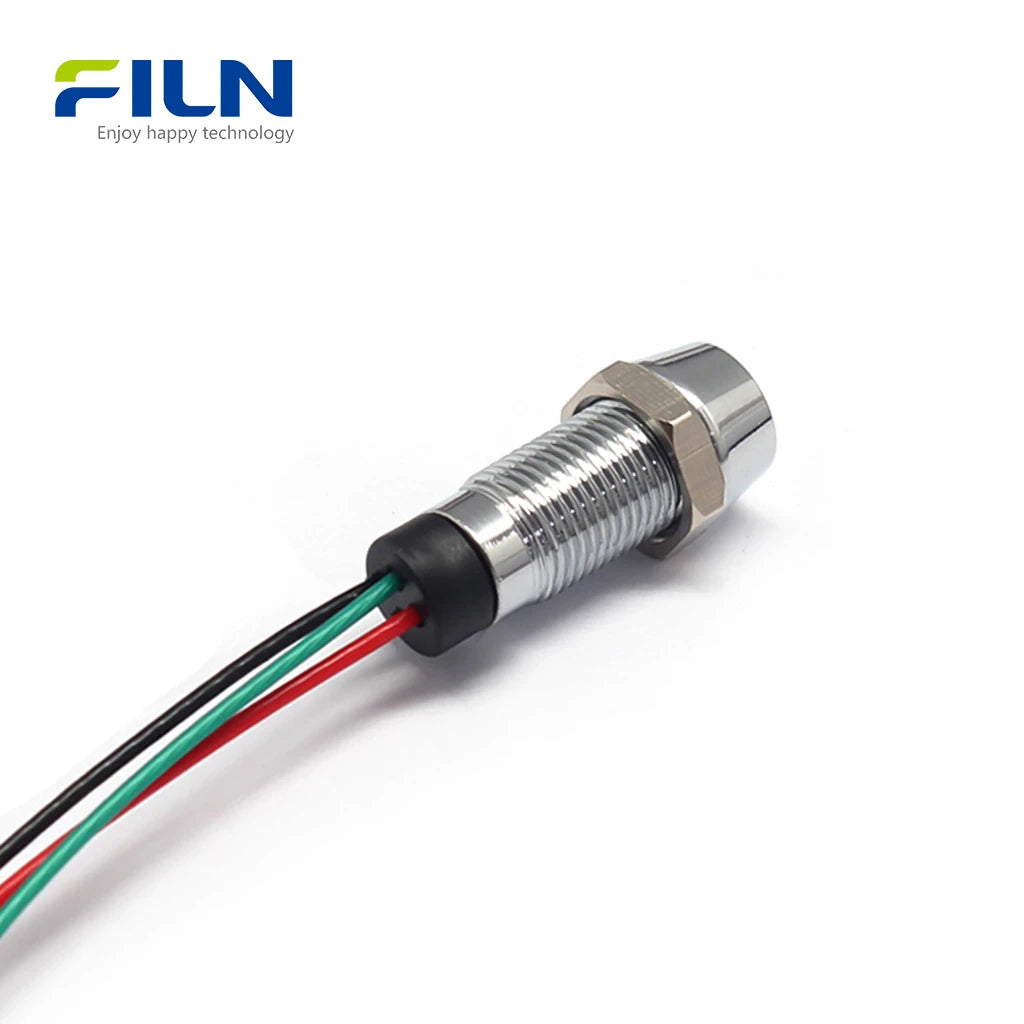

| Wiring Type | Pre-wired Lead (20cm length) |
| Lifespan | 50,000 Hours |
Rated Working Parameters
| Rated Voltage | Customized (12V/24V/110V/220V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials

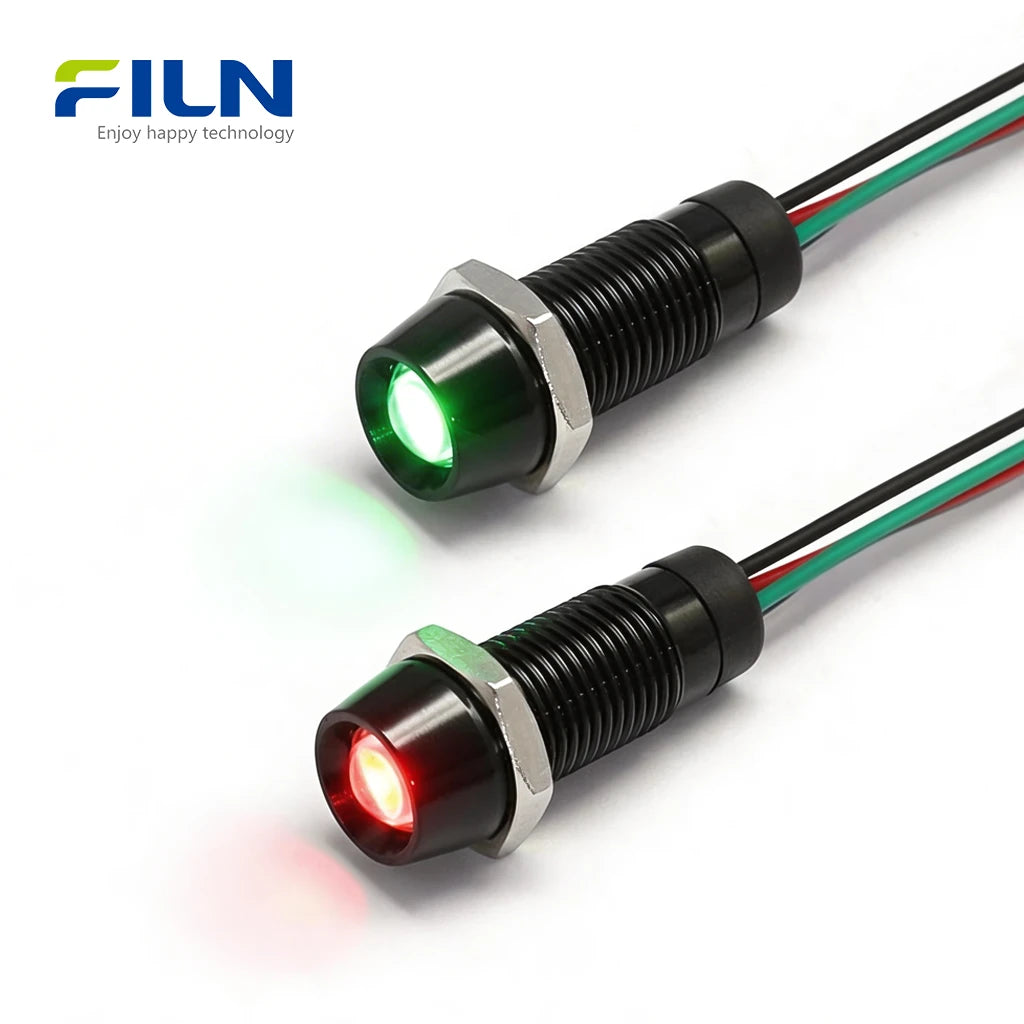

| Housing | Silver Chrome or Black Plated Metal |
|---|---|
| Lens | Polycarbonate (Recessed Head) |
| Seal Ring | Silicone O-ring (8mm) |
| Wire Material | High-quality PVC/Teflon UL Wire |
General Characteristics
| Operating Temperature | -40℃ ～ +80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86 ~ 106Kpa |
| Part Name | FL1M-08CW-D-2 |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Key Features
- Dual-Color Versatility: Available in common cathode or common anode configurations for complex signaling.
- Rugged Metal Build: Recessed head design with silver or black housing options for high-end industrial aesthetics.
- Pre-wired Convenience: Includes 20cm wire leads, making it easier to install than traditional pin terminals in tight spaces.
- IP67 Protection: Fully waterproof and dustproof with a dedicated silicone O-ring for harsh environments.

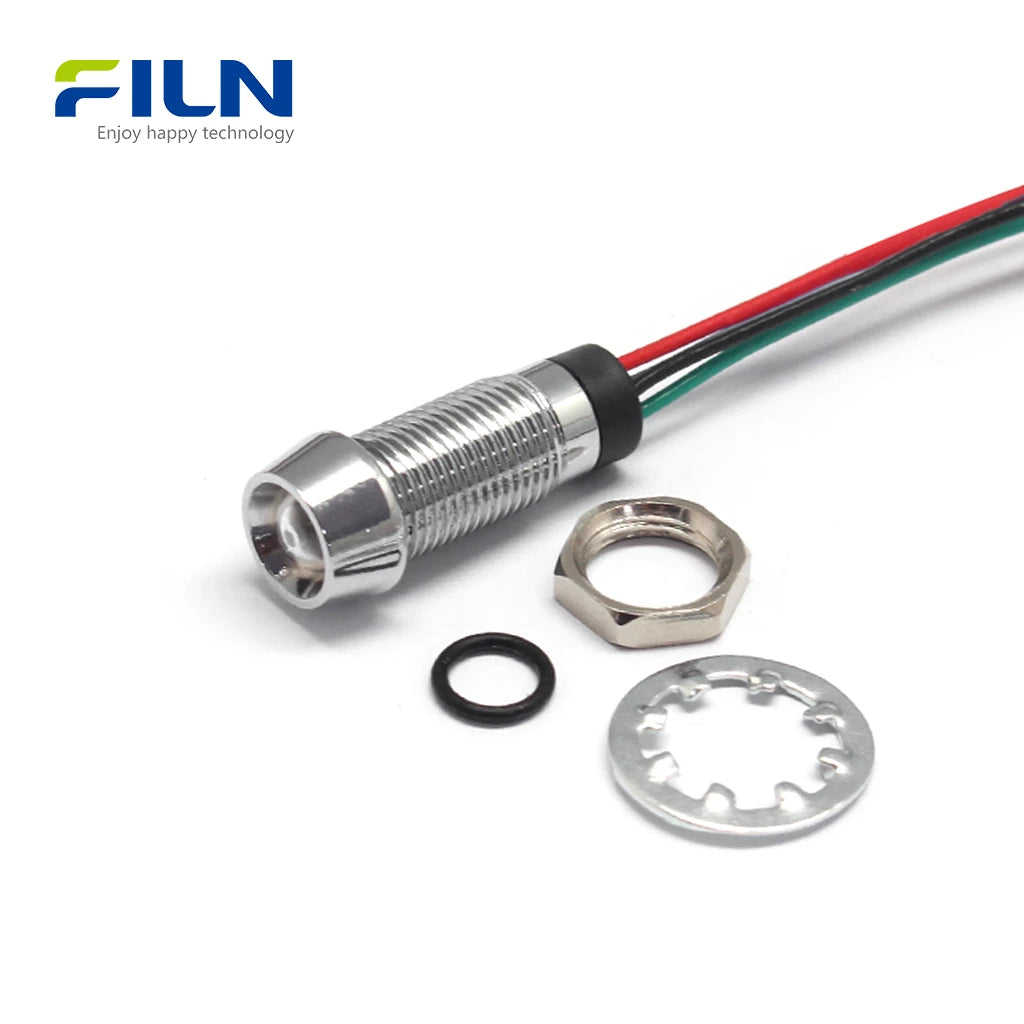

- Smooth Installation: High-quality M8 threading and included nuts ensure a reliable fit on any control panel.
Applications
- Industrial control panels and CNC machines
- Automation equipment and robotics
- Electrical distribution cabinets
- Marine and outdoor signaling systems
- Medical and laboratory diagnostic devices
Installation Guide
- Drill an 8mm (M8) hole into the mounting panel. [cite: 3]
- Insert the indicator light through the front of the panel. [cite: 3]
- Slide the silicone O-ring onto the threaded body from behind the panel. [cite: 3]
- Tighten the M8 nut onto the threads to secure the indicator firmly. [cite: 3]
- Connect the 20cm pre-wired leads to your power source (12V/24V/220V) according to the color diagram. [cite: 3]
What Is an 8mm Dual Color LED Pilot Light?
An 8mm dual-color LED pilot light is a compact visual signaling component that uses a single mounting point to display two different states (e.g., Green for "Ready" and Red for "Error"). Unlike traditional pin-type indicators, the pre-wired lead version offers superior flexibility and time savings during assembly. In industrial equipment, these lights are critical for providing real-time feedback to operators, ensuring safety and operational efficiency within a minimal footprint.
FILN Factory Direct Supply
Benefit from FILN's professional manufacturing expertise in Wenzhou:
- Voltage & Wire Customization: We tailor voltage (3V-380V) and lead lengths to your specs.
- Connector Integration: Custom wire harness and connector assembly available.
- Fast Global Shipping: Reliable logistics via UPS/DHL/FedEx.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the difference between pre-wired and pin terminals?
Pre-wired indicators come with soldered leads, saving installation time and providing better moisture resistance compared to pin terminals which require manual soldering or crimping.
Q2: Can I get this in a common anode configuration?
Yes, FILN offers both common cathode and common anode dual-color configurations for all 8mm models.
Q3: Is the metal housing resistant to corrosion?
Absolutely. Our silver chrome and black plated housings are designed to withstand industrial wear and humidity.
