Product Overview

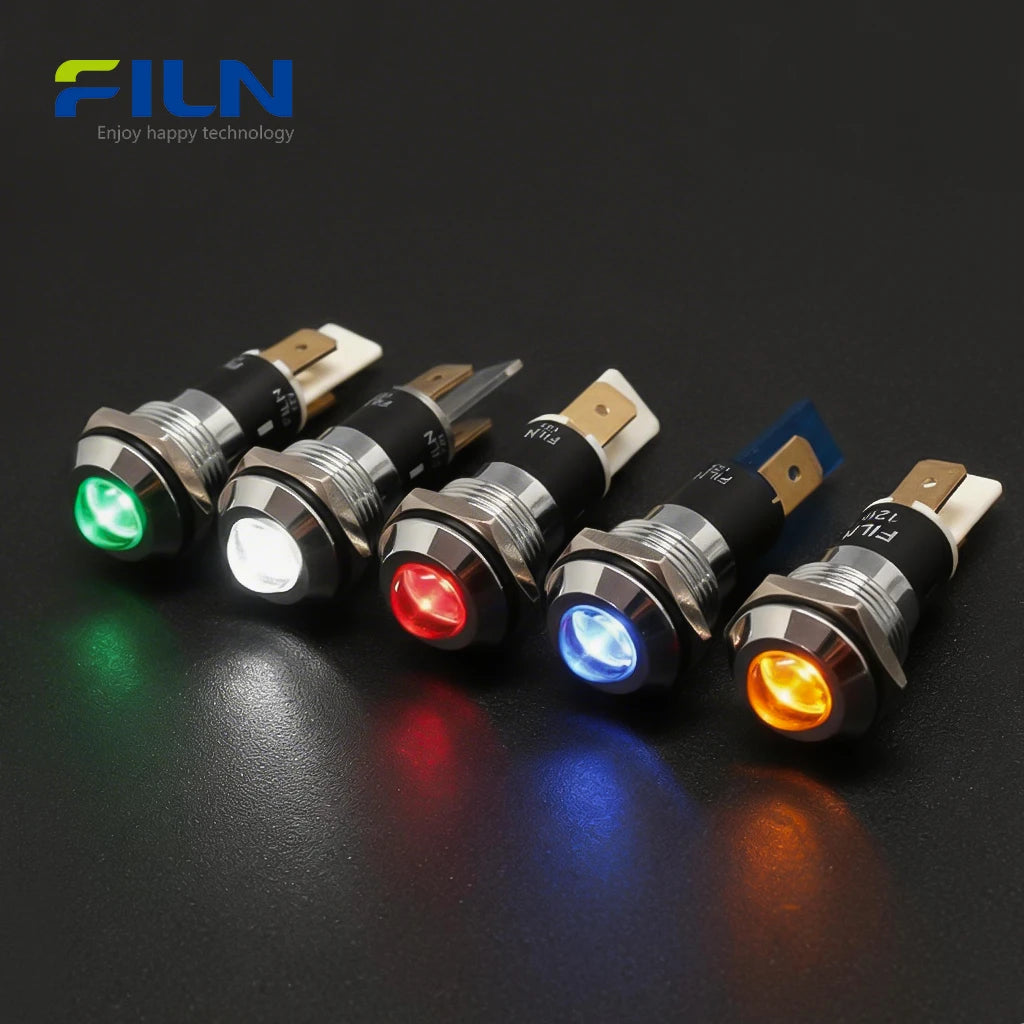

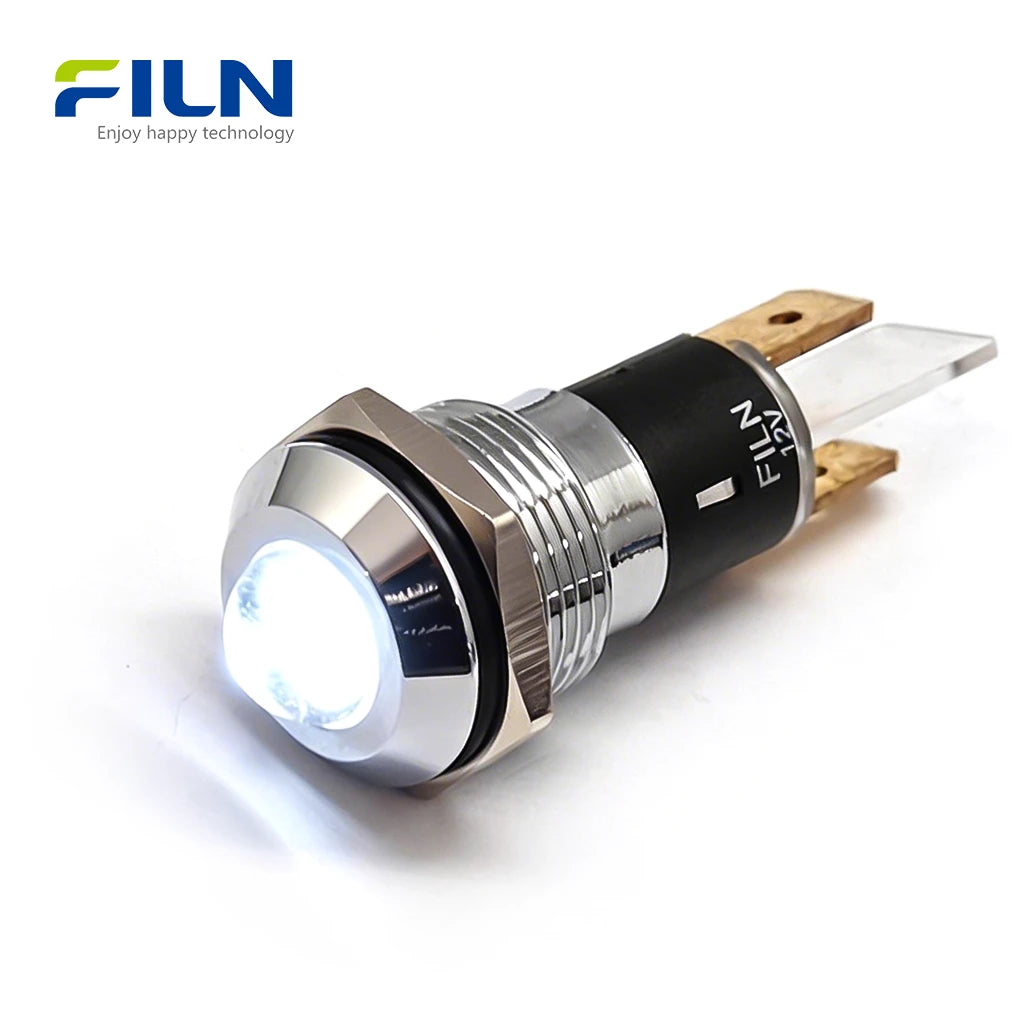

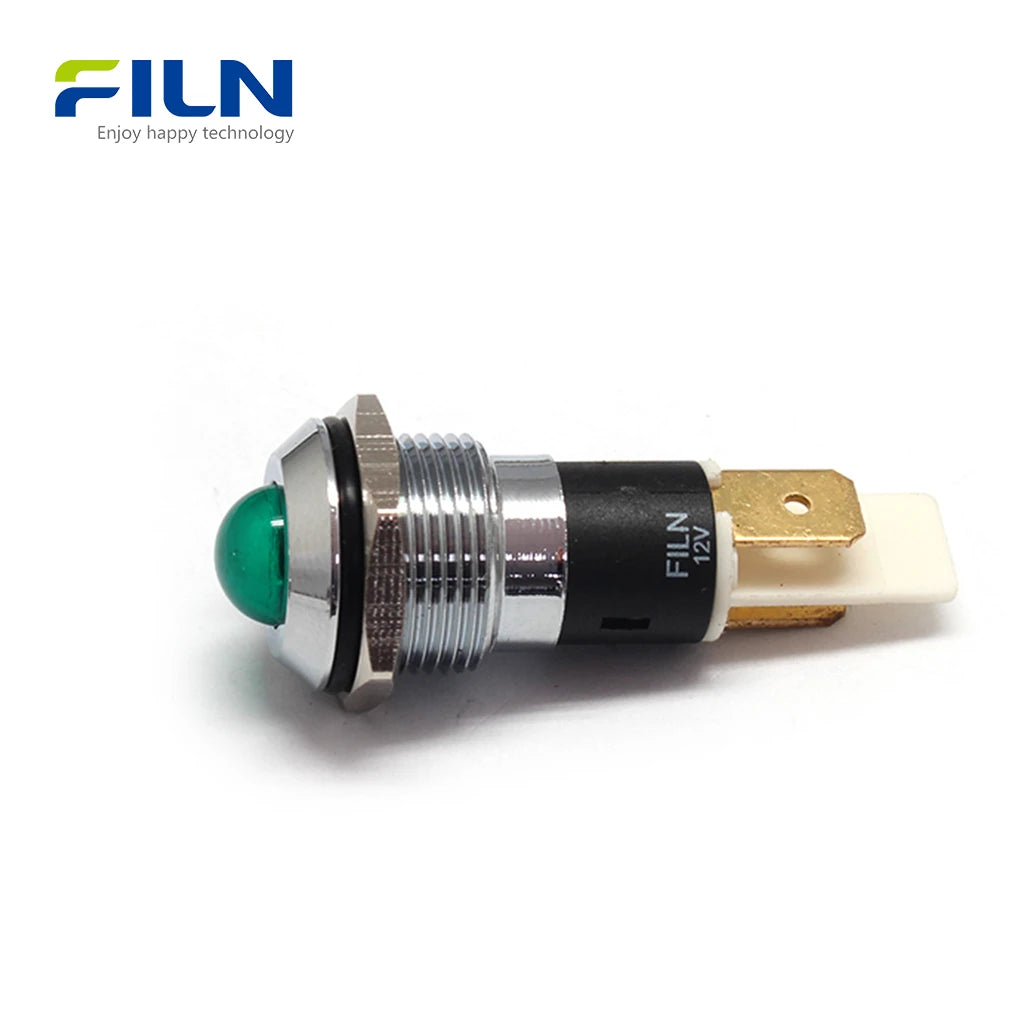

The 24V LED panel indicator lights series (Model: FL1M-16SJ-1) by FILN is a premier industrial signaling solution. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, these 16mm metal high head indicators are designed for rigorous B2B applications[cite: 1, 3]. Featuring a robust 2-pin terminal design and a high-profile head for enhanced visibility, they are ideal for industrial control panels, CNC machines, and marine systems. The long-life LED and corrosion-resistant shell (available in silver or black) offer a reliable, customizable voltage solution (12V-220V) for global procurement needs.
Quick Specifications
| Mounting Hole | 16mm / 0.63 inch |
|---|---|
| Voltage | 12-24V / 110-220V (Customized) |

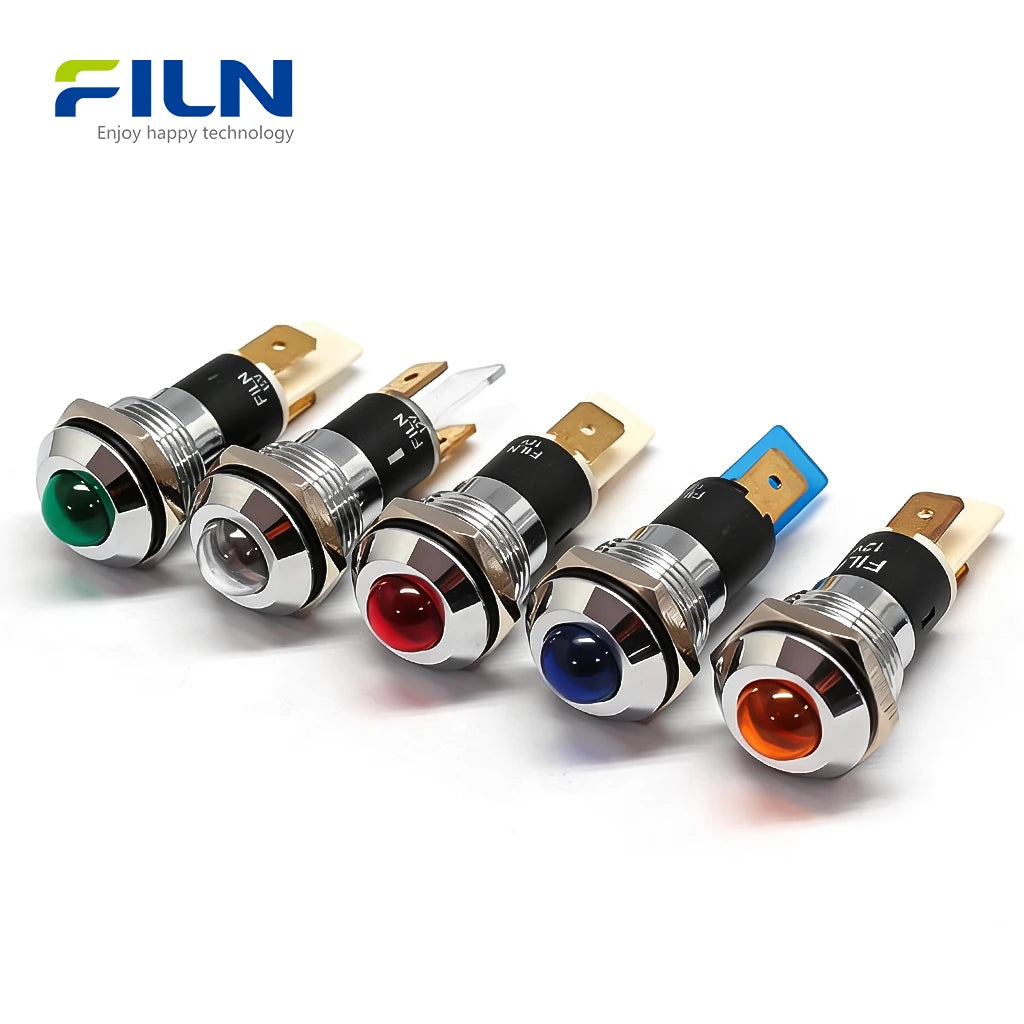

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ ～ 80℃ |
| Lifespan | 50,000 Hours |

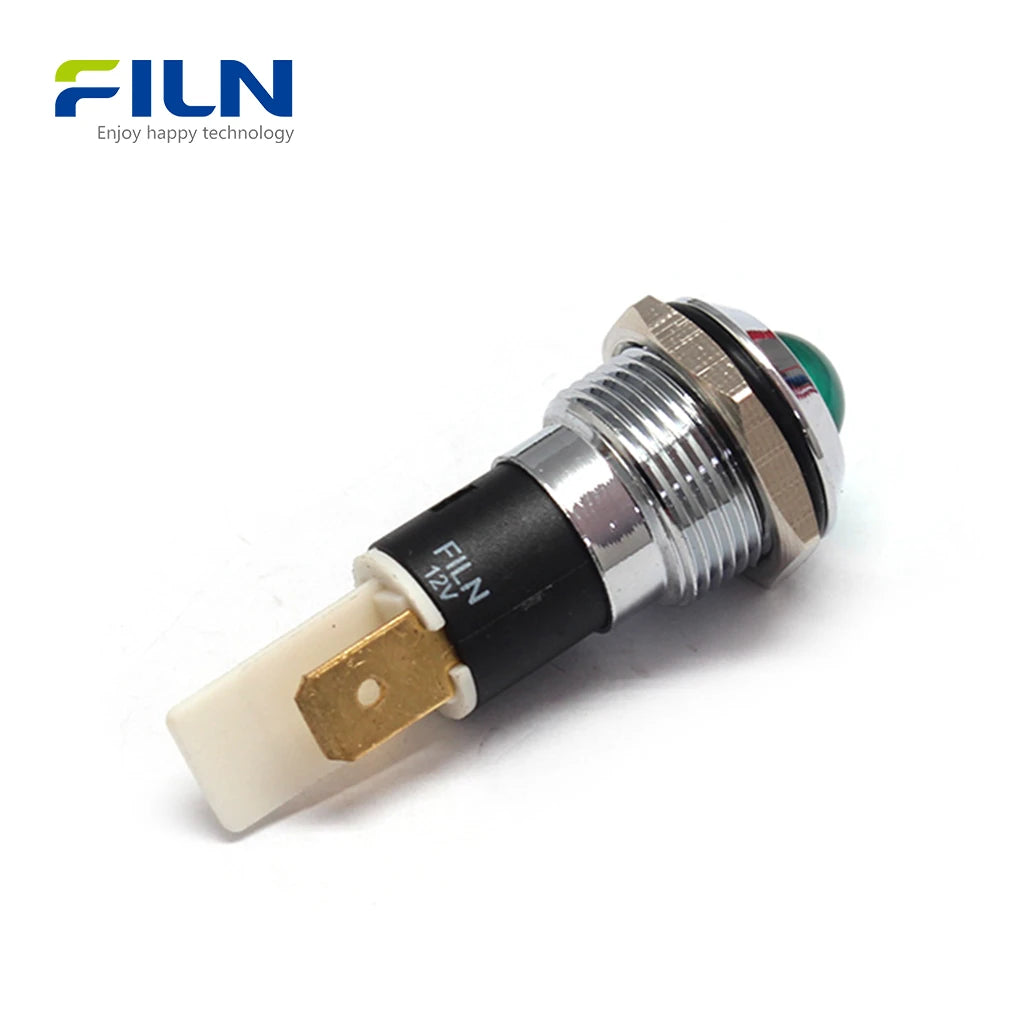

| Wiring Type | 2-Pin Terminal Type |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy / Aluminum | Silver or Black Finish |
| Lampshade | PC Polycarbonate | High light transmission |
| Light Source | LED | Long life, low energy |
| Pin | Brass | Excellent conductivity |
| O-ring | Silica Gel | IP67 Waterproof seal |
Rated Working Parameters
| Rated Voltage | 12V / 24V / 110V / 220V (Customized) |
|---|---|
| Frequency (AC) | 50 ～ 60Hz |
| Rated Current | ≤ 20mA |
General Characteristics
| Operating Temperature | -40℃ ～ 80℃ |
|---|---|
| Relative Humidity | ≤ 85% at +40℃ |
| Air Pressure | 86 ～ 106Kpa |
Performance & Durability
| Test Item | Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 min | ≥ 100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
| Working Life | 30mA 1000h | 50,000 hours |
| Temp Resistance | 80℃ / -40℃ 96h [cite: 1, 4] | Normal function |
Key Features
- LED High Brightness: Exceptional side-visibility with the high-head design.
- High Head Advantages: The protruding head offers a 180-degree viewing angle, making it easier to see from a distance compared to flat-head models.
- 2-Pin Terminal vs. Wire: Pin terminals provide a stable, vibration-resistant connection that is much faster to install or replace than traditional wiring.
- IP67 Waterproof: Reliable silicone O-ring protection against dust and moisture.
- Industrial Grade: Smooth M16 threads and high-strength shell for rugged environments.
Installation Guide
- Drill a 16mm hole on the mounting panel.
- Insert the indicator light from the top of the panel.
- Ensure the waterproof O-ring is positioned correctly.
- Tighten the M16 nut from the back of the panel to fix it in place.
- Connect the power lines to the 2-pin terminals.
What Is a 24V LED Panel Indicator Light?
A 24V LED panel indicator light is a critical visual feedback component for industrial machinery. These devices communicate status—such as power, faults, or warnings—to operators instantly. The high-head design is specifically valued for applications where monitoring from side-angles is necessary. In 2026, industry standards favor pin terminals for their ability to streamline the assembly line process and reduce human error during wiring.
Factory Direct Supply
FILN offers specialized B2B customization and direct wholesale:
- Factory Direct Pricing
- Voltage Customization (3V-380V)
- Wire/Connector Customization
- Fast Global Shipping
Official Website: www.filn.com
Contact: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Why choose the high-head design for my 24V LED panel indicator?
The high-head provides a wider viewing angle, making it visible from the side, which is essential for safety monitoring.
2. Can I use this 16mm indicator in outdoor environments?
Yes, with its IP67 rating and silicone seal, it is designed to withstand rain and dust.
3. What is the benefit of the 2-pin terminal over wire leads?
Terminals allow for quicker maintenance and modular panel assembly without re-stripping wires.
4. Does FILN support custom colors like white or blue?
Yes, we offer Red, Green, Yellow, Blue, and White as standard options.
5. Is the silver shell the only option?

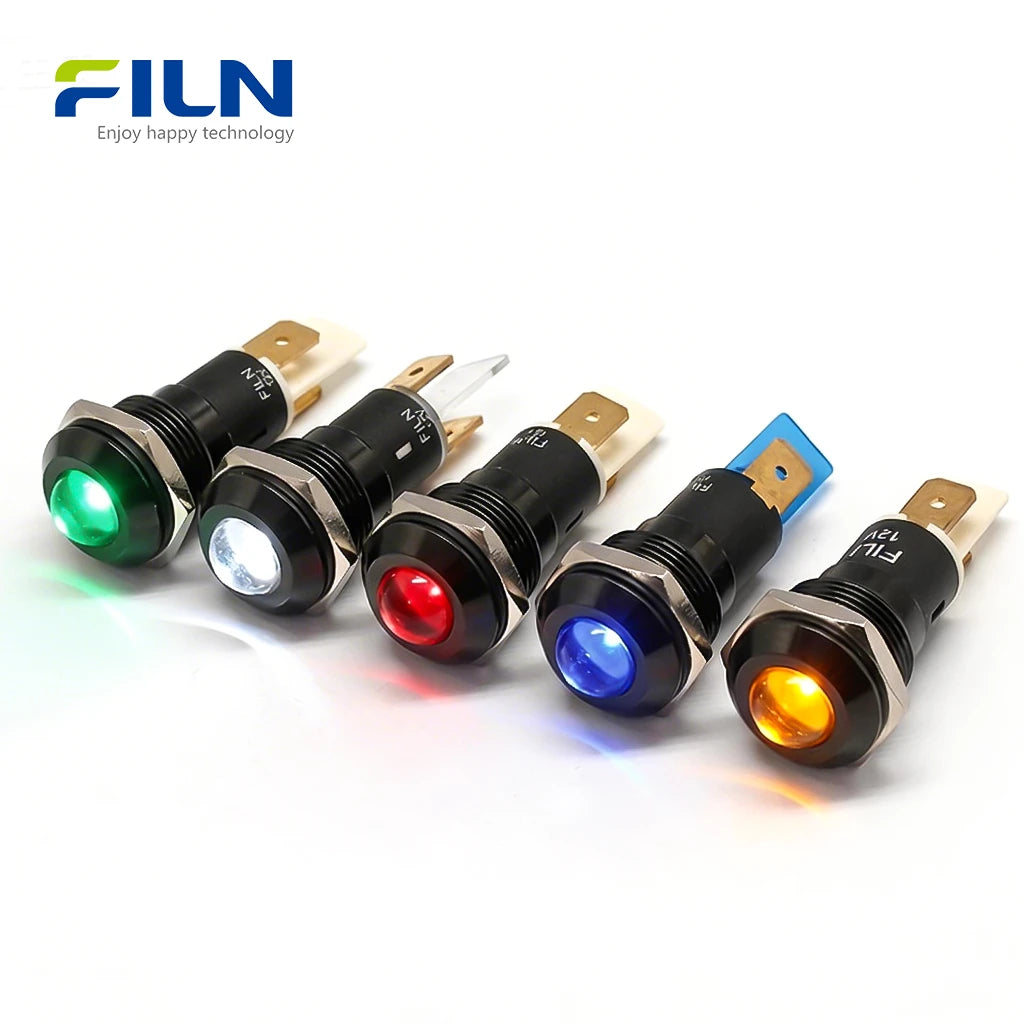

No, we provide both silver (nickel-plated) and black aluminum shells to match your panel aesthetics.
6. What is the standard lifespan of the LED?
Our LEDs are rated for 50,000 hours of continuous high-brightness operation.
7. Are the mounting nuts included?

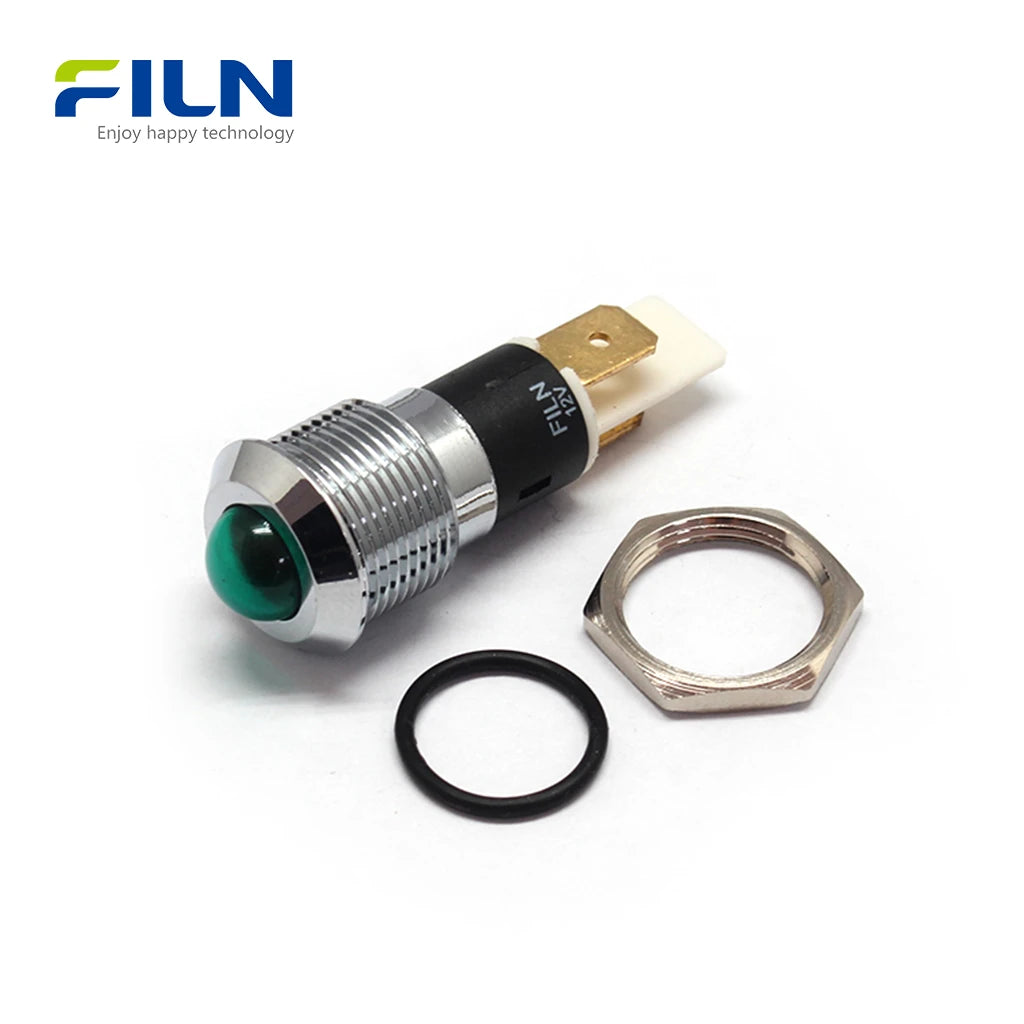

Yes, each light comes with an M16 nut and a waterproof O-ring.
8. Does this product meet UL standards for the US market?
Yes, FILN products hold UL, CE, and VDE certifications for international compliance.
9. Can I request a specific voltage like 110V AC?
Yes, we support customization for voltages ranging from 12V to 220V.
10. How do I install the waterproof ring?
Place the ring between the indicator head and the panel surface before tightening the nut from behind.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
