Product Overview
The FL1M-19SW-1 panel indicator lights by FILN are premium 19mm industrial signaling components designed for maximum visibility and durability. Featuring a unique high-head (prominent) design, these indicators provide superior side-angle visibility in complex control environments. Built by a certified factory with ISO9001, CE, VDE, RoHS, SGS, UL, and IP67 ratings, they ensure reliable performance in harsh conditions. These metal LED indicators are available in silver or black finishes and come pre-wired with 15cm leads for rapid deployment. Ideal for automation, CNC machinery, and electrical cabinets, FILN offers full B2B customization for voltages ranging from 12V to 220V.
Quick Specifications
| Mounting Hole | 19mm / 0.75" |
|---|---|
| Voltage | 12-24V, 110-220V (Custom Available) |

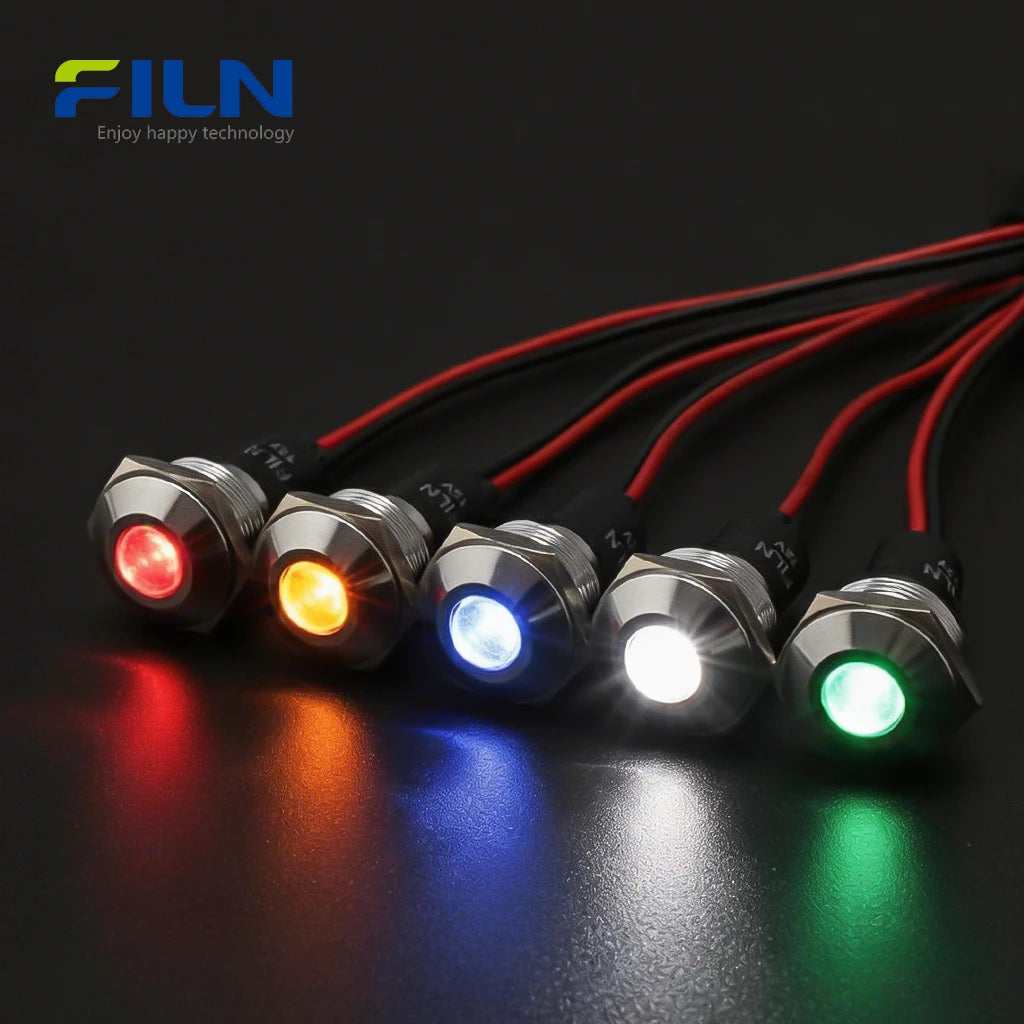

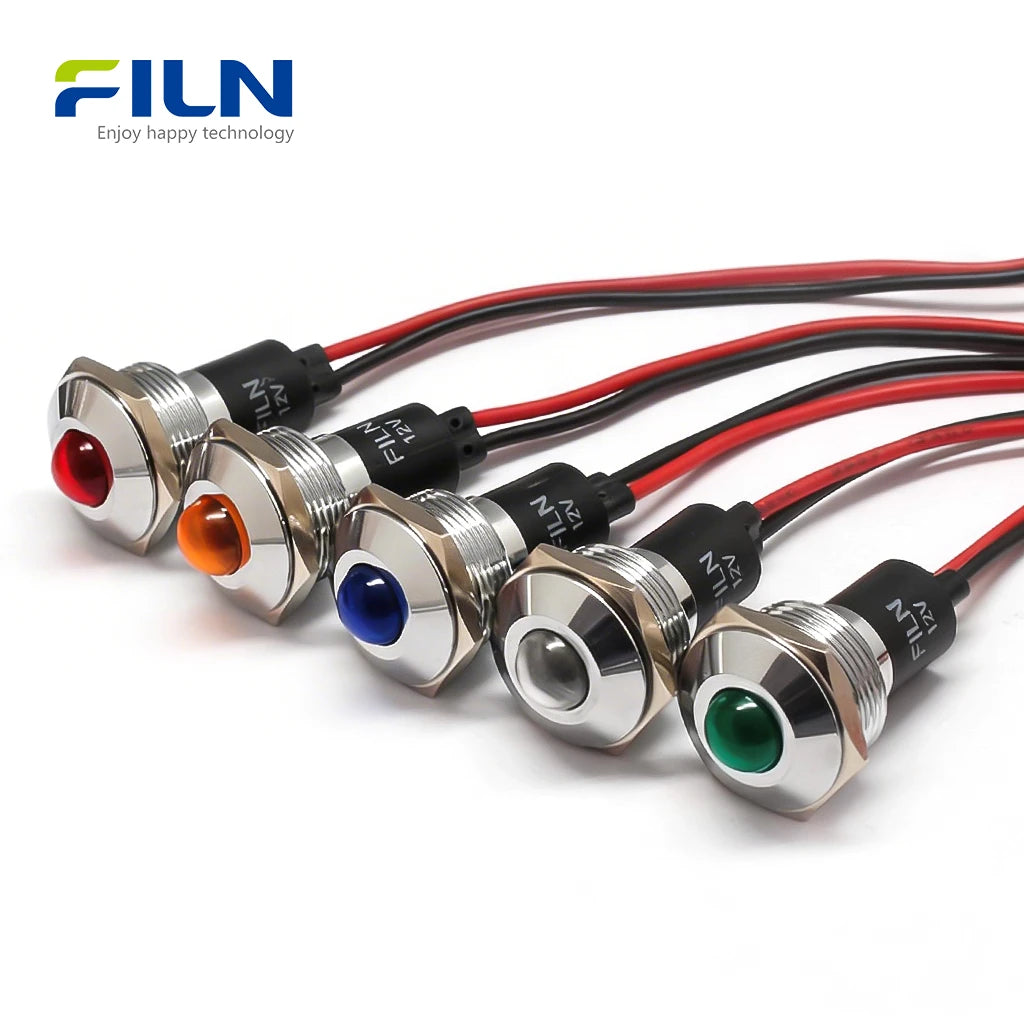

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Direct Wire Lead (15cm Standard) |
| Head Type | High Head (Prominent) |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Silver or Black Plated options |
| Lamp Holder | PA66 Nylon | High-strength industrial plastic |
| Lampshade | PC Polycarbonate | UV resistant & high transparency |
| Light Source | LED | Ultra-long lifespan chips |
| Resistor | Carbon Film | Stable current flow |
| O-ring | Silica Gel | Waterproof sealing protection |
| Nut | Copper Alloy | Smooth threads for panel mounting |
Rated Working Parameters
| Rated Voltage | Customized (3V-380V) |
|---|---|
| Frequency(AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Nickel-plated Brass / Black Chrome |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone Rubber |
| Terminal | Soldered Wire Leads |
| Wire Material | UL1007 / UL1569 PVC Wire |
General Characteristics
| Application | Status Signaling |
|---|---|
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
|---|---|---|
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Continuous Working Life | 30mA 1000h Test | 50,000 hours |
|---|
Resistant Performance
| High Temperature | 80℃ for 96h |
|---|---|
| Low Temperature | -40℃ for 96h |
| Moisture Resistance | 40℃ 90-95%RH for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 rounds) |
Key Features

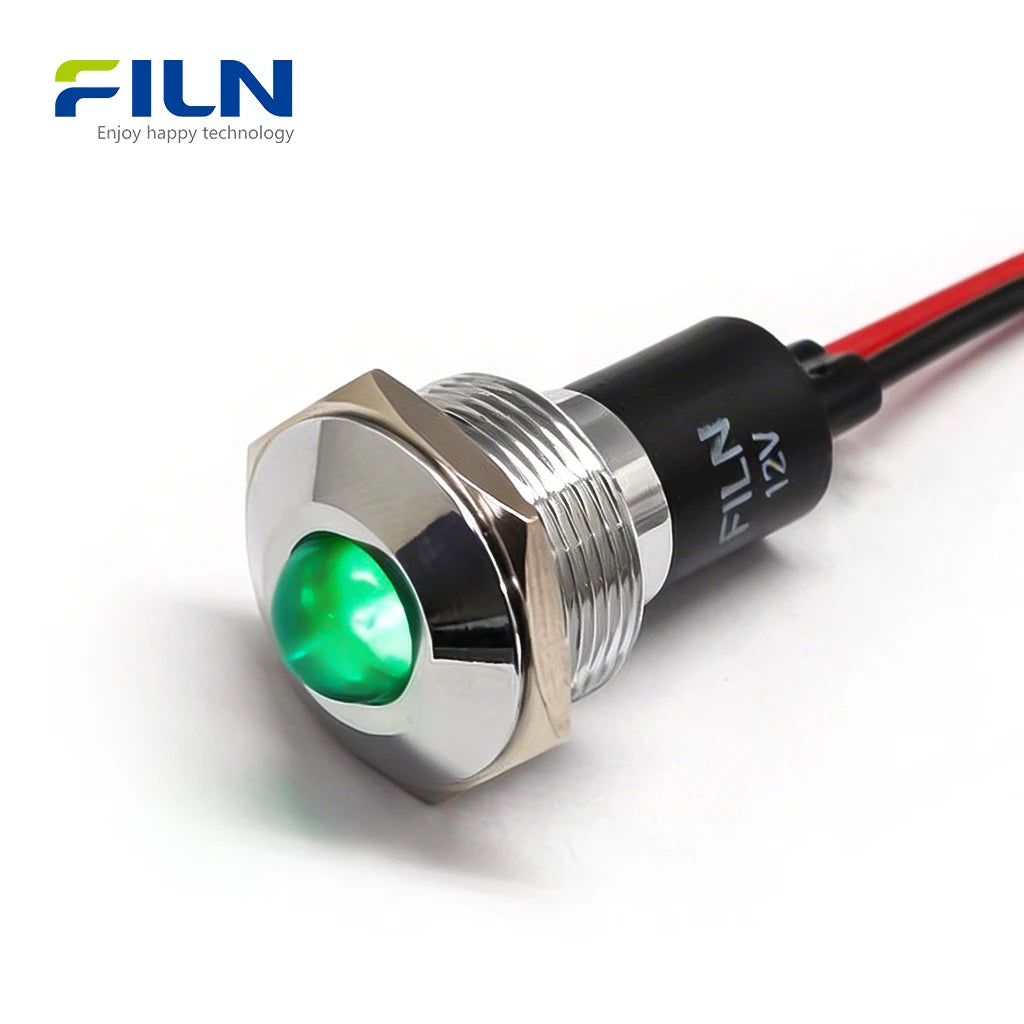

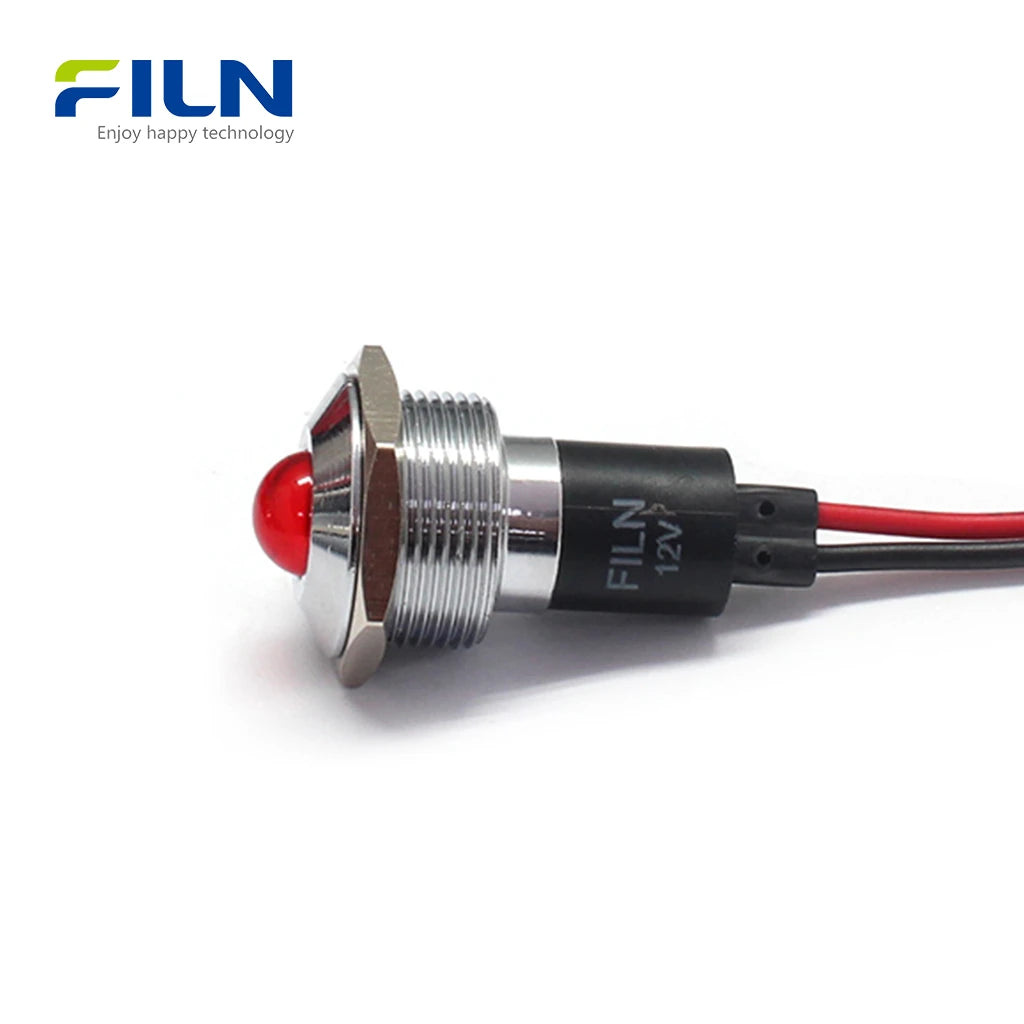

- High-Head Design: The prominent head ensures visibility from the side, making it easier for operators to see status updates in large workshops.

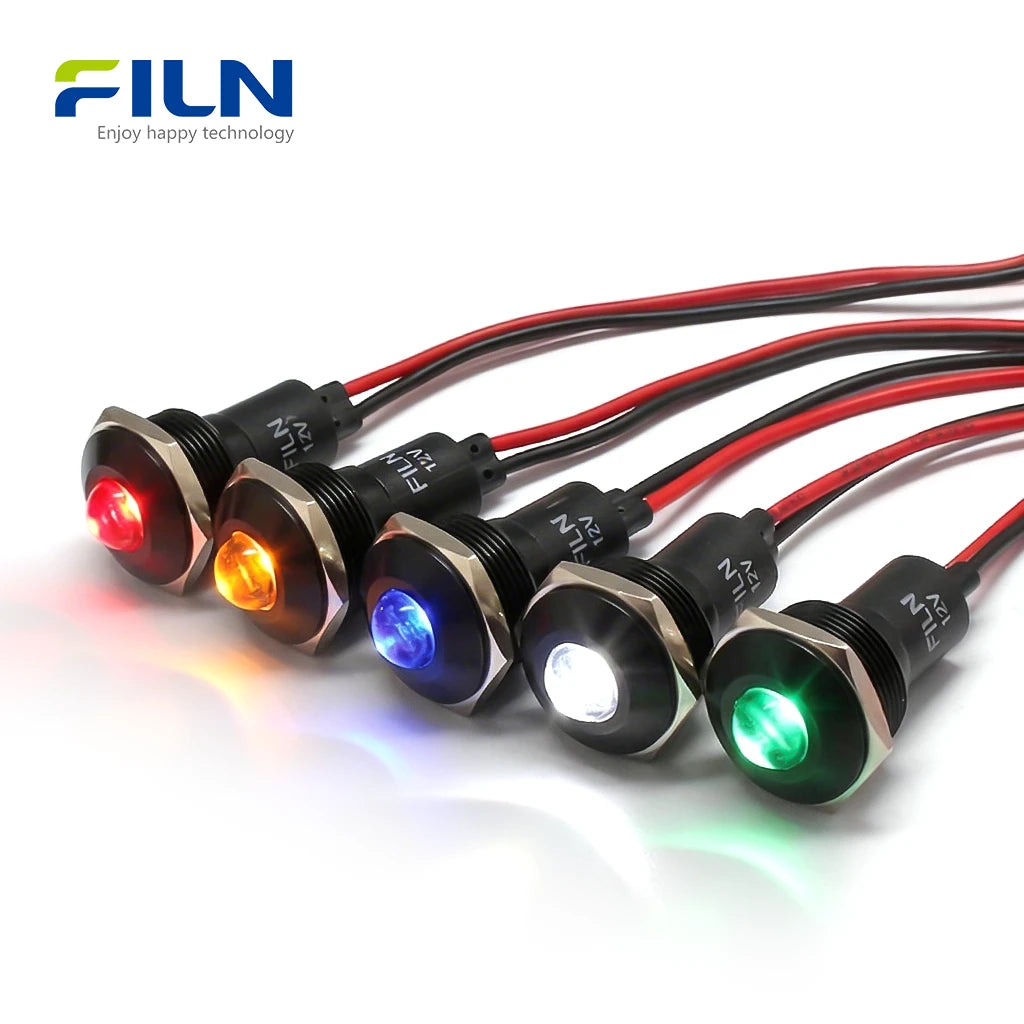

- Industrial Metal Shell: Available in silver nickel or elegant black plating to match your equipment aesthetic.

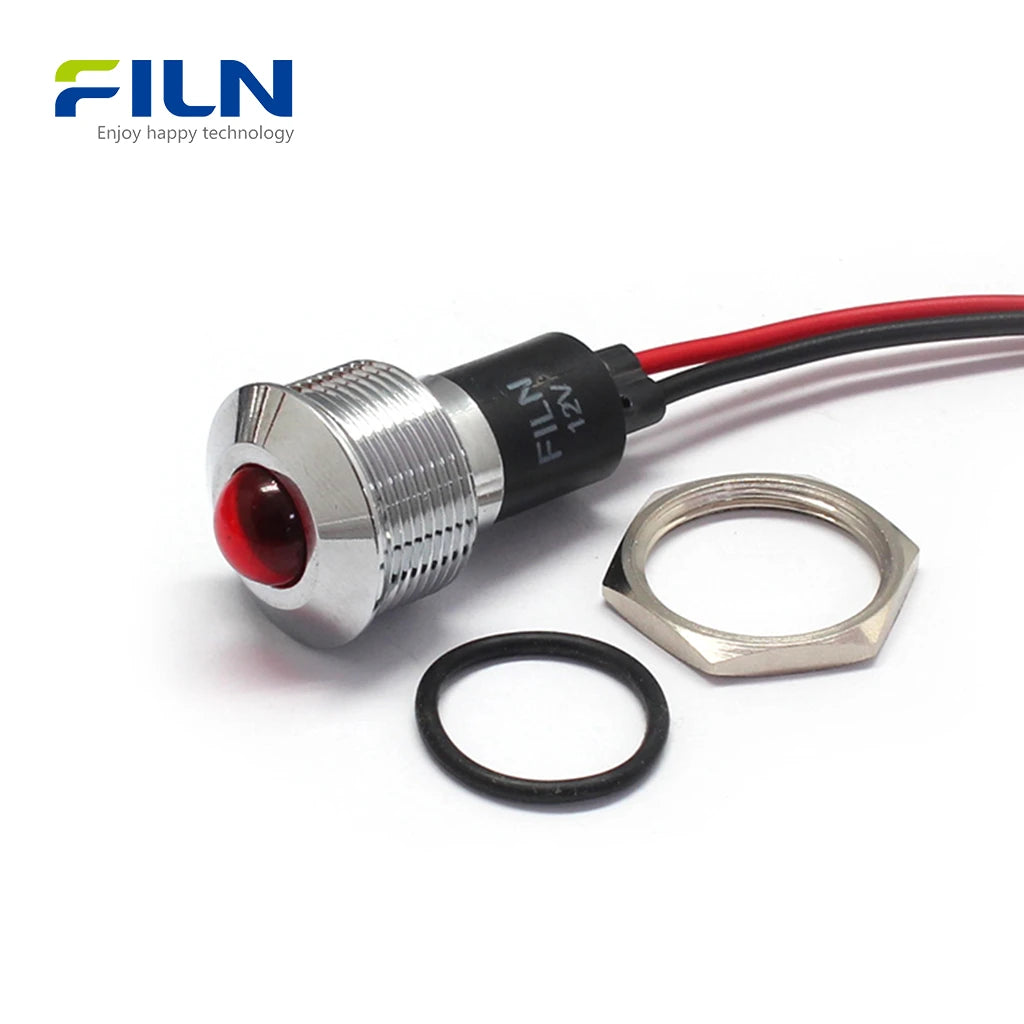

- IP67 Protection: Comes with a 19mm silicone O-ring to prevent water and oil ingress.

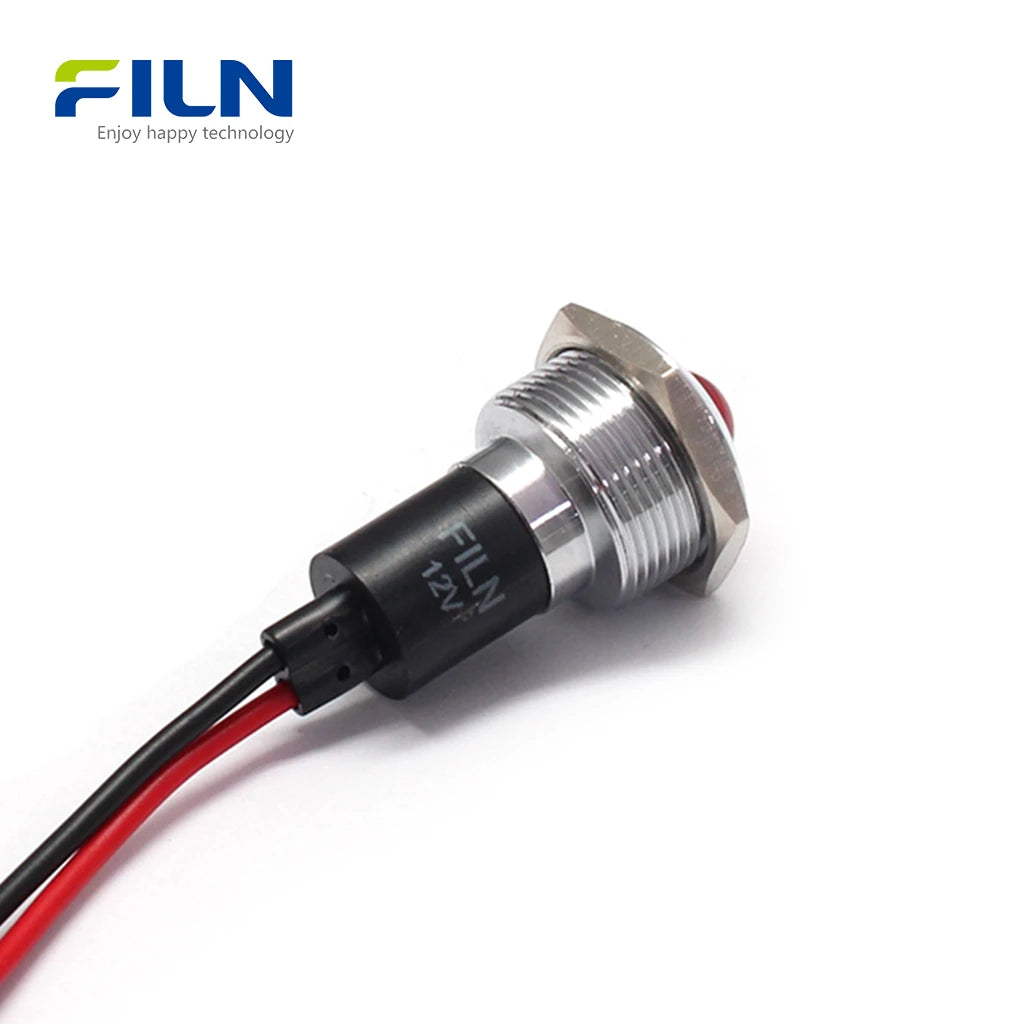

- Pre-wired Convenience: 15cm direct leads allow for faster installation compared to soldering onto pins.
- Excellent Threads: The M19 nut features smooth precision threading for a secure, vibration-resistant mount.
Applications
Suitable for any large or small electrical equipment requiring status signal transmission:
- Industrial control panels and CNC machines
- Medical equipment and laboratory devices
- Commercial kitchen appliances and automation equipment
- Marine systems and outdoor electrical cabinets
- Automotive dashboard signaling
Installation Guide
- Drill a 19mm diameter hole in your target panel.
- Ensure the silicone O-ring is placed against the indicator head.
- Insert the indicator through the hole from the front side of the panel.
- From the back, slide the M19 nut onto the threads and tighten it to compress the O-ring for a waterproof seal.
- Connect the 15cm wires to your power circuit.
What Is an 19mm Panel Indicator Light?
An 19mm panel indicator light is a critical visual feedback component used in industrial machinery. Unlike flush or recessed indicators, the high-head design is specifically engineered for visibility; the LED lens protrudes from the panel, allowing light to be seen from nearly 180 degrees. The pre-wired lead design (with 15cm wires) is often preferred over pin-type terminals because it eliminates the need for on-site soldering, reducing labor costs and minimizing the risk of heat damage to the internal LED during installation. The inclusion of a silicone O-ring and a precision-threaded M19 nut ensures that the installation remains IP67 waterproof, protecting the sensitive internal electronics from industrial fluids and dust.
FILN Factory Direct Advantage
FILN is a professional manufacturer specializing in indicator lights. We offer:
- Factory Direct: Custom solutions and competitive B2B pricing.
- Voltage Customization: We support any voltage from 3V to 380V.
- Wire Customization: Specify your own wire length or connectors.
- Fast Global Shipping: Reliable logistics for your production line needs.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. What is the advantage of a high-head panel indicator light?
The high-head design allows the light to be visible from the side, providing a wider viewing angle.
2. Can I use these indicators for both AC and DC voltages?
Yes, we offer models for 12V-24V and 110V-220V, with customization for any specific voltage.
3. Are these 19mm indicator lights truly waterproof?
Yes, with the included silicone O-ring, they achieve an IP67 rating.
4. What is the difference between pre-wired and pin-type indicators?
Pre-wired models save installation time and reduce the risk of internal heat damage from soldering.
5. What colors are available for the LED?
Standard colors include Red, Green, Yellow, Blue, and White.
6. Is the metal shell corrosion-resistant?
Yes, the plated copper alloy is designed to withstand industrial environments.
7. Does FILN provide UL certification?
Absolutely, we hold UL, CE, VDE, and RoHS certificates.
8. What is the lifespan of the LED signal lamp?
Our industrial-grade LEDs last for over 50,000 hours.
9. Can I request a longer wire than 15cm?
Yes, wire length and connector types are fully customizable by the FILN factory.
10. What size hole is required for mounting?
A standard 19mm mounting hole is required for these units.
