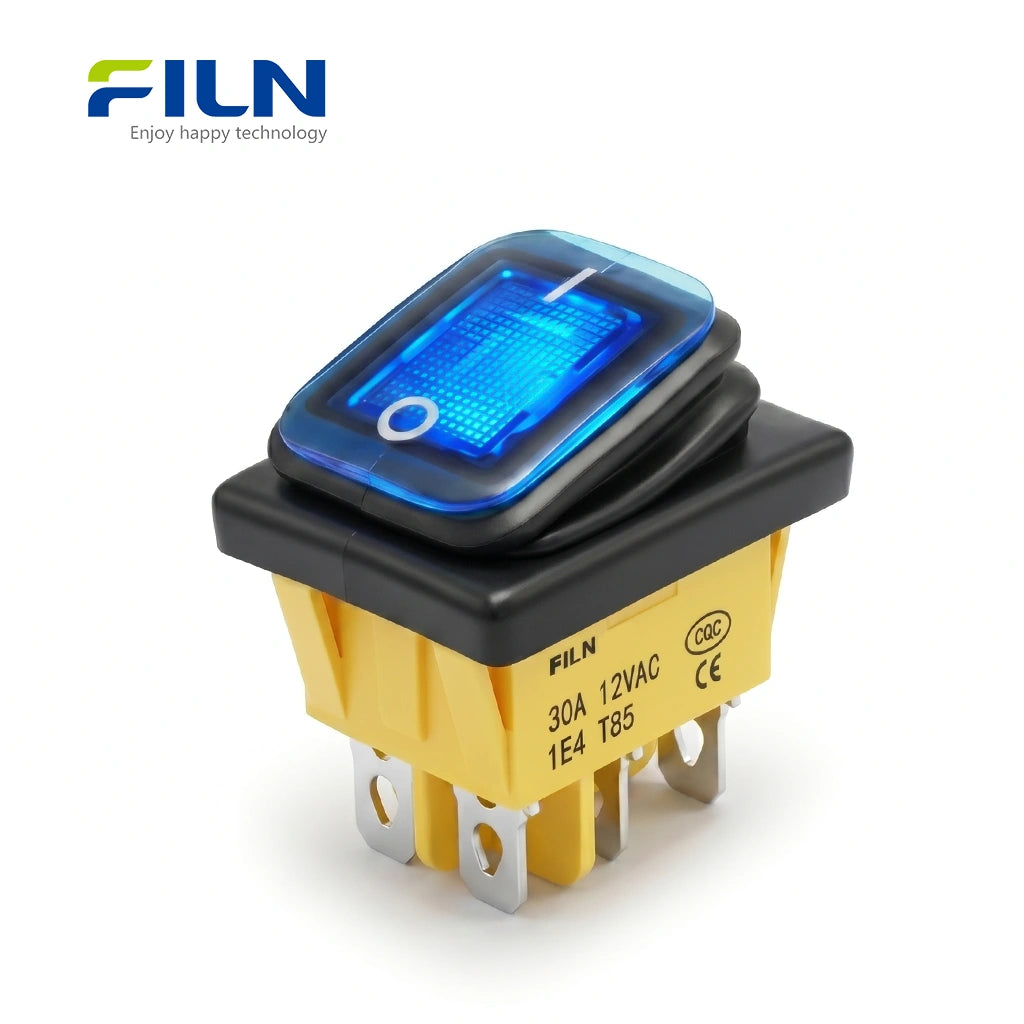

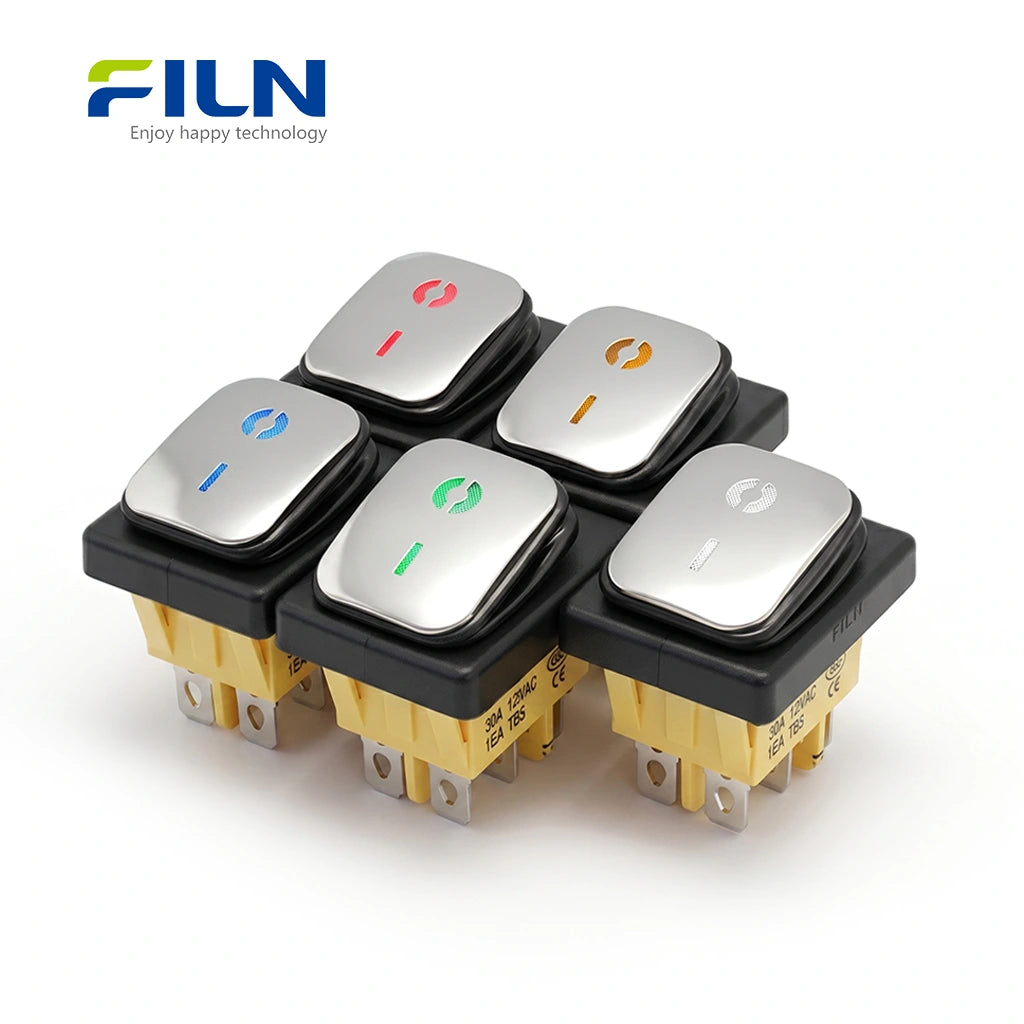

What is a 12V ON ON Rocker Switch?
A 12v on on rocker switch is a high-performance electrical control component designed to alternate electrical current flow between two separate active circuits without a central off or neutral position. Operating on a Double Pole Double Throw (DPDT) structural layout, this 6 pin rocker switch wiring diagram architecture allows industrial systems to simultaneously manage or reverse the operational polarity of two completely isolated circuits. Featuring a 22x30mm rocker switch panel cutout, it provides consistent manual actuation and visual state confirmation through an integrated high-efficiency LED illumination source.
Product Overview

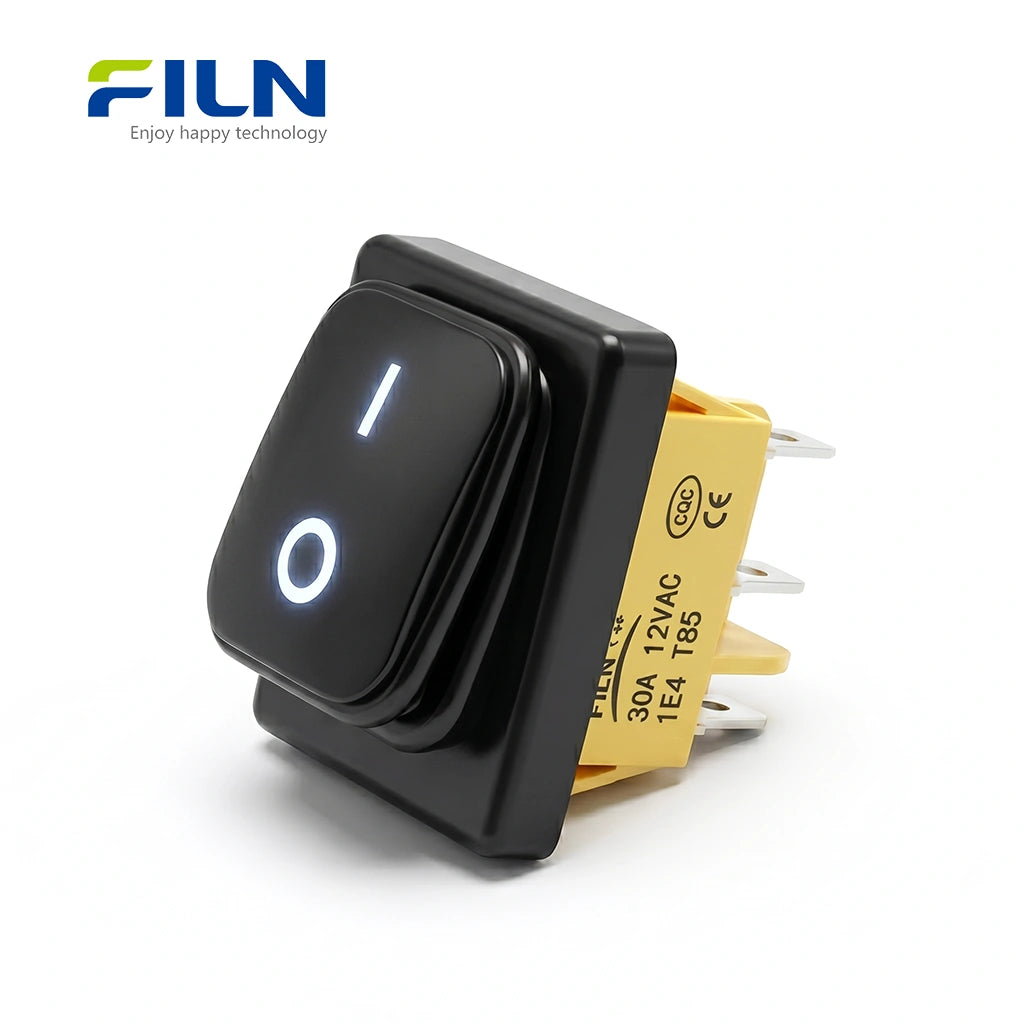

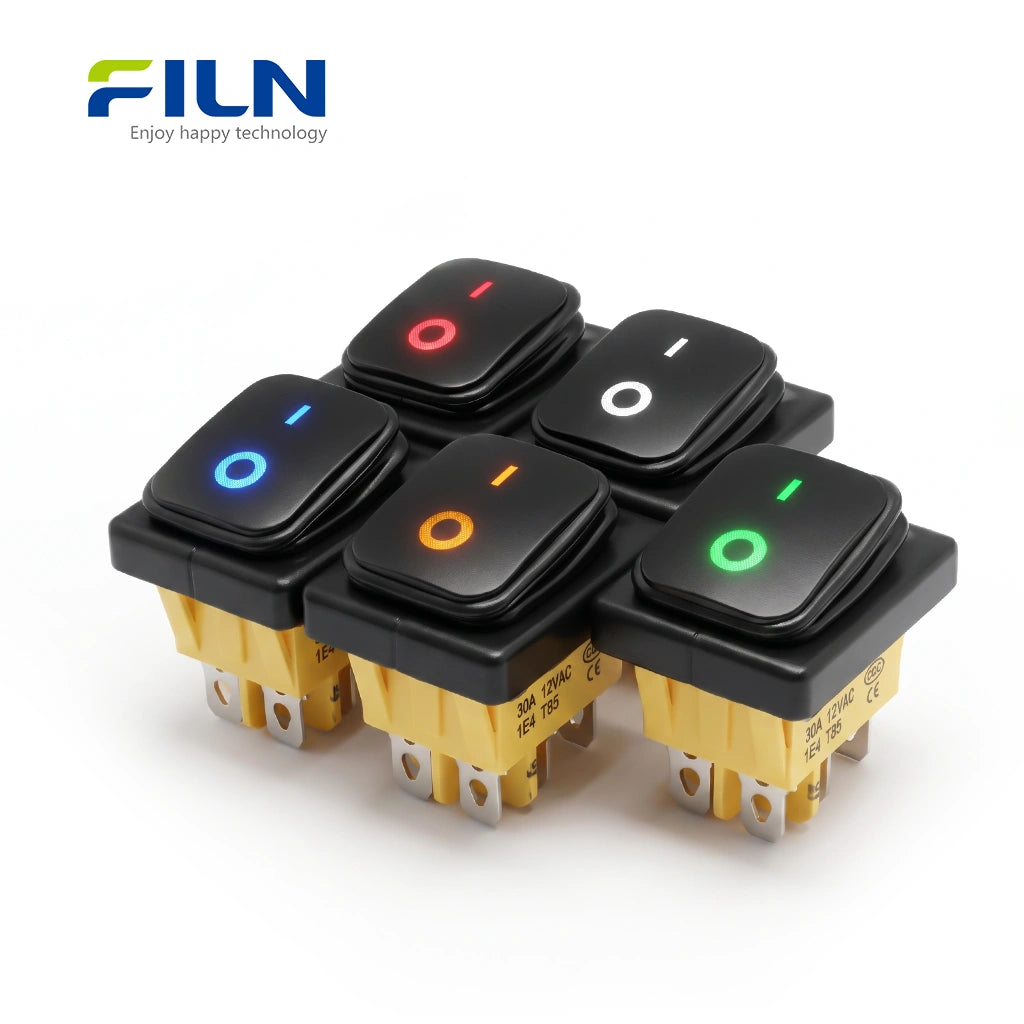

The FILN FL3-KCD4-011-22 model is a heavy-duty 12v on on rocker switch engineered to provide absolute mechanical reliability and precise circuit control under extreme environmental stresses. Built inside a standardized rectangular 22x30mm rocker switch housing, this high-amperage kcd4 rocker switch 30a unit features an IP65 waterproof rating to block dust, moisture, and low-pressure water jets from penetrating internal contacts. Designed for continuous duty cycle applications, it possesses comprehensive international electrical and manufacturing quality credentials, including ISO9001, CE, VDE, RoHS, SGS, and UL standards.
This dual-position switch is widely implemented as a premium component in a custom marine rocker switch panel, heavy-duty automotive rocker switch 12v dashboards, and industrial automation equipment. The unit features an innovative flat button actuator that is exceptionally easy to clean, simple to maintain, and styled with a sleek modern aesthetic. The illuminated rocker switch wiring assembly provides high-visibility lighting performance that ensures operator clarity in absolute pitch-black environments, while its non-fading jet-black structural finish seamlessly blends with any industrial control panel layout.
Quick Specifications
| Model Identifier | FL3-KCD4-011-22 |
|---|---|
| Mounting Panel Hole Cutout | 22 x 30 mm / 0.86 x 1.18 inches |
| Switch Circuit Functionality | ON-ON (Two-Position Continuous Control) |

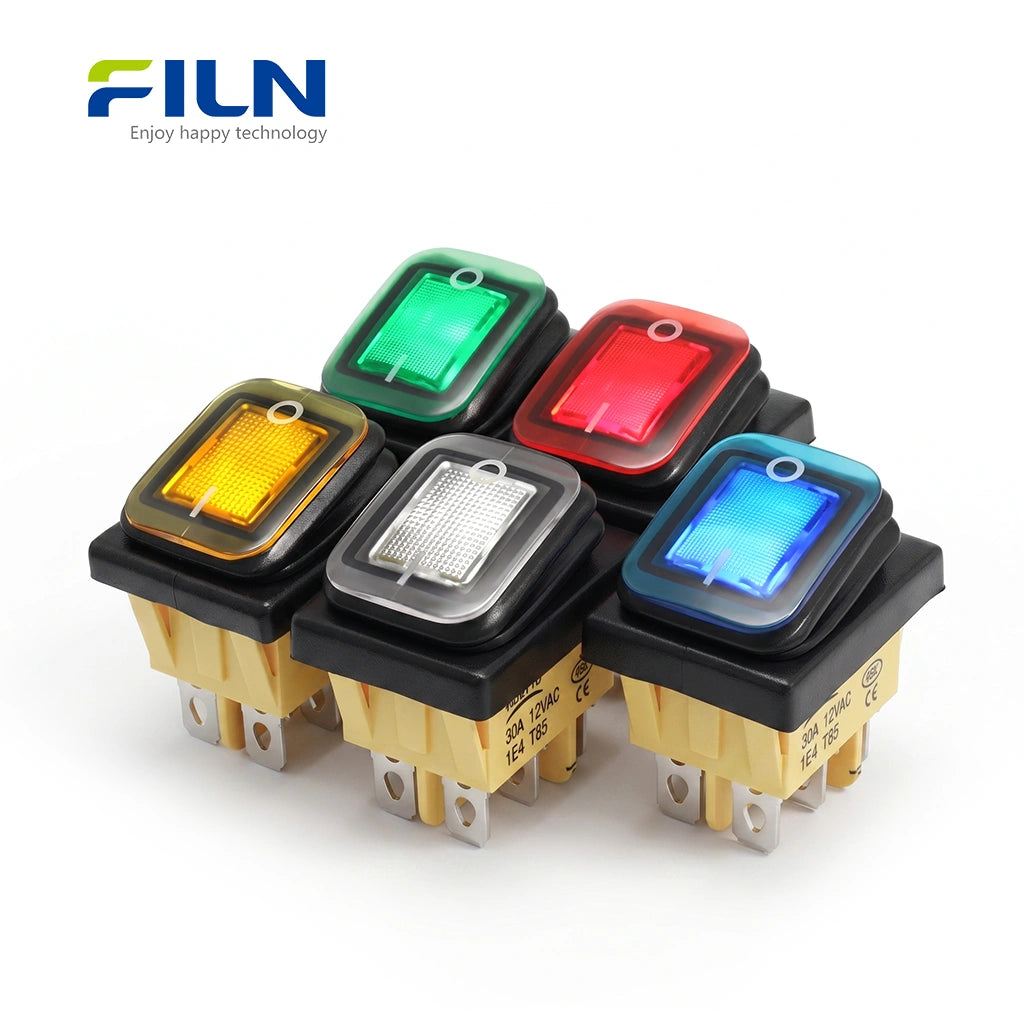

| LED Indicator Illumination Colors | Red (R), Green (G), Yellow (Y), Blue (B), White (W) |
| Actuator Cap Visual Profile | Rectangular Flat Surface Design |

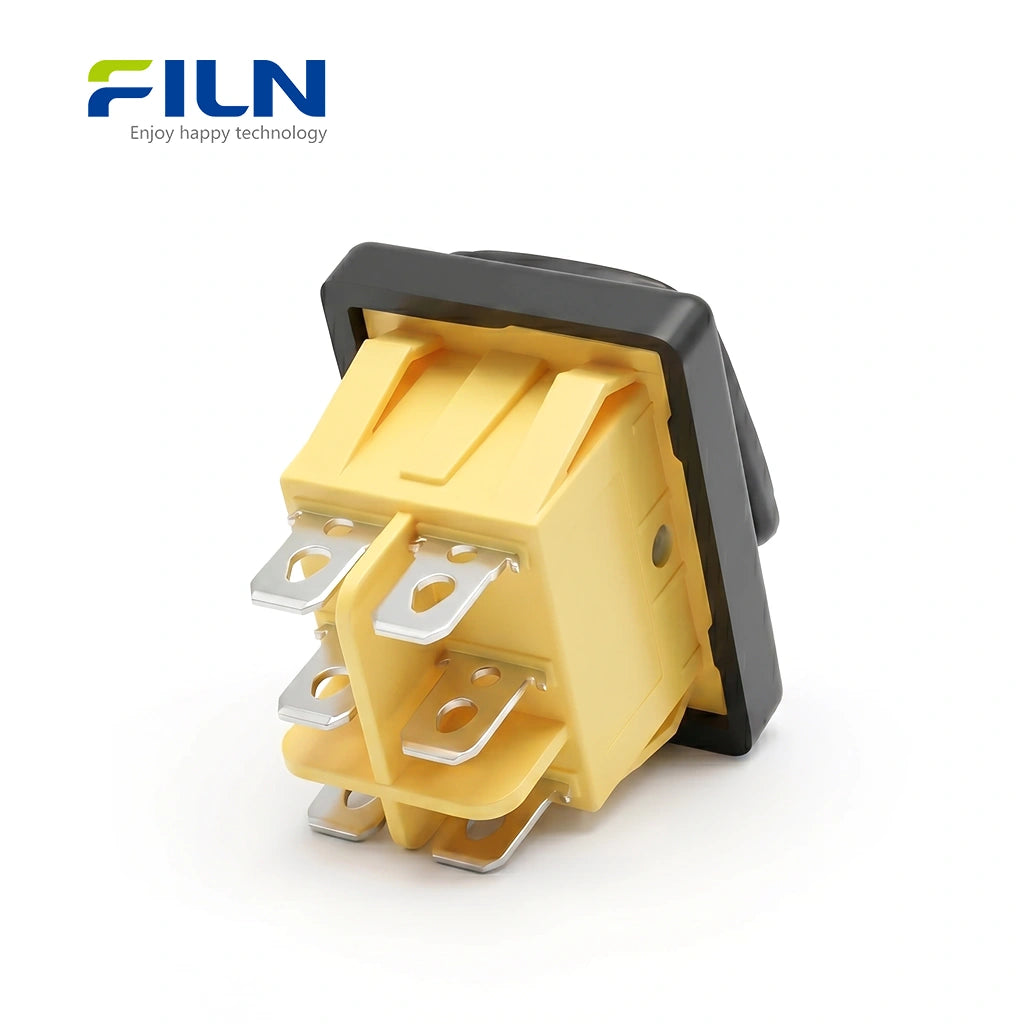

| Electrical Termination Style | 6 Quick-Connect Spade Pins (6.3mm) / Wire Leads |
Technical Performance Parameters
| Technical Feature Criterion | Engineering Parameter Value |
|---|---|
| Switch Configuration Function | ON-ON (No Center Position) |
| Maximum Continuous Rated Voltage | 30A 250VAC / 18(12)A 125VAC (Custom 5V-24V / 110V-220V) |
| Maximum Permissible Current Capacity | 30 Amperes at 250VAC Heavy Industrial Load |
| Initial Electric Contact Resistance | Less than or equal to 50 Milliohms (≤50mΩ) |
| Minimum Circuit Insulation Resistance | Greater than or equal to 100 Megohms at 500VDC (≥100mΩ/500VDC) |
| Dielectric Breakdown Strength | 1500VAC at 5mA for Exactly 60 Seconds |
| Rated Electrical Operating Lifespan | 10,000 Continuous On-Off Actuation Cycles |
| Safe Ambient Operating Temperature Range | From -40°C Up to +125°C (-40T125 Industrial Grade) |
| Ingress Protection Level Rating | IP65 Waterproof Housing / IP66 Dust-Tight Optional |
| International Quality Certifications | ISO9001, CE, VDE, RoHS, SGS, UL Compliance Standards |
Component Materials
| Component Part Name | Raw Material Engineering Specification |
|---|---|
| Transparent Actuator Sheet | Polycarbonate (PC) High Clarity Plastic |
| Light Guiding Internal Element | Optical Grade Polycarbonate (PC) |
| Structural Support Holder | Acrylonitrile Butadiene Styrene (ABS) Plastic |
| Environmental Waterproof Cover | High Elasticity Vulcanized Silicone Rubber |
| Upper Enclosure Housing Base | Acrylonitrile Butadiene Styrene (ABS) Impact Grade |
| Lower Structural Terminal Base | Polyamide 66 (PA66 Nylon) Flame Retardant UL94-V0 |
| Middle Rocker Pivot Base | Acrylonitrile Butadiene Styrene (ABS) Plastic |
| Pin Terminals / Spring Board Element | Tin-Plated H62 Heavy-Gauge Brass Alloy |
| Electrical Internal Contacts | Silver Cadmium Oxide Alloy (AgCdO12 Compound) |
| Internal Tension Control Spring | 72# High Carbon Carbon-Steel Wire |
| Internal Steel Mechanism Armature Sleeve | 08F Cold-Rolled Structural Low Carbon Steel |
| Panel Mount Sealing Washer | Synthetic Nitrile Butadiene Rubber (NBR) |
| Integrated Pilot Lamp Core Assembly | Solid State High-Brilliancy LED Lamp Array |
General Characteristics
| Operational Parameter | Standard Engineering Specifications & Test Metrics |
|---|---|
| Application Range | This industrial document defines the complete environmental and test requirements for the standard KCD4 series rocker switches. |
| Component Part Name | Industrial Heavy-Duty Rocker Switch (KCD4 Panel Mount Mechanical Category). |
| Thermal Storage Range | Safe operating temperature threshold: -40°C to +125°C; Safe storage temperature limits: -40°C to +125°C. |
| Atmospheric Relative Humidity | Maintains structural and electrical integrity between 45% and 85% relative humidity levels. |
| Baseline Testing Criteria | Unless otherwise noted, data measurements are conducted at an Ambient Temperature of 5°C to 35°C, Relative Humidity of 45% to 85%, and an Air Pressure of 86Kpa to 106Kpa (860mbar to 1060mbar). |
Comprehensive Testing Protocols
| Test Classification | Rigorous Technical Evaluation Test Method | Required Performance Criteria |
|---|---|---|
| Visual Finish Quality | Inspect housing, contacts, and pins under high magnification. | Good surface finish, zero oxidation, zero cracks, zero plating defects. |
| Dimensions & Layout | Compare switch body profile against blueprint specs using digital calipers. | Strict conformance to individual factory blueprint dimensions. |
| Contact Resistance | Measured across active terminal pairs at low-current 1KHz AC signal. | Initial resistance value must not exceed 50 Milliohms (≤50mΩ). |
| Insulation Resistance | Apply 500VDC for 60±5 seconds across adjacent non-connected active pins. | Resistance must be greater than or equal to 100 Megohms (≥100MΩ). |
| Dielectric Breakdown | Apply 1500VAC (5mA) between insulated terminals for 60 seconds. | No internal insulation breakdown, zero surface arcing, zero flashing contacts. |
| Actuation Force Test | Apply perpendicular directional force to edge of rocker actuator cap. | Calibrated and adjusted precisely to requested customer guidelines. |
| Terminal Load Stability | Apply static inward mechanical load of 80N directly to terminal tip for 60 seconds. | Zero physical deformation, zero pin detachment, normal subsequent operation. |
| Solderability Analysis | Immerse pin terminals into molten solder tank at 235±5°C for 3±0.5 seconds. | More than 90% of immersed terminal surface area uniformly coated. |
| Soldering Thermal Stress | Solder pot dipping at 260±5°C for 3±1s; Iron soldering at 350±5°C for 3±1s without stress. | Zero enclosure warpage, mechanical/electrical features remain fully compliant. |
| Mechanical Lifespan | Actuate switch mechanism at speed of 60 actions per minute under Zero Load. | Minimum 20,000 cycles; retains 75% baseline dielectric strength. |
| Electrical Durability | Actuate switch mechanism at speed of 15 actions per minute under Full Rated Load. | Minimum 10,000 cycles; retains 75% baseline dielectric strength. |
| High Thermal Stress | Bake switch inside environment chamber at 125±2°C for 72 consecutive hours. | 1. Outer frame and inner components show no visible degradation. 2. Circuit contact resistance stabilizes below 200mΩ. 3. Insulation resistance reads above 2MΩ. 4. Withstand voltage properties remain stable. |
| Humidity Resistance | Expose to 40±2°C at 91% to 95% RH humidity profile for 96 consecutive hours. | |
| Low Thermal Stress | Freeze switch inside environmental deep chamber at -40±2°C for 12 hours. | |
| Thermal Shock Profile | Cycle switch across extreme hot/cold operational thresholds 5 consecutive times. |
The Difference Between Framed and Frameless Rocker Switches
In precise industrial power application deployments, choosing the ideal physical exterior format is critical to matching the structural demands of the machine housing. FILN offers both the Reinforced Framed White-Core Edition and the Classic Sleek Standard Frameless Edition for the KCD4 product range. This allows electrical engineers to align switch structural characteristics with specific operating conditions.
1. Reinforced White-Frame Series: High-Load Mechanical Stability
The premium reinforced version features an integrated high-rigidity internal structural white polyamide structural frame that effectively acts as a protective exoskeleton inside the switch casing. When installing into highly rigid metal sheet frames or tight-tolerance thick control panel cutouts, this extra reinforcement layer absorbs structural compressive mounting forces. This prevents body warpage, keeps internal contacts precisely aligned, and provides a secure snap-in latch hold.
Additionally, this frame provides a reliable sealing seat for the flexible silicone waterproof boot. It firmly clamps the rubber edge down to prevent lip rollover or water creeping under the seal after thousands of active toggle presses. The wider outer lip border also cleanly hides minor panel cutting irregularities, such as jagged edges or burrs. This makes it an ideal fit for high-end medical test setups, marine instrumentation panels, and demanding heavy machinery control boards.
2. Standard Frameless Series: Minimalist Space Optimization
The standard frameless configuration features a space-optimized footprint, eliminating excess outer frame width to maximize usable surface area. This ultra-compact profile allows system designers to arrange multiple switches in tight, high-density row layouts where space is at a premium.
Though stripped of the external reinforcement ring, the internal current-carrying copper plates and silver-alloy contact interfaces match the heavy-duty specifications of the framed model. For standard, clean, dry operating environments with rigid flat dashboards, the frameless variant serves as a highly reliable, cost-effective choice for mass-production consumer appliances, power distribution blocks, and office equipment.
Industrial & Commercial Applications
Because of their simple installation, reliable arc quenching performance, and intuitive tactile feel, rocker switches are standard controls across diverse engineering industries. The KCD4 12v on on rocker switch series handles high inrush currents effectively, making it highly useful for both low-voltage DC electronics and heavy AC equipment:
- Commercial Food Service & Smart Appliances: Used as power isolators in coffee brewers, deep fryers, water purification units, commercial ovens, and heating systems.
- Industrial Power Distribution & Control Desks: Built into electrical test benches, factory power strips (PDUs), manufacturing control consoles, and distribution panels.
- Marine Vessels & Custom Vehicles: Installed in boat dashboards, marine switch panels, commercial trucks, RV auxiliary systems, and interior lighting control centers.
- Industrial Factory Machinery: Controls material conveyors, packaging plants, automated assembly jigs, and portable heavy-duty cutting tools.
- Medical & Clinical Equipment: Main power controls for centrifuges, laboratory microscopes, diagnostic systems, and motorized hospital beds.

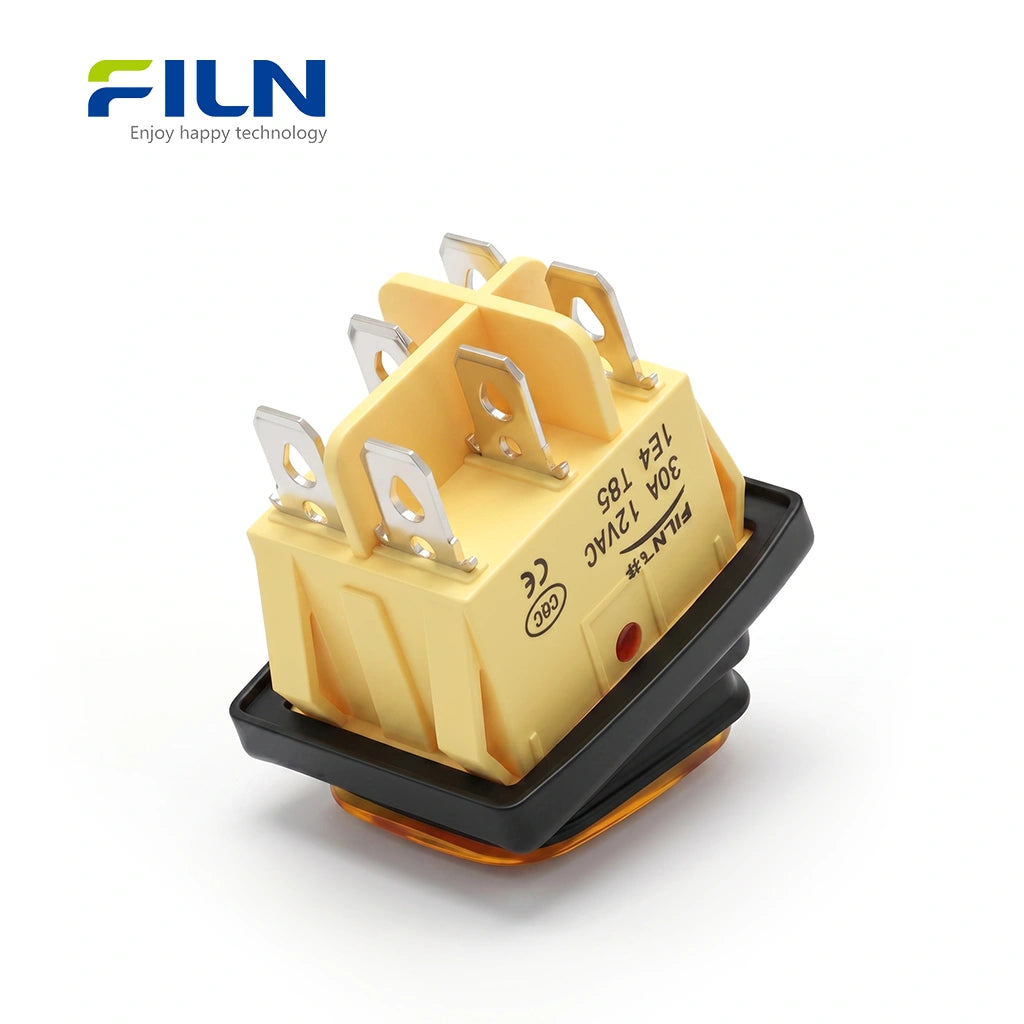

Rocker Switch Installation Guide
Integrating a 22x30mm rocker switch into your system panel requires specific mechanical sequencing. Follow this professional rocker switch installation guide to ensure a stable snap-fit hold and prevent terminal stress or loose connections:
- Panel Preparation: Cut a clean, rectangular 22x30mm mounting hole in your panel plate, ensuring the edges are smooth and free of burrs.
- Waterproof Washer Attachment: Fit the flexible rubber sealing washer over the bottom terminal body and slide it tightly up against the top shoulder of the switch frame.
- Snap-In Panel Insertion: Align the switch body over the hole cutout and push firmly downward from the front face until the integrated side retaining latches snap securely into place against the back of the panel.
- Electrical Connection Setup: Slide fully insulated 6.3mm female quick-connect spade receptacles onto the brass output pins according to your planned wiring diagram. Avoid pulling or bending the contacts sideways during insertion.
Technical Wiring Configurations
Depending on system requirements, rocker switches can be wired in several electrical configurations. The functional pin count on the back of the housing determines how the switch interacts with input lines, load lines, and internal LED lamps.
Industrial Sourcing Portal Direct Action:
Looking for comprehensive technical schematics, different pin configurations, or bulk commercial purchasing options?

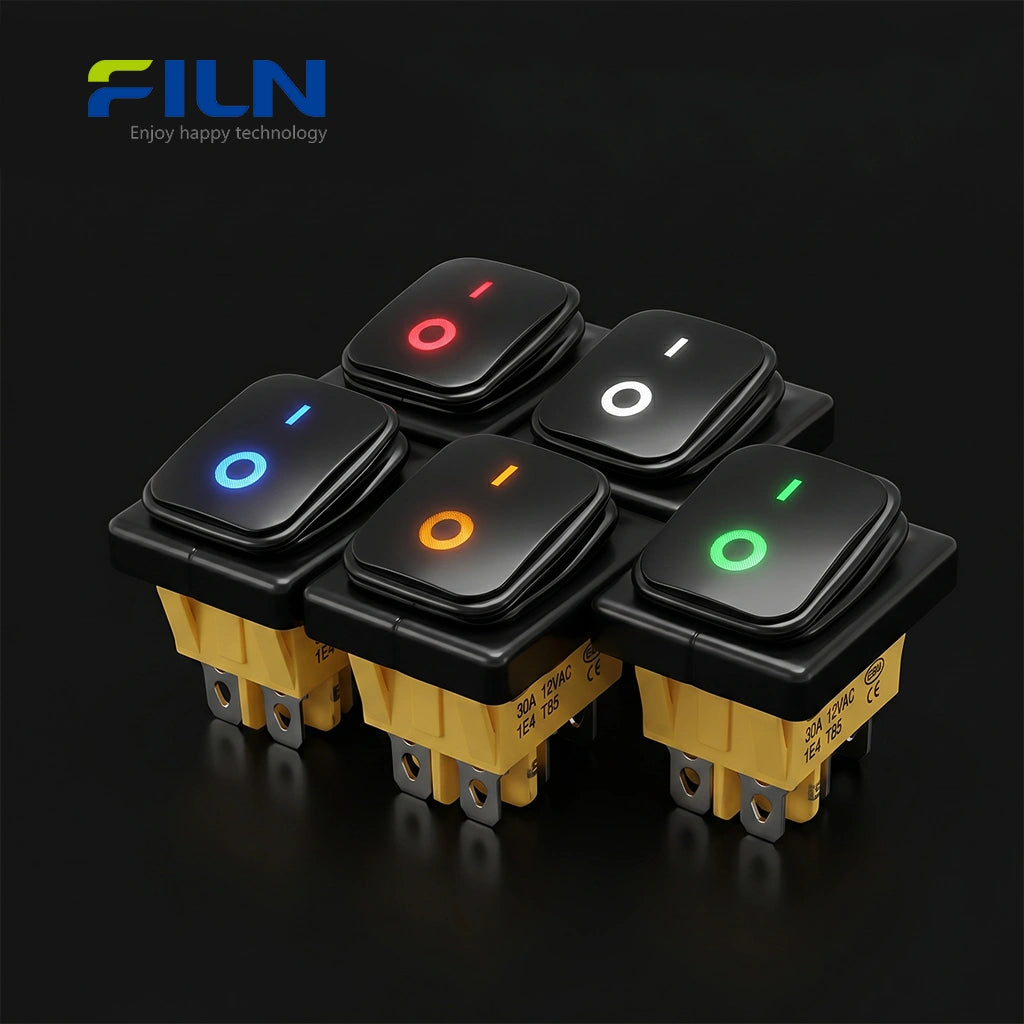

Open All Rocker Switch Products In New Window6 Pin Rocker Switch Wiring Configuration (DPDT Alternate Route Architecture)
Based on the technical principles detailed in the 6 pin rocker switch wiring diagram.txt guide, a 6-pin switch features two independent columns of terminals. To configure this for a dual alternating device setup, follow this specific connection logic:
- Line Power Feed Input: Connect the positive (+) wires coming from your central power source directly to the middle pair of pins. This serves as the common distribution feed point for both internal switch poles.
- Primary Load Device 1 Hookup: Connect the top pair of pins to the positive input terminals of your primary device (e.g., Device 1). When the rocker face is toggled to the "Up" position, this specific circuit path is closed and energized.
- Secondary Load Device 2 Hookup: Connect the bottom pair of pins to the positive terminals of your alternate accessory (e.g., Device 2). Toggling the rocker face to the "Down" position redirects power away from the top circuit to close this path.
- Internal Lamp Indicator Grounding: For illuminated versions, connect a shared ground wire from the negative (-) source to the dedicated ground pin terminal on the switch casing to illuminate the internal LED.
4 Pin Rocker Switch Wiring Configuration (DPST On-Off Operation)
Based on the 4PIN rocker switch wiring.txt technical blueprint guidelines, a 4-pin device functions as a Double Pole Single Throw switch that interrupts or connects both power legs simultaneously. It can be wired in two ways:
- Dependent Lamp Operation Mode (Status Feedback): Connect incoming positive and negative source lines directly to the bottom set of terminals, and run outbound lines from the top terminals to the target device. The internal LED lights up only when the switch rocker is clicked to the active ON position.
- Independent Lamp Operation Mode (Switch Finder Mode): Connect the incoming main line feed directly to the top set of terminals where the internal lamp circuit is bridged. This layout keeps the internal LED indicator continuously lit for visibility in dark rooms or dashboards, regardless of whether the load device is active.
Alternative Single-Pole Wiring Logic Formats
For simpler low-current system requirements, standard single-pole variations are commonly configured following these baseline connection guidelines:
- Standard 2-Pin Configurations: Following the 2 pin rocker switch wiring diagram.txt schematic, the switch functions as a basic inline break on the positive line. The input wire connects to terminal 1, while the output load wire hooks onto terminal 2, with no ground reference needed on the switch housing.
- Standard 3-Pin Illuminated Configurations: Based on the 3 pin illuminated rocker switch wiring diagram.txt layout, connect the positive feed line to the middle common pin, the output load wire to the bottom pin, and a dedicated negative ground line to the brass terminal to power the internal indicator lamp.
- Standard 3-Pin 3-Way Non-Illuminated Configurations: Following the 3-pin-rocker-switch-wiring-diagram.txt schematic, this design features an On-Off-On function. Connecting the main power line to the center pin allows the operator to alternate current to Device A or Device B via the outer terminals, utilizing a central position as a neutral Off state.
Industry Knowledge: How a Rocker Switch Works
At its mechanical core, a rocker switch operates on an internal fulcrum contact pivot design. When an operator depresses one side of the external plastic rocker cap, the component acts like a miniature seesaw, tilting across a central axis. This physical movement forces an internal spring-loaded conductive metal wedge or roller contact bar to slide across internal copper plates fixed to the bottom pins. This mechanical action bridges or breaks the connection between specific input and output terminals, closing or opening the electrical circuit.
In an 12v on on rocker switch, the internal contact assembly is configured with a two-sided active layout. Because it lacks a central detent stop or resting position, the internal slider contact rests against one terminal pair or the other. This ensures one of the two downstream circuits is always energized, preventing an accidental "off" state.
The 6 pin rocker switch wiring diagram architecture utilizes two independent mechanical paths housed inside a single plastic shell. This layout allows a single physical actuation to manage two separate power phases or isolate completely different voltage sources simultaneously. This feature is particularly useful for motor-reversal control circuits (H-bridge configuration), where reversing positive and negative lines alters the direction of a DC motor armature instantly.
FILN Factory Direct Manufacturing Capabilities
As an established industrial manufacturing enterprise, FILN provides full-service customization and high-volume direct B2B supply chains for premium electrical controls. We support custom wire harness integration, automated connector installations, and custom operational voltage variants (from 5V-24V up to 110V-220V) tailored to your exact technical specifications.
- Flexible Procurement Policy: No Minimum Order Quantity (Zero MOQ) constraints for standard catalog parts.
- Rapid Production Lead Times: Fast manufacturing turnaround cycles and secure global express freight shipping.
- Complete Safety Certifications: Fully certified under CE, UL, RoHS, VDE, SGS, and ISO9001 frameworks.
- Comprehensive Engineering Customization: Tailored voltage configurations, specific wire lead lengths, and pre-installed quick plugs.
FILN Official Engineering Resource Hub: www.filn.com
Global B2B Sales Department Email Inbox: inquiry@cnylin.com.cn
Frequently Asked Technical Questions
Q1: What exactly does an ON-ON function mean for a 12v on on rocker switch?
A: An ON-ON switch toggles current alternately between two separate output circuits without an intermediate neutral "off" position. Clicking one side routes current to the first path, while clicking the opposite side instantly cuts power to the first and energizes the second path. This makes it ideal for continuous operations where power must alternate but never completely stop.
Q2: How do you identify the specific pins on a 6 pin rocker switch wiring diagram with light?
A: A standard 6-pin DPDT rocker switch has two parallel columns of three pins. The center pair connects to the main incoming positive power feed lines. The top pair routes power to target device A, while the bottom pair routes to target device B. For illuminated models, a dedicated, separate ground pin (often brass or gold-colored) connects to the negative return line to complete the internal LED circuit.
Q3: Can the 22x30mm rocker switch operate reliably on high voltage AC lines like 110V or 220V?
A: Yes, the heavy-duty mechanical contacts of the FL3-KCD4-011-22 model are explicitly rated to handle currents up to 30A at 250VAC. However, for illuminated switches, the internal LED indicator lamp must be configured to match the target system voltage (e.g., 12VDC, 110VAC, or 220VAC) to prevent lamp failure or insufficient brightness.
Q4: What is the primary operational advantage of the white reinforced frame model over standard frameless rocker switches?
A: The reinforced white frame model features an internal structural exoskeleton that absorbs installation pressure when snap-mounting into tight or rigid panel cutouts. This extra rigidity prevents structural casing warpage, ensures proper internal contact alignment, and provides a stable seat for a silicone waterproof cover to prevent moisture entry.
Q5: What are the material specifications used for internal contacts to ensure a long durability lifespan?
A: FILN uses premium silver cadmium oxide (AgCdO12) alloy alloyed directly onto copper spring elements for internal contacts. This material mix provides high electrical conductivity, resists mechanical wear, and minimizes electrical arcing, allowing the switch to maintain a long operational lifespan under high current loads.
Q6: How does independent illumination differ from dependent illumination on an illuminated rocker switch wiring setup?
A: Dependent wiring hooks the indicator lamp to the output side, lighting the LED only when the switch is clicked to the active position. Independent wiring hooks the lamp directly to the main input line, keeping the LED illuminated continuously so operators can easily locate the switch in pitch-black rooms or dashboards.
Q7: Does this waterproof rocker switch 12v model hold official international safety certifications?
A: Yes, all FILN industrial switches undergo rigorous quality testing and carry official certification listings under UL, CE, VDE, RoHS, SGS, and ISO9001. These credentials verify that the component complies with global safety and environmental guidelines for industrial machinery and commercial appliance systems.
Q8: What is the recommended method for connecting wires to the pins without risk of overheating components?
A: The safest and most common connection method uses standard 6.3mm pre-insulated female spade crimp connectors slid onto the quick-connect terminals. If direct manual soldering is required, use a clean soldering iron at 350°C for no longer than 3 seconds, and avoid applying physical force to the pins during heating to prevent the lower nylon base from softening.
Q9: Can the factory supply custom pre-wired assemblies for large scale commercial production lines?
A: Yes, FILN provides complete factory direct customization services. We can supply switches pre-wired with custom length wire harnesses, integrated quick-connect plugs, and specific terminal modifications to simplify installation on your assembly lines.
Q10: What absolute maximum ambient environmental temperature can this kcd4 rocker switch 30a safely tolerate?
A: This industrial-grade component features a high-performance PA66 nylon base housing rated for temperatures ranging from -40°C up to +125°C (-40T125 rating). This robust thermal resistance keeps the switch structurally sound and electrically stable in hot engine bays, deep commercial fryers, and harsh outdoor environments.
